CPU

• Installed Processors (Max): 0 (1)
• Supported Processor Manufacturer: AMD
• Supported Processors: Ryzen 5000 / 4000 / 3000 Series Processors
• 64-bit Support: Yes
• Socket: AM4

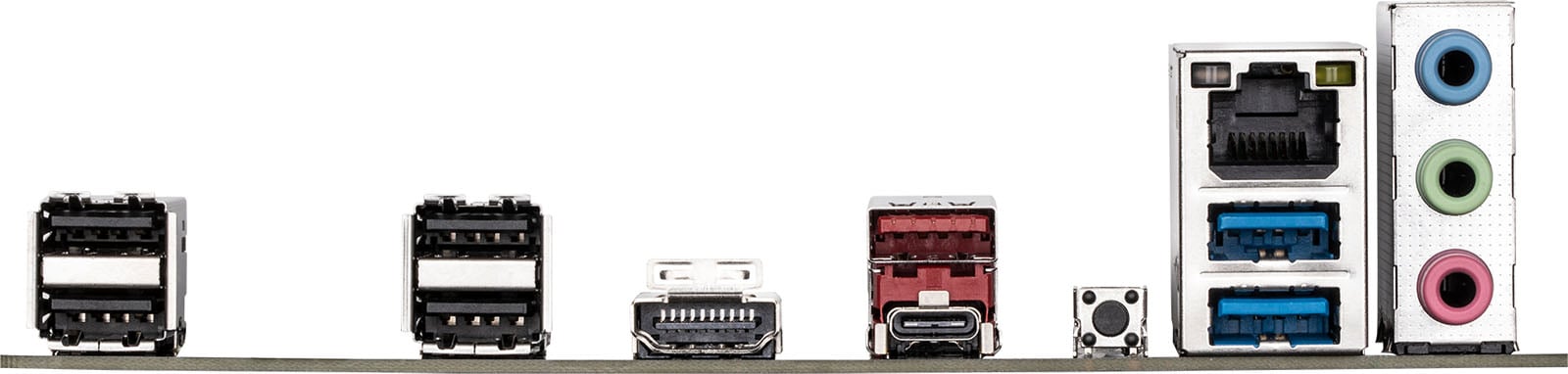

Rear Panel I/O Ports

• USB Ports: 1 x USB 3.1
• 1 x USB-C 3.0
• 2 x USB 3.0
• 4 x USB 2.0
• HDMI Port: 1 x HDMI 2.1

Internal I/O Connectors

• SATA Connectors: 4 x SATA
• USB Connectors: 1 x USB-C 3.0 header (supports 1 port)
  1 x USB 3.0 header (supports 2 ports)
• 2 x USB 2.0 headers (supports 4 ports)

Memory

• Memory Bus Speed: Up to 3200 MT/s
• Memory Type: DDR4

Motherboard

• Northbridge: AMD B550
• RAID Supported: Yes
• RAID Format: RAID 0, 1, 10
• SATA Supported: Yes

Rear Panel I/O Ports

• RJ-45 Ports: 1 x RJ-45
• Audio Line In Ports: 1 x 3.5mm Jack
• Audio Line Out Ports: 1 x 3.5mm Jack
• Microphone In Port: 1 x 3.5mm Jack

Internal I/O Connectors

• Front Panel Connectors: 1 x Front Panel
• 1 x Front Audio
• Cooling Fan Support: 1 x CPU fan header
• 1 x CPU fan/Water Cooling pump header
• 3 x System fan headers
• TPM Header: 1 x TPM header (2x6 pin, for the GC-TPM2.0_S module only)
• Power Connector Port: 1 x 24-pin ATX
• 1 x 8-pin EPS
• Other Connectors: 1 x M.2 slot, Socket 3, M Key, Type 2280/22110 (PCIe Gen4 or SATA)
  1 x M.2 slot, Socket 3, M Key, Type 2280/22110 (PCIe Gen3)
  2 x 3-pin ARGB headers
• 2 x 4-pin RGB header

Expansion

• Number of PCI Express Slots: 1 x PCI Express 4.0 x16 slot
• 4 x PCI Express 3.0 x1 slots

Memory

• Maximum RAM: 128 GB
• Memory Slot: 4 x DIMM

Graphics Device

• Integrated Graphics Supported: Yes

Sound

• Integrated Sound: Realtek

Warranty

• Warranty: 3 Years

Network

• Integrated Network: Realtek
• Network Speeds Supported: Up to 1 Gbps
• Wireless LAN: No
• Bluetooth: No

System Requirements

• Operating Systems Supported: Microsoft Windows 11

System

• Jumpers: 1 x Clear CMOS
• Software Included: Yes
• Drivers: Yes

Physical

• Form Factor: ATX Motherboard
• Width: 244 mm
• Length: 305 mm

Identifiers

• Stock Code: MBD3888
• Mfg Code: B550 EAGLE
