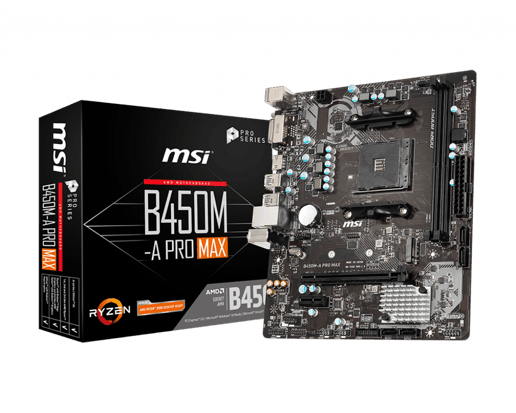

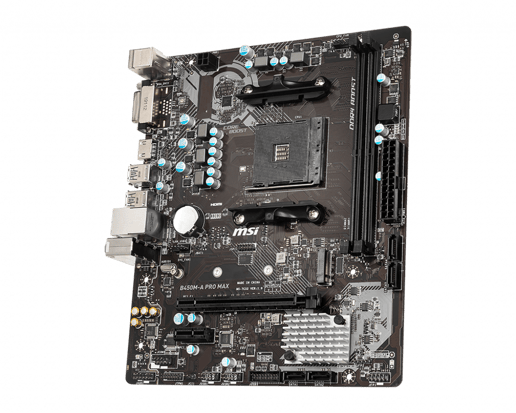

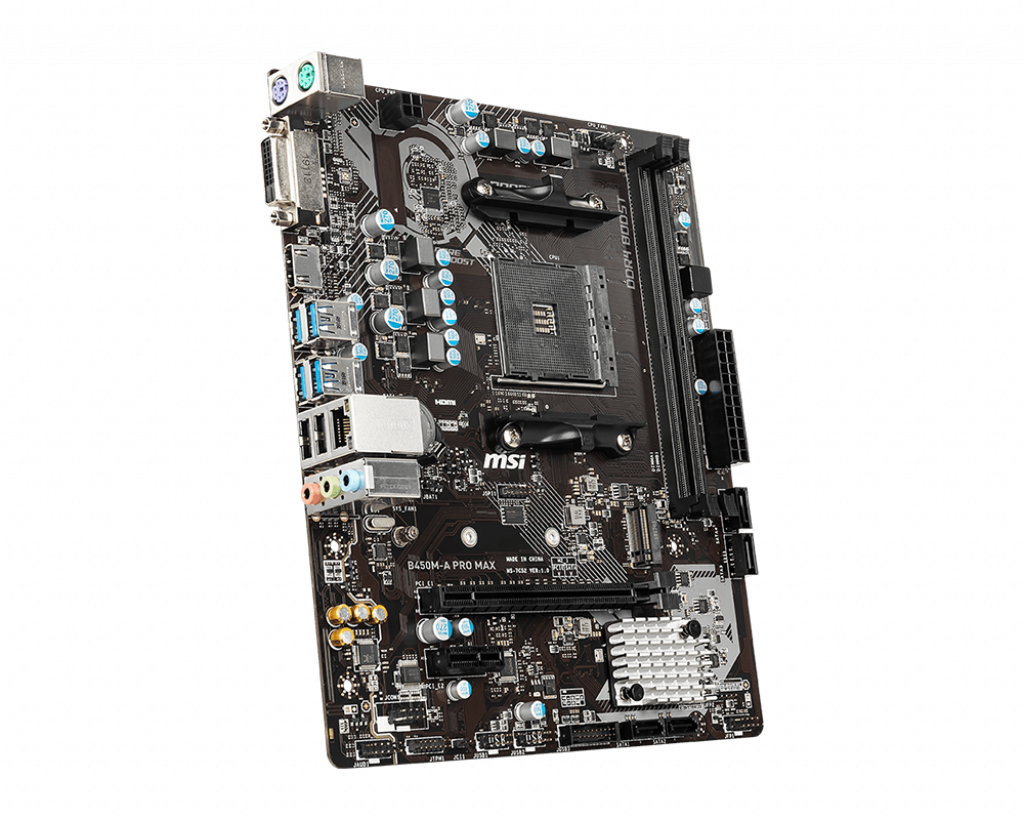

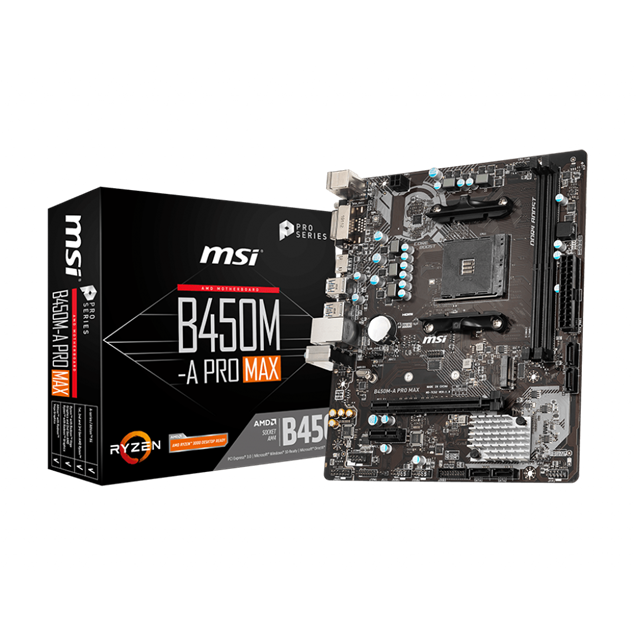

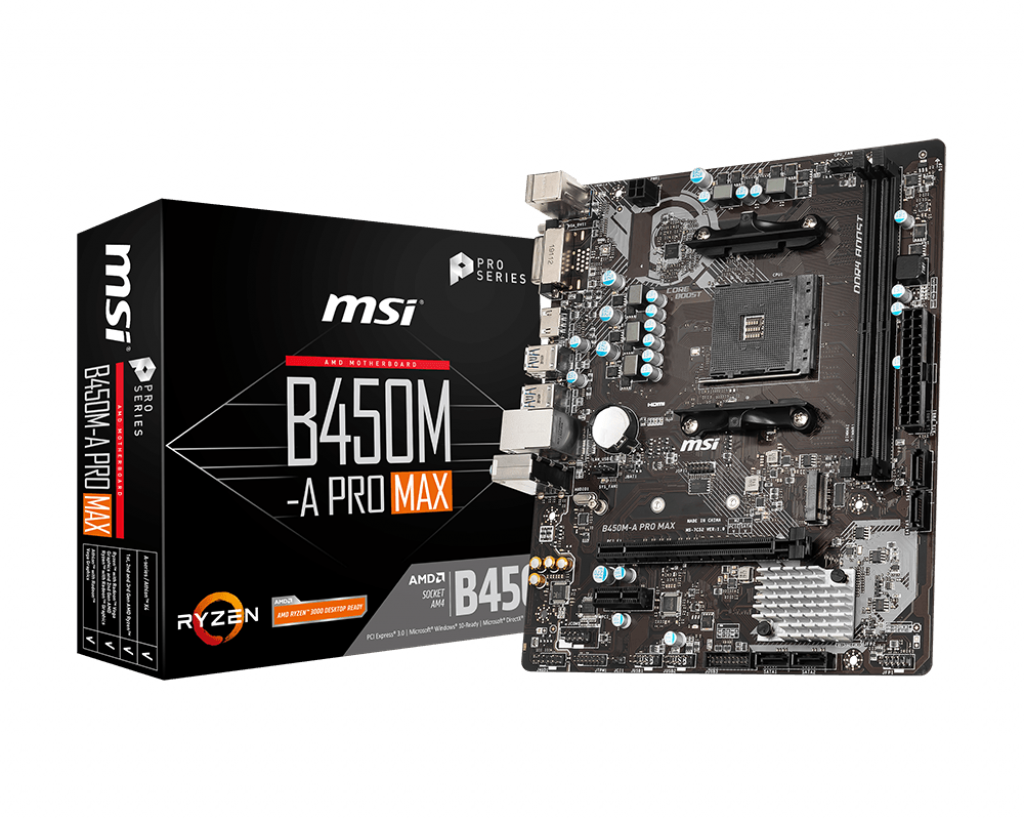

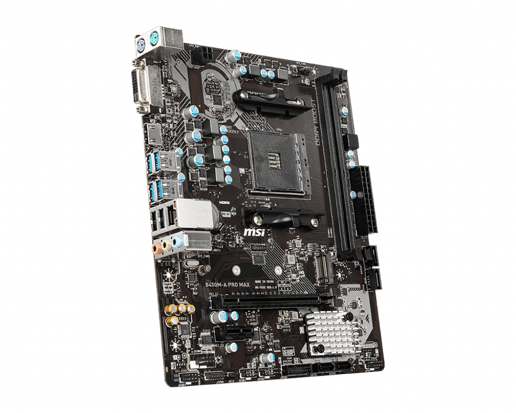

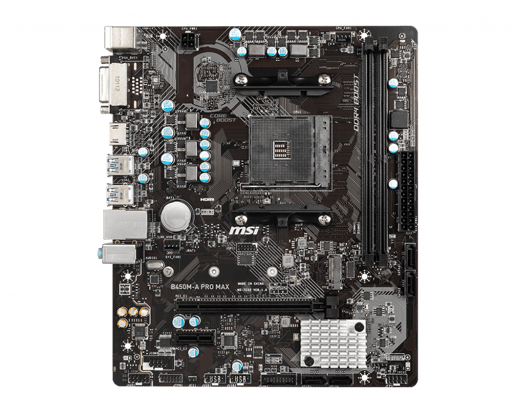

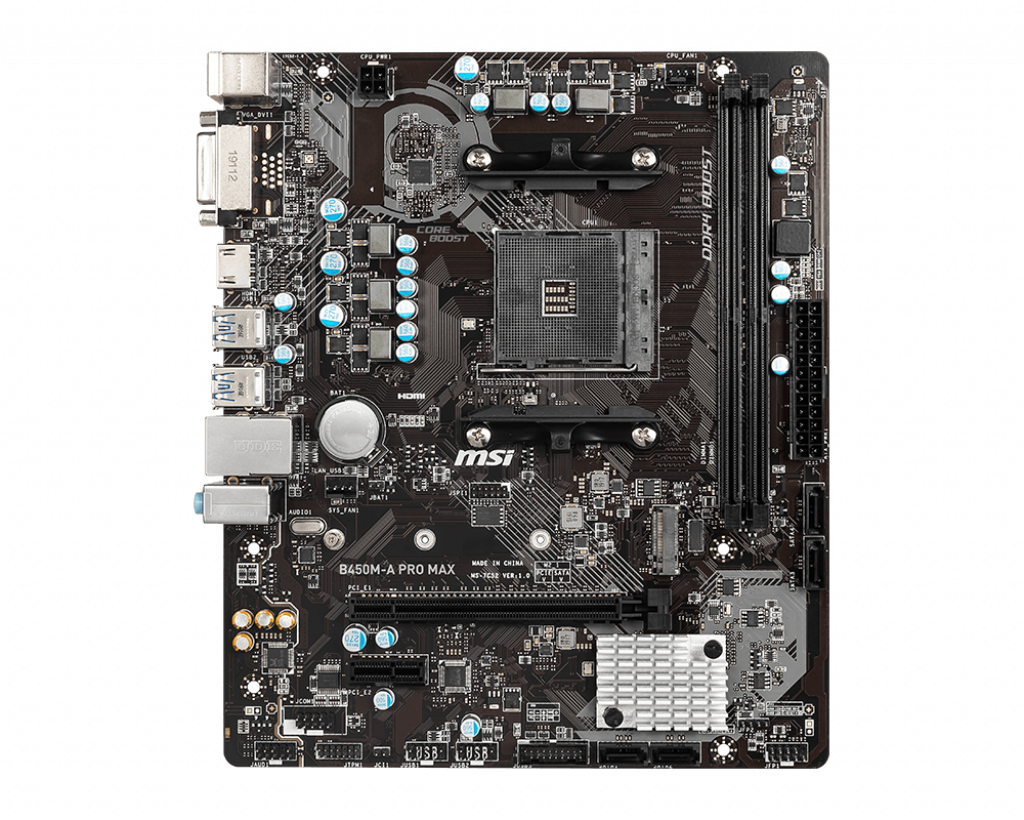

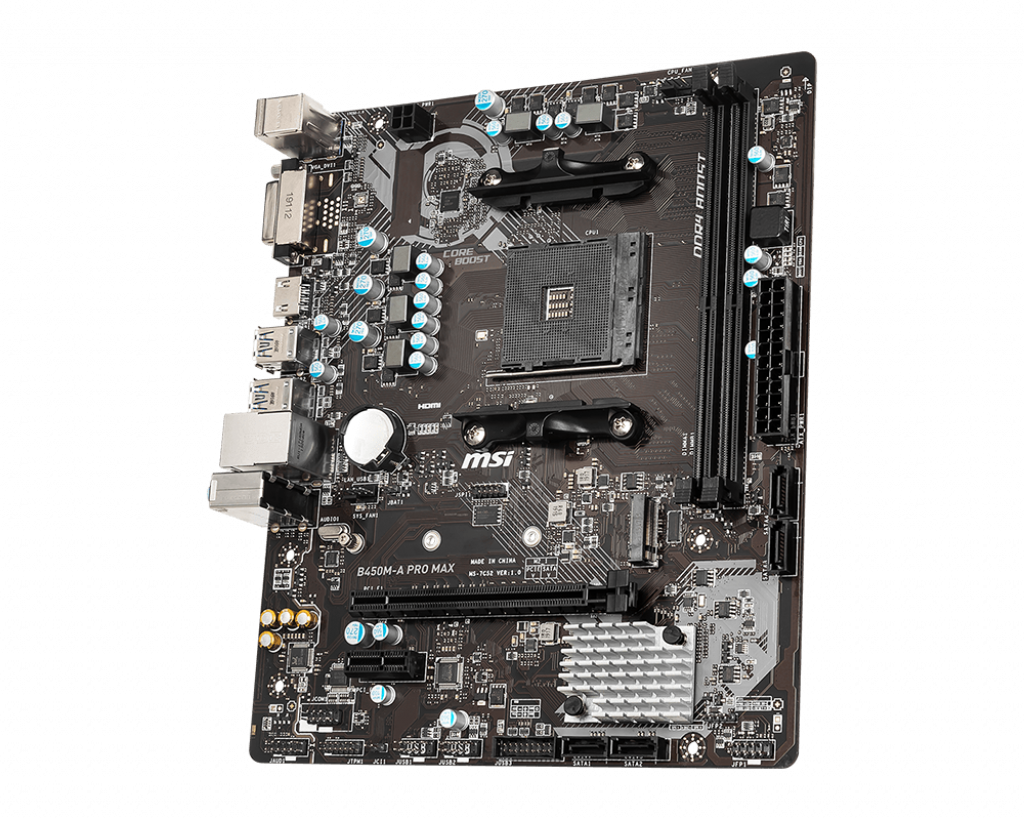

MSI B450M-A PRO MAX mATX Motherboard for AMD AM4 CPUs

MSI B450M-A PRO MAX mATX Motherboard for AMD AM4 CPUs

CCL Code: MBD2700

Sold out

Notify Me
  • MSI B450M-A PRO MAX mATX Motherboard for AMD AM4 CPUs
  • MSI B450M-A PRO MAX mATX Motherboard for AMD AM4 CPUs
  • MSI B450M-A PRO MAX mATX Motherboard for AMD AM4 CPUs
  • MSI B450M-A PRO MAX mATX Motherboard for AMD AM4 CPUs
  • MSI B450M-A PRO MAX mATX Motherboard for AMD AM4 CPUs

Get 5% off when you buy 5 or more different components using code: BUY5GET5

AMD AM4 motherboard inspired from architectural design, with Core Boost, DDR4 Boost, Turbo M.2, USB 3.2 Gen1

MSI B450M-A PRO MAX mATX Motherboard for AMD AM4 CPUs

B450M-A PRO MAX

AMD AM4 motherboard inspired from architectural design, with Core Boost, DDR4 Boost, Turbo M.2, USB 3.2 Gen1

Key Features:

  • Socket AM4
  • AMD B450 Chipset
  • 4 x SATA & 6 x USB Ports
  • DDR4 (max 32GB, 2 slots)
  • HDMI and DVI
  • mATX Form Factor
CCL Code: MBD2700

Sold out

Sorry, we don't have any stock of this product. Please click 'Notify Me' and we will let you know when the item is available.

Notify Me
Overview

DIY FRIENDLY

MSI motherboards feature tons of convenient and smart design, such as convenient pin-header keep out zone, friendly SATA & USB location and so on, so DIY users can pick and choose any gaming rig they want.

ENHANCED PERFORMANCE

MSI motherboards featured all the latest solution for enthusiast gamers and prosumers. CPU and memory enhancement and fast storage and USB transfer speed are ready to be on the battlefield.

IN-STUDIO ADVANTAGE

MSI motherboards provide the most fascinating in-studio advantages, designed to satisfy any professional workflow. Elevate your listening pleasure and network connection with MSI Audio & LAN. Enjoy extreme sound quality and uninterrupted online experience.

EXHILARATING AND INSPIRING

Each MSI motherboard is built based on the specific topic in order to match different tastes and favors. Furthermore, MSI also adopts the modern style to design the heatsink through huge surface and sleek but simple cuts in order to make the heatsink and appearance looks ripped and powerful. Combined with neutral color, such as black, grey and silver, as the main background, MSI motherboard can perfect fit different RGB LED effects and strongly shows the gamers tunes.

LOYAL COMRADE

With years of experience, MSI is no stranger to building high-performance motherboards. Our R&D and engineering teams have reviewed countless designs, evaluated a wide selection of high quality components, and developed products for reliability even under extreme conditions.

Main Features

  • Supports 1st, 2nd and 3rd Gen AMD® Ryzen™ / Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD® Ryzen™with Radeon™ Graphics / Athlon™ with Radeon™ Vega Graphics and A-series / Athlon™ X4 Desktop Processors for Socket AM4
  • Supports DDR4 Memory, up to 4133 (OC) MHz
  • Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs.
  • Audio Boost: Reward your ears with studio grade sound quality
  • EZ Debug LED: Easiest way to troubleshoot
  • X-Boost: Software that auto-detects and allows you to boost the performance of any storage or USB device
  • Core Boost: With premium layout and fully digital power design to support more cores and provide better performance
Promotions



Get 5% off components when you buy 5 or more*

For a limited time, buy at least 5 different components from different qualifying categories and get 5% off those items at checkout.

 *Terms & Conditions apply.







Promotional Period: From 2023-09-25 till 2023-10-09, while stocks last.

Terms and Conditions

It can't be combined with any other offer. UK residents only. Offer available on products in qualifying categories. Discount will apply to five or more items bought from separate categories (e.g. one CPU, one motherboard) in one basket. If will not apply to multiples from categories (e.g. two CPUs). Discount will be applied to the five or more items in your basket - please double-check your basket to ensure the offer applies correctly. Offer does NOT apply to systems that have such components. CCL reserve the right to end this offer at any time. Offer may not be substituted, exchanged, sold, or redeemed for cash or other goods or services. Offer only available on orders placed on CCLonline.com - offer is not available via telephone or our eBay or Amazon stores.

Promotional Period: From 17th of August, 2023 till 31stof August, 2023.

Specifications

CPU

CPU Socket Socket AM4
CPU Brand AMD
Installed Processors (Max) 0 (1)
Supported Processor Manufacturer AMD
Supported Processors Supports 1st, 2nd and 3rd Gen AMD® Ryzen™ / Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD® Ryzen™with Radeon™ Graphics / Athlon™ with Radeon™ Vega Graphics and A-series / Athlon™ X4 Desktop Processors for Socket AM4
64-bit Support Yes
Socket AM4

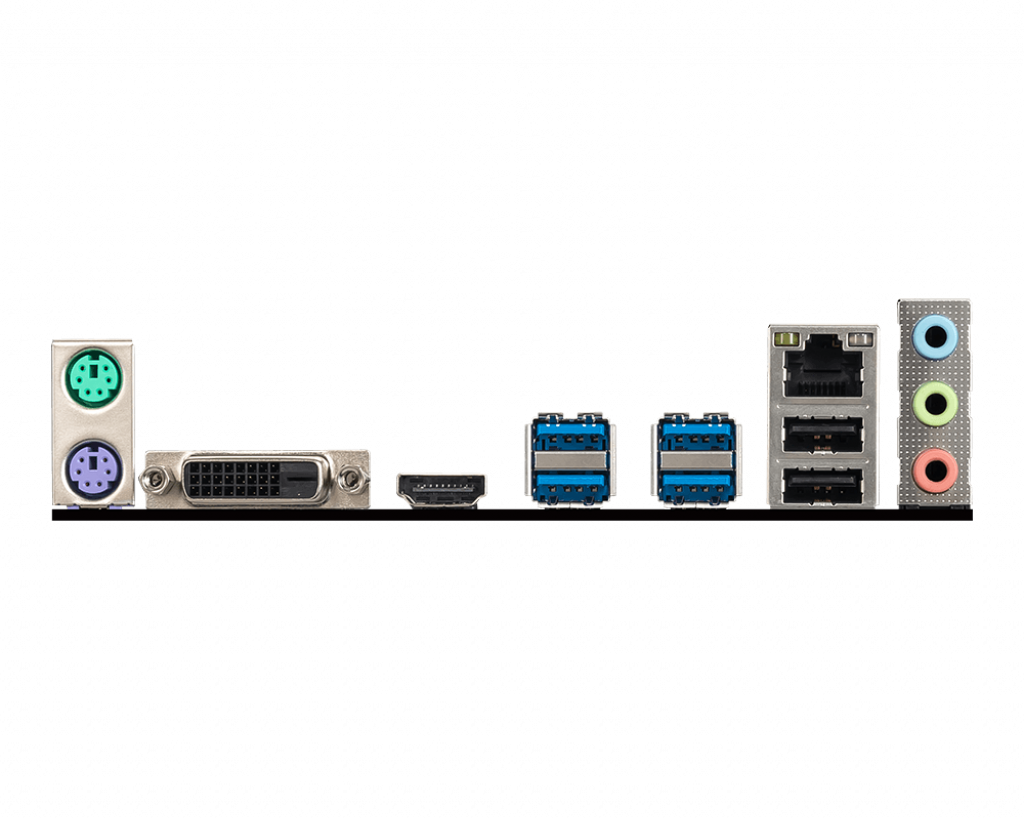

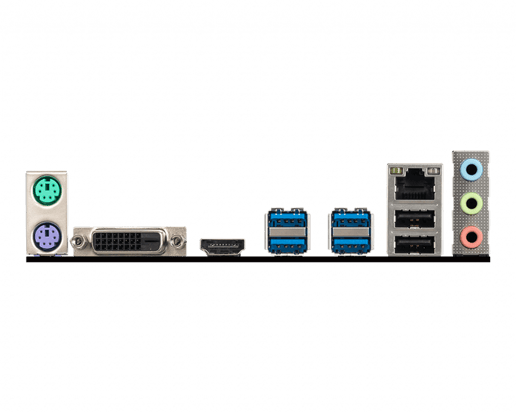

Rear Panel I/O Ports

USB Ports 4 x USB 3.0
2 x USB 2.0
HDMI Port 1 x HDMI
Keyboard Port 1 x PS/2
Mouse Port 1 x PS/2
RJ-45 Ports 1 x RJ-45
Digital Port 1 x DVI-D Dual Link
Audio Line In Ports 1 x 3.5mm Jack
Audio Line Out Ports 1 x 3.5mm Jack
Microphone In Port 1 x 3.5mm Jack

Internal I/O Connectors

SATA Connectors 4 x SATA III
USB Connectors 1 x USB 3.0
2 x USB 2.0
Front Panel Connectors 1 x Front Panel
1 x Front Audio
Cooling Fan Support 1 x CPU fan
1 x System fan
Serial Connectors 1 x COM
Chassis Intrusion Connector 1 x Chassis Intrusion
TPM Header 1 x TPM
Power Connector Port 1 x 20+4-pin ATX
1 x 4-pin EPS
Other Connectors 1 x M.2, Socket 3, M Key (Type 2242/2260/2280/22110)

Memory

Memory Bus Speed 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3733/ 3866/ 4000/ 4133 MHz
Memory Type DDR4
Maximum RAM 32 GB
Memory Slot 2 x DIMM

Motherboard

Chipset Manufacturer AMD
Northbridge B450
RAID Supported Yes
RAID Format RAID 0, 1, 10
RAID Controllers B450 Chipset
SATA Supported Yes
SATA Controllers B450 Chipset

Expansion

Number of PCI Express Slots 1 x PCI Express 3.0 x16
1 x PCI Express 2.0 x1

Graphics Device

Integrated Graphics Supported Yes

Sound

Integrated Sound Realtek® ALC892

Network

Integrated Network Realtek® 8111H
Network Speeds Supported 10/100/1000 Mbps
Wireless LAN No
Bluetooth No

System Requirements

Operating Systems Supported Microsoft® Windows® 10 64-bit

System

Jumpers 1 x Clear CMOS

Physical

Form Factor MicroATX Motherboard
In The Box MSI B450M-A PRO MAX Motherboard
Quick Installation Guide
Warranty Card
Driver Disc
2 x SATA Cables
I/O Shield
Width 236 mm
Length 200 mm

Key Features

Skip Audio Test No
RGB Header Type None
Addressable RGB No
Internal USB Type-C Header No
Power Requirement (auto) 60 W
Max Memory Speed Supported (Non-overclocked) 2667 MHz
Max Memory Speed Supported (overclocked) 4133 MHz
CPU Power Pins (female) 4
Total M.2 Slots 1
Maximum NVMe M.2 ports 1
Maximum SATA M.2 ports 1
SATA ports 4
No. of front USB2.0 ports supported 4
No. of front USB3.0 ports supported 2
Firewire No
Wireless Network No
Motherboard Width 244 mm
Motherboard Height 244 mm
mSATA Supported No
U.2 Supported No
Memory Channel Dual
On-board Audio Type 7.1
Number of SATA Ports 4 port(s)
Number of USB Ports 6 port(s)
SATA III Support Yes
USB 3.0 Support Yes
Multi GPU Support No
VGA Connection No
DVI Connection Yes
HDMI Connection Yes
DisplayPort Connection No
Motherboard Form Factor mATX
Motherboard Power Connectors 4-Pin
Motherboard Chipset AMD B450
Thunderbolt No
Motherboard Model MSI B450M-A PRO MAX
USB 3.1 Support No
Internal USB3.0 Header Yes
M.2 Support Yes
On-board RGB Control None

Warranty

Warranty 1 Year

Item Details

Manufacturer MSI
Manufacturer Code B450M-A PRO MAX
EAN 4719072667696
UPC 824142189726
Condition New
Warranty

Warranty Information

Warranty 1 Year

Manufacturer Information

Manufacturer MSI
Manufacturer Code B450M-A PRO MAX
Q&A

Do you have you a question about the MSI B450M-A PRO MAX Motherboard Ryzen/Athlon AM4 B450 m-ATX RAID Gigabit LAN (Onboard Graphics)?

Q: hi is the ryzen 3 3100 compatible
Answer by Website User on 6th October 2020
Yes, this supports the Ryzen 3 3100. -MR
0 customers found this answer helpful.
Post Answer
Q: what is the max memory speed for this motherboard?
Answer by Website User on 18th September 2020
4133MHz.
0 customers found this answer helpful.
Post Answer
Q: I already own this MB, but I was wondering if I'd be able to stick a AIO watercooler on my Ryzen 5 2600? or do I need a motherboard that has a pump header, or similar?
Answer by Website User on 18th September 2020
You can just use a fan header for the pump and the cpu header for the radiator fan. -MR
1 customer found this answer helpful.
Post Answer
Q: Will the Ryzen 5 3600 work with this out of the box?
Answer by Website User on 17th May 2020
Yes, this will work straight away. -MR
1 customer found this answer helpful.
Post Answer
Q: Does this come out of the box 3600x ready?
Answer by Website User on 15th April 2020
Yes, these support 3rd gen Ryzen processors. -MR
0 customers found this answer helpful.
Post Answer
Q: Will this work out the box for an athlon 3000G or do i need a bios update?
Answer by Website User on 31st March 2020
This will work with the Athlon 3000G out of the box. -MR
0 customers found this answer helpful.
Post Answer
Q: Will this support Corsair Vengeance LPX 16GB (2x 8GB) 2400MHz DDR4? Regards.
Answer by Website User on 24th August 2020
Should be fine. I'm using Corsair Vengeance LPX 16GB (2x 8GB) 3000MHz DDR4 with no problems
0 customers found this answer helpful.
Post Answer
Reviews
4.5 / 5 16 reviews

Craig

January 2021

10/10 great mobo for the price

Steven Mannion

December 2020

Only one DIMM slot working.

Harold

December 2020

Amazing value, thank you for providing a valuable service.

Alexander

December 2020

Very happy with my purchase. I was on a really tight budget and this fit perfectly. The only downside of the board is that it only has two ram slots and that makes it not that great for future upgrades. Other than that everything is perfect!

Jakub Rosinski

December 2020

Decent entry-level motherboard. Only has one system fan header which is very annoying.

Marcin Wolnicki

December 2020

very nice and easy to builid my own pc

Tom

September 2020

Does what it says on the box. Has all the necessary elements for basic set ups and is really great value for money.

Edward

June 2020

Very happy with my purchase. This is my 1st build and I will look for CCL when its time to upgrade! Thanks!!

John

May 2020

Found the IO shield abit fiddly on this one. But I think I'm just getting old. Nice clean fast boots, 0 problems sofar.

Ryan

May 2020

Great product.

David Webb

May 2020

Great budget mobo from MSI, Support for everything you need to get going including an NVMe m.2 slot which I'd highly reccomend utilising with a min 256GB m.2 SSD for the OS drive.

Andrew

April 2020

Installed easy but had to reset the bios as ram wasnt working in mobo but soon as it was reset ram worked just fine

joan

April 2020

Good product..does the job

Mo Chung

March 2020

Good board for beginner builds - compatible with 3rd gen Ryzen CPUs out of the box. Be aware that larger GPUs will block the 4-lane PCIE express (such as for WIFI adaptors).

John from Wallasey

March 2020

Thanks CCL, I was not sure which mobo to buy for a new Ryzen 5 chip but the friendly service at CCL pointed me in the direction of this awesome motherboard. Very happy.

james

March 2020

Good board robust construction. Lacking a few things . Only 1 fan header . gpu blocks 2nd pci slot. Easy to use bios. Simple cpu and ram overclock.
