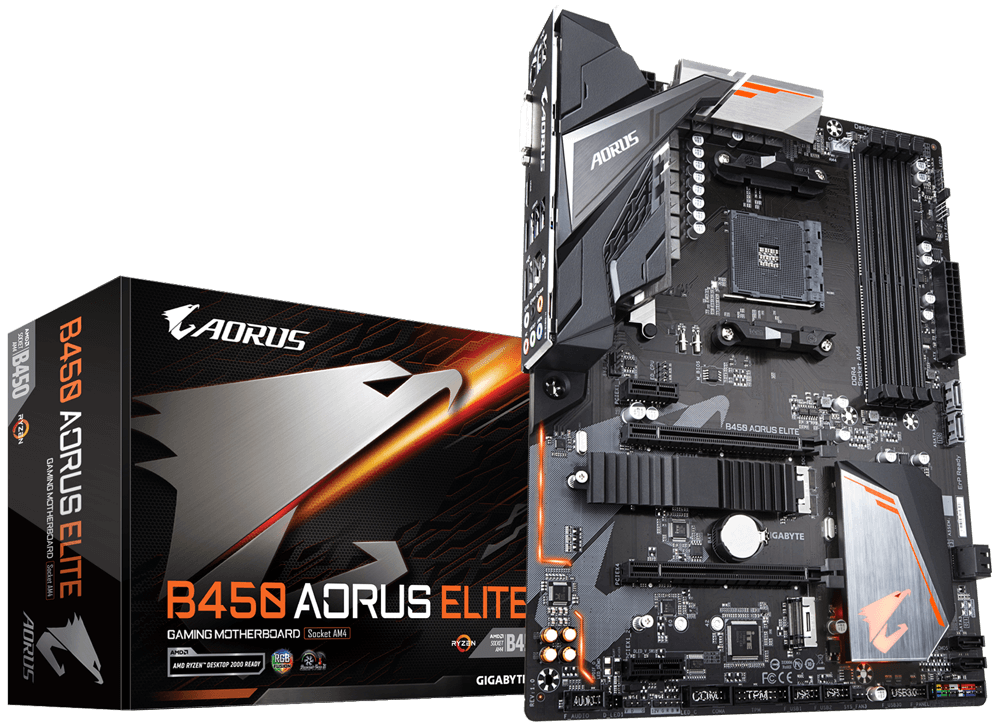

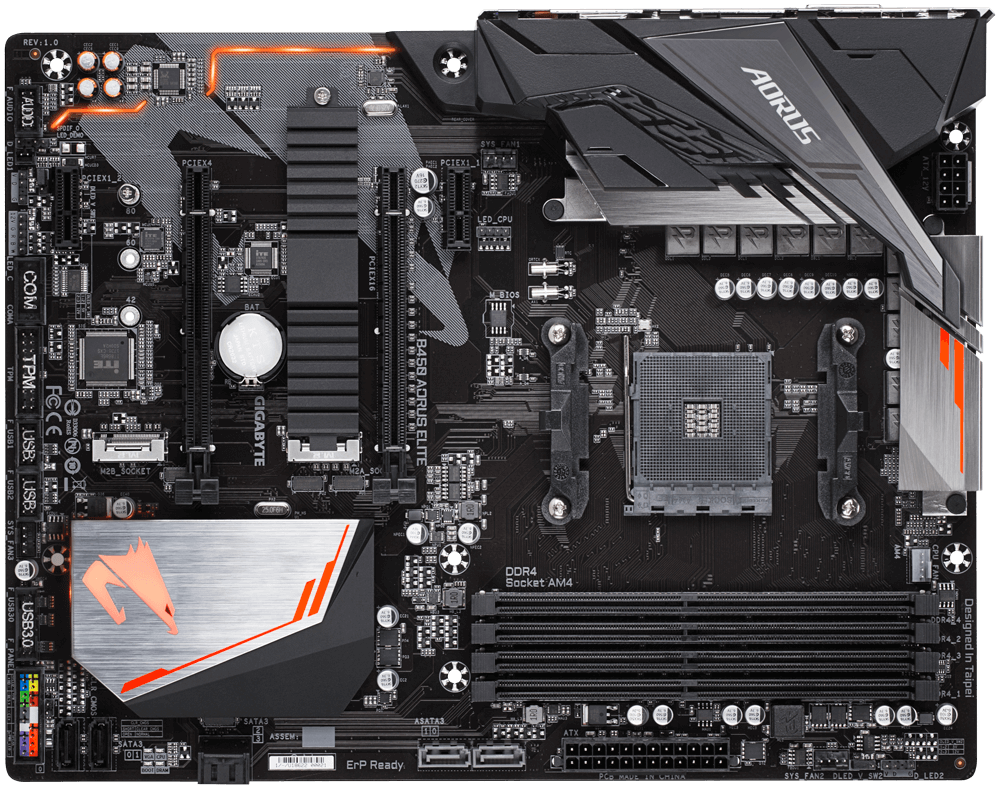

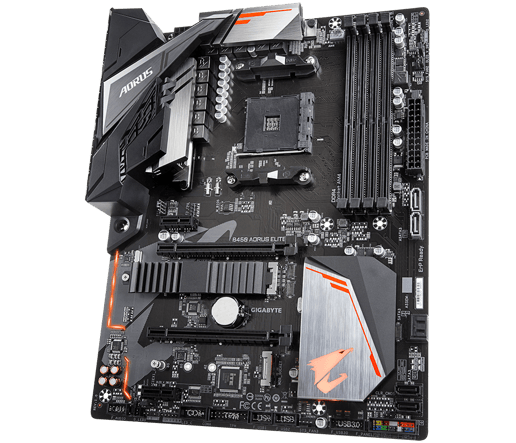

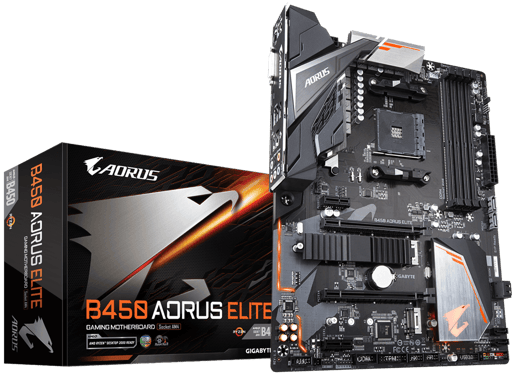

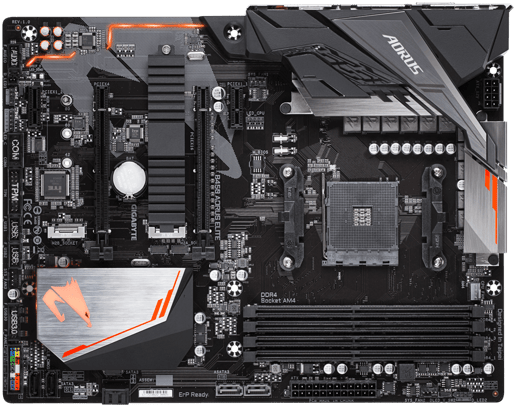

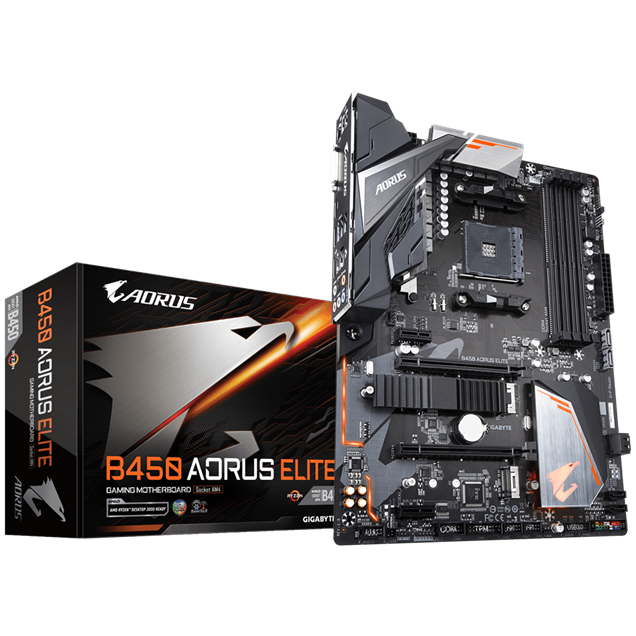

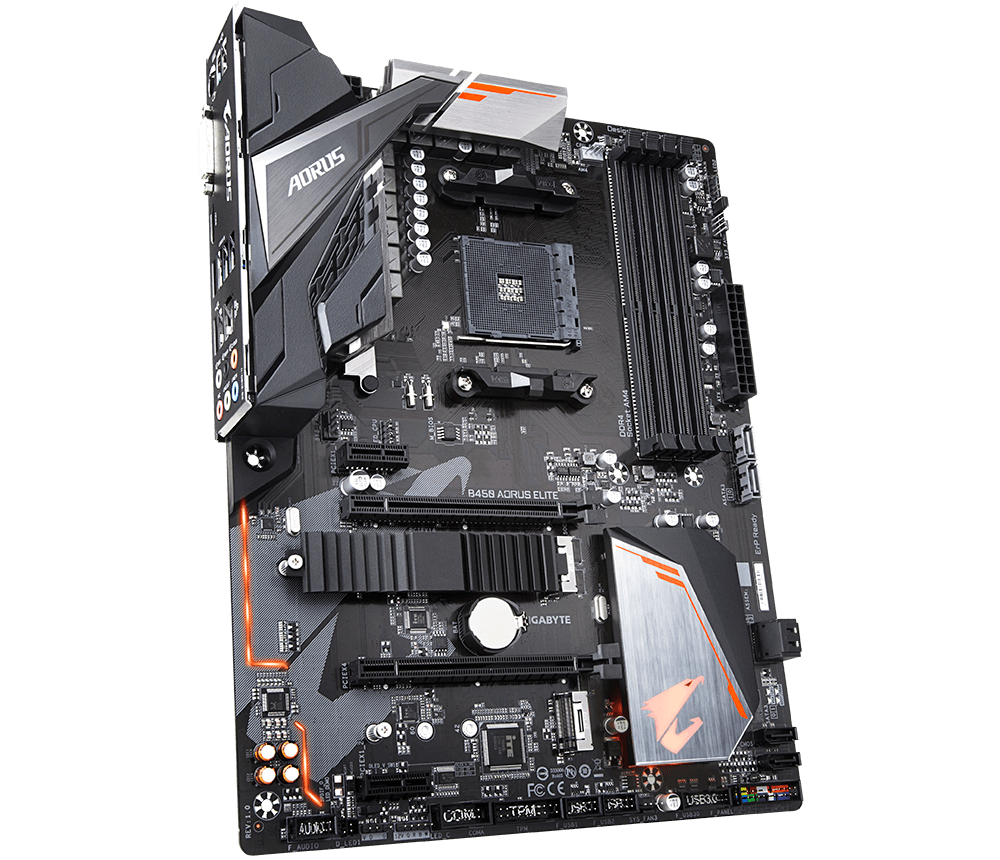

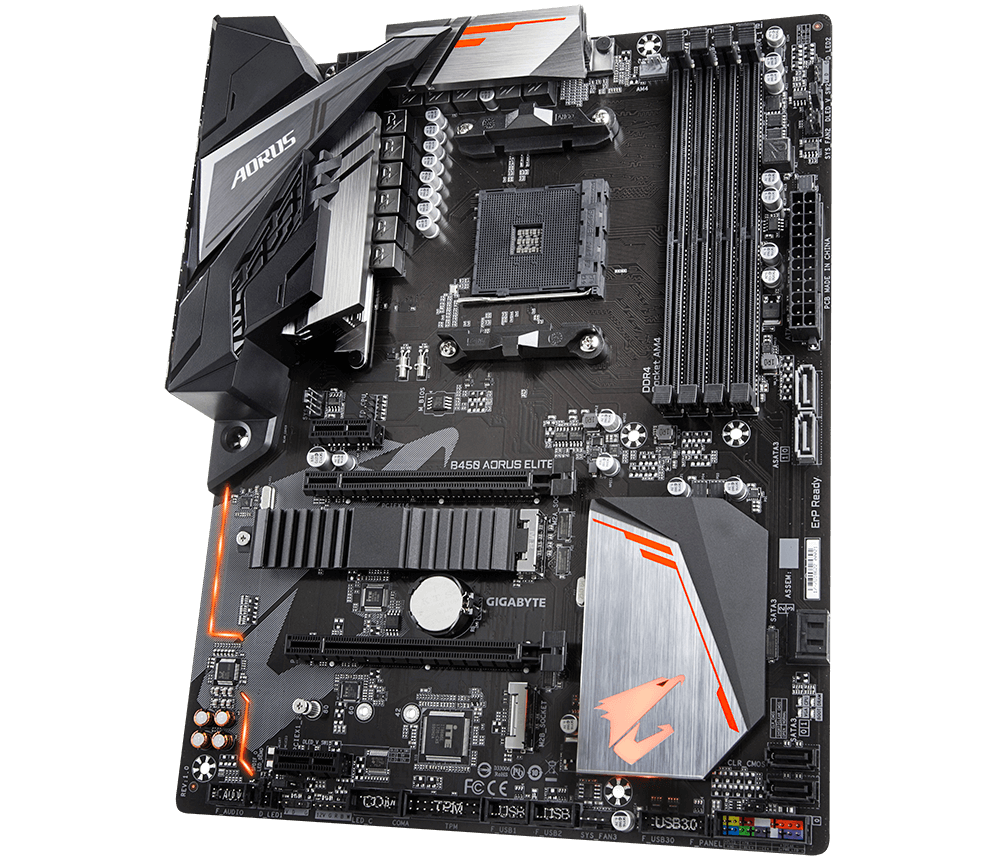

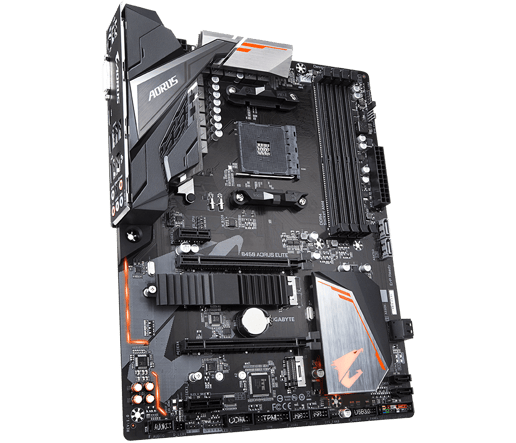

Gigabyte B450 AORUS ELITE AMD Motherboard

CCL Code: MBD2524
Manufacturer Code: B450 AORUS ELITE
| Manufacturer: Gigabyte
  • Gigabyte B450 AORUS ELITE AMD Motherboard
  • Gigabyte B450 AORUS ELITE AMD Motherboard
  • Gigabyte B450 AORUS ELITE AMD Motherboard
  • Gigabyte B450 AORUS ELITE AMD Motherboard
  • Gigabyte B450 AORUS ELITE AMD Motherboard

Key Features:

Socket AM4
6 x SATA & 8 x USB Ports
AMD B450 Chipset
DDR4 (max 64GB, 4 slots)
ATX Form Factor


Sorry, this product has been discontinued. We have found some similar products below.

Related Products


AMD Ryzen™ Desktop 2000 Ready

AMD introduces the latest Ryzen™ 2000 series processors to provide the computing power for gaming need. GIGABYTE's 400-series motherboards perfectly fit the latest AMD Ryzen™ 2000 series processors' computing performance with more features and more control. Users can enjoy the benefits brought by AMD Ryzen™ 2000 series processors.

AMD StoreMI technology

GIGABYTE 400-series maximize your PC's potential with AMD StoreMI technology. StoreMI accelerates traditional storage devices to reduce boot times and enhance the overall user experience. This easy-to-use utility combines the speed of SSDs with the high capacity of HDDs into a single drive, enhances the read/write speeds of the device to match that of SSDs, bolsters data performance for incredible value, and transforms the everyday PC to a performance driven system.

The benefits of AMD StoreMI:

  • Making the PC experience fast, smooth and easy
  • Optimizing computer responsiveness from system boot to application launch
  • Offering SSD performance with HDD capacity at an affordable cost
  • Quickly accessing key files by automatically learning users' computing behaviors


Hybrid Digital Power Design

Hybrid Digital PWM + Lower RDS(on) MOSFETs

AORUS 400-series motherboards use Hybrid Digital PWM + Lower RDS(on) MOSFETs design to support the 2nd Gen AMD Ryzen™ processors by offering incredible precision in developing power of the motherboard’s most power-hungry and energy-sensitive components as well as delivering enhanced system performance and ultimate hardware scalability.

Dual NVMe M.2 PCIe SSDs in RAID

Extreme Performance with NVMe PCIe Gen3 x4, x2 SSDs

With Dual M.2s available on the AORUS 400-series motherboards, configuring RAID Arrays has never been simpler.

AORUS M.2 Thermal Guard

GIGABYTE Ultra-Efficient M.2 Thermal Guard

With durability in mind, GIGABYTE provides a thermal solution for M.2 drives. The M.2 Thermal Guard prevents throttling and bottlenecks from M.2 devices as it helps to reduce and dissipate heat before it becomes an issue.


Exclusive Realtek 8118 Gaming LAN

High Speed Gigabit LAN with Automatic Bandwidth Allocation

Realtek 8118 LAN is a high performance and friendly network chip for gaming players with automatic bandwidth allocation to ensure the highest network priority of the game or application. It can provide users the most comprehensive features and the fastest and smoothest Internet experience.


RGB Fusion with Digital LEDs Support

With AORUS Motherboards, RGB Fusion is even better with Digital LEDs.* RGB Fusion offers users the option to control onboard RGB and external RGBW / Digital LED light strips for their PC. Already feature filled with colors and patterns, RGB Fusion on AORUS Motherboards are now upgraded with Digital LED support. With external digital LED strips*, where each LED is digitally addressable, users can experience even more patterns, styles, and illuminations.

AORUS Gaming Motherboards will support either 5v or 12v digital LED lighting strips and up to 300 LED lights. RGB Fusion with Digital LEDs comes with 9 new patterns and various speed settings with more to come.

* Digital LEDs are available only on select Motherboards, external LED Strips, Digital LED Strips are not included with Motherboard purchase.

Multi-Zone Light Show Design

Now offering more LED customizations than ever, users can truly adapt their PC to represent their lifestyle. With full RGB support and a redesigned RGB Fusion application, the user has complete control over the LEDs which surround the motherboard.

Supports RGBW & UV Light Strips

Independently Programmable Onboard Pin Header for RGBW/UV LED Strips

Not bright enough? You can install standard 12V external RGB, RGBW or RGB/UV light strips on the RGBW pin header and control its color from the RGB Fusion software. Using a RGBW light strip with a dedicated white LED, users will experience brighter and more vibrant shades of colors.

RGB Fusion (Advanced mode)

With the all new RGB Fusion software, users have access to different preset LED lighting configurations with choice of colors. You can even set the LEDs to synchronize with your favorite music or have them change colors to indicate the CPU temperature. For true lighting experts there is an Advanced Mode, which can be fully customized by individual area with its own effects and color transitions, along with specific duration and transition times.


Don't just make your PC shine, make it a work of art that friends will envy. With the GIGABYTE RGB Fusion mobile app users can watch as they control the lighting within their gaming PC. This gives users ease of access as they try and adjust colors and speeds for different modes, all this can be achieved away from the keyboard and monitor of their PC.


Smart Fan 5

With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.

Fan Stop

Achieve fan silence. With Fan Stop map any fan to stop completely when temperatures drop below a specified threshold. Which fan stops, based on readings from which sensor, and at what temperature—all of it can be customized to your liking.

Hybrid Fan Pin Headers

Assume complete control over your liquid cooling setup! Smart Fan 5 receives up-to-the-second information on flow-rate through the Hybrid Fan Pin Headers—giving you absolute mastery over your PC.

All Hybrid Fan Headers can automatically detect the type of cooling device whether it be fan or pump with different PWM or Voltage mode.


High Quality Onboard Audio Design

Delivers high quality sound resolution and sound expansion to create the most realistic sound effects for professional gamers.


Integrated I/O Shield Armor

Durable Design And Easy Installation

With an integrated I/O shield, building a GIGABYTE Ultra Durable PC is even easier and convenient. Users can expect excellent durability with the durable design of the pre-installed I/O shield.

Solid Pin Power Connectors

Make Good Connection and Significantly Lower the Wires Capacity

AORUS 400-series motherboards feature solid plated ATX 24pin & ATX 12V 8pin power connectors for offering stable power supply while CPU overloading.

Solid Pin Power connector advantages

  • Larger contact area for electricity
  • More metal quantity to sustain higher power and generated heat
  • Ultra durable and longer lifespan


Sulfur compounds in the air can penetrate tiny onboard resistors creating chemical change and causing these resistors to open or short. If either of these occurs the motherboard will fail to function. By equipping resistors with an Anti-Sulfur Design GIGABYTE gives Ultra Durable Motherboards a whole new meaning.

Diagnostic LEDs

Hardware Troubleshooting at a Glance

Onboard LEDs controlled by the system BIOS indicate if a malfunction is occurring, allowing users to quickly diagnose which major component (CPU/DDR/VGA/HDD) is malfunctioning so they may take action promptly.


CEC 2019 Ready

Save the power as easy as one click

CEC Requirement : PC power consumption must be under a certain level when it's in off mode, idle mode, stand-by mode. With high power efficiency hardware components and fine tuned BIOS, GIGABYTE motherboards can achieve lower power consumption under idle mode and fully comply with new CEC 2019 (California Energy Commission) power consumption requirement.

Main Features

  • Supports AMD 2nd Generation Ryzen™/ Ryzen™ with Radeon™ Vega Graphics/ 1st Generation Ryzen™ Processors
  • Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
  • HDMI, DVI-D Ports for Multiple Display
  • Integrated I/O Shield of Ultra Durable™ Design
  • Dual Ultra-Fast NVMe PCIe Gen3 M.2 (x4, x2) with One Thermal Guard
  • High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting
  • RGB FUSION with Multi-Zone LED Light Show Design, Supports Digital LED & RGB LED Strips
  • GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management
  • Smart Fan 5 Features 6 Temperature Sensors and 4 Hybrid Fan Headers with FAN STOP
  • APP Center Including EasyTune™ and Cloud Station™ Utilities
  • CEC 2019 Ready, Save Power with a Single Click


CPU Socket Socket AM4
Installed Processors (Max) 0 (1)
Supported Processor Manufacturer AMD
Supported Processors AMD Ryzen™ 2nd Generation processors
AMD Ryzen™ with Radeon™ Vega Graphics processors
AMD Ryzen™ 1st Generation processors
64-bit Support Yes
Socket AM4

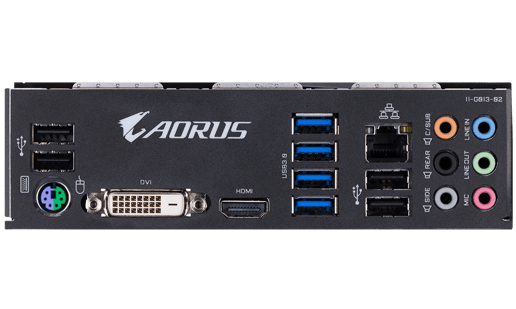

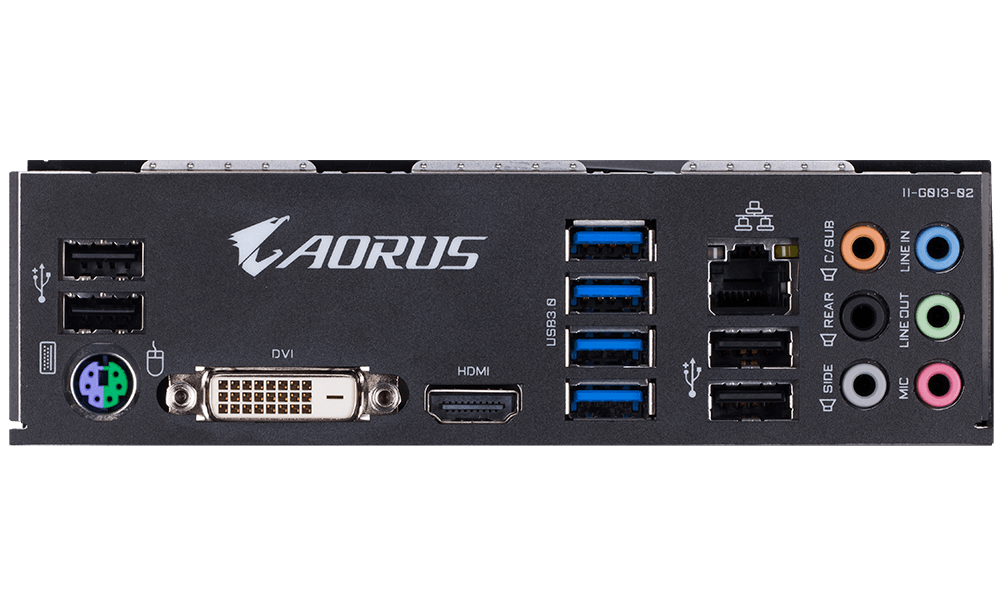

Rear Panel I/O Ports

USB Ports 4 x USB 3.0
4 x USB 2.0
HDMI Port 1 x HDMI
Keyboard/Mouse Combo Port 1 x PS/2
RJ-45 Ports 1 x RJ-45
Digital Port 1 x DVI-D
Audio Line In Ports 1 x 3.5mm Jack
Audio Line Out Ports 4 x 3.5mm Jacks
Microphone In Port 1 x 3.5mm Jack

Internal I/O Connectors

SATA Connectors 6 x SATA III
USB Connectors 1 x USB 3.0
2 x USB 2.0
Front Panel Connectors 1 x Front Panel
1 x Front Audio
Cooling Fan Support 1 x CPU Fan
3 x System Fans
S/PDIF Connectors 1 x S/PDIF Out
Serial Connectors 1 x COM
TPM Header 1 x TPM
Power Connector Port 1 x 20+4-pin ATX
1 x 4+4-pin ATX12V EPS
Other Connectors 1 x M.2, Socket 3, M Key (Type 2242/2260/2280/22110)
1 x M.2, Socket 3, M Key (Type 2242/2260/2280)
1 x CPU Cooler LED/RGB LED Strip Extension header
1 x RGBW header
2 x Digital LED strip headers


Memory Bus Speed 3200(O.C.)/2933/2667/2400/2133 MHz
Memory Type DDR4
Maximum RAM 64 GB
Memory Slot 4 x DIMM


Chipset Manufacturer AMD
Northbridge B450
RAID Supported Yes
RAID Format RAID 0, 1, 10
SATA Supported Yes


Number of PCI Express Slots 1 x PCI Express 3.0 x16
1 x PCI Express 2.0 x16 (@ x4)
2 x PCI Express 2.0 x1

Graphics Device

Integrated Graphics Supported Yes


Integrated Sound Realtek® ALC892


Integrated Network Realtek® GbE
Network Speeds Supported 10/100/1000 Mbps
Wireless LAN No
Bluetooth No

System Requirements

Operating Systems Supported Microsoft® Windows® 10 64-bit


BIOS 1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Jumpers 1 x Clear CMOS
2 x Digital LED strip power
Software Included (may be trial or restricted) Norton® Internet Security (OEM version)
Realtek® 8118 Gaming LAN Bandwidth Control Utility
Drivers Included
SLi/Crossfire Features Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies


Form Factor ATX Motherboard
Width 305 mm
Length 235 mm

Key Features

On-board RGB Control Gigabyte RGB Fusion
Skip Audio Test No
RGB Header Type 3-Pin ARGB
Addressable RGB Yes
Firewire No
Wireless Network No
Main Colour Black
Socket(s) AM4
Memory Channel Dual
On-board Audio Type 7.1
Number of SATA Ports 6 port(s)
Number of USB Ports 8 port(s)
SATA III Support Yes
USB 3.0 Support Yes
Multi GPU Support ATi CrossFire
VGA Connection No
DVI Connection Yes
HDMI Connection Yes
DisplayPort Connection No
Motherboard Form Factor ATX
Motherboard Power Connectors 4 + 4-Pin
Motherboard Chipset AMD B450
Thunderbolt No
Motherboard Model Gigabyte B450 AORUS ELITE
USB 3.1 Support No
Internal USB3.0 Header Yes
M.2 Support Yes


Warranty 1 Year

Item Details

Manufacturer Gigabyte
Manufacturer Code B450 AORUS ELITE
EAN 4719331803995
UPC 889523014653
Condition New

Warranty Information

Warranty 1 Year

Manufacturer Information

Manufacturer Gigabyte
Manufacturer Code B450 AORUS ELITE
Questions and Answers

Do you have you a question about the Gigabyte B450 AORUS Elite AMD AM4 B450 Motherboard (ATX) Gigabit LAN (Integrated Graphics)?

Q: will this board take a AMD Ryzen 3 3200G Processor with Radeon RX Vega 11 Graphics
Answer by Website User on 22nd April 2021
This will work fine with that. - Kristian N
0 customers found this answer helpful.
Post Answer
Q: I see a previous question to add CCL Code: SER0007 to your order for a small fee to update to have the latest stable bios compatible with 3rd gen before shipping. where do you put in the code?
Post Answer
Q: Will it work with a dedicated GPU?
Answer by Website User on 17th August 2021
im not sure but one would assume it would
0 customers found this answer helpful.
Post Answer
Q: Will it support thr Ryzen 7 3700x out of the box?
Answer by Website User on 18th September 2020
Yes, it will. -MR
1 customer found this answer helpful.
Post Answer
Q: Regarding the M.2 Slot - Can i check - will it take a "Corsair MP500 240GB M.2 SSD" or a "Samsung 860 Evo N6E250" First time getting an m.2 board - Just M key with 1 gap? whats best way to tell its M key Not B Key? Corsair Link - Thanks
Answer by Website User on 29th June 2020
Both of these drives would be compatible with this motherboard. -MR
1 customer found this answer helpful.
Post Answer
Q: Will this board need a bios update to ensure it works with Ryzen 5 3600? I know i CAN add the code to get it done, but will be need to be done? or will it support the CPU straight away? thank you
Answer by Website User on 26th June 2020
It will support it out of the box. -MR
3 customers found this answer helpful.
Post Answer
Q: Will this support ryzen 3000 series out of the box or will it need a bios update?
Answer by Website User on 24th June 2020
It will support it out of the box. -MR
3 customers found this answer helpful.
Post Answer
Q: Does this support 3200 mhz ram?
Answer by Website User on 1st May 2020
Yes, this board will support 3200MHz memory. -MR
0 customers found this answer helpful.
Post Answer
Q: Is it possible for you guys to do a bios update on the motherboard before sending it so it can support 3rd gen?
Answer by Tawk on 22nd April 2020
Yes, you can add CCL Code: SER0007 to your order for a small fee and we will ensure it has the latest stable BIOS before shipping. -MR
0 customers found this answer helpful.
Post Answer
Q: Will this motherboard take an NVME ( ) if so how many. TIA
Answer by Website User on 17th January 2020
This board will take 2 NVME drives. Kristian N
0 customers found this answer helpful.
Post Answer
Q: will this suport ryzen 3000 3rd gen
Answer by Website User on 30th May 2019
Currently we do not have information on whether it will.
0 customers found this answer helpful.
Post Answer
Q: warranty can you tell me how long and with how Thanks
Answer by Website User on 29th January 2019
Warranty is 3 years from the manufacture.
0 customers found this answer helpful.
Post Answer
Q: What is the maximum amount of 0.45a fans to one systm header please
Post Answer
4.8 / 5 21 reviews


June 2021

This is the V2 version, so it was good for a R5-3600 straight out the box. I had no issues with assembly and installation. Overall I think it is a well spec'd, decent quality and a good value board. Also great service from CCL


February 2021

Easy to build in, works an absolute charm too. Built with this board twice and its tremendous. Delivery time was superb also.

Philip LeMarchand

November 2020



November 2020

I would recommend this motherboard for anyone looking for a great motherboard for a budget. It had plenty of great features for the price and its great and functions well.

Anthony Leonard

October 2020

Apart from not having WiFi, it's a solid board for the price


August 2020

Great cheap board with all the sockets you really want or need, if youre building your first pc or arent that confident i recommend this board as its the most plug and play friendly board ive come across, any questions i had on the board such as ryzen 3000 support etc was answered immediately by their live chat service, (p.s this supports ryzen 3000 straight out of the box). Also love the boot stage lights really helps keeping an eye on things for the first couple of boots if youre unsure, also would help with troubleshooting but i havent had to since it works perfect.

Piotr Krys

August 2020

working only with windows 10 !


July 2020

When it comes to computer parts CCL is the best my new build computer is running perfectly like always good service yhankd

Tom Surman

July 2020

10 is a bit steep for a bios flash but I can't fault the service and turn around time. Ryzen 3600 running like a dream :)


June 2020

good price fast services, not bud quality mmmm value is soso

Charlie Evans

May 2020

This would be getting 5 stars but the ram and this motherboard dont like eachother so i cannot get 3200MHz as stated on the ram due to the motherboards XMP profile


April 2020

After reviewing this product for months, its hands down the best value for money, plus with 2 M.2 slots,

Mr Sandford

October 2019

Very good, cable slots etc nicely positioned

David Bingley

September 2019

Quite easy to set up except the led's. Dit it eventually.

Les Richardson

September 2019

Fairly priced


September 2019

Small width


July 2019

Great motherboard have no issues with it even changed the colour on it


June 2019

Brilliant mobo. Fast, reliable, adaptable. Superb for gaming.

Gary Irvine

May 2019

Very easy to install and fantastic performance. Could not be happier with the motherboard and the first class service and speedy delivery.


April 2019

This motherboard looks great, I love the attached thermal guard to m.2 memory. Aorus logo have a nice RGB backlight. This motherboard gives you many O.C (CPU/Memory) possibilities. BIOS is very easy to use for a regular user. On board you can find a few RGB outputs. You can check RGB Fusion app and Gigabyte APP center to find out what you can do with this motherboard. I'm glad I bought this motherboard.


December 2018

Great motherboard lots of features at a reasonable price also onboard LEDs look amazing

Gigabyte B450 AORUS ELITE AMD Motherboard


AMD B450 AORUS Motherboard with Hybrid Digital PWM, Dual M.2 with One Thermal Guard, GIGABYTE Gaming LAN with Bandwidth Management, CEC 2019 ready


Sorry, this product has been discontinued. We have found some similar products below.
