Router

• Router Type: 5G AX1800 Wireless Dual-Band Gigabit Router

WAN

• WAN Protocols: Dynamic IP, Static IP, PPPoE, PPTP (Dual Access), L2TP (Dual Access)
• WAN Signalling: IP over Ethernet, PPP
• WAN Standards: 5G NR, 4G LTE (FDD/TDD), 3G UMTS/HSPA+

Wireless LAN

• Antenna Type: 8 x internal 5G/LTE antennas, 2 x internal Wi-Fi antennas, 2 x external SMA-F connectors
• Range (Outdoor - Maximum): Dependent on 5G/4G network; Wi-Fi range typical for dual-band AX1800 (up to ~100m outdoors, ~30m indoors)
• Transmit Power: <23 dBm (5.15-5.35 GHz), <30 dBm (5.47-5.71 GHz), <20 dBm (2.4 GHz)
• Data Transfer Rates: 5 GHz: 1201 Mbps, 2.4 GHz: 574 Mbps, 5G download: up to 4.67 Gbps
• Encryption: 64/128-bit WEP, WPA, WPA2, WPA3, WPA-PSK/WPA2-PSK
• Frequency Band: 2.4 GHz & 5 GHz Wi-Fi; 5G NR bands N1/N3/N5/N7/N8/N20/N28/N38/N40/N41/N77/N78; LTE bands B1/B3/B5/B7/B8/B20/B28/B32/B38/B40/B41/B42/B43
• Number of channels: 2.4 GHz: 1-13 (region-specific), 5 GHz: 36-165 (region-specific)
• Operating Frequency: 2.4 GHz, 5 GHz Wi-Fi; 700 MHz-3700 MHz (5G/LTE bands)
• Spreading: OFDMA, MU-MIMO (Wi-Fi 6), DSSS/OFDM (legacy)
• Modulation Technique: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM
• IEEE 802.11: Supported
• a: Yes (5 GHz)
• b: Yes (2.4 GHz)
• g: Yes (2.4 GHz)
• h: Yes (DFS compliance in 5 GHz)
• n: Yes (2.4 GHz & 5 GHz)
• u: Yes (network discovery, roaming support)
• ac: Yes (5 GHz)
• ax: Yes (Wi-Fi 6, 2.4 GHz & 5 GHz)

Telecommunications

• Impedance: 50 O (standard RF antenna interface, SMA-F connectors)
• Active Inbound Call Switching for POTS: Not Supported
• Lifeline Support: Not Supported
• DTMF Dialling: Not Supported
• Internal Ring: Not Supported
• Loop Start Signaling: Not Supported
• DTMF Detect and Remove: Not Supported
• G.711 Compression: Not Supported
• G.726 Compression: Not Supported
• G.729ab Compression: Not Supported
• G.168 Echo Cancellation: Not Supported
• A-law, U-law Encoding: Not Supported
• Fax/Data Detect and Support: Not Supported
• Universal CP Tone Detect: Not Supported
• Voice Activity Detect: Not Supported
• Signaling: Not Supported
• Silence Reconstruction: Not Supported
• Packet Loss Compensation: Not Supported (no VoIP features)
• Caller ID Transmit/Receive: Not Supported
• Caller ID on Call Waiting: Not Supported
• Flash on/off Hook: Not Supported
• 3 Way Call: Not Supported
• Silence Suppression: Not Supported
• Software Standards: IPv4, IPv6, TCP/IP, DHCP, NAT, VPN (PPTP, L2TP, IPSec, OpenVPN), QoS, UPnP, EasyMesh
• DTMF: Not Supported

Performance

• Throughput: Wi-Fi: 574 Mbps (2.4 GHz), 1201 Mbps (5 GHz); 5G: up to 4.67 Gbps (DL)
• IP Packet Routing: Supported (Static/Dynamic IP, NAT, DHCP, IPv4/IPv6 routing)
• Packet Forwarding Rate: Up to 1 Gbps (limited by Gigabit LAN ports)
• Topology: Star / Mesh (EasyMesh-supported)
• MTBF: > 50,000 hours (typical for consumer networking equipment, TP-Link doesn't specify exact)

Security

• VPN Pass Through/Multi-Sessions: Supported: PPTP, L2TP, IPSec, OpenVPN
• User Authentication: Password login, TP-Link ID (Cloud), WPA/WPA2/WPA3 for Wi-Fi
• Security: WPA/WPA2/WPA3 encryption, SPI firewall, DoS protection, Access Control, IP/MAC binding, Guest Network
• Firewall Filtering: Stateful Packet Inspection (SPI), DoS protection, IP & MAC binding, Access Control
• VPN: PPTP, L2TP, IPSec, OpenVPN
• VPN Client Sessions: Multiple (exact max not published by TP-Link, supports concurrent VPN connections)
• Site to Site VPN Policies: Supported via IPSec/OpenVPN

Ethernet

• Protocols Supported: IPv4, IPv6, TCP/IP, DHCP, NAT, PPTP, L2TP, IPSec, OpenVPN, UPnP
• Ethernet Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
• Flow Control: IEEE 802.3x (Full Duplex)

Interfaces/Ports

• 10/100-BaseT Port Capacity: 0 (all ports are Gigabit)
• 10/100-Base-TX Port Capacity: 0 (all ports are Gigabit)
• ADSL Interface: Not Supported
• Serial Ports: None
• Console Port: None
• ATM25 Interface: Not Supported

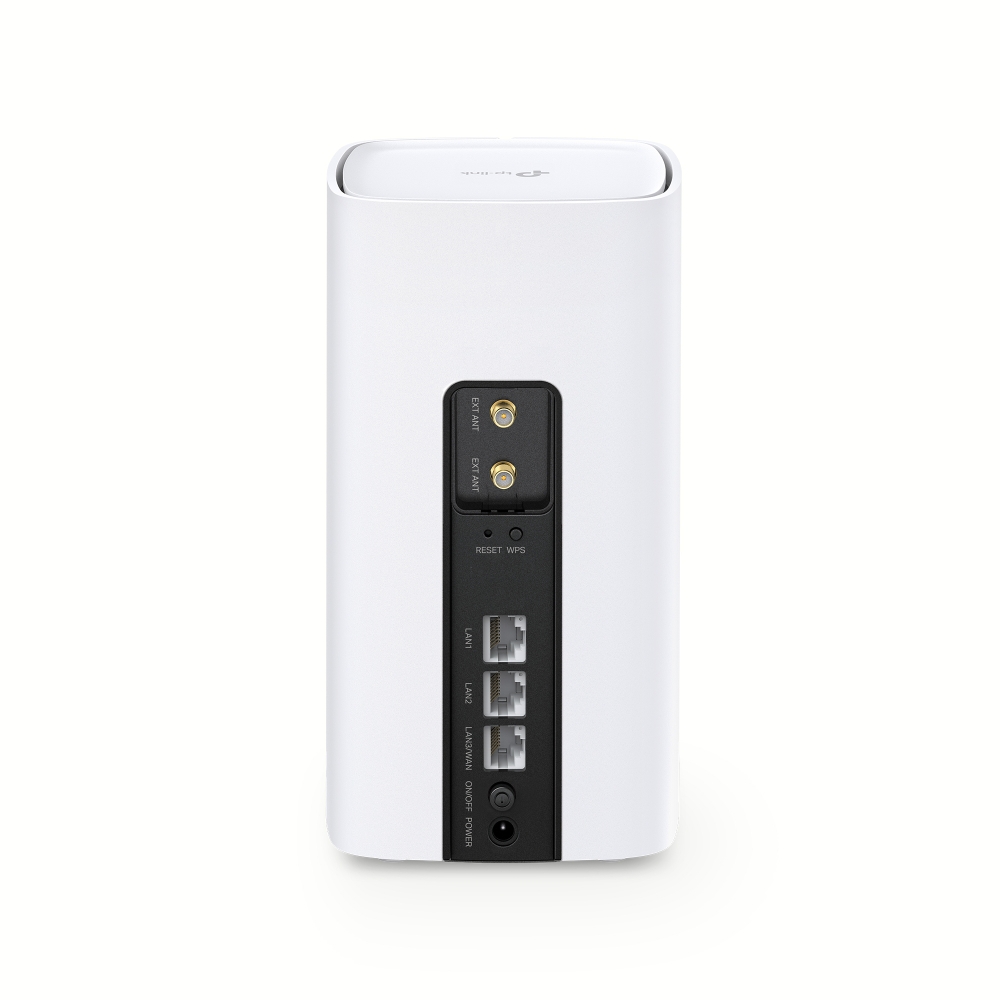

• WAN Ports: 1 ž 10/100/1000 Mbps LAN/WAN (RJ45), plus Nano-SIM slot for 5G/4G
• Number of WAN Ports: 1 (Ethernet), 1 (Nano-SIM for mobile WAN)
• WAN Port Connector: RJ45 (Ethernet) + Nano-SIM slot (for 5G/4G WAN)
• WAN Port Speed: 10/100/1000 Mbps (Gigabit)
• WAN Port Protocol: IPv4, IPv6, PPPoE, Dynamic IP, Static IP, PPTP, L2TP
• LAN Ports: 2 x 10/100/1000 Mbps RJ45
• Number of LAN Ports: 2
• LAN Port Connector: RJ45
• LAN Port Speed: 10/100/1000 Mbps (Gigabit)
• LAN Port Protocol: Ethernet (IEEE 802.3, 802.3u, 802.3ab)
• Parallel Ports: None
• USB Ports: None
• Full Duplex Capabilities: Yes (IEEE 802.3x flow control, full/half duplex)
• VoIP Ports: None
• Telephone Ports: None
• Auxiliary Ports: 2 ž SMA-F external antenna connectors (for 5G/LTE)
• Modem Port: Nano-SIM slot (for built-in 5G/4G modem)
• Serial ATA Ports: None
• WAN Autosensing: Yes (auto-detects WAN type on RJ45 Gigabit WAN port)
• LAN Autosensing: Yes (auto-negotiation 10/100/1000 Mbps on LAN ports)
• LAN Ports: 2 x Gigabit RJ45

Memory

• Memory Maximum: Not Expandable

Environmental

• Noise Level (full operating mode): Fanless, 0 dB (silent operation)

Memory

• Memory Type: DDR3 (assumed, not published)

Physical

• Form Factor: Desktop Tower (190 mm tall)

Memory

• Flash Memory: Same as above - Not Published
• Memory Slot: None (integrated, not upgradeable)

Storage

• Internal Storage: None
• Number of Storage Units: 0
• Storage Unit Capacity: None

Expansion

• Number of Slots: 0
• Expansion Slots: None
• Wan Interface Cards: Not Supported (integrated only)

Compliance

• Safety: CE, RoHS
• EMI: CE EMC compliance, EN55032/EN55024 (region-dependent)
• Immunity: CE standards (EN61000 series)
• Standards: IEEE 802.11ax/ac/n/g/b/a, IEEE 802.3/3u/3ab

System

• Management: TP-Link Tether App, Web UI (HTTP/HTTPS), TP-Link Cloud, Remote Management
• Administration: Web interface, App, Remote login, Cloud account
• Resiliency/Redundancy: WAN failover: mobile (5G/4G) ? wired (Ethernet)
• Convergence/Prioritising: QoS, Bandwidth Control, Device/Application prioritisation
• Operating System: Proprietary TP-Link Router OS (embedded)
• Clients: Supports up to ~64+ simultaneous devices (typical Wi-Fi 6 capacity, depends on environment)
• Router Modes: 5G/4G Router, Wireless Router, Access Point

System Requirements

• System Requirements: Windows 98SE/NT/2000/XP/Vista/7/8/8.1/10/11, macOS, Linux, UNIX; Browser: IE 11+, Firefox 12+, Chrome 20+, Safari 4+
• Browser Support: IE 11+, Firefox 12+, Chrome 20+, Safari 4+, any modern Java-enabled browser
• Operating Systems Supported: Windows, macOS, Linux, UNIX (for client devices)

Electrical

• DC Input Voltage: 12 VDC
• Power Adaptor Type: External AC to DC adapter
• Power Adaptor Output: 12 VDC / 2 A
• AC Input Current: 0.6 A
• AC Input Voltage: 100-240 V ~ 50/60 Hz
• Electrical Frequency: 50/60 Hz
• Maximum Power Consumption: ~24 W (12 V ž 2 A)
• Redundant Power Supplies: None
• Power over Ethernet (PoE): Not Supported
• DC Input Voltage: 12 VDC
• Power over Ethernet (PoE) Standards: Not Supported
• Power Cord: Included with external power adapter
• Battery: None

Environmental

• Operating Humidity: 10%-90% non-condensing
• Operating Temperature: 0 øC ~ 40 øC (32 øF ~ 104 øF)
• Noise Level (full operating mode): 0 dB (fanless, silent)
• Heat Dissipation: Passive (no fan, vented chassis)

Physical

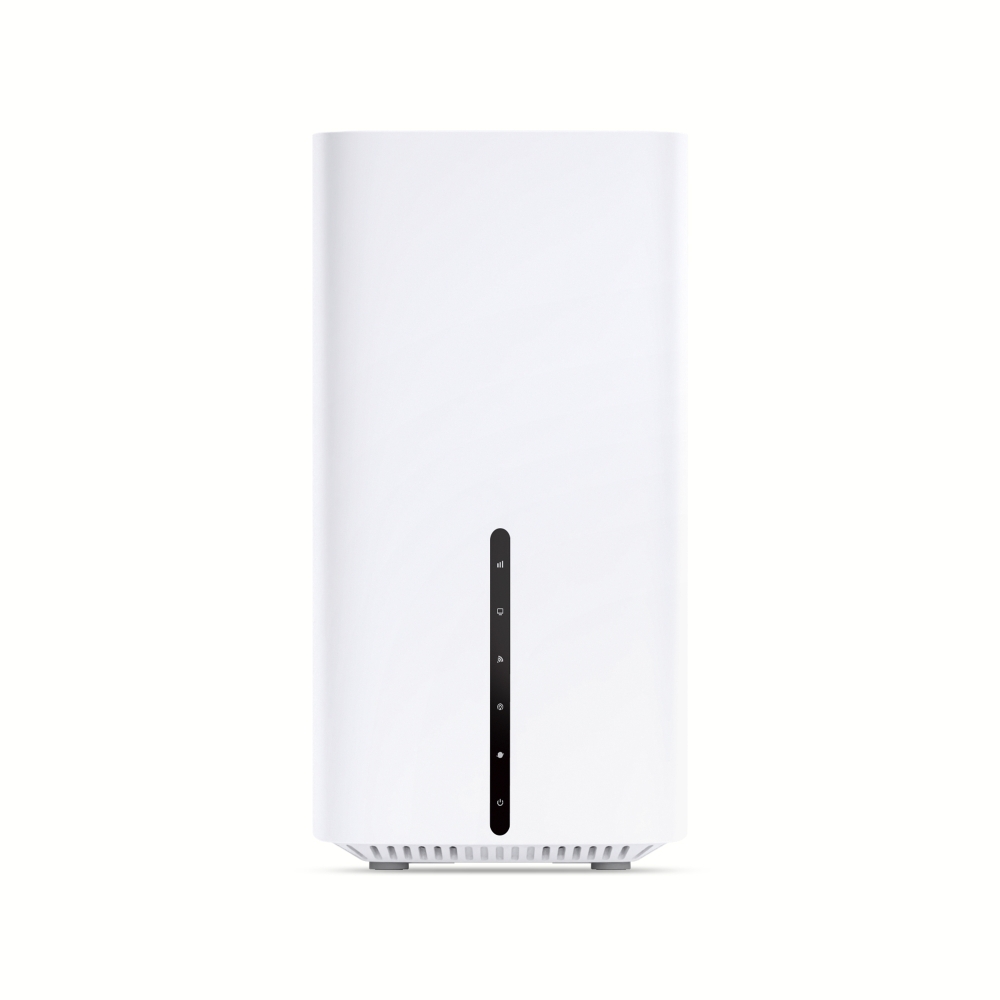

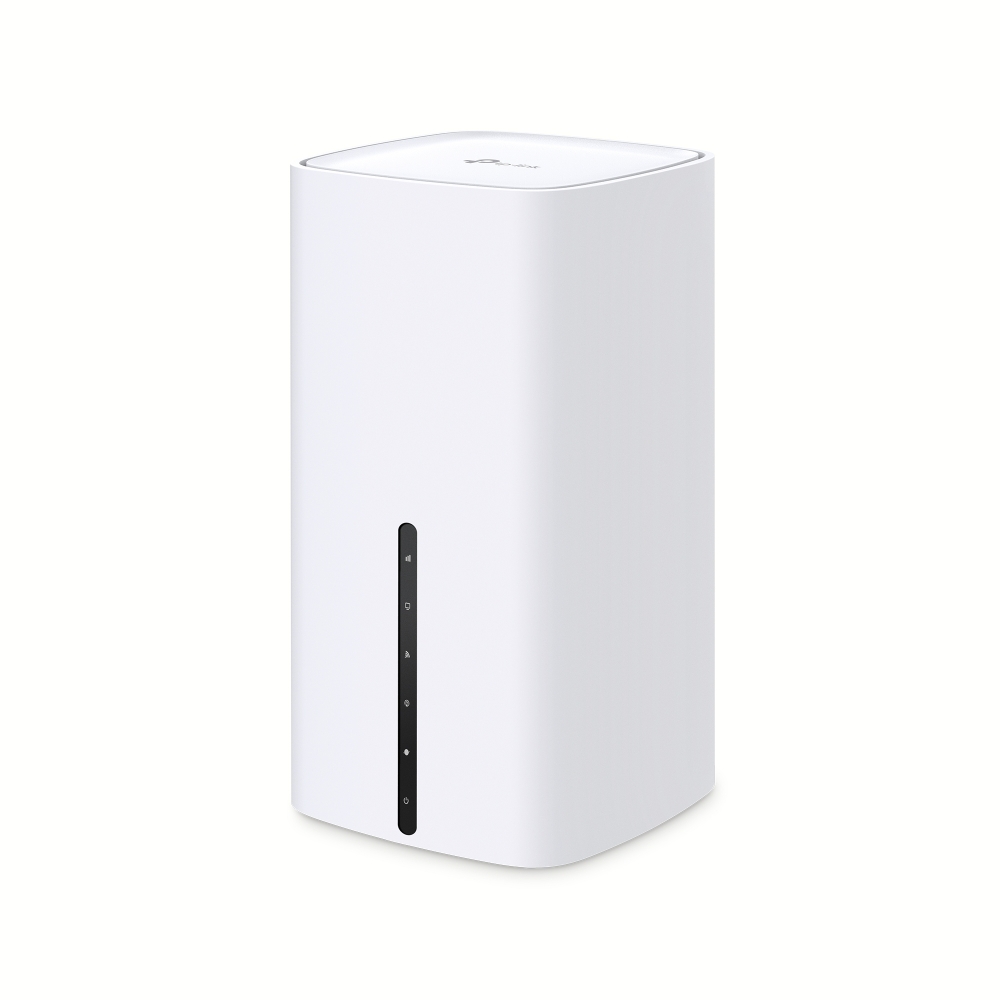

• Form Factor: Desktop Tower (99 x 99 x 190 mm)
• Case Colour: White
• LED Status Indicators: Power, Internet, LAN, Wi-Fi, Signal Strength
• Rack Units: Not Rack-Mountable
• In The Box: Archer NX200 Router, Power Adapter (12 V/2 A), RJ45 Ethernet Cable, Quick Installation Guide
• Width: 99 mm (3.9 in)
• Depth: 99 mm (3.9 in)
• Height: 190 mm (7.5 in)
• Weight: ~0.6 kg (net weight, device only)
• Notes: Dimensions and weight exclude packaging; shipping weight ~0.98-1.2 kg depending on region

Shipping

• Shipping Pallet Quantity: Not Published (varies by distributor)
• Pallet Product Quantity: Not Published
• Shipping Carton Quantity: 1 unit per carton (retail box)
• Shipping Carton Product Quantity: 1
• SC Width: 250 mm
• SC Depth: 150 mm
• SC Height: 120 mm
• SC Weight: 0.98-1.2 kg (gross shipping weight)
• Trade Carton: 1 unit per trade carton
• Trade Carton Product Quantity: 1
• TC Width: 250 mm
• TC Depth: 150 mm
• TC Height: 120 mm
• TC Weight: 0.98-1.2 kg

Wireless LAN

• IEEE 802.11a: Supported
• IEEE 802.11b: Supported
• IEEE 802.11e: Supported (QoS/WMM)
• IEEE 802.11g: Supported
• IEEE 802.11h: Supported (DFS/TPC in 5 GHz band)
• IEEE 802.11n: Supported (2.4 GHz & 5 GHz)
• Range (Indoor - Maximum): ~30 m indoors (environment dependent)
• Templ: Operating: 0 øC ~ 40 øC; Storage: -40 øC ~ 70 øC
• Receive Sensitivity: 2.4 GHz: up to -78 dBm; 5 GHz: up to -80 dBm (varies by modulation, see datasheet)

Attributes

• PCMCIA Slots: None

Identifiers

• Stock Code: NET4805
• Mfg Code: Archer NX200
