Router

• Router Type: 4G+ Cat6 Wireless Dual Band Gigabit Router (AC1200)

WAN

• WAN Protocols: Dynamic IP, Static IP, PPPoE, PPTP (Dual Access), L2TP (Dual Access)
• WAN Signalling: FDD-LTE, TDD-LTE, DC-HSPA+/HSPA/UMTS
• WAN Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab

Wireless LAN

• Antenna Type: 2 ž Detachable External LTE Antennas (SMA-F interface)
• Range (Outdoor - Maximum): Dependent on LTE network coverage; Wi-Fi up to 100m (outdoor)
• Transmit Power: <20 dBm (2.4 GHz), <23 dBm (5 GHz)
• Data Transfer Rates: 300 Mbps (2.4 GHz), 867 Mbps (5 GHz), up to 300 Mbps LTE download
• Encryption: 64/128-bit WEP, WPA/WPA2/WPA3 (Personal & Enterprise)
• Frequency Band: 2.4 GHz and 5 GHz
• Number of channels: 2.4 GHz: 1-13
• Operating Frequency: 2.4 GHz: 2.412-2.472 GHz
• Spreading: DSSS (2.4 GHz), OFDM (5 GHz)
• Modulation Technique: DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM
• IEEE 802.11: a/b/g/n/ac
• a: Supported (5 GHz)
• b: Supported (2.4 GHz)
• g: Supported (2.4 GHz)
• n: Supported (2.4 GHz & 5 GHz)
• ac: Supported (5 GHz)

Telecommunications

• Impedance: 50 O (antenna ports, typical)
• Software Standards: IPv4, IPv6, DHCP, NAT, VPN (PPTP, OpenVPN), DDNS, QoS

Performance

• Throughput: Up to 1200 Mbps (AC1200 Wi-Fi) + up to 300 Mbps LTE download
• IP Packet Routing: Supported (IPv4/IPv6 static and dynamic routing)
• Packet Forwarding Rate: Wire-speed gigabit forwarding (1,488,095 pps for 64-byte packets)
• Topology: Star (router to devices)
• MTBF: > 100,000 hours (typical for TP-Link routers)

Security

• VPN Pass Through/Multi-Sessions: PPTP, L2TP, IPSec, OpenVPN supported
• User Authentication: WPA/WPA2/WPA3 (Personal/Enterprise), password authentication
• Security: SPI Firewall, DoS Protection, IP & MAC Binding, Access Control, WPA3
• Firewall Filtering: SPI Firewall, DoS Protection, IP & MAC Binding, Access Control
• VPN: PPTP VPN Server, OpenVPN Server
• VPN Client Sessions: Multiple concurrent sessions supported
• Site to Site VPN Policies: Not Supported (no IPSec site-to-site)

Ethernet

• Protocols Supported: IPv4, IPv6, DHCP, NAT, DDNS, QoS, UPnP
• Ethernet Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
• Flow Control: IEEE 802.3x Full Duplex

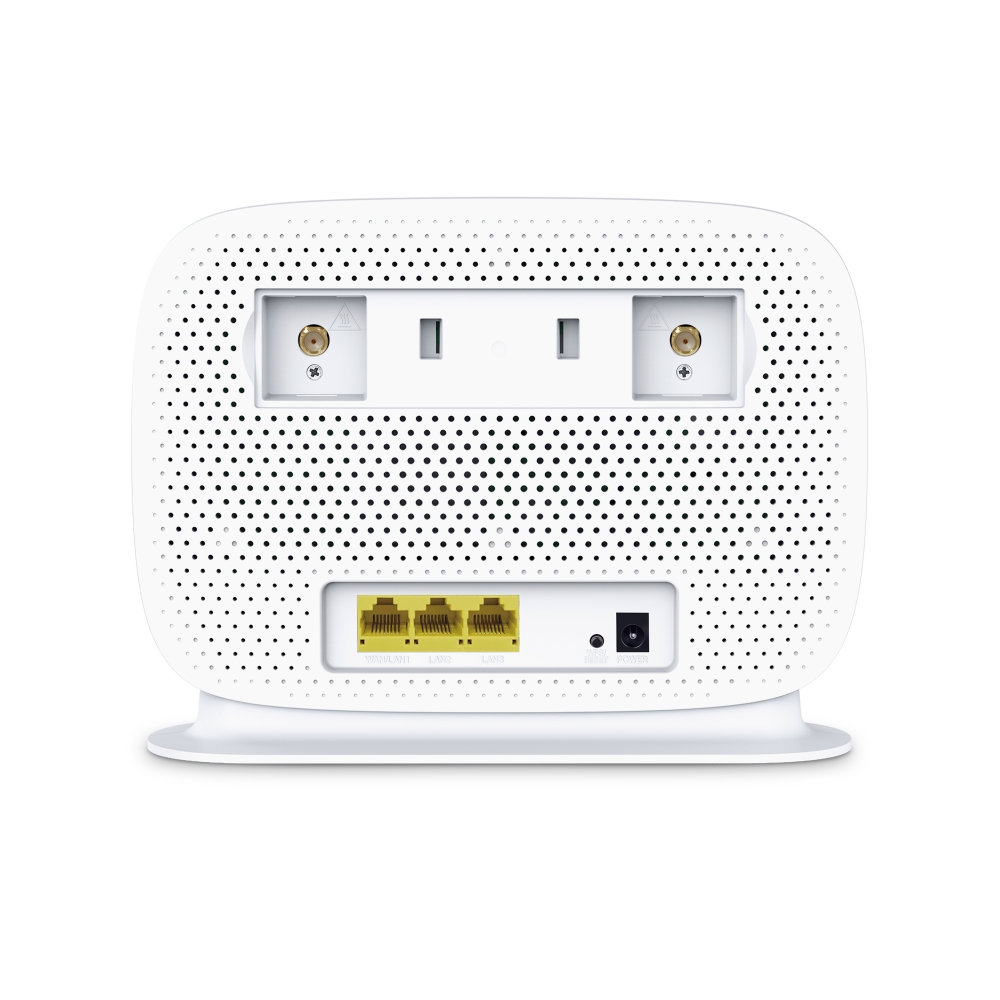

Interfaces/Ports

• WAN Ports: 1 ž Gigabit WAN/LAN port (auto-configurable)
• Number of WAN Ports: 1
• WAN Port Connector: RJ45
• WAN Port Speed: 10/100/1000 Mbps (Gigabit)
• WAN Port Protocol: Ethernet (Dynamic IP, Static IP, PPPoE, PPTP, L2TP)
• LAN Ports: 2
• Number of LAN Ports: 2
• LAN Port Connector: RJ45
• LAN Port Speed: 10/100/1000 Mbps (Gigabit)
• LAN Port Protocol: Ethernet
• Full Duplex Capabilities: Supported (IEEE 802.3x Full Duplex)
• Modem Port: 1 ž Nano SIM card slot (for 4G LTE connectivity)
• WAN Autosensing: Supported
• LAN Autosensing: Supported

CPU

• Processor Speed: N/A (Not specified by manufacturer)
• Processor Type: Embedded Network Processor (unspecified)

Interfaces/Ports

• LAN Ports: 2 ž Gigabit LAN

Environmental

• Noise Level (full operating mode): Fanless, Silent operation

Physical

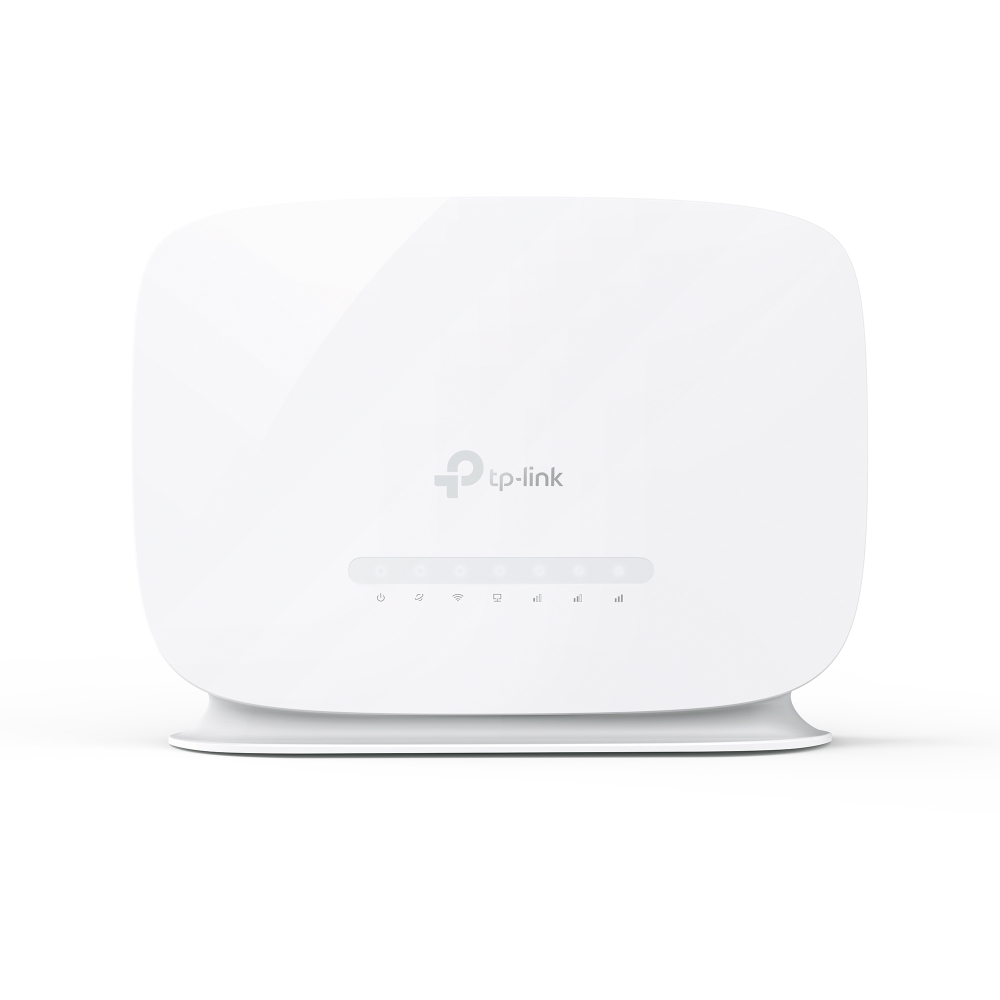

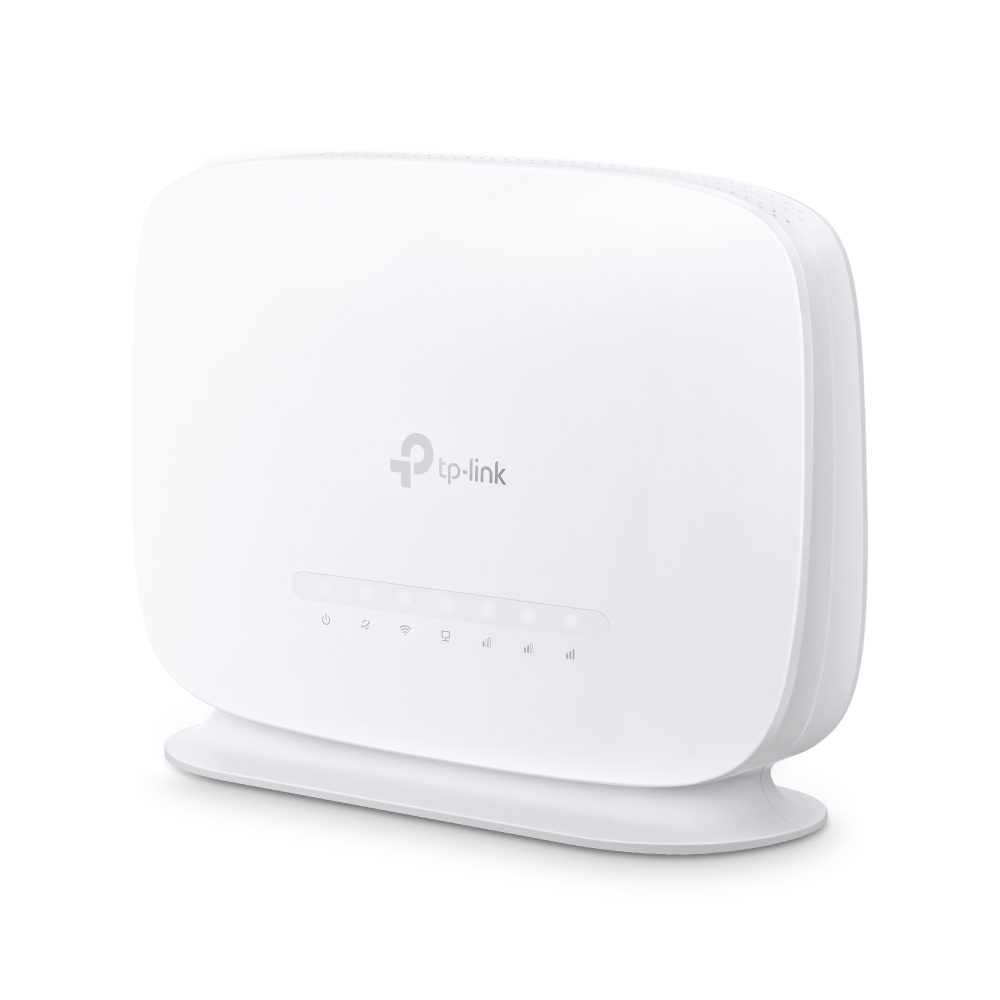

• Form Factor: Desktop Router

Compliance

• Safety: CE, RoHS Certified
• EMI: CE EMC compliant
• Immunity: CE EMC compliant
• Standards: IEEE 802.11 a/b/g/n/ac, IEEE 802.3/3u/3ab

System

• Management: TP-Link Tether App, Web UI (HTTP/HTTPS), TP-Link Cloud, Remote Mgmt
• Administration: Local/Remote admin, DHCP, NAT, Port Forwarding, Firewall, QoS
• Resiliency/Redundancy: WAN Failover (LTE ? WAN port)
• Convergence/Prioritising: QoS (device-based traffic prioritisation)
• Operating System: TP-Link Router OS (proprietary firmware)
• Clients: Up to 64 simultaneous wireless clients
• Router Modes: 4G LTE Router, Wireless Router (WAN), Access Point

System Requirements

• System Requirements: Compatible with Windows, macOS, Linux
• Browser Support: Chrome, Firefox, Safari, Edge
• Operating Systems Supported: Windows 10/8/7, macOS, Linux, Android, iOS (for management)

Electrical

• DC Input Voltage: 12 V DC
• Power Adaptor Type: External AC/DC adapter
• Power Adaptor Output: 12 V / 1.5 A
• AC Input Current: 1.5 A max (via adapter)
• AC Input Voltage: 100-240 V AC, 50/60 Hz (via adapter)
• Electrical Frequency: 50/60 Hz
• Maximum Power Consumption: < 18 W (typical)
• DC Input Voltage: 12 V DC
• Power Cord: External AC/DC adapter with 1.5 m cord

Environmental

• Operating Humidity: 10% - 90% non-condensing
• Operating Temperature: 0 øC - 40 øC (32 øF - 104 øF)
• Noise Level (full operating mode): Silent, fanless
• Heat Dissipation: Passive cooling

Physical

• Form Factor: Desktop Router
• Case Colour: Black
• LED Status Indicators: Power, Internet, 2.4 GHz, 5 GHz, LAN, WPS, Signal Strength

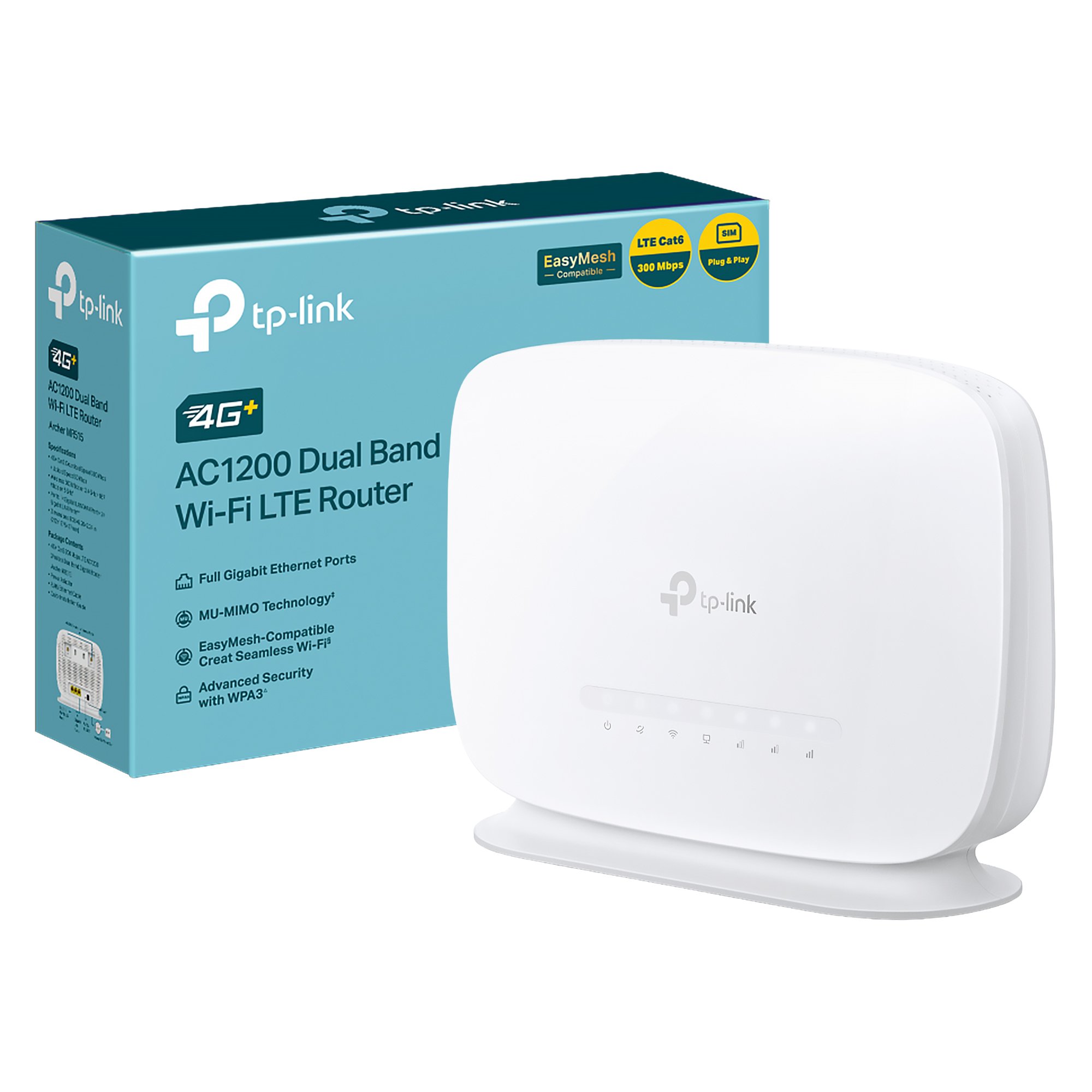

• In The Box: Archer MR515 Router, 12 V/1.5 A Power Adapter, RJ45 Ethernet Cable, Quick Installation Guide
• Width: 212 mm (8.35 in)
• Depth: 157.5 mm (6.20 in)
• Height: 57 mm (2.24 in)
• Weight: ~0.5 kg (device only, without packaging)
• Notes: Dimensions and weight may vary slightly by version

Shipping

• Shipping Carton Quantity: 1
• Shipping Carton Product Quantity: 1
• SC Width: ~300 mm (estimated retail carton width)
• SC Depth: ~210 mm (estimated retail carton depth)
• SC Height: ~100 mm (estimated retail carton height)
• SC Weight: ~0.9 kg (estimated shipping carton weight)
• Trade Carton: Single retail carton
• Trade Carton Product Quantity: 1
• TC Width: ~300 mm (estimated retail carton width)
• TC Depth: ~210 mm (estimated retail carton depth)
• TC Height: ~100 mm (estimated retail carton height)
• TC Weight: ~0.9 kg (device + packaging + accessories)

Wireless LAN

• IEEE 802.11a: Supported (5 GHz)
• IEEE 802.11b: Supported (2.4 GHz)
• IEEE 802.11d: Supported (2.4 GHz & 5 GHz)
• IEEE 802.11e: Supported (QoS/WMM)
• IEEE 802.11g: Supported (2.4 GHz)
• IEEE 802.11n: Supported (2.4 GHz & 5 GHz)
• Range (Indoor - Maximum): Up to 30 m (varies by environment)
• A: Supported (5 GHz)
• Templ: Operating: 0 øC ~ 40 øC
• Receive Sensitivity: 2.4 GHz: down to -74 dBm

Warranty

• Warranty: 3 years (varies by region)

Identifiers

• Stock Code: NET4803
• Mfg Code: ARCHER MR515
