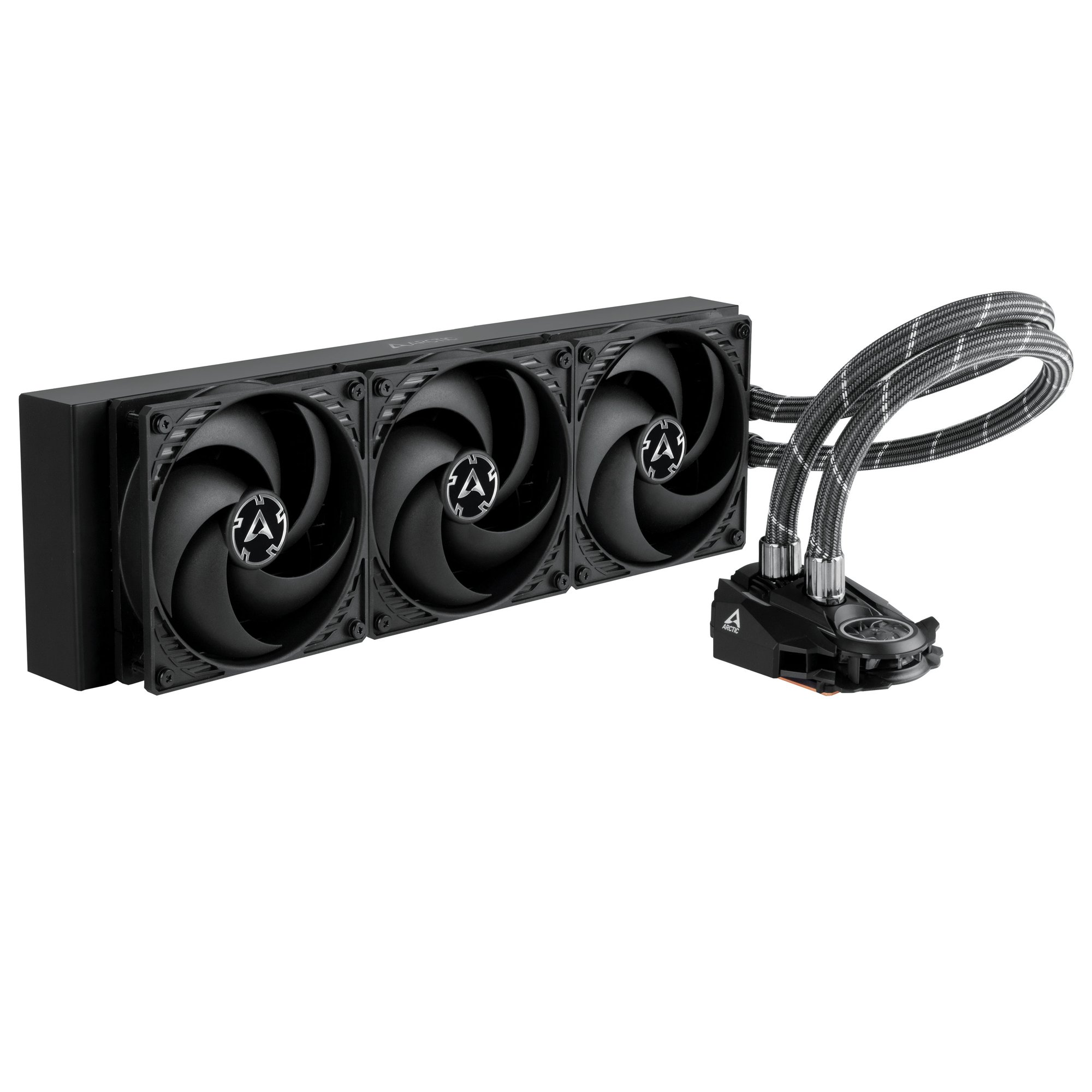

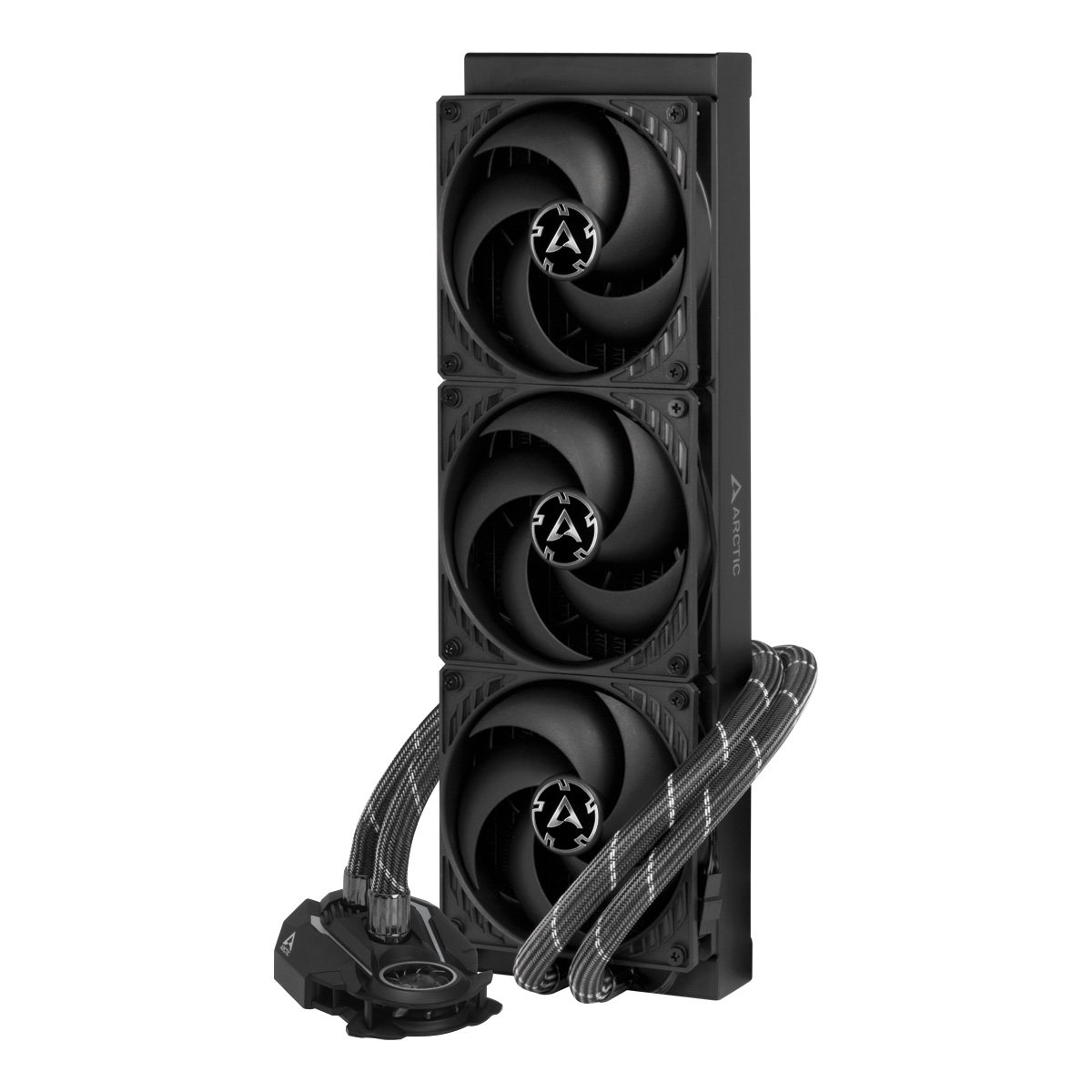

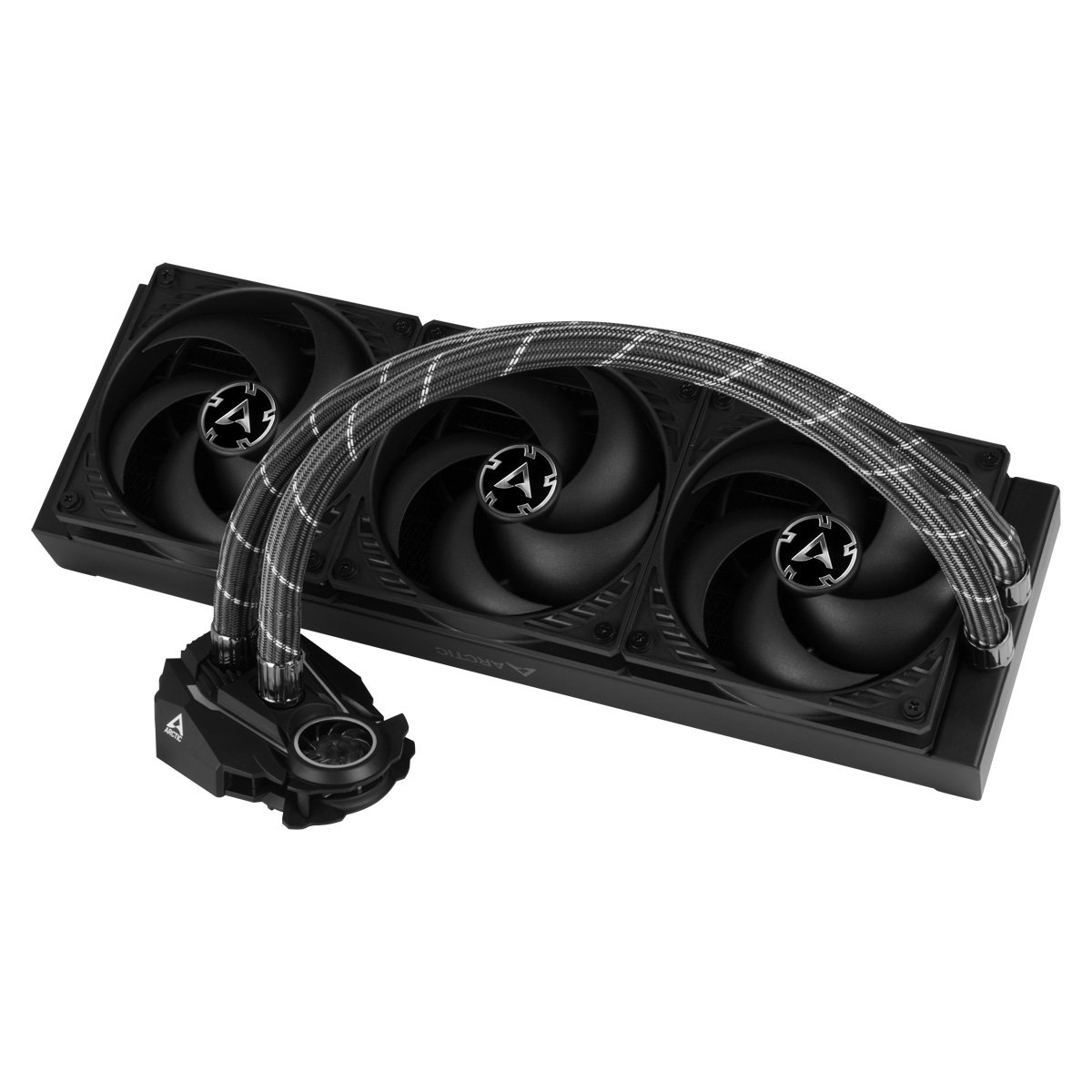

Arctic Liquid Freezer II 360mm Liquid CPU Cooler

Arctic Liquid Freezer II 360mm Liquid CPU Cooler

CCL Code: CLR2277

Discontinued

Arctic Liquid Freezer II 360mm Liquid CPU Cooler

ACFRE00068A

CCL Code: CLR2277

Discontinued

Sorry, this product has been discontinued. We have found some similar products below.

Overview

At ARCTIC, we are proud of our completely new all-in-one CPU water cooler series. For the Liquid Freezer II Series, we have used our experience in CPU water cooling to develop a completely new compact water cooling pump. The new pump of the Liquid Freezer II Series ensures an ideal ratio of high CPU cooling performance to low noise levels.

The CPU AiO water cooler has integrated cable management within fully sleeved tubes for a clean look in your PC’s case. Our powerful P-fans provide a fast heat transfer thanks to their high static pressure and outstanding performance.

We recommend the Liquid Freezer II Series, an all-in-one CPU water cooler for those looking for superior performance and low noise level at a fair price.

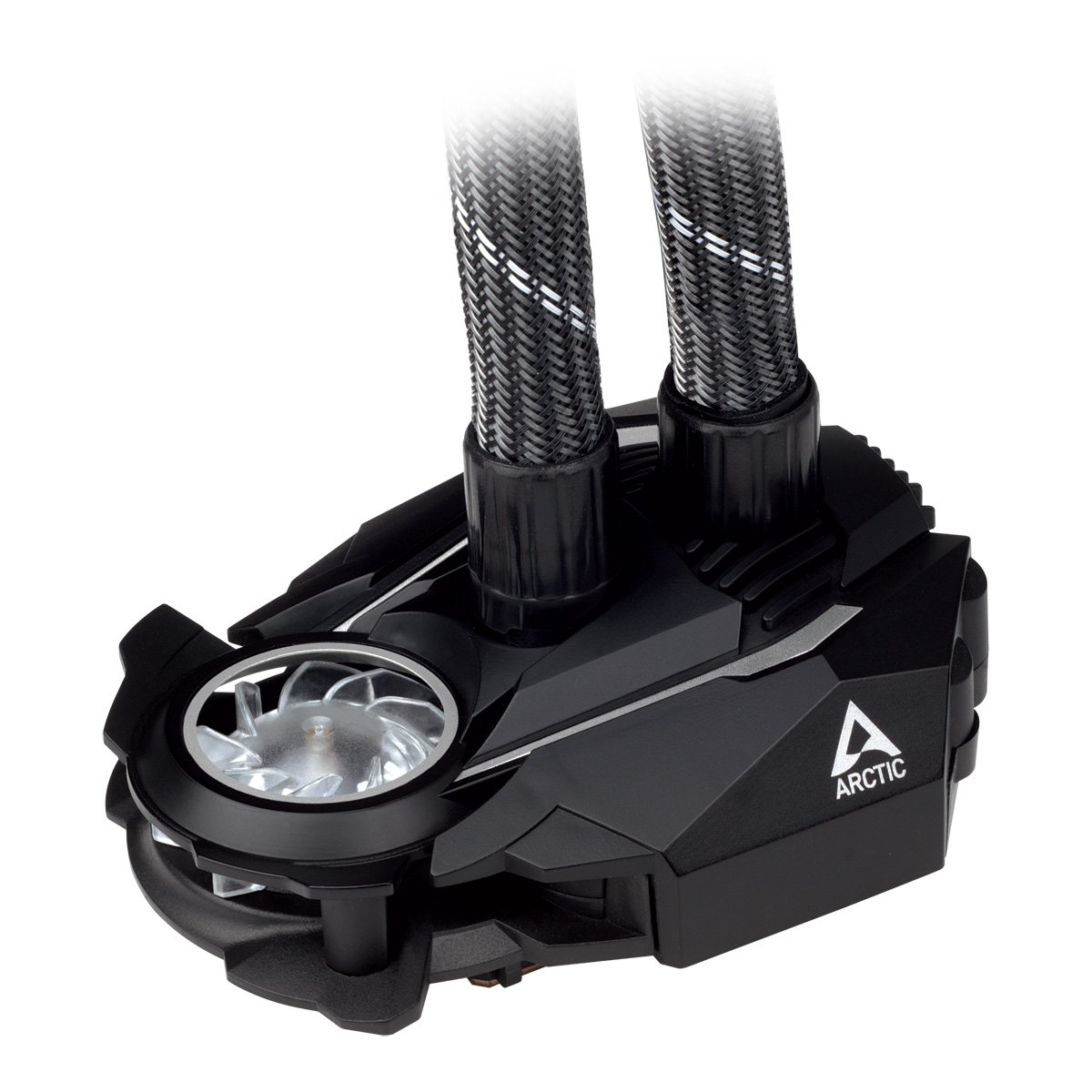

NEWLY DEVELOPED IN-HOUSE PWM-CONTROLLED PUMP

The Liquid Freezer II Series features an all-new, in-house developed PWM-controlled pump with a copper base, improved efficiency, low power usage and quiet operation.

Unlike most pumps from our competitors, which run at full load even when idle, our pump clocks down consuming less power and producing less noise if no cooling is needed, even with its additional fan for VRM cooling.

MOTHERBOARD VRM COOLING FAN

An additional 40 mm fan next to the pump helps to cool the motherboard‘s VRM chips. This prevents overheating, especially when overclocking, and allows for continous heavy loads.

MAINTENANCE-FREE WATER LOOP

The water loop is sealed, therefore no water or additives have to be refilled.

P-FAN FOR INCREASED PERFORMANCE

The Liquid Freezer II benefits of all advantages of our new P-fan.

  • High static pressure for increased cooling performance
  • Broad RPM range
  • Lower power consumption
  • Less vibrations
  • Extended life span
  • High quality bearing
  • PWM for synchronous fan/pump control
Specifications

CPU Types

Socket Intel 115X, 2011-3*, 2066* *Square ILM
AMD AM4

Fan

Fan Bearing Type Fluid Dynamic
Fan Speed 200 ~ 1800 RPM
Fan Noise Level 0.3 Sone
Static Pressure 2.2 mmH2O
Airflow 56.3 CFM

Fan Speed Controller

Connector 4-pin PWM
Voltage 12 V DC
Current 0.08 A

Physical

Form Factor AiO CPU Cooler
Case Colour Black
Base Material Copper
Heatsink Material Aluminium
Width 98 mm
Depth 78 mm
Height 53 mm
Weight 1.687 kg
Fan Width cm
Fan Depth 120 mm
Fan Height 25 mm
Heatsink Width 398 mm
Heatsink Height 120 mm
Heatsink Depth 38 mm

Warranty

Warranty 6 Years

Wireless Communications

Bluetooth

Key Features

Firewire
IDE/EIDE Supported
Installed Processors (Max)
Integrated Graphics Supported
Maximum RAM GB
RAID Supported
SATA Supported
SCSI/SAS Supported
Memory Type
Wireless Network
Motherboard Width 999 mm
Motherboard Height 999 mm
Chipset Manufacturer
Supported Processor Manufacturer
Number of PCI Slots slot(s)
Number of PCI-X Slots slot(s)
Number of PCI Express Slots slot(s)
Main Colour
Internal/External Use
Fan Diameter
Socket(s)
Memory Channel
On-board Audio Type
Number of SATA Ports port(s)
Number of USB Ports port(s)
SATA III Support
USB 3.0 Support
Multi GPU Support
Compatible with Socket AM3
Compatible with Socket AM2+
Compatible with Socket AM2
Compatible with Socket 939
Compatible with Socket 940
Compatible with Socket 754
Compatible with Socket A
Compatible with Socket 1366
Compatible with Socket 1156 Yes
Compatible with Socket 775
Compatible with Socket 771
Compatible with Socket 478
Compatible with Socket 423
Compatible with Socket 370
Heatpipe Technology No
Includes Fan Yes
VGA Connection
DVI Connection
HDMI Connection
DisplayPort Connection
Memory Type
Fan Size mm
Motherboard Form Factor
Socket 2066/2011 Yes
Socket 115x Yes
Socket AM2(+)/AM3(+)
Compatible with Socket FM1
Display Model in Showroom No
Wake on LAN
L.E.D Fan No LED
Socket FM2/FM1
Motherboard (EPS) Power Connectors
Motherboard Chipset
Thunderbolt
Liquid Cooler Yes
Compatible with Socket 1150 Yes
Compatible with Socket AM1
Motherboard Model
WiFi Speed Mbps
Watercooler Yes
USB 3.1 Support
Internal USB3.0 Header
Compatible with Socket 1151 Yes
Socket AM5/AM4 Yes
Cooler Height mm
Socket SP3/TR4/sTRX4/sWRX80
M.2 Support
Compatible with Socket 2066 Yes
On-board RGB Control
Memory Speed MHz
Skip Audio Test
Socket 3647
RGB Header Type
Addressable RGB
Number of Fans 3 fan(s)
Internal USB Type-C Header
Radiator Size 360 mm
Compatible with Socket 1200
Socket 1200 Yes
RGB Software Type None
Microsoft Processor List
Socket 1700
Power Requirement (auto) 19 W
Cooler count 1
Max Memory Speed Supported (Non-overclocked) MHz
Max Memory Speed Supported (overclocked) MHz
CPU Power Pins (female)
PCI Express Power Pins (female)
Total M.2 Slots
Maximum NVMe M.2 ports
Maximum SATA M.2 ports
PCI-e slots
SATA ports
No. of front USB2.0 ports supported
No. of front USB3.0 ports supported
No. of front USB-C ports supported

CPU

CPU Socket
CPU Brand

Graphics

Graphics Chipset

Item Details

Manufacturer Arctic Cooling
Manufacturer Code ACFRE00068A
EAN 4895213701983
Condition New
Warranty

Warranty Information

Warranty 6 Years

Manufacturer Information

Manufacturer Arctic Cooling
Manufacturer Code ACFRE00068A
Reviews
5.0 / 5 1 review

Jos Moss Anderson

December 2021

Does the job, have an overclocked 5950x running at full load and it never gets higher than 83 decrees. Unless you're running a threadripper, I doubt you'll need more, unless you keep your thermostat at 25 degrees.
