CPU

CPU Socket	Socket AM5
CPU Brand	AMD
Installed Processors (Max)	0 (1)
Supported Processor Manufacturer	AMD
Supported Processors	Ryzen 7000/ Ryzen 8000 Series Processors
64-bit Support	Yes
Socket	AM5

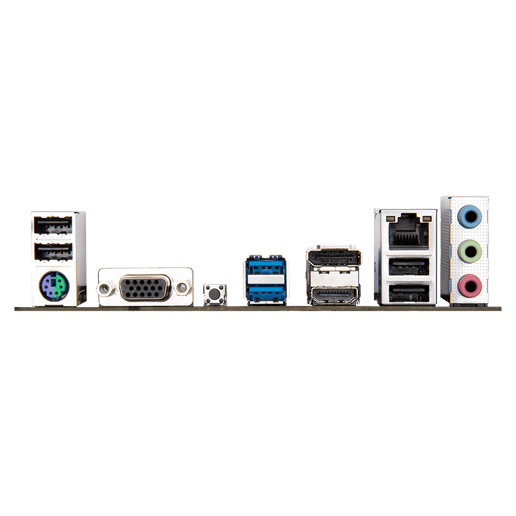

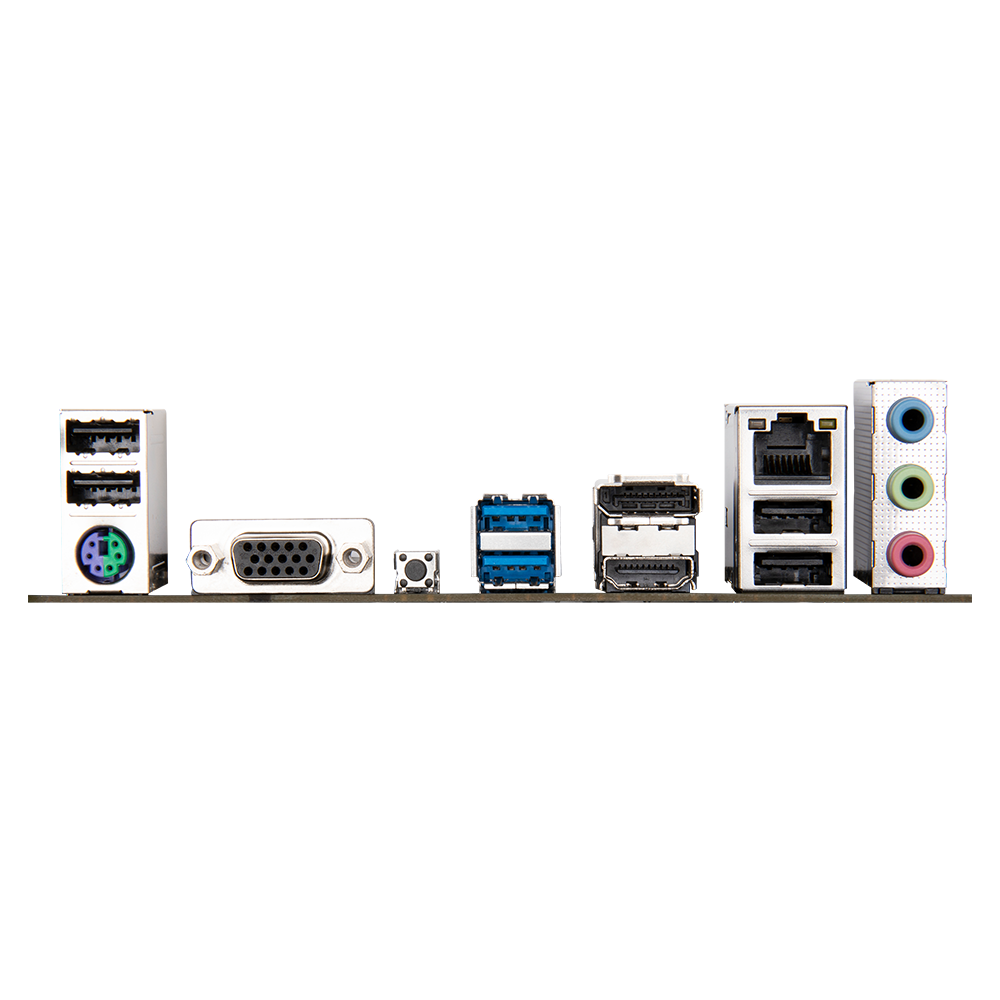

Rear Panel I/O Ports

USB Ports	2 x USB 3.0 4 x USB 2.0
DisplayPorts	1 x DisplayPort 1.4
HDMI Port	1 x HDMI 2.1
VGA Port	1 x D-Sub
Keyboard/Mouse Combo Port	1 x PS/2
RJ-45 Ports	1 x RJ-45
Audio Line In Ports	1 x 3.5mm Jack
Audio Line Out Ports	1 x 3.5mm Jack
Microphone In Port	1 x 3.5mm Jack

Internal I/O Connectors

SATA Connectors	4 x SATA III
USB Connectors	1 x USB 3.0 header (supports 2 ports) 2 x USB 2.0 headers (supports 4 ports)
Front Panel Connectors	1 x Front Panel 1 x Front Audio
Cooling Fan Support	1 x CPU fan header 2 x System fan headers
TPM Header	1 x TPM header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
Power Connector Port	1 x 24-pin ATX 1 x 8-pin EPS
Other Connectors	1 x M.2 slot, Socket 3, M Key, Type 2280 (PCIe Gen4) 1 x 3-pin ARGB LED header 1 x 4-pin RGB LED header

Memory

Memory Bus Speed	Up to 6400 MHz
Memory Type	DDR5
Maximum RAM	96 GB
Memory Slot	2 x DIMM

Motherboard

Northbridge	AMD A620
RAID Supported	Yes
RAID Format	RAID 0, 1, 10
SATA Supported	Yes

Expansion

Number of PCI Express Slots

1 x PCI Express 4.0 x16 slot 1 x PCI Express 3.0 x1 slot

Graphics Device

Integrated Graphics Supported

Yes

Warranty

Warranty

3 Years

Sound

Integrated Sound

Realtek

Network

Integrated Network	Realtek
Network Speeds Supported	Up to 1 Gbps
Wireless LAN	No
Bluetooth	No

System Requirements

Operating Systems Supported

Microsoft Windows 11

System

Jumpers	1 x Clear CMOS
Software Included (may be trial or restricted)	Yes
Drivers	Yes

Physical

Form Factor	mATX Motherboard
Width	225 mm
Length	230 mm

Key Features

RDIMM Memory Supported	No
RDIMM Memory Required	No
Wireless Network	No
Motherboard Width	225 mm
Motherboard Height	230 mm
mSATA Supported	No
U.2 Supported	No
Main Colour	Black
Memory Channel	Dual
On-board Audio Type	7.1
Number of SATA Ports	4 port(s)
Number of USB Ports	6 port(s)
USB 3.0 Support	Yes
Multi GPU Support	No
VGA Connection	Yes
DVI Connection	No
HDMI Connection	Yes
DisplayPort Connection	Yes
Motherboard Form Factor	mATX
Motherboard (EPS) Power Connectors	4+4-Pin
Motherboard Chipset	AMD A620
Thunderbolt	No

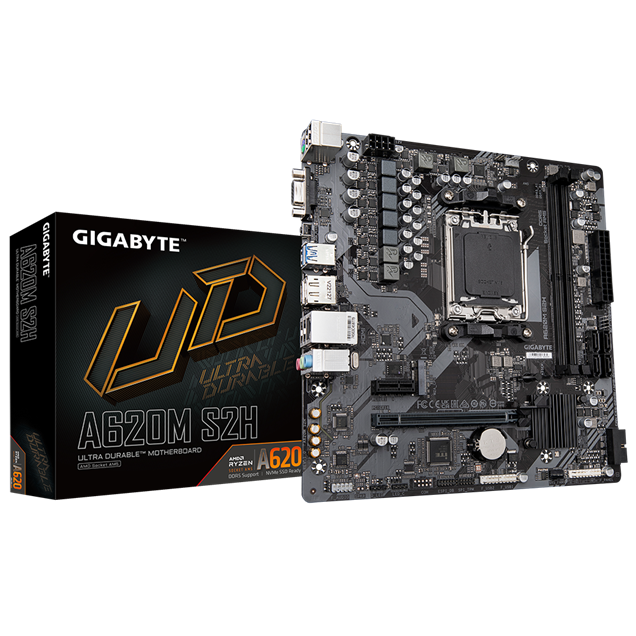

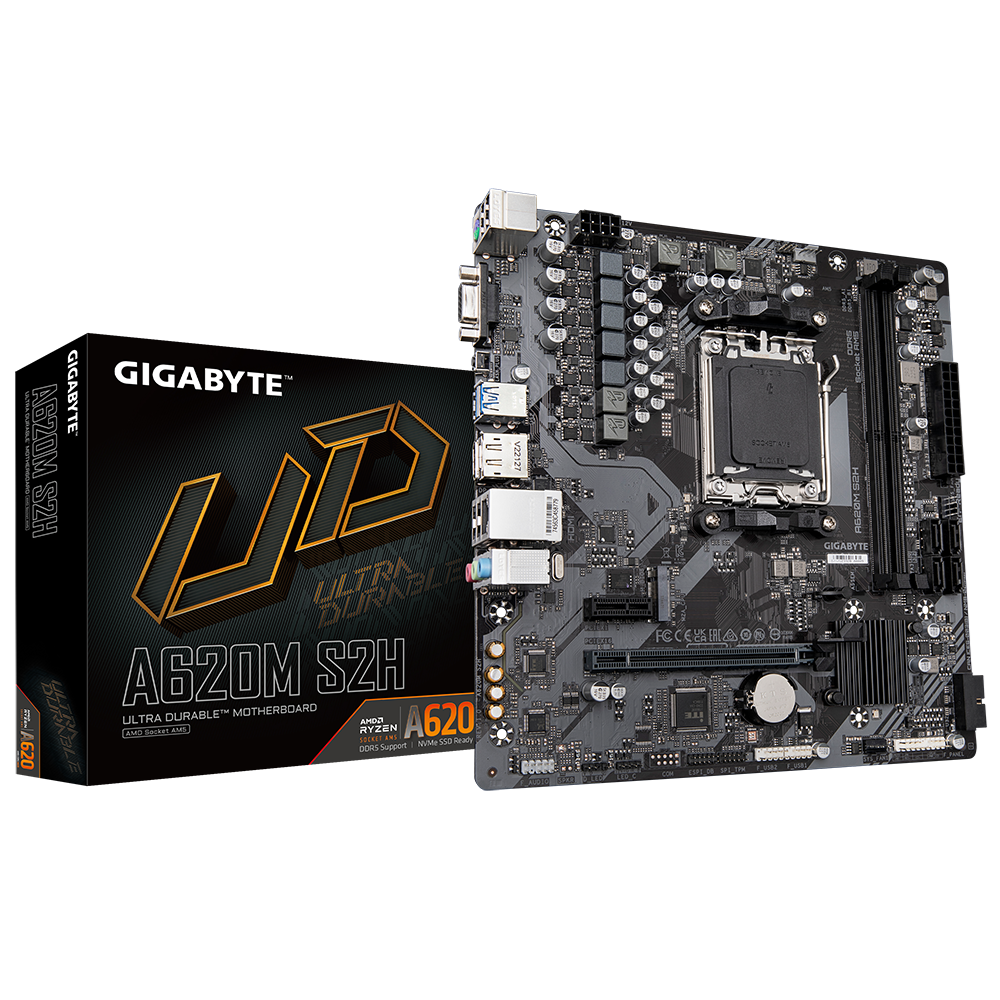

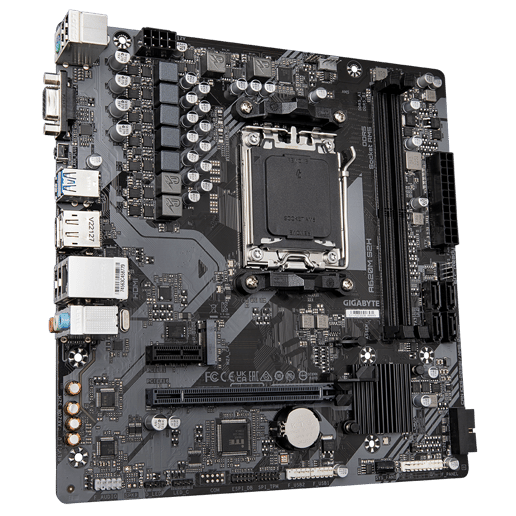

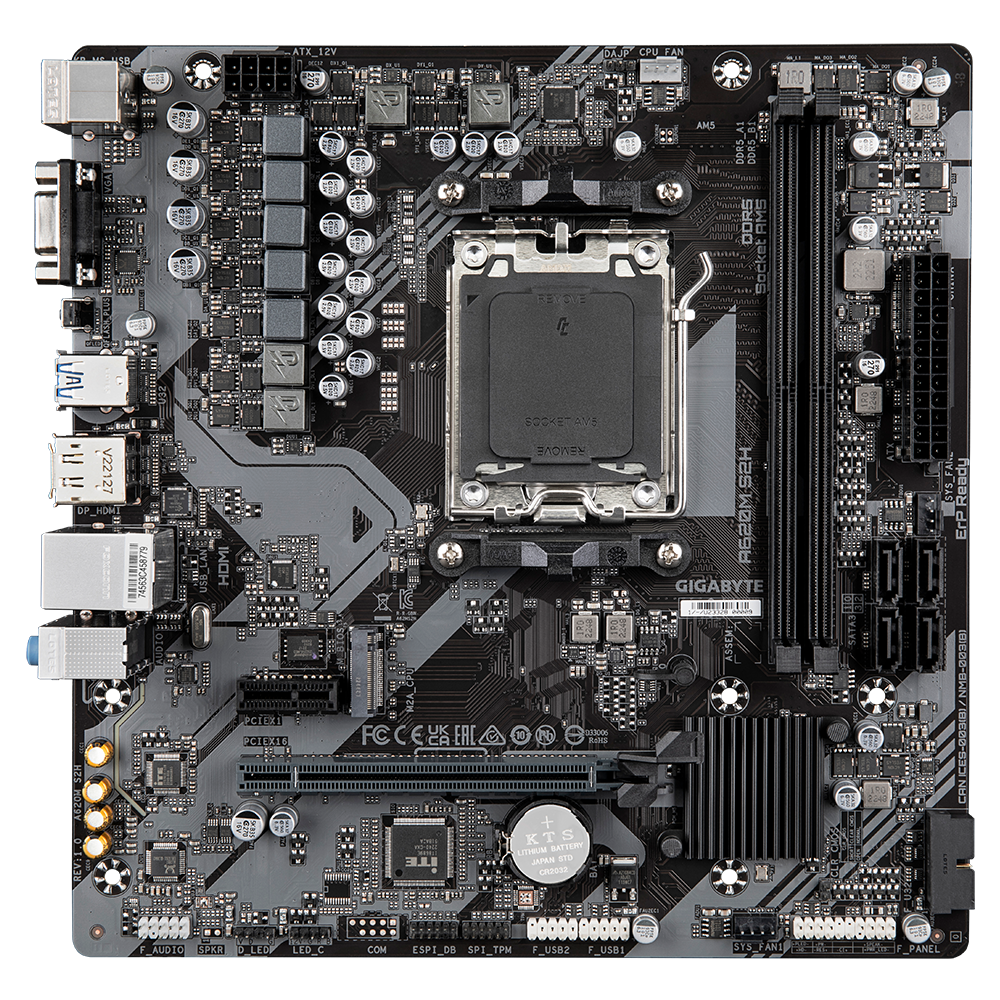

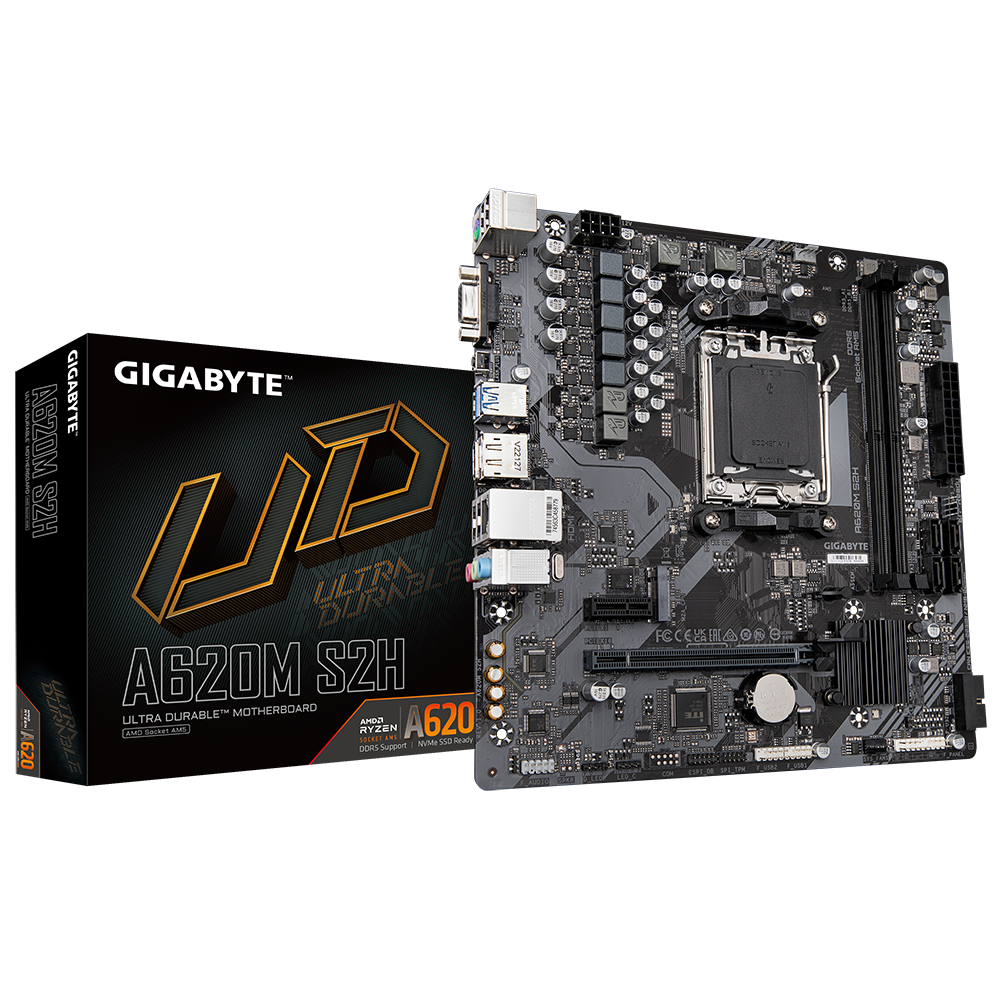

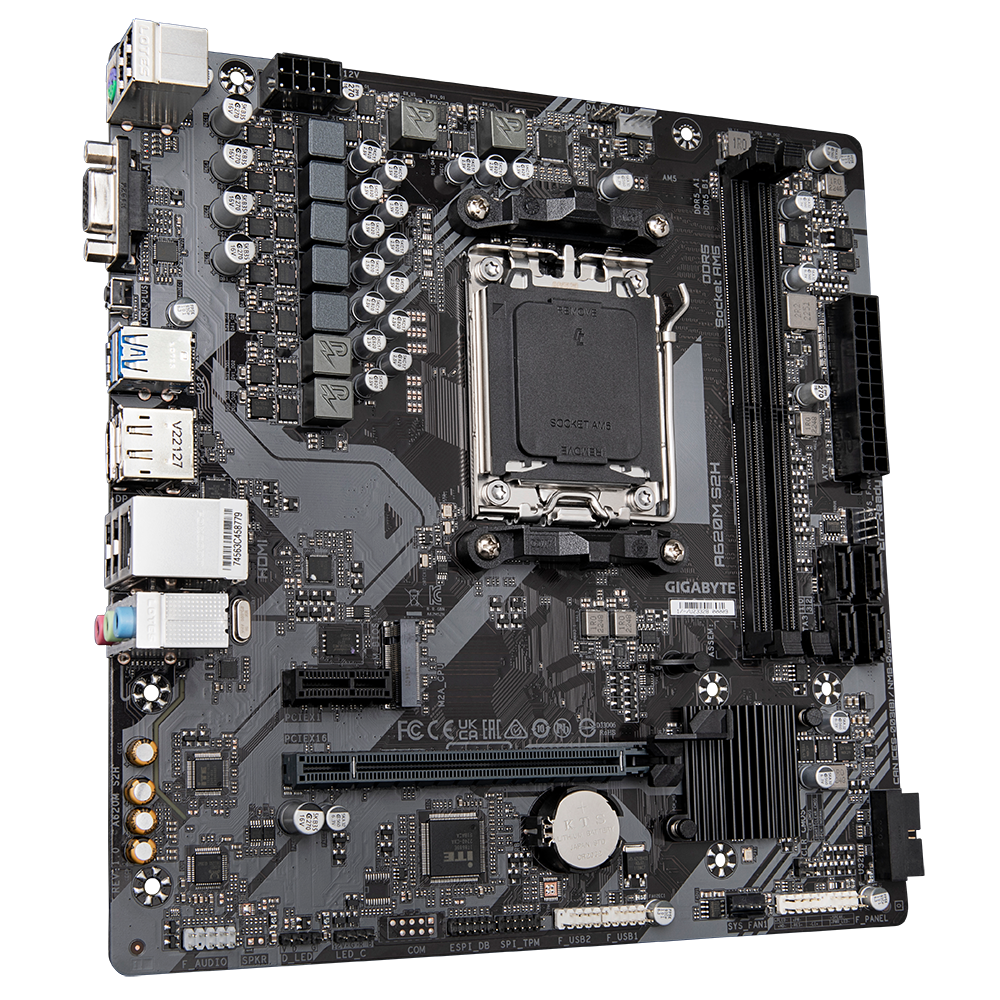

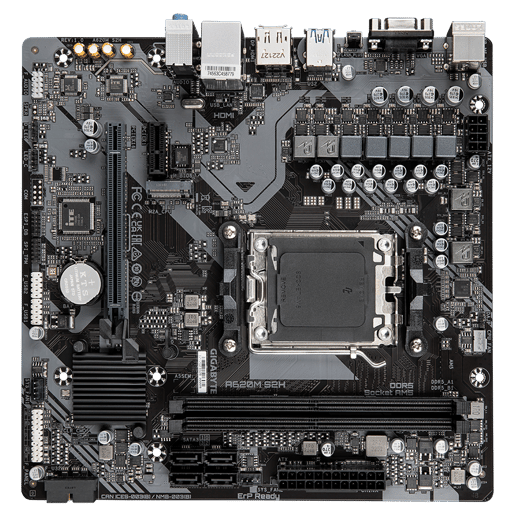

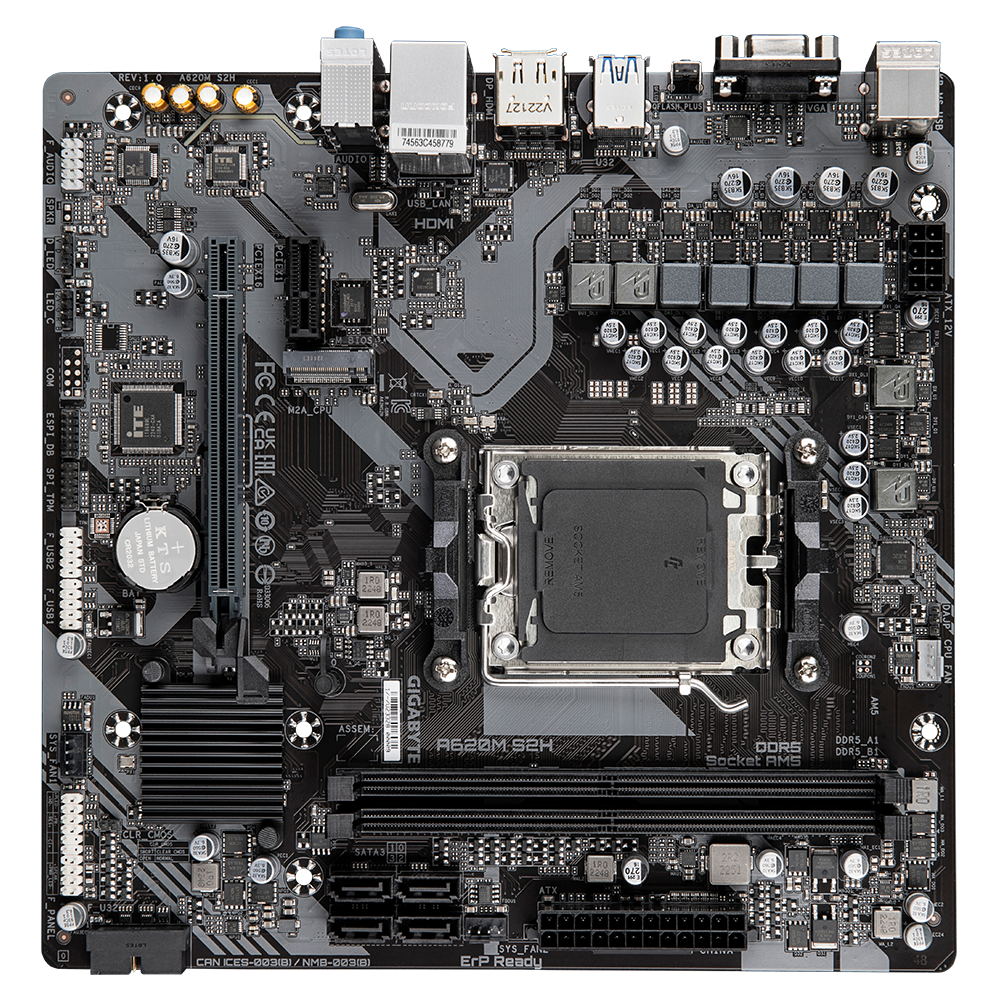

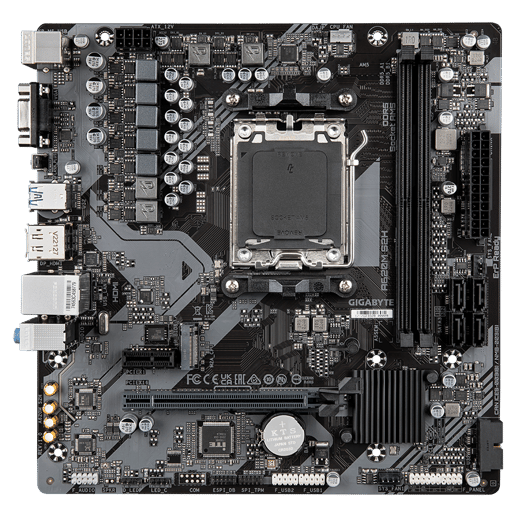

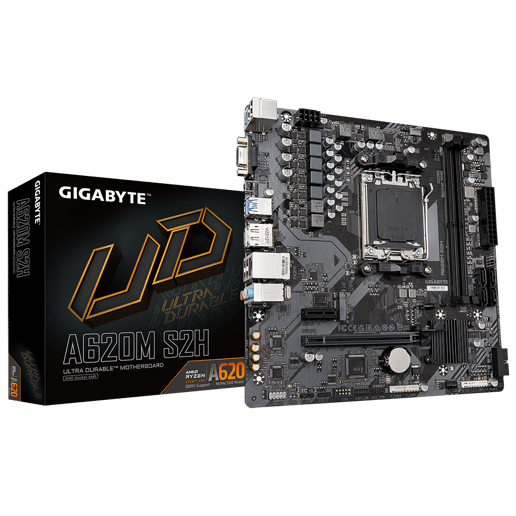

Motherboard Model	Gigabyte A620M S2H
USB 3.1 Support	No
Internal USB3.0 Header	Yes
M.2 Support	Yes
On-board RGB Control	Gigabyte RGB Fusion
RGB Header Type	3-Pin ARGB
Addressable RGB	Yes
Internal USB Type-C Header	No
Power Requirement (auto)	60 W
Max Memory Speed Supported (Non-overclocked)	5200 MHz
Max Memory Speed Supported (overclocked)	6400 MHz
CPU Power Pins (female)	8
Total M.2 Slots	1
Maximum NVMe M.2 ports	1
SATA ports	4
No. of front USB2.0 ports supported	4
No. of front USB3.0 ports supported	2

Item Details

Manufacturer	Gigabyte
Manufacturer Code	A620M S2H
Condition	New

Warranty Information

Warranty

3 Years

Manufacturer Information

Manufacturer	Gigabyte
Manufacturer Code	A620M S2H
