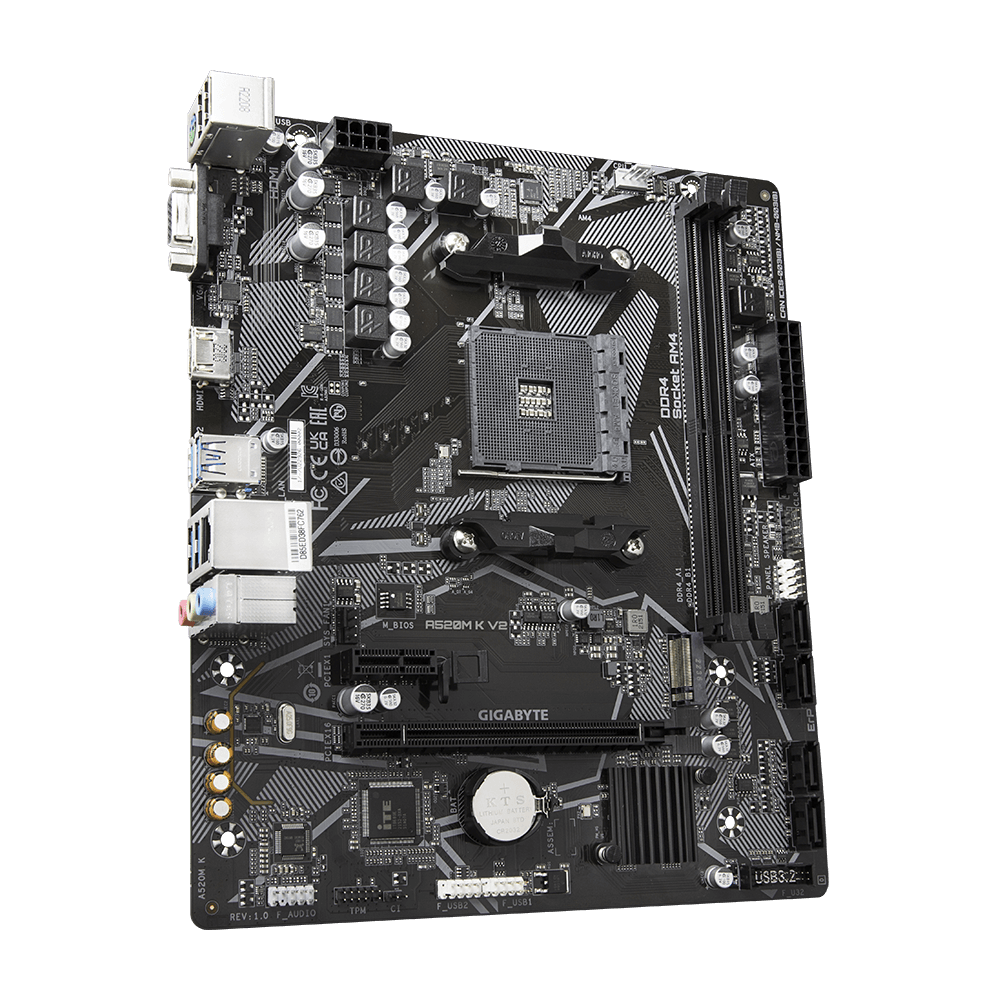

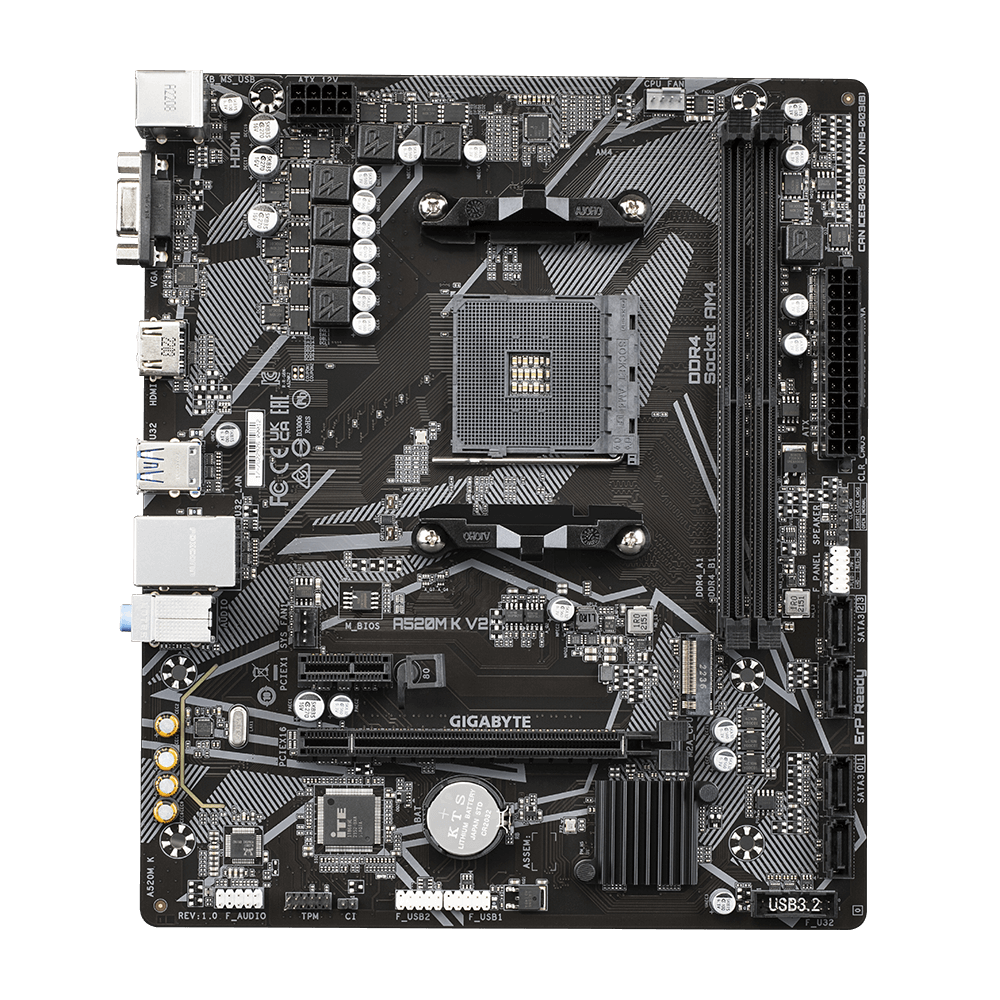

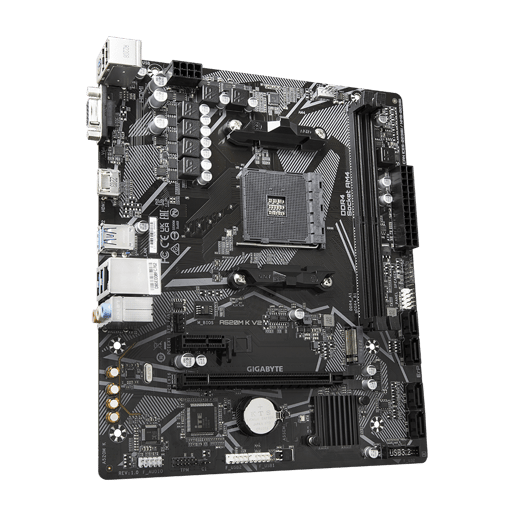

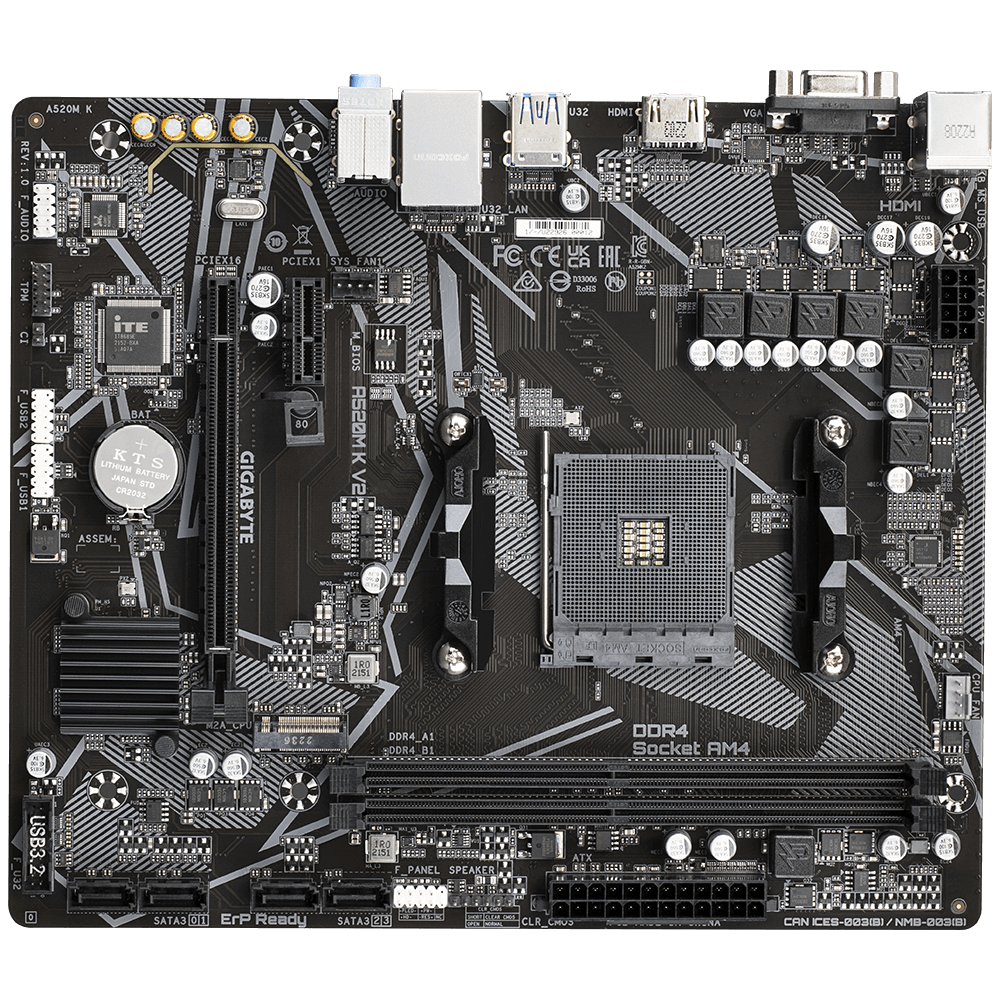

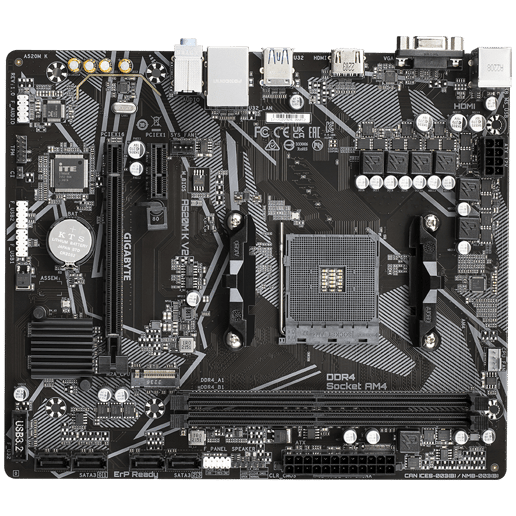

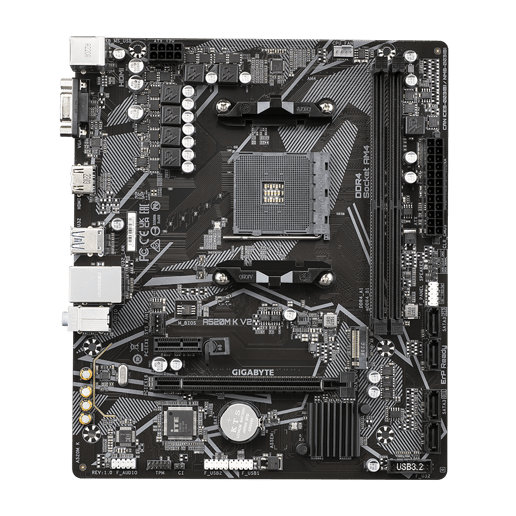

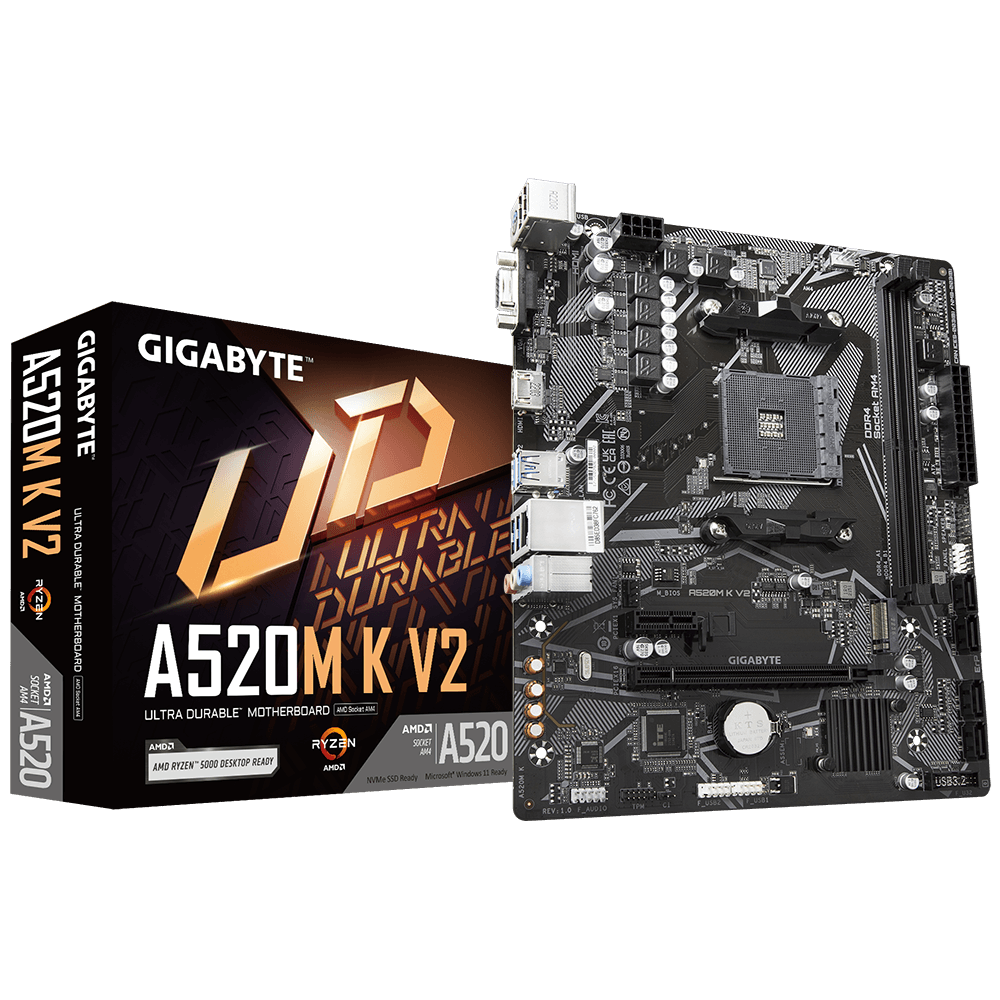

Gigabyte A520M K V2 mATX Motherboard for AMD AM4 CPUs
SAVE 41%
Available for delivery from Tomorrow
Click & Collect from Today
In stock
Order within
You have 0 of these in your basket
NVMe PCIe Gen 3 x4 2280 M.2 Connector
GIGABYTE Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their system’s potential.
*Actual support may vary by CPU.
GbE LAN with Bandwidth Management
GbE LAN features a network bandwidth management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.
Smart Fan 5
With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.
High-End Audio Capacitors
GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.
Audio Noise Guard
GIGABYTE motherboards feature an audio noise guard that essentially separates the board’s sensitive analog audio components from potential noise pollution at the PCB level.
CPU
- Installed Processors (Max): 0 (1)
- Supported Processor Manufacturer: AMD
- Supported Processors: AMD Ryzen 5000 G-Series Processors/ AMD Ryzen 5000 Series Processors/ AMD Ryzen 4000 G-Series Processors/ AMD Ryzen 3000 and Ryzen 3000 G-Series Processors
- 64-bit Support: Yes
- Socket: AM4

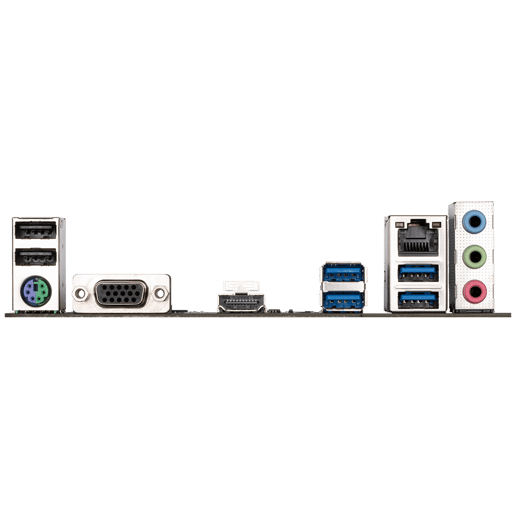

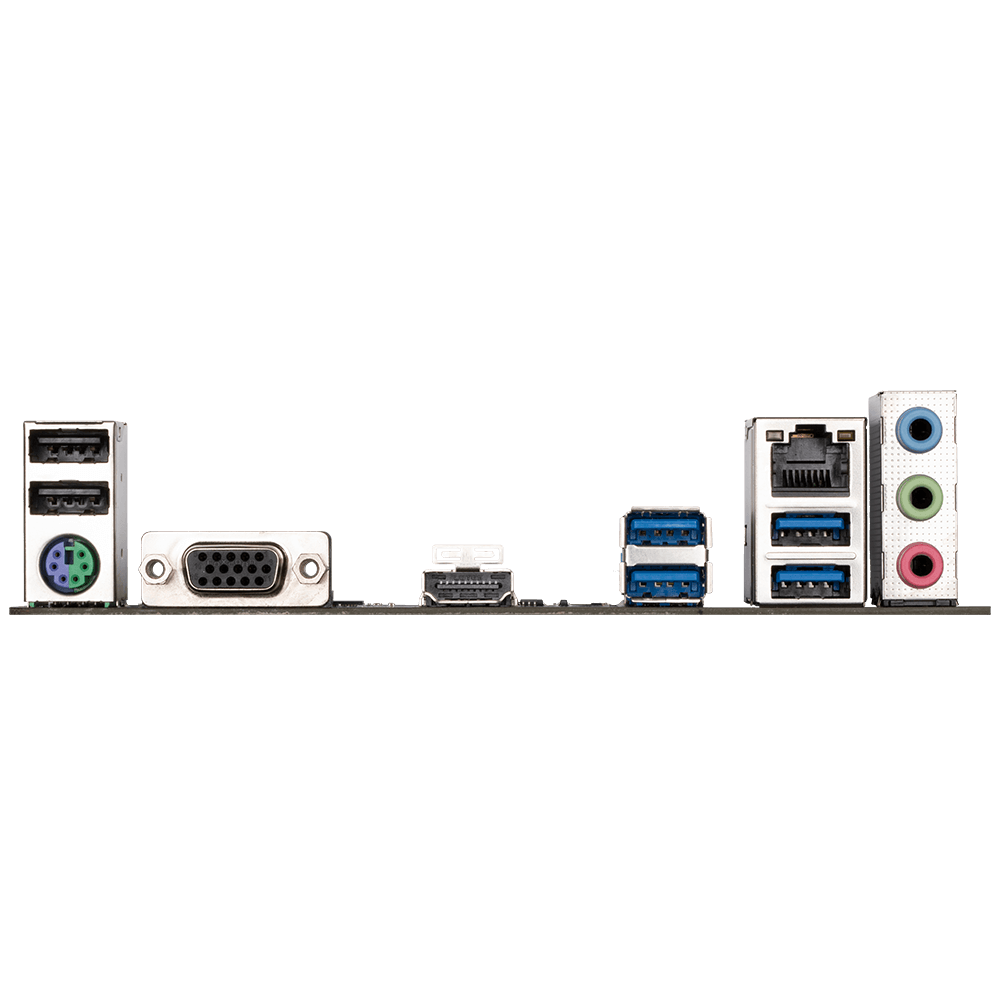

Rear Panel I/O Ports
- USB Ports: 4 x USB 3.0
- 2 x USB 2.0
- HDMI Port: 1 x HDMI 2.1
- VGA Port: 1 x D-Sub
Internal I/O Connectors
- SATA Connectors: 4 x SATA III
- USB Connectors: 1 x USB 3.0 header (supports 1 port)
- 2 x USB 2.0 headers (supports 4 ports)
- Speaker: 1 x Speaker header
Memory
- Memory Bus Speed: Up to 5100 MHz
- Memory Type: DDR4
Motherboard
- Northbridge: AMD A520
- RAID Supported: Yes
- RAID Format: RAID 0, 1, 10
- SATA Supported: Yes
Rear Panel I/O Ports
- Keyboard/Mouse Combo Port: 1 x PS/2
- RJ-45 Ports: 1 x RJ-45
- Audio Line In Ports: 1 x 3.5mm Jack
- Audio Line Out Ports: 1 x 3.5mm Jack
- Microphone In Port: 1 x 3.5mm Jack
Internal I/O Connectors
- Front Panel Connectors: 1 x Front Panel
- 1 x Front Audio
- Cooling Fan Support: 1 x CPU fan header
- 1 x System fan header
- Chassis Intrusion Connector: 1 x Chassis Intrusion header
- TPM Header: 1 x TPM header (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
- Power Connector Port: 1 x 24-pin ATX
- 1 x 8-pin EPS
- Other Connectors: 1 x M.2 slot, Socket 3, M key, Type 2280 (PCIe Gen3 or SATA)
Expansion
- Number of PCI Express Slots: 1 x PCI Express 3.0 x16 slot
- 1 x PCI Express 3.0 x1 slot
Memory
- Maximum RAM: 64 GB
- Memory Slot: 2 x DIMM
Graphics Device
- Integrated Graphics Supported: Yes
Sound
- Integrated Sound: Realtek
Warranty
- Warranty: 3 Years
Network
- Integrated Network: Realtek
- Network Speeds Supported: Up to 1 Gbps
- Wireless LAN: No
- Bluetooth: No
System Requirements
- Operating Systems Supported: Microsoft Windows 11
System
- Jumpers: 1 x Clear CMOS
- Software Included: Yes
- Drivers: Yes
Physical
- Form Factor: mATX Motherboard
- Width: 198 mm
- Length: 233 mm
Identifiers
- Stock Code: MBD3622
- Mfg Code: A520M K V2
Warranty
- Warranty: 3 Years
