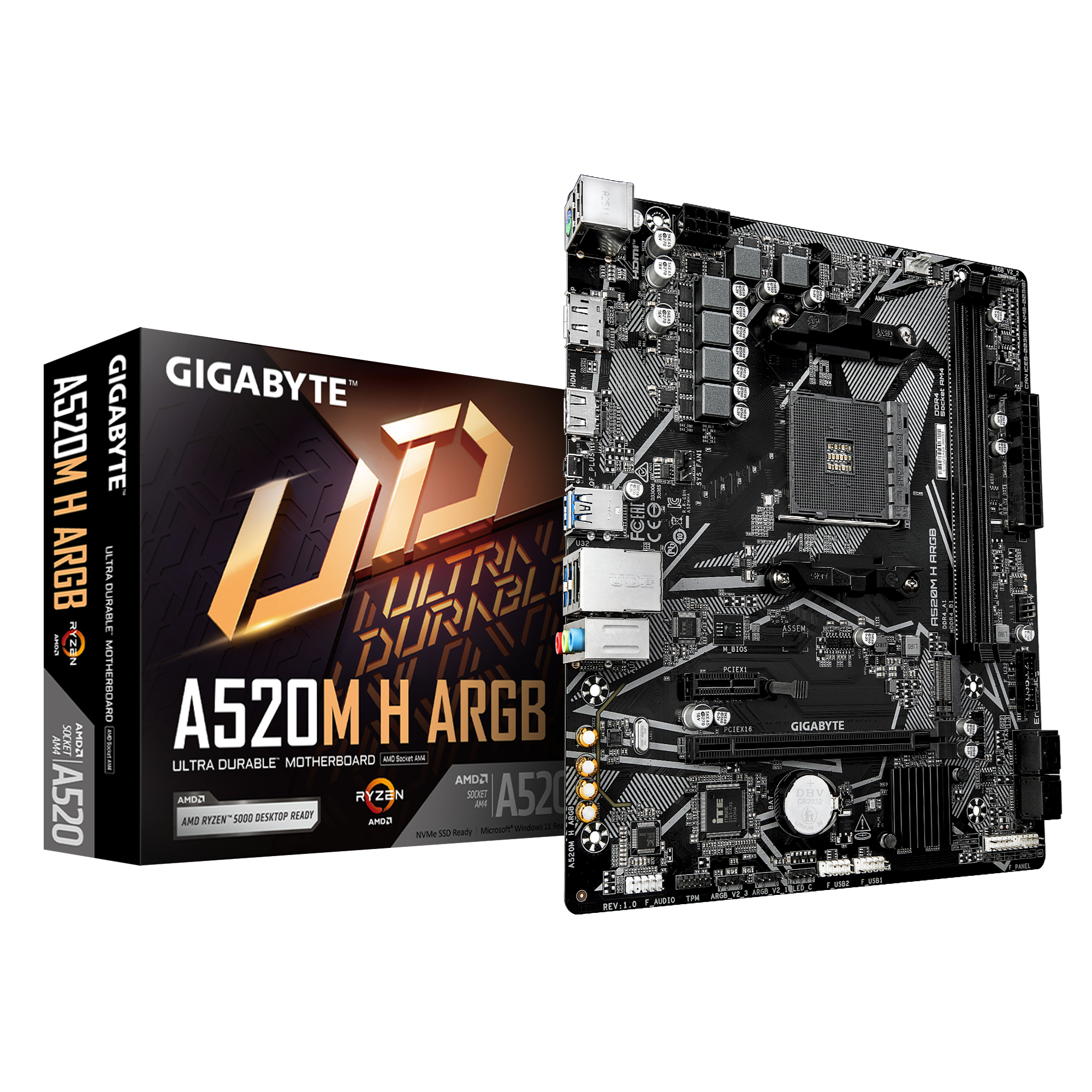

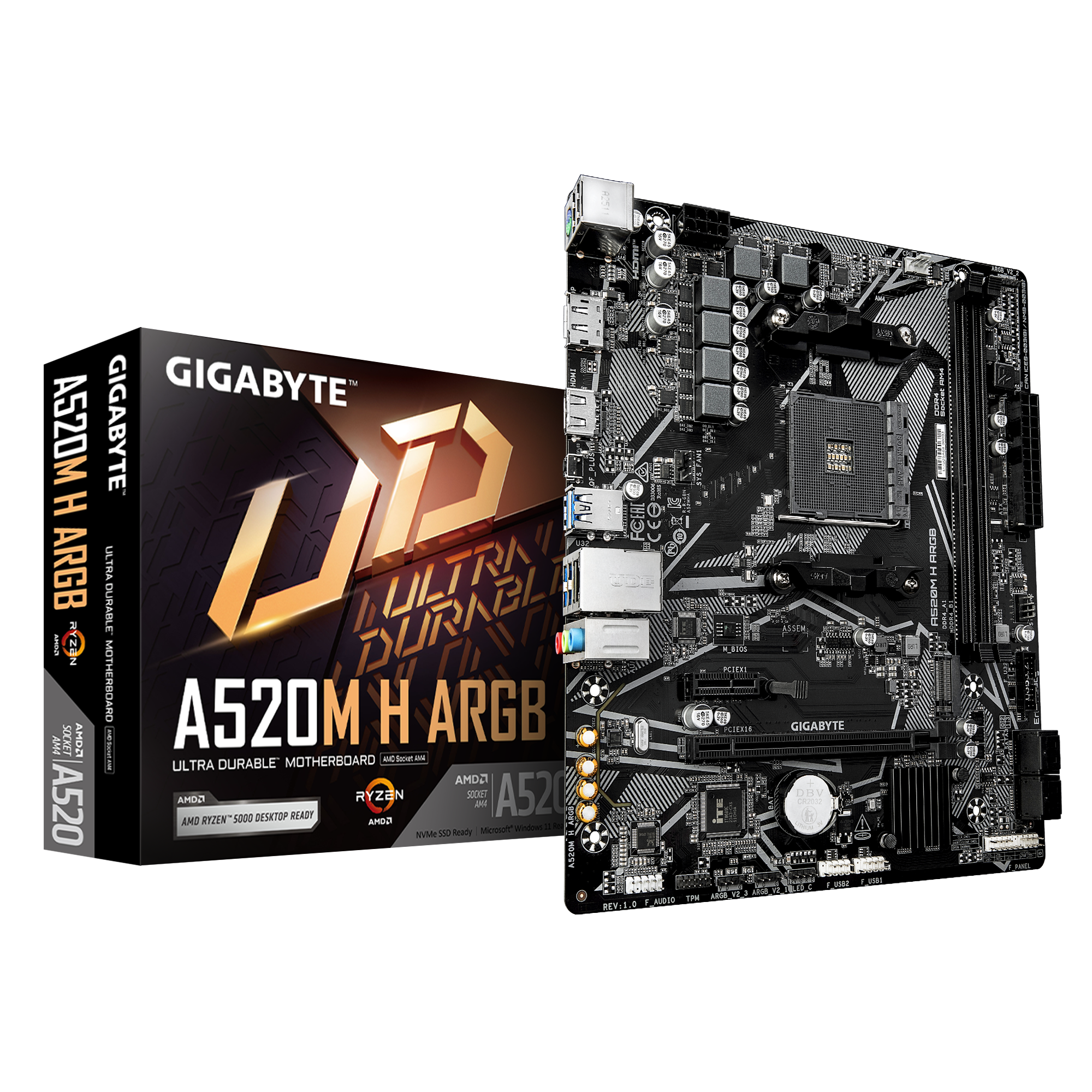

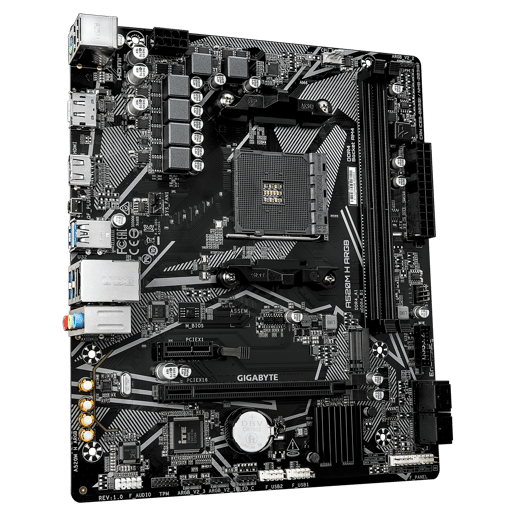

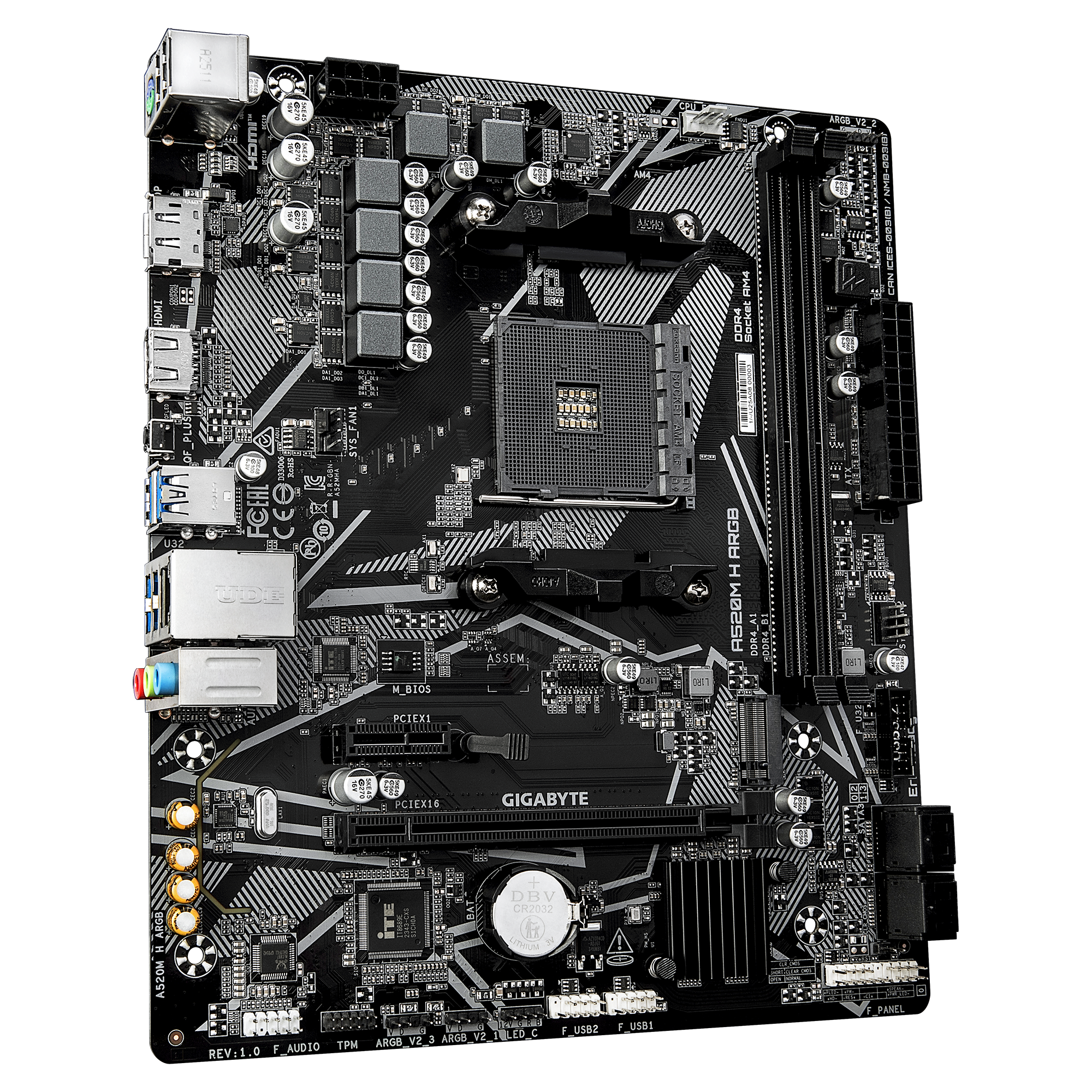

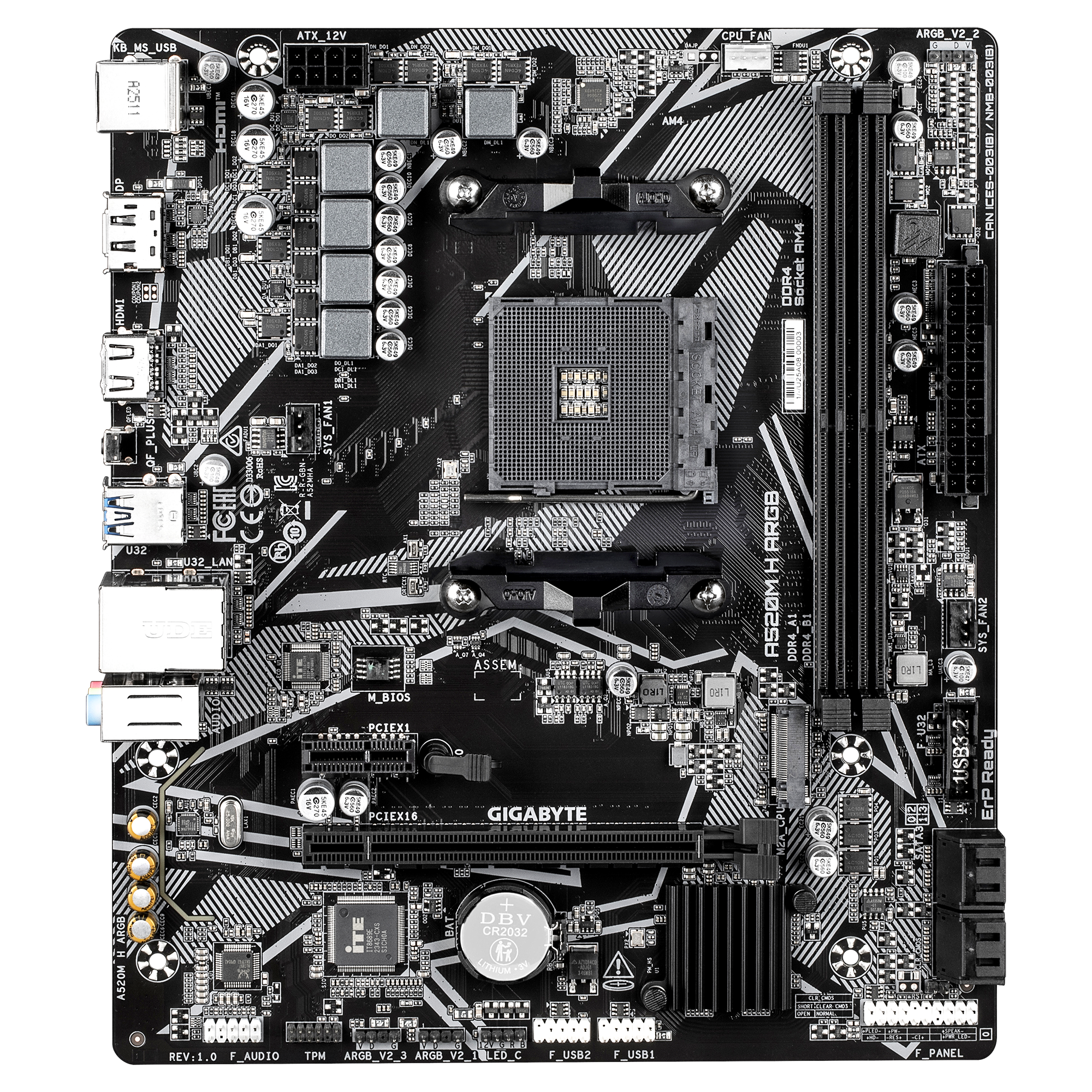

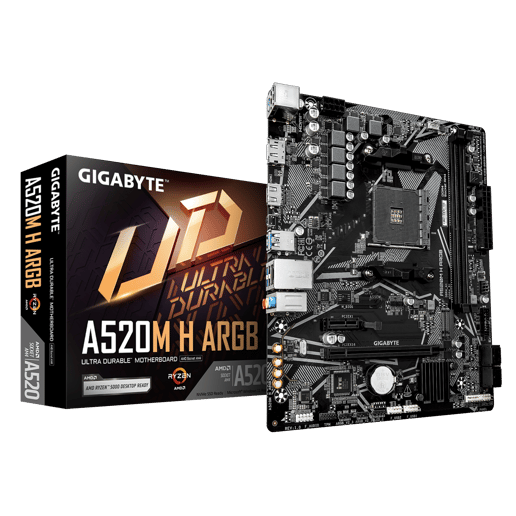

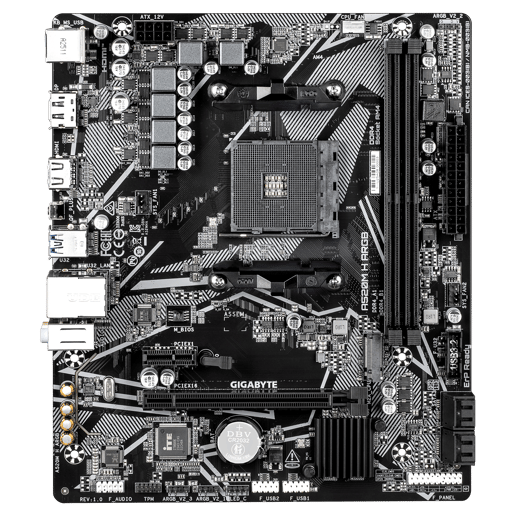

AMD A520M H ARGB mATX Motherboard for AMD Socket AM4 CPUs
Available for delivery from Tuesday 4th August
Click & Collect from Tomorrow
In stock
Order within
You have 0 of these in your basket
Ready for Ryzen 5000 Series CPUs
Supports AMD Ryzen 3000, 4000G, and 5000 Series processors, including popular gaming CPUs such as the Ryzen 5 5600, Ryzen 7 5700X, and Ryzen 7 5800X3D. The board features a 4+2 phase digital power design and supports DDR4 memory up to 64GB.
Integrated ARGB Lighting Support
Unlike the standard A520M H, the ARGB version includes 3 Addressable RGB (ARGB) headers and 1 RGB header, allowing synchronisation of compatible fans, coolers, and LED strips through Gigabyte RGB software. This makes it a strong budget option for RGB-focused gaming builds.
Essential Gaming Features
Includes a PCIe 3.0 x16 slot for graphics cards, a PCIe Gen3 x4 M.2 NVMe SSD slot, Gigabit LAN, DisplayPort and HDMI outputs, Q-Flash Plus BIOS update functionality, and Smart Fan 6 cooling controls.
CPU
- Installed Processors (Max): 0 (1)
- Socket: AM4
- Hyperthreading Architecture: Dual Channel

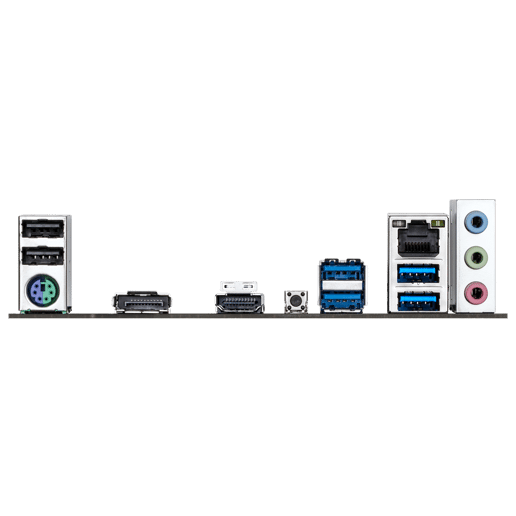

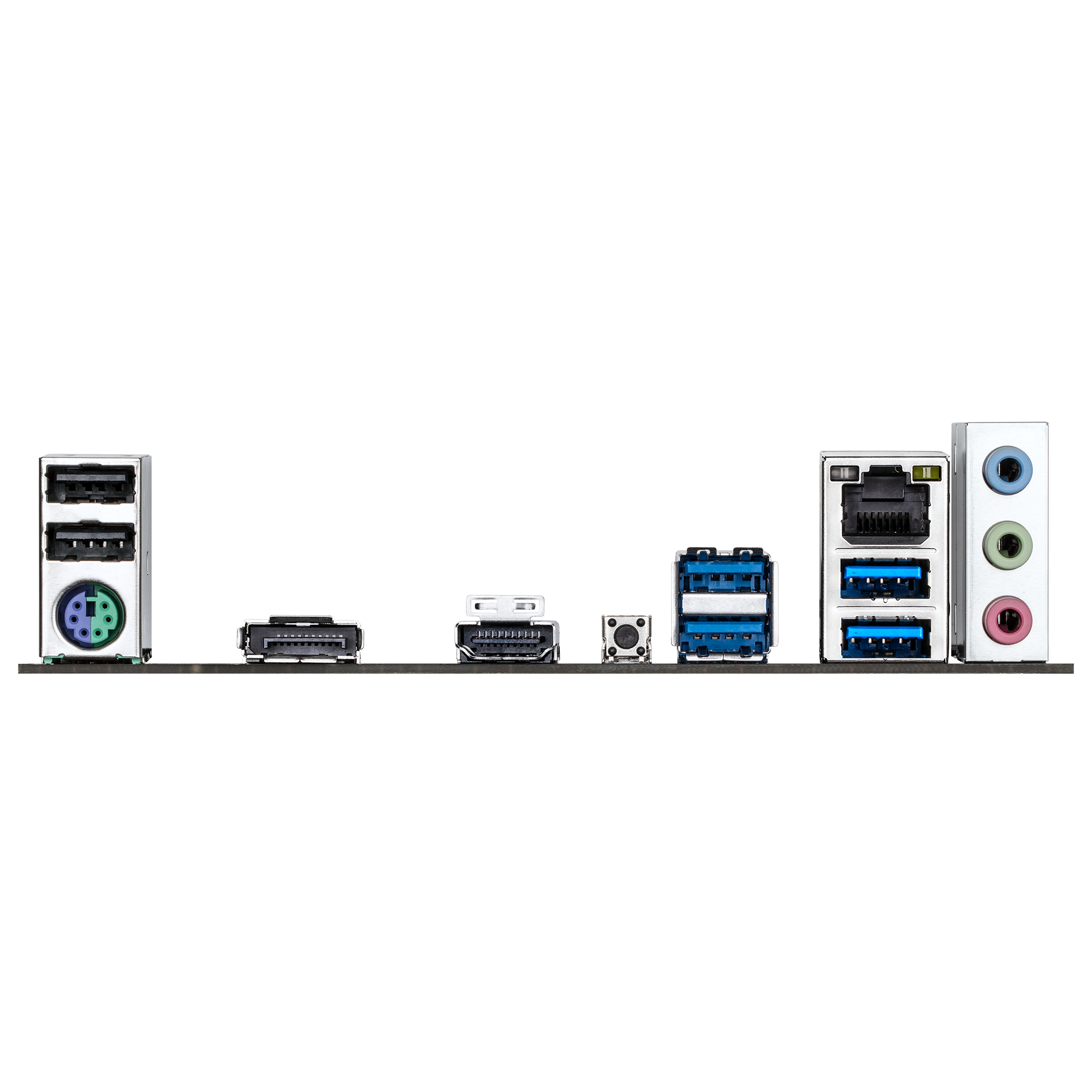

Rear Panel I/O Ports
- USB Ports: CPU:
- - 4 x USB 3.2 Gen 1 ports on the back panel
- Chipset:
- - 2 x USB 3.2 Gen 1 ports available through the internal USB header
- - 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
- DisplayPorts: 1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz
- HDMI Port: - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
Memory
- Memory Bus Speed: Support for DDR4 5100(O.C.) / 4800(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 /2933 / 2667 / 2400 / 2133 MHz memory modules
- Memory Type: DDR4 DIMM
Physical
- Colour: Black
Motherboard
- Northbridge: A520
- RAID Supported: RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
- RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Rear Panel I/O Ports
- RJ-45 Ports: 1x
- Audio Line Out Ports: 3x
Internal I/O Connectors
- Cooling Fan Support: 1 x CPU fan header
- 2 x system fan headers
- TPM Header: 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
- Power Connector Port: 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- Other Connectors: 3 x addressable RGB Gen2 LED strip headers
- 1 x RGB LED strip header
- 1 x M.2 Socket 3 connector
- 4 x SATA 6Gb/s connectors
- 1 x front panel header
- 1 x front panel audio header
Expansion
- Number of PCI Express Slots: 2x
- PCI Express X16 Slots: 1x
- PCI Express Slot Type: PCIe 3.0
Memory
- Maximum RAM: 256 GB
- Memory Slot: 2x
Graphics Device
- Integrated Graphics Supported: Integrated Graphics Processor with AMD Radeon Graphics support
Sound
- Integrated Sound: Realtek Audio CODEC
- High Definition Audio
- 2/4/5.1/7.1-channel
Network
- Network Speeds Supported: Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
System Requirements
- Operating Systems Supported: Windows 11 64-bit
- Windows 10 64-bit
System
- BIOS: 1 x 128 Mbit flash
- Use of licensed AMI UEFI BIOS
- PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
- Special Features: Support for GIGABYTE Control Center (GCC)
- Support for Q-Flash
- Support for Q-Flash Plus
- Support for Smart Backup
- iTE I/O Controller Chip
- Voltage detection
- Temperature detection
- Fan speed detection
- Overheating warning
- Fan fail warning
- Fan speed control
- * Whether the fan speed control function is supported will depend on the fan you install
- Jumpers: 1 x Clear CMOS jumper
- Software Included: Norton Internet Security (OEM version)
- Overclocking Features: Yes
Physical
- Form Factor: mATX
- Width: 233 mm
- Length: 198 mm
Identifiers
- Stock Code: MBD3988
- Mfg Code: A520M H ARGB
