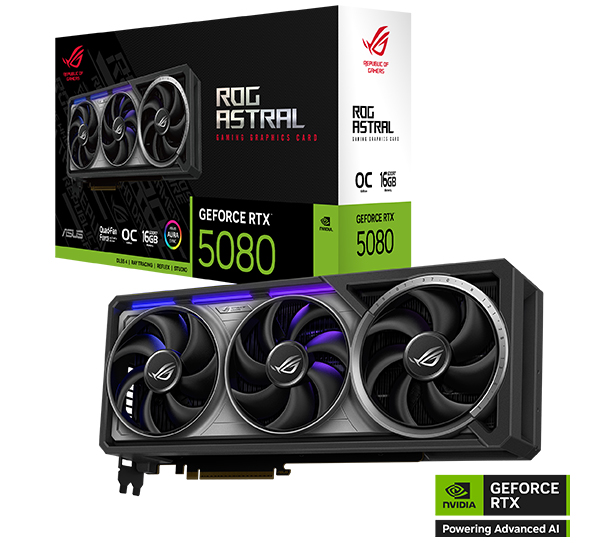

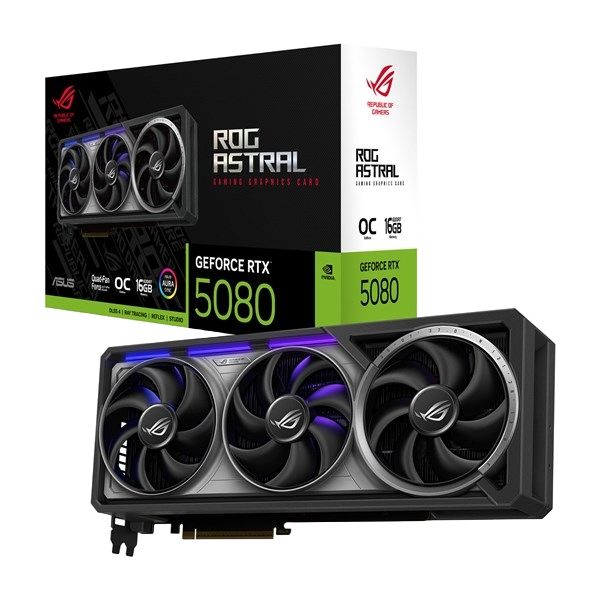

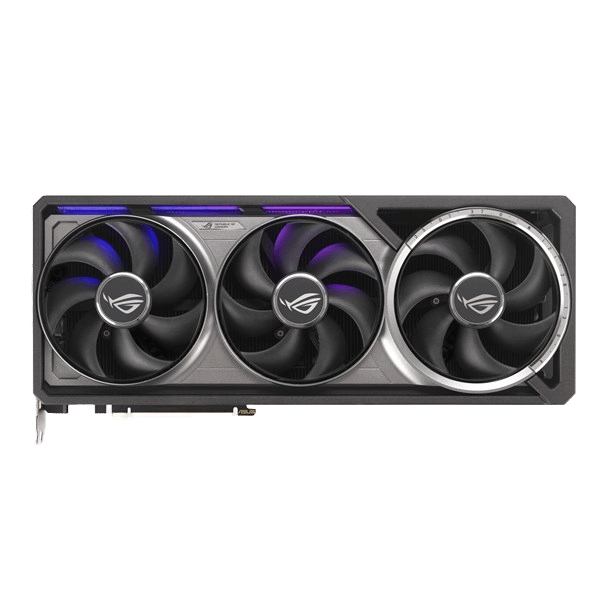

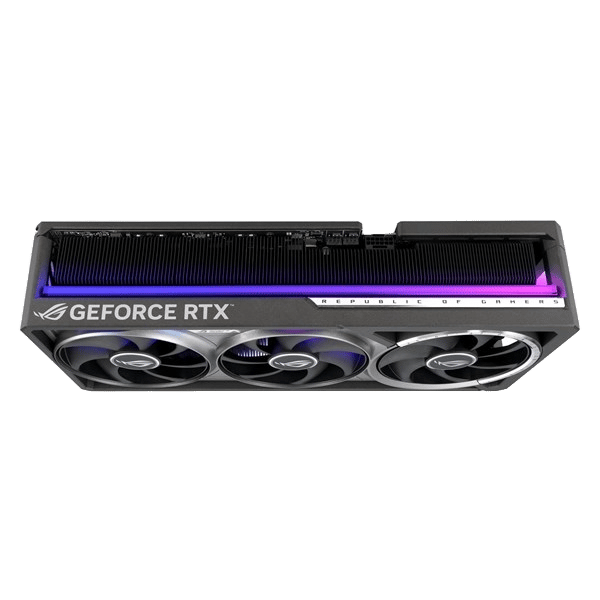

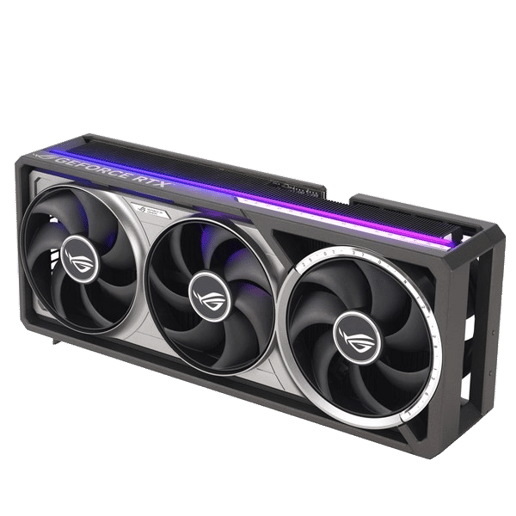

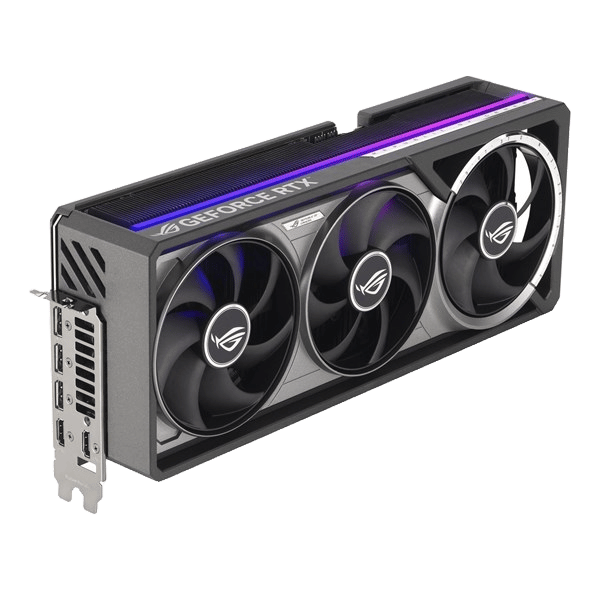

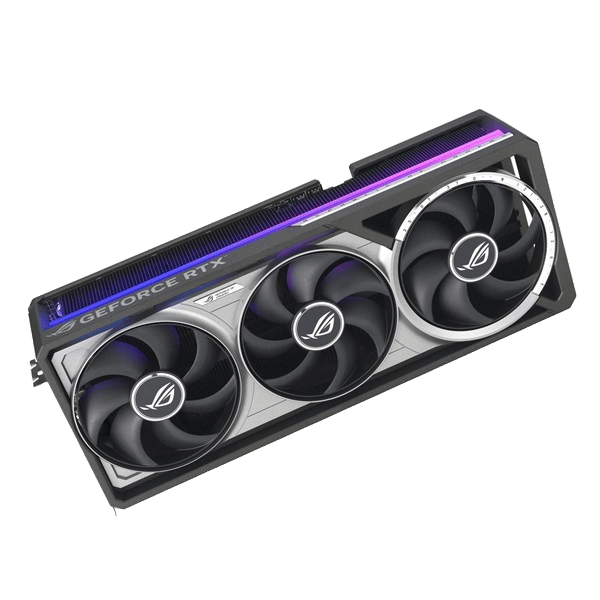

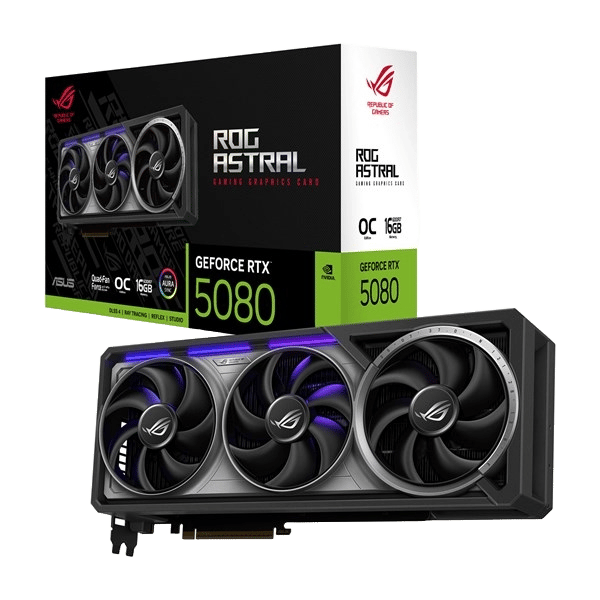

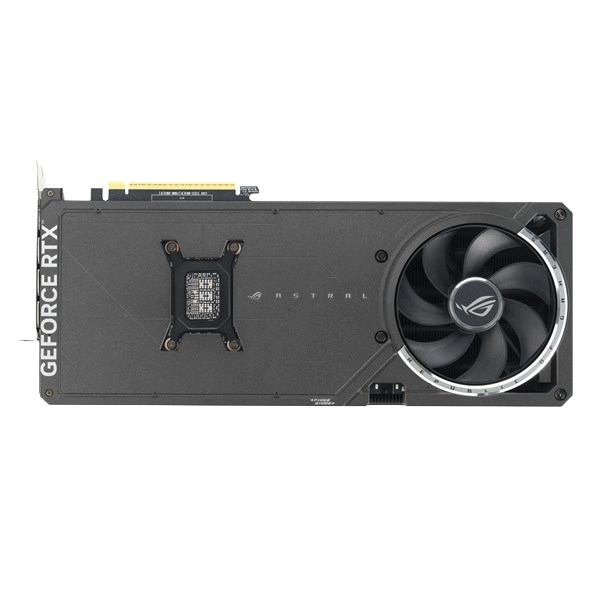

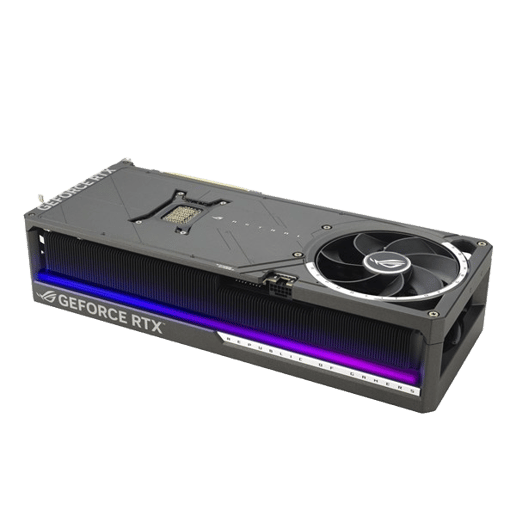

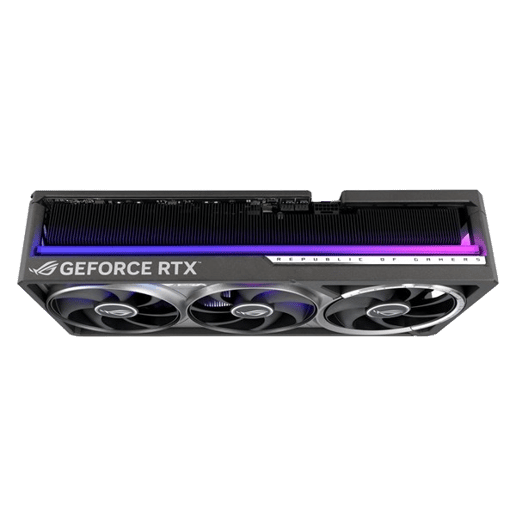

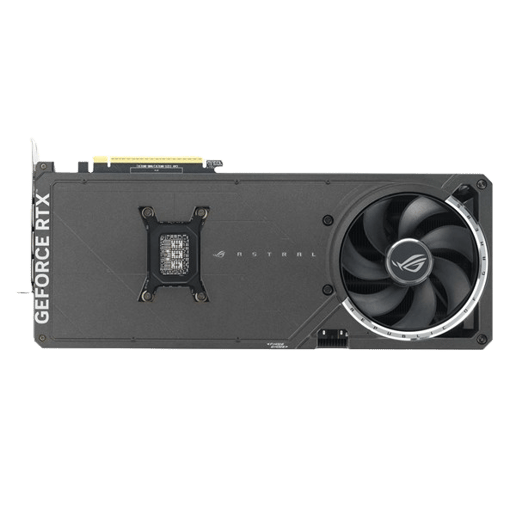

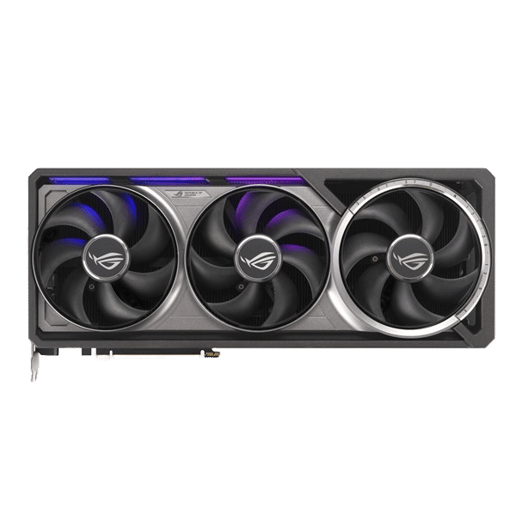

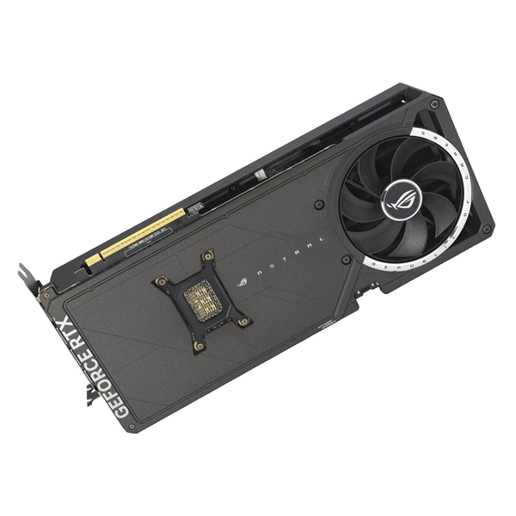

ASUS GeForce RTX 5080 ROG Astral OC 16GB GDDR7 Graphics Card
Maximum 2 per customer
Available for delivery from Monday 17th August
Click & Collect from Tuesday 18th August
Order within
You have 0 of these in your basket

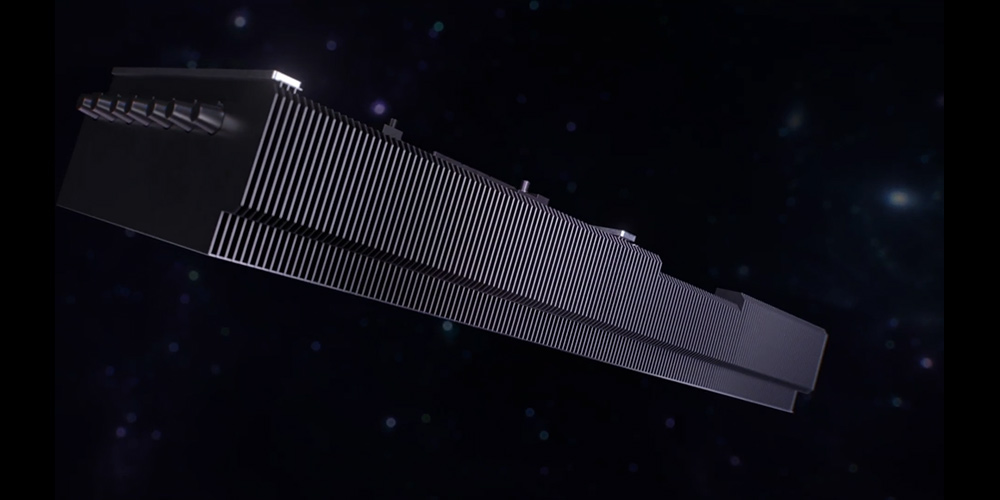

Thermal Control

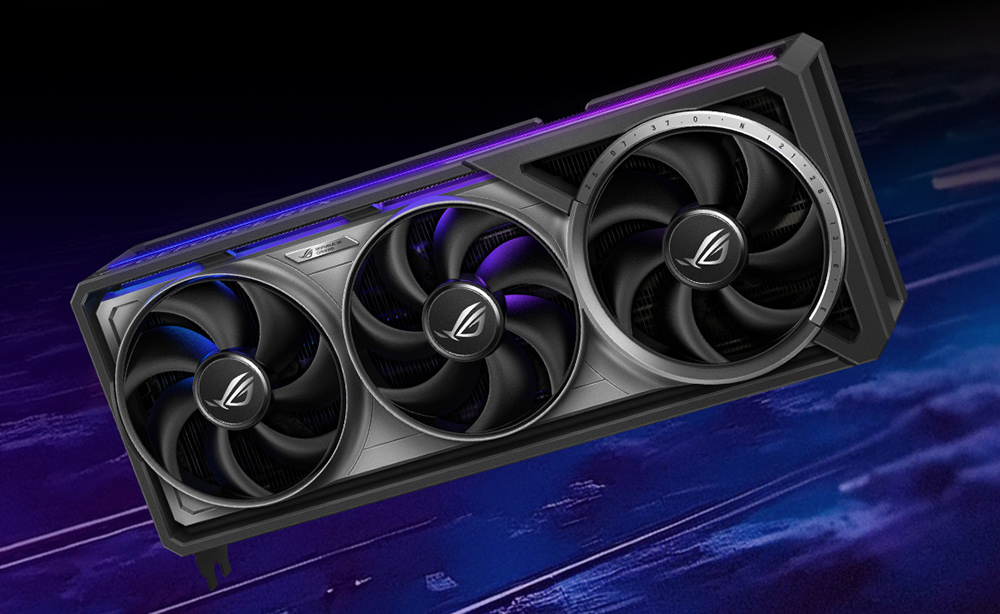

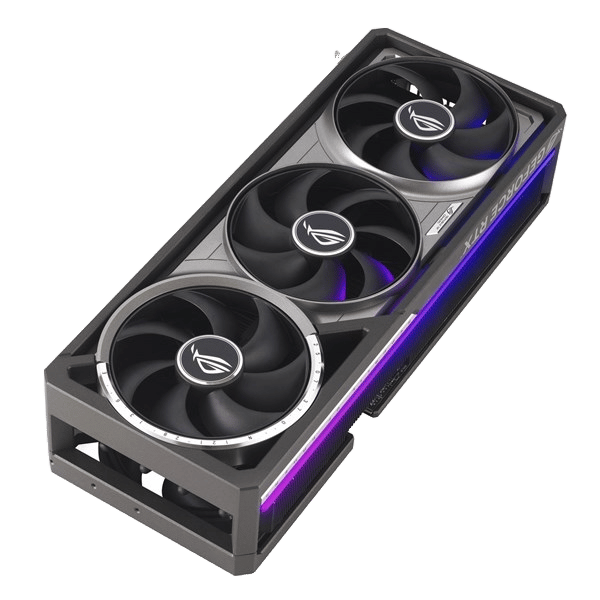

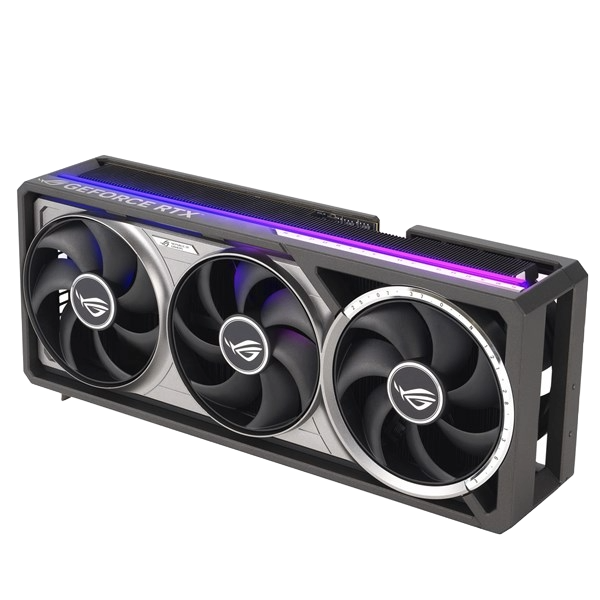

The ROG Astral is a beast when it comes to cooling, featuring a first-of-its-kind quad-fan design that creates a powerful vertical airflow channel. This setup boosts air pressure by up to 20%, which effectively kills off hotspots and keeps GPU temperatures low enough to sustain massive clock speeds, even when you're pushing the card to its absolute limit.

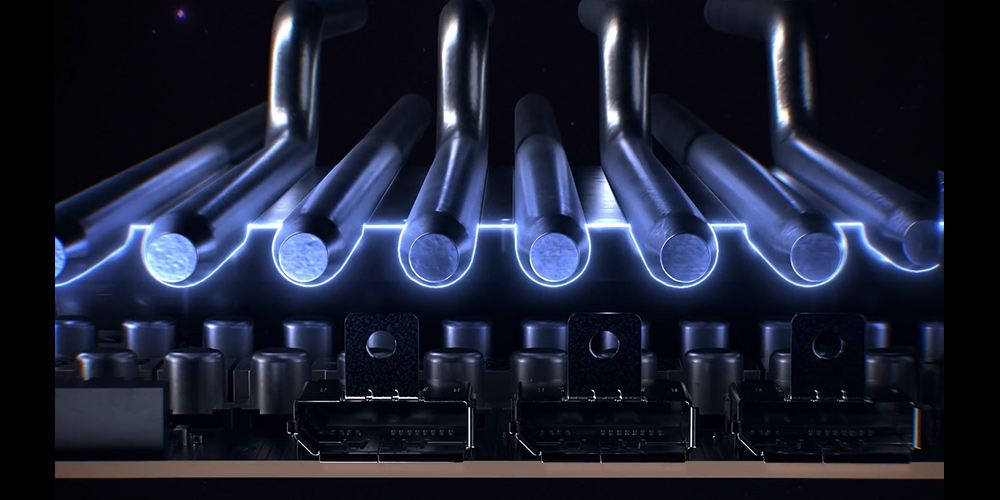

Advanced Heat Dissipation
ASUS hasn't cut any corners with the hardware here, using a patented vapor chamber with milled pathways that allow eight heatpipes to integrate without being flattened. This clever bit of engineering increases the contact surface and bumps up heat dissipation efficiency by over 10%, ensuring the card stays rock-solid and stable during heavy loads.

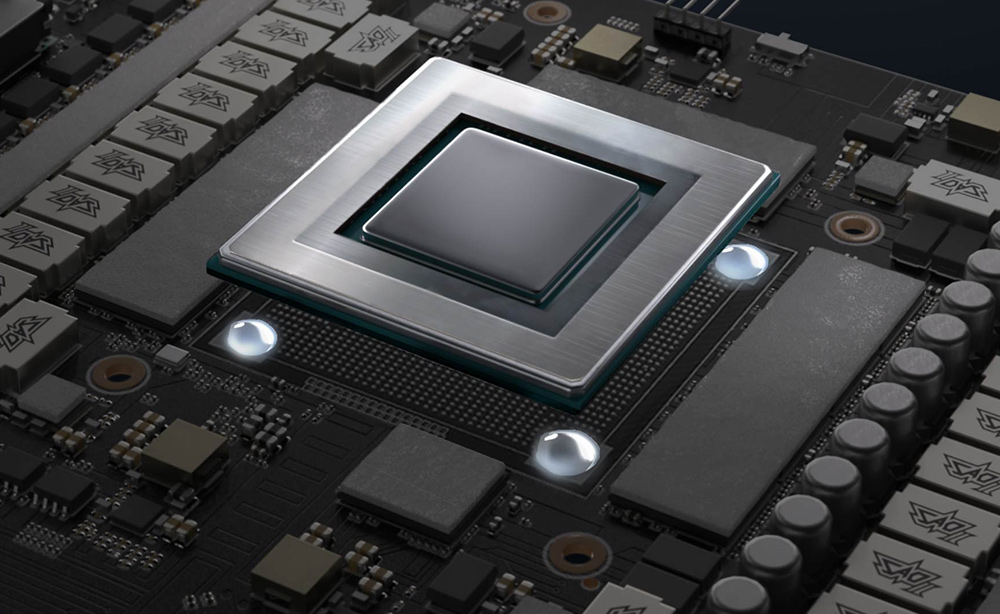

Next-Gen Blackwell Power

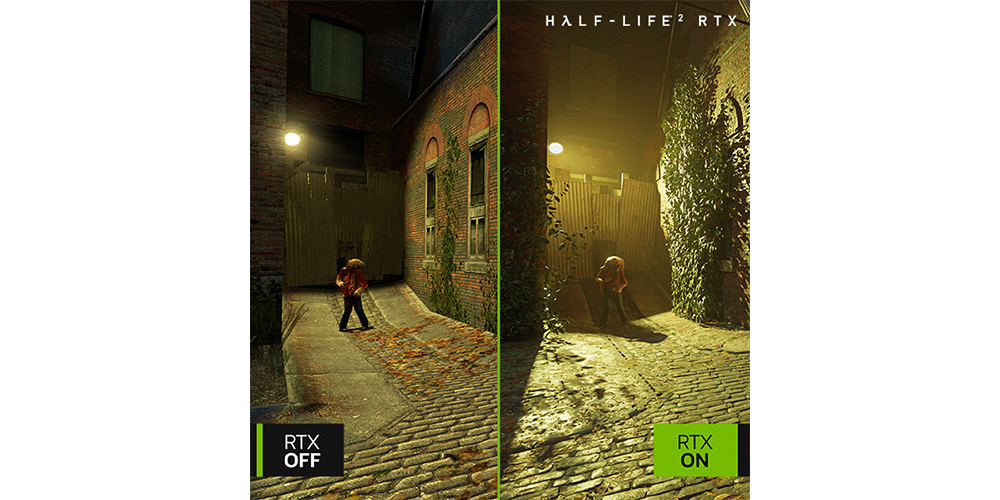

Built on the NVIDIA Blackwell architecture, this card is a powerhouse for both gamers and creators. It packs fifth-gen Tensor Cores and fourth-gen Ray Tracing Cores, which, combined with DLSS 4 and Multi Frame Generation, deliver cinematic visuals and a huge jump in AI performance that makes everything feel smoother and more realistic.
Elite Power Delivery

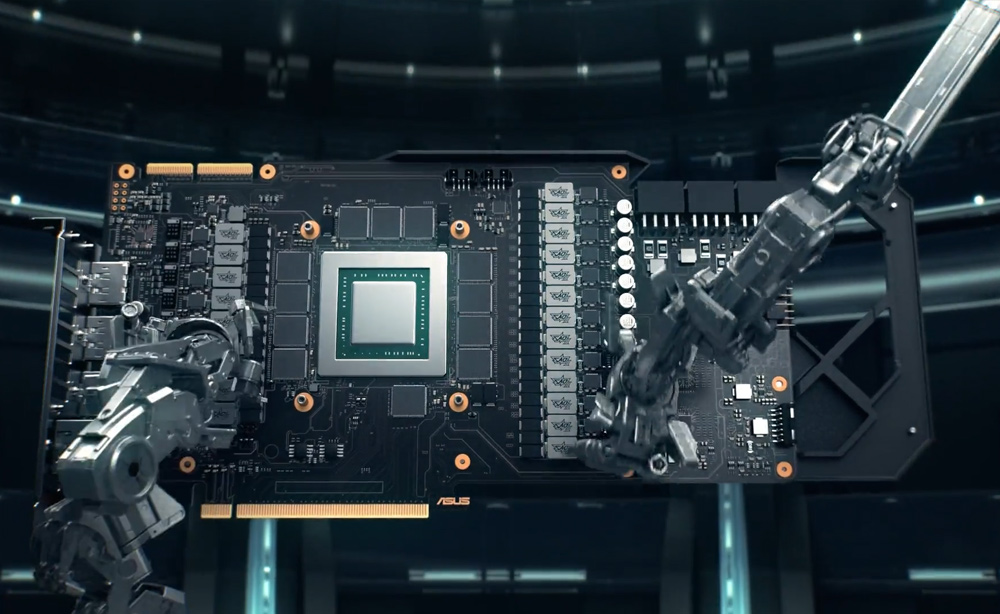

If you're into overclocking, this is where the ROG Astral really shines. It uses high-performance 80-amp MOSFETs that provide over 35% more power headroom than a standard design. This means better voltage stability and a lot more room to push your clock speeds higher without worrying about crashes.
Industrial-Grade Build Quality

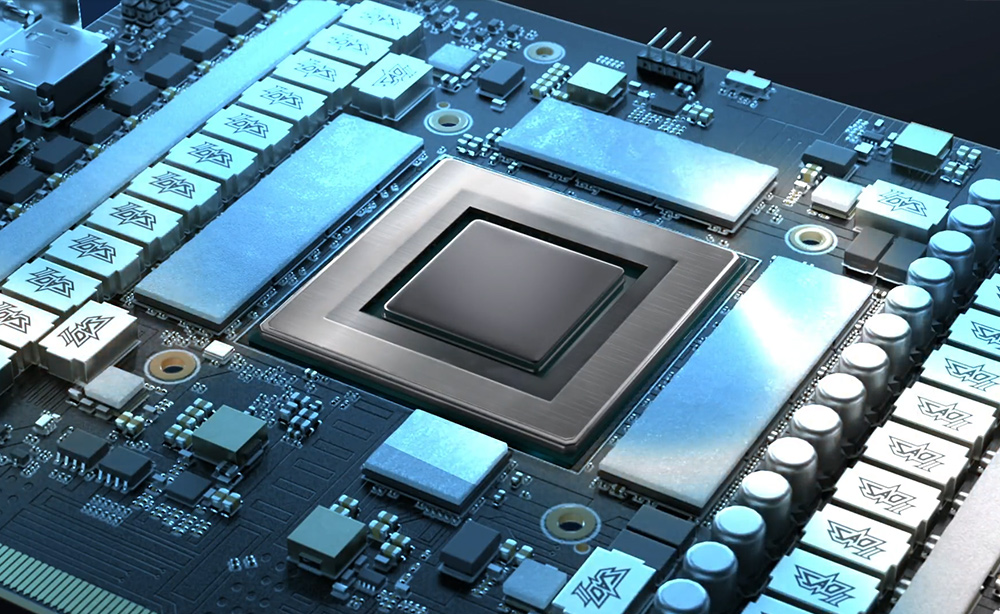

This isn't just a plastic shell; the card is wrapped in a full metal diecast shroud, frame, and backplate to keep the PCB rigid and secure. To top it off, ASUS has added a protective conformal coating over the circuit board, which shields the internals from dust, moisture, and extreme temperatures, making it built to last.
GPU
- Chipset Manufacturer: NVIDIA
- Chipset Model Name: GeForce RTX
- Chipset Model Number: 5080
- Chipset Additional Information: ROG Astral OC
- Boost Chip Clock: 2790 MHz
- Graphics Core: CUDA
- Number of Cores: 10752
Memory
- Memory Size: 16 GB
- Memory Clock: 30 Gbps
- Memory Type: GDDR7
- Memory Width: 256 bit

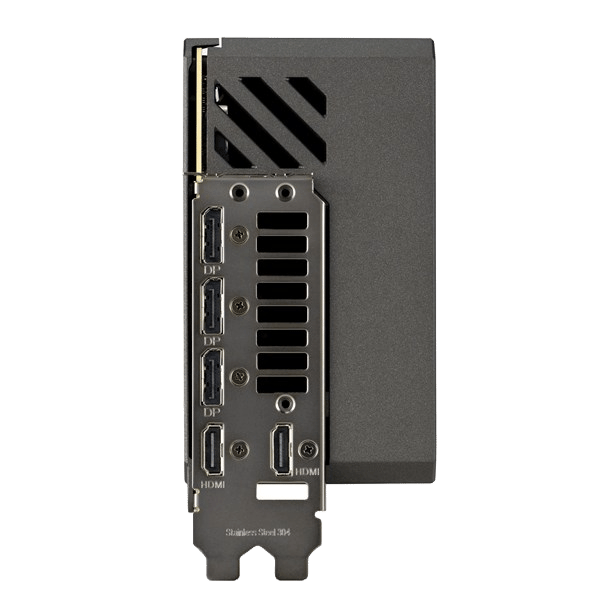

Interfaces/Ports
- Video Card Bus Type: PCI Express
- Video Card Bus Version: 5.0 x16
- HDMI Port: 2 x HDMI 2.1b
- DisplayPort: 3 x DisplayPort 2.1a
Resolution
- Multiple Monitor Support (Max): Yes (4)
- Maximum Resolution: 7680 x 4320
System Requirements
- System Requirements: 1 x PCI Express 5.0 x16 slot
Electrical
- Power Connector: 1 x 12V-2x6 or 3 x 8-pin PCIe
- Recomended Power Supply: 850 W
Physical
- Form Factor: Graphics Card

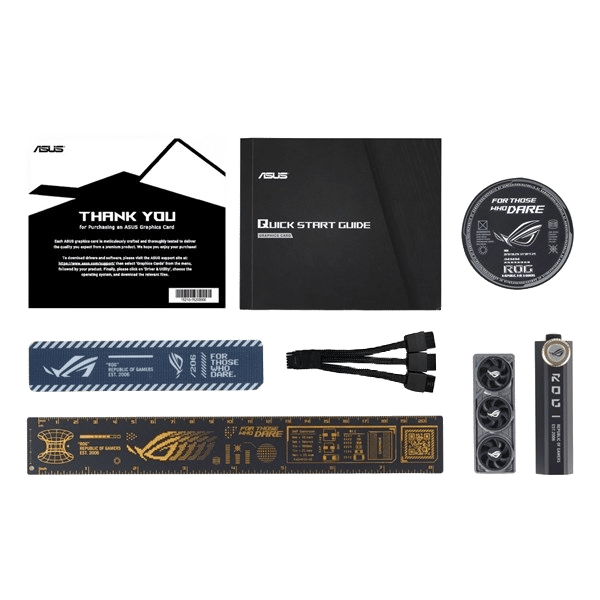

- In The Box: Graphics Card
- Speedsetup Manual
- ROG Graphics Card Holder
- ROG Velcro Hook & Loop
- ROG Magnet
- ROG Graphics Card Keycap
- ROG PCB Ruler
- Thank You Card
- Adapter Cable (1 to 3)
- Width: 76 mm (3.8 slot)
- Depth: 357.6 mm
- Height: 149.3 mm
- Weight: 2.86 kg
Warranty
- Warranty: 3 Years
Identifiers
- Stock Code: VGA7176
- Mfg Code: 90YV0LV0-M0NA00
Warranty
- Warranty: 3 Years
