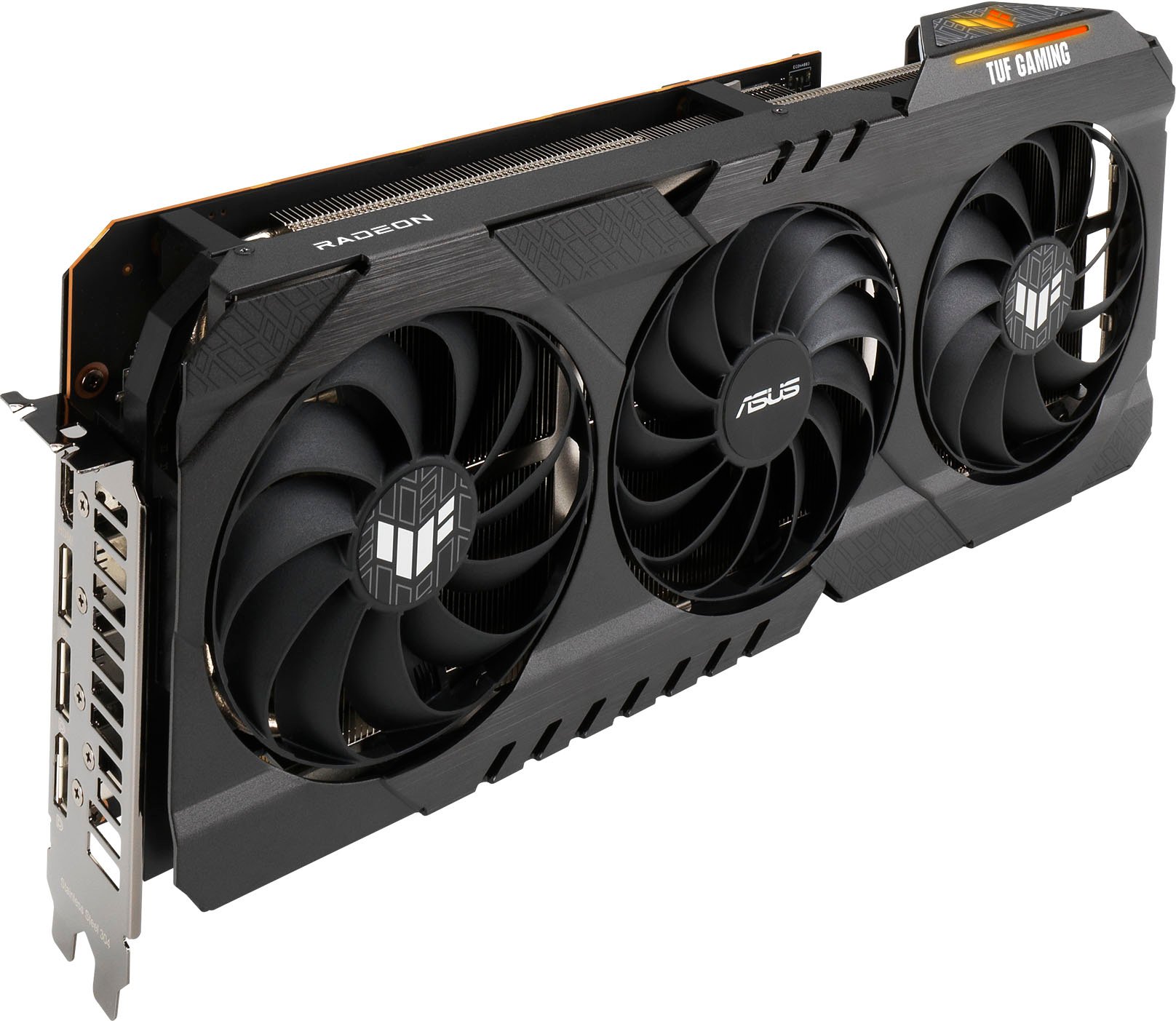

ASUS Radeon RX 6800 XT TUF 16GB OC GPU

CCL Code: VGA5978
Manufacturer Code: 90YV0FL1-M0NM00
| Manufacturer: ASUS
  • ASUS Radeon RX 6800 XT TUF 16GB OC GPU
  • ASUS Radeon RX 6800 XT TUF 16GB OC GPU
  • ASUS Radeon RX 6800 XT TUF 16GB OC GPU
  • ASUS Radeon RX 6800 XT TUF 16GB OC GPU
  • ASUS Radeon RX 6800 XT TUF 16GB OC GPU

Key Features:

16GB Graphics Memory
Cooler Type - Dynamic Fan
Outputs - HDMI and Display Port
PCI Express 4.0 x16 Interface
Pre Overclocked Edition


Sorry, this product has been discontinued. We have found some similar products below.

Related Products


Fresh Shroud

A new all-aluminum shroud adds a robust flair to TUF builds. The top-side RGB element can be customized with Armoury Crate to sync up with other ASUS components to enable uniform lighting.

2.9-slot Design

The heat spreader draws heat up into heatpipes that carry it through a fin stack that fills most of the card’s large, 2.9-slot footprint.

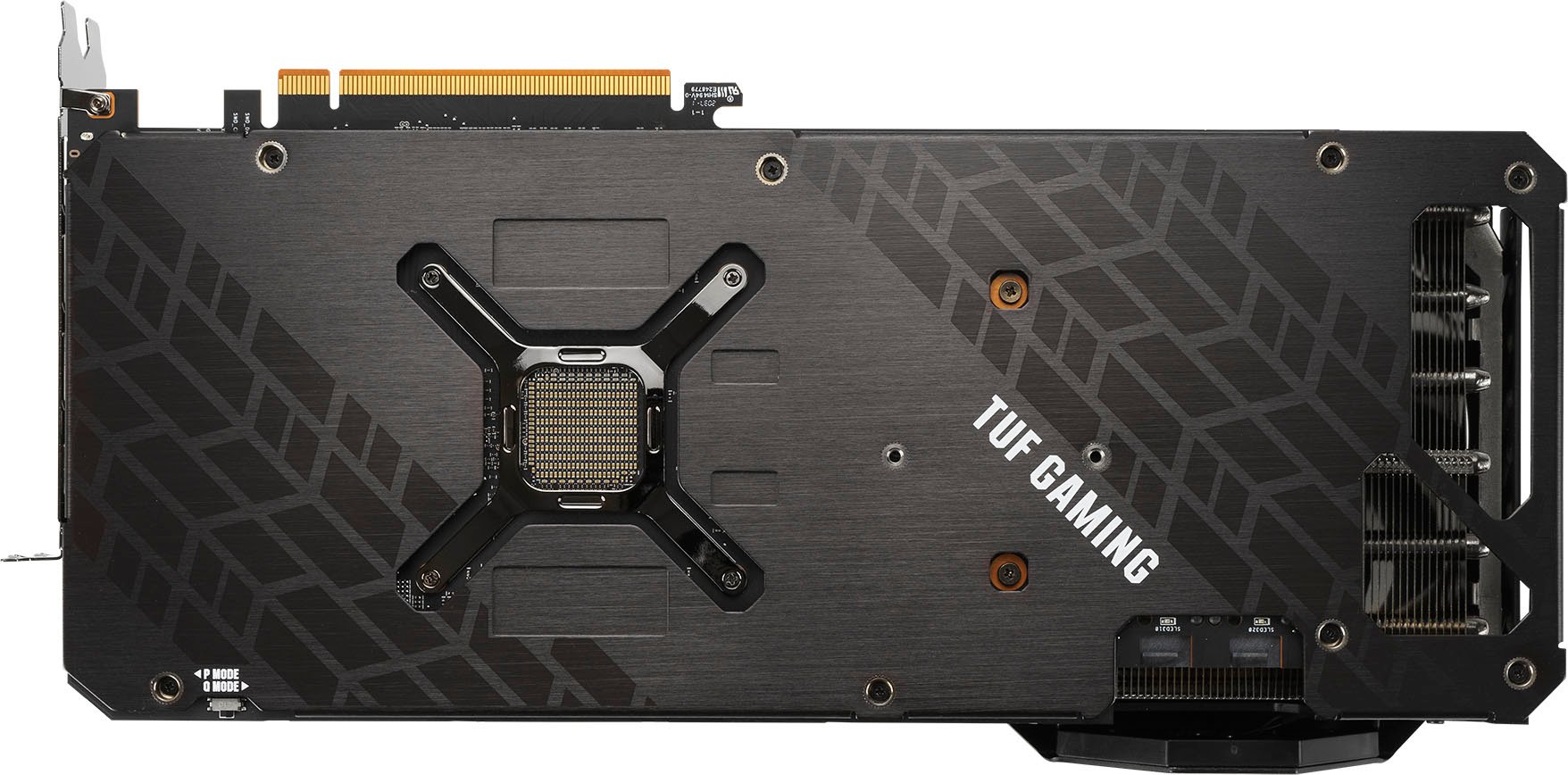

Armored Underside

The underside of the card reveals further improvements. Most of the rear is swathed in a protective metal backplate that prominently features a wide vent. The vent allows hot air to escape towards chassis exhaust fans instead of being recycled back into the GPU cooler. A GPU bracket provides extra stability to the critical connection between die and heat spreader. Stainless steel is used for the I/O bracket to protect ports and provide a more secure mount. And a conveniently placed Dual Bios switch allows customization of the card’s default performance profile without software.

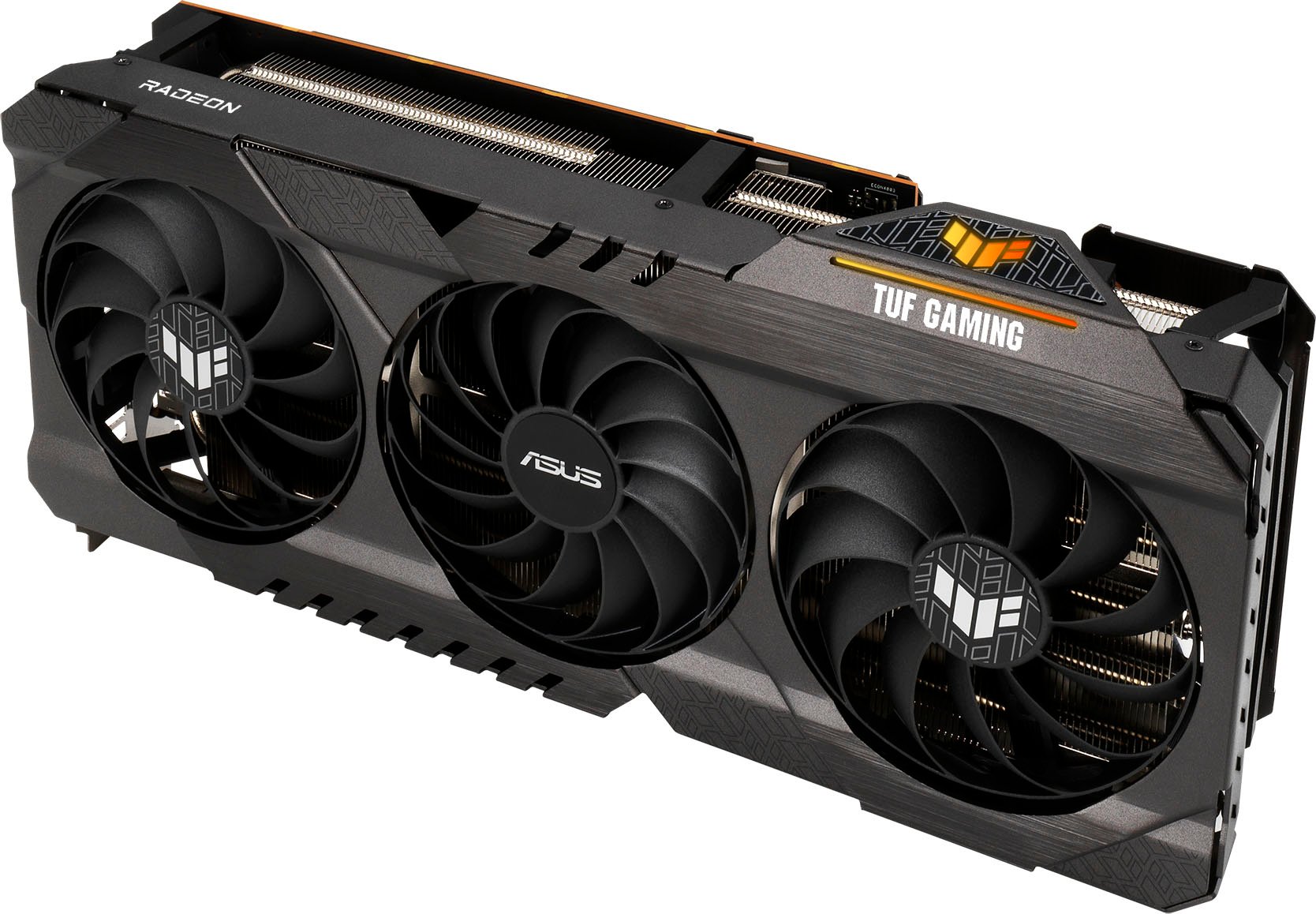

Axial-tech Upgrades

The blade count has been increased on all three fans, with 13 on the center fan and 11 on the auxiliary fans. The barrier ring on the side fans has been slimmed down to allow for more lateral intake and to provide better airflow through the cooling array. The center fan's extra blades and full-height ring provide boosted static pressure to blast air directly onto the GPU heat spreader.

Software Suite

Hardware and software come together to let gamers fully customize and control their gaming experience. GPU Tweak II enables tweaks and monitoring, XSplit offers a robust streaming solution, and wtfast can improve routing to game servers for a more stable gaming connection.

TUF Components

Robust military-grade capacitors were selected for the card’s power design. They and other components are soldered to the PCB using our Auto-Extreme automated manufacturing process. Precise joints and the elimination of human error ensures each graphics card meets our rigorous specifications. To ensure flawless performance when it counts, the cards are subjected to a grueling 144-hour validation trial.



Chipset Manufacturer AMD
Chipset Model Name Radeon RX
Chipset Model Number 6800 XT
Chipset Additional Information TUF Gaming


Memory Size 16384 MB


Memory Clock 16 Gbps
Memory Type GDDR6
Memory Width 256 bit


Video Card Bus Type PCI Express
Video Card Bus Version 4.0 x16
HDMI Port 1 x HDMI 2.1
DisplayPort 3 x DisplayPort 1.4

System Requirements

System Requirements 1 x PCI Express 4.0 x16 slot
Minimum 750W PSU with 2 x 8-pin PCIe connectors


Multiple Monitor Support (Max) Yes (4)
Maximum Resolution 7680 x 4320 pixels


Form Factor Graphics Card

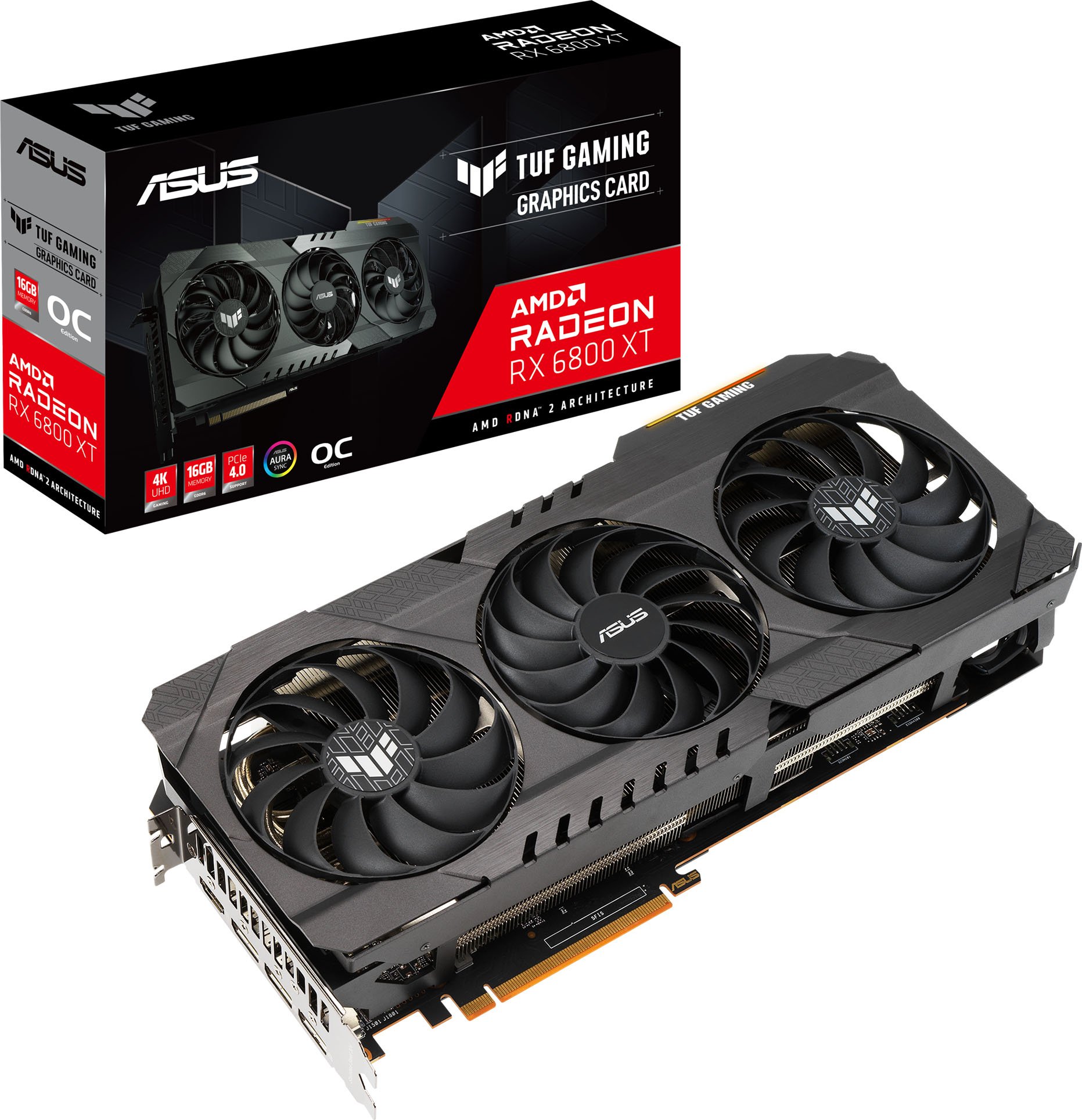

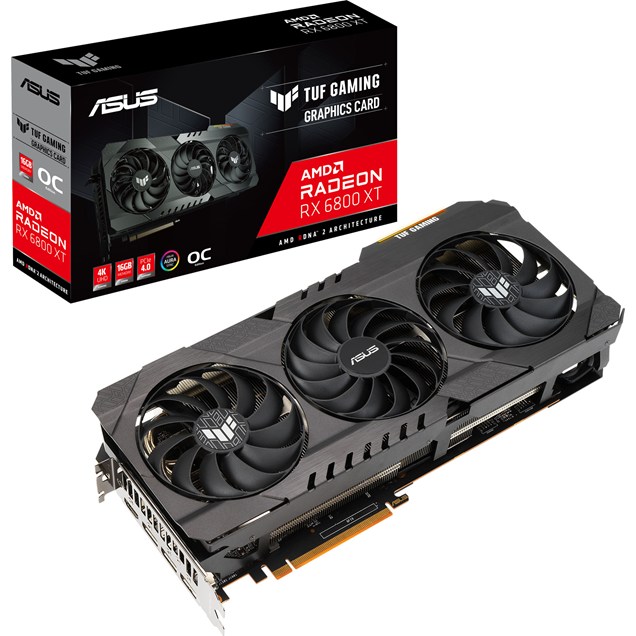

In The Box Graphics Card
TUF Certificate of Reliability
ASUS Ruler
Collection Card
Speedsetup Manual
Width 57.8 mm (Triple Slot)
Depth 320 mm
Height 140.2 mm
Weight 1.718 kg


Warranty 3 Years

Key Features

Interface Type PCI Express 4.0 x16
VGA Connection No
DVI Connection No
HDMI Connection Yes
Graphics Usability Gaming
DisplayPort Connection Yes
Direct X Support Direct X 12
Cooler Type Dynamic Fan
Low Profile No
AMD Radeon RX 6800 XT
PCI-E Pin Type 8-Pin + 8-Pin
FreeSync Yes
Cooling Technology Dynamic Fan
VR Ready AMD
GPU Length 320 mm
Card Width 3
Power Requirement (auto) 300 W
GPU Power (TDP) 300 W
Graphics card count 1


Graphics Chipset Radeon RX 6800 XT

Item Details

Manufacturer ASUS
Manufacturer Code 90YV0FL1-M0NM00
Alternative Part Number TUF-RX6800XT-O16G-GAMING
EAN 4718017990202
UPC 192876990209
Condition New

Warranty Information

Warranty 3 Years

Manufacturer Information

Manufacturer ASUS
Manufacturer Code 90YV0FL1-M0NM00
