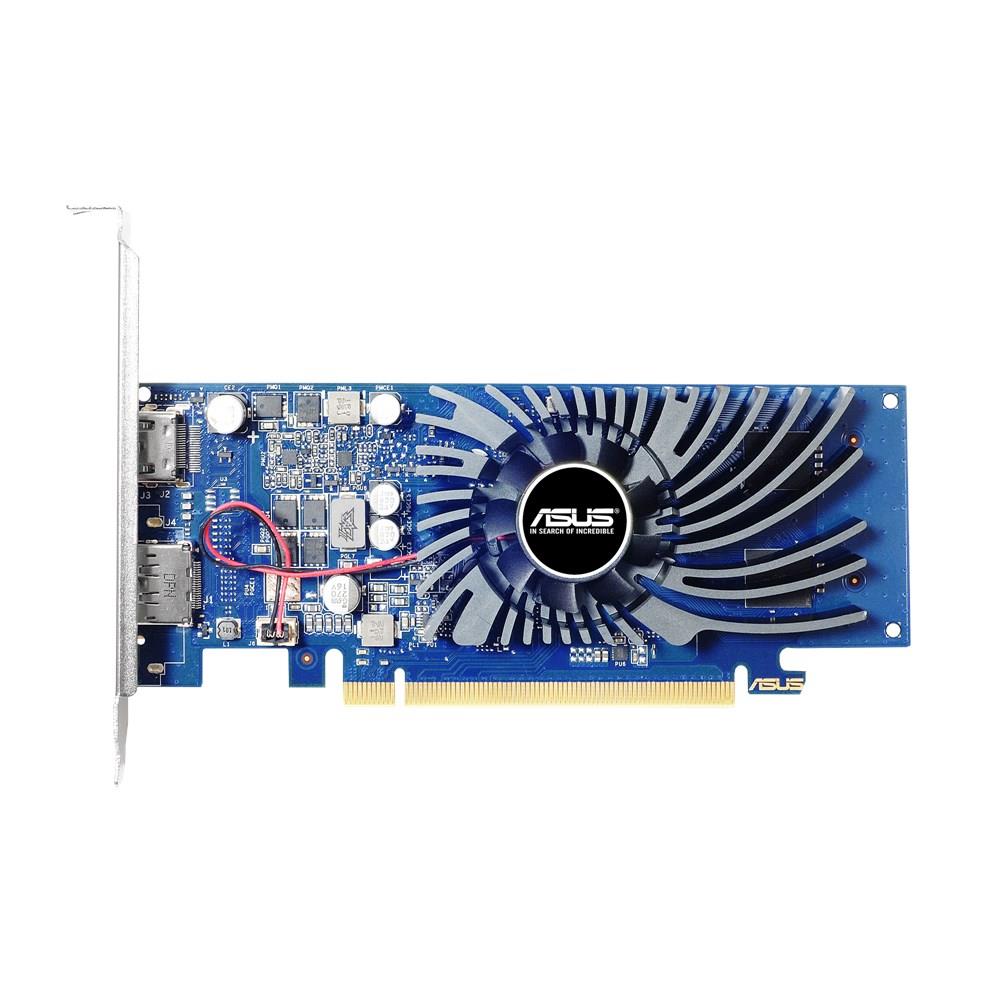

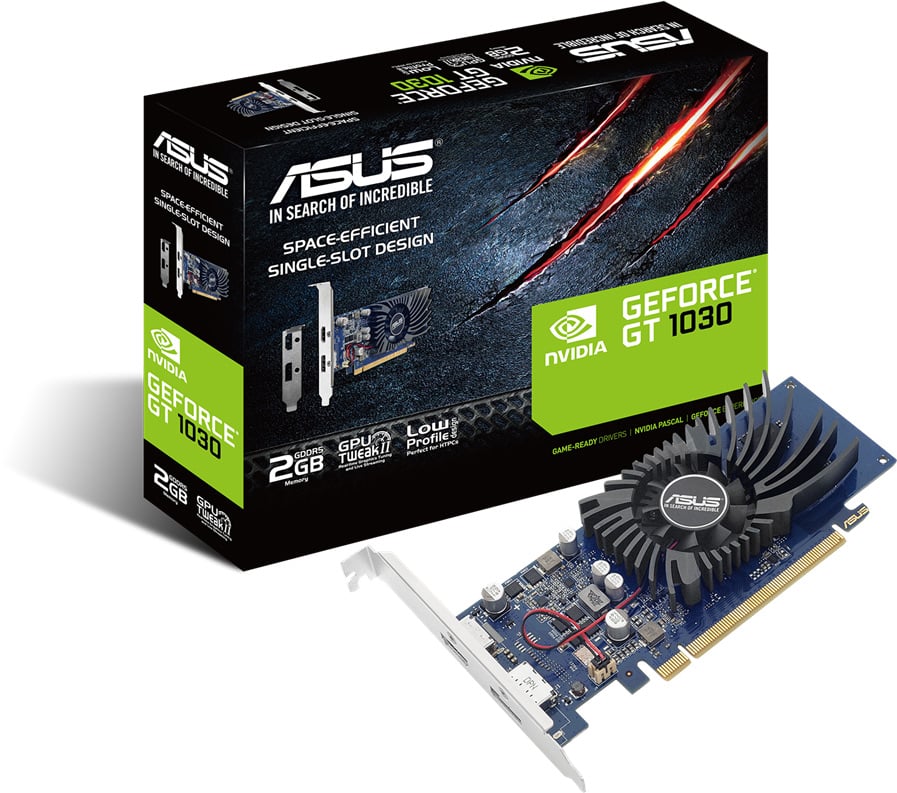

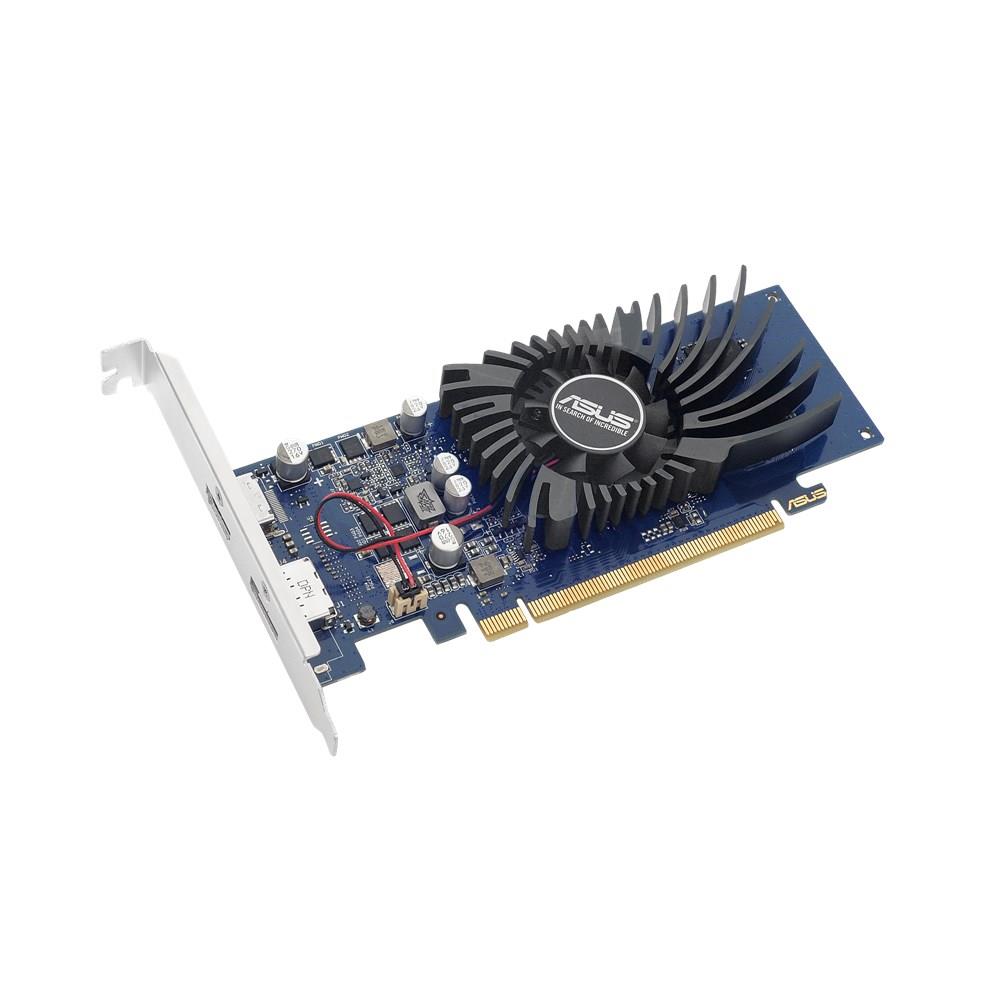

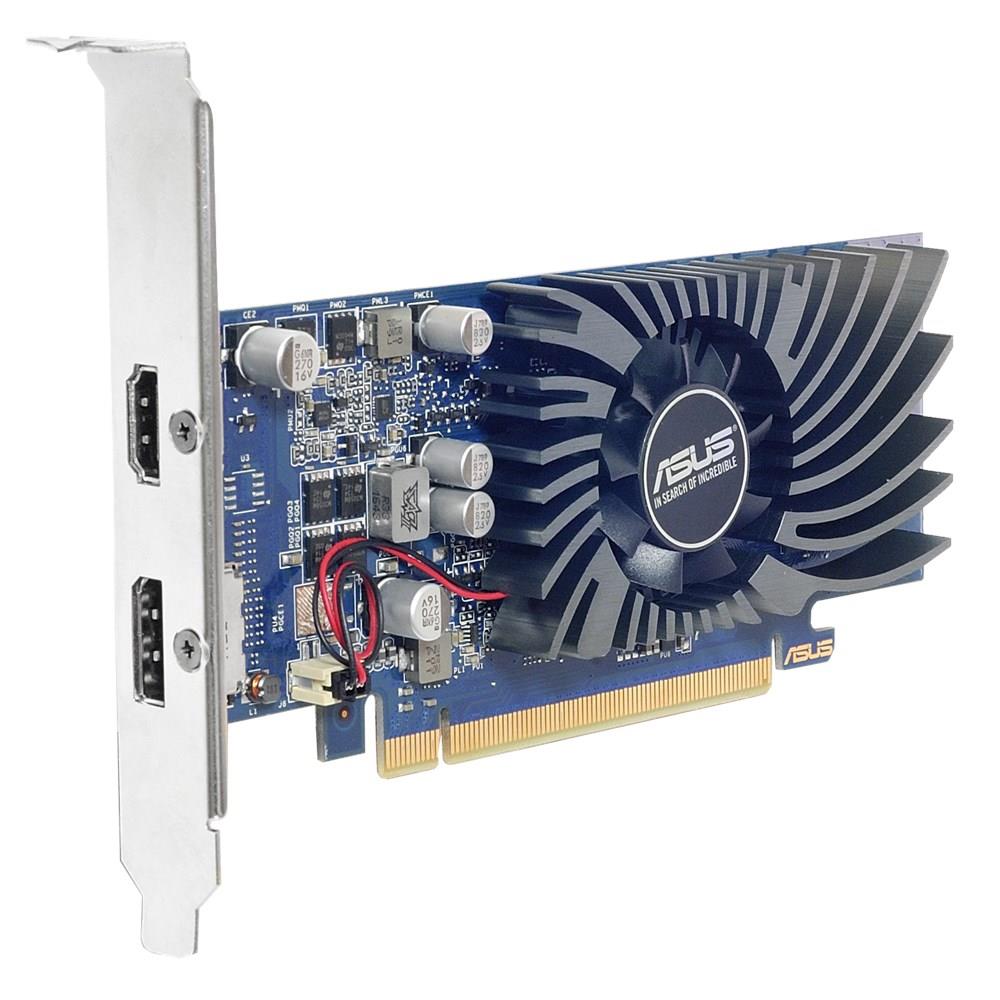

ASUS GeForce GT 1030 2GB GDDR5 Low Profile Graphics Card

ASUS GeForce GT 1030 2GB GDDR5 Low Profile Graphics Card

CCL Code: VGA6663

Sold out

Notify Me
  • ASUS GeForce GT 1030 2GB GDDR5 Low Profile Graphics Card
  • ASUS GeForce GT 1030 2GB GDDR5 Low Profile Graphics Card
  • ASUS GeForce GT 1030 2GB GDDR5 Low Profile Graphics Card
  • ASUS GeForce GT 1030 2GB GDDR5 Low Profile Graphics Card
  • ASUS GeForce GT 1030 2GB GDDR5 Low Profile Graphics Card

ASUS GeForce® GT 1030 2GB GDDR5 low profile graphics card for HTPC build (with I/O port brackets)

ASUS GeForce GT 1030 2GB GDDR5 Low Profile Graphics Card

GT1030-2G-BRK

ASUS GeForce® GT 1030 2GB GDDR5 low profile graphics card for HTPC build (with I/O port brackets)

Key Features:

  • 2GB GDDR5 Graphics Memory
  • PCI Express 3.0 x16 Interface
  • Cooler Type - Active Fan
  • Low Profile
  • Outputs - HDMI and Display Port
CCL Code: VGA6663

Sold out

Sorry, we don't have any stock of this product. Please click 'Notify Me' and we will let you know when the item is available.

Notify Me
Overview

Graphics galore for everyone!

ASUS GeForce® GT1030’s single-slot design doesn’t block neighboring PCIe slots, maximizing expansion flexibility, and the small size offers great compatibility with smaller chassis. Exclusive Auto-Extreme Technology with Super Alloy Power II components for superior stability. It also has GPU Tweak II for intuitive performance tweaking.

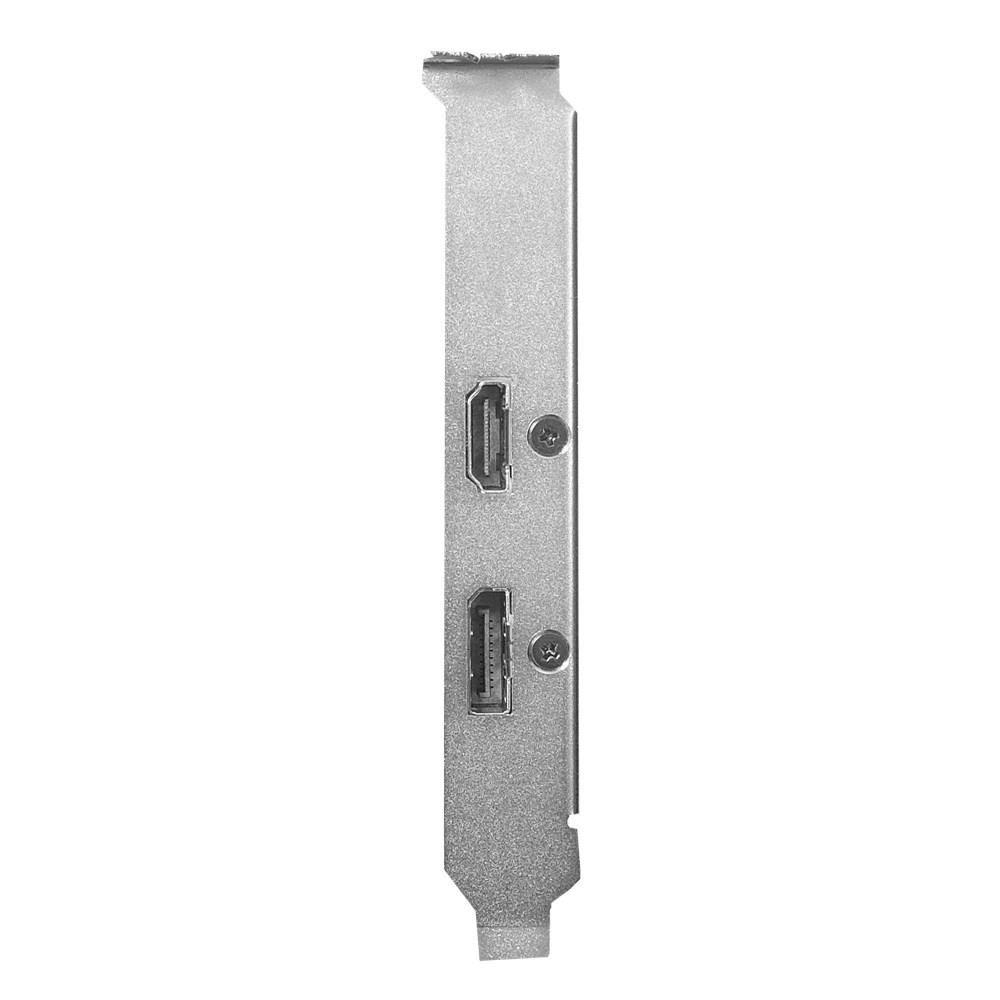

I/O Ports Highlight

  • 1 x Native HDMI
  • 1 x Native DisplayPort

Space-efficient single-slot design

The slimline cooling fan and single-slot design means that GT1030 doesn’t block neighboring PCI Express slots, maximizing your ability to fit additional expansion cards. The small size also offers great compatibility with a wide variety of smaller chassis, so you can build in whatever form is best for your needs.

Auto-Extreme Technology with Super Alloy Power II

Premium quality and the best reliability

ASUS graphics cards are produced using Auto-Extreme technology, an industry-first 100% automated production process, and feature premium Super Alloy Power II components that enhance efficiency, reduce power loss, decrease component buzzing under load, and lower thermal temperatures for unsurpassed quality and reliability.

GPU Tweak II

Tweak Till Your Heart's Content

Redesigned with an intuitive, all-new UI, GPU Tweak II makes overclocking easier and more visual than ever, while still retaining advanced options for seasoned overclockers. With one click, the new Gaming Booster function maximizes system performance by removing redundant processes and allocating all available resources automatically.

Gaming Booster

One-click Performance Up
  • Visual effects: Boost your performance by turning off windows visual effects.
  • System Services: Automatically or manually turn off windows services or process.
  • Memory Defragmentation: Re-arrange & free your system memory without closing any processes.

Main Features

  • Space-efficient single-slot design GT1030's single-slot design doesn't block neighboring PCIe slots, maximizing expansion flexibility, and the small size offers great compatibility with smaller chassis.
  • Industry-Only Auto-Extreme Technology with Super Alloy Power II delivers premium quality and best reliability.
  • GPU Tweak II makes performance tweaking easier and more visual than ever with an intuitive, all-new UI.
Specifications

GPU

Chipset Manufacturer NVIDIA
Chipset Model Name GeForce GT
Chipset Model Number 1030
Base Chip Clock 1228 MHz
Boost Chip Clock 1506 MHz
Number of Cores 384 cores
Graphics Core CUDA

Memory

Memory Size 2048 MB
Memory Clock 6 Gbps
Memory Type GDDR5
Memory Width 64 bit

Interfaces/Ports

Video Card Bus Type PCI Express
Video Card Bus Version 3.0 x16
HDMI Port 1 x HDMI 2.0b
DisplayPort 1 x DisplayPort 1.4

Resolution

Maximum Resolution Yes (2)
DVI (Digital) resolution (Max) 7680 x 4320 pixels

System

Software Included (may be trial or restricted) ASUS GPU Tweak II
Drivers

System Requirements

System Requirements 1 x PCI Express 3.0 x16 slot
Recommended 300W PSU or greater

Electrical

Power Connector N/A
Recomended Power Supply 300 W

Physical

Form Factor Graphics Card
In The Box Asus GeForce GT 1030
Quick Guide
CD
Width 21 mm (Single Slot)
Depth 169 mm
Height 69 mm

Warranty

Warranty 3 Years

Key Features

Interface Type PCI Express 3.0 x16
Config Gaming x8 (CB/CCL) No
Graphics Memory Type GDDR5
Main Colour Grey
VGA Connection No
DVI Connection No
HDMI Connection Yes
Graphics Usability Home Office
DisplayPort Connection Yes
Direct X Support Direct X 12
Cooler Type Active Fan
Low Profile Yes
NVIDIA GeForce GT 1030
PCIe Pin Type None
FreeSync No
Cooling Technology Active Fan
VR Ready No
GPU Length 169 mm
Card Width 1
Power Requirement (auto) 30 W
GPU Power (TDP) 30 W
Graphics card count 1
PCIe Physical Slot required 16
AI Ready No

Graphics

Graphics Chipset GeForce GT 1030

Graphics Device

G-Sync Yes

Item Details

Manufacturer ASUS
Manufacturer Code GT1030-2G-BRK
Alternative Part Number 90YV0AT2-M0NA00
EAN 4712900910223
UPC 889349910221
Condition New
Warranty

Warranty Information

Warranty 3 Years

Manufacturer Information

Manufacturer ASUS
Manufacturer Code GT1030-2G-BRK
Reviews
No reviews have been received for this product yet
Downloads

PDF Datasheets and Manuals

Document File type File size
Asus GeForce GT 1030 (2GB) Graphics Card PCI-E HDMI/DisplayPort pdf
