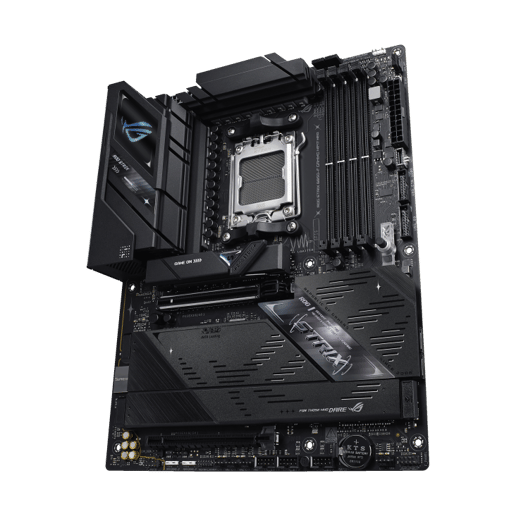

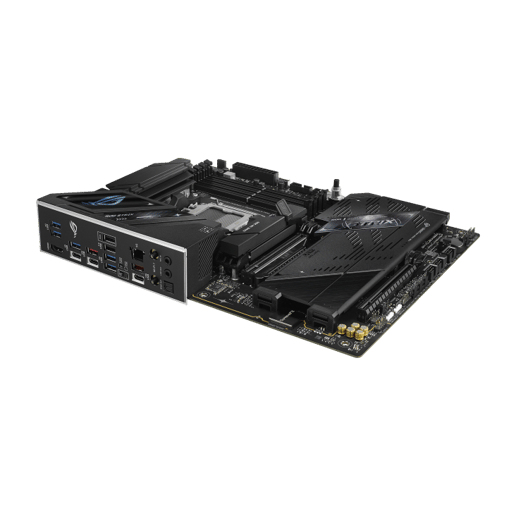

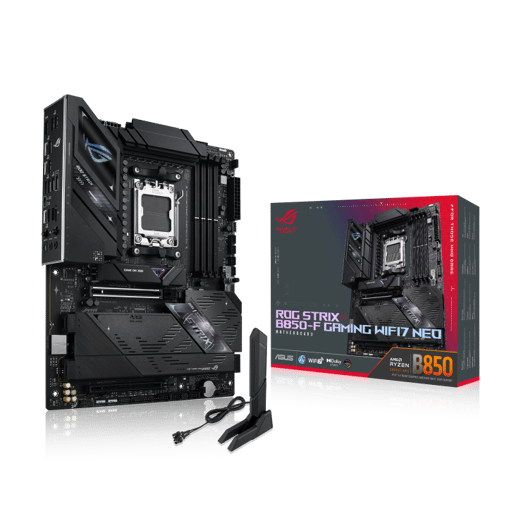

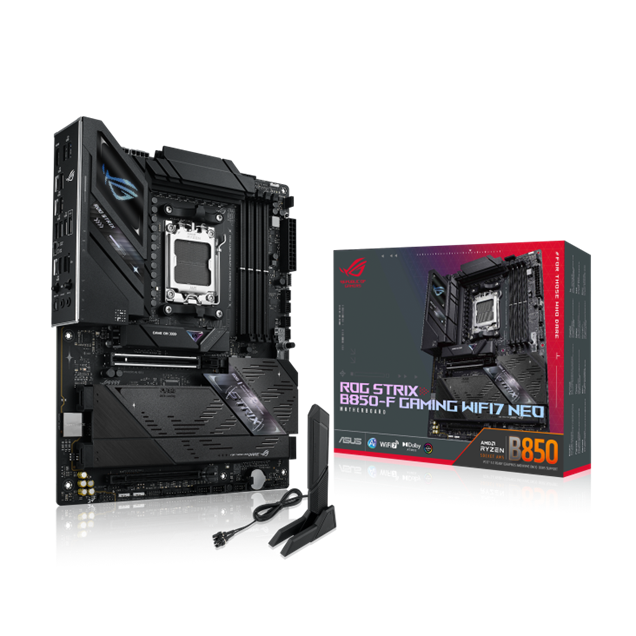

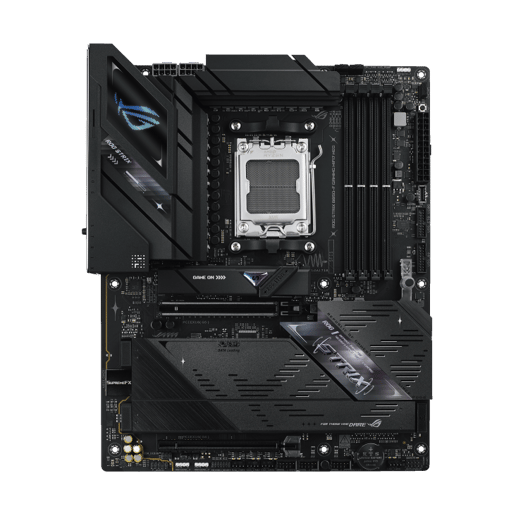

ASUS ATX Motherboard for AMD Socket AM5 CPUs
SAVE £63
Available for delivery from Monday 3rd August
Click & Collect from Tuesday 4th August
Order within
You have 0 of these in your basket

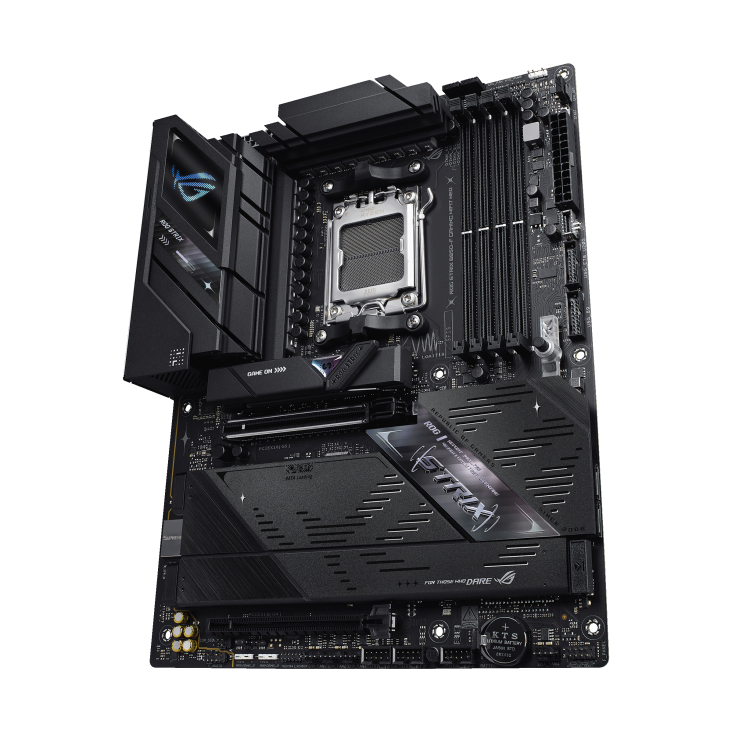

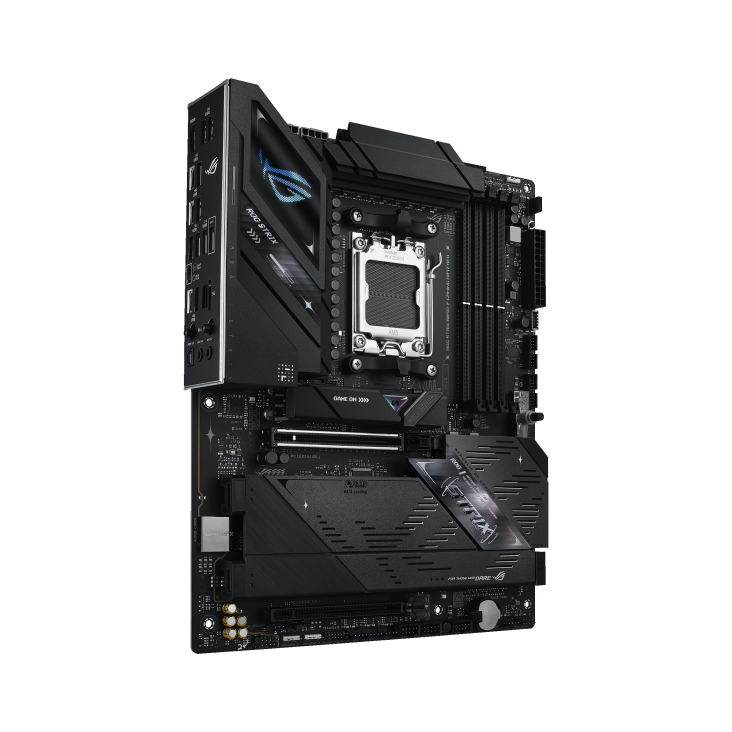

The ASUS ROG STRIX B850-F GAMING WIFI7 NEO is a premium ATX AM5 motherboard designed for AMD Ryzen 9000, 8000, and 7000 Series processors. It combines strong power delivery, next-generation connectivity, PCIe 5.0 support, and advanced networking features, making it suitable for high-performance gaming PCs, creator systems, and enthusiast builds.
3 Key Features
1. Advanced AM5 Platform Support with High-Speed DDR5 Memory
The ROG STRIX B850-F GAMING WIFI7 NEO supports the latest AMD Socket AM5 Ryzen processors, including Ryzen 9000, 8000, and 7000 Series CPUs. It features four DDR5 DIMM slots supporting up to 256GB of memory and speeds of up to 9000+ MT/s (OC), with support for AMD EXPO and ASUS AEMP memory profiles for easier memory tuning and improved performance.
2. PCIe 5.0 Expansion and Multi-Storage Capability
Designed for modern high-performance systems, the motherboard includes a PCIe 5.0 x16 SafeSlot for next-generation graphics cards and supports up to four M.2 SSDs, including PCIe 5.0 x4 NVMe support for ultra-fast storage. This provides excellent bandwidth for flagship GPUs, high-speed NVMe drives, gaming libraries, content creation projects, and demanding workstation applications.
3. Next-Generation Connectivity with Wi-Fi 7 and 5Gb Ethernet
The motherboard features Wi-Fi 7 (802.11be) using the MediaTek MT7925 wireless module, supporting 2.4GHz, 5GHz, and 6GHz bands, alongside Bluetooth 5.4. It also includes Realtek 5Gb Ethernet with ASUS LANGuard, delivering faster wired networking for high-speed downloads, game streaming, NAS transfers, and professional workloads.
CPU
- Installed Processors (Max): 0 (1)
- Supported Processors: AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors
- Socket: AM5

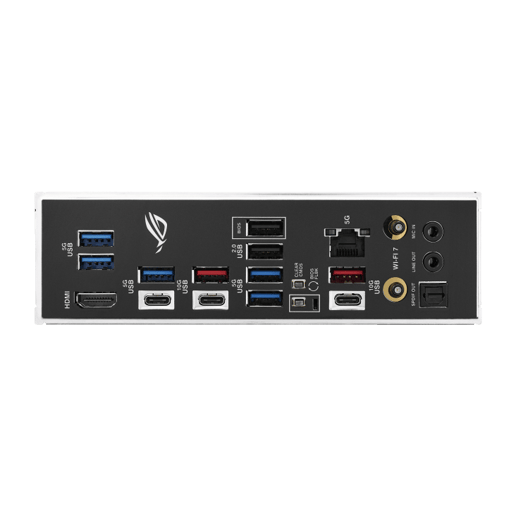

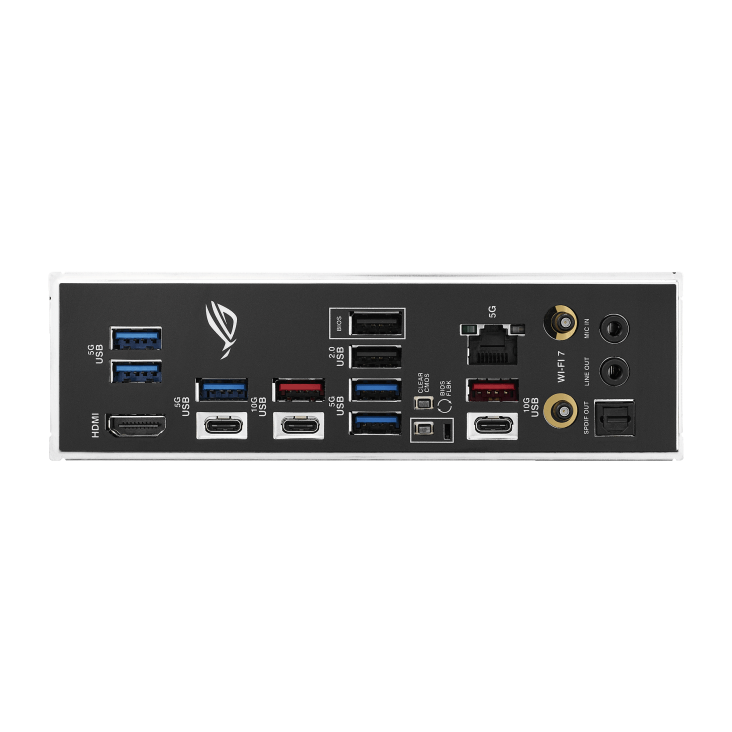

Rear Panel I/O Ports
- USB Ports: Rear USB (Total 12 Ports)
- 4 x USB 10Gbps ports (2 x Type-A + 2 x USB Type-C)
- 6 x USB 5Gbps ports (5 x Type-A + 1 x USB Type-C)
- 2 x USB 2.0 ports (2 x Type-A)
- Front USB (Total 7 Ports)
- 1 x USB 20Gbps port
- 2 x USB 5Gbps headers supporting 4 additional USB 5Gbps ports
- 3 x USB 2.0 headers supporting 6 additional USB 2.0 ports
- * USB Type-C power delivery output: max. 5V/3A.
- HDMI Port: 1x HDMI v2.1
- Supports 4K@60Hz
Internal I/O Connectors
- SATA Connectors: 2x
Memory
- Memory Bus Speed: Supports up to 9000+MT/s (OC), ECC and Non-ECC
- Memory Type: DDR5
Physical
- Colour: Black
Motherboard
- Northbridge: AMD B850 Chipset
- RAID Supported: Storage RAID Support
- AMD RAIDXpert2 Technology
- Ryzen 9000, 8000 & 7000 Series Processors: RAID 0/1/5/10
Internal I/O Connectors
- Cooling Fan Support: Cooling & Fan Headers
- 1 x 4-pin CPU Fan header
- 1 x 4-pin CPU OPT Fan header
- 1 x 4-pin AIO Pump header
- 4 x 4-pin Chassis Fan headers
- Power Connector Port: 1 x 24-pin Main Power connector
- 2 x 8-pin +12V CPU Power connector
- Other Connectors: Internal I/O Connectors
- 3 x Addressable Gen 2 headers
- 1 x CPU Over Voltage jumper
- 1 x Front Panel Audio header (F_AUDIO)
- 1 x Power button
- 1 x 10-1 pin Front System Panel header
- 1 x Thermal Sensor header
- 1 x Thunderbolt (USB4) header
Expansion
- Number of PCI Express Slots: Expansion Slots
- 1 x PCIe 5.0 x16 SafeSlot [CPU]
- 1 x PCIe 4.0 x16 Slot (x4) [Chipset]
- Storage
- 4 x M.2 Slots
- 2 x M.2 2280 (PCIe 5.0 x4)
- 2 x M.2 2280 (PCIe 4.0 x4)
Memory
- Maximum RAM: 256 GB
Graphics Device
- Integrated Graphics Supported: Yes
Sound
- Integrated Sound: ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
Warranty
- Warranty: 3 Years
Network
- Integrated Network: Wireless & Bluetooth
- Wi-Fi 7 (MediaTek MT7925)
- 2x2 Wi-Fi 7 (802.11be)
- Supports 2.4GHz, 5GHz and 6GHz frequency bands
- Supports Wi-Fi 7 160MHz bandwidth
- Bluetooth 5.4 (supports LE Audio)
- Ethernet: 1x Realtek 5Gb Ethernet ASUS LANGuard
- Bluetooth Version: v 5.4
System Requirements
- Operating Systems Supported: Windows 11
System
- BIOS: 64 MB (512Mb) Flash ROM, UEFI AMI BIOS
- Special Features: Extreme Engine Digi+
- ASUS Q-Design
- ASUS Thermal Solution
- ASUS EZ DIY
- Aura Sync
- Software Included: ROG Exclusive Software
- ASUS Exclusive Software
UEFI BIOS
Physical
- Form Factor: ATX
- Width: 244 mm
- Length: 305 mm
Identifiers
- Stock Code: MBD4044
- Mfg Code: 90MB1NX0-M0EAY0
Warranty
- Warranty: 3 Years
