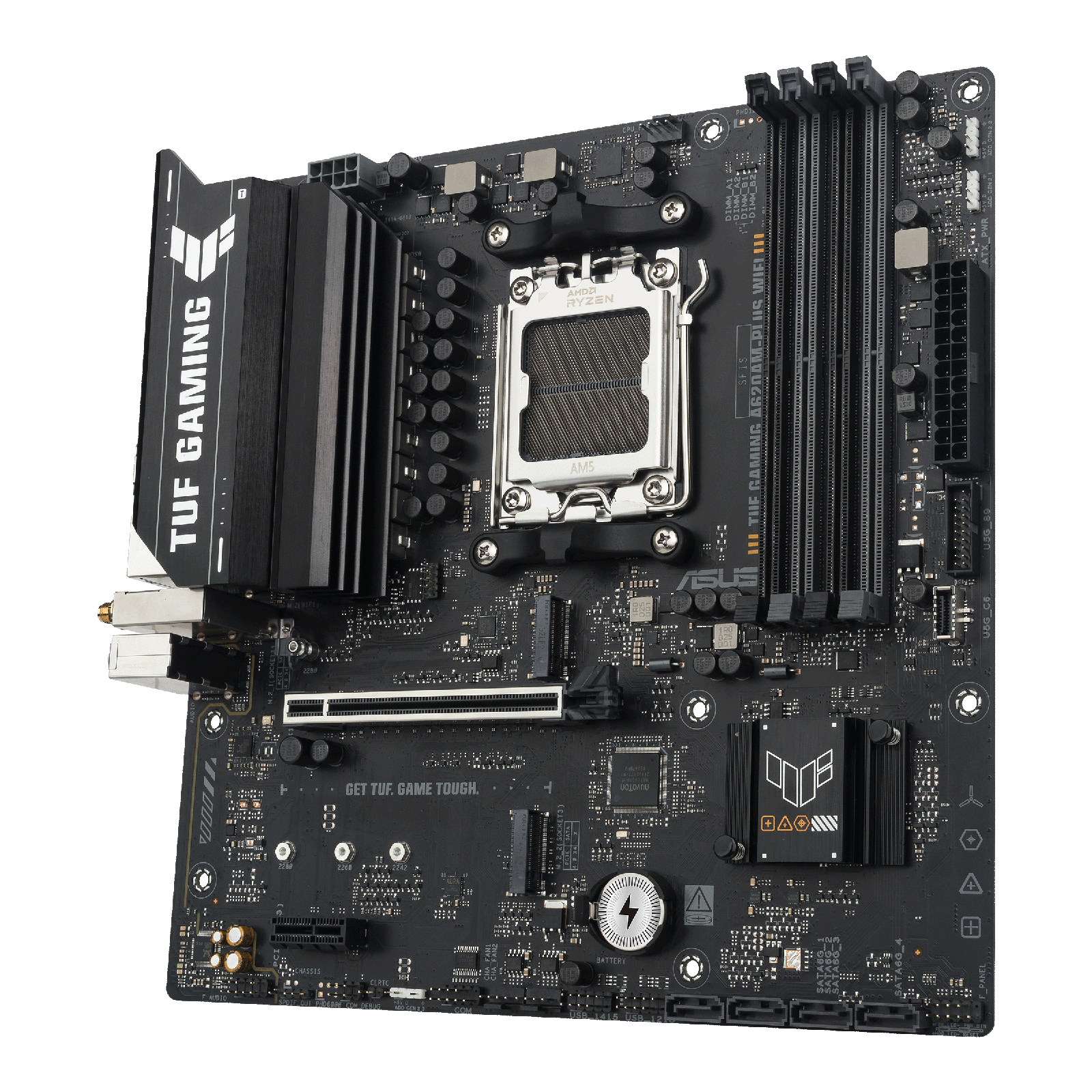

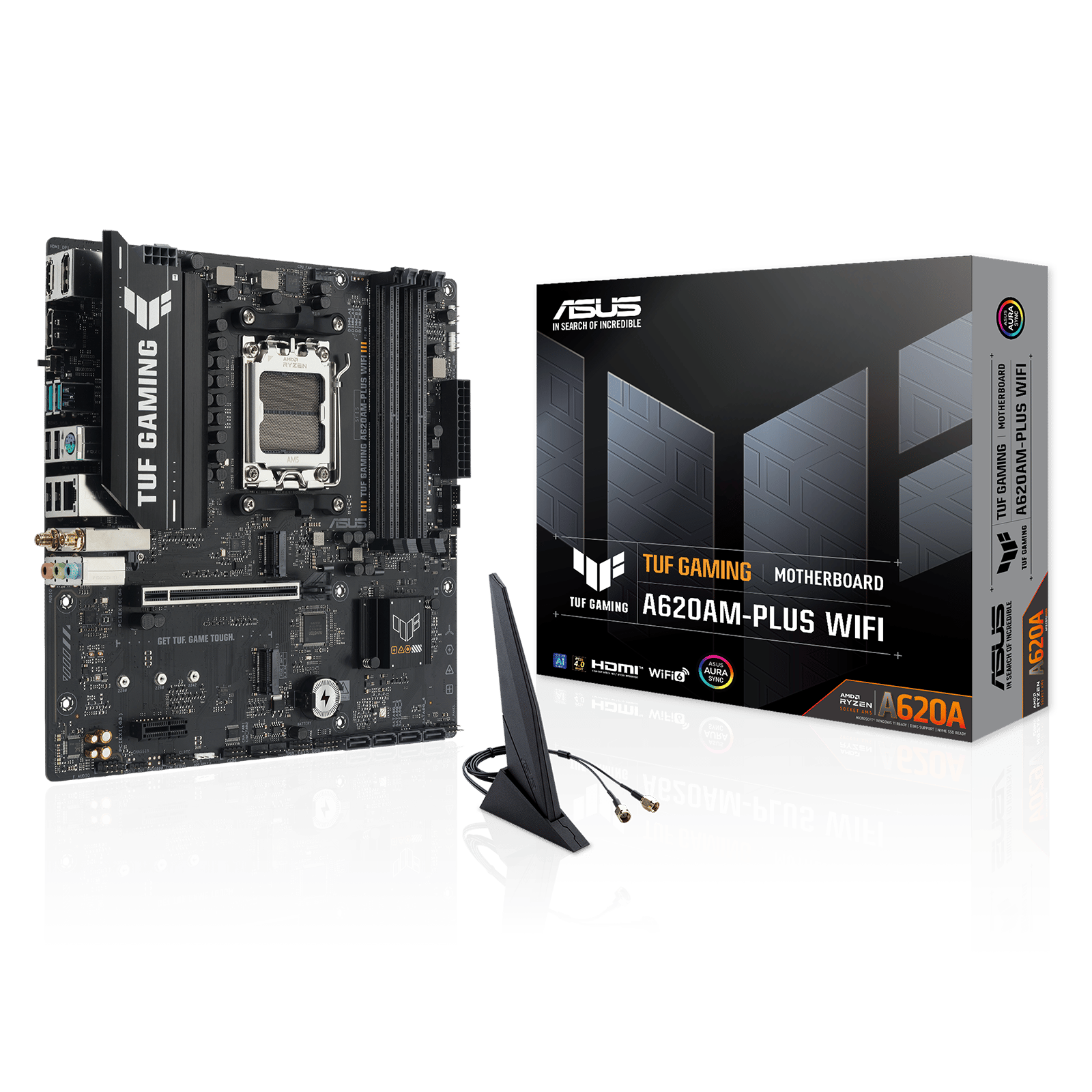

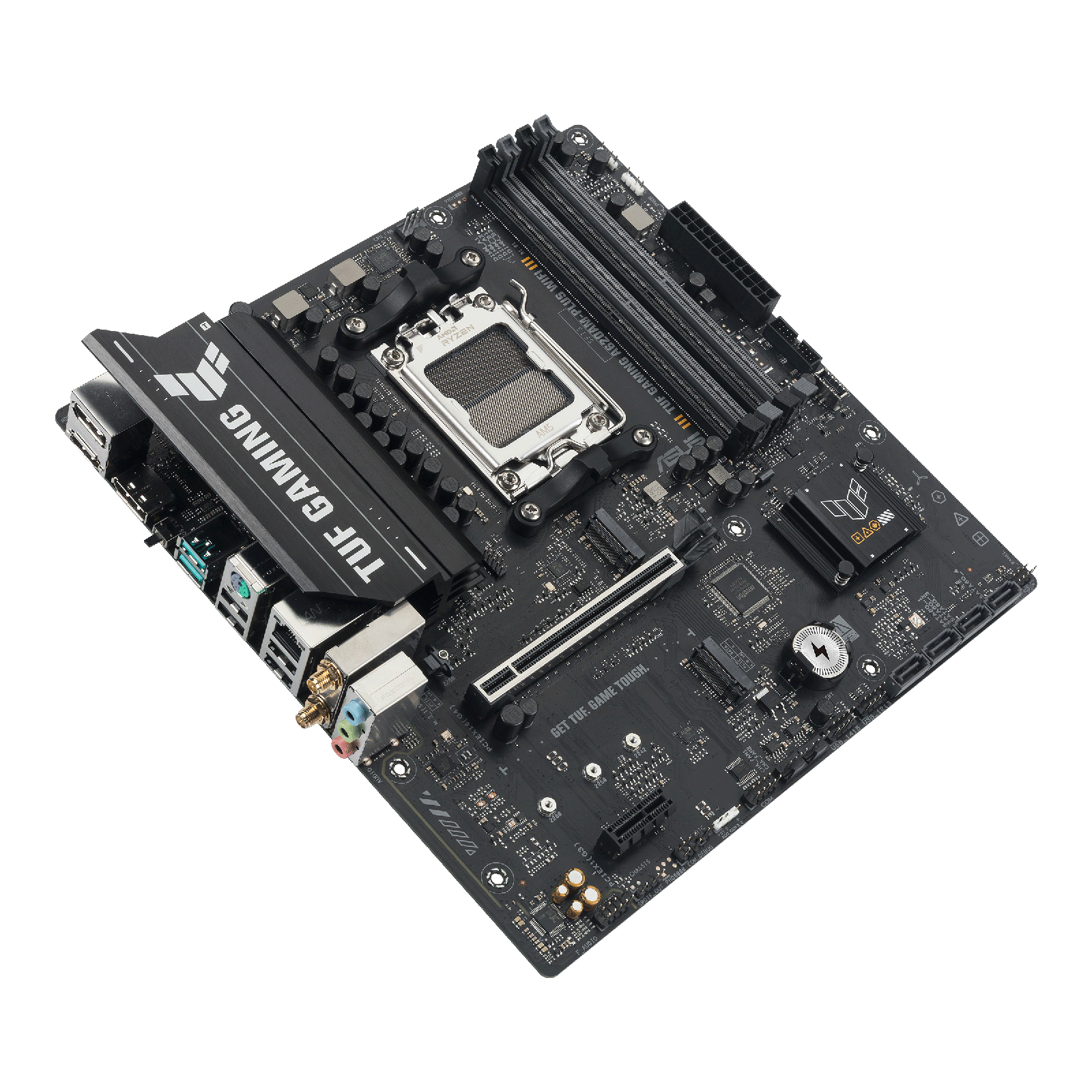

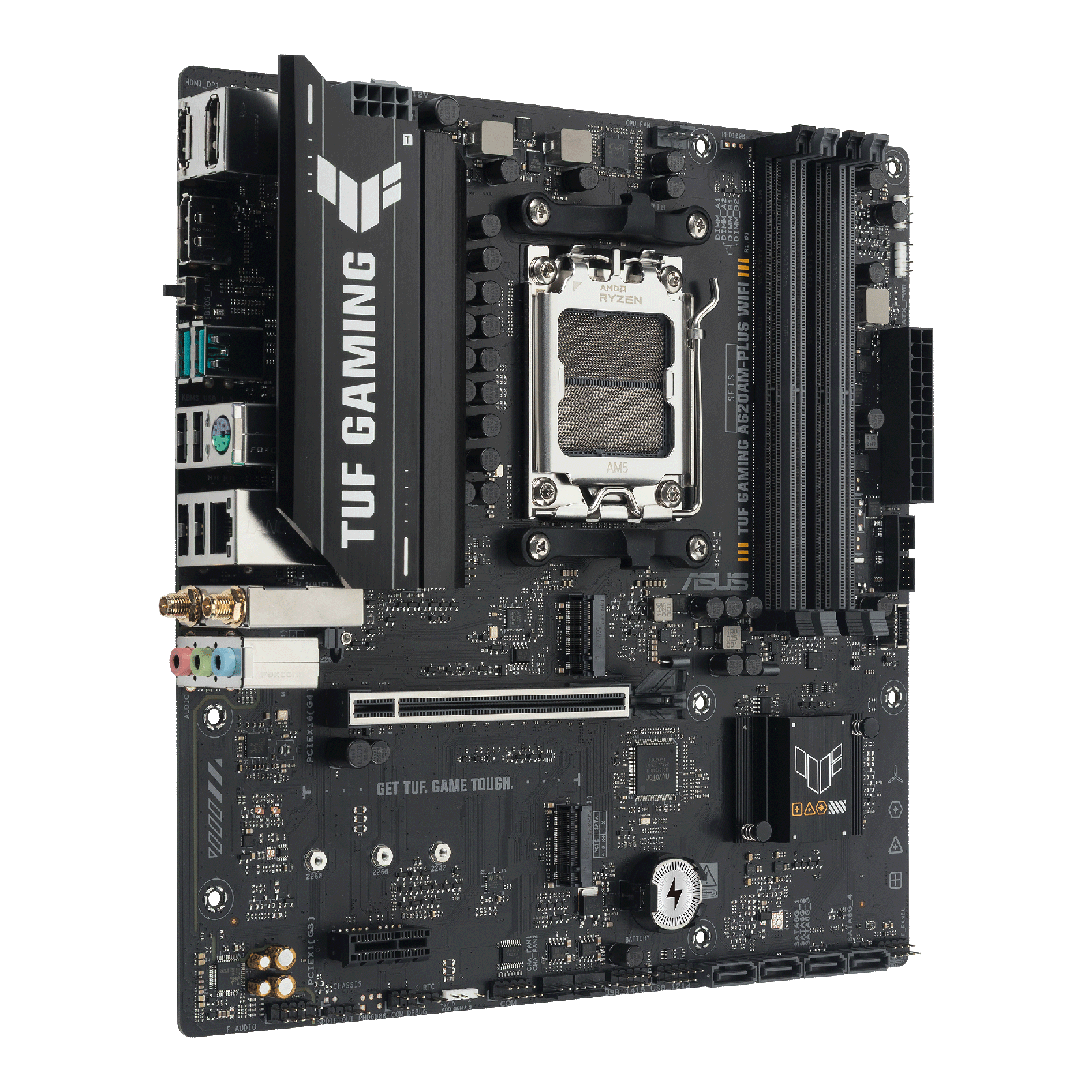

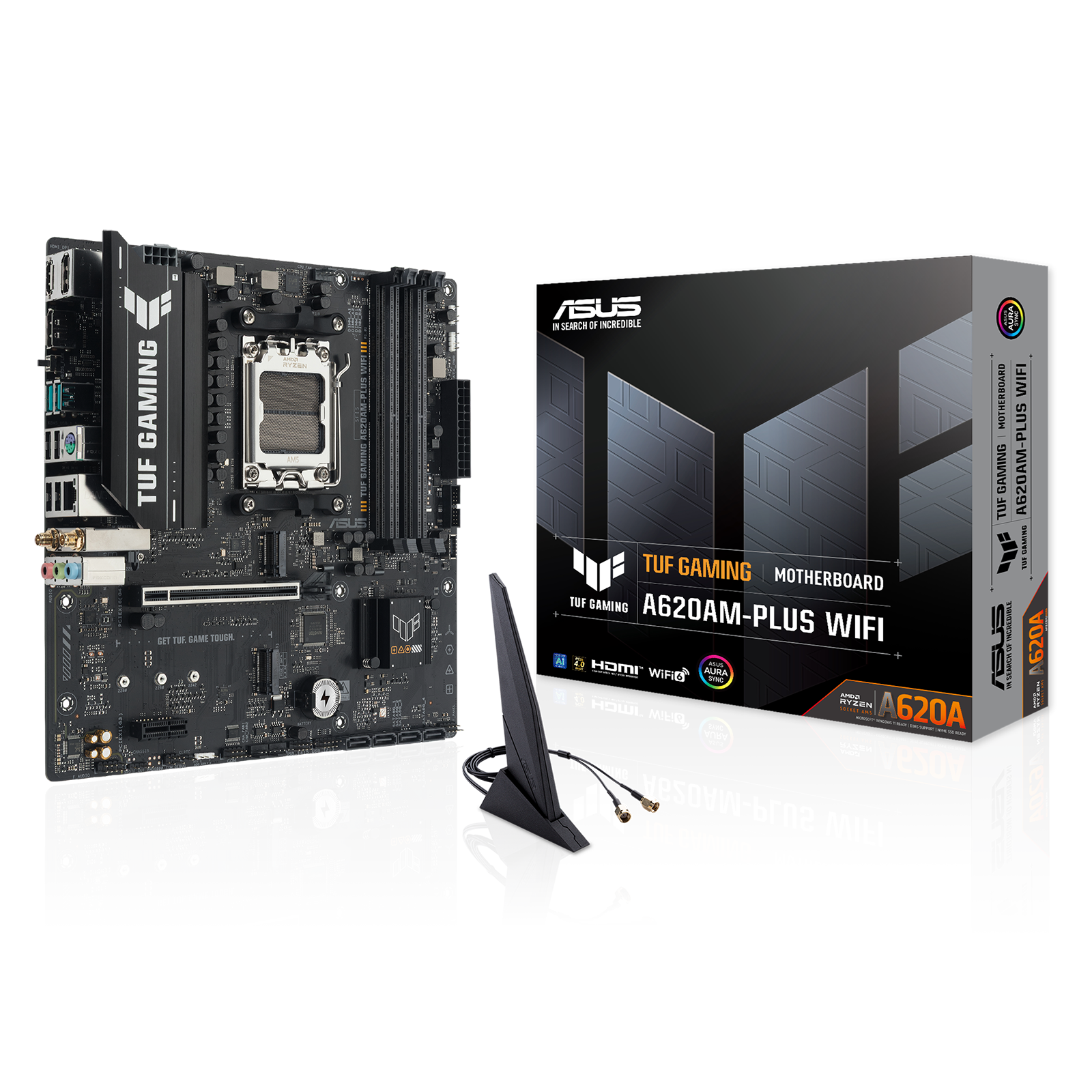

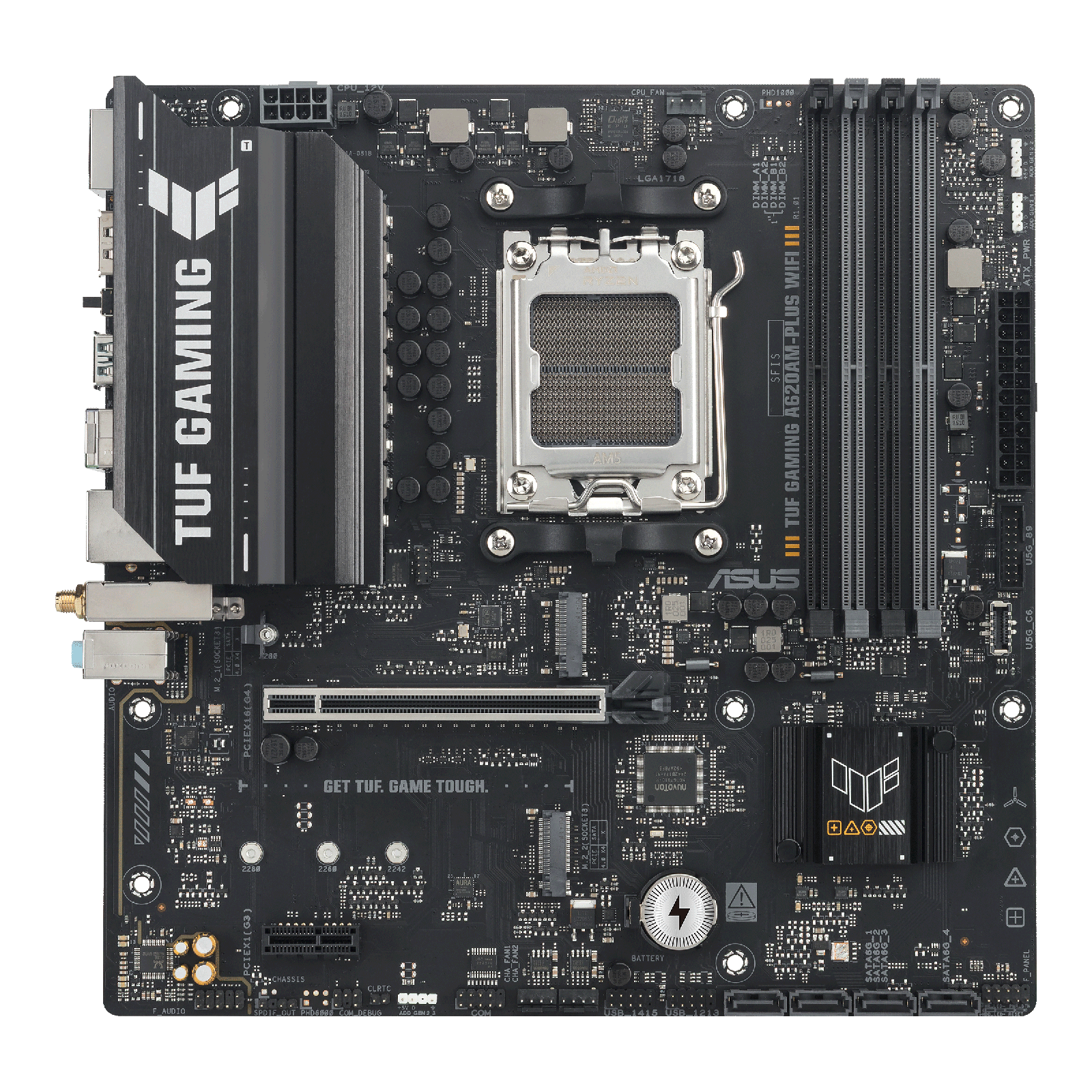

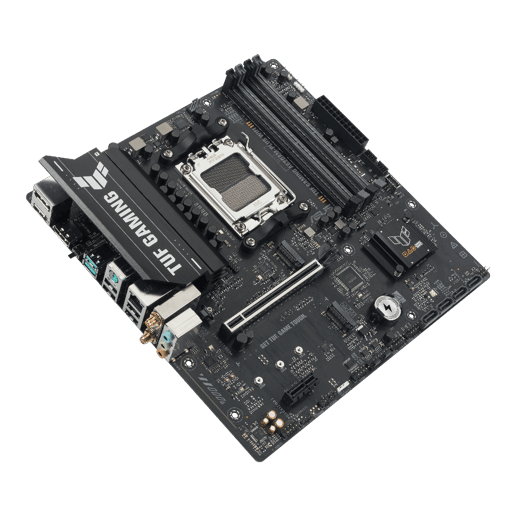

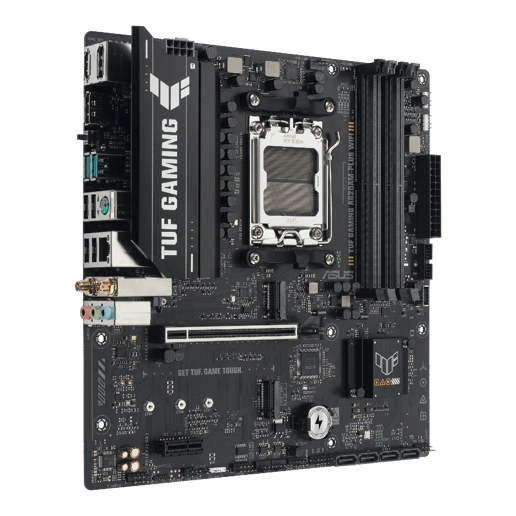

ASUS TUF Gaming A620AM-PLUS WIFI AMD Socket AM5 mATX Motherboard
Available for delivery from Tomorrow
Click & Collect from Wednesday 15th July
Order within
You have 0 of these in your basket
The ASUS TUF GAMING A620M-PLUS WIFI motherboard is built for gamers and PC builders who want great performance, strong reliability, and easy setup — all without breaking the bank.
Designed for the latest AMD Ryzen 7000, 8000, and 9000 Series processors, this board gives you fast speeds, smooth gameplay, and solid connections for work or play. The TUF Gaming series is known for its durable design, high-quality parts, and long-lasting performance — perfect for anyone who wants a system that just works, day after day.
With support for DDR5 memory and PCIe 4.0 storage, you’ll enjoy quicker loading times and smoother multitasking. Built-in Wi-Fi 6 and 2.5 Gigabit Ethernet mean faster, more reliable internet whether you’re gaming online or streaming movies.
Its Micro-ATX size fits easily into most PC cases while still offering plenty of room for upgrades, including M.2 slots for super-fast SSDs and multiple USB ports for your accessories.
The ASUS TUF GAMING A620M-PLUS WIFI is the perfect choice for gamers, students, and creators who want a strong and steady foundation for their PC — all with the trusted quality of ASUS.
CPU
- Installed Processors (Max): 0 (1)
- Supported Processor Manufacturer: AMD
- Supported Processors: AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors
- 64-bit Support: Yes
- Socket: AM5

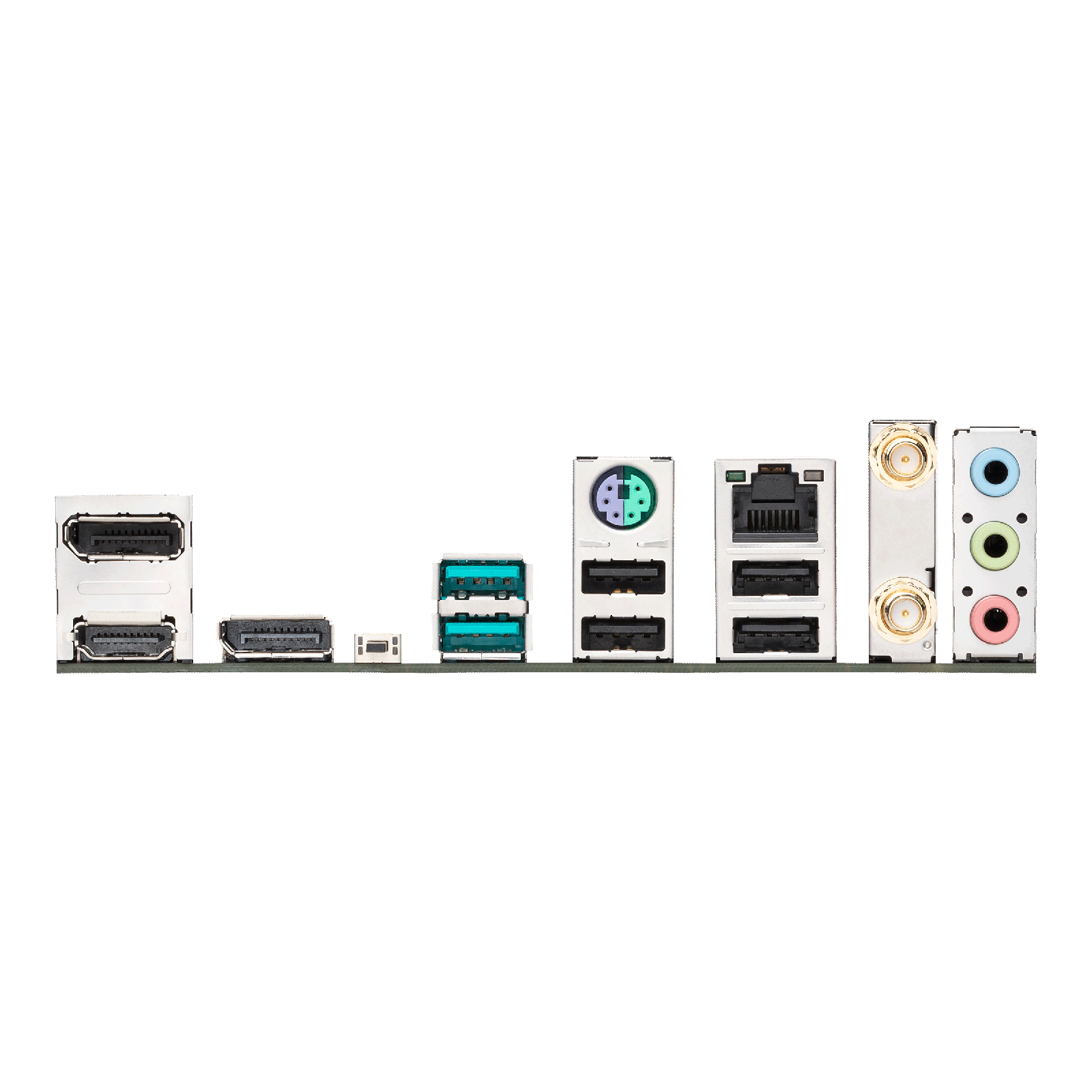

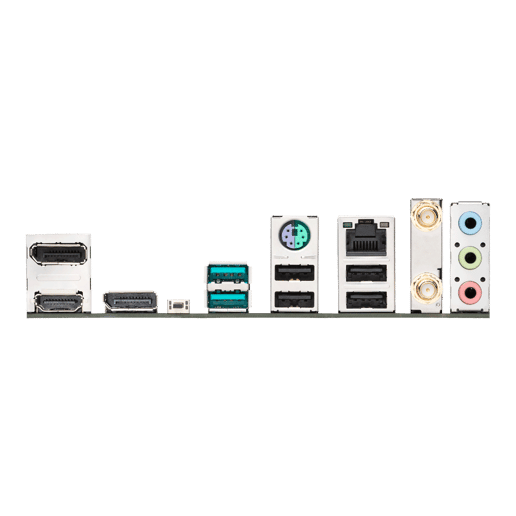

Rear Panel I/O Ports
- USB Ports: 2 x USB 3.1
- 4 x USB 2.0
- DisplayPorts: 2 x DisplayPort 1.4
- HDMI Port: 1 x HDMI 2.1
Internal I/O Connectors
- SATA Connectors: 4 x SATA
- USB Connectors: 1 x USB-C 3.0 header (supports 1 port)
1 x USB 3.0 header (supports 2 ports) - 2 x USB 2.0 headers (supports 4 ports)
Memory
- Memory Bus Speed: Up to 7600 MT/s
- Memory Type: DDR5
Motherboard
- Northbridge: AMD A620A
- RAID Supported: Yes
- RAID Format: RAID 0, 1, 5, 10
- SATA Supported: Yes
Rear Panel I/O Ports
- Keyboard/Mouse Combo Port: 1 x PS/2
- RJ-45 Ports: 1 x RJ-45
- Audio Line In Ports: 1 x 3.5mm Jack
- Audio Line Out Ports: 1 x 3.5mm Jack
- Microphone In Port: 1 x 3.5mm Jack
- Antenna Connector(s): 2 x SMA Antenna
Internal I/O Connectors
- Front Panel Connectors: 1 x Front Panel
- 1 x Front Audio
- Cooling Fan Support: 1 x CPU fan header
- 2 x Chassis fan headers
- S/PDIF Connectors: 1 x S/PDIF Out header
- Serial Connectors: 1 x COM header
- TPM Header: 1 x SPI TPM header
- Power Connector Port: 1 x 24-pin ATX
- 1 x 8-pin EPS
- Other Connectors: 1 x M.2 slot, Key M, Type 2280 (PCIe Gen4)
- 1 x M.2 slot, Key M, Type 2242/2260/2280 (PCIe Gen4)
- 3 x 3-pin ARGB headers
Expansion
- Number of PCI Express Slots: 1 x PCI Express 4.0 x16 slot
- 1 x PCI Express 3.0 x1 slot
Memory
- Maximum RAM: 256 GB
- Memory Slot: 4 slots
Graphics Device
- Integrated Graphics Supported: Yes
Sound
- Integrated Sound: Realtek
Warranty
- Warranty: 3 Years
Network
- Integrated Network: Realtek
- Network Speeds Supported: Up to 2.5 Gbps
- Wireless LAN: Yes - Wi-Fi 6
- Bluetooth: Yes
- Bluetooth Version: 5.3
System Requirements
- Operating Systems Supported: Microsoft Windows 11
System
- Jumpers: 1 x Clear CMOS
- Software Included: Yes
- Drivers: Yes
Physical
- Form Factor: mATX Motherboard

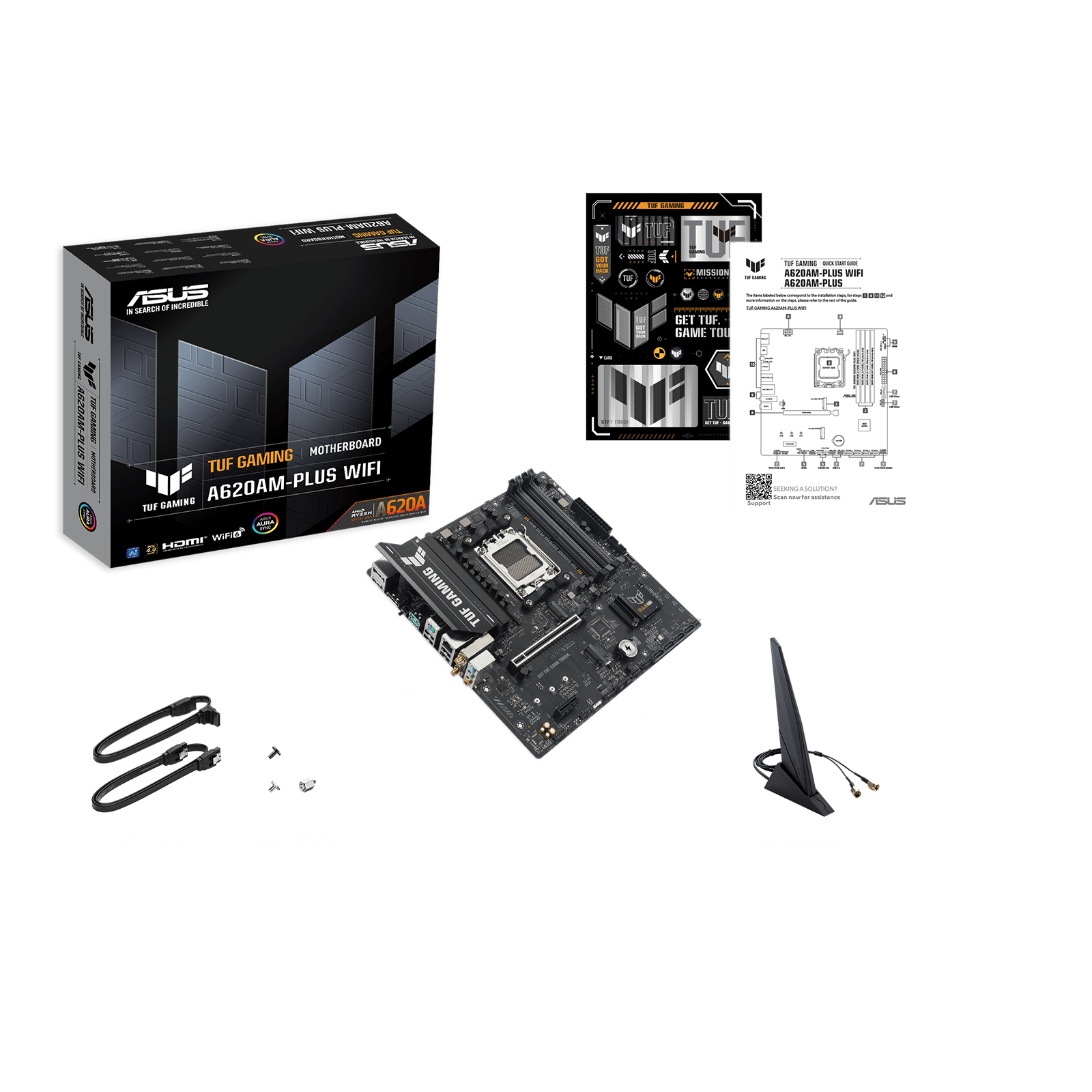

- In The Box: Motherboard
- 2 x SATA 6Gb/s cables

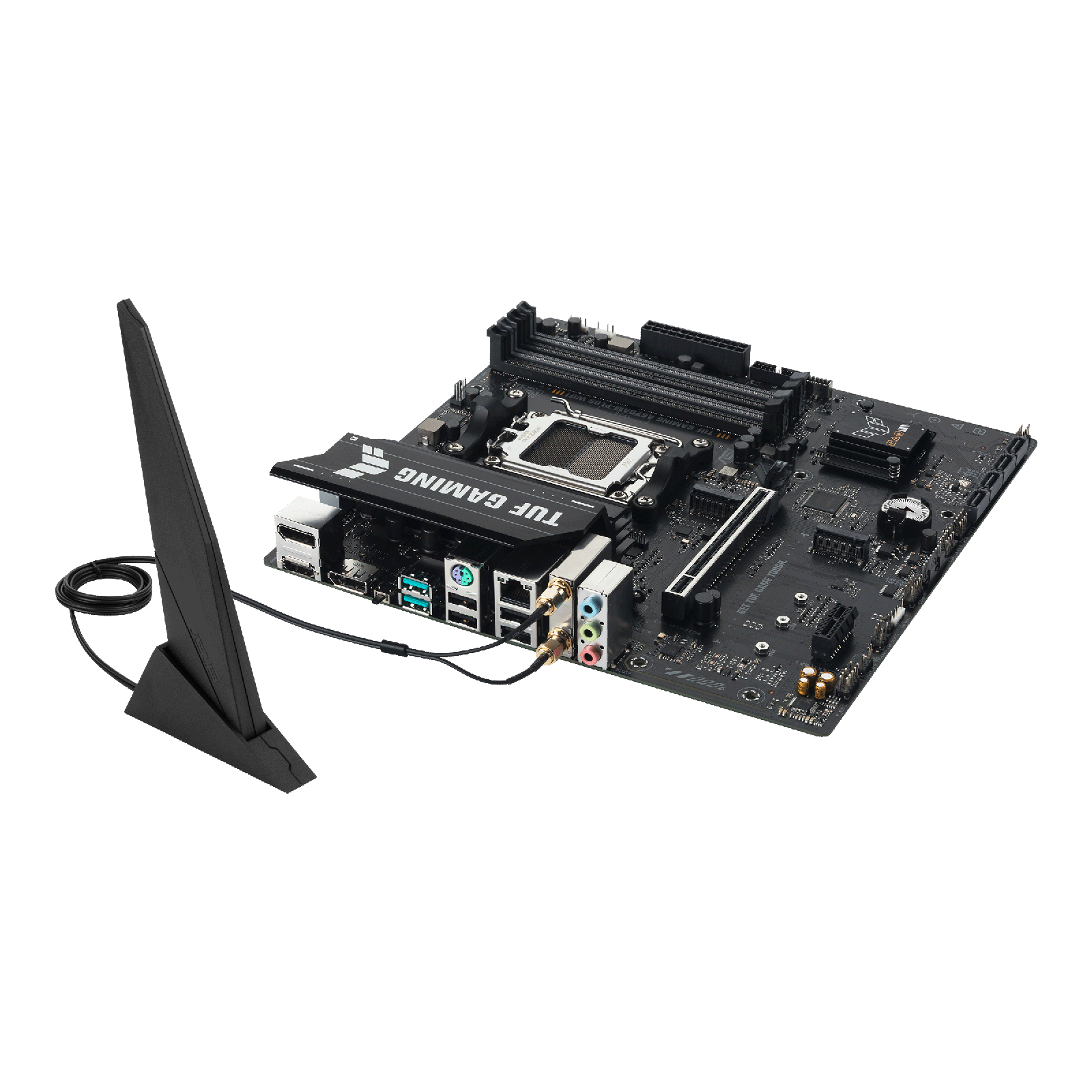

- 1 x ASUS Wi-Fi moving antenna

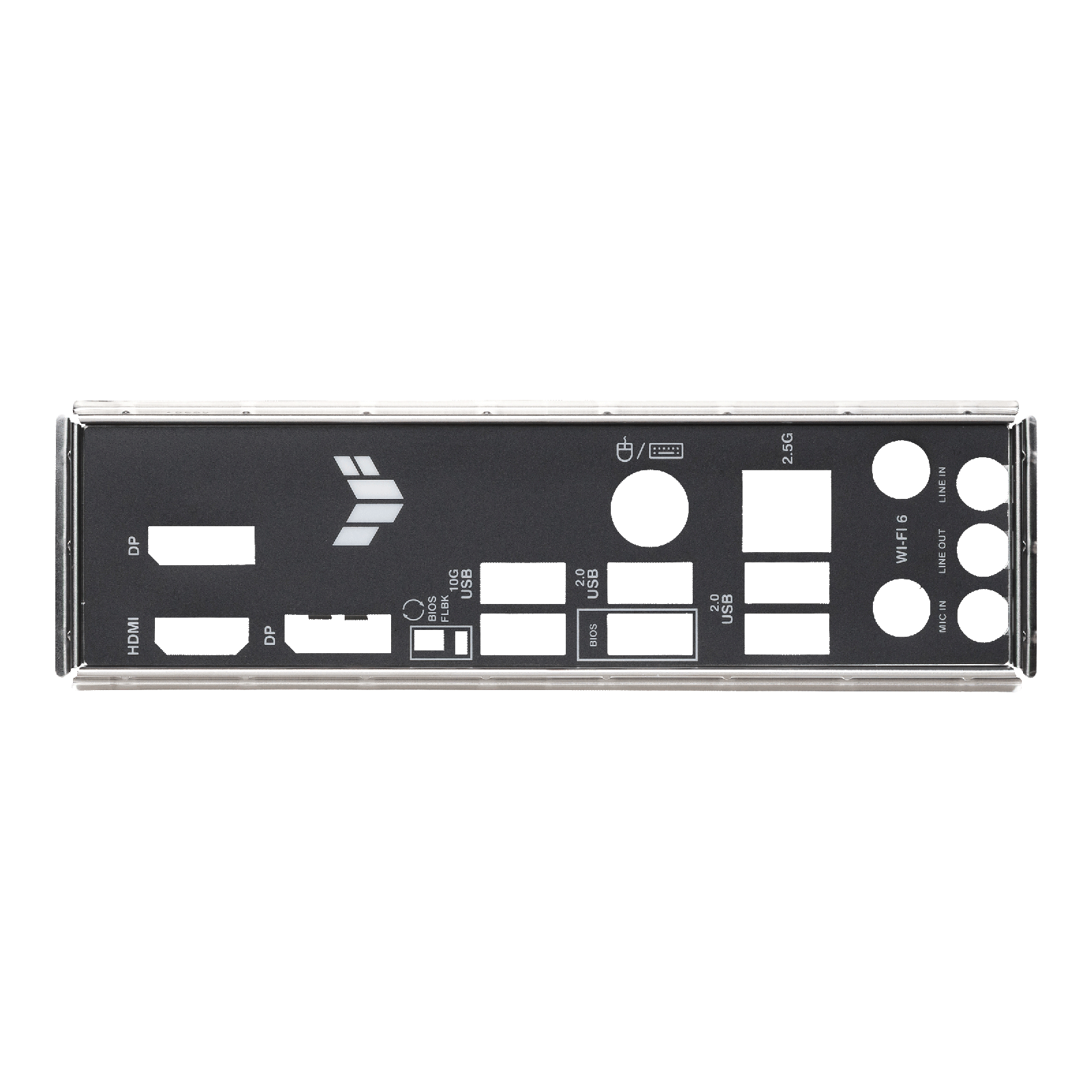

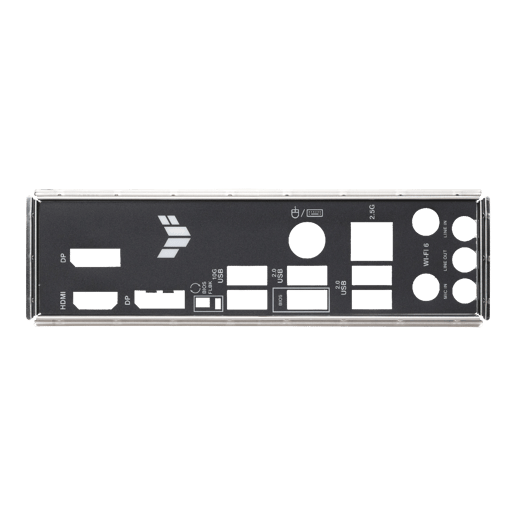

- 1 x I/O shield
- 2 x Screw packages for M.2 SSD
- 1 x TUF GAMING sticker
- 1 x Quick start guide
- Width: 244 mm
- Length: 244 mm
- Weight: 0.8 kg
Identifiers
- Stock Code: MBD3954
- Mfg Code: 90MB1MZ0-M0EAY0
Warranty
- Warranty: 3 Years
