CPU

• Installed Processors (Max): 0 (1)
• Supported Processor Manufacturer: AMD
• Supported Processors: AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors
• 64-bit Support: Yes
• Socket: AM5

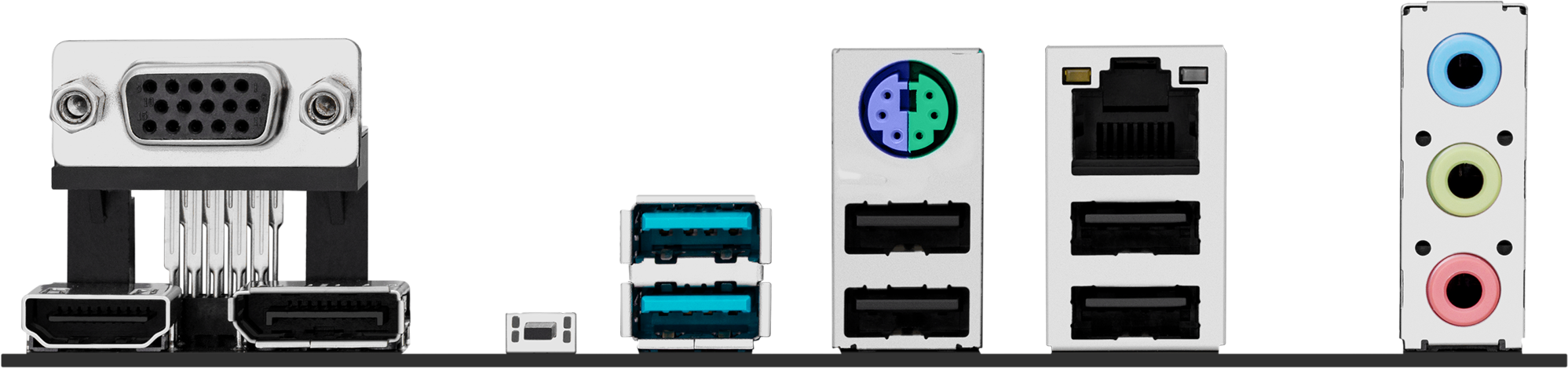

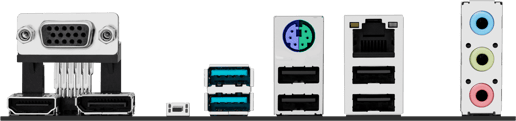

Rear Panel I/O Ports

• USB Ports: 2 x USB 3.1
• 4 x USB 2.0
• DisplayPorts: 1 x DisplayPort 1.4
• HDMI Port: 1 x HDMI 2.1
• VGA Port: 1 x D-Sub

Internal I/O Connectors

• SATA Connectors: 4 x SATA
• USB Connectors: 1 x USB-C 3.0 header (supports 1 port)
• 1 x USB 3.0 header (supports 2 ports)
• 2 x USB 2.0 headers (supports 4 ports)

Memory

• Memory Bus Speed: Up to 7600 MT/s
• Memory Type: DDR5

Motherboard

• Northbridge: AMD A620A
• RAID Supported: Yes
• RAID Format: RAID 0, 1, 5, 10
• SATA Supported: Yes

Rear Panel I/O Ports

• Keyboard/Mouse Combo Port: 1 x PS/2
• RJ-45 Ports: 1 x RJ-45
• Audio Line In Ports: 1 x 3.5mm Jack
• Audio Line Out Ports: 1 x 3.5mm Jack
• Microphone In Port: 1 x 3.5mm Jack

Internal I/O Connectors

• Front Panel Connectors: 1 x Front Panel
• 1 x Front Audio
• Cooling Fan Support: 1 x CPU fan header
• 2 x Chassis fan headers
• S/PDIF Connectors: 1 x S/PDIF Out header
• Serial Connectors: 1 x COM header
• TPM Header: 1 x SPI TPM header
• Power Connector Port: 1 x 24-pin ATX
  1 x 8-pin EPS
• Other Connectors: 1 x M.2 slot, Key M, Type 2280 (PCIe Gen4)
• 1 x M.2 slot, Key M, Type 2242/2260/2280 (PCIe Gen4)
• 3 x 3-pin ARGB headers

Expansion

• Number of PCI Express Slots: 1 x PCI Express 4.0 x16 slot
• 1 x PCI Express 3.0 x1 slot

Memory

• Maximum RAM: 256 GB
• Memory Slot: 4 slots

Graphics Device

• Integrated Graphics Supported: Yes

Sound

• Integrated Sound: Realtek

Warranty

• Warranty: 3 Years

Network

• Integrated Network: Realtek
• Network Speeds Supported: Up to 1 Gbps
• Wireless LAN: No
• Bluetooth: No

System Requirements

• Operating Systems Supported: Microsoft Windows 11

System

• Jumpers: 1 x Clear CMOS
• Software Included: Yes
• Drivers: Yes

Physical

• Form Factor: mATX Motherboard
• In The Box: Motherboard
• 2 x SATA 6Gb/s cables
• 1 x I/O shield
• 1 x Screw package for M.2 SSD
• 1 x ACC Express activation key card
• 1 x Quick start guide
• Width: 244 mm
• Length: 244 mm
• Weight: 0.7 kg

Identifiers

• Stock Code: MBD3956
• Mfg Code: 90MB1MY0-M0EAYC
