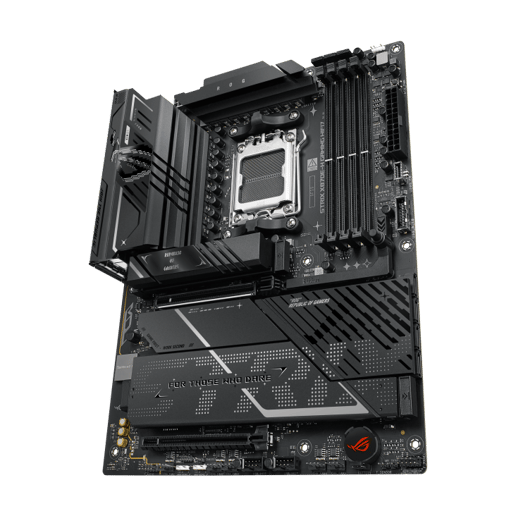

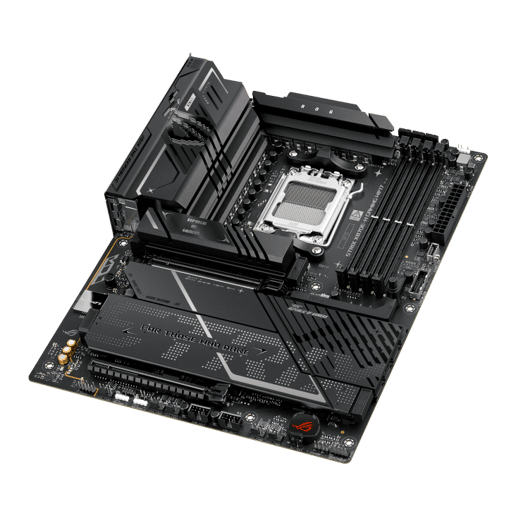

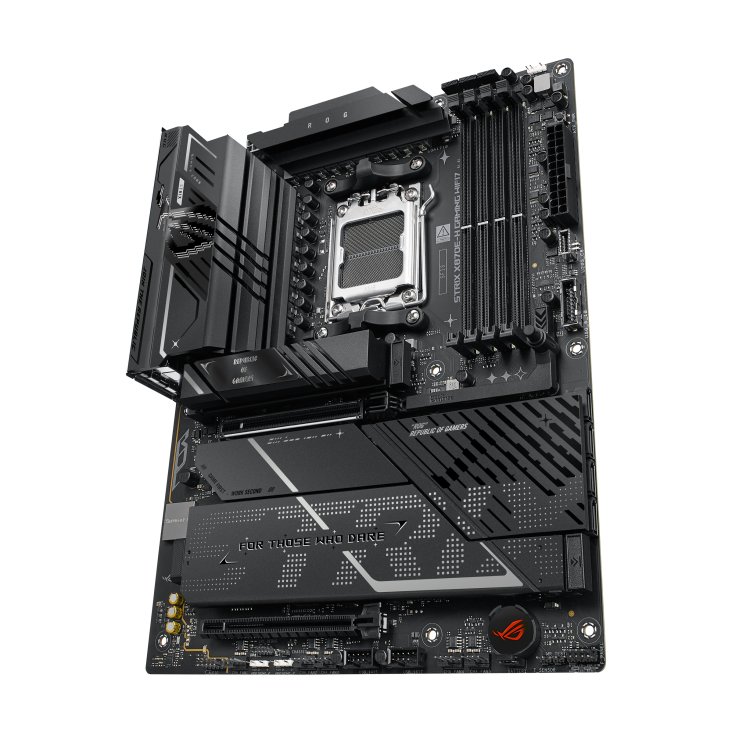

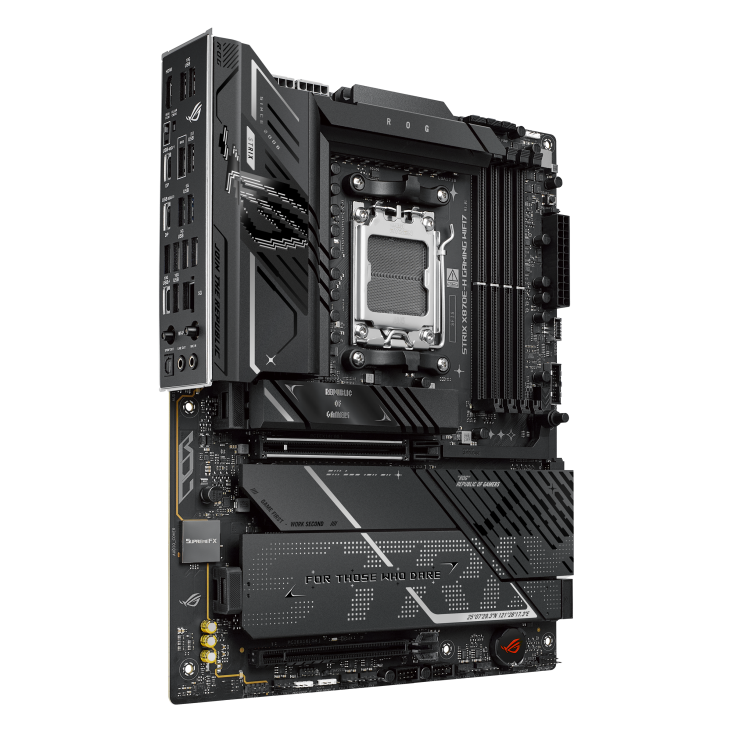

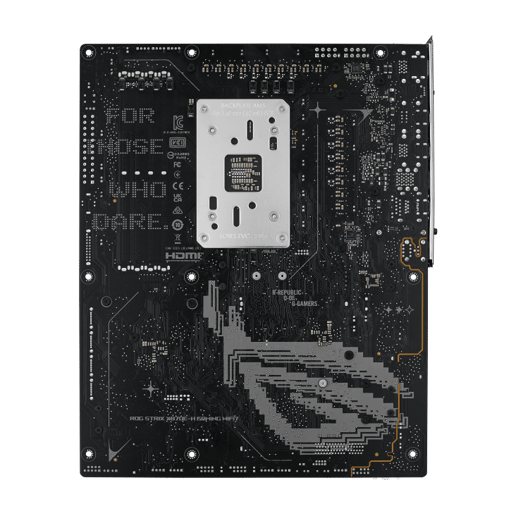

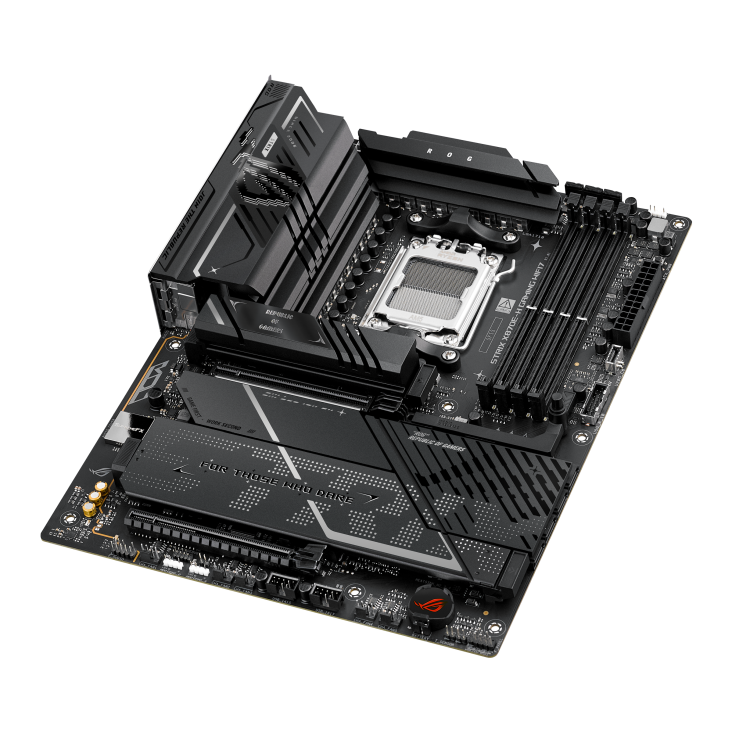

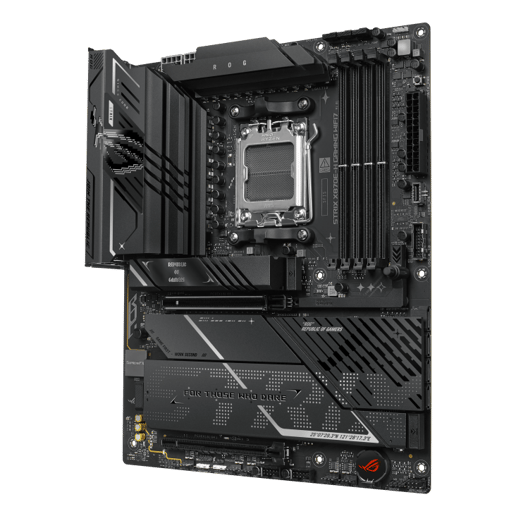

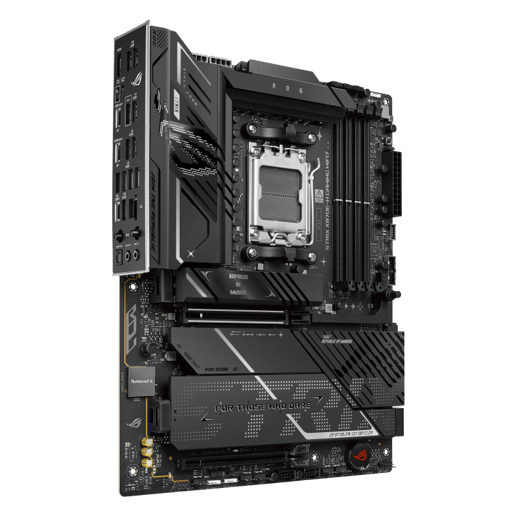

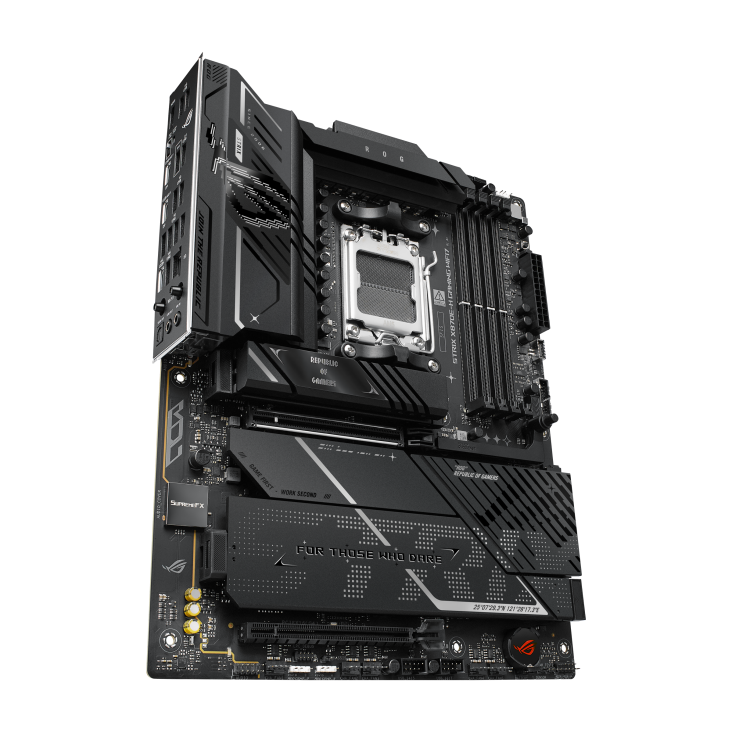

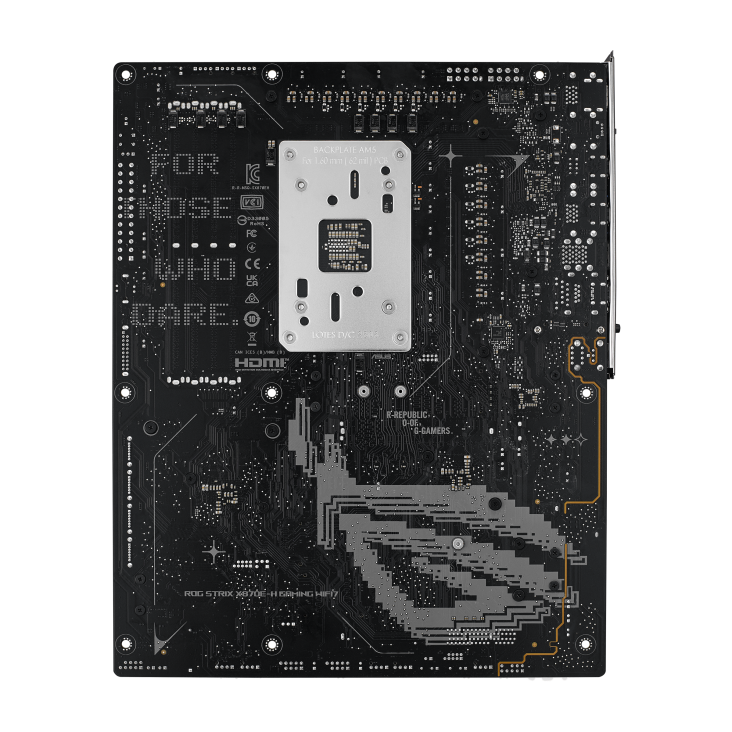

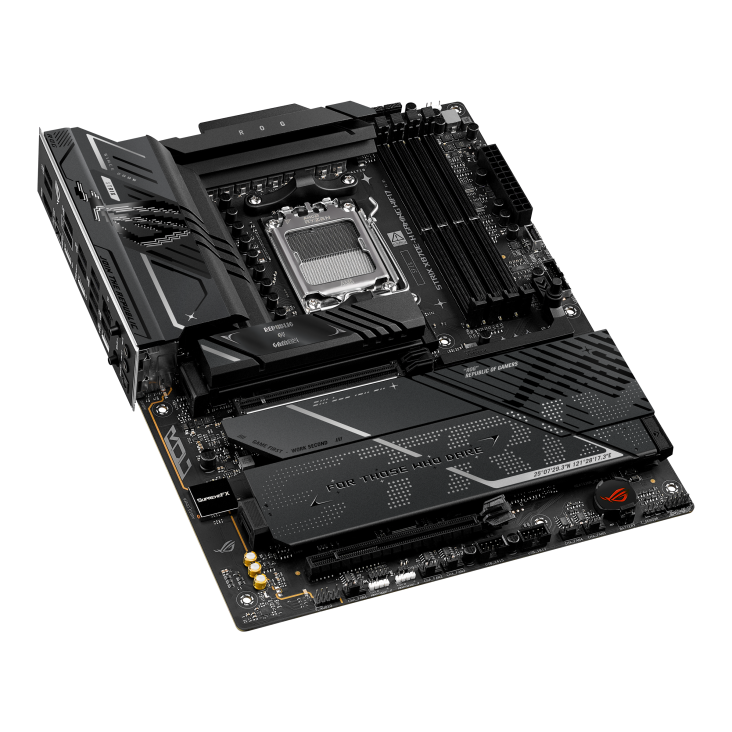

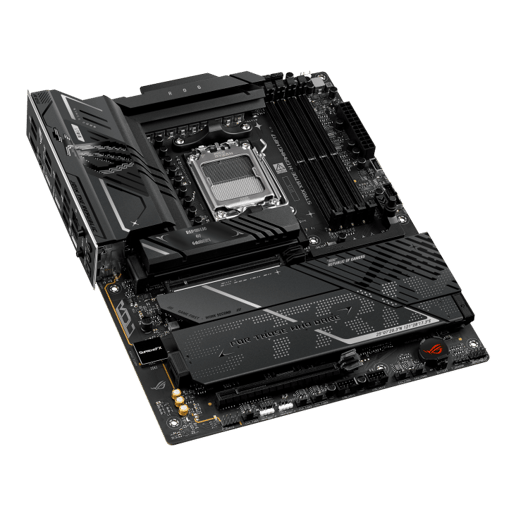

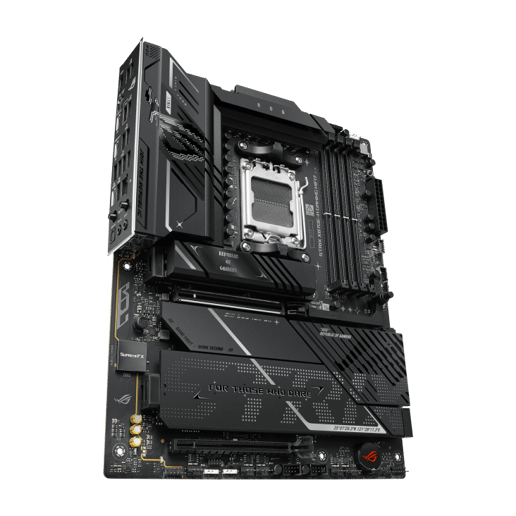

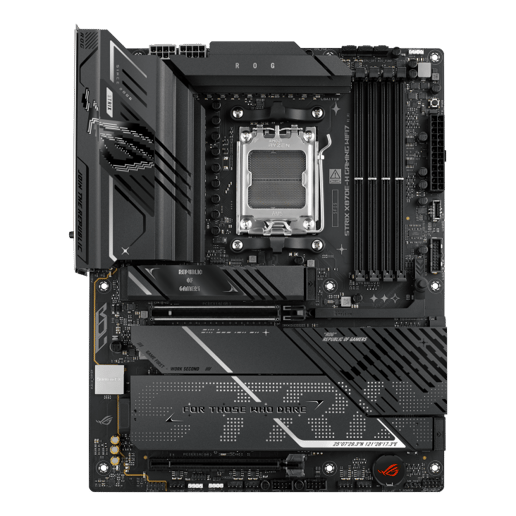

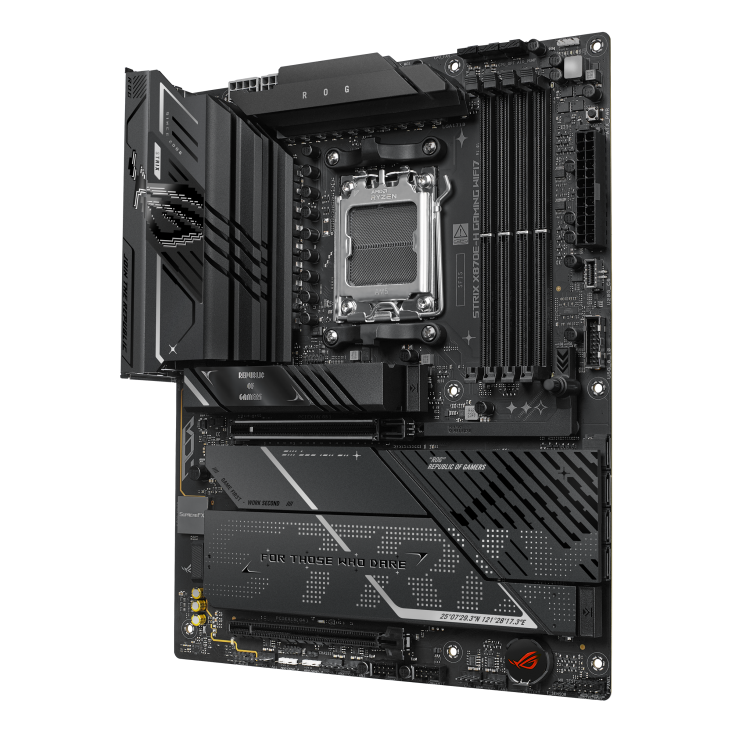

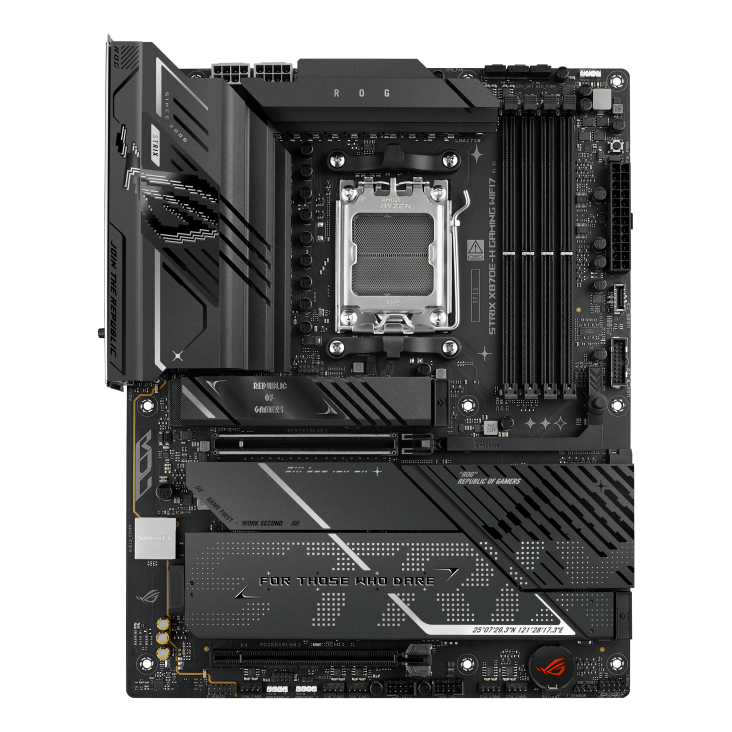

ASUS ROG Strix X870E-H Gaming WIFI7 ATX Motherboard for AMD AM5 CPUs
SAVE £30
Available for delivery from Tomorrow
Click & Collect from Today
Hurry, only 2 left!
Order within
You have 0 of these in your basket
Transform your gaming experience with the ROG STRIX X870E-H GAMING WIFI7 motherboard. Engineered to dominate with AMD Ryzen™ 9000 Series Desktop Processors, this ATX powerhouse features cutting-edge power design and AI-enhanced solutions. With PCIe 5.0 x16 slots, dual USB4® Type-C ports, and WiFi 7, it delivers advanced connectivity. DIY-friendly features like M.2 Q-Release on all four M.2 slots and PCIe Slot Q-Release make building and upgrades effortless. Unleash your system's full potential with the ROG STRIX X870E-H GAMING WIFI7.
CPU
- Installed Processors (Max): 0 (1)
- Supported Processor Manufacturer: AMD
- Supported Processors: AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors
- 64-bit Support: Yes
- Socket: AM5

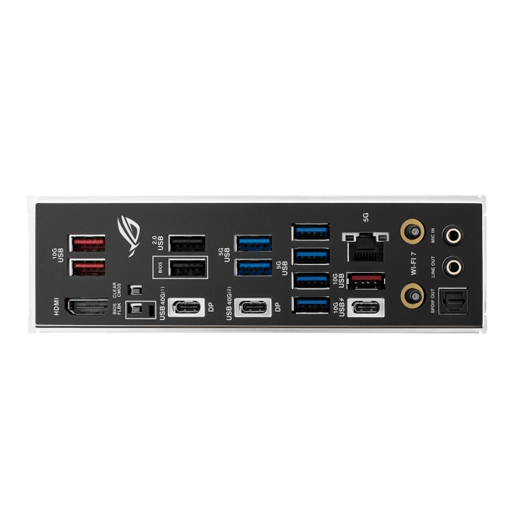

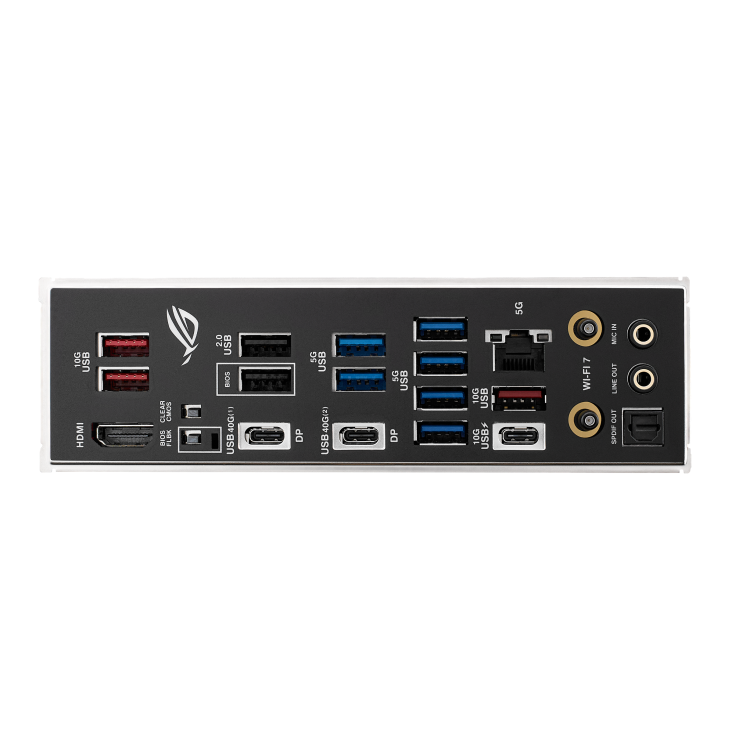

Rear Panel I/O Ports
- USB Ports: 2 x USB-C 4
- 1 x USB-C 3.1
- 3 x USB 3.1
- 6 x USB 3.0
- 2 x USB 2.0
- DisplayPorts: Yes via USB-C
- HDMI Port: 1 x HDMI 2.1
Internal I/O Connectors
- SATA Connectors: 4 x SATA
- USB Connectors: 1 x USB-C 3.2 header (supports 1 port)
- 1 x USB 3.0 header (supports 2 ports)
- 2 x USB 2.0 headers (supports 4 ports)
Memory
- Memory Bus Speed: Up to 8000 MT/s
- Memory Type: DDR5
Motherboard
- Northbridge: AMD X870E
- RAID Supported: Yes
- RAID Format: RAID 0, 1, 10
- SATA Supported: Yes
Rear Panel I/O Ports
- RJ-45 Ports: 1 x RJ-45
- Audio Line Out Ports: 1 x 3.5mm Jack
- Microphone In Port: 1 x 3.5mm Jack
- S/PDIF Port: 1 x S/PDIF Optical Out
- Antenna Connector(s): 2 x SMA Antenna
Internal I/O Connectors
- Front Panel Connectors: 1 x Front Panel
- 1 x Front Audio
- Cooling Fan Support: 1 x CPU fan header
- 1 x CPU OPT fan header
- 1 x AIO pump header
- 5 x Chassis fan headers
- Chassis Intrusion Connector: 1 x Chassis Intrusion header
- Power Connector Port: 1 x 24-pin ATX
- 2 x 8-pin EPS
- Other Connectors: 1 x M.2 slot, Key M, Type 2242/2260/2280 (PCIe Gen5)
- 1 x M.2 slot, Key M, Type 2280/22110 (PCIe Gen5)
- 2 x M.2 slots, Key M, Type 2280 (PCIe Gen4)
- 3 x 3-pin ARGB headers
Expansion
- Number of PCI Express Slots: 1 x PCI Express 5.0 x16 slot
- 1 x PCI Express 4.0 x16 slot (@ x4)
Memory
- Maximum RAM: 256 GB
- Memory Slot: 4 x DIMM
Graphics Device
- Integrated Graphics Supported: Yes
Sound
- Integrated Sound: Realtek ALC1220P
Warranty
- Warranty: 3 Years
Network
- Integrated Network: Realtek
- Network Speeds Supported: Up to 5 Gbps
- Wireless LAN: Yes - Wi-Fi 7
- Bluetooth: Yes
- Bluetooth Version: 5.4
System Requirements
- Operating Systems Supported: Microsoft Windows 11
System
- Jumpers: 1 x Clear CMOS
- Software Included: Yes
- Drivers: Yes
Physical
- Form Factor: ATX Motherboard
- In The Box: Motherboard
- 2 x SATA 6Gb/s cables
- 1 x ASUS WiFi Q-Antenna
- 1 x Cable ties package
- 1 x M.2 Q-Latch package
- 1 x ROG key chain
- 1 x ROG Strix stickers
- 4 x M.2 rubber
- 1 x Quick start guide
- Width: 244 mm
- Length: 305 mm
Identifiers
- Stock Code: MBD3942
- Mfg Code: 90MB1M90-M0EAY0
Warranty
- Warranty: 3 Years
