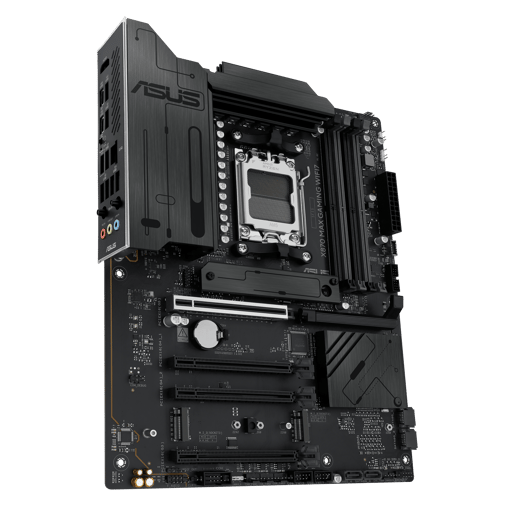

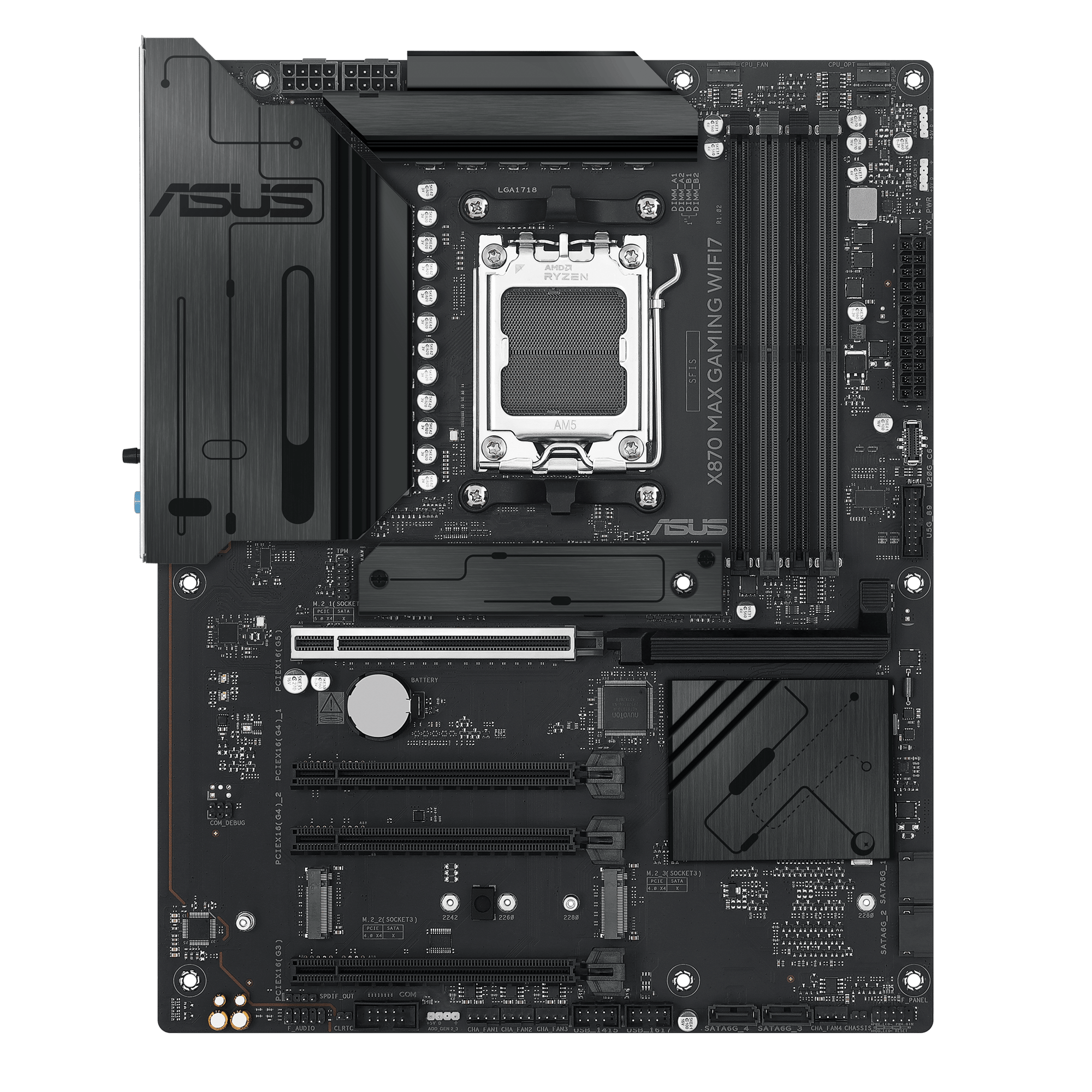

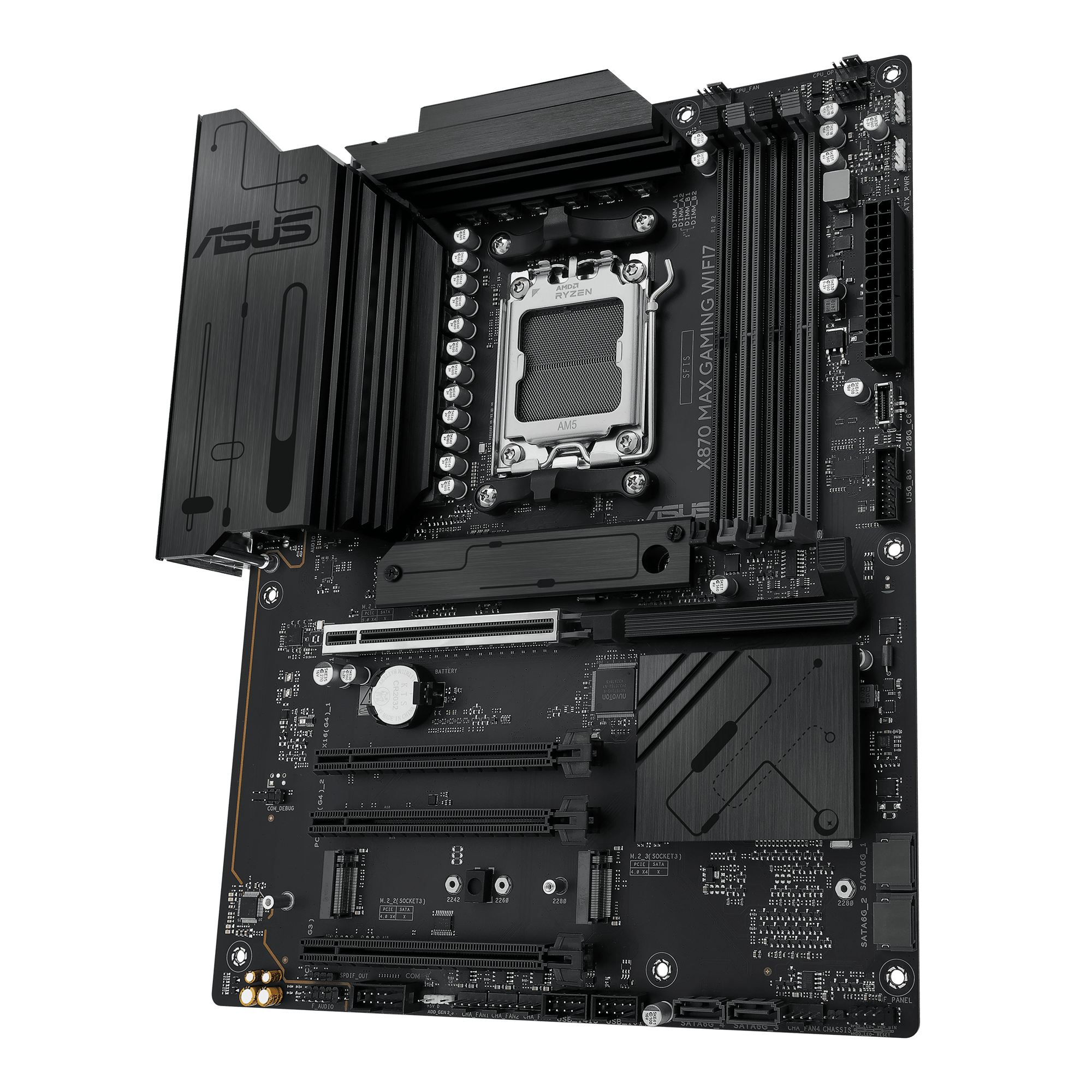

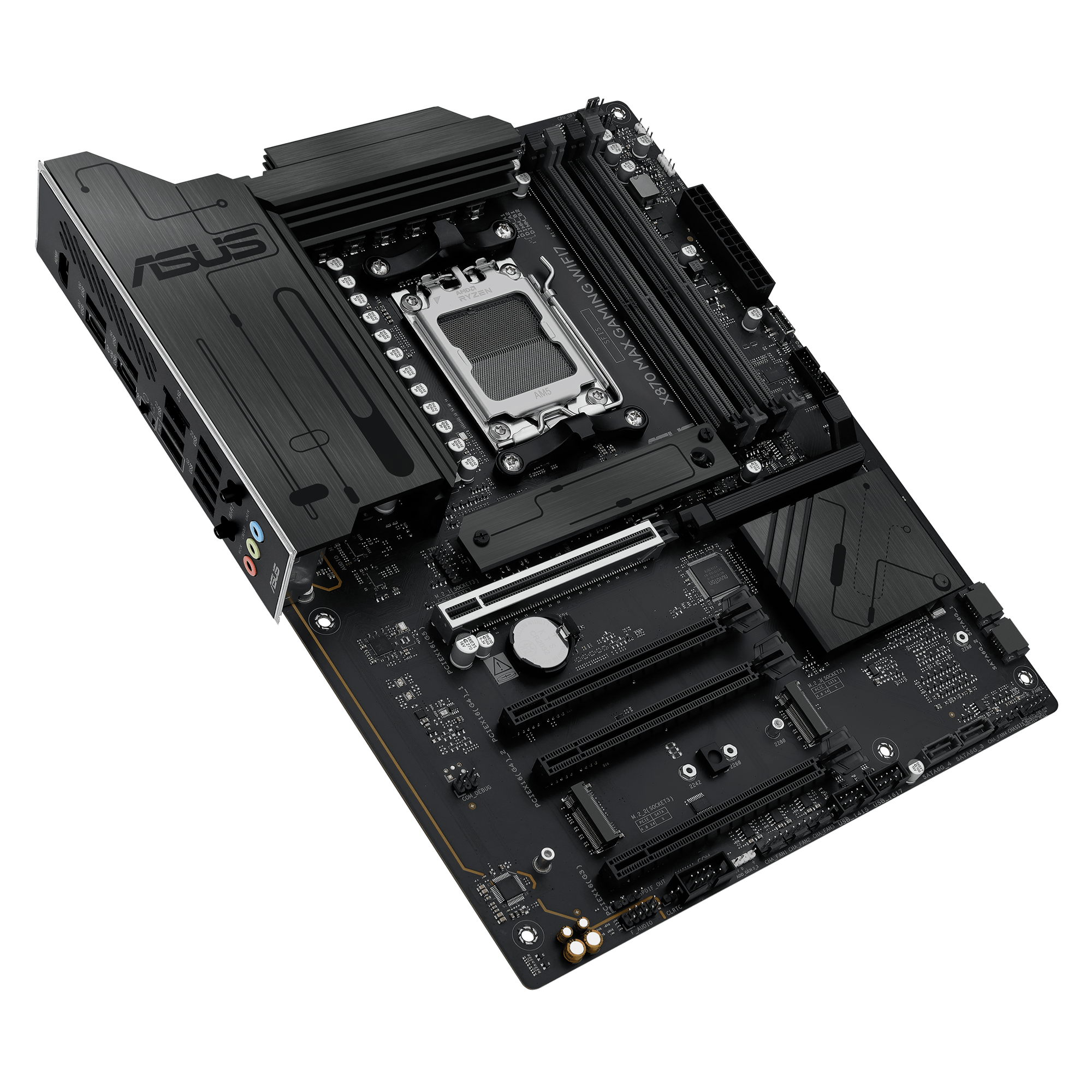

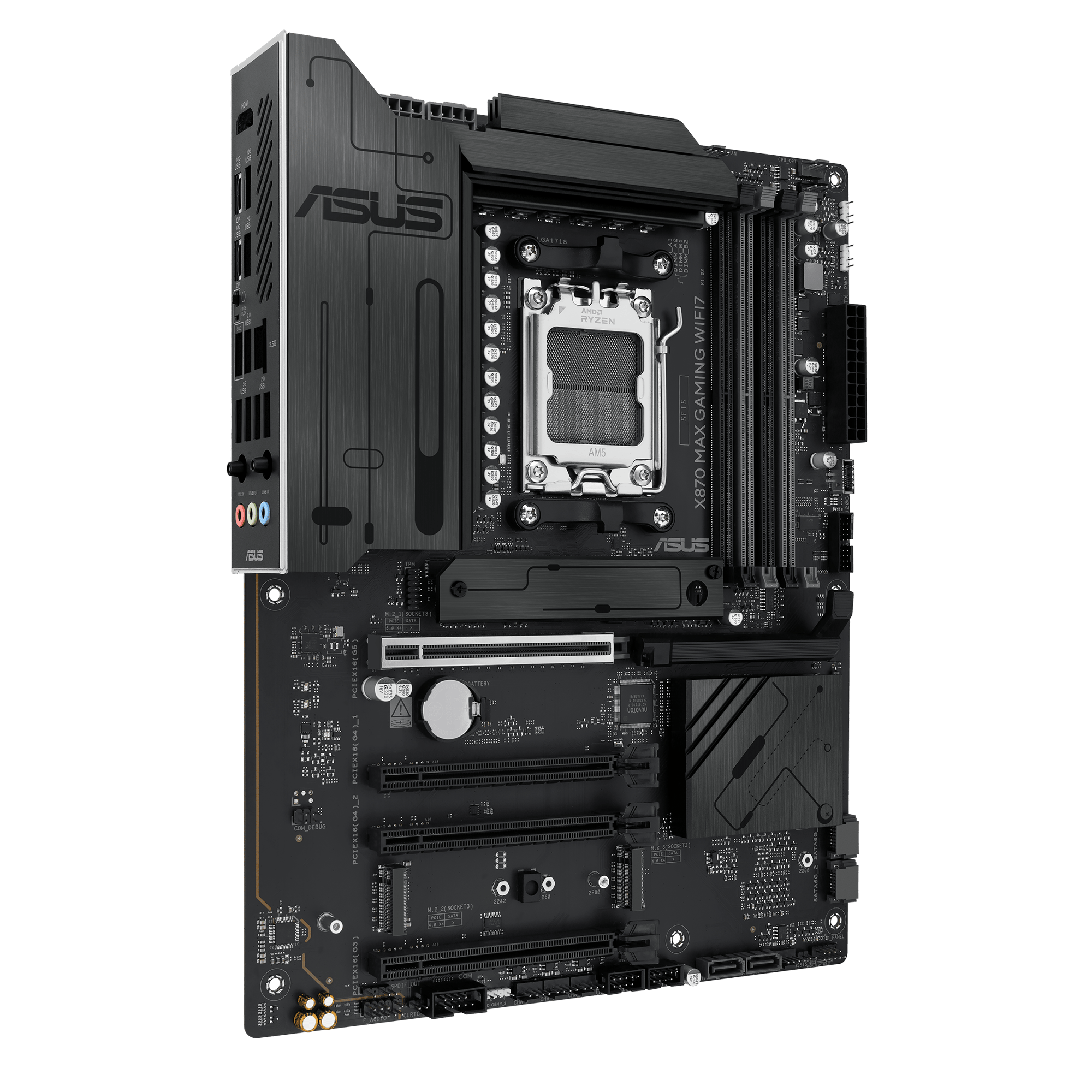

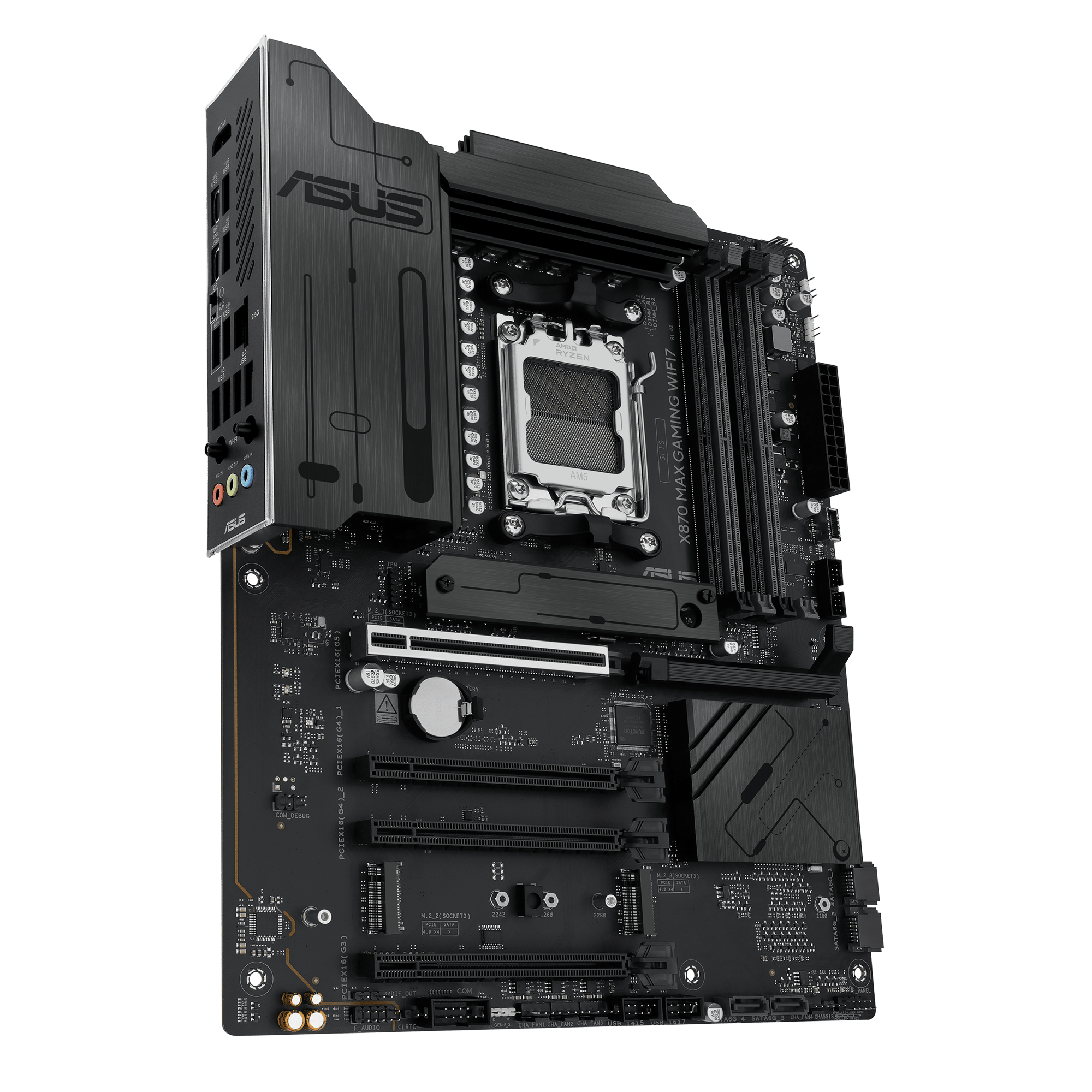

ASUS X870 MAX GAMING WIFI7 ATX Motherboard for AMD Socket AM5 CPUs
SAVE £40
Available for delivery from Tomorrow
Click & Collect from Today
Hurry, only 2 left!
Order within
You have 0 of these in your basket
ASUS X870 series motherboards are expertly engineered to unleash the full potential of AMD Ryzen™ 9000 series processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the X870 MAX GAMING WIFI7 motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.
Robust power design
Stable power is crucial for maximizing the performance of AMD processors. The X870 series is designed to meet the needs of high-core-count CPUs. It features 12(80A) + 2(80A) + 1(80A) power stages that integrate high-side and low-side MOSFETs and drivers into packages rated for up to 80 amperes each. This configuration ensures optimal power delivery, efficiency, stability and performance for both current and future AMD processors.
Enhanced DDR5 performance
Comprehensive memory tuning options are the cornerstone of X870 series motherboards. The X870 MAX GAMING WIFI7 maximizes the potential of your DDR5 modules, from entry-level to extreme-speed kits.
For entry-level modules without EXPO™ support, ASUS Enhanced Memory Profile (AEMP) automatically detects memory chips and provides optimized profiles for enhanced performance.
For those looking to surpass stock DDR5 speeds, the X870 MAX GAMING WIFI7 offers extensive AMD Extended Profiles for Overclocking (EXPO™) support and a wide array of UEFI settings for further performance tweaks.
Three M.2 slots (up to 128 Gbps)
X870 MAX GAMING WIFI7 offers a total of three M.2 slots, including one that supports data-transfer speeds of up to 128Gbps via PCIe 5.0, two that support 64Gbps via PCIe 4.0. This enables quicker boot-up and app load times with OS or application drives.
Cooler by design
The X870 MAX GAMING WIFI7 motherboard is engineered with multiple onboard heatsinks and an array of hybrid fan headers to help ensure your rig stays cool and stable under intense workloads.
ASUS Fan Xpert 4
ASUS Fan Xpert 4 software offers comprehensive control over fans and AIO coolers. Auto-Tuning mode configures settings with one click, while Extreme Quiet mode reduces fan speeds for silent operation during light tasks. Controls are also available via the UEFI BIOS.
Cooler compatibility
ASUS AIO coolers offer robust performance, high overclocking potential, bold aesthetics and customizable functionality for new motherboards, empowering you to build your dream gaming rig.
Empowering connections
The X870 series motherboard offers a versatile range of connectivity, including support for WiFi 7, PCIe 5.0, Realtek 2.5Gb Ethernet, and an array of USB ports.

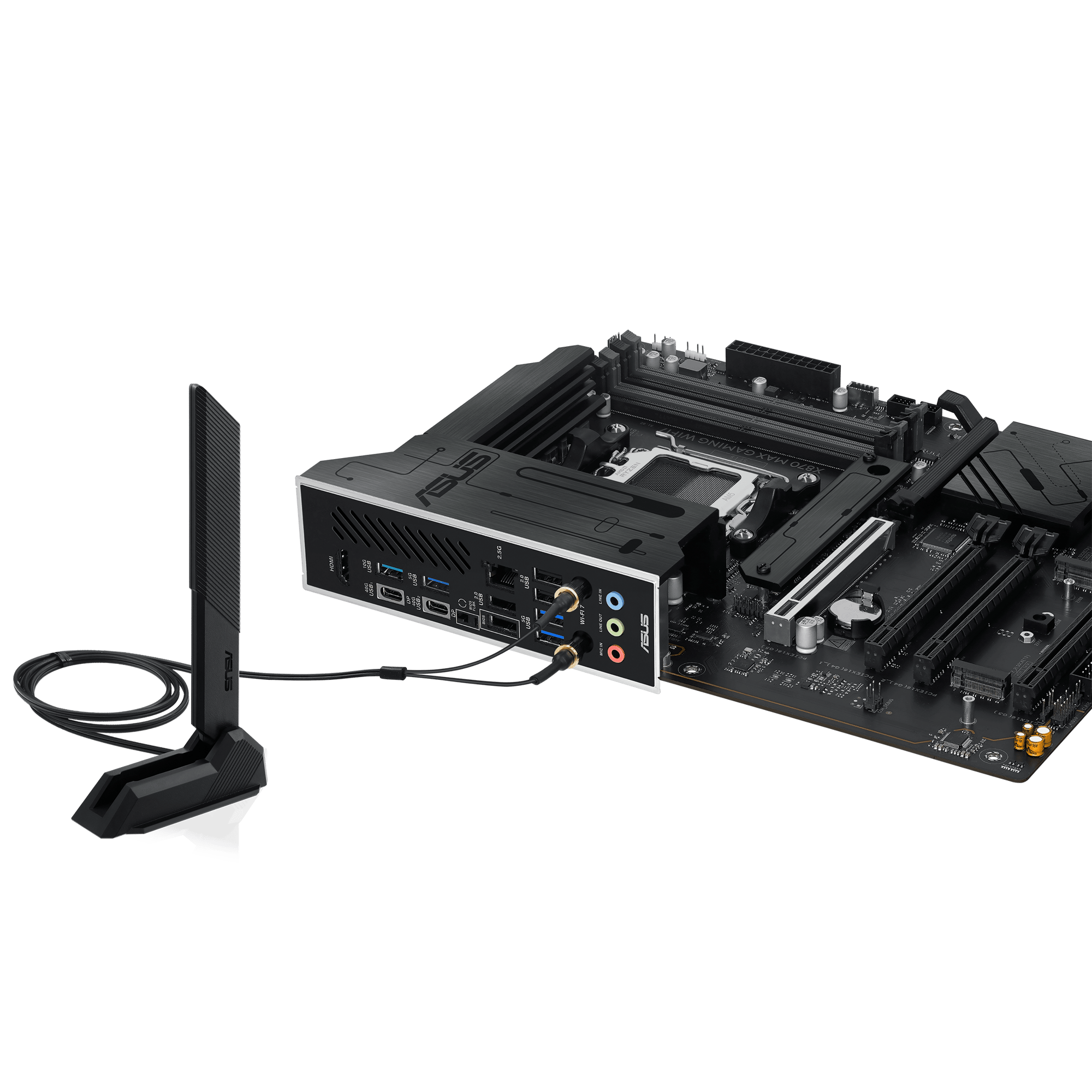

WiFi 7
The next-gen WiFi 7 supports 160 MHz bandwidth in the 6 GHz band and 4096 QAM. Multi-Link Operation (MLO) ensures stable connections and low latency, supporting 2.4, 5, and 6 GHz bands for enhanced coverage and throughput.
USB 40Gbps Type-C® ports
Each port delivers up to 40Gbps of bi-directional bandwidth for the latest super-speed devices and drives. Both ports can be employed for up to two external 4K displays.
PCIe 5.0 slot
The latest processors introduce PCIe 5.0 support, doubling data transfer speeds compared to PCIe 4.0, enhancing signal integrity, and providing backward-compatible CEM connectors and support for previous PCIe versions.
CPU
- Installed Processors (Max): 0 (1)
- Supported Processor Manufacturer: AMD
- Supported Processors: AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors
- 64-bit Support: Yes
- Socket: AM5

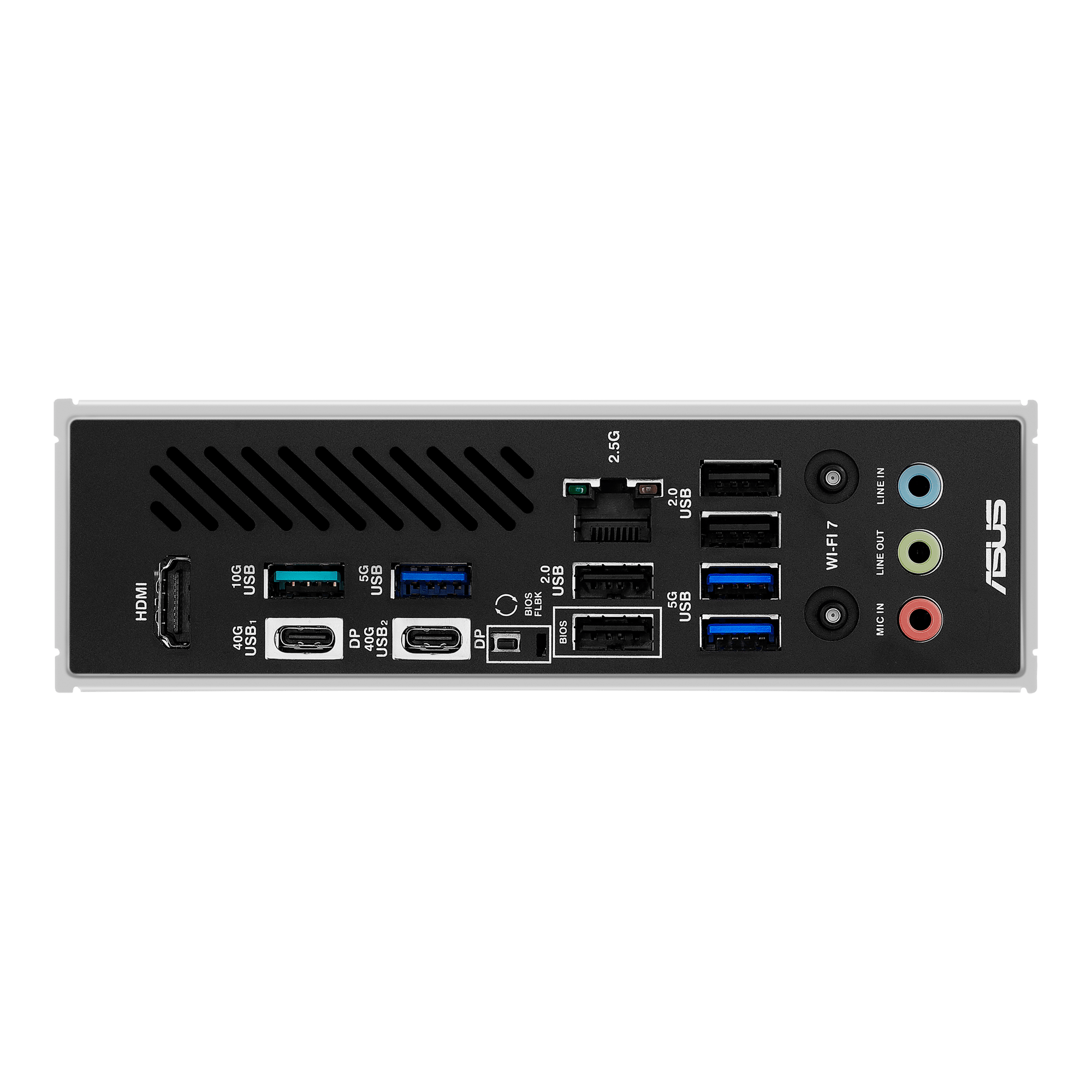

Rear Panel I/O Ports
- USB Ports: 2 x USB-C 4
- 1 x USB 3.1
- 3 x USB 3.0
- 4 x USB 2.0
- DisplayPorts: Yes - via USB-C
- HDMI Port: 1 x HDMI 2.1
Internal I/O Connectors
- SATA Connectors: 4 x SATA
- USB Connectors: 1 x USB-C 3.2 header (supports 1 port)
1 x USB 3.0 header (supports 2 ports)
2 x USB 2.0 headers (supports 4 ports)
Memory
- Memory Bus Speed: Up to 8000 MT/s
- Memory Type: DDR5
Motherboard
- Northbridge: AMD X870
- RAID Supported: Yes
- RAID Format: RAID 0, 1, 10
- SATA Supported: Yes
Rear Panel I/O Ports
- RJ-45 Ports: 1 x RJ-45
- Audio Line In Ports: 1 x 3.5mm Jack
- Audio Line Out Ports: 1 x 3.5mm Jack
- Microphone In Port: 1 x 3.5mm Jack
- Antenna Connector(s): 2 x SMA Antenna
Internal I/O Connectors
- Front Panel Connectors: 1 x Front Panel
- 1 x Front Audio
- Cooling Fan Support: 1 x CPU fan header
- 1 x CPU OPT fan header
- 1 x AIO pump header
- 4 x Chassis fan headers
- S/PDIF Connectors: 1 x S/PDIF Out header
- Serial Connectors: 1 x COM header
- Chassis Intrusion Connector: 1 x Chassis Intrusion header
- TPM Header: 1 x SPI TPM header
- Power Connector Port: 1 x 24-pin ATX
- 2 x 8-pin EPS
- Other Connectors: 1 x M.2 slot, Key M, Type 2280 (PCIe Gen5)
- 1 x M.2 slot, Key M, Type 2242/2260/2280 (PCIe Gen4)
- 1 x M.2 slot, Key M, Type 2280 (PCIe Gen4)
- 3 x 3-pin ARGB headers
Expansion
- Number of PCI Express Slots: 1 x PCI Express 5.0 x16 slot
- 2 x PCI Express 4.0 x16 slots (@ x1/x1)
1 x PCI Express 3.0 x16 slot (@ x1)
Memory
- Maximum RAM: 256 GB
- Memory Slot: 4 x DIMM
Graphics Device
- Integrated Graphics Supported: Yes
Sound
- Integrated Sound: Realtek
Warranty
- Warranty: 3 Years
Network
- Integrated Network: Realtek
- Network Speeds Supported: Up to 2.5 Gbps
- Wireless LAN: Yes - Wi-Fi 7
- Wireless Network Speed: Up to 2.9 Gbps
- Bluetooth: Yes
- Bluetooth Version: 5.4
System Requirements
- Operating Systems Supported: Microsoft Windows 11
System
- Jumpers: 1 x Clear CMOS
- Software Included: Yes
- Drivers: Yes

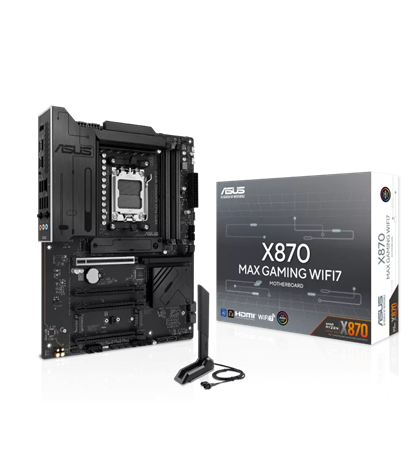

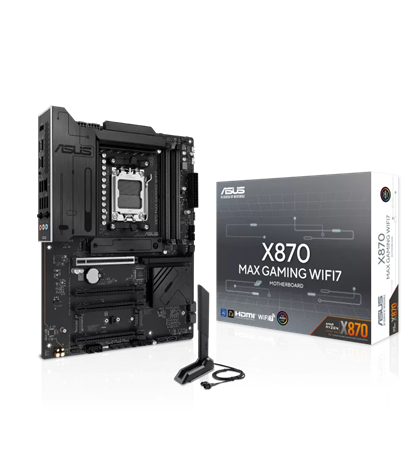

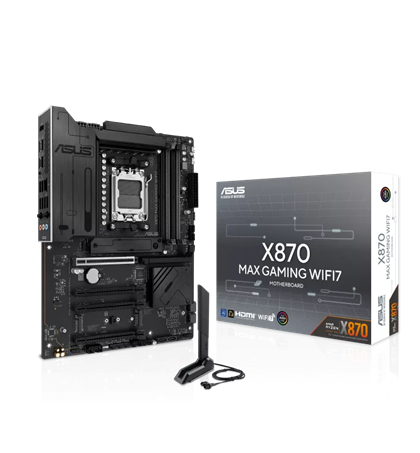

Physical
- Form Factor: ATX Motherboard
- In The Box: Motherboard
- 2 x SATA Cables
- Wi-Fi Antenna
- M.2 Rubber Package
- M.2 Screw Package
- Quick Start Guide
- Width: 244 mm
- Length: 305 mm
Identifiers
- Stock Code: MBD3921
- Mfg Code: 90MB1LY0-M0EAY0
Warranty
- Warranty: 3 Years
