CPU

• Installed Processors (Max): 0 (1)
• Supported Processors: AMD Socket sTR5 for Ryzen Threadripper PRO 9000 & 7000 WX-Series and Ryzen Threadripper 9000 & 7000 Series Processors **
• *Refer to www.asus.com for CPU support list
• **System boot may take longer with Threadripper 9000 series CPUs due to memory calibration. This behavior is normal. Please allow sufficient time for the process to complete.
• Socket: sTR5

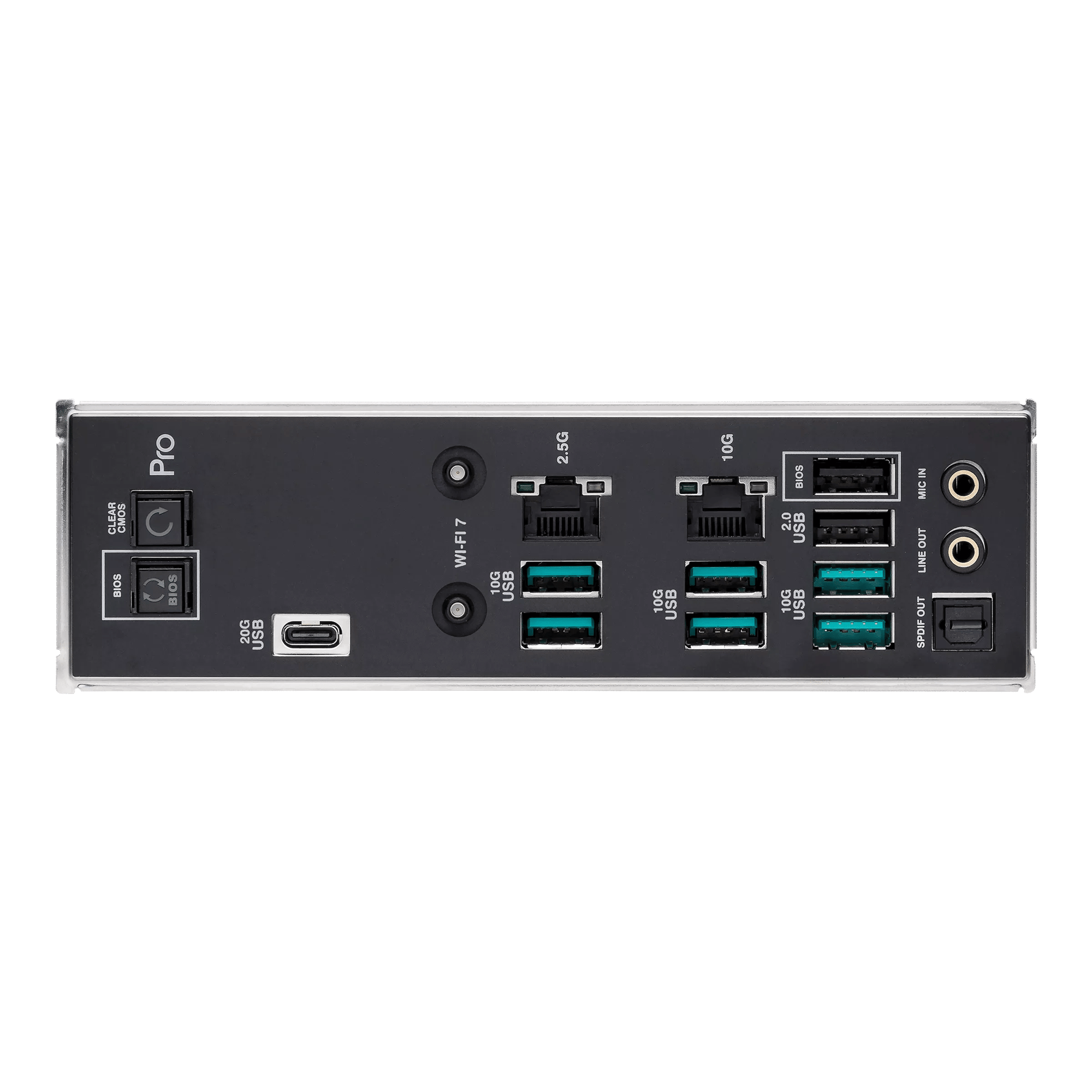

Rear Panel I/O Ports

• USB Ports: Rear USB (Total 9 ports)
• 1 x USB 20Gbps port (1 x USB Type-C)
• 6 x USB 10Gbps ports (6 x Type-A)
• 2 x USB 2.0 ports (2 x Type-A)
• Front USB (Total 7 ports)
• 1 x USB 20Gbps connector (supports USB Type-C with up to 27W PD/QC4+)
• 1 x USB 5Gbps header supports 2 additional USB 5G ports
• 2 x USB 2.0 headers support additional 4 USB 2.0 ports

Internal I/O Connectors

• SATA Connectors: 4x SATA 6 GB/s

Memory

• Memory Bus Speed: Max 8000 MT/s
• Memory Type: 4 x DIMM slots, DDR5, ECC Registered Memory

Physical

• Colour: Black

Motherboard

• Chipset Manufacturer: AMD
• Northbridge: AMD TRX50 Chipset
• RAID Supported: AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1/5/10

Internal I/O Connectors

• Cooling Fan Support: 1 x 4-pin CPU Fan header
• 1 x 4-pin CPU OPT Fan header
• 1 x W_PUMP+ header
• 4 x 4-pin Chassis Fan headers
• 2 x 4-pin VRM Fan header (with VRM FAN onboard)
• Power Connector Port: 2 x 24-pin Main Power connectors
• 2 x 8-pin +12V Power connectors
• 2 x 8-pin PCIe to CPU power connectors
• 1 x 6-pin PCIe Power connector
• 1 x 8-pin PCIe Power connector
• Other Connectors: Back Panel I/O Ports
• 2 x Audio jacks
• 1 x Optical S/PDIF out port
• 1 x BIOS FlashBack button
• 1 x Clear CMOS button
• Internal I/O Connectors
• 1 x BMC header
• 1 x COM Port header
• 1 x USB4 header
• 1 x FlexKey button
• 1 x Front panel audio header (F_AUDIO)
• 1 x Start button
• 1 x Safe boot button
• 1 x ReTry button
• 1 x LN2 mode jumper
• 1 x Slow mode switch
• 1 x SPI TPM header (14-1pin)
• 1 x 10-1 pin system panel header
• 1 x Chassis intrusion header
• 1 x Thermal Sensor header

Expansion

• Number of PCI Express Slots: AMD Ryzen Threadripper PRO 9000 & 7000 WX-Series and Ryzen Threadripper 9000 & 7000 Series Processors
• 2 x PCIe 5.0 x16 slots
• 1 x PCIe 5.0 x16 slot (x8 mode)
• 1 x PCIe 4.0 x16 slot
• 1 x PCIe 4.0 x16 slot (x4 mode)

Memory

• Maximum RAM: 1024 GB

Sound

• Integrated Sound: Realtek ALC1220P Surround Sound High Definition Audio CODEC

Network

• Integrated Network: Ethernet
• 1 x Marvell AQtion 10Gb Ethernet
• 1 x Intel I226-LM 2.5Gb Ethernet
• Wireless
• Wi-Fi 7
• 2x2 Wi-Fi 7 (802.11be)
• Supports 2.4/5/6GHz frequency band
• Support Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.
• Bluetooth v5.4
• Bluetooth Version: v5.4

System Requirements

• Operating Systems Supported: Windows 11

System

• BIOS: 256 Mb Flash ROM, UEFI AMI BIOS
• Special Features: ASUS Q-Design
• - Q-Code
• - M.2 Q-Latch
• - Q-Connector
• - Q-DIMM
• - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
• - Q-Slot
• ASUS Thermal Solution
• - M.2 heatsink and onboard thermal pads
• - VRM heatsink design with active fans
• ASUS EZ DIY
• - BIOS FlashBack button
• - BIOS FlashBack LED
• - Clear CMOS button
• - ProCool II
• - Pre-mounted I/O shield
• - SafeSlot
• - SafeDIMM
• Bespoke Motherboard Design & Business Focused Features
• - 24/7 Reliability
• - Overcurrent Protection
• Software Included: Software:
• ASUS Exclusive Software
• Armoury Crate
• - Fan Xpert 4
• ASUS CPU-Z
• IT Management software supported
• - ASUS Control Center Express (ACCE)
• Adobe Creative Cloud (Free Trial)
• Norton 360 Deluxe (60 Days Free Trial)
• WinRAR (40 Days Free Trial)
• UEFI BIOS
• ASUS EZ DIY
• - ASUS CrashFree BIOS 3
• - ASUSTeK EzFlash Utility
• - FlexKey
• Manageability:
• WOL by PME, PXE (UEFI mode)

Physical

• Form Factor: SSI-CEB
• 305 x 283 mm
• Width: 283 mm
• Length: 305 mm

Identifiers

• Stock Code: MBD4060
• Mfg Code: 90MB1LE0-M0EAY0
