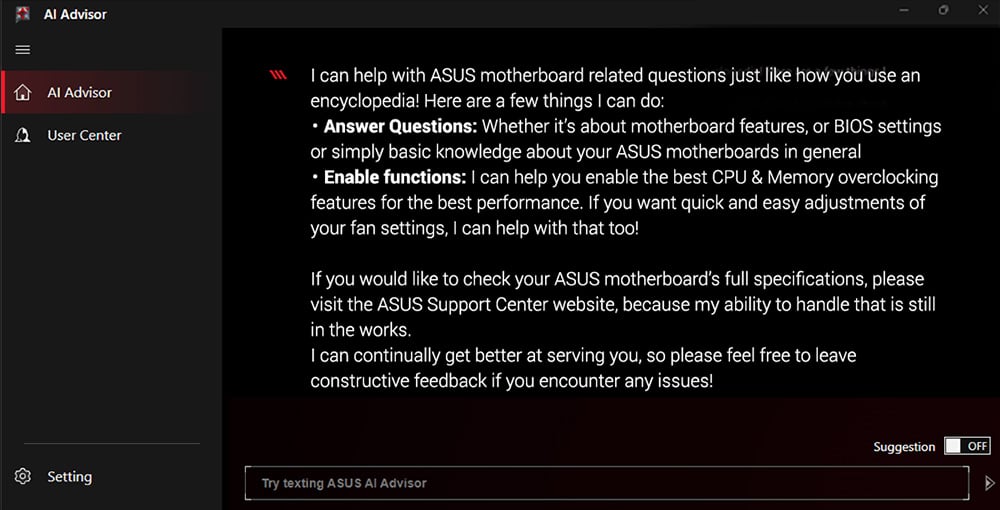

ASUS AI Advisor

ASUS AI Advisor is an ASUS technical expert that's always available to answer your questions. Owners of compatible ASUS motherboards can interact with this AI-powered technology using natural language to learn more about their hardware. For DIY beginners, it can provide easy-to-understand explanations of one-click optimization features like AI Overclocking and fan speed tuning, and for seasoned PC-building veterans, it can offer guidance and instructions on the latest features offered by ASUS.

* Availability of ASUS AI Advisor may vary by region.

•

  AI OVERCLOCKING

  Tuning is now faster and smarter than ever before. ASUS AI Overclocking profiles the CPU and cooling to predict the optimal configuration and push the system to its limits. Predicted values can be engaged automatically or used as a launching ground for further experimentation.

•

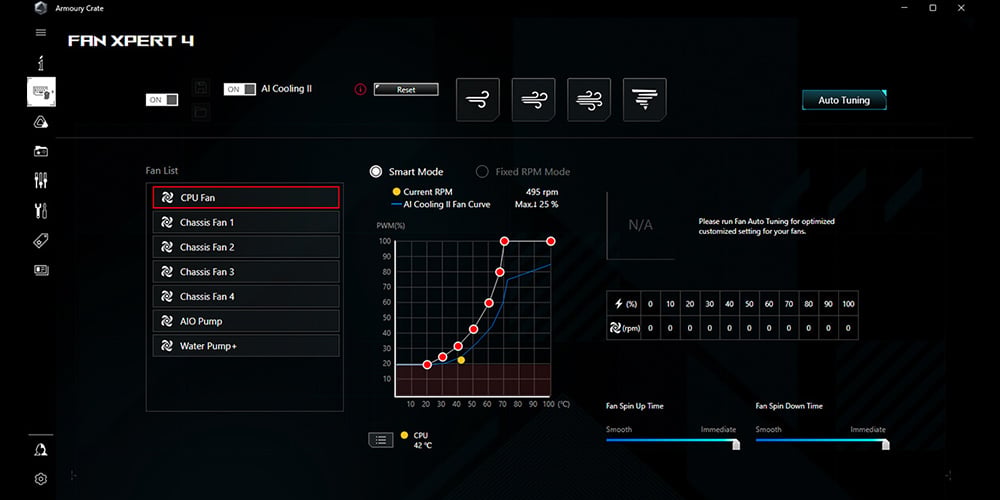

  AI COOLING II

  Balance the thermals and acoustics of any build with a single click. A proprietary ASUS algorithm slashes unnecessary noise while running a quick stress test, and then monitors CPU temperatures to dynamically adjust fans to optimal speeds.

AI NETWORKING II?

•

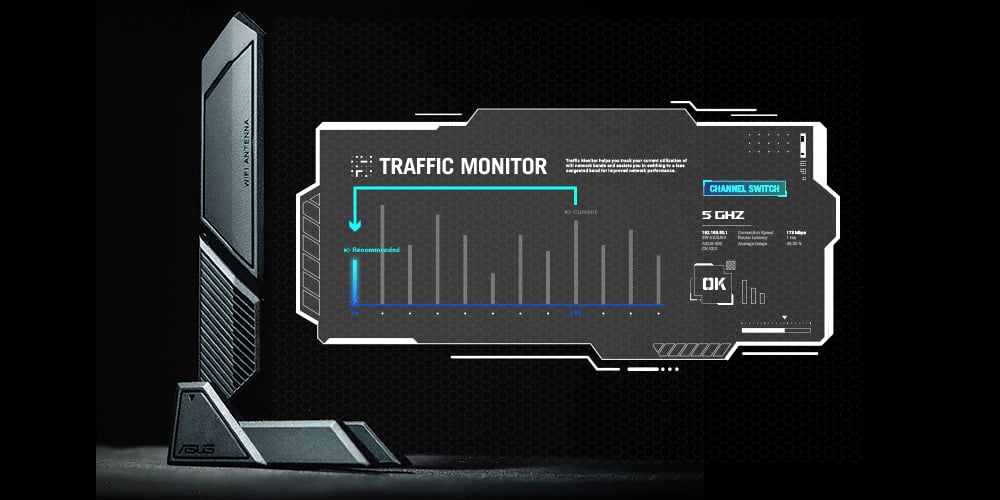

  Traffic Monitor

  Armoury Crate's Traffic Monitor tracks your current WiFi channel usage. Move to a less congested channel by clicking the “Channel Switch” button* for improved network performance.

  *The "Channel Switch" function requires pairing with an ASUS router. If not paired with an ASUS router, the channel change process can be performed in the "Router IP" section of the Traffic Monitor.

•

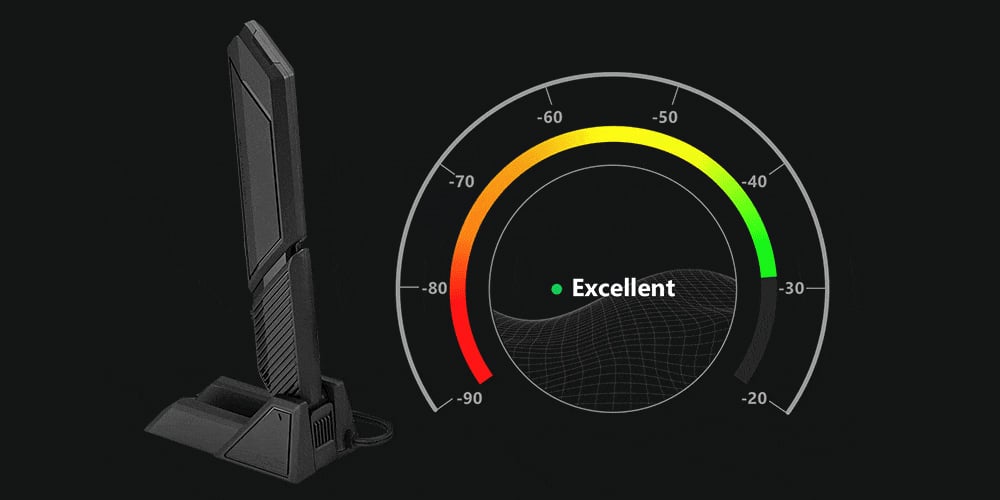

  Fast Check

  Armoury Crate’s Fast Check empowers users to rapidly detect WiFi signal strength?

•

  Direction Finder

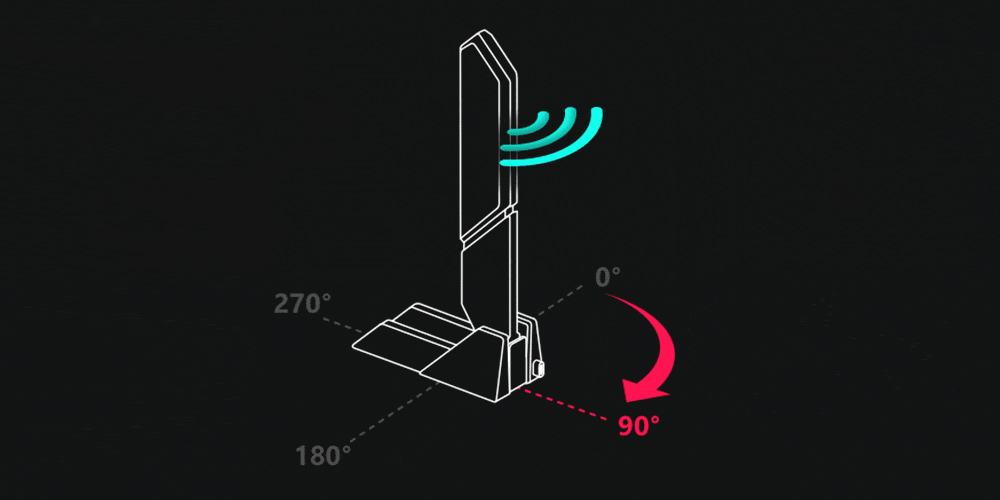

  Armoury Crate’s Direction Finder* helps users detect the optimal antenna orientation for achieving the best WiFi signal strength.

  *The Direction Finder is only compatible with connections in the 5GHz and 6GHz bands

•

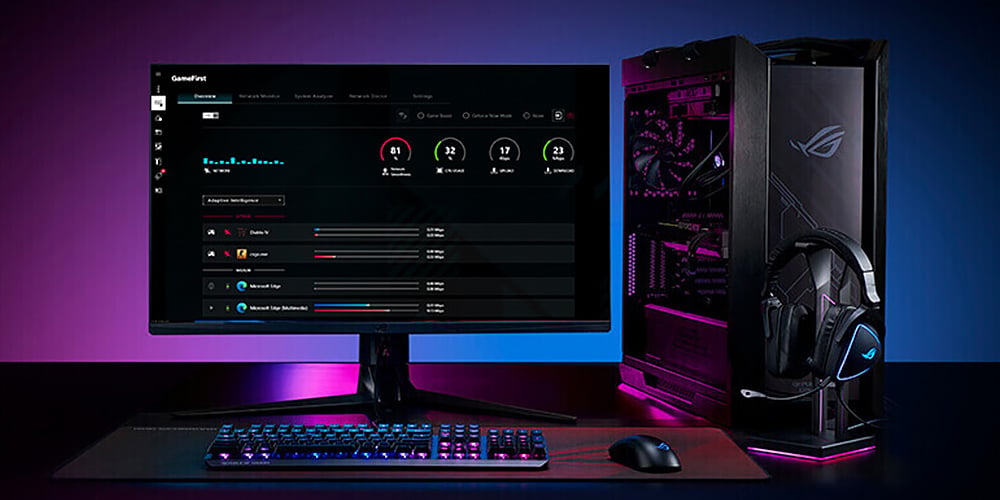

  Gamefirst

  GameFirst is now integrated into Armoury Crate for an even better user experience. GameFirst optimizes networking performance by allocating bandwidth in real time, based on intelligent algorithms designed for various application customizable usage scenarios and corresponding learning algorithms. The latest update includes dedicated support for NVIDIA^® GeForce NOW to ensure the lowest latency possible during intense game streamingcloud gaming sessions. To provide a better user’s experience, GameFirst is now integrated into Armoury Crate.

OVERCLOCKING

•

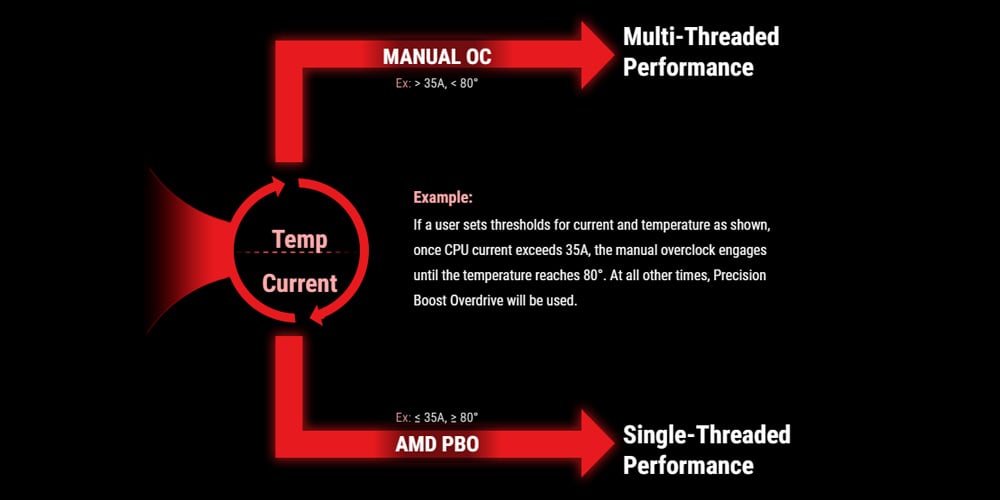

  DYNAMIC OC SWITCHER

  Dynamic OC Switcher maximizes CPU performance by letting you set current and temperature thresholds to automatically switch between a manual overlock for heavy multithreaded workloads and Precision Boost Overdrive for single-threaded tasks. The latest Overclocking Load Guard has an enhanced instantaneous current protection mechanism to prevent users from experiencing system crashes during overclocking.

•

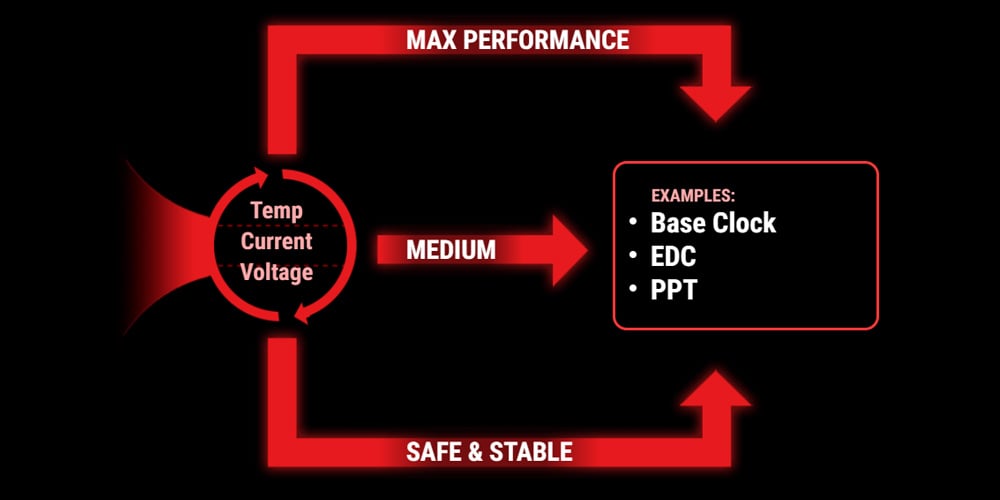

  CORE FLEX

  Core Flex empowers you to smash limits farther than ever before by letting you control clock, power, and thermals in creative new ways. In its simplest form, you can maximize base clock during lighter loads and set breakpoints to gradually reduce CPU core frequency as temperature or current increases. But the system is extremely adaptable, supporting multiple user-controlled functions that can manipulate power, current, and temperature limits independently so that you can bend CPU performance to your will.

MEMORY

•

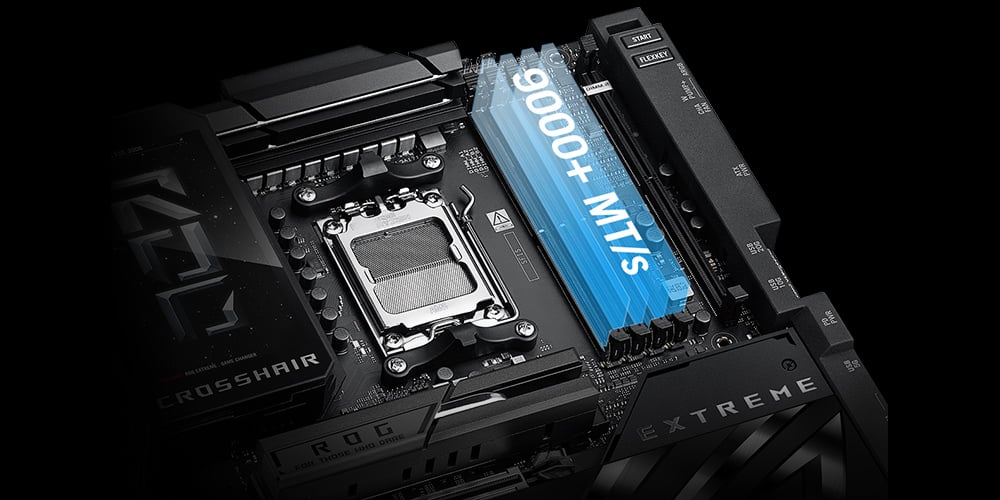

  DDR5 DOMINATION

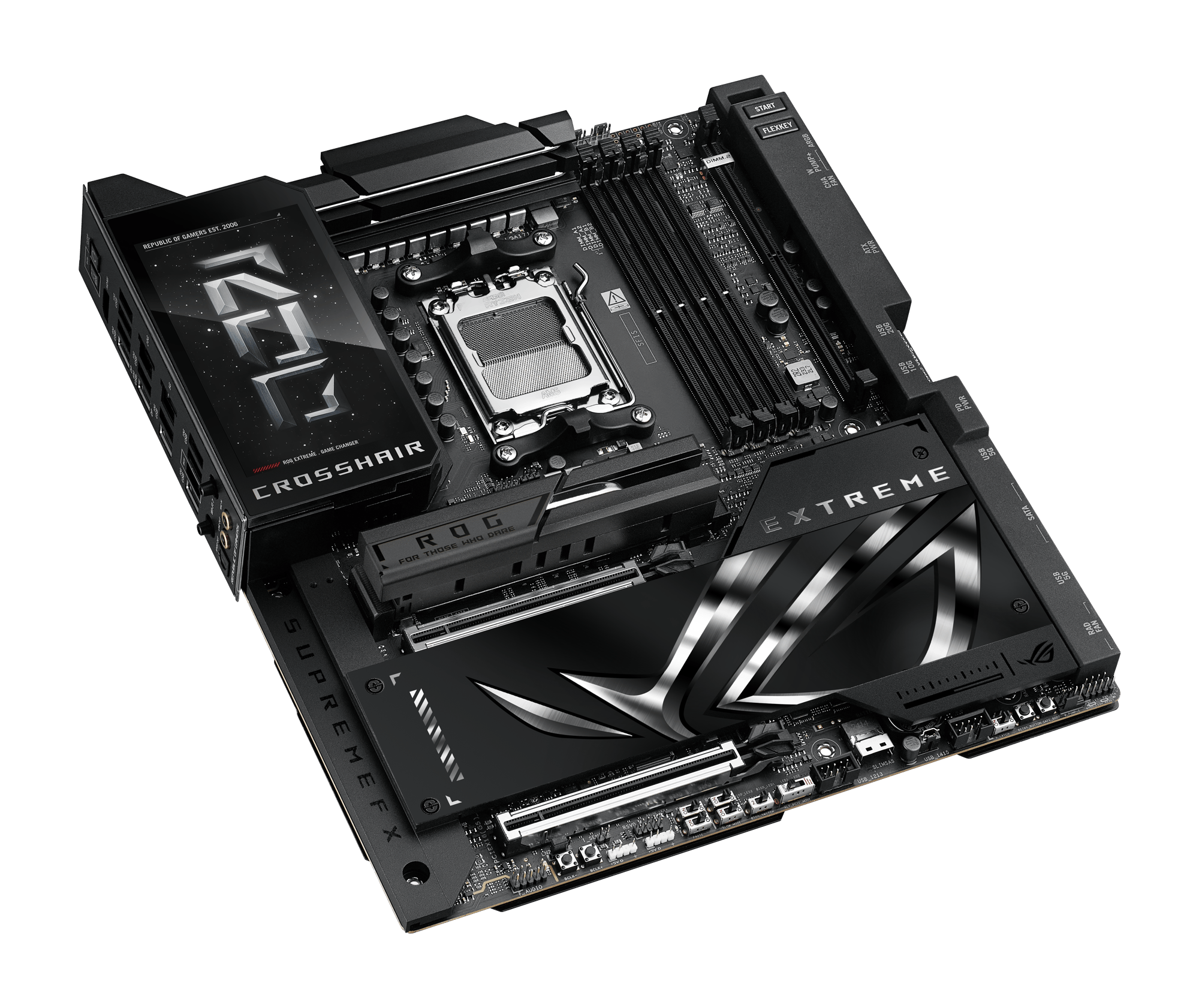

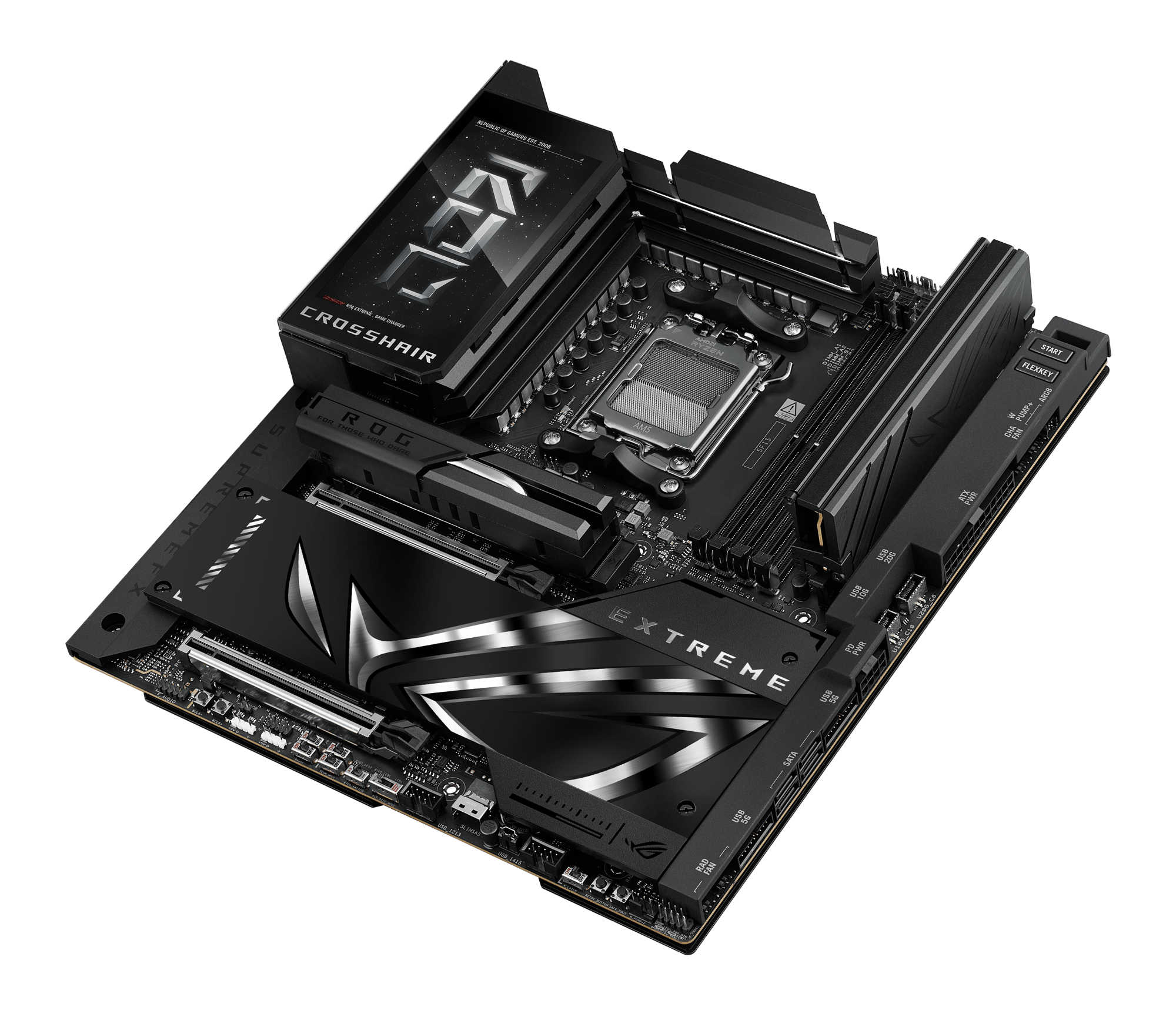

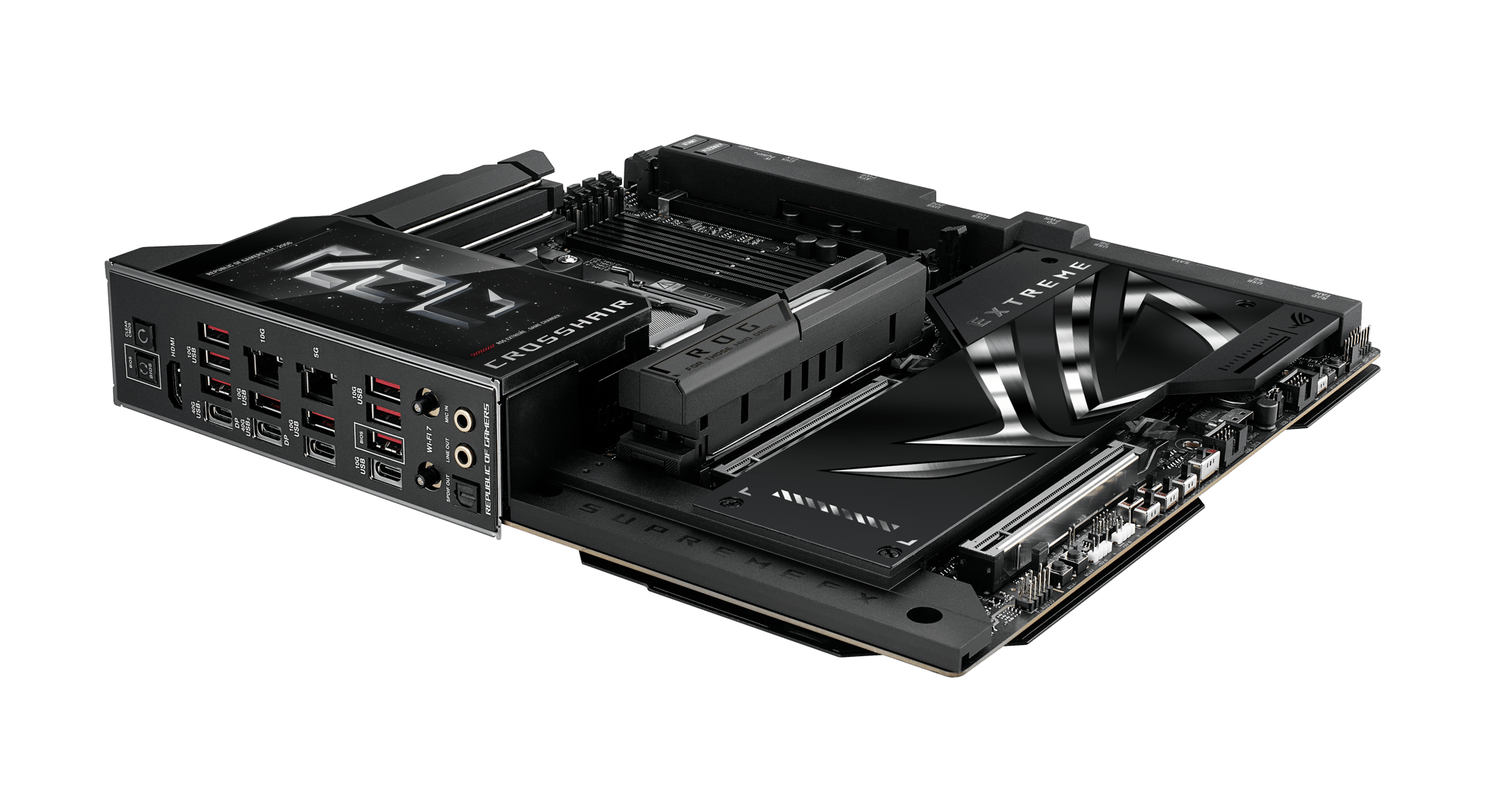

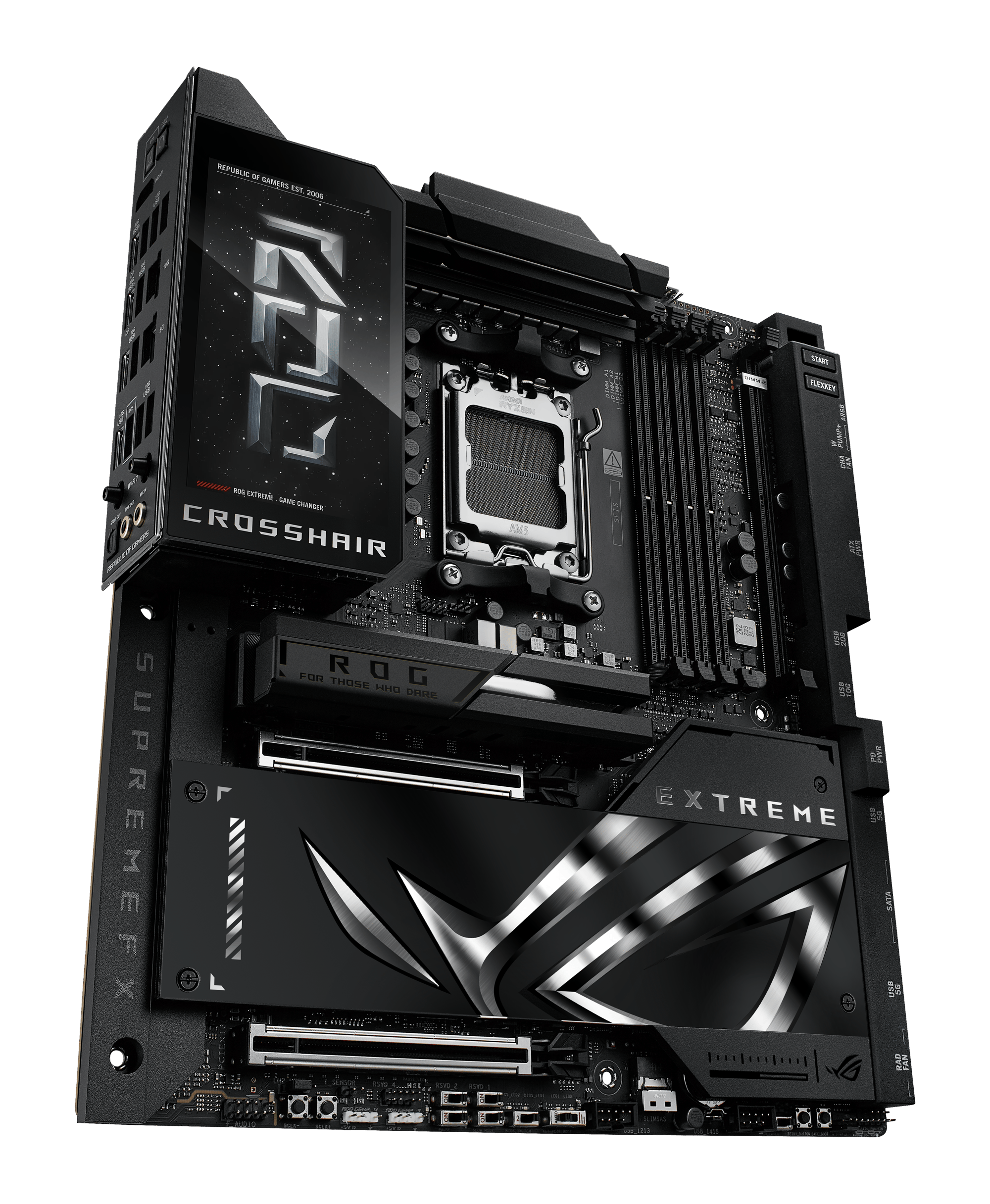

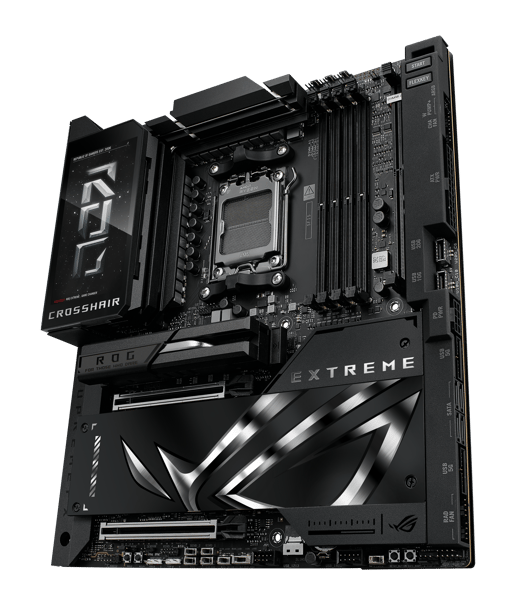

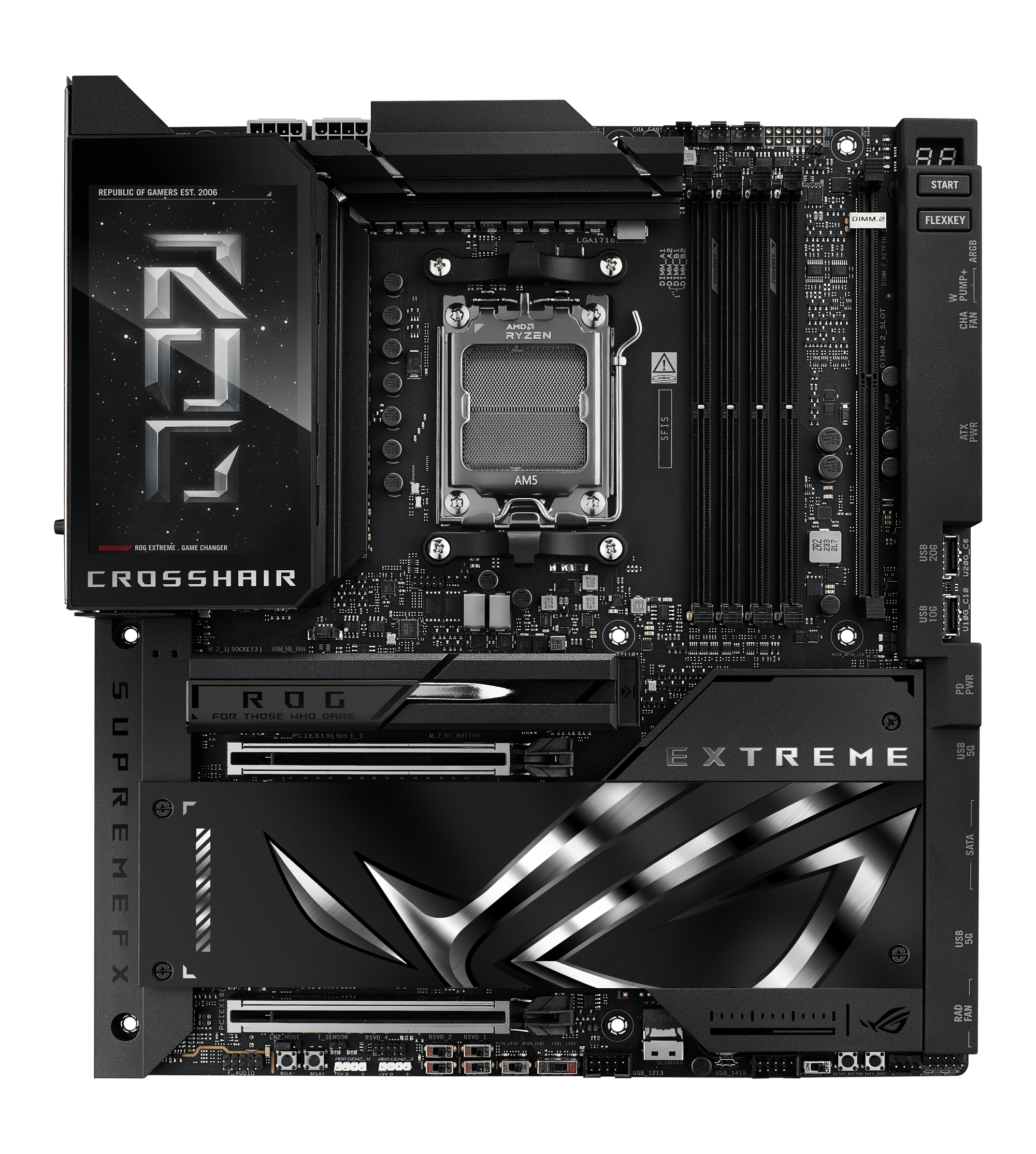

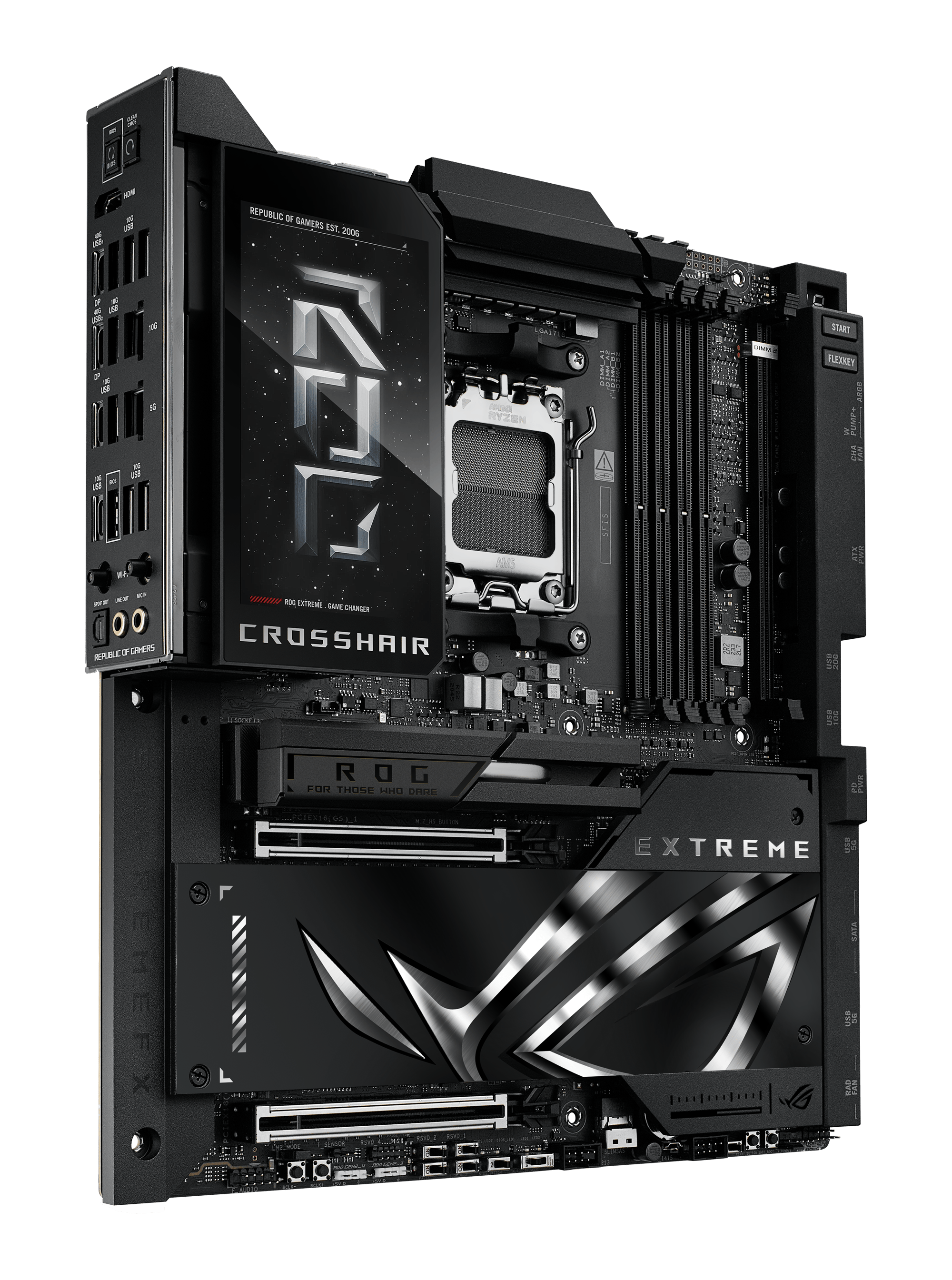

  Thanks to improved signal routing, now enthusiast-grade kits can be driven far beyond the 9 GT/s mark on the ROG Crosshair >X870E Extreme*.
  For those who want to fly past stock DDR5 speeds, the ROG Crosshair X870E Extreme is primed and ready for enthusiast-grade kits courtesy of vast AMD EXtended Profiles for Overclocking (EXPO) support. Seasoned veterans can further tweak performance via the extensive array of settings in the UEFI.

  *Memory overclocking may vary between CPU series. Please refer to the spec table for detailed information.

•

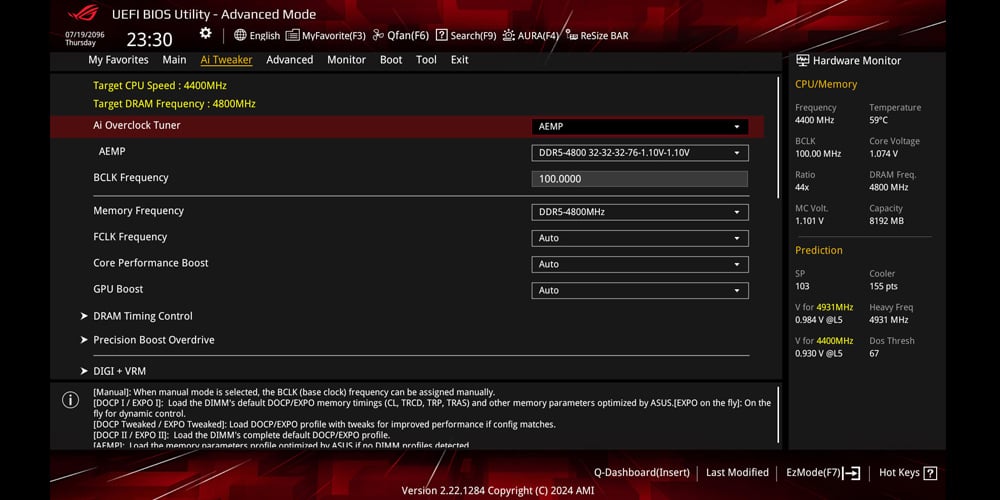

  AEMP

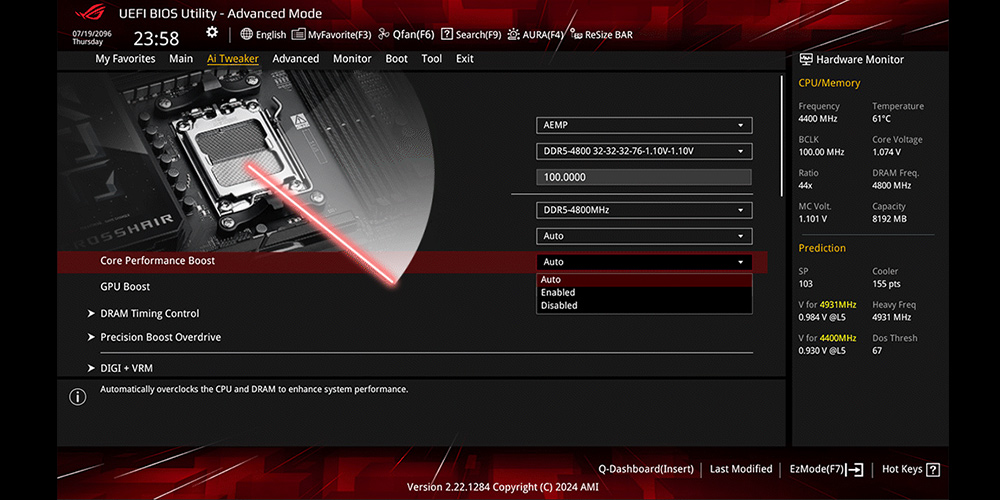

  AEMP automatically detects the memory chips on your kit and then presents optimized frequency, timing and voltage profiles that you can effortlessly apply to unleash performance.

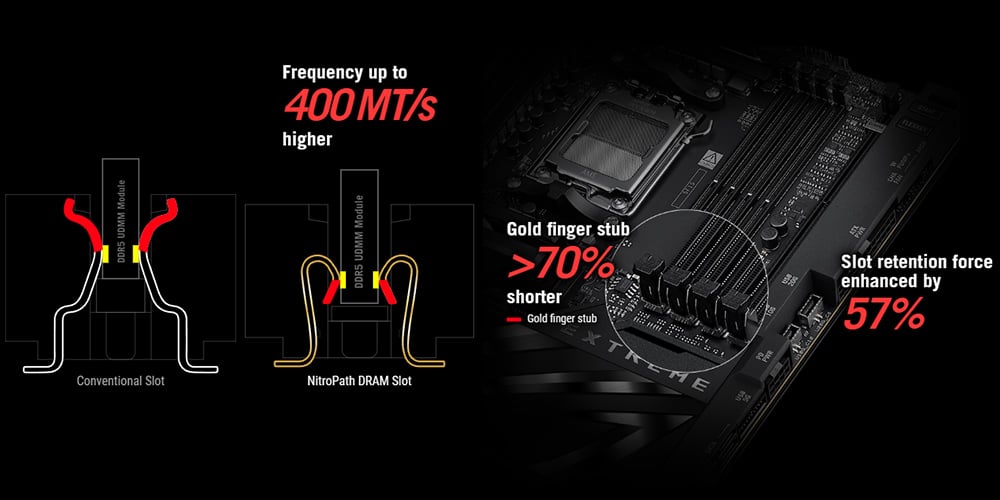

NITROPATH DRAM TECHNOLOGY

NitroPath DRAM Technology provides enhanced DDR5 memory performance. Shorter gold finger pins and optimized signal pathways ensure faster data transfers between your DRAM and CPU, allowing for greater memory overclocking headroom and stability. These reinformed DRAM slots are also better prepared to withstand the wear and tear of the RAM installation process than traditional slot designs, perfect for enthusiasts who keep their system upgraded with the fastest kits available.

* The feature is patented. Images are for illustrative purposes only. Actual size and length may vary with DDR5 connector.

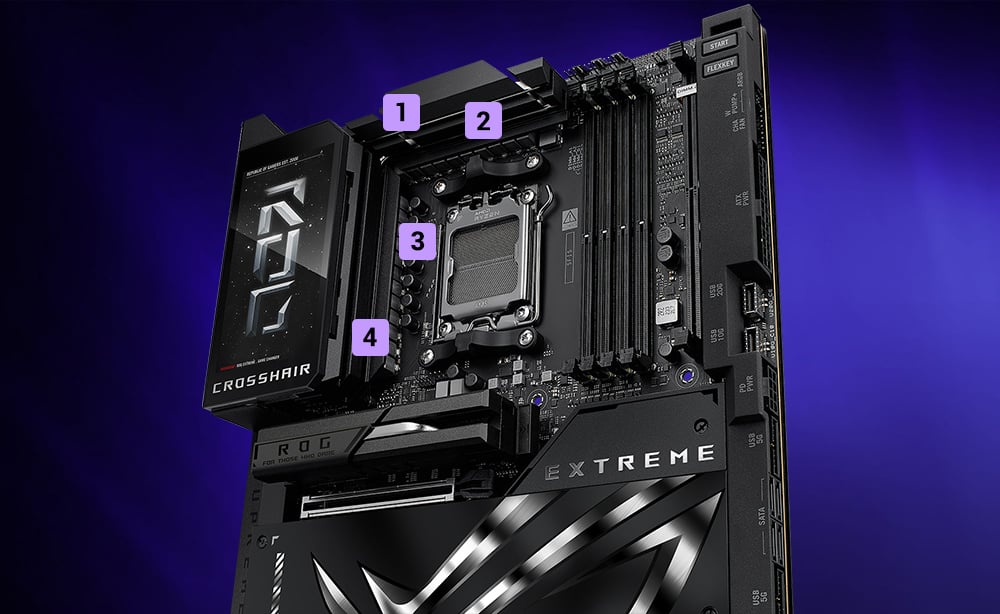

TEAMED POWER ARCHITECTURE

• 8 + 8-pin ProCool II power connectors

  Dual ProCool connectors ensure a snug and reliable connection to the EPS 12V power lines.

• 20+2+2 Power Stages

  The VRM features 20+2+2 power stages, each rated to handle up to 110 amps

• 10K black metallic capacitors

  Input and output filtering is provided by solid-polymer capacitors rated for high operating temperatures.

• MicroFine alloy chokes

  Each power stage is accompanied by a high-permeability alloy-core choke rated to handle 45 amps.

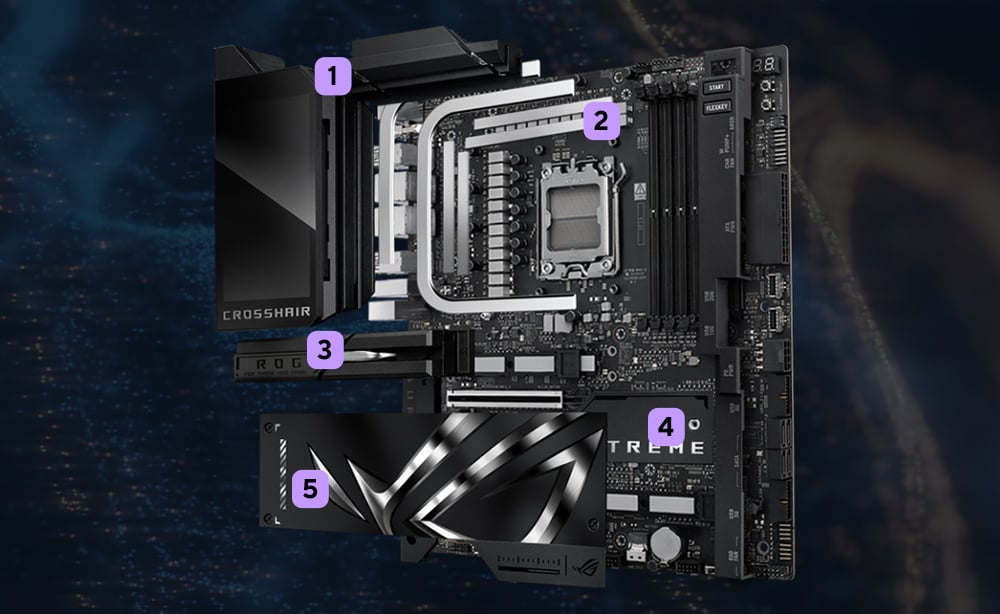

COOLER BY DESIGN

• VRM heatsink array

  VRM heatsinks on the MOSFETs and chokes are connected by an embedded heatpipe to increase mass and surface area for dissipation.

• High-conductivity thermal pads

  Each thermal pad improves overall heat transfer from the system by bridging the heat generated by the power stages to the heatsink.

• 3D VC M.2 Heatsink

  The 3D vapor chamber M.2 heatsink offers a larger heat dissipation area, connected to extended heat pipes through a temperature equalization plate to form a vacuum chamber, significantly improving cooling for PCIe 5.0 M.2 SSDs.

• Chipset heatsink

  A dedicated heatsink draws heat away from the chipset to maintain optimum operating temperature.

• M.2 heatsinks and backplates

  Large aluminum heatsinks provide extensive surface area to cool mounted M.2 drives, and three onboard M.2 slots have dedicated backplates for additional heat dissipation.

PCIE 5.0

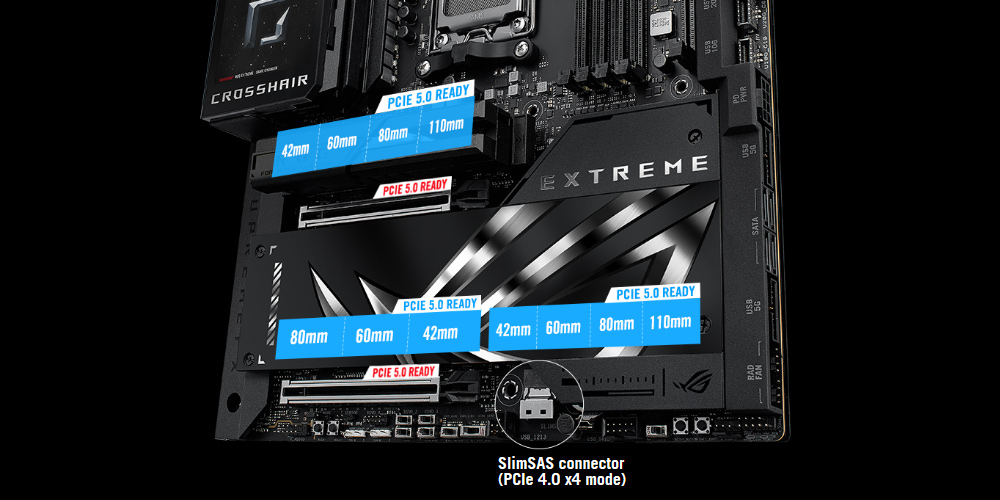

• THREE ONBOARD M.2 SLOTS

  The ROG Crosshair X870E Extreme features three onboard PCIe 5.0 M.2 slots, which offer blistering 16 GB/s speeds.
  It also features a SlimSAS Connector, which supports PCIe 4.0 x4 mode via a transfer cable. The cable is purchased separately.

• EXPANSION SLOTS

  Both x16 expansion slots offer PCIe 5.0 with incredible speeds up to 64 GB/s for compatible devices, fully supporting next-gen graphics cards. To bear the weight of massive graphics cards, they are also protected with SafeSlot retention brackets which can be released easily, thanks to PCIe Slot Q-Release Slim.

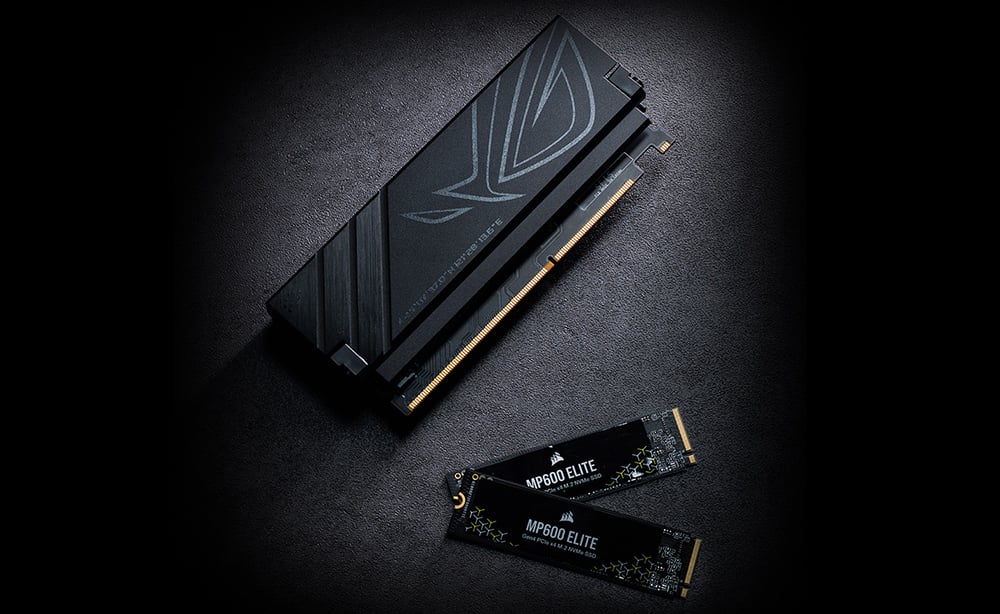

ROG Q-DIMM.2

The ROG Q-DIMM.2 expansion card lets you easily mount two PCIe 4.0 M.2 drives next to the memory module slots, where the card’s large heatsinks convect heat directly into the path of chassis airflow. (M.2 drive not included.)

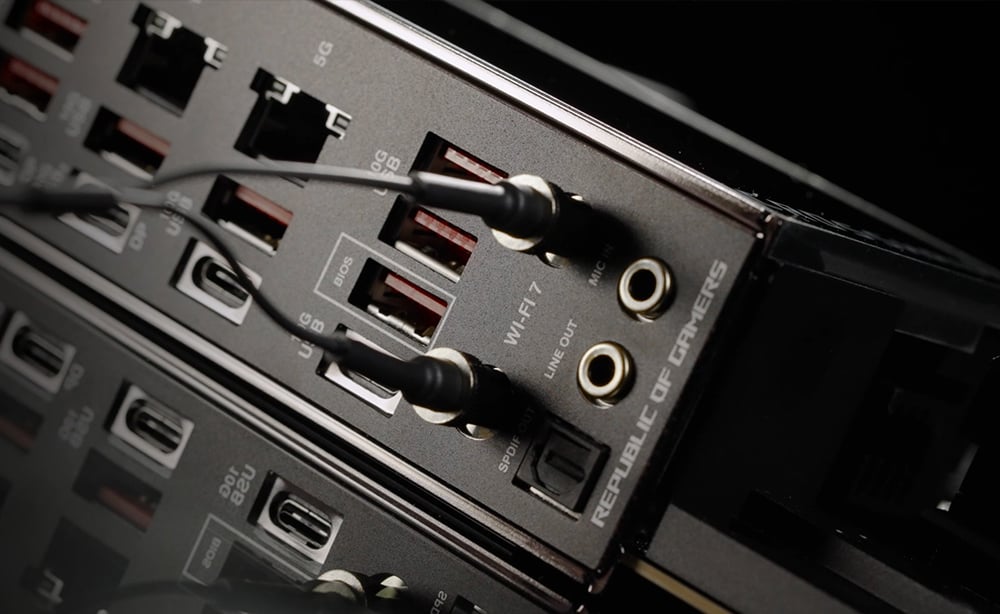

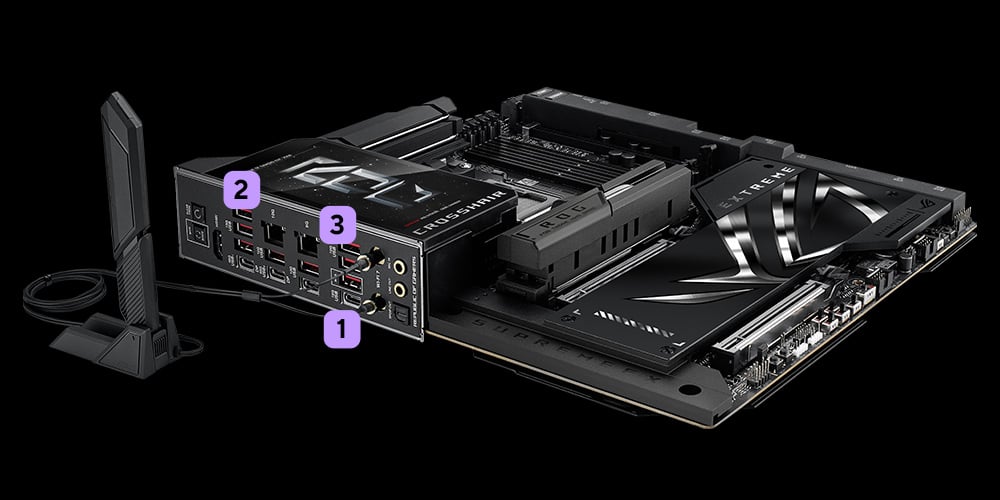

NETWORKING

• WIFI 7

  The revolutionary WiFi 7 is up to 4.8X times faster than standard WiFi 6*, thanks to tech like 320 MHz channels** on the 6GHz band and 4K QAM*. Multi-Link Operation (MLO) provides a more stable WiFi connection and lower latency, unlocking the realms of the unknown in gaming, streaming and industrial IoT.
  Learn more about Multi-link Operation (MLO) and WiFi 7 technology

  *WiFi 7 features require onboard WiFi chipset, WiFi AP, and WiFi 7-supported operating systems to support the corresponding features. 320 MHz channels in the 6 GHz band may be unavailable in some regions/countries due to regulatory restrictions.
  **Specifications vary by model.

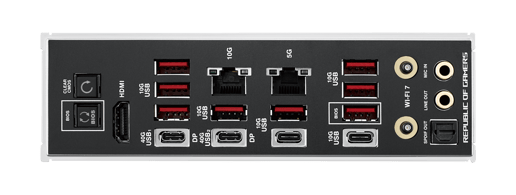

• 10Gb ETHERNET

  Low-latency gaming, speedy file transfers, and high-resolution video streaming are among the many perks of onboard Marvell® Aqtion 10Gbps Ethernet.

• 5Gb ETHERNET

  Low-latency gaming, speedy file transfers, and high-resolution video streaming are among the many perks of onboard Realtek 5 Gbps Ethernet.

ASUS WiFi Q-Antenna

Dual transceivers support the 2.4, 5 and 6 GHz bands to enable faster throughput, with directional sensitivity to improve signal quality and cover greater distances.?

Wireless Signal Reception Improvement

Versus previous-generation antenna

• Up to +6%



  6 GHz

• Up to +18%



  5/2.4 GHz

EZ PC DIY

•

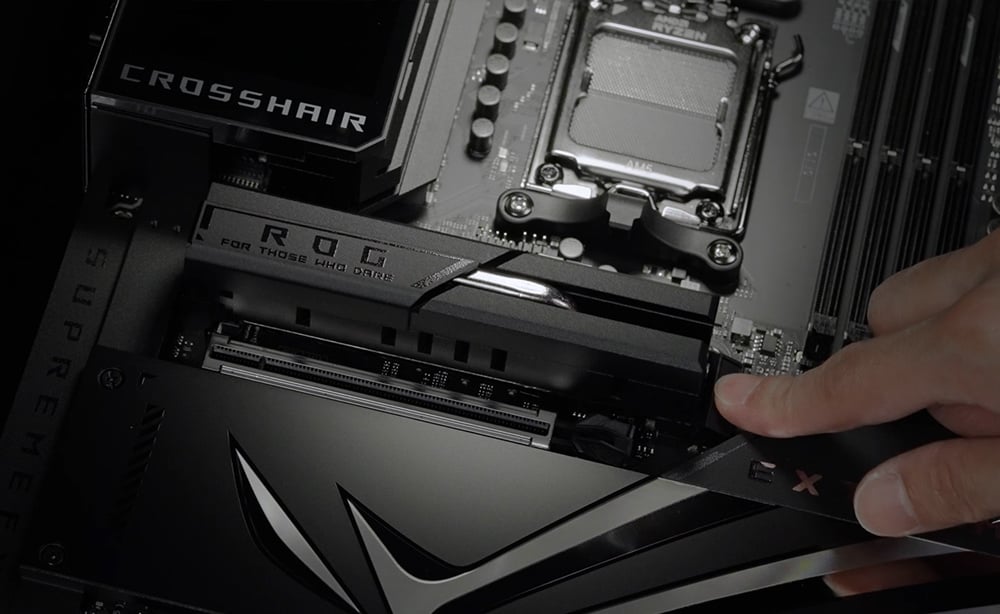

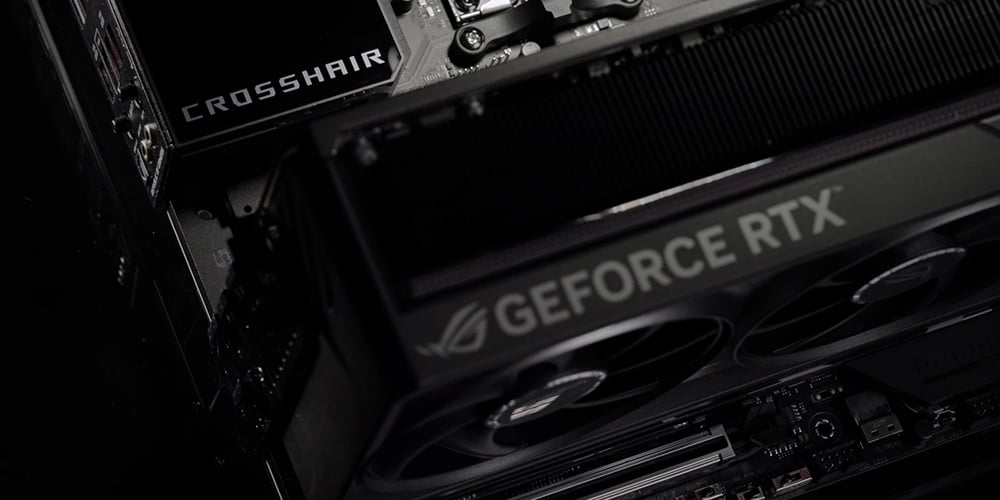

  PCIE^® SLOT Q-RELEASE SLIM

  With PCIe^® Slot Q-Release Slim, simply tilt the card toward the latching mechanism to automatically unlock it from the PCIe slot. This makes upgrades and maintenance easier than ever before. Users will no longer need to fiddle with a tricky latch or even press a button to release their graphics card from the slot.

•

  M.2 Q-Release

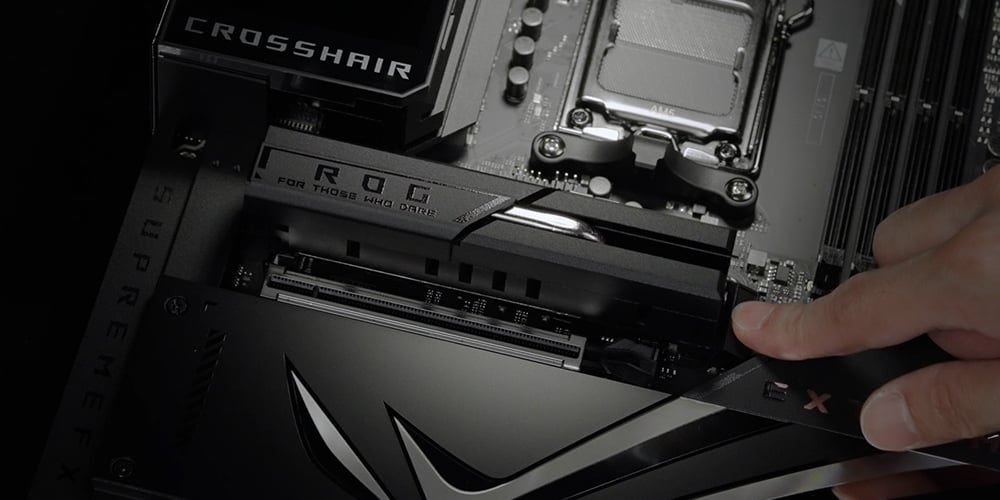

  The M.2 heatsink features a convenient switch* to quickly remove it, eliminating the need for tiny screws during SSD installation. Its strong locking mechanism also provides a snug contact surface, helping to ensure reliable heat dissipation for your SSD.

  *Switch may be a lever or button, depending on motherboard model.

•

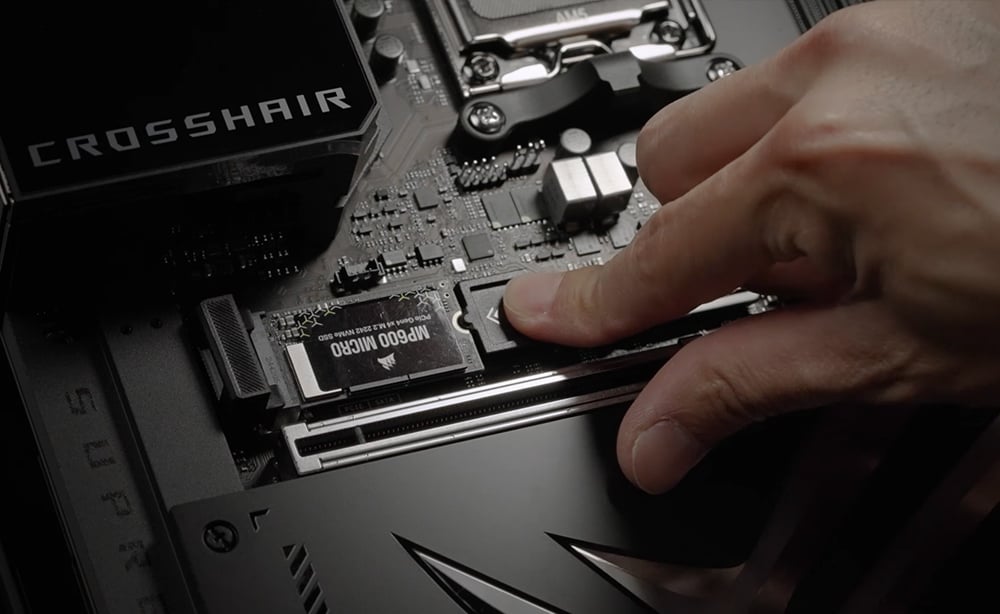

  New M.2 Q-LATCH

  The new Q-Latch design allows for tool-free installation or removal of M.2 SSDs with just one press.

•

  M.2 Q-Slide

  This new sliding M.2 latch design supports sizes 2242 and 2260 for easy device installation.

•

  Q-ANTENNA

  With Q-Antenna, attaching a WiFi antenna to your PC is now easy and fast. Instead of slowly rotating two fasteners until they finally lock in, they just snap into place. Less hassle, and more consistent performance.?
