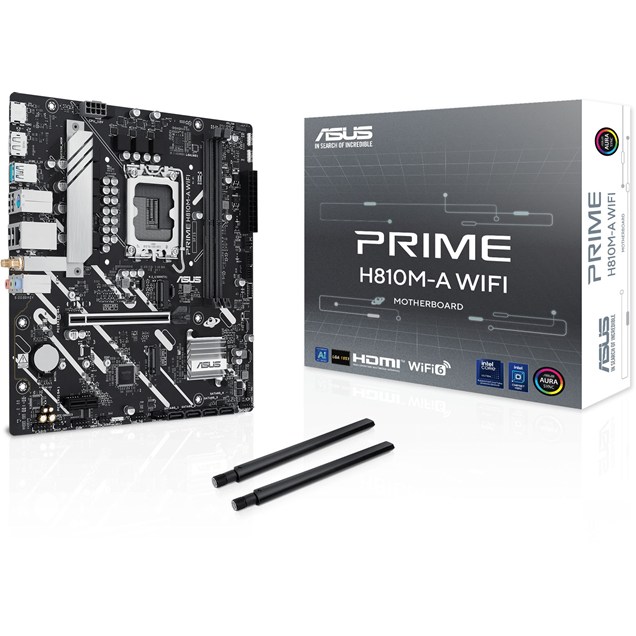

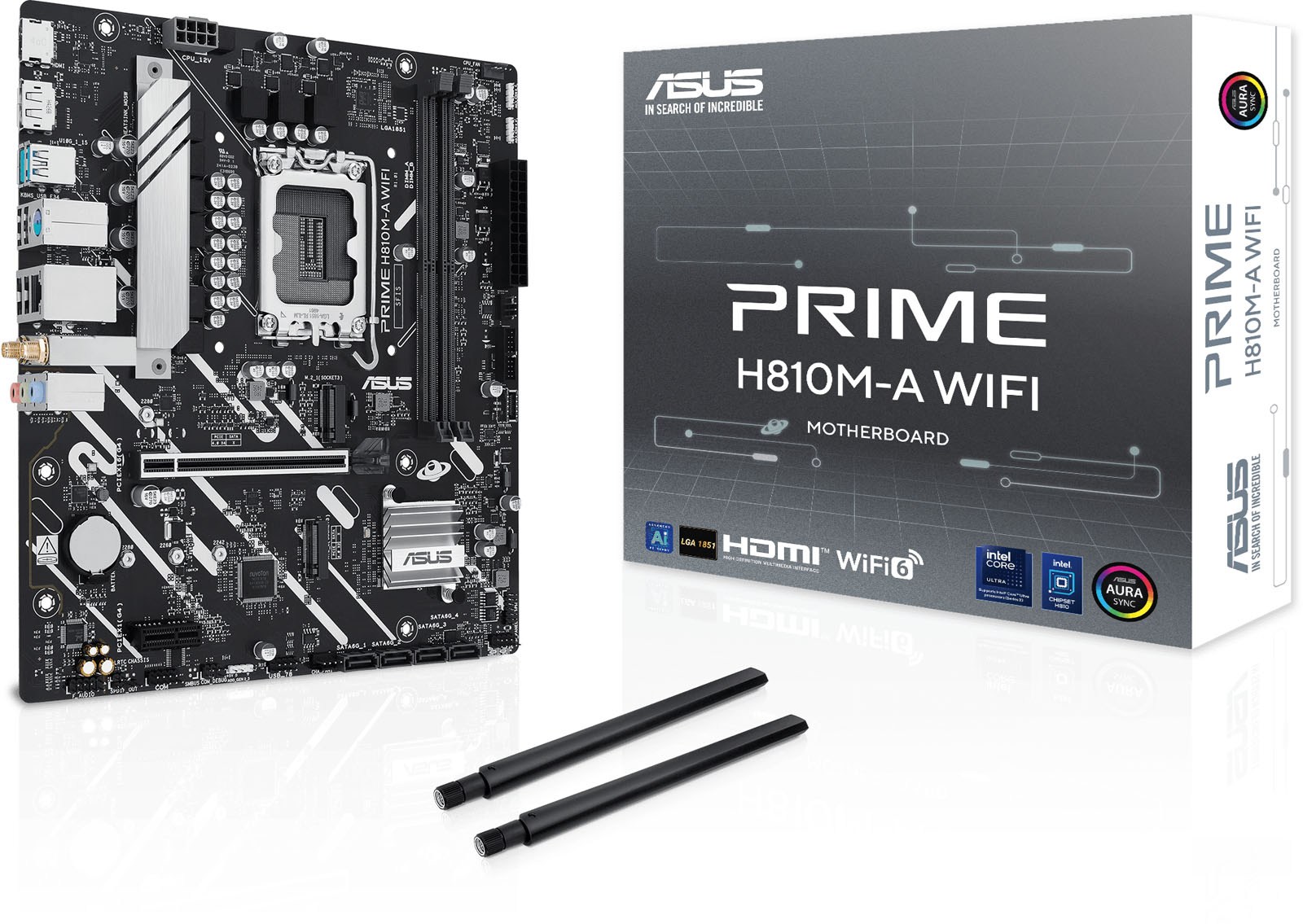

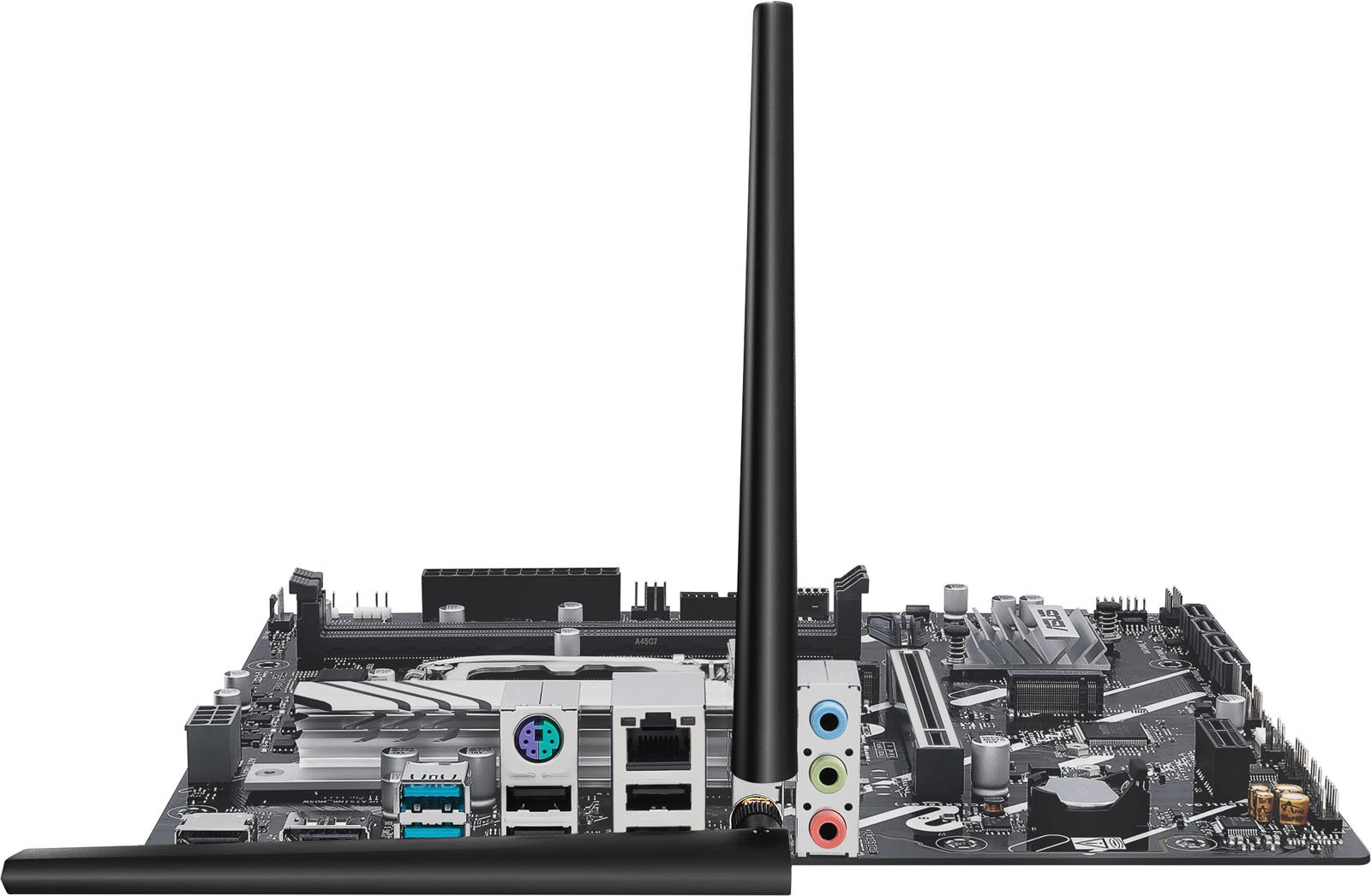

ASUS Prime H810M-A WiFi mATX Motherboard for Intel LGA1851 CPUs
£102.99
Discontinued
90MB1KJ0-M0EAY0
ASUS Prime H810M-A WiFi mATX Motherboard for Intel LGA1851 CPUs
FORM FACTOR: MATX
SOCKET: LGA1851
MEMORY: DDR5 (MAX: 96GB)
STORAGE: 2 X M.2, 4 X SATA
WI-FI: BUILT-IN
USB: 6 PORT(S)
ASUS PRIME series motherboards are expertly engineered to unleash the full potential of the latest Intel® Core™ Ultra Processors (Series 2). Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the PRIME H810M-A WIFI motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.
CPU
- Installed Processors (Max): 0 (1)
- Supported Processor Manufacturer: Intel
- Supported Processors: Intel Core Ultra Processors (Series 2)
- 64-bit Support: Yes
- Socket: LGA1851

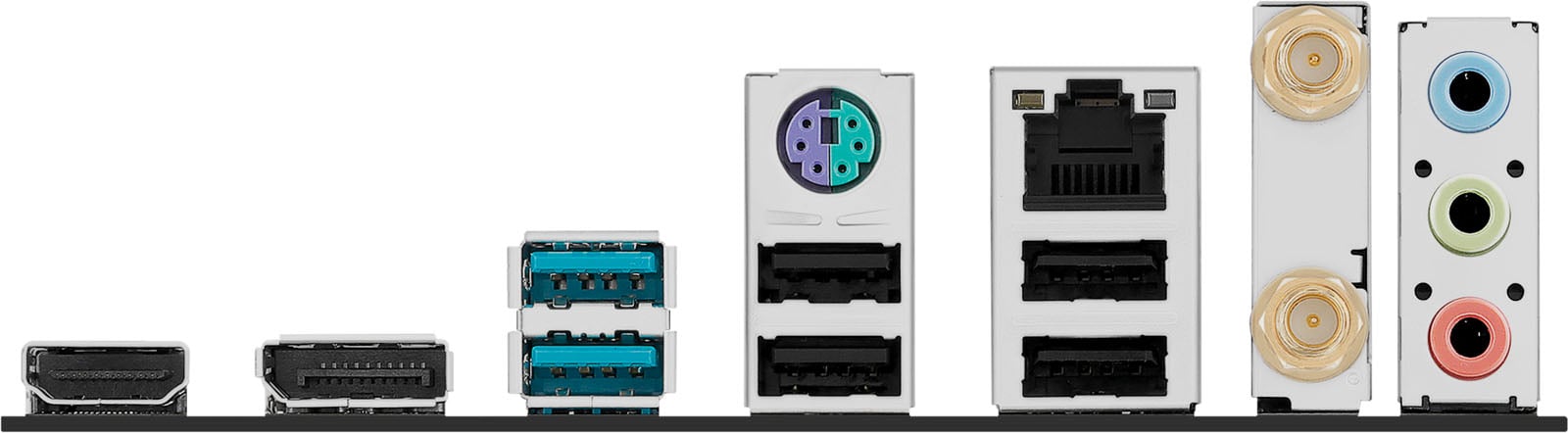

Rear Panel I/O Ports
- USB Ports: 2 x USB 3.1
- 4 x USB 2.0
- DisplayPorts: 1 x DisplayPort 1.4
- HDMI Port: 1 x HDMI 2.1
Internal I/O Connectors
- SATA Connectors: 4 x SATA
- USB Connectors: 1 x USB-C 3.0 header (supports 1 port)
- 1 x USB 3.0 header (supports 2 ports)
- 1 x USB 2.0 header (supports 2 ports)
Memory
- Memory Bus Speed: Up to 6400 MT/s
- Memory Type: DDR5
Motherboard
- Northbridge: Intel H810
- RAID Supported: No
- SATA Supported: Yes
Rear Panel I/O Ports
- Keyboard/Mouse Combo Port: 1 x PS/2
- RJ-45 Ports: 1 x RJ-45
- Audio Line In Ports: 1 x 3.5mm Jack
- Audio Line Out Ports: 1 x 3.5mm Jack
- Microphone In Port: 1 x 3.5mm Jack
- Antenna Connector(s): 2 x SMA Antenna
Internal I/O Connectors
- Front Panel Connectors: 1 x Front Panel
- 1 x Front Audio
- Cooling Fan Support: 1 x CPU fan header
- 2 x Chassis fan headers
- S/PDIF Connectors: 1 x S/PDIF Out header
- Serial Connectors: 1 x COM header
- TPM Header: 1 x SPI TPM header
- Power Connector Port: 1 x 24-pin ATX
- 1 x 8-pin EPS
- Other Connectors: 1 x M.2 slot, Key M, Type 2280 (PCIe Gen4)
1 x M.2 slot, Key M, Type 2242/2260/2280 (PCIe Gen4 x2) - 3 x 3-pin ARGB headers
Expansion
- Number of PCI Express Slots: 1 x PCI Express 4.0 x16 slot
- 1 x PCI Express 4.0 x1 slot
Memory
- Maximum RAM: 96 GB
- Memory Slot: 2 x DIMM
Graphics Device
- Integrated Graphics Supported: Yes
Sound
- Integrated Sound: Realtek
Warranty
- Warranty: 3 Years
Network
- Integrated Network: Intel
- Network Speeds Supported: Up to 1 Gbps
- Wireless LAN: Yes (Wi-Fi 6)
- Bluetooth: Yes
- Bluetooth Version: 5.3
System Requirements
- Operating Systems Supported: Microsoft Windows 11
System
- Jumpers: 1 x Clear CMOS
- Software Included: Yes
- Drivers: Yes
Physical
- Form Factor: mATX Motherboard

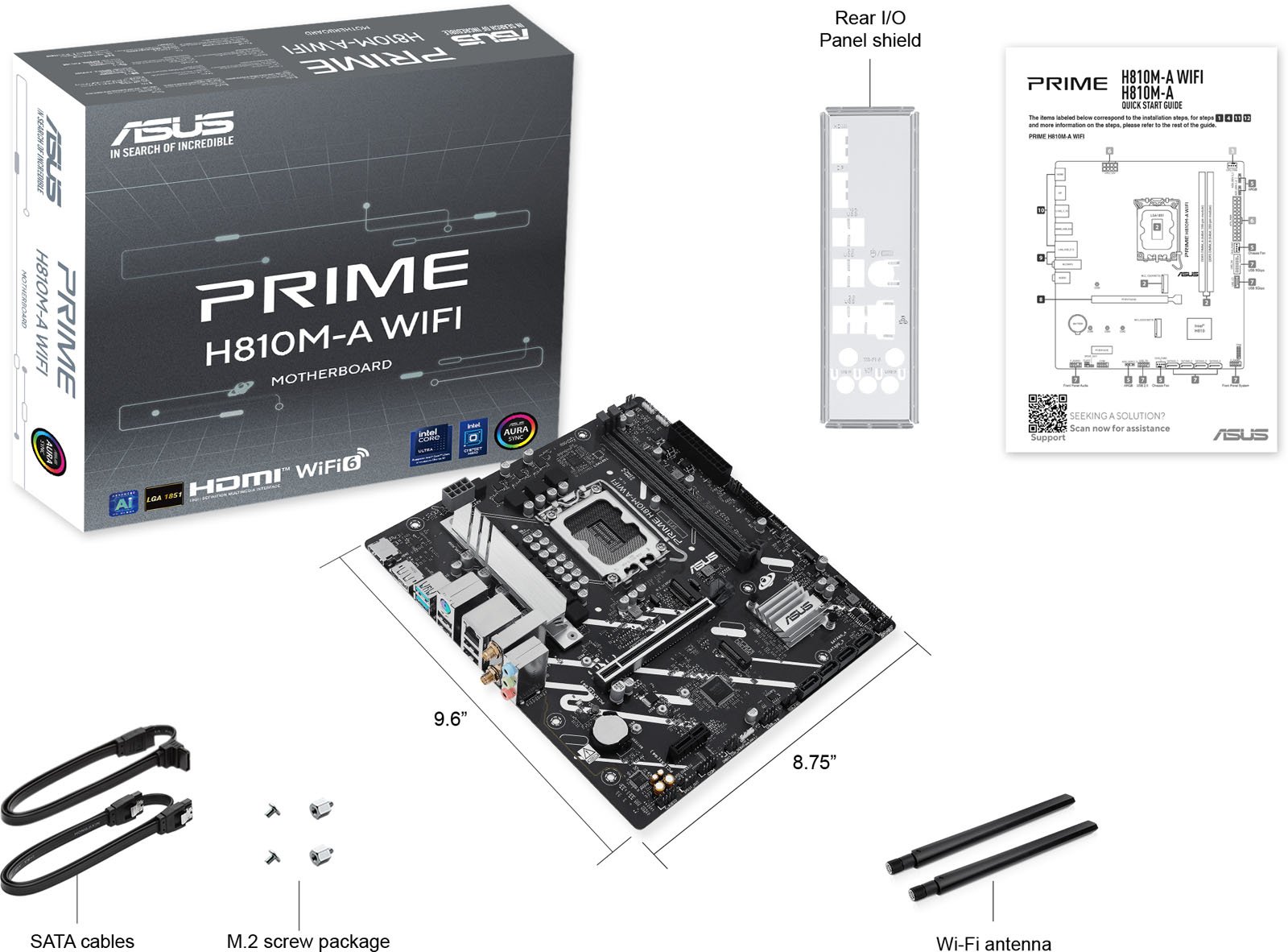

- In The Box: Motherboard
- 2 x SATA 6Gb/s cables
- 1 x ASUS Wi-Fi moving antenna

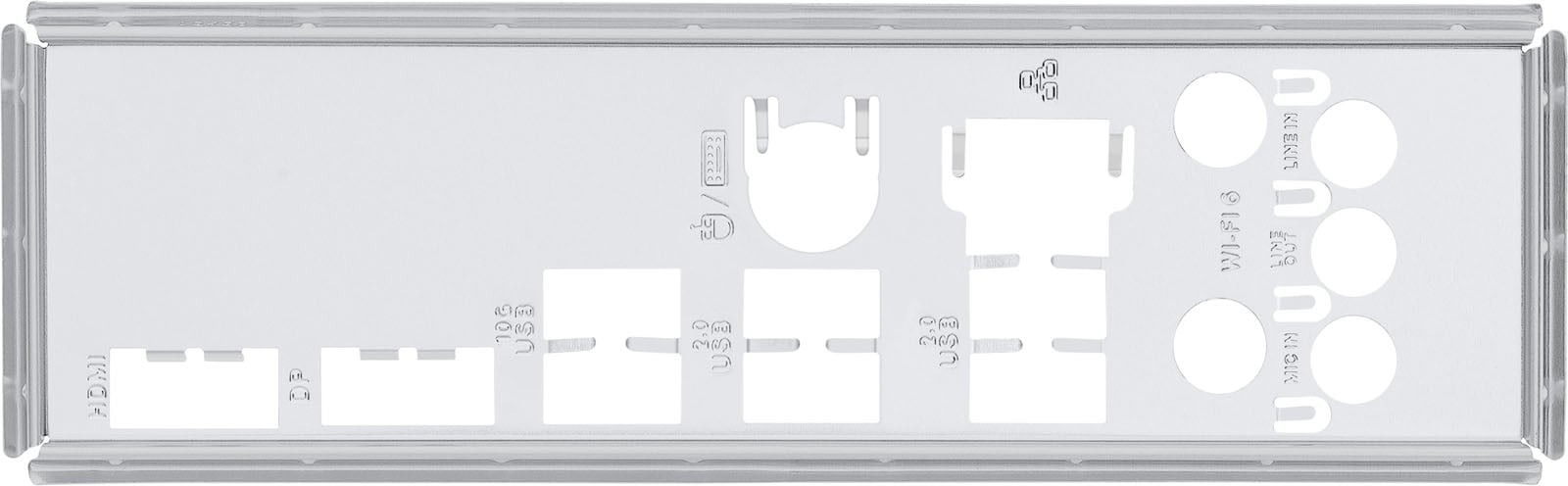

- 1 x I/O shield
- 1 x Screw package for M.2 SSD
- 1 x Quick start guide
- Width: 222 mm
- Length: 244 mm
- Weight: 0.56 kg
Identifiers
- Stock Code: MBD3805
- Mfg Code: 90MB1KJ0-M0EAY0
Warranty
- Warranty: 3 Years
