ASUS TUF Gaming B860M-Plus WiFi mATX Motherboard for Intel LGA1851 CPUs

Compare

ASUS TUF Gaming B860M-Plus WiFi mATX Motherboard for Intel LGA1851 CPUs

Name: ASUS TUF Gaming B860M-Plus WiFi mATX Motherboard for Intel LGA1851 CPUs
Brand: ASUS
SKU: MBD3798
Price: 232.99 GBP
Availability: InStock

90MB1JV0-M0EAY0

£232.99 inc VAT

Available for delivery from Thursday 1st May

or Click & Collect from Thursday 1st May

Buying in bulk? Contact our business team.

Add to Basket

Key Features:

mATX Form Factor
Intel B860 Chipset
Socket 1851
DDR5 (Max: 192GB / 4 slots)
3 x M.2 & 8 x USB & 4 x SATA
HDMI and Display Port

CCL Code: MBD3798

Overview

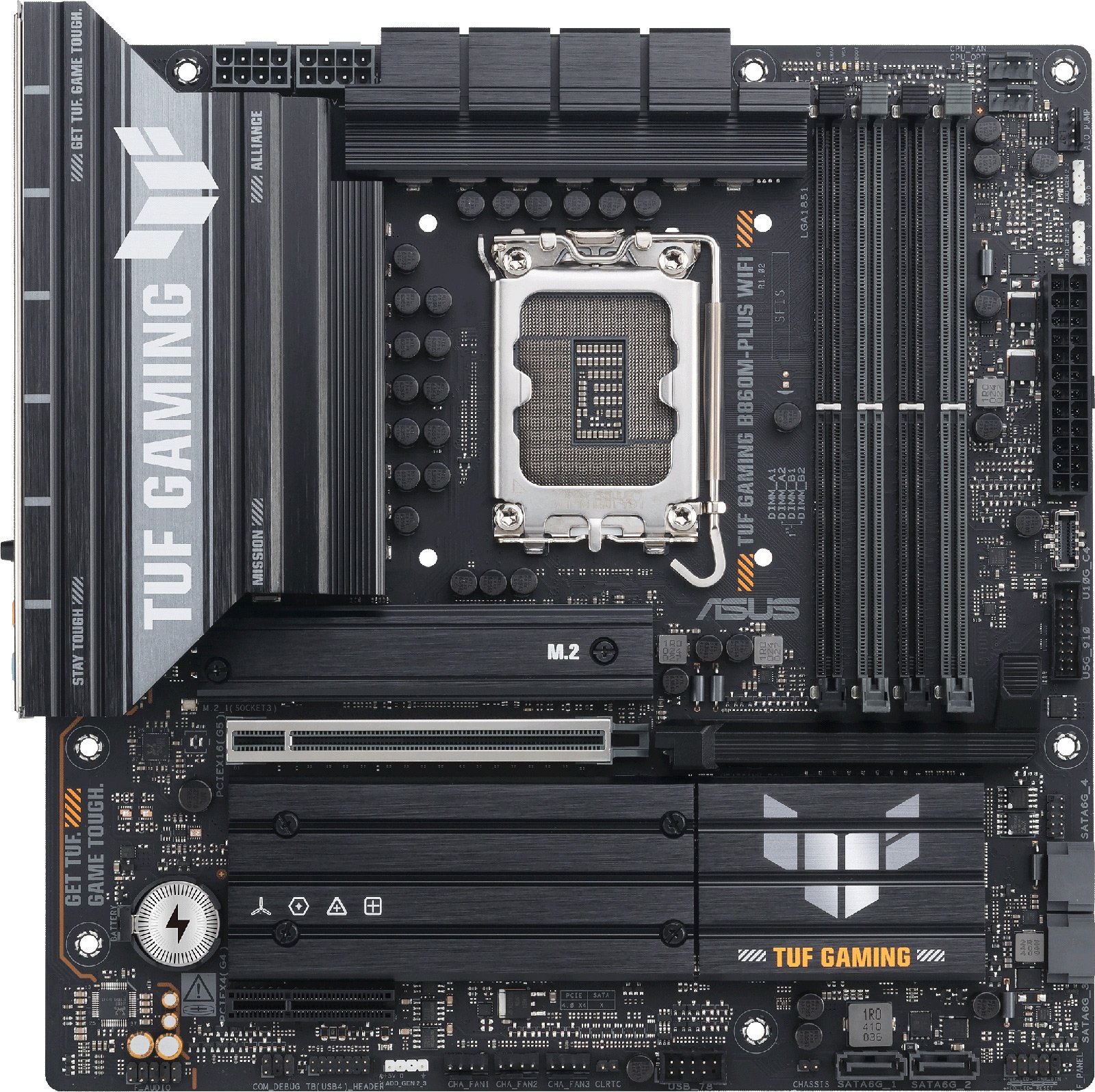

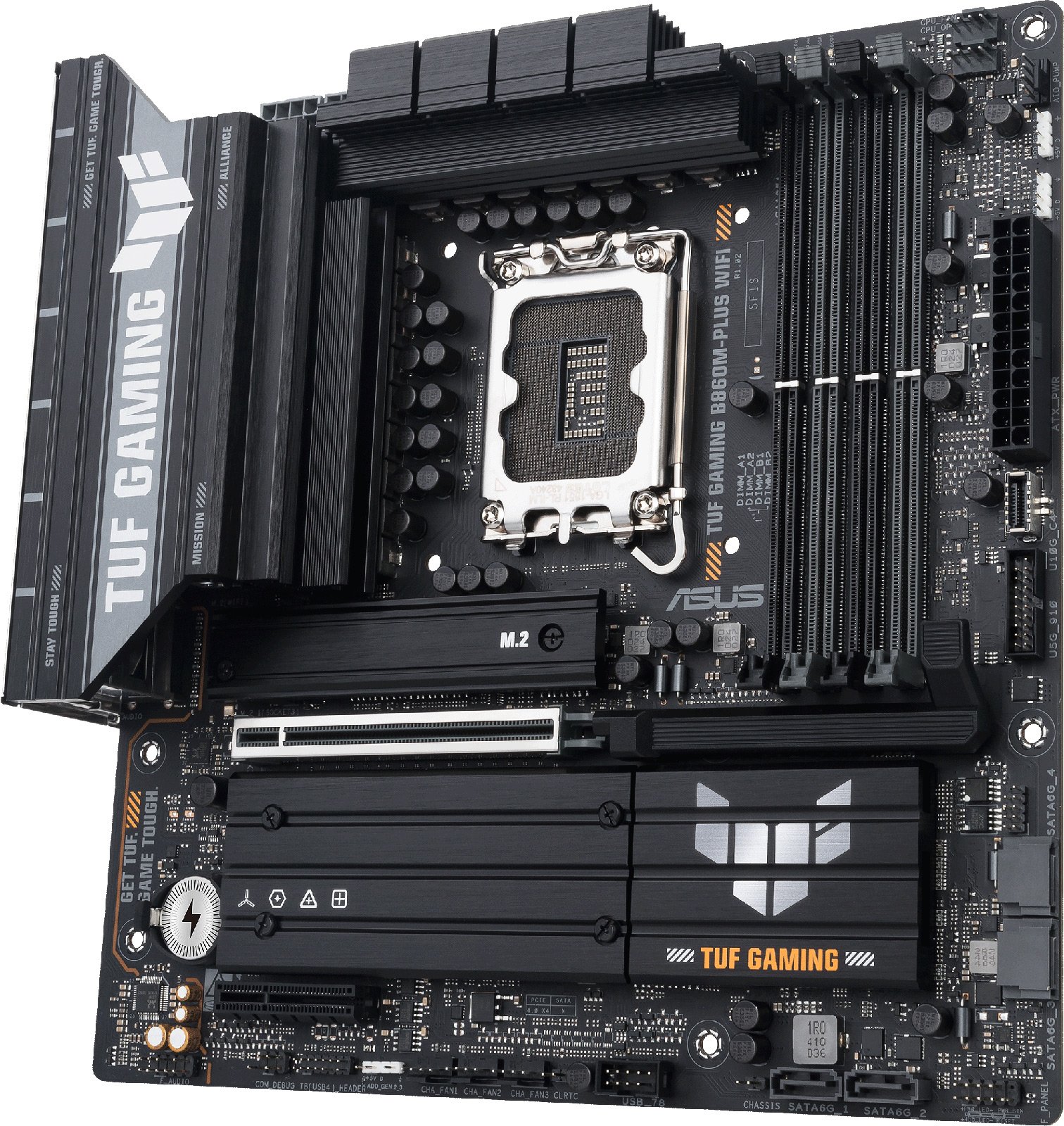

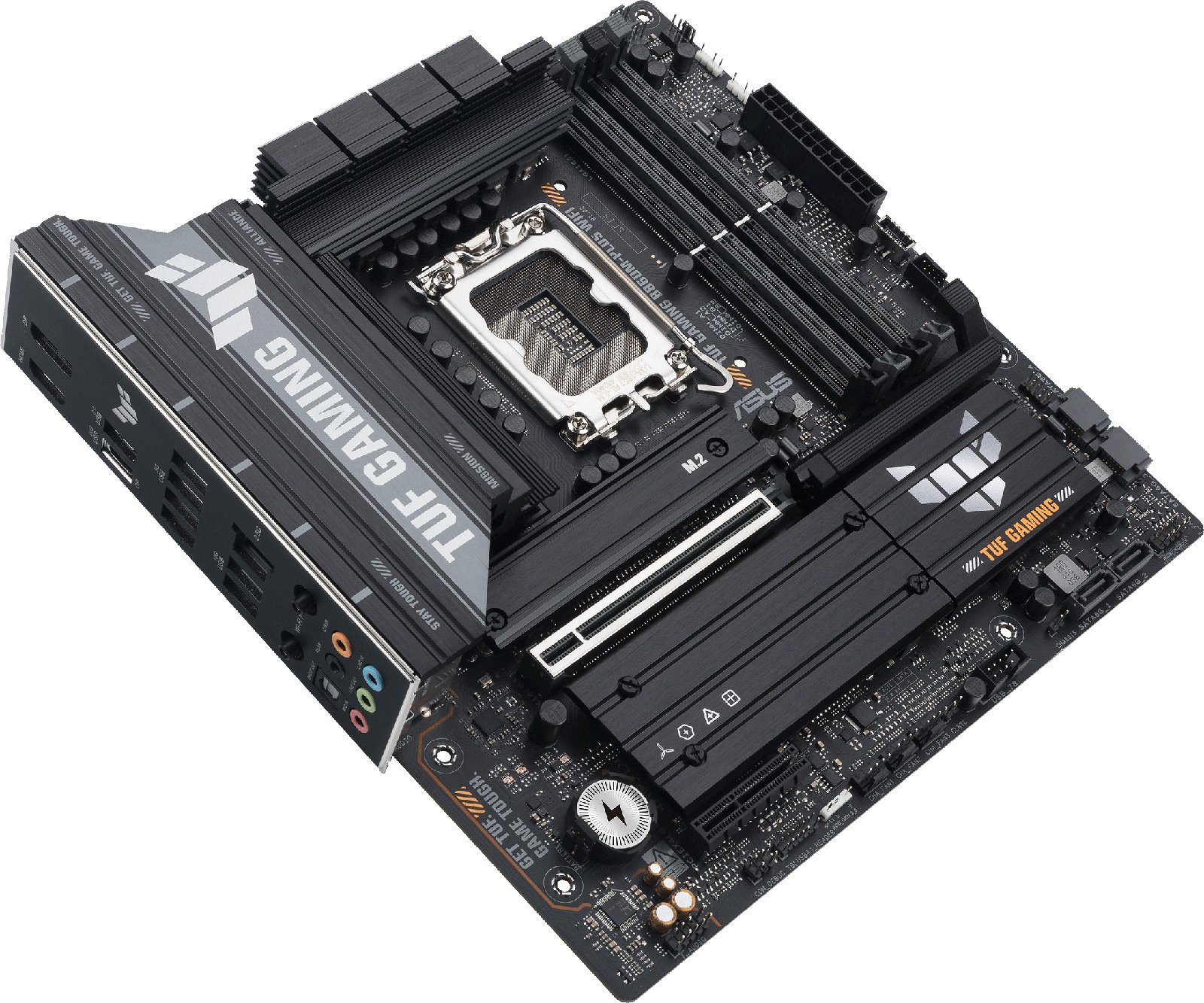

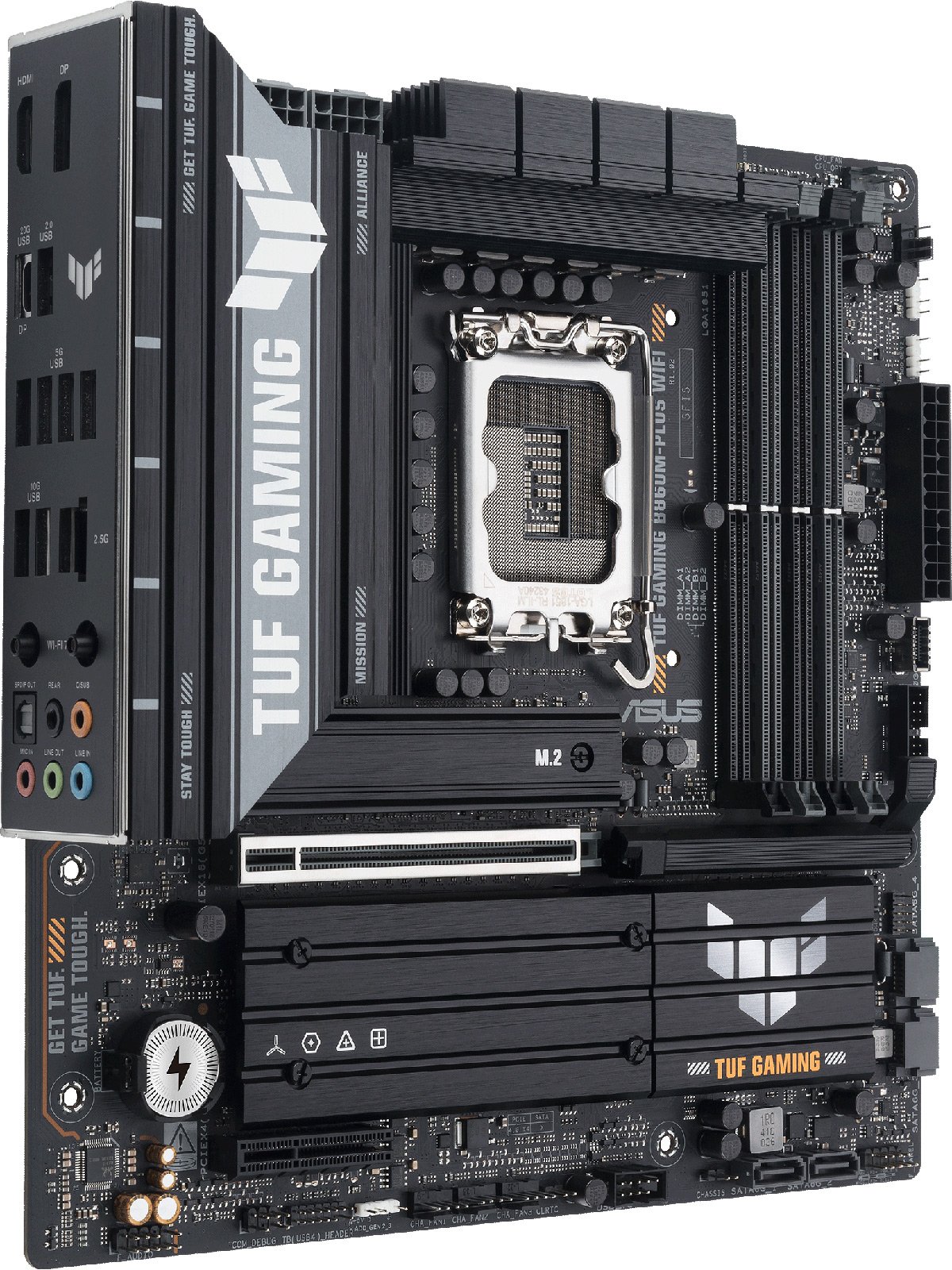

ASUS TUF GAMING B860M-PLUS WIFI Intel LGA1851 mATX Motherboard

Specifications

CPU

CPU Socket	Socket 1851
CPU Brand	Intel
Installed Processors (Max)	0 (1)
Supported Processor Manufacturer	Intel
Supported Processors	Intel Core Ultra 2 Processors (Series 2)
64-bit Support	Yes
Socket	LGA1851

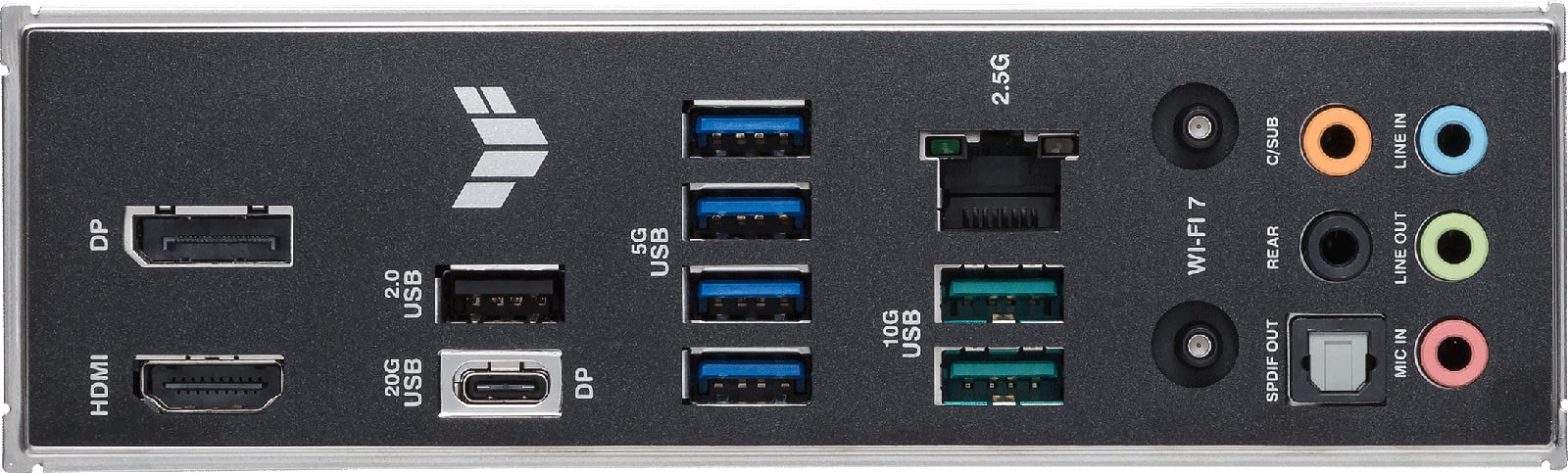

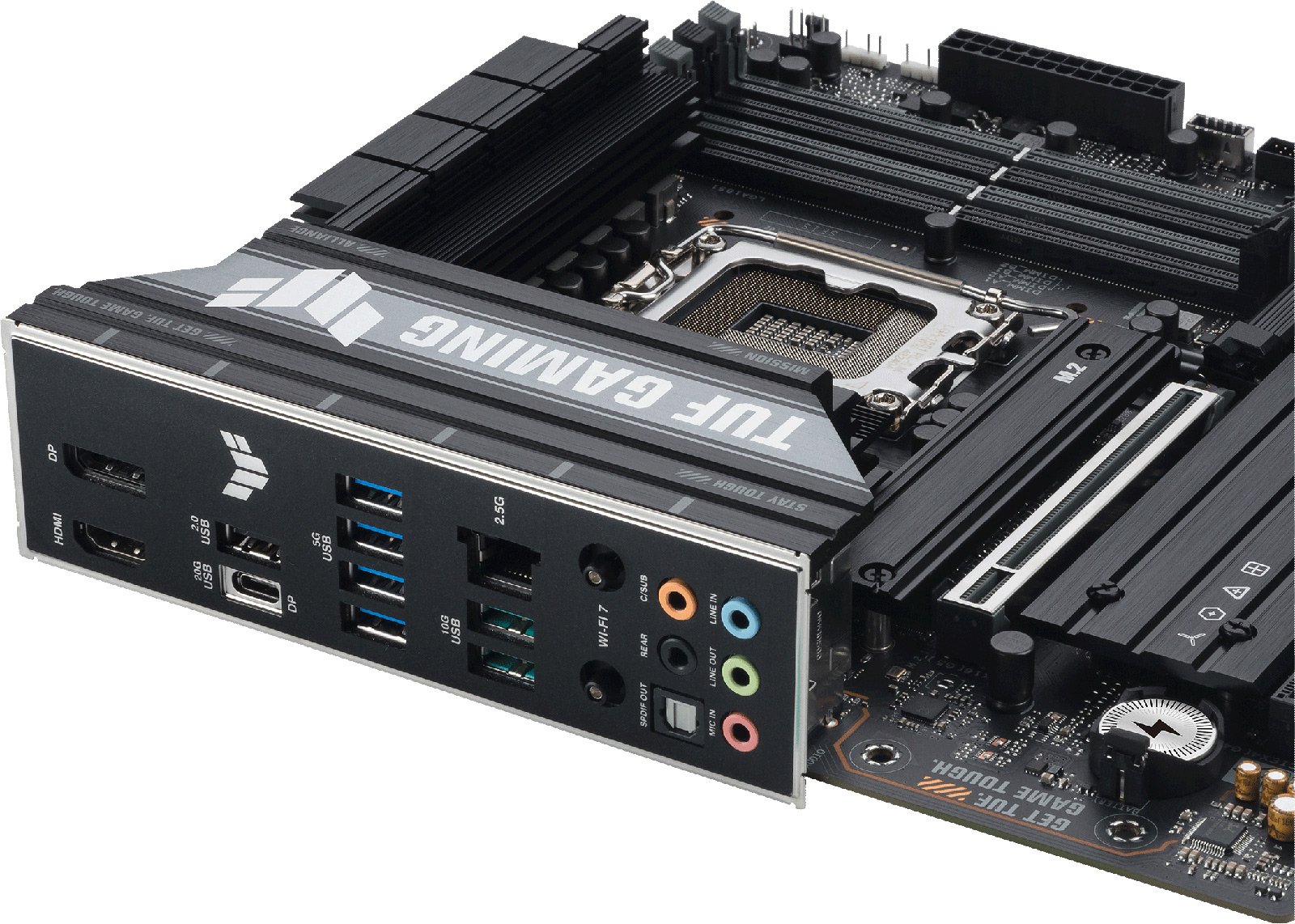

Rear Panel I/O Ports

USB Ports	1 x USB-C 3.2 2 x USB 3.1 4 x USB 3.0 1 x USB 2.0
DisplayPorts	1 x DisplayPort 1.4
HDMI Port	1 x HDMI 2.1
RJ-45 Ports	1 x RJ-45
Audio Line In Ports	1 x 3.5mm Jack
Audio Line Out Ports	3 x 3.5mm Jacks
Microphone In Port	1 x 3.5mm Jack
S/PDIF Port	1 x S/PDIF Optical Out

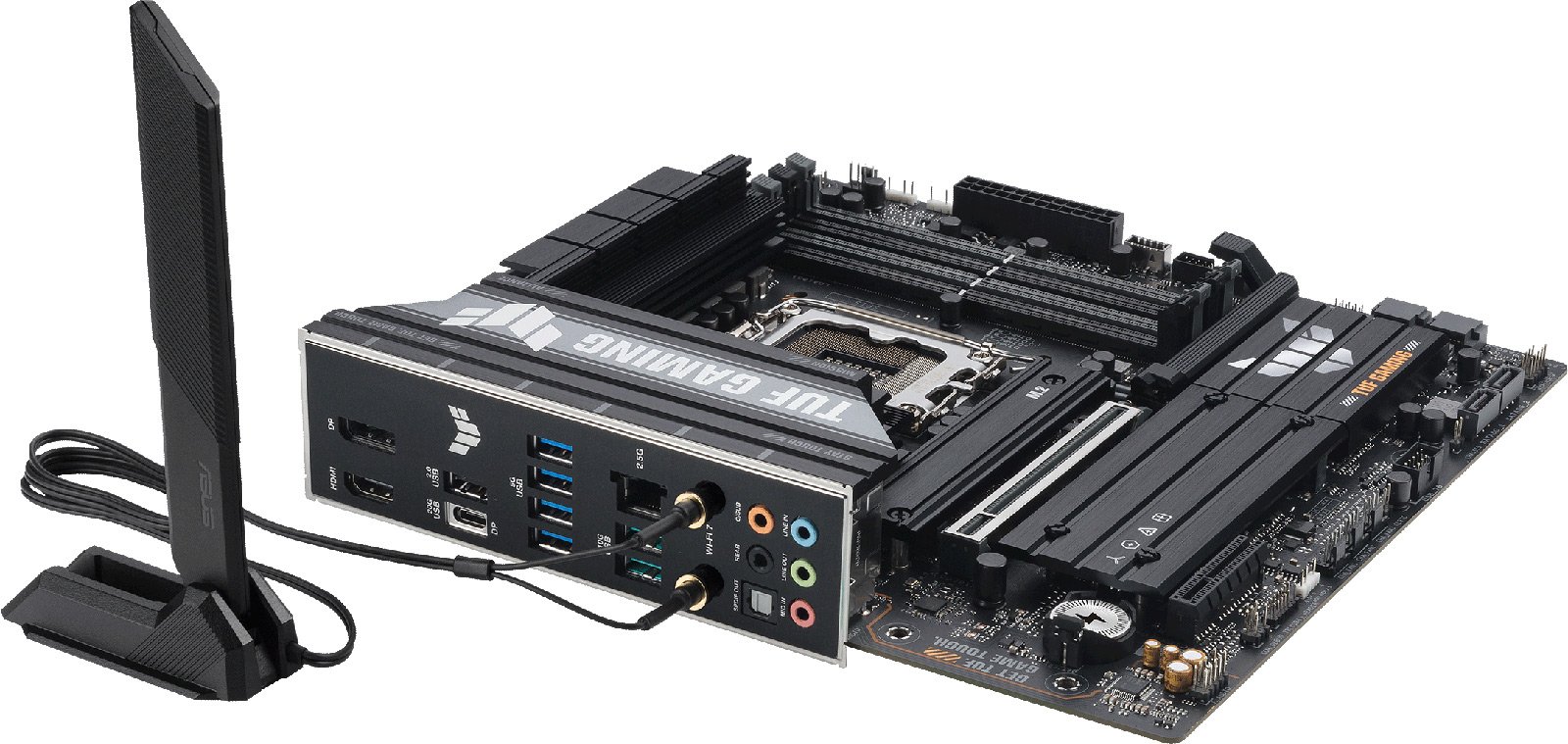

Antenna Connector(s)	2 x SMA Antenna

Internal I/O Connectors

SATA Connectors	4 x SATA III
USB Connectors	1 x USB-C 3.1 header (supports 1 port) 1 x USB 3.0 header (supports 2 ports) 1 x USB 2.0 header (supports 2 ports)
Front Panel Connectors	1 x Front Panel 1 x Front Audio
Cooling Fan Support	1 x CPU fan header 1 x CPU_OPT fan header 1 x AIO pump header 3 x Chassis fan headers
Thunderbolt Port(s)	1 x Thunderbolt header
Chassis Intrusion Connector	1 x Chassis Intrusion header
Power Connector Port	1 x 24-pin ATX 2 x 8-pin EPS
Other Connectors	1 x M.2 slot, Key M, Type 2280 (PCIe Gen5) 1 x M.2 slot, Key M, Type 2242/2260/2280 (PCIe Gen4) 1 x M.2 slot, Key M, Type 2280 (PCIe Gen4) 3 x 3-pin ARGB headers

Memory

Memory Bus Speed	Up to 8800 MT/s
Memory Type	DDR5
Maximum RAM	192 GB
Memory Slot	4 x dIMM

Motherboard

Northbridge	Intel B860
RAID Supported	Yes
RAID Format	RAID 0, 1, 5, 10
SATA Supported	Yes

Expansion

Number of PCI Express Slots

1 x PCI Express 5.0 x16 slot
1 x PCI Express 4.0 x4 slot

Graphics Device

Integrated Graphics Supported

Yes

Warranty

3 Years

Sound

Integrated Sound

Realtek

Network

Integrated Network	Realtek
Network Speeds Supported	Up to 2.5 Gbps
Wireless LAN	Yes (Wi-Fi 7)
Wireless Network Speed	Up to 2.9 Gbps
Bluetooth	Yes
Bluetooth Version	5.4

System Requirements

Operating Systems Supported

Microsoft Windows 11

System

Jumpers	1 x Clear CMOS
Software Included (may be trial or restricted)	Yes
Drivers	Yes

Physical

Form Factor	mATX Motherboard

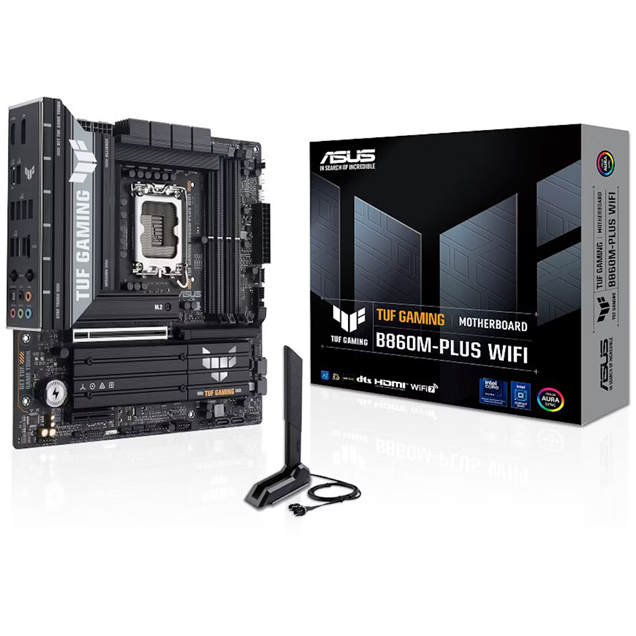

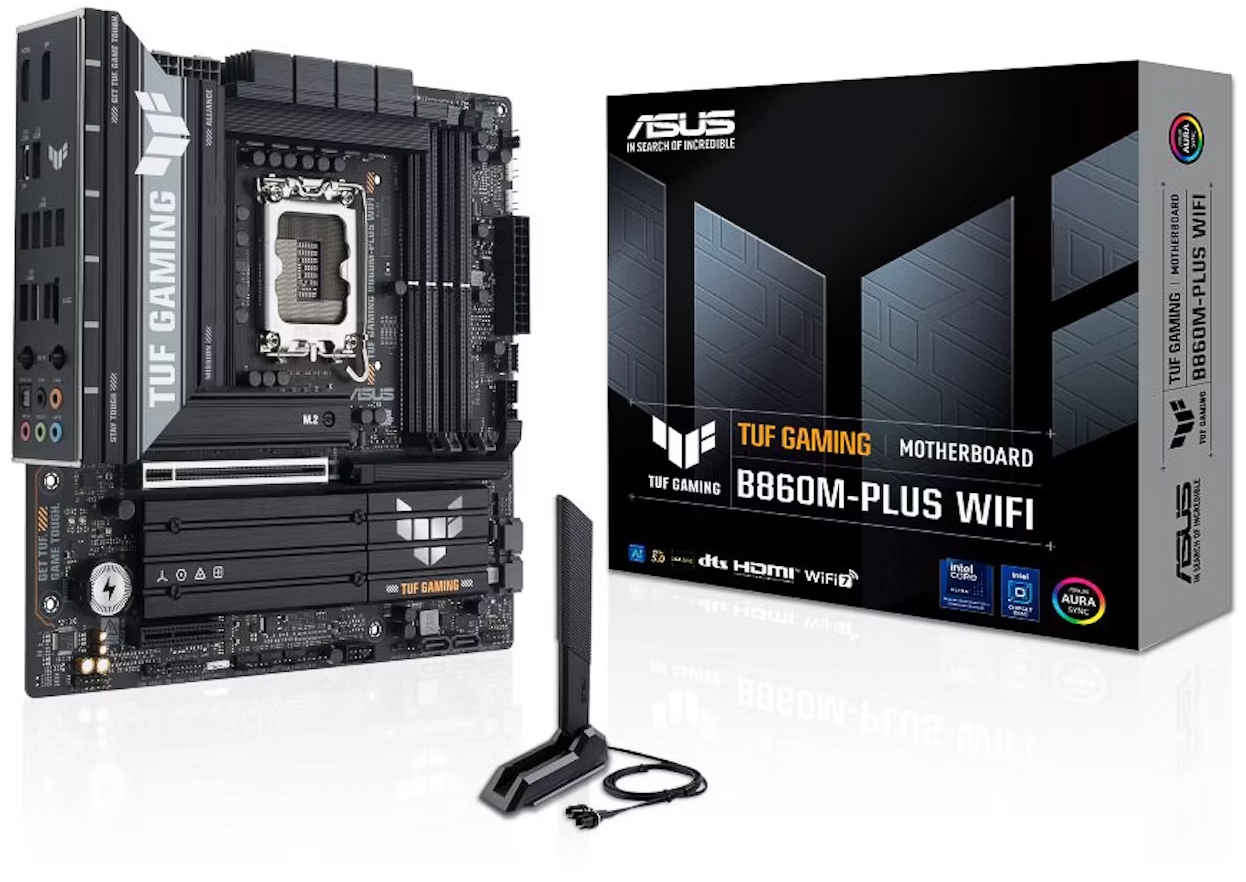

In The Box	Motherboard 2 x SATA 6Gb/s cables 1 x ASUS WiFi Q-Antenna 2 x M.2 Rubber Packages 1 x TUF Gaming sticker 1 x Screw package for M.2 SSD 1 x Quick start guide
Width	244 mm
Length	244 mm
Weight	0.982 kg

Key Features

Wireless Network	Yes
Motherboard Width	244 mm
Motherboard Height	244 mm
Main Colour	Black
Memory Channel	Dual
On-board Audio Type	7.1
Number of SATA Ports	4 port(s)
Number of USB Ports	8 port(s)
USB 3.0 Support	Yes
Multi GPU Support	No
VGA Connection	No
DVI Connection	No
HDMI Connection	Yes
DisplayPort Connection	Yes
Motherboard Form Factor	mATX
Motherboard (EPS) Power Connectors	2 x 8-Pin
Motherboard Chipset	Intel B860
Thunderbolt	No
Motherboard Model	ASUS TUF Gaming B860M-Plus WiFi
WiFi Speed	2900 Mbps
USB 3.1 Support	Yes
Internal USB3.0 Header	Yes
M.2 Support	Yes
On-board RGB Control	ASUS Aura Sync
RGB Header Type	3-Pin ARGB
Addressable RGB	Yes
Internal USB Type-C Header	Yes
Power Requirement (auto)	60 W
Max Memory Speed Supported (overclocked)	8800 MT/s
CPU Power Pins (female)	16
Total M.2 Slots	3
Maximum NVMe M.2 ports	3
SATA ports	4
No. of front USB2.0 ports supported	2
No. of front USB3.0 ports supported	2
No. of front USB-C ports supported	1
Back Connect Support	No
