CPU

• Installed Processors (Max): 0 (1)
• Supported Processor Manufacturer: Intel
• Supported Processors: Intel Core Ultra Processors (Series 2)
• 64-bit Support: Yes
• Socket: LGA1851

Rear Panel I/O Ports

• USB Ports: 1 x USB 3.1
• 2 x USB 3.0
• 3 x USB 2.0
• DisplayPorts: 1 x DisplayPort 1.4
• HDMI Port: 1 x HDMI 2.1

Internal I/O Connectors

• SATA Connectors: 4 x SATA III
• USB Connectors: 1 x USB-C 3.0 header (supports 1 port)
• 1 x USB 3.0 header (supports 2 ports)
  2 x USB 2.0 headers (supports 4 ports)

Memory

• Memory Bus Speed: Up to 8800 MT/s
• Memory Type: DDR5

Motherboard

• Northbridge: Intel B860
• RAID Supported: Yes
• RAID Format: RAID 0, 1, 5, 10
• SATA Supported: Yes

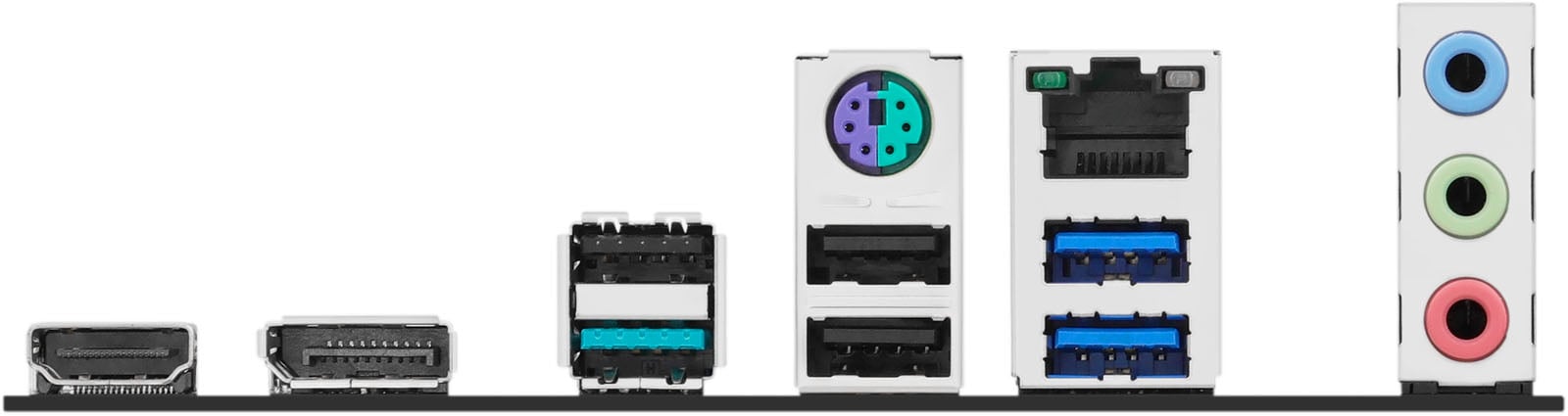

Rear Panel I/O Ports

• Keyboard/Mouse Combo Port: 1 x PS/2
• RJ-45 Ports: 1 x RJ-45
• Audio Line In Ports: 1 x 3.5mm Jack
• Audio Line Out Ports: 1 x 3.5mm Jack
• Microphone In Port: 1 x 3.5mm Jack

Internal I/O Connectors

• Front Panel Connectors: 1 x Front Panel
• 1 x Front Audio
• Cooling Fan Support: 1 x CPU fan header
• 2 x Chassis fan headers
• S/PDIF Connectors: 1 x S/PDIF Out header
• Serial Connectors: 1 x COM header
• TPM Header: 1 x SPI TPM header
• Power Connector Port: 1 x 24-pin ATX
• 1 x 8-pin EPS
• Other Connectors: 1 x M.2 slot, Key M, Type 2242/2260/2280 (PCIe Gen5)
• 1 x M.2 slot, Key M, Type 2242/2260/2280 (PCIe Gen4)
• 2 x 3-pin ARGB headers
• 1 x 4-pin RGB header

Expansion

• Number of PCI Express Slots: 1 x PCI Express 4.0 x16 slot
• 2 x PCI Express 4.0 x1 slots

Memory

• Maximum RAM: 96 GB
• Memory Slot: 2 x DIMM

Graphics Device

• Integrated Graphics Supported: Yes

Sound

• Integrated Sound: Realtek

Warranty

• Warranty: 3 Years

Network

• Integrated Network: Realtek
• Network Speeds Supported: Up to 2.5 Gbps
• Wireless LAN: No
• Bluetooth: No

System Requirements

• Operating Systems Supported: Microsoft Windows 11

System

• Jumpers: 1 x Clear CMOS
• Software Included: Yes
• Drivers: Yes

Environmental

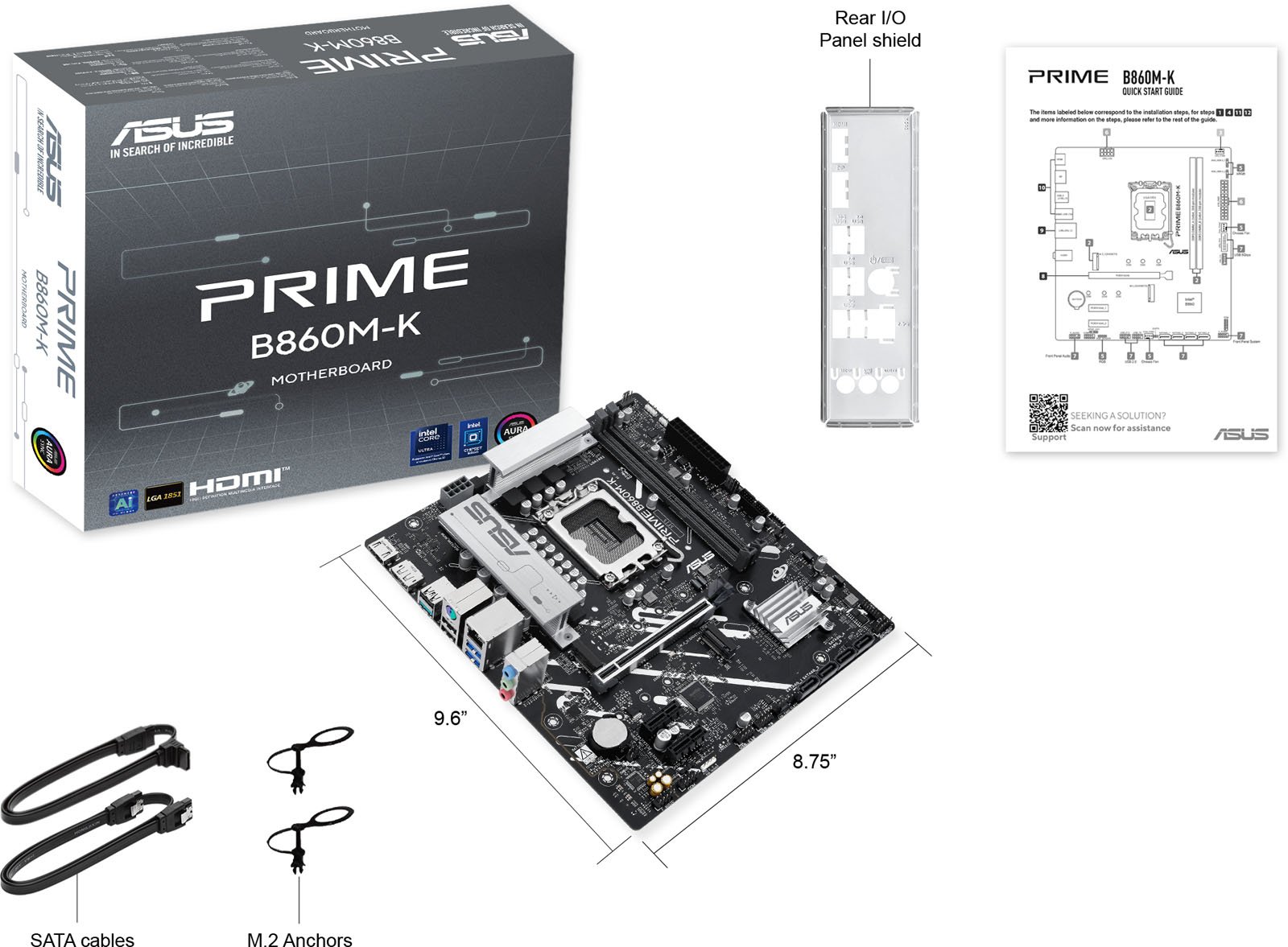

• Operating Humidity: Motherboard
• 2 x SATA 6Gb/s cables
• 1 x I/O Shield
• 2 x M.2 anchors
• 1 x Quick start guide

Physical

• Form Factor: mATX Motherboard
• In The Box: 0.585 kg
• Width: 222 mm
• Length: 244 mm

Identifiers

• Stock Code: MBD3804
• Mfg Code: 90MB1JT0-M0EAY0
