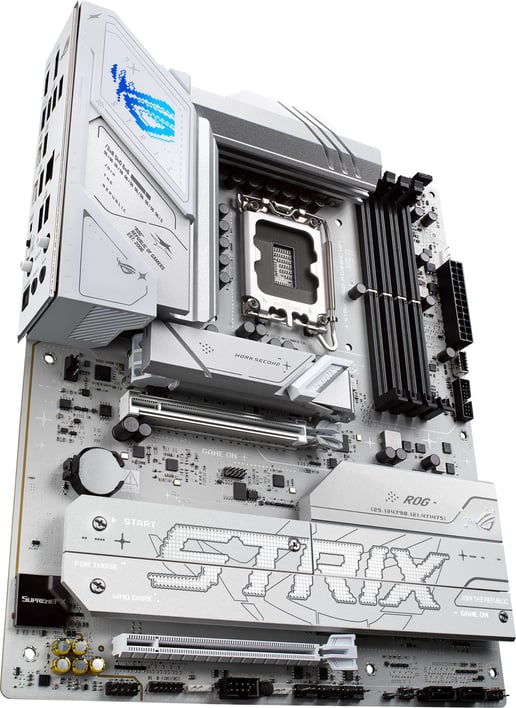

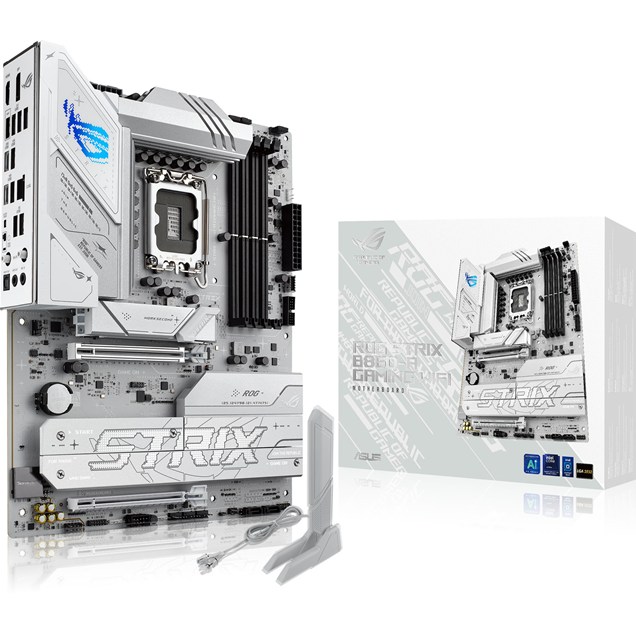

ASUS ROG Strix B860-A Gaming WiFi ATX Motherboard for Intel LGA1851 CPUs

Compare

ASUS ROG Strix B860-A Gaming WiFi ATX Motherboard for Intel LGA1851 CPUs

Name: ASUS ROG Strix B860-A Gaming WiFi ATX Motherboard for Intel LGA1851 CPUs
Brand: ASUS
SKU: MBD3794
Price: 249.99 GBP
Availability: InStock

90MB1JI0-M0EAY0

£249.99 inc VAT

Available for delivery from Saturday 22nd March

or Click & Collect from Monday 24th March

Buying in bulk? Contact our business team.

Add to Basket

Key Features:

ATX Form Factor
Intel B860 Chipset
Socket 1851
DDR5 (Max: 192GB / 4 slots)
4 x M.2 & 10 x USB & 4 x SATA
HDMI and Display Port

CCL Code: MBD3794

Overview

ASUS ROG STRIX B860-A GAMING WIFI Intel LGA1851 ATX Motherboard

Promotions

For a limited time, purchase a qualifying new ASUS motherboard and you can claim three advanced AI software tools focused on security, productivity, and manageability from ASUS!

Once you've made a qualifying purchase, visit the ASUS redemption site to claim your new software! Terms & Conditions apply.

Promotional Period: From December 27^th 2024 till March 28^th 2025, while stocks last. Your claim needs to be made with ASUS - CCL do not have nor can provide any code.

Terms and conditions apply. Click here to view details.

Terms and Conditions

UK residents only. Offer available on qualifying new ASUS motherboards. Offer may not be substituted, exchanged, sold, or redeemed for cash or other goods or services. Offer is available on orders placed on CCLOnline.com - offer is not valid on orders placed over the telephone or via our eBay or Amazon stores. Claims must be made directly with ASUS - CCL do not provide any codes directly. ASUS' full Terms & Conditions can be found here.

For a limited time, purchase a qualifying new ASUS product and you can claim a copy of Monster Hunter Wilds for PC from ASUS!

Once you've made a qualifying purchase, visit the ASUS redemption site to claim your copy of Monster Hunter Wilds! Terms & Conditions apply.

Promotional Period: From February 6^th 2025 till March 20^th 2025, while stocks last.

Redemption Period: From January 13^th 2025 till April 3^rd 2025. Your claim needs to be made with ASUS - CCL do not have nor can provide any code.

Terms and conditions apply. Click here to view details.

Terms and Conditions

UK residents only. Offer available on qualifying new ASUS products. Offer may not be substituted, exchanged, sold, or redeemed for cash or other goods or services. Offer is available on orders placed on CCLOnline.com - offer is not valid on orders placed over the telephone or via our eBay or Amazon stores. Claims must be made directly with ASUS - CCL do not provide any codes directly. ASUS' full Terms & Conditions can be found here.

Specifications

CPU

CPU Socket	Socket 1851
CPU Brand	Intel
Installed Processors (Max)	0 (1)
Supported Processor Manufacturer	Intel
Supported Processors	Intel Core Ultra Processors (Series 2)
64-bit Support	Yes
Socket	LGA1851

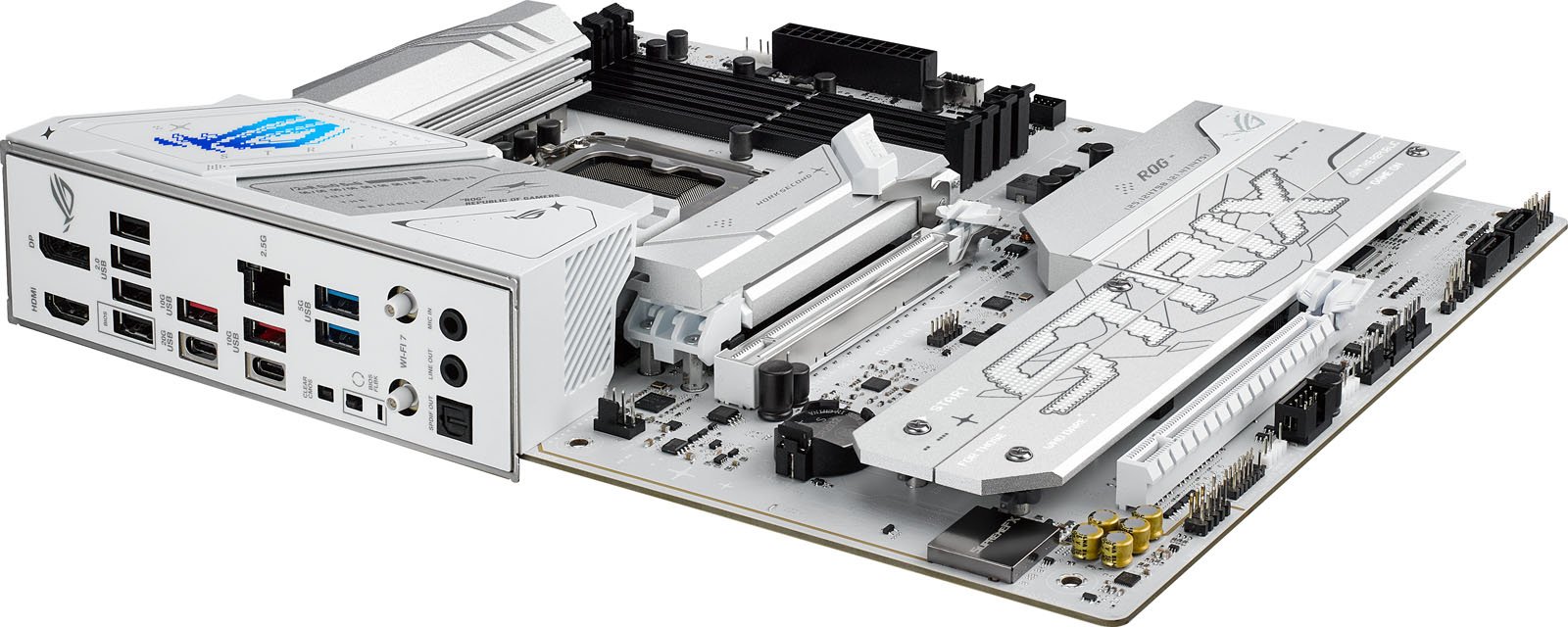

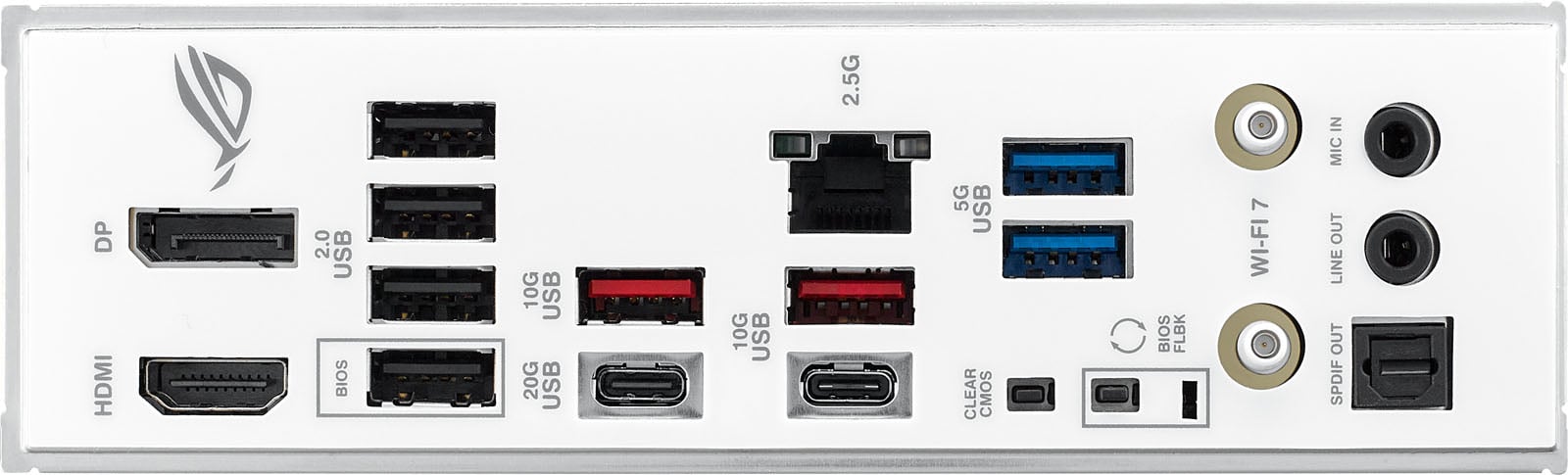

Rear Panel I/O Ports

USB Ports	1 x USB-C 4 1 x USB-C 3.1 2 x USB 3.1 2 x USB 3.0 4 x USB 2.0
DisplayPorts	1 x DisplayPort 1.4
HDMI Port	1 x HDMI 2.1
RJ-45 Ports	1 x RJ-45
Audio Line In Ports	1 x 3.5mm Jack
Audio Line Out Ports	1 x 3.5mm Jack
S/PDIF Port	1 x S/PDIF Optical Out
Antenna Connector(s)	2 x SMA Antennas

Internal I/O Connectors

SATA Connectors	4 x SATA III
USB Connectors	1 x USB-C 3.1 header (supports 1 port) 1 x USB 3.0 header (supports 2 ports) 1 x USB 2.0 header (supports 2 ports)
Cooling Fan Support	1 x CPU fan header 1 x CPU_OPT fan header 1 x AIO pump header 4 x Chassis fan headers
Thunderbolt Port(s)	1 x Thunderbolt header
Power Connector Port	1 x 24-pin ATX 2 x 8-pin EPS
Other Connectors	1 x M.2 slot, Key M, Type 2242/2260/2280 (PCIe Gen5) 1 x M.2 slot, Key M, Type 2280/22110 (PCIe Gen4) 2 x M.2 slots, Key M, Type 2280 (PCIe Gen4) 3 x 3-pin ARGB headers 1 x Thermal Sensor header

Memory

Memory Bus Speed	Up to 9066 MT/s
Memory Type	DDR5
Maximum RAM	192 GB
Memory Slot	4 x DIMM

Motherboard

Northbridge	Intel B860
RAID Supported	Yes
RAID Format	RAID 0, 1, 5, 10
SATA Supported	Yes

Expansion

Number of PCI Express Slots

1 x PCI Express 5.0 x16 slot
1 x PCI Express 4.0 x16 slot (@ x4)

Graphics Device

Integrated Graphics Supported

Yes

Warranty

3 Years

Sound

Integrated Sound

Realtek ALC1220P

Network

Integrated Network	Intel
Network Speeds Supported	Up to 2.5 Gbps
Wireless LAN	Yes (Wi-Fi 7)
Wireless Network Speed	Up to 2.9 Gbps
Bluetooth	Yes
Bluetooth Version	5.4

System Requirements

Operating Systems Supported

Microsoft Windows 11

System

Software Included (may be trial or restricted)	Yes
Drivers	Yes

Physical

Form Factor	ATX Motherboard

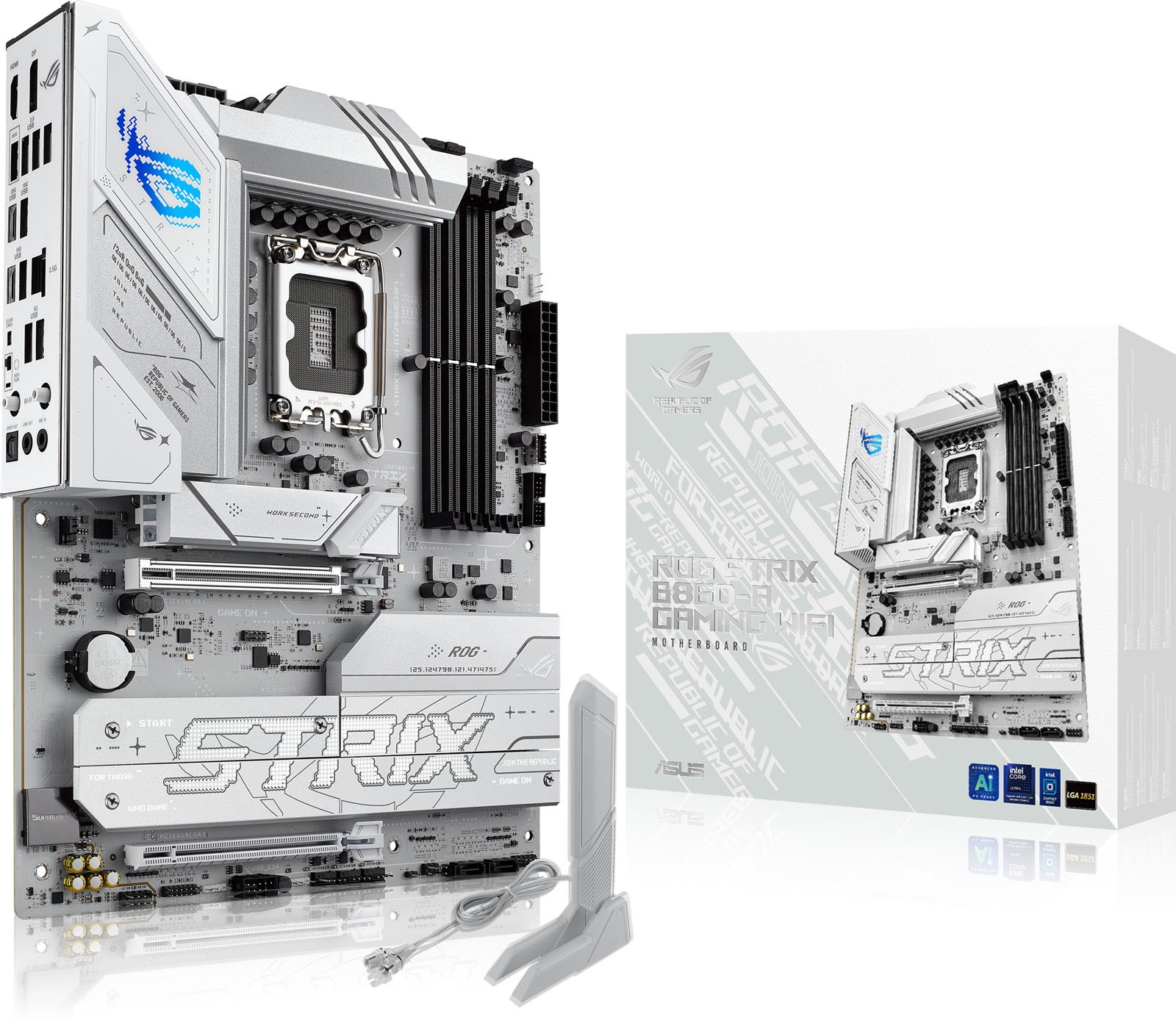

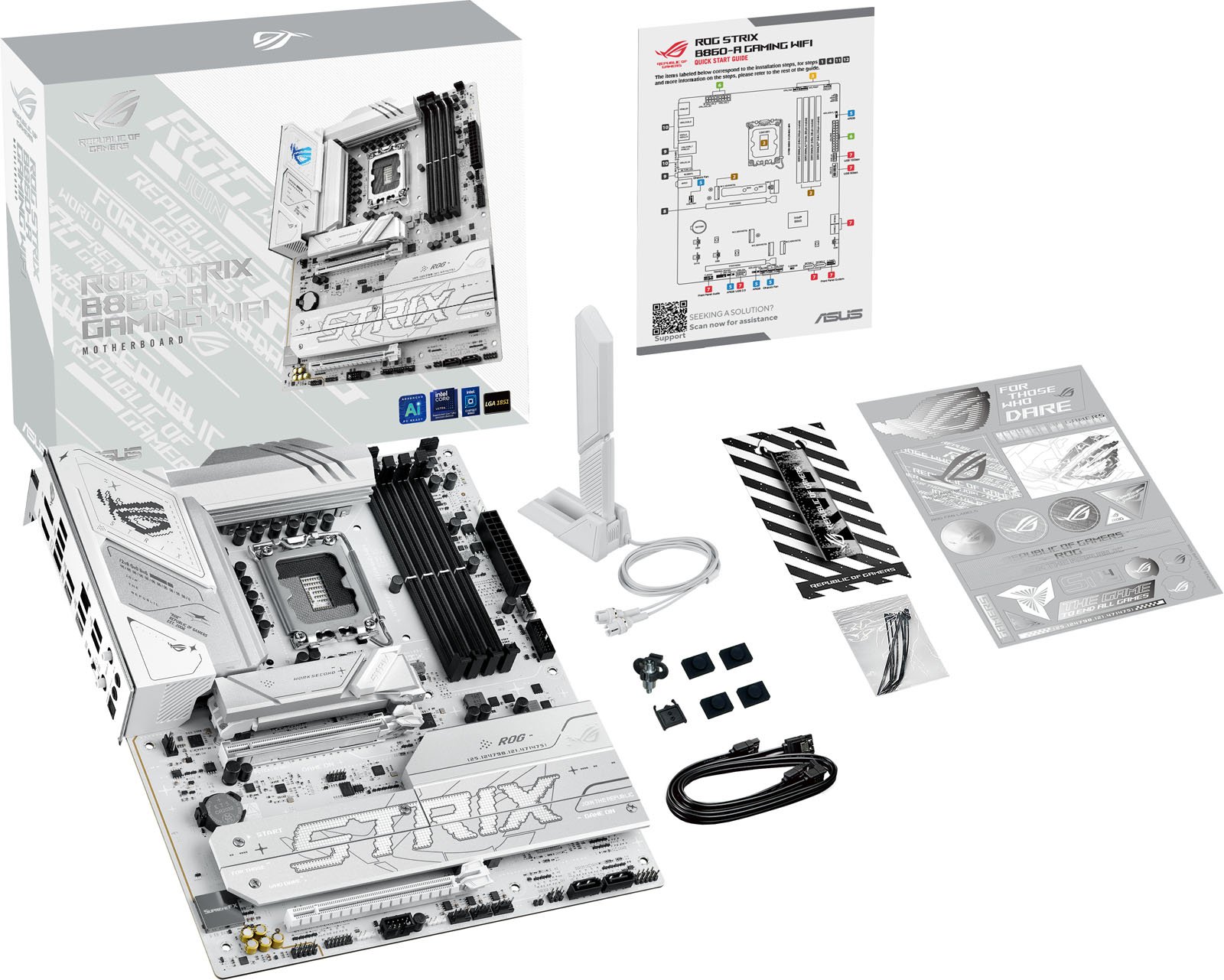

In The Box	Motherboard 2 x SATA 6Gb/s cables 1 x ASUS WiFi Q-Antenna 1 x Cable ties package 1 x M.2 Q-Latch 1 x M.2 Q-Slide 1 x ROG Strix stickers 4 x M.2 rubbers 1 x Quick start guide
Width	244 mm
Length	305 mm
Weight	1.401 kg

Key Features

Wireless Network	Yes
Motherboard Width	244 mm
Motherboard Height	305 mm
Main Colour	White
Memory Channel	Dual
On-board Audio Type	7.1
Number of SATA Ports	4 port(s)
Number of USB Ports	10 port(s)
USB 3.0 Support	Yes
Multi GPU Support	No
VGA Connection	No
DVI Connection	No
HDMI Connection	Yes
DisplayPort Connection	Yes
Motherboard Form Factor	ATX
Motherboard (EPS) Power Connectors	2 x 8-Pin
Motherboard Chipset	Intel B860
Thunderbolt	No
Motherboard Model	ASUS ROG Strix B860-A Gaming WiFi
WiFi Speed	2900 Mbps
USB 3.1 Support	Yes
Internal USB3.0 Header	Yes
M.2 Support	Yes
On-board RGB Control	ASUS Aura Sync
RGB Header Type	3-Pin ARGB
Addressable RGB	Yes
Internal USB Type-C Header	Yes
Power Requirement (auto)	70 W
Max Memory Speed Supported (overclocked)	9066 MT/s
CPU Power Pins (female)	16
Total M.2 Slots	4
Maximum NVMe M.2 ports	4
SATA ports	4
No. of front USB2.0 ports supported	2
No. of front USB3.0 ports supported	2
No. of front USB-C ports supported	1
Back Connect Support	No
