CPU

• Installed Processors (Max): 0 (1)
• Supported Processor Manufacturer: Intel
• Supported Processors: Intel Core Ultra Processors (Series 2)
• 64-bit Support: Yes
• Socket: LGA1851

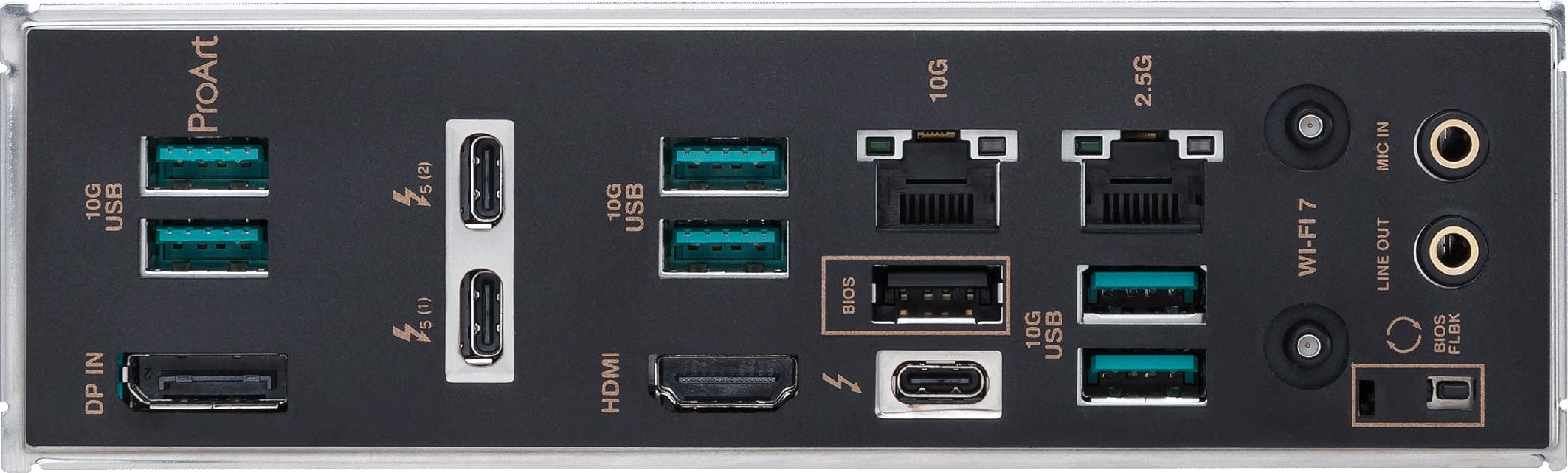

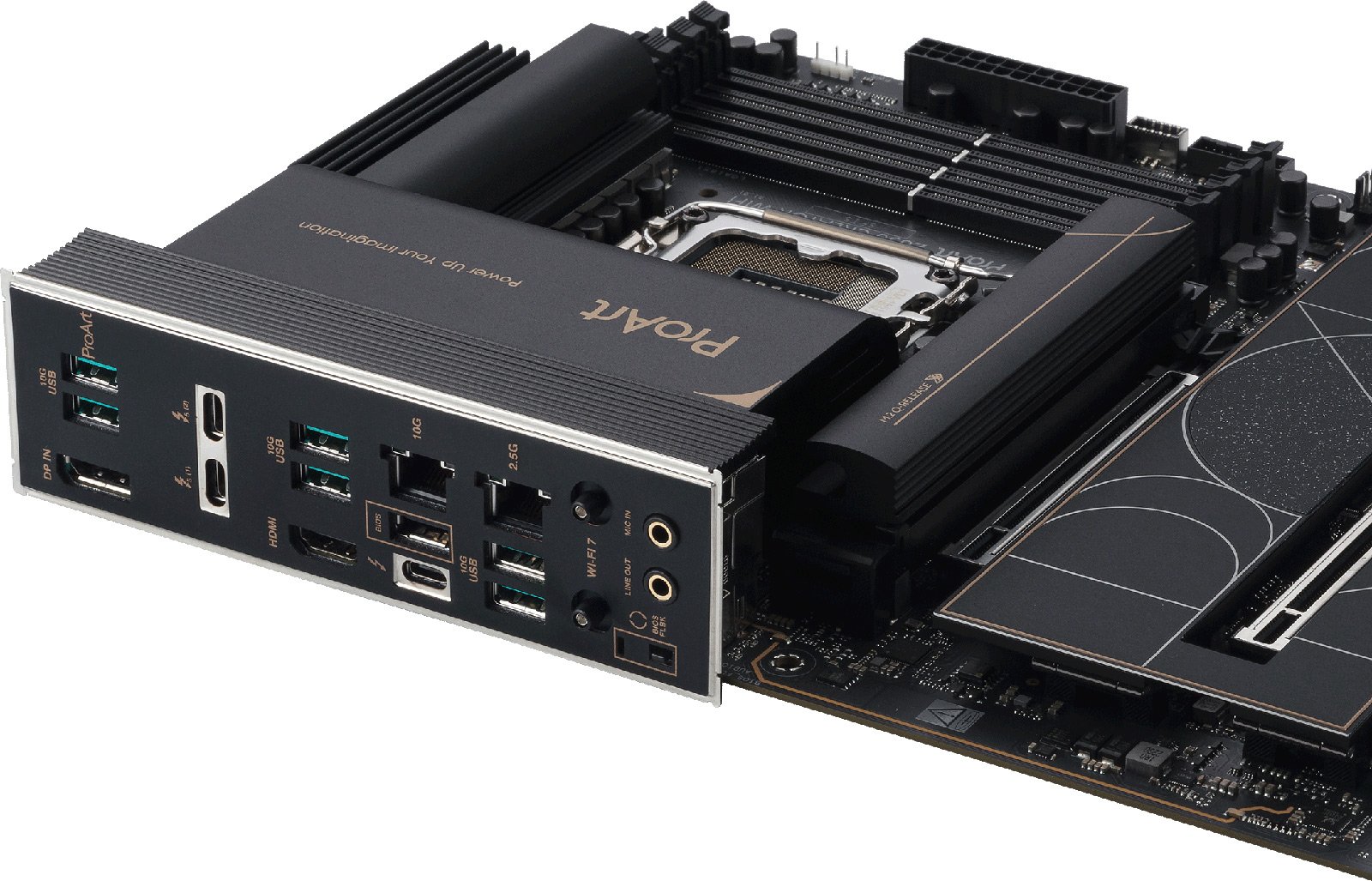

Rear Panel I/O Ports

• USB Ports: 2 x Thunderbolt 5
• 1 x Thunderbolt 4
• 6 x USB 3.1
• 1 x USB 2.0
• DisplayPorts: 1 x DisplayPort INPUT
• HDMI Port: 1 x HDMI 2.1

Internal I/O Connectors

• SATA Connectors: 4 x SATA
• USB Connectors: 1 x USB-C 3.2 header (supports 1 port)
  1 x USB 3.0 header (supports 2 ports)
• 1 x USB 2.0 header (supports 2 ports)

Memory

• Memory Bus Speed: Up to 9066 MT/s
• Memory Type: DDR5

Motherboard

• Northbridge: Intel Z890
• RAID Supported: Yes
• RAID Format: RAID 0, 1, 5, 10
• SATA Supported: Yes

Rear Panel I/O Ports

• RJ-45 Ports: 1 x RJ-45
• Audio Line Out Ports: 1 x 3.5mm Jack
• Microphone In Port: 1 x 3.5mm Jack
• Antenna Connector(s): 2 x SMA Antenna

Internal I/O Connectors

• Front Panel Connectors: 1 x Front Panel
• 1 x Front Audio
• Cooling Fan Support: 1 x CPU fan header
• 1 x CPU OPT fan header
• 1 x AIO pump header
• 5 x Chassis fan headers
• Serial Connectors: 1 x COM header
• Chassis Intrusion Connector: 1 x Chassis Intrusion header
• TPM Header: 1 x SPI TPM header
• Power Connector Port: 1 x 24-pin ATX
• 2 x 8-pin EPS

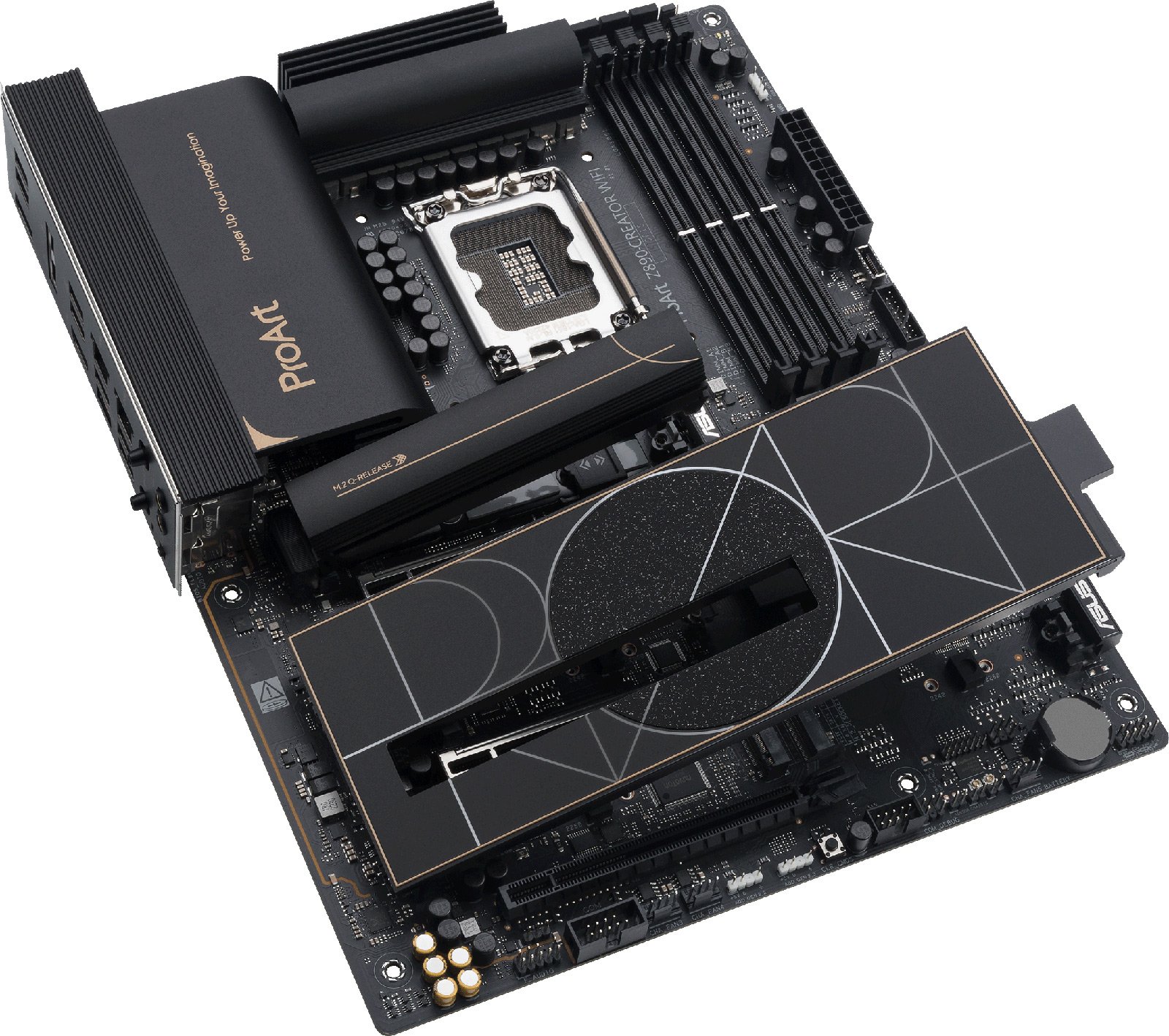

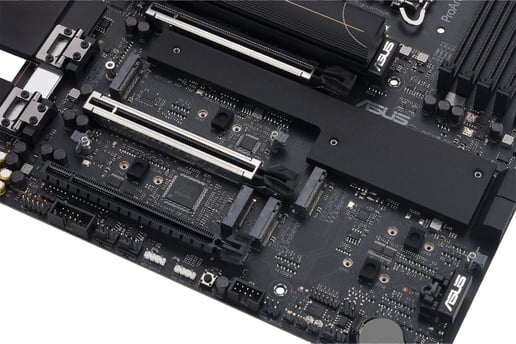

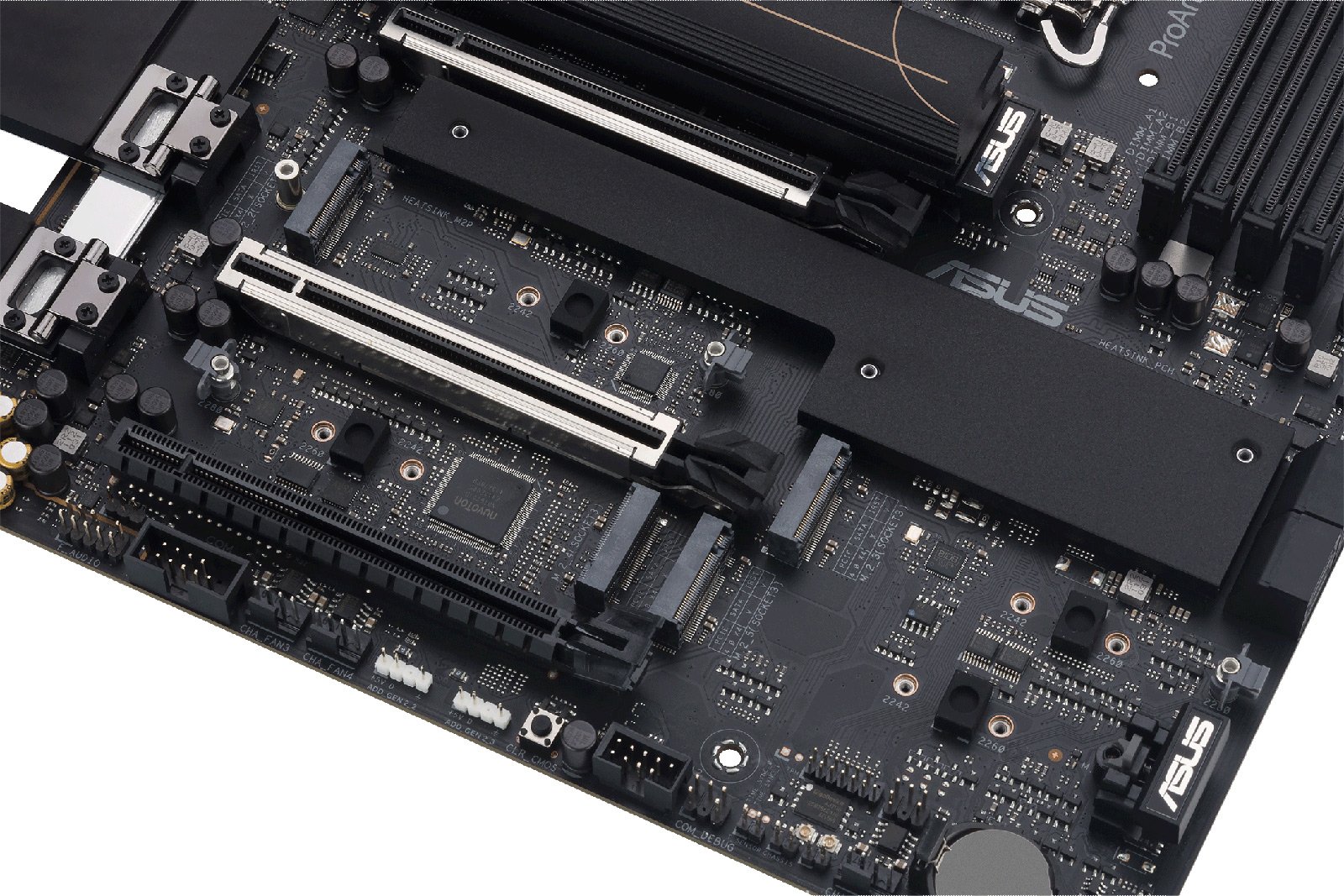

• Other Connectors: 1 x M.2 slot, Key M, Type 2242/2260/2280/22110 (PCIe Gen5)
• 3 x M.2 slots, Key M, Type 2242/2260/2280 (PCIe Gen4)
• 1 x M.2 slot, Key M, Type 2242/2260/2280 (PCIe Gen4 or SATA)
• 3 x 3-pin ARGB headers
• 1 x Thermal Sensor header

Expansion

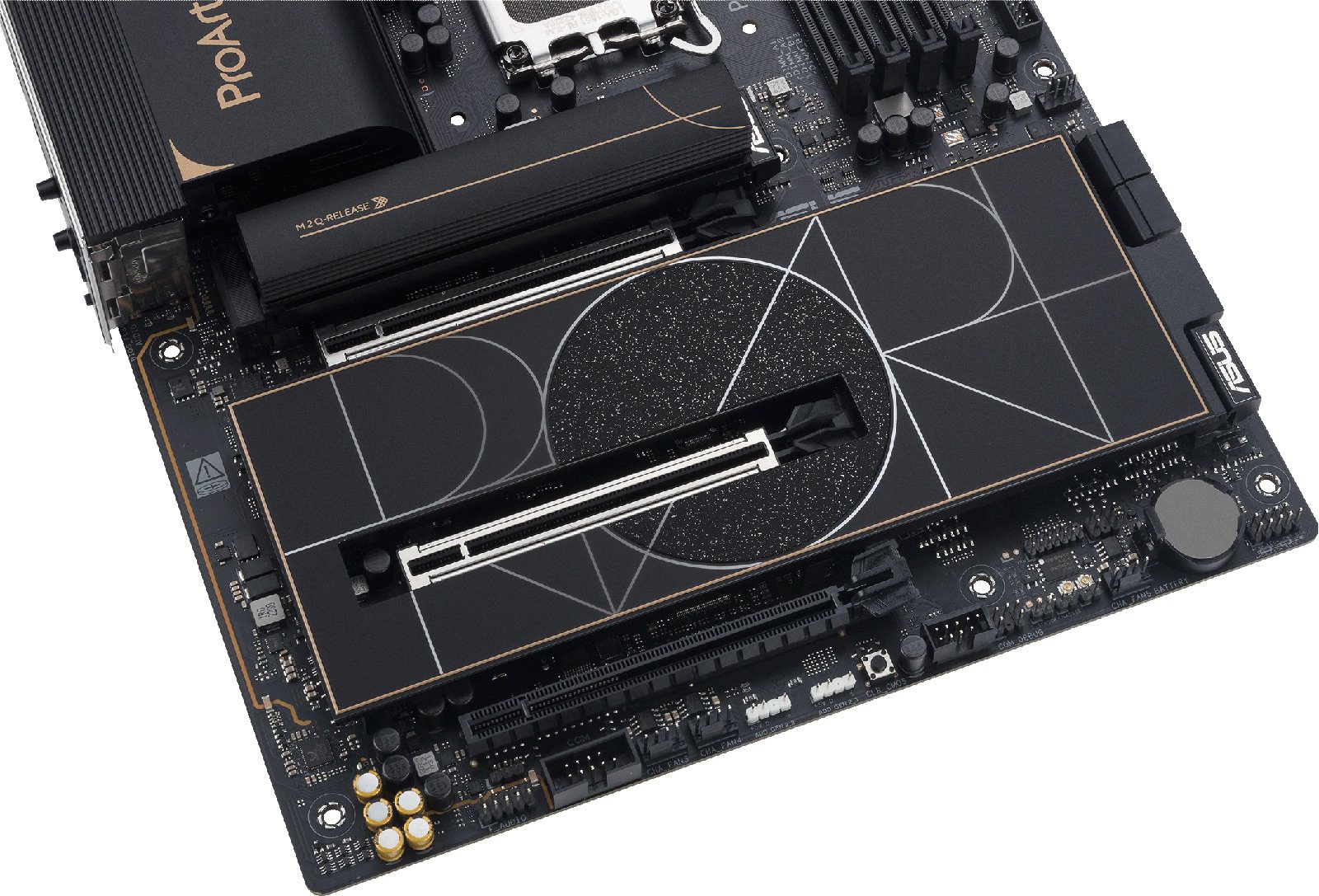

• Number of PCI Express Slots: 2 x PCI Express 5.0 x16 slots (@ x16/x0 or x8/x8)
• 1 x PCI Express 4.0 x16 slot (@ x4)

Memory

• Maximum RAM: 256 GB
• Memory Slot: 4 x DIMM

Graphics Device

• Integrated Graphics Supported: Yes

Sound

• Integrated Sound: Realtek ALC1220P

Warranty

• Warranty: 3 Years

Network

• Integrated Network: Marvell AQtion
• Intel
• Network Speeds Supported: Up to 10 Gbps (Marvell)
  Up to 2.5 Gbps (Intel)

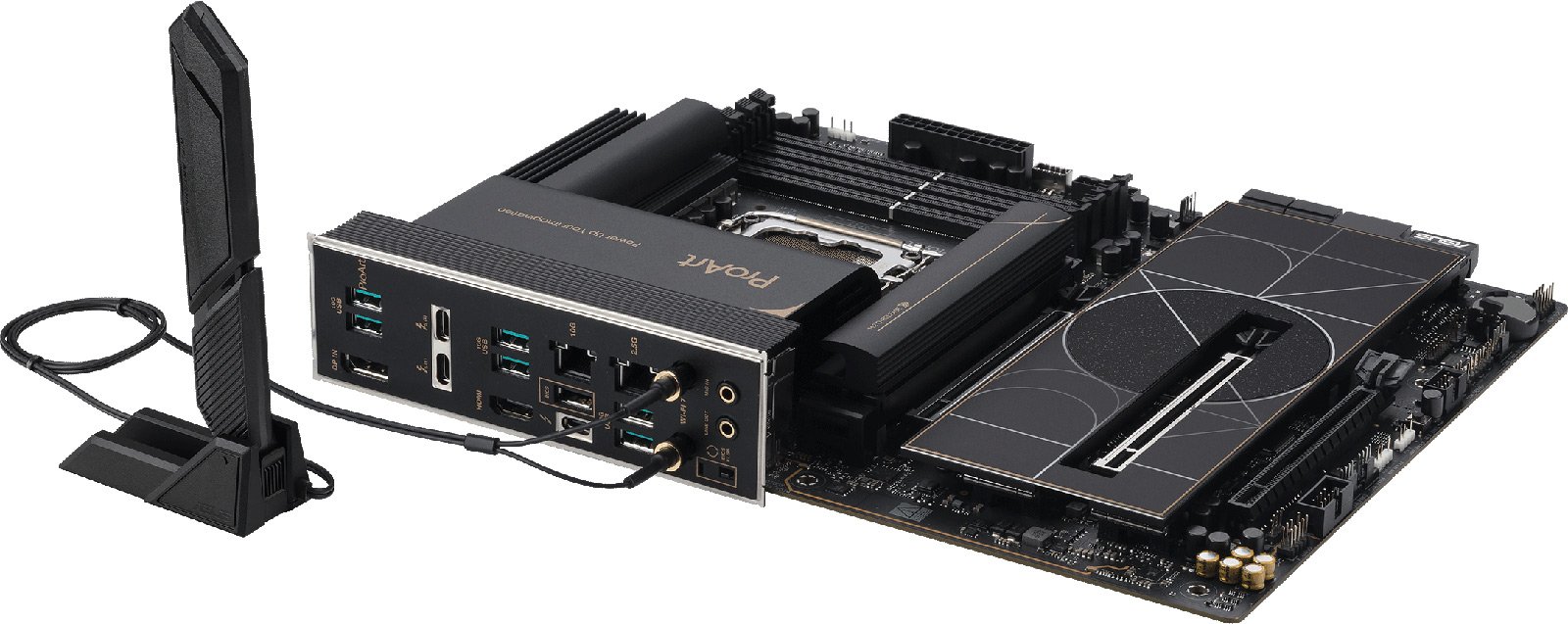

• Wireless LAN: Yes (Wi-Fi 7)
• Wireless Network Speed: Up to 5.8 Gbps
• Bluetooth: Yes
• Bluetooth Version: 5.4

System Requirements

• Operating Systems Supported: Microsoft Windows 11

System

• Jumpers: 1 x CPU Over Voltage
• Software Included: Yes
• Drivers: Yes

Physical

• Form Factor: ATX Motherboard

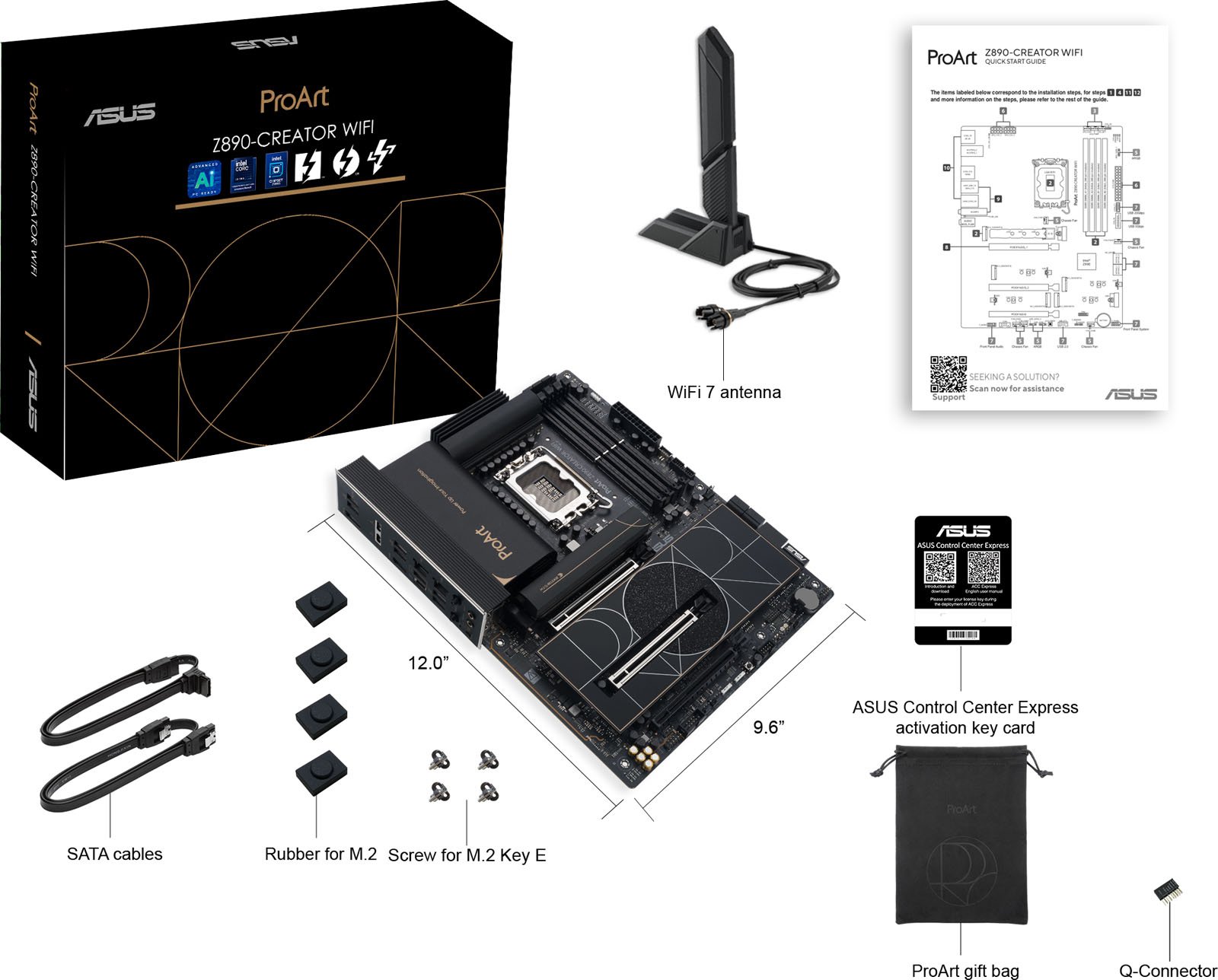

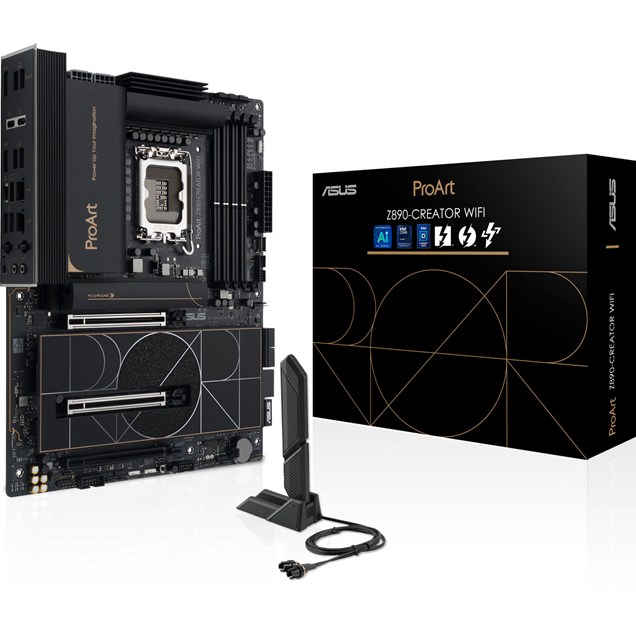

• In The Box: Motherboard
• 2 x SATA 6Gb/s cables
• 1 x ASUS WiFi Q-Antenna
• 1 x Q-connector
• 2 x M.2 Q-Latch packages
• 2 x M.2 rubber packages
• 1 x ProArt accessory bag
• 1 x ACC Express activation key card
• 1 x Quick start guide
• Width: 244 mm
• Length: 305 mm

Identifiers

• Stock Code: MBD3880
• Mfg Code: 90MB1JD0-M0EAY0
