CPU

• Installed Processors (Max): 0 (1)
• Supported Processor Manufacturer: AMD
• Supported Processors: AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors
• 64-bit Support: Yes
• Socket: AM5

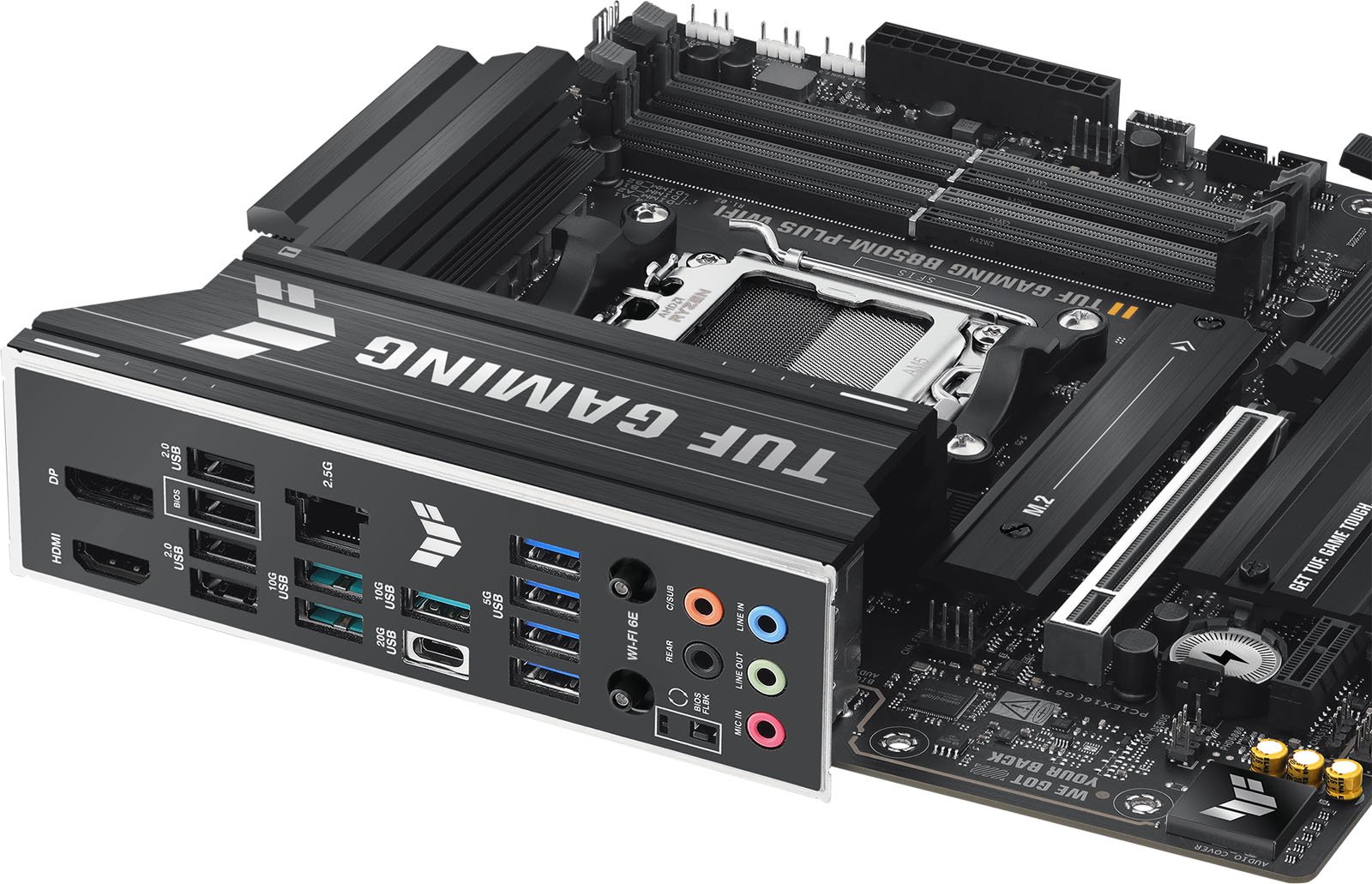

Rear Panel I/O Ports

• USB Ports: 1 x USB-C 3.2
• 3 x USB 3.1
• 4 x USB 3.0
• 4 x USB 2.0
• DisplayPorts: 1 x DisplayPort 1.4
• HDMI Port: 1 x HDMI 2.1

Internal I/O Connectors

• SATA Connectors: 4 x SATA
• USB Connectors: 1 x USB-C 3.1 header (supports 1 port)
  1 x USB 3.0 header (supports 2 ports)
• 2 x USB 2.0 headers (supports 4 ports)

Memory

• Memory Bus Speed: Up to 8000 MT/s
• Memory Type: DDR5

Motherboard

• Northbridge: AMD B850
• RAID Supported: Yes
• RAID Format: RAID 0, 1, 10
• SATA Supported: Yes

Rear Panel I/O Ports

• RJ-45 Ports: 1 x RJ-45
• Audio Line In Ports: 1 x 3.5mm Jack
• Audio Line Out Ports: 3 x 3.5mm Jacks
• Microphone In Port: 1 x 3.5mm Jack

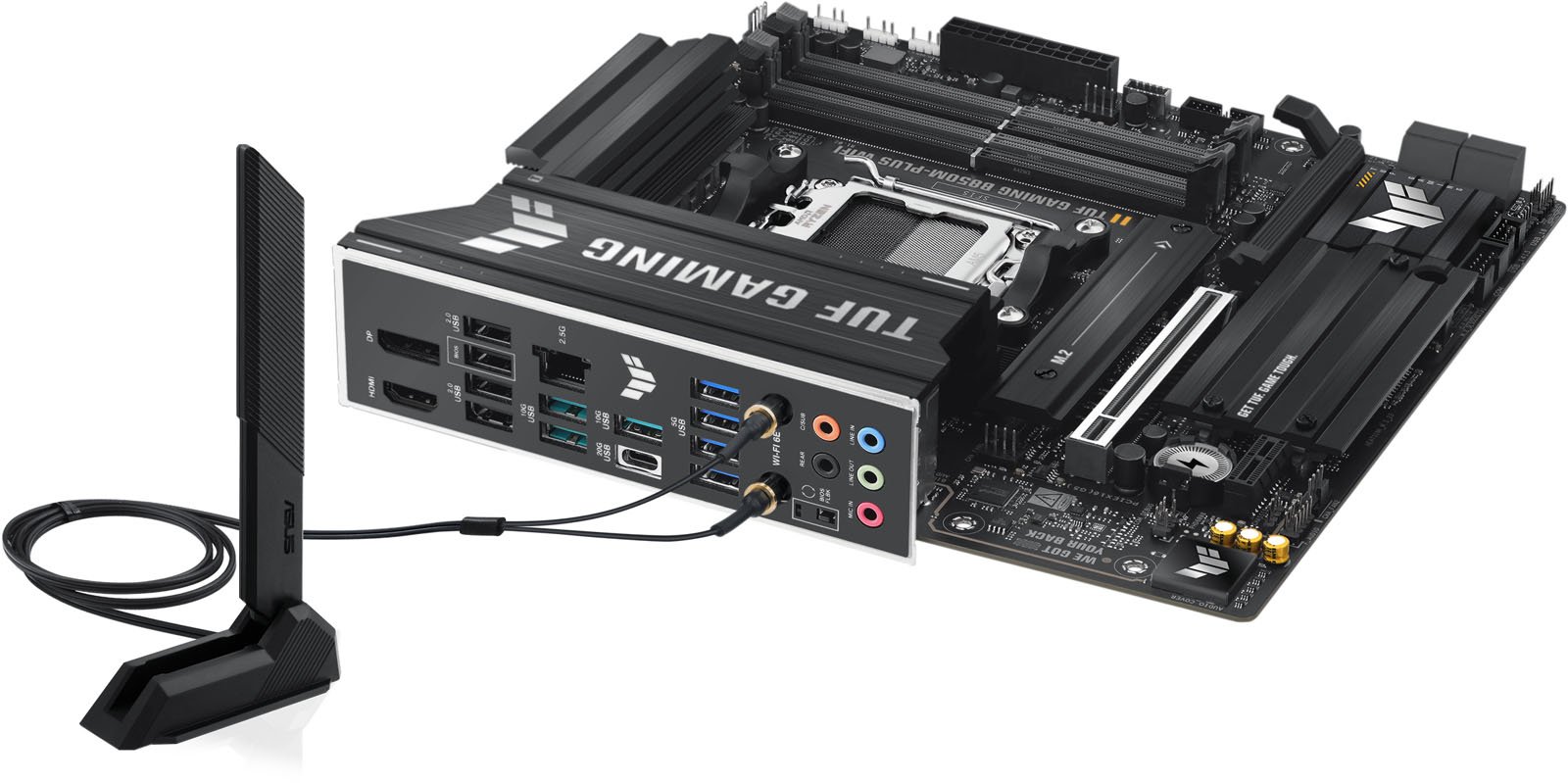

• Antenna Connector(s): 2 x SMA Antenna

Internal I/O Connectors

• Front Panel Connectors: 1 x Front Panel
• 1 x Front Audio
• Cooling Fan Support: 1 x CPU fan header
• 1 x CPU_OPT fan header
• 1 x AIO pump header
• 3 x Chassis fan headers
• Serial Connectors: 1 x COM header
• Chassis Intrusion Connector: 1 x Chassis Intrusion header
• Power Connector Port: 1 x 24-pin ATX
• 2 x 8-pin EPS
• Other Connectors: 1 x M.2 slot, Key M, Type 2280 (PCIe Gen5)
• 1 x M.2 slot, Key M, Type 2242/2260/2280 (PCIe Gen4)
• 1 x M.2 slot, Key M, Type 2280 (PCIe Gen4)
• 3 x 3-pin ARGB headers

Expansion

• Number of PCI Express Slots: 1 x PCI Express 5.0 x16 slot
• 1 x PCI Express 4.0 x1 slot

Memory

• Maximum RAM: 192 GB
• Memory Slot: 4 x DIMM

Graphics Device

• Integrated Graphics Supported: Yes

Sound

• Integrated Sound: Realtek

Warranty

• Warranty: 3 Years

Network

• Integrated Network: Realtek
• Network Speeds Supported: Up to 2.5 Gbps
• Wireless LAN: Yes (Wi-Fi 6E)
• Bluetooth: Yes
• Bluetooth Version: 5.3

System Requirements

• Operating Systems Supported: Microsoft Windows 11

System

• Software Included: Yes
• Drivers: Yes

Physical

• Form Factor: mATX Motherboard

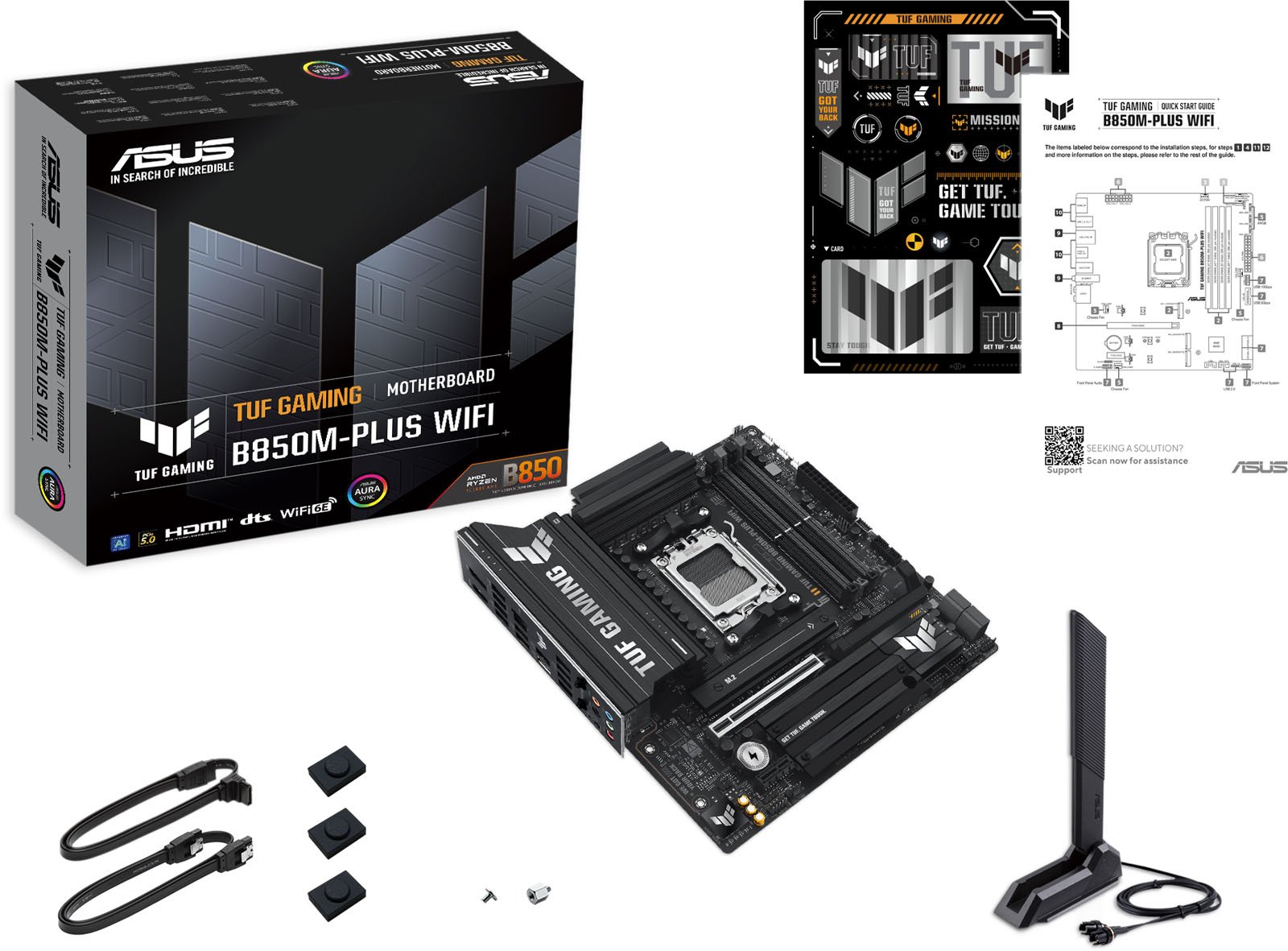

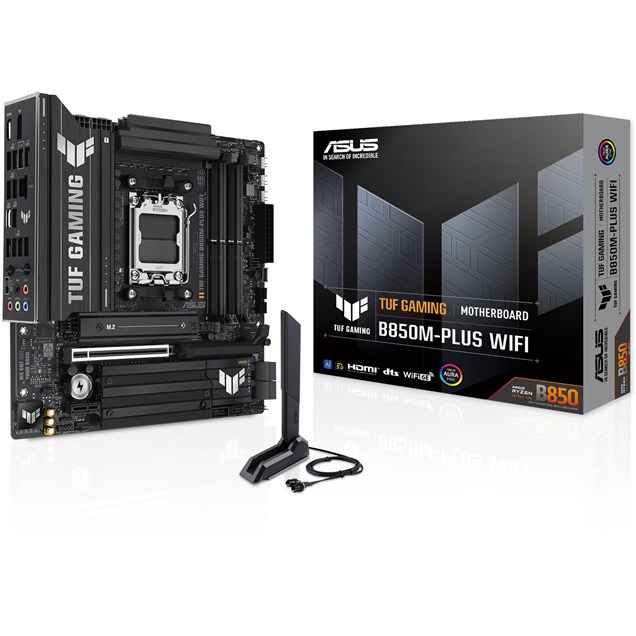

• In The Box: Motherboard
• 2 x SATA 6Gb/s cables
• 1 x ASUS WiFi Q-Antenna
• 1 x TUF GAMING sticker
• 2 x M.2 rubber packages
• 1 x Screw package for M.2 SSD
• 1 x Quick start guide
• Width: 244 mm
• Length: 244 mm
• Weight: 1.2 kg

Identifiers

• Stock Code: MBD3788
• Mfg Code: 90MB1IY0-M0EAY0
