CPU

• Installed Processors (Max): 0 (1)
• Supported Processor Manufacturer: AMD
• Supported Processors: AMD Ryzen 9000, 8000 & 7000 Series Desktop Processors
• 64-bit Support: Yes

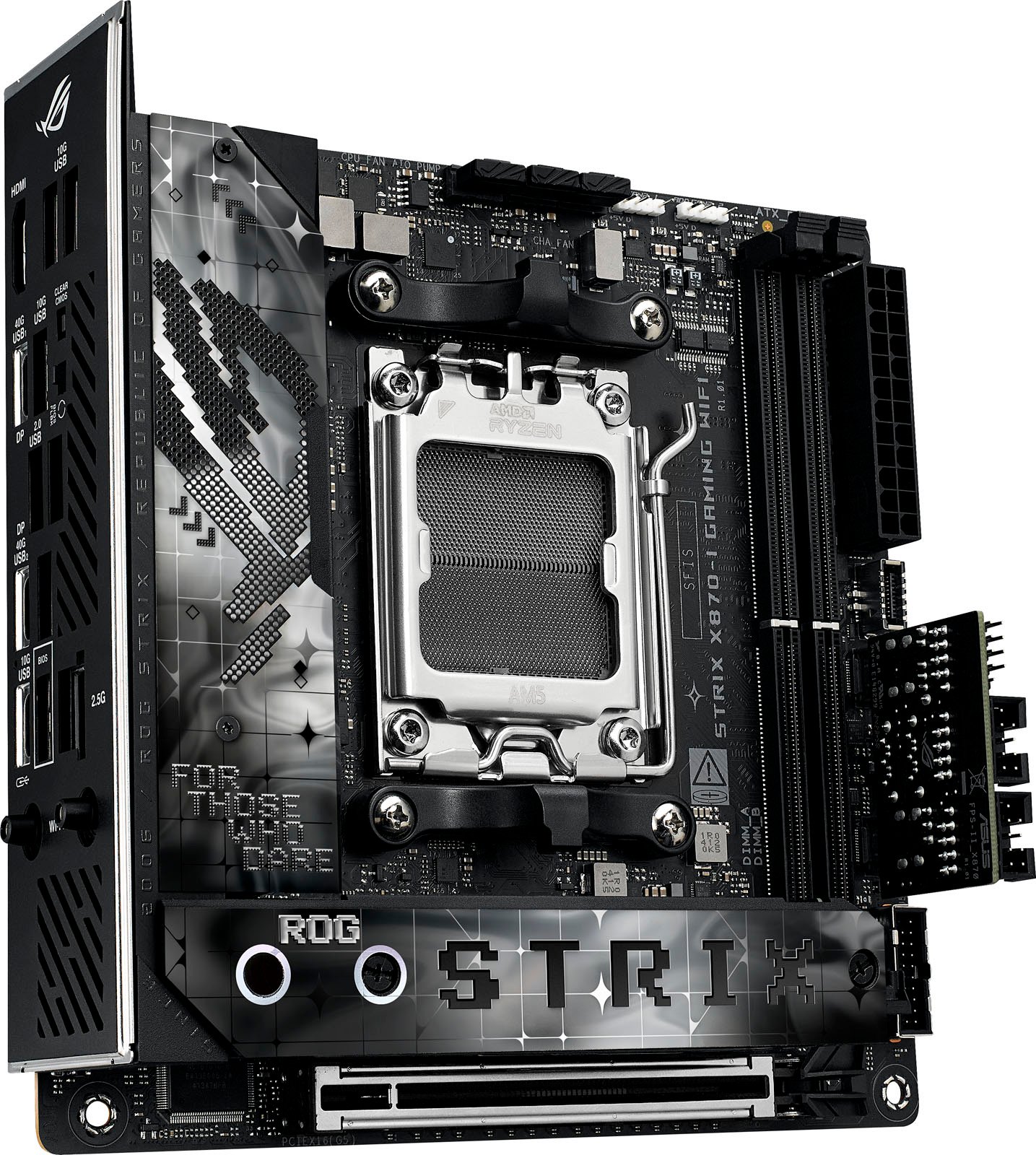

• Socket: AM5

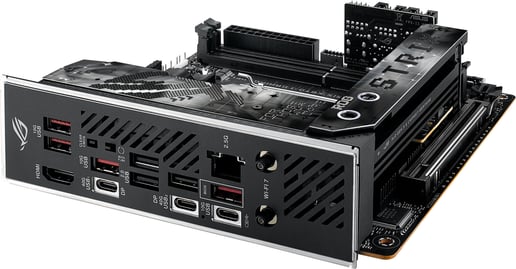

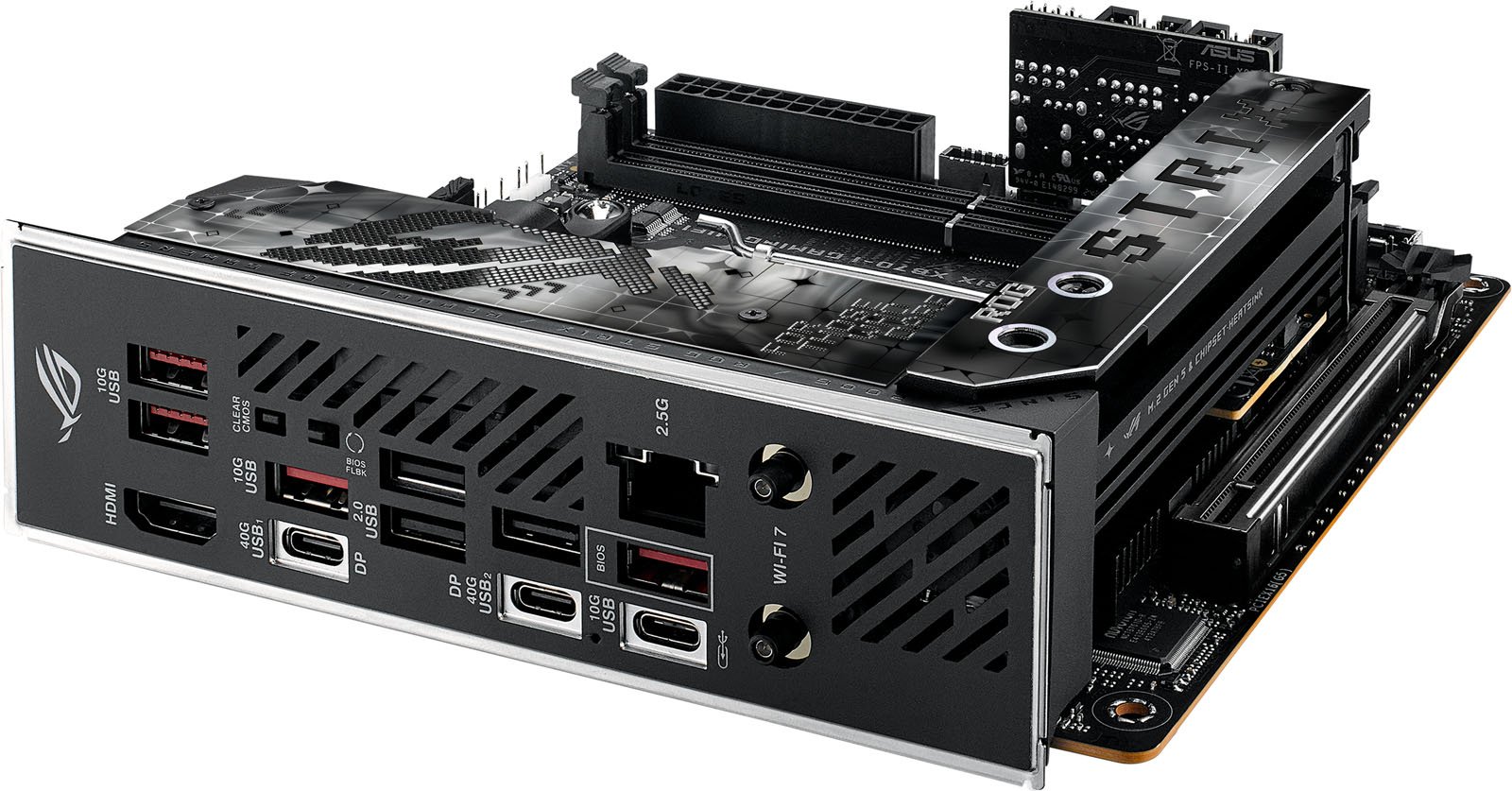

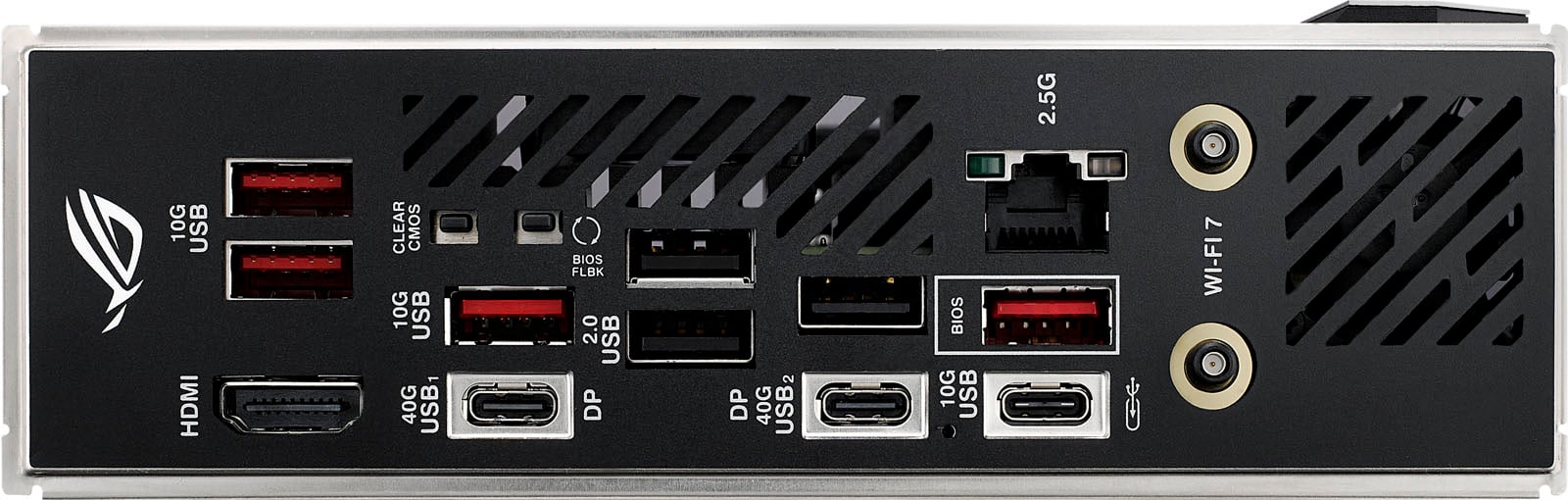

Rear Panel I/O Ports

• USB Ports: 2 x USB-C 4
• 1 x USB-C 3.1
• 5 x USB 3.1
• 3 x USB 2.0
• DisplayPorts: Yes - via USB-C 4
• HDMI Port: 1 x HDMI 2.1

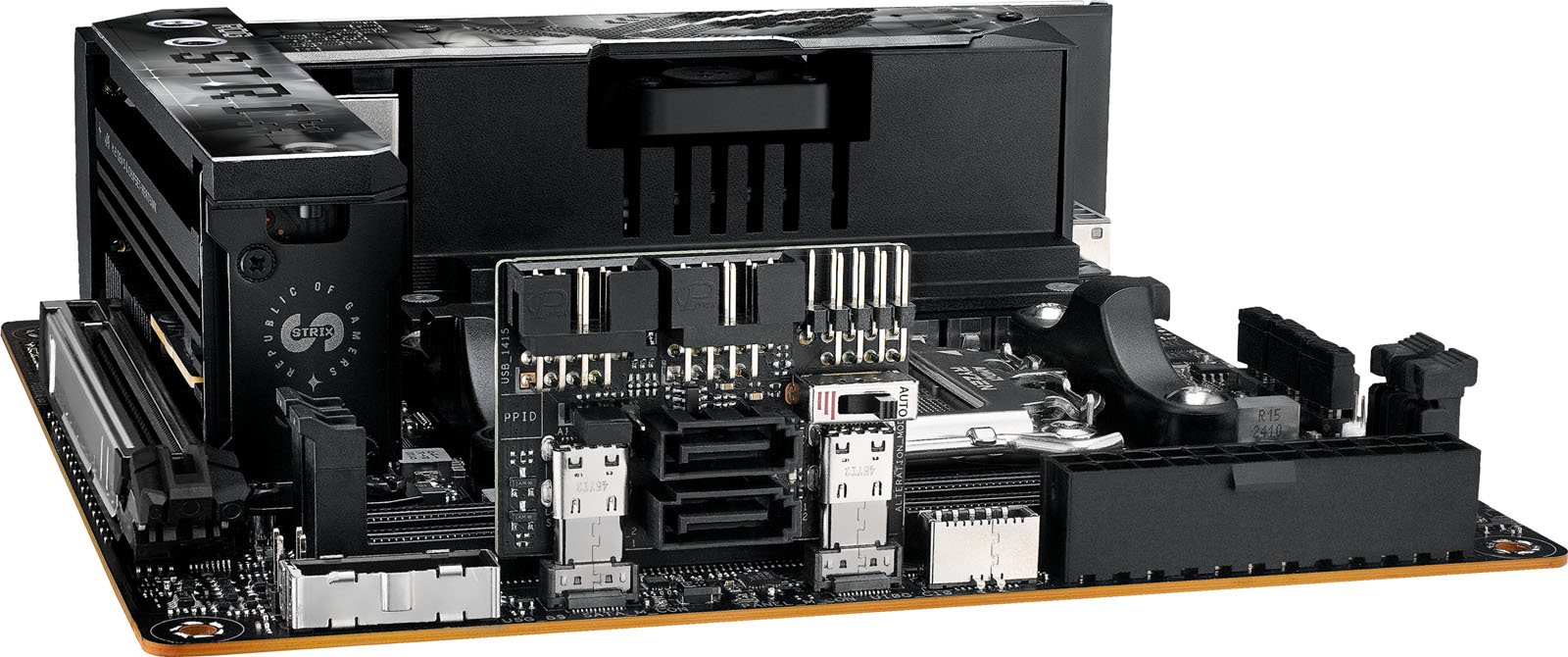

Internal I/O Connectors

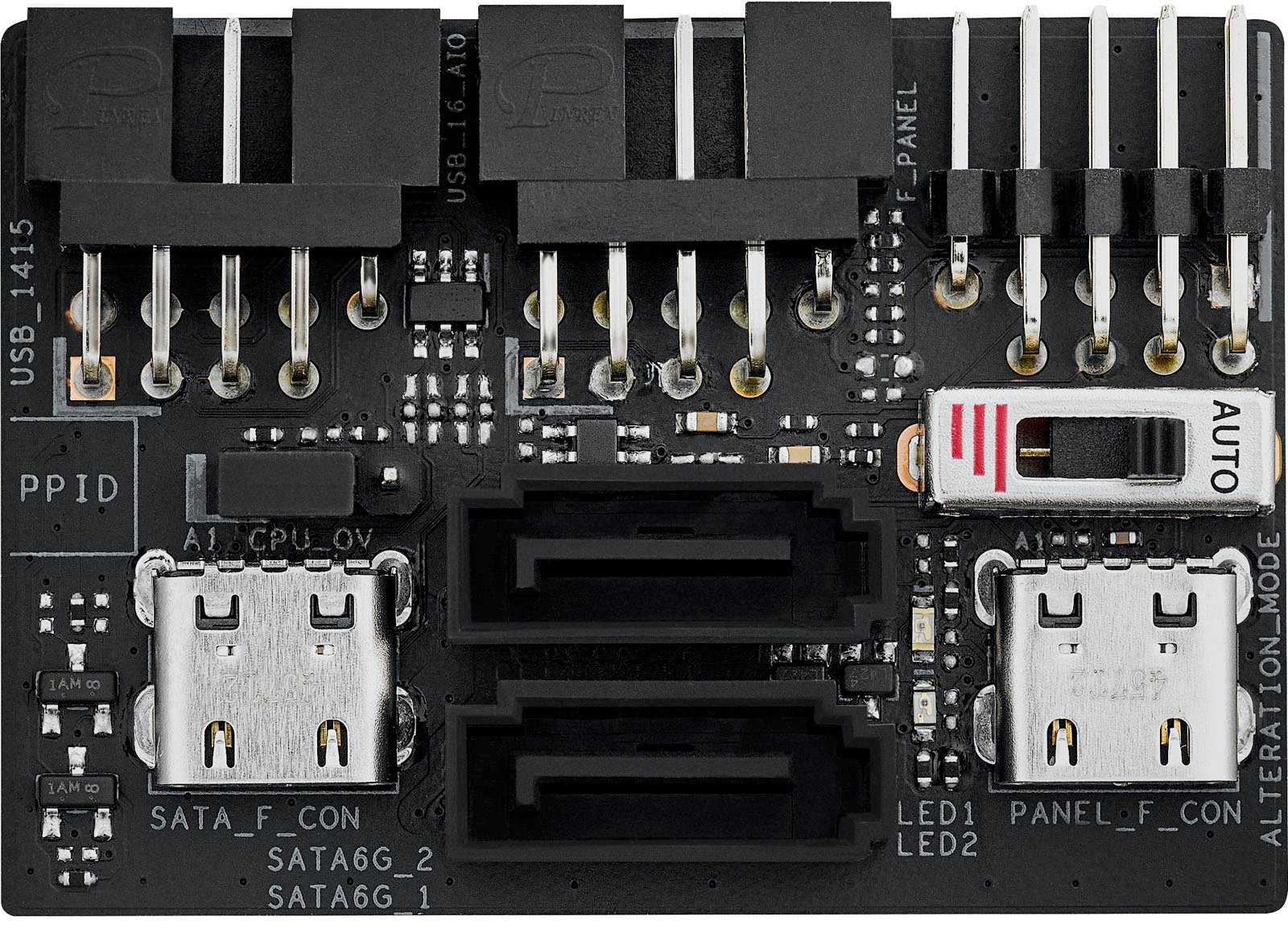

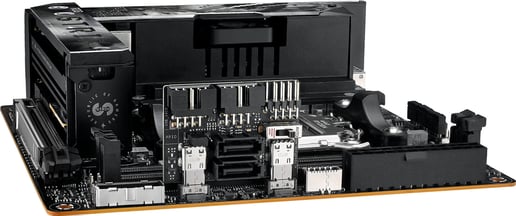

• SATA Connectors: 2 x SATA III
• USB Connectors: 1 x USB-C 3.1 header (supporting 1 port)
• 1 x USB 3.0 header (supporting 2 ports)

Memory

• Memory Type: DDR5

Motherboard

• Northbridge: AMD X870
• RAID Supported: Yes
• RAID Format: RAID 0, 1, 10
• SATA Supported: Yes

Rear Panel I/O Ports

• RJ-45 Ports: 1 x RJ-45
• Antenna Connector(s): 2 x SMA Antenna

Internal I/O Connectors

• Front Panel Connectors: 1 x Front Panel
• 1 x Front Audio
• Cooling Fan Support: 1 x CPU fan header
• 1 x AIO pump header
• 1 x Chassis fan header
• Power Connector Port: 1 x 24-pin ATX
• 1 x 8-pin EPS
• Other Connectors: 1 x M.2 slot, Key M, Type 2280 (PCIe Gen5)
• 1 x M.2 slot, Key M, Type 2242/2260/2280 (PCIe Gen4)
• 2 x 3-pin ARGB headers

Expansion

• Number of PCI Express Slots: 1 x PCI Express 5.0 x16 slot

Memory

• Maximum RAM: 96 GB
• Memory Slot: 2 x DIMM

Graphics Device

• Integrated Graphics Supported: Yes

Sound

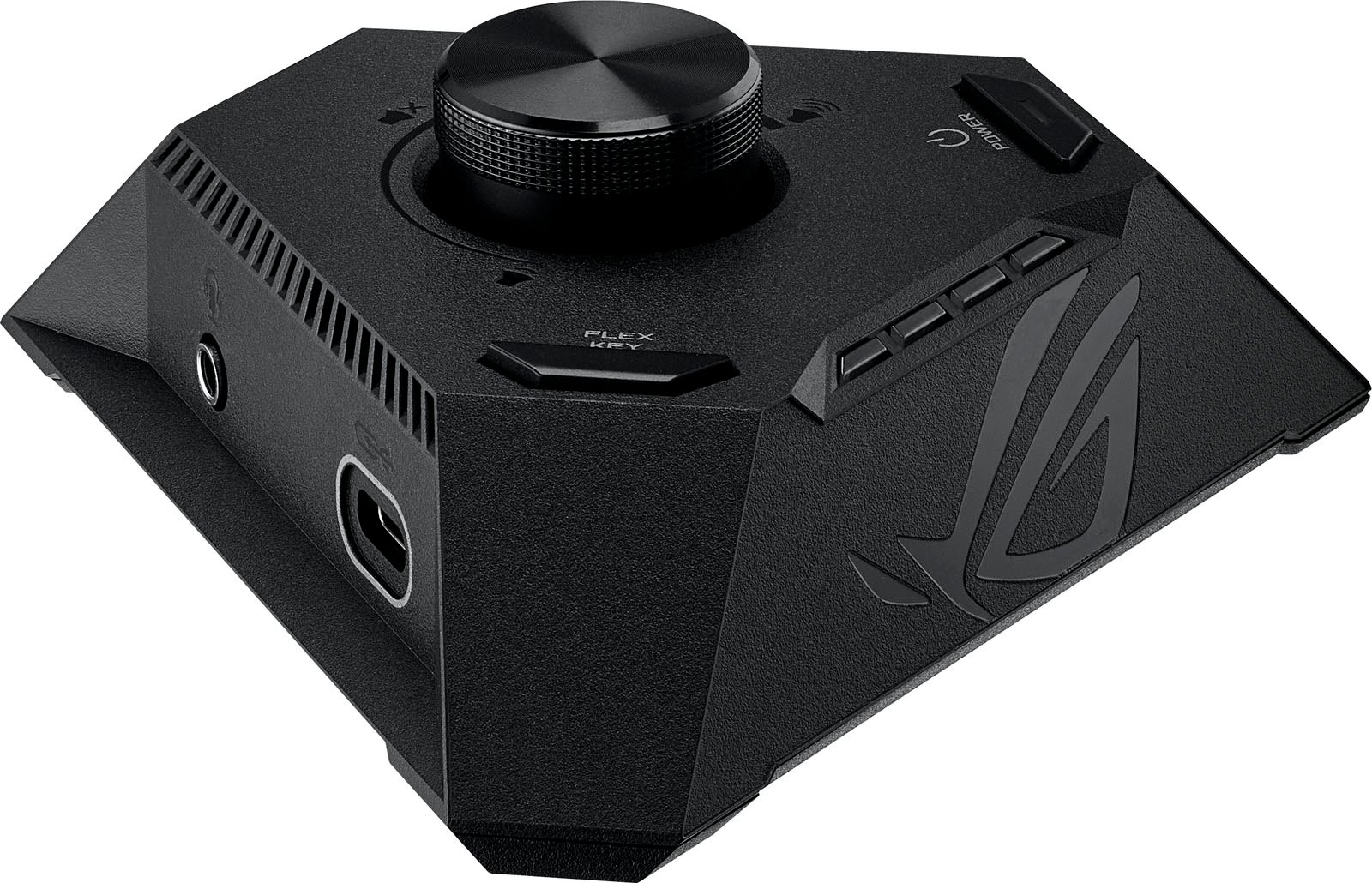

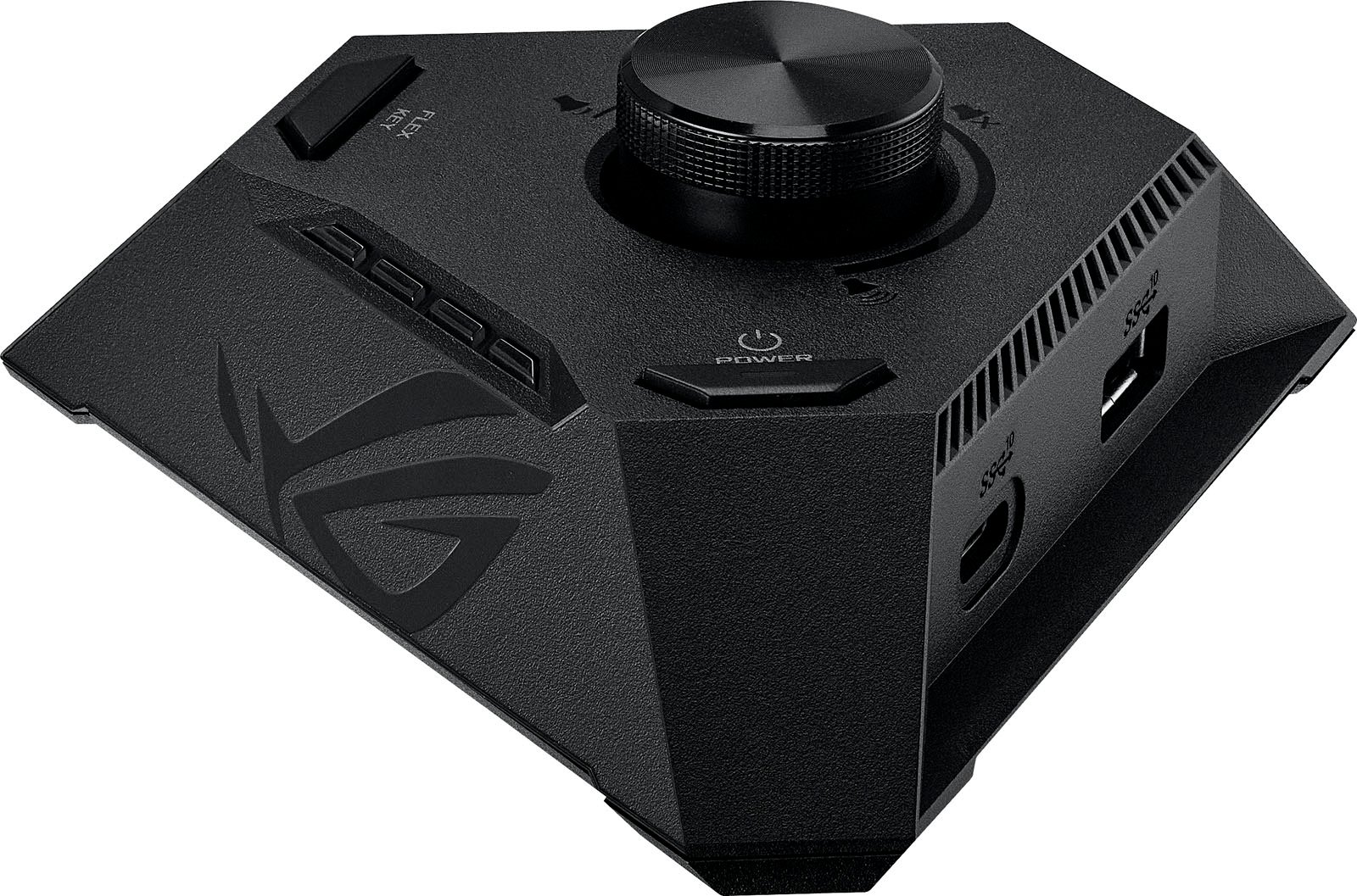

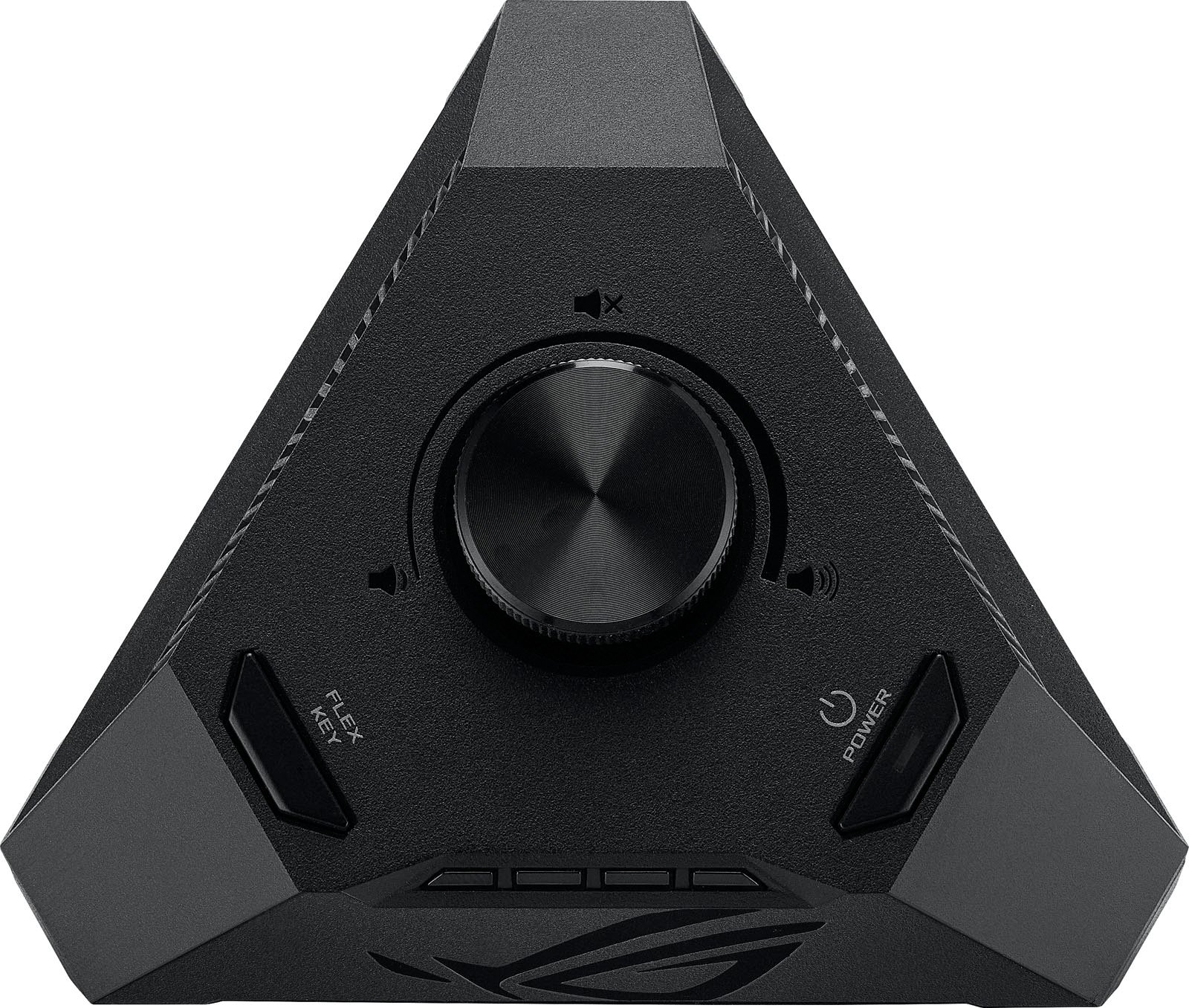

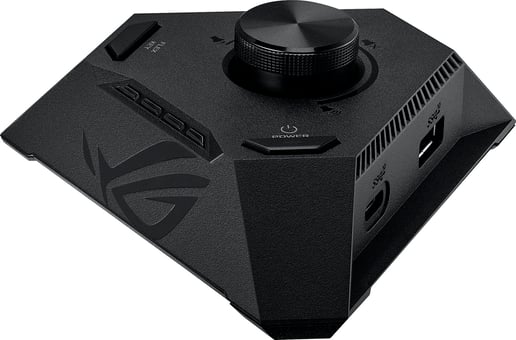

• Integrated Sound: ROG Strix Hive II

Warranty

• Warranty: 3 Years

Network

• Integrated Network: Intel
• Network Speeds Supported: Up to 2.5 Gbps
• Wireless LAN: Yes - Wi-Fi 7
• Wireless Network Speed: Up to 6.5 Gbps
• Bluetooth: Yes
• Bluetooth Version: 5.4

System Requirements

• Operating Systems Supported: Windows 11, Windows 10 64-bit

System

• BIOS: 256 Mb Flash ROM, UEFI AMI BIOS
• Software Included: Yes
• Drivers: Yes

Physical

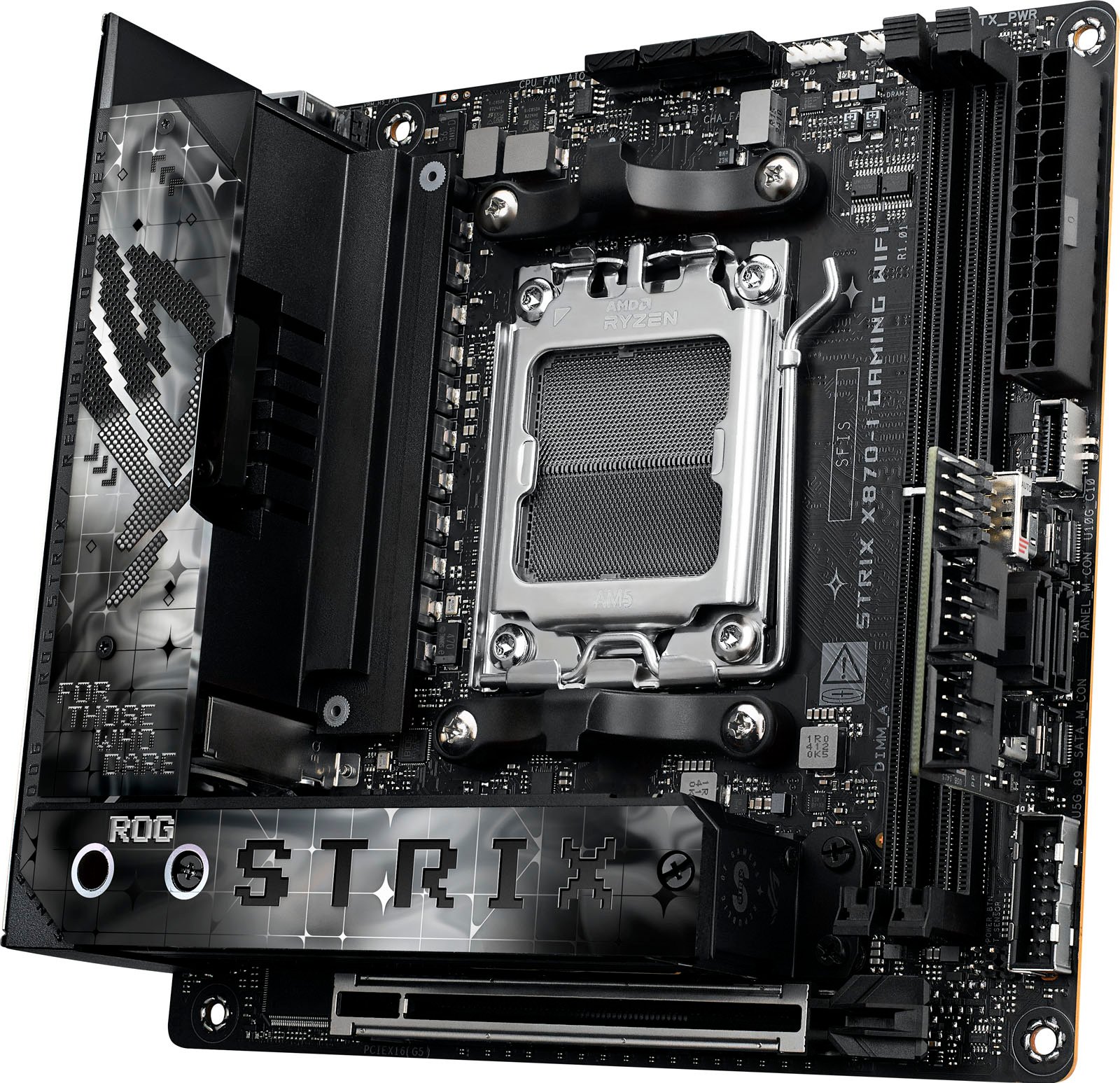

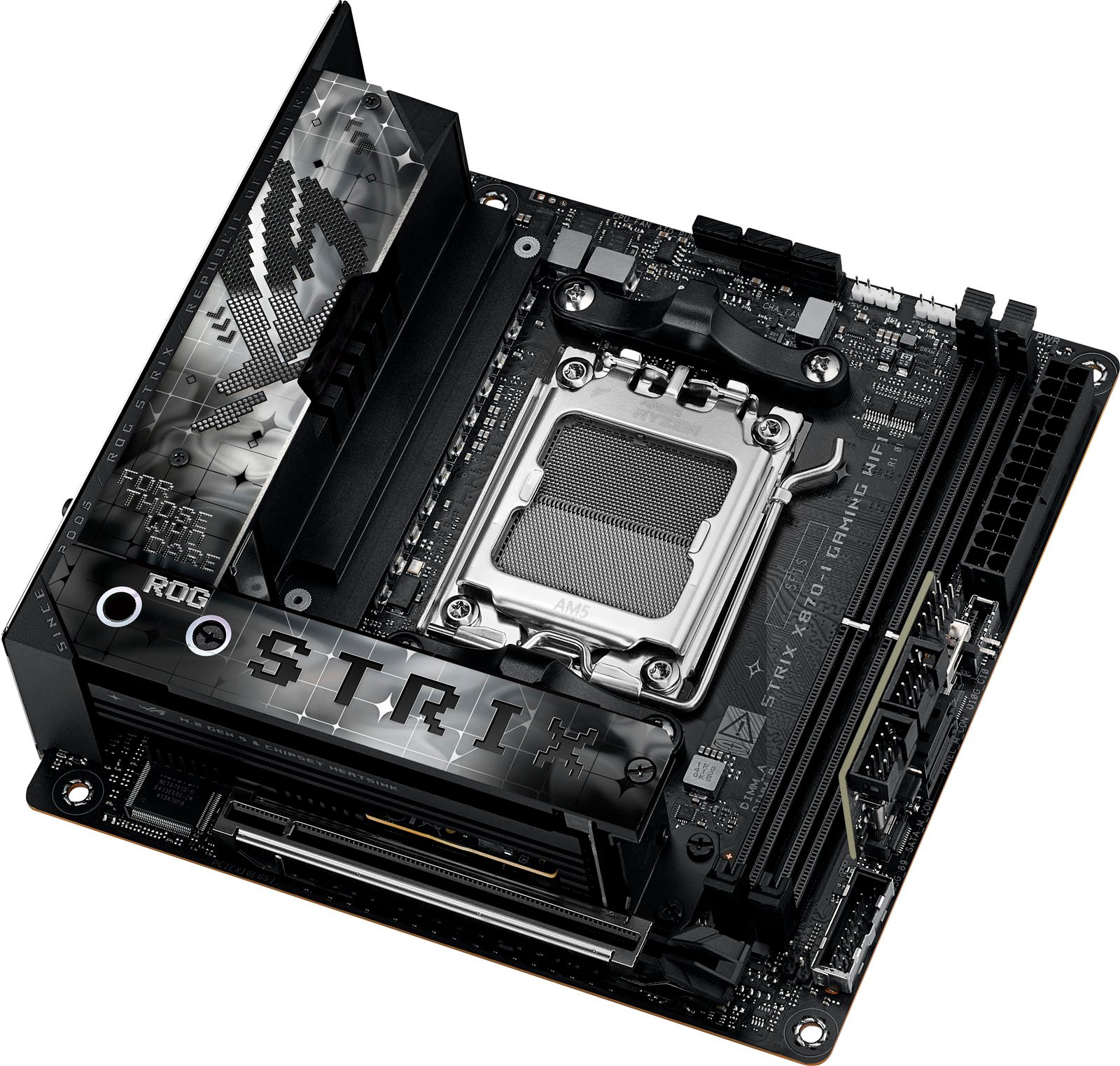

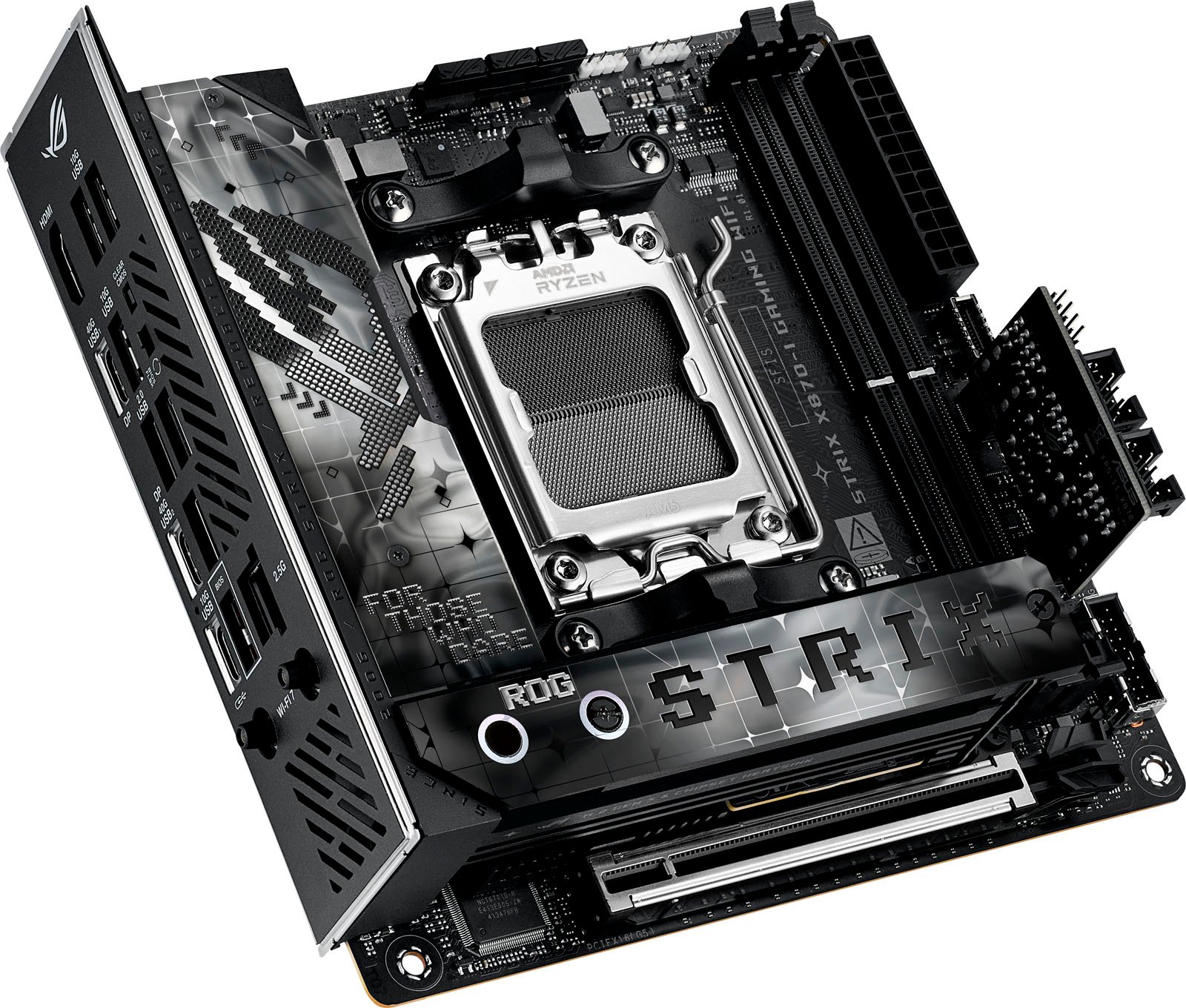

• Form Factor: Mini-ITX Motherboard

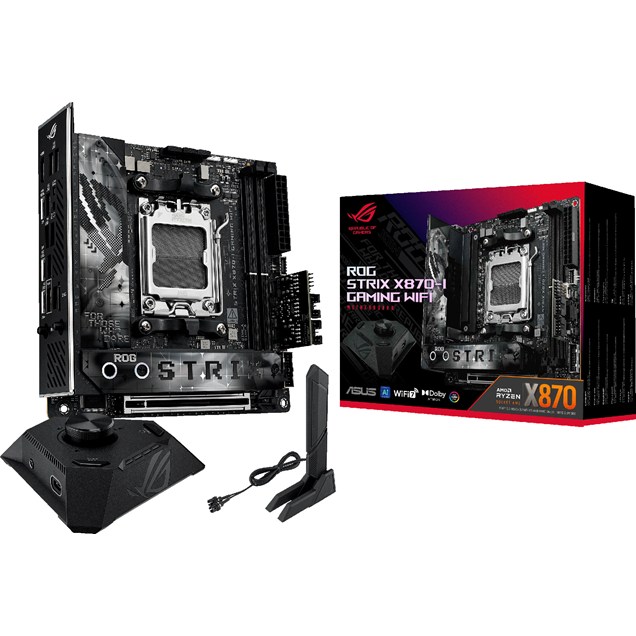

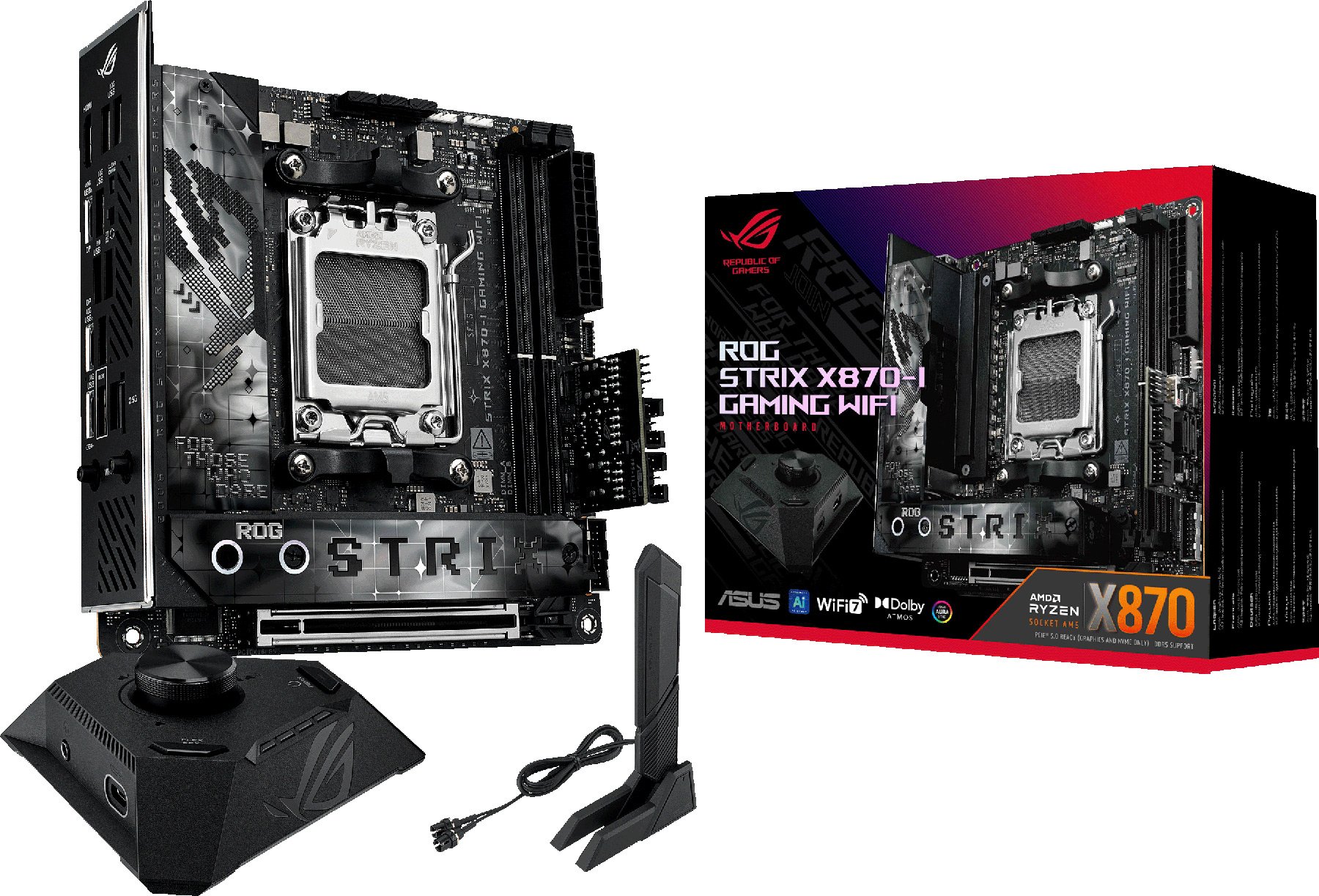

• In The Box: Motherboard
• 1 x Panel cable
• 1 x ROG USB2.0 splitter cable
• 2 x SATA 6Gb/s cables
• 1 x ROG FPS Card
• 1 x ROG STRIX HIVE II
• 1 x USB Type-C power connection cable
• 1 x ASUS WiFi Q-Antenna
• 1 x Cable ties package
• 1 x M.2 Q-Latch package(s)
• 1 x ROG key chain
• 1 x ROG Strix stickers
• 1 x M.2 rubber package(s)
• 1 x Quick start guide
• Width: 170 mm
• Length: 170 mm

Identifiers

• Stock Code: MBD3706
• Mfg Code: 90MB1IW0-M0EAY0
