CPU

• Installed Processors (Max): 0 (1)
• Supported Processor Manufacturer: Intel
• Supported Processors: Intel Core Ultra Processors (Series 2)
• 64-bit Support: Yes
• Socket: LGA1851

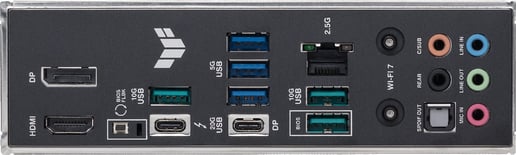

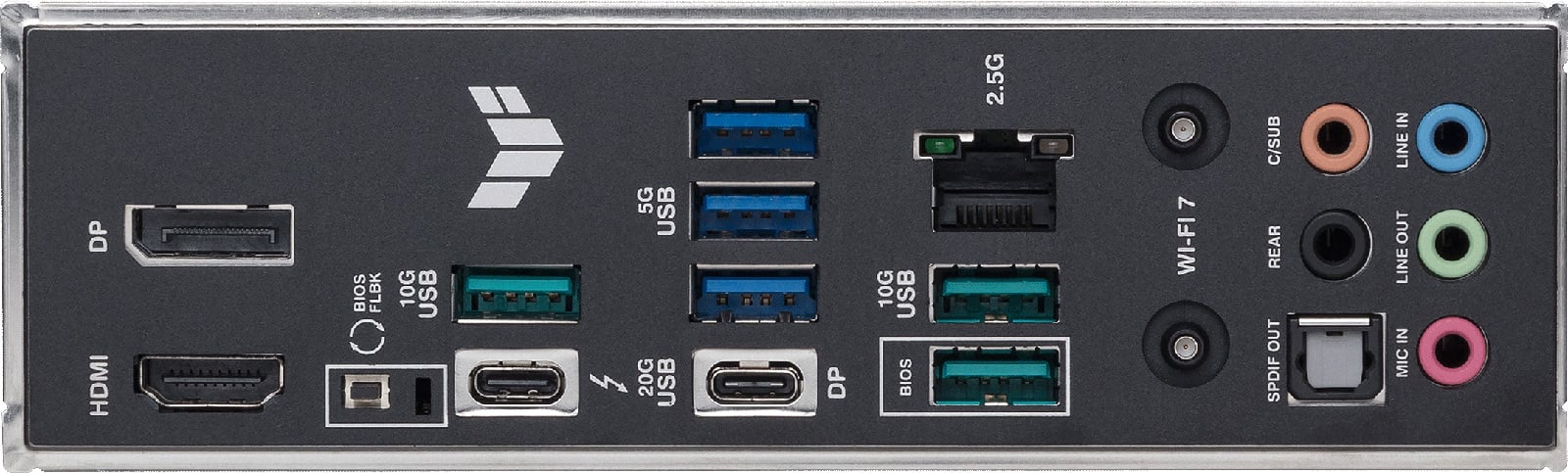

Rear Panel I/O Ports

• USB Ports: 1 x Thunderbolt 4
• 1 x USB-C 3.2
• 3 x USB 3.1
• 3 x USB 3.0
• DisplayPorts: 1 x DisplayPort 1.4
• HDMI Port: 1 x HDMI 2.1

Internal I/O Connectors

• SATA Connectors: 4 x SATA III
• USB Connectors: 1 x USB-C 3.2 header (supports 1 port)
• 1 x USB 3.0 header (supports 2 ports)
• 2 x USB 2.0 headers (supports 4 ports)

Memory

• Memory Bus Speed: Up to 9066 MT/s
• Memory Type: DDR5

Motherboard

• Northbridge: Intel Z890
• RAID Supported: Yes
• RAID Format: RAID 0, 1, 5, 10
• SATA Supported: Yes

Rear Panel I/O Ports

• RJ-45 Ports: 1 x RJ-45
• Audio Line In Ports: 1 x 3.5mm Jack
• Audio Line Out Ports: 3 x 3.5mm Jacks
• Microphone In Port: 1 x 3.5mm Jack
• S/PDIF Port: 1 x S/PDIF Optical Out
• Antenna Connector(s): 2 x SMA Antenna

Internal I/O Connectors

• Front Panel Connectors: 1 x Front Panel
• 1 x Front Audio
• Cooling Fan Support: 1 x CPU fan header
• 1 x CPU OPT fan header
• 1 x AIO pump header
• 4 x Chassis fan headers
• Thunderbolt Port(s): 1 x Thunderbolt 4 header
• Serial Connectors: 1 x COM header
• Chassis Intrusion Connector: 1 x Chassis Intrusion header
• Power Connector Port: 1 x 24-pin ATX
• 2 x 8-pin EPS
• Other Connectors: 1 x M.2 slot, Key M, Type 2242/2260/2280 (PCIe Gen5)
• 1 x M.2 slot, Key M, Type 2280 (PCIe Gen4)
• 1 x M.2 slot, Key M, Type 2280/22110 (PCIe Gen4)
• 1 x M.2 slot, Key M, Type 2242/2260/2280 (PCIe Gen4 or SATA)
• 3 x 3-pin ARGB headers

Expansion

• Number of PCI Express Slots: 1 x PCI Express 5.0 x16 slot
• 1 x PCI Express 4.0 x16 slot (@ x4)
• 1 x PCI Express 4.0 x4 slot
• 2 x PCI Express 4.0 x1 slots

Memory

• Maximum RAM: 192 GB
• Memory Slot: 4 x DIMM

Graphics Device

• Integrated Graphics Supported: Yes

Sound

• Integrated Sound: Realtek ALC1220P

Warranty

• Warranty: 3 Years

Network

• Integrated Network: Intel
• Network Speeds Supported: Up to 2.5 Gbps
• Wireless LAN: Yes - Wi-Fi 7
• Wireless Network Speed: Up to 2.9 Gbps
• Bluetooth: Yes
• Bluetooth Version: 5.4

System Requirements

• Operating Systems Supported: Windows 11

System

• BIOS: 256 Mb Flash ROM, UEFI AMI BIOS
• Jumpers: 1 x Clear CMOS
• Software Included: Yes
• Drivers: Yes

Physical

• Form Factor: ATX Motherboard

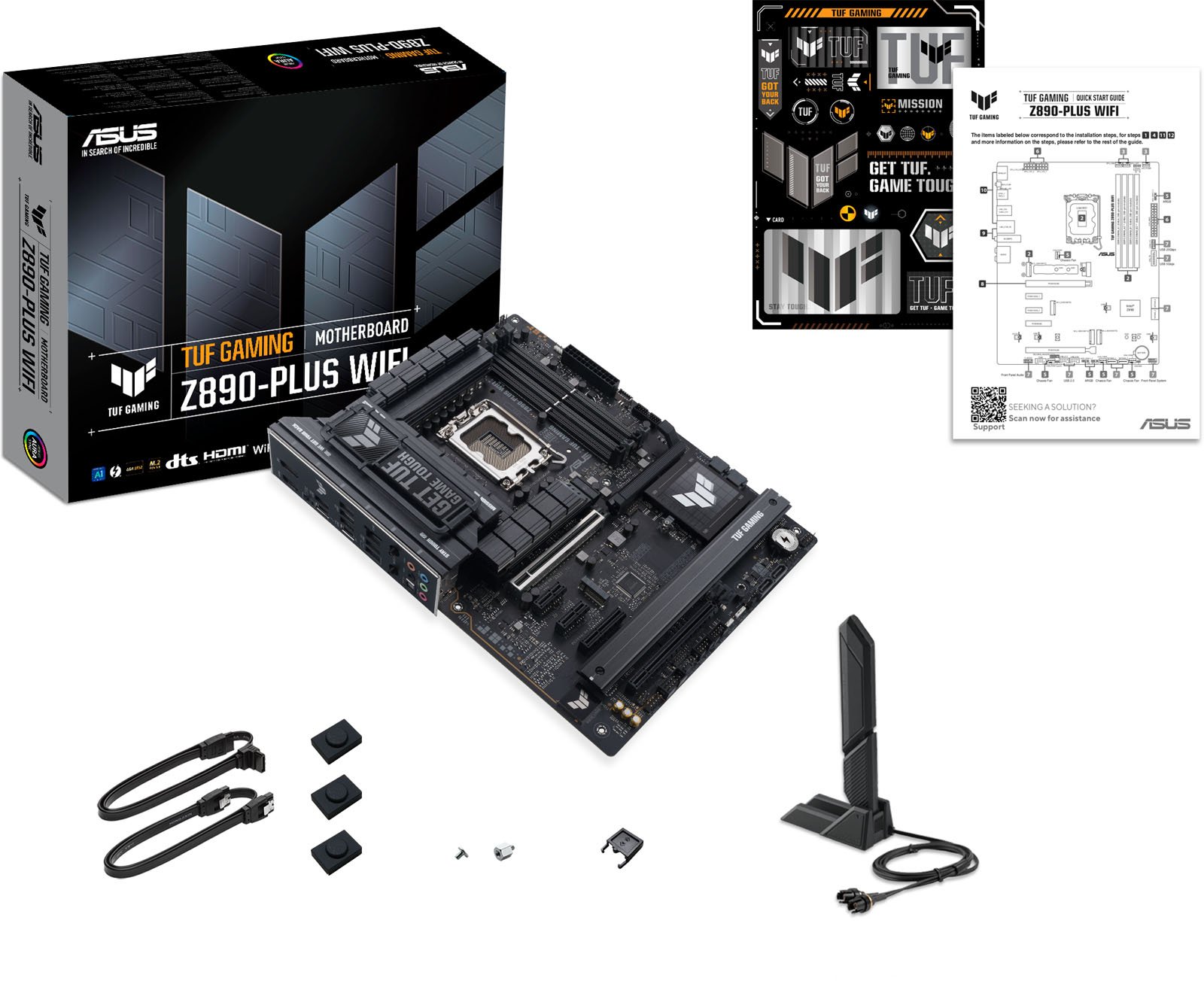

• In The Box: Motherboard
• 2 x SATA 6Gb/s cables

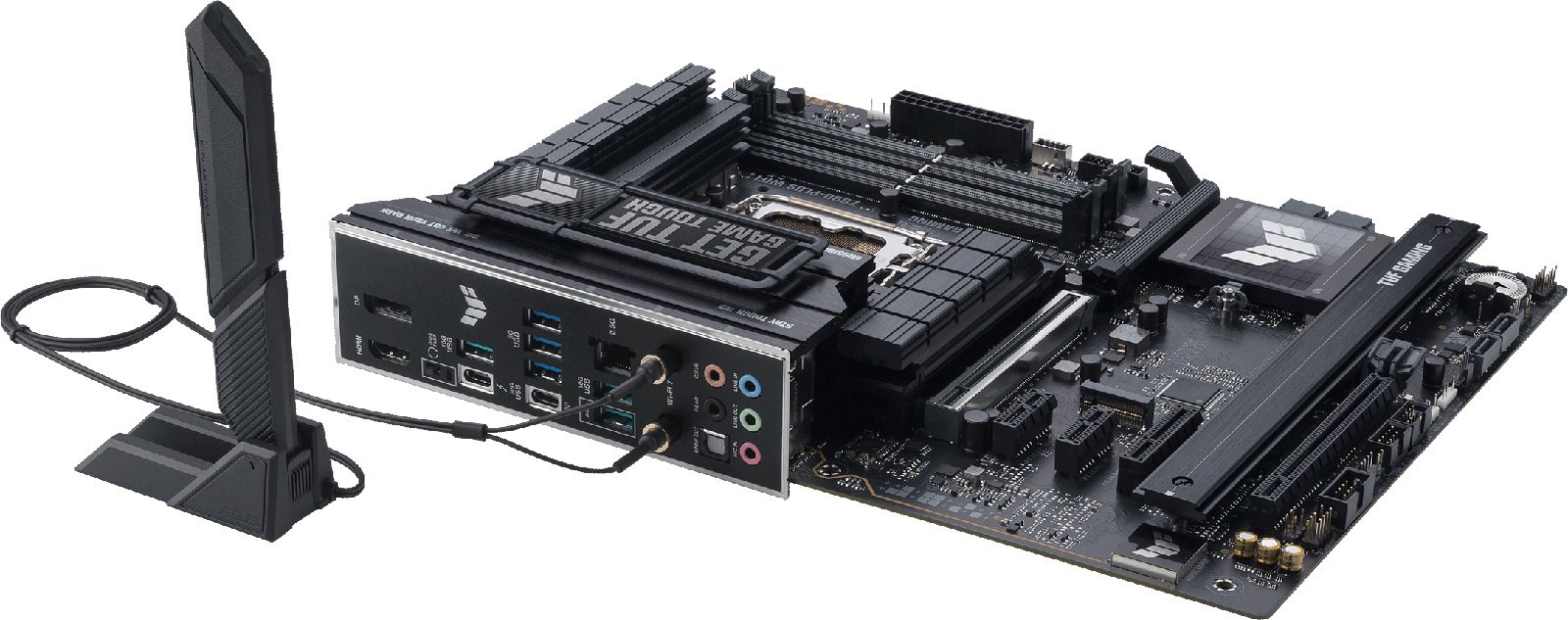

• 1 x ASUS WiFi Q-Antenna
• 1 x M.2 Q-Slide package
• 2 x M.2 rubber packages
• 1 x Screw package for M.2 SSD
• 1 x TUF GAMING sticker
• 1 x TUF GAMING removable nameplate
• 1 x Quick start guide
• Width: 244 mm
• Length: 305 mm

Identifiers

• Stock Code: MBD3738
• Mfg Code: 90MB1IQ0-M0EAY0
