CPU

• Installed Processors (Max): 0 (1)
• Supported Processor Manufacturer: Intel
• Supported Processors: Intel Core Ultra Processors(Series 2)
• 64-bit Support: Yes
• Socket: LGA1851

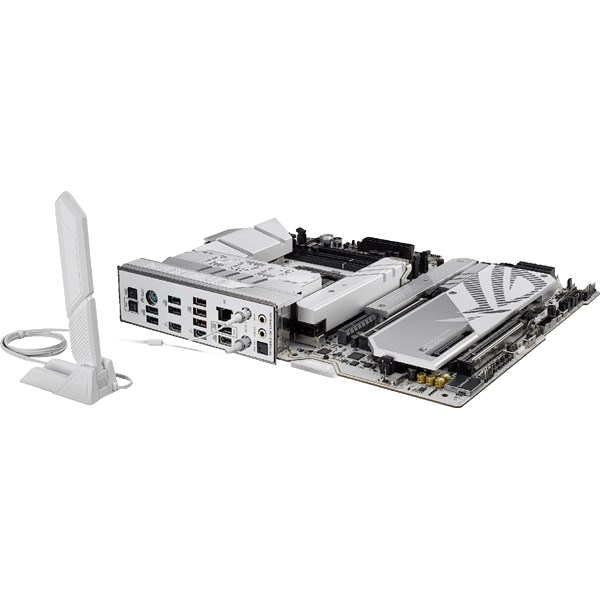

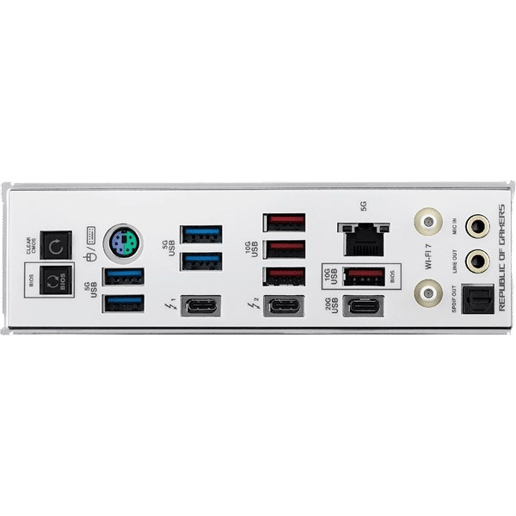

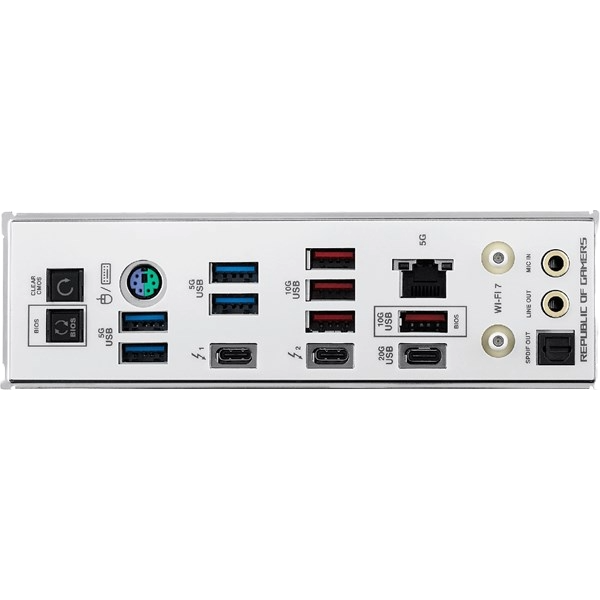

Rear Panel I/O Ports

• USB Ports: 2 x Thunderbolt 4
• 1 x USB-C 3.2
• 4 x USB 3.1
• 4 x USB 3.0
• DisplayPorts: Yes via Thunderbolt 4

Internal I/O Connectors

• SATA Connectors: 4 x SATA III
• USB Connectors: 1 x USB-C 3.2 header (supports 1 port)
• 1 x USB-C 3.1 header (supports 1 port)
• 2 x USB 3.0 headers (supports 4 ports)
  2 x USB 2.0 headers (supports 4 ports)

Memory

• Memory Bus Speed: Up to 9900 MT/s
• Memory Type: DDR5

Motherboard

• Northbridge: Intel Z890
• RAID Supported: Yes
• RAID Format: RAID 0, 1, 5, 10
• SATA Supported: Yes

Rear Panel I/O Ports

• Keyboard/Mouse Combo Port: 1 x PS/2
• RJ-45 Ports: 1 x RJ-45
• Audio Line Out Ports: 1 x 3.5mm Jack
• Microphone In Port: 1 x 3.5mm Jack
• S/PDIF Port: 1 x S/PDIF Optical Out
• Antenna Connector(s): 2 x SMA Antenna

Internal I/O Connectors

• Front Panel Connectors: 1 x Front Panel
• 1 x Front Audio
• Cooling Fan Support: 1 x CPU fan header
• 1 x CPU OPT fan header
• 1 x AIO pump header
• 2 x Chassis fan headers
• 2 x Full Speed fan headers
• 1 x W_PUMP+ header
• 1 x Extra Flow fan header
• Thunderbolt Port(s): 1 x Thunderbolt 4 header
• Power Connector Port: 1 x 24-pin ATX
• 2 x 8-pin EPS
• 1 x 8-pin PCIe
• Other Connectors: 1 x M.2 slot, Key M, Type 2242/2260/2280/22110 (PCIe Gen5)
• 2 x M.2 slots, Key M, Type 2242/2260/2280 (PCIe Gen5)
• 1 x M.2 slot, Key M, Type 2242/2260/2280
• 1 x DIMM.2 slot, supporting 2 x M.2 slots, Key M, Type 2230/2242/2260/2280/22110 (PCIe Gen4)
• 3 x 3-pin ARGB headers
• 1 x Thermal Sensor header

Expansion

• Number of PCI Express Slots: 2 x PCI Express 5.0 x16 slots (@ x16/x0 or x8/x8)
• 2 x PCI Express 4.0 x4 slots

Memory

• Maximum RAM: 192 GB
• Memory Slot: 4 x DIMM

Graphics Device

• Integrated Graphics Supported: Yes

Sound

• Integrated Sound: ROG SupremeFX ALC4080

Warranty

• Warranty: 3 Years

Network

• Integrated Network: Realtek
• Network Speeds Supported: Up to 5 Gbps
• Wireless LAN: Yes - Wi-Fi 7
• Wireless Network Speed: Up to 5.8 Gbps
• Bluetooth: Yes
• Bluetooth Version: 5.4

System Requirements

• Operating Systems Supported: Windows 11

System

• BIOS: 2 x 256 Mb Flash ROM, UEFI AMI BIOS
• Software Included: Yes
• Drivers: Yes

Physical

• Form Factor: ATX Motherboard

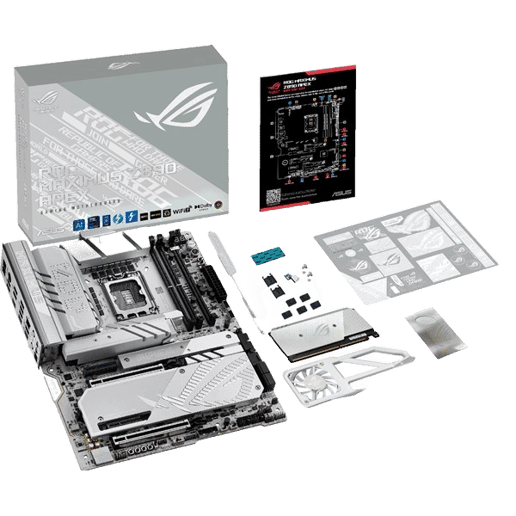

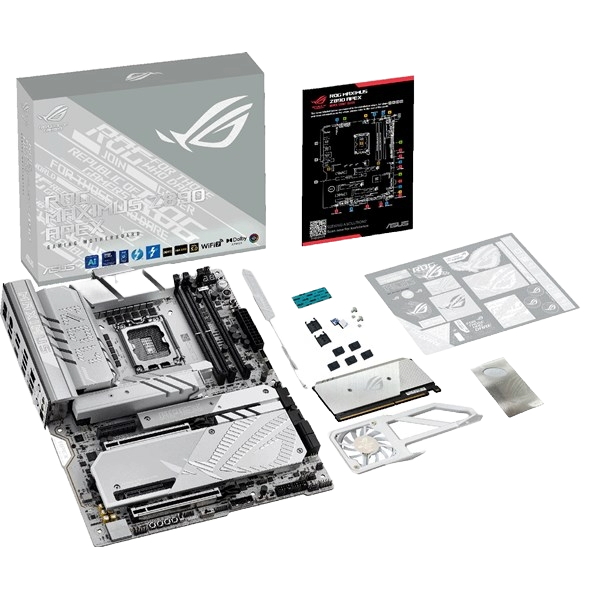

• In The Box: Motherboard
• 1 x ROG DIMM.2 with heatsink
• 1 x M.2 pad for ROG DIMM.2
• 2 x M.2 screw package for ROG DIMM.2
• 1 x Thermal pad for M.2 22110
• 1 x ROG Memory Fan Kit
• 1 x ASUS WiFi Q-Antenna
• 1 x Q-connector
• 1 x ROG VIP card
• 3 x M.2 Q-Slide package
• 5 x M.2 backplate rubber packages
• 1 x ROG Bottle Opener
• 1 x USB drive with utilities and drivers
• 1 x Quick start guide
• Width: 244 mm
• Length: 305 mm

Identifiers

• Stock Code: MBD3731
• Mfg Code: 90MB1IP0-M0EAY0
