CPU

• Installed Processors (Max): 0 (1)
• Supported Processor Manufacturer: AMD
• Supported Processors: MD Ryzen 9000, 8000 & 7000 Series Desktop Processors
• 64-bit Support: Yes
• Socket: AM5

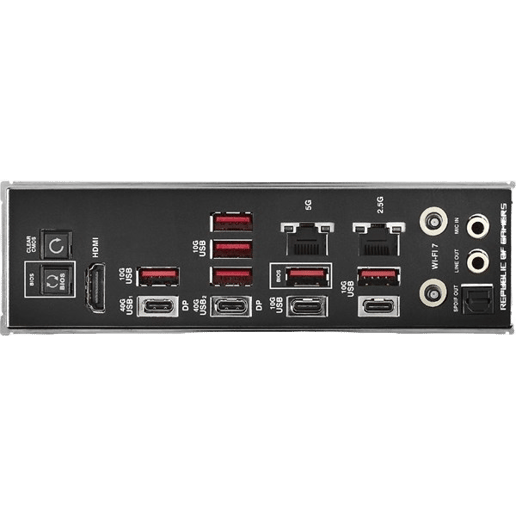

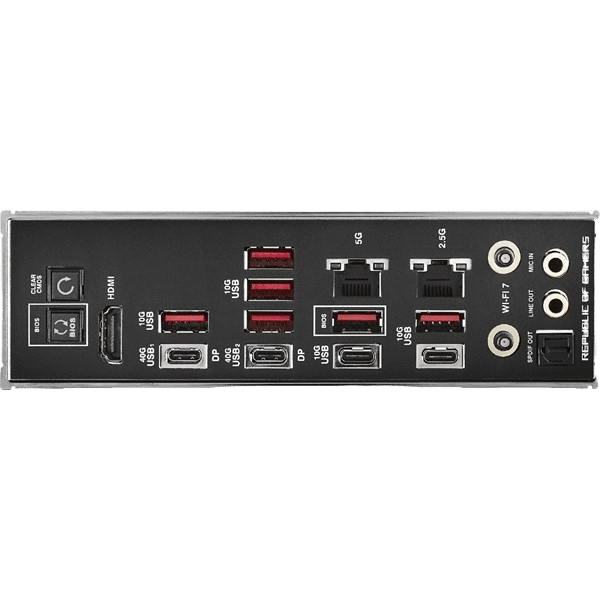

Rear Panel I/O Ports

• USB Ports: 2 x USB-C 4
• 2 x USB-C 3.2
• 6 x USB 3.2
• DisplayPorts: Yes - supported via USB-C 4
• HDMI Port: 1 x HDMI 2.1

Internal I/O Connectors

• SATA Connectors: 4 x SATA III
• USB Connectors: 2 x USB-C 3.2 headers (supporting 2 ports)
• 2 x USB 3.0 headers (supporting 4 ports)
• 2 x USB 2.0 headers (supporting 4 ports)

Memory

• Memory Bus Speed: Up to 8200 MT/s
• Memory Type: DDR5

Motherboard

• Northbridge: AMD X870E
• RAID Supported: Yes
• RAID Format: RAID 0, 1, 10
• SATA Supported: Yes

Rear Panel I/O Ports

• RJ-45 Ports: 2 x RJ-45
• Audio Line In Ports: 1 x 3.5mm Jack
• Audio Line Out Ports: 1 x 3.5mm Jack
• Microphone In Port: 1 x S/PDIF Optical Out
• Antenna Connector(s): 2 x SMA Antenna

Internal I/O Connectors

• Front Panel Connectors: 1 x Front Panel
• 1 x Front Audio
• Cooling Fan Support: 1 x CPU fan header
• 1 x CPU OPT fan header
• 1 x AIO pump header
• 4 x Chassis fan headers
• 1 x W_PUMP+ header
• Power Connector Port: 1 x 24-pin ATX
• 2 x 8-pin EPS
• 1 x 8-pin PCIe
• Other Connectors: 3 x M.2 slots, Key M, Type 2242/2260/2280 (PCIe Gen5)
• 1 x M.2 slot, Key M, Type 2242/2260/2280 (PCIe Gen4)
• 1 x M.2 slot, Key M, Type 2280 (PCIe Gen4)
• 3 x 3-pin ARGB headers
• 1 x Thermal Sensor header

Expansion

• Number of PCI Express Slots: 2 x PCI Express 5.0 x16 slots (@ x16/x0 or x8/x8)

Memory

• Maximum RAM: 192 GB
• Memory Slot: 4 x DIMM

Graphics Device

• Integrated Graphics Supported: Yes

Sound

• Integrated Sound: ROG SupremeFX ALC4082

Warranty

• Warranty: 3 Years

Network

• Integrated Network: Realtek
  Intel
• Network Speeds Supported: Realtek: Up to 5 Gbps
• Intel: Up to 2.5 Gbps
• Wireless LAN: Yes - Wi-Fi 7
• Wireless Network Speed: Up to 6.5 Gbps
• Bluetooth: Yes
• Bluetooth Version: 5.4

System Requirements

• Operating Systems Supported: Windows 11
• Windows 10 64-bit

System

• BIOS: 256Mb Flash ROM
• UEFI AMI BIOS
• Jumpers: 1 x LN2 Mode
• Software Included: Yes
• Drivers: Yes

Physical

• Form Factor: ATX Motherboard
• In The Box: Motherboard
• 1 x ARGB RGB extension cable
• 4 x SATA 6Gb/s cables
• 1 x ASUS WiFi Q-Antenna
• 1 x Q-connector
• 2 x M.2 Q-Latch package
• 3 x M.2 Q-Slide package
• 5 x M.2 rubber package
• 1 x ROG stickers
• 1 x ROG thank you card
• 1 x ROG Bottle Opener
• 1 x USB drive with utilities and drivers
• 1 x Quick start guide
• Width: 244 mm
• Length: 305 mm

Identifiers

• Stock Code: MBD3698
• Mfg Code: 90MB1IE0-M0EAY0
