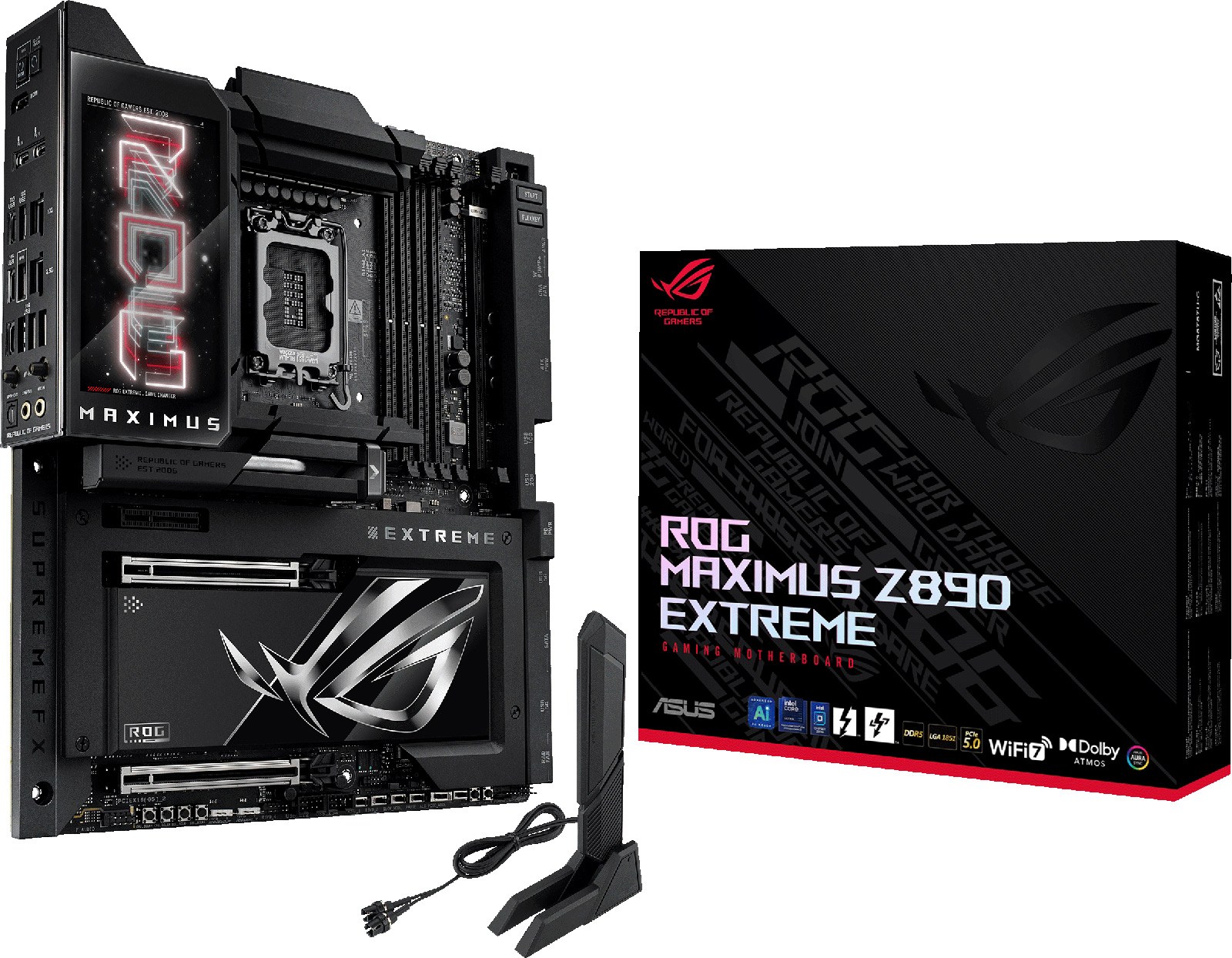

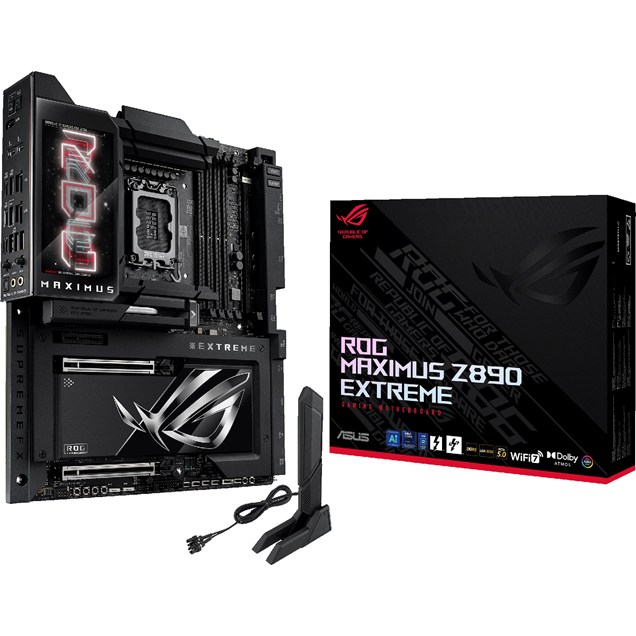

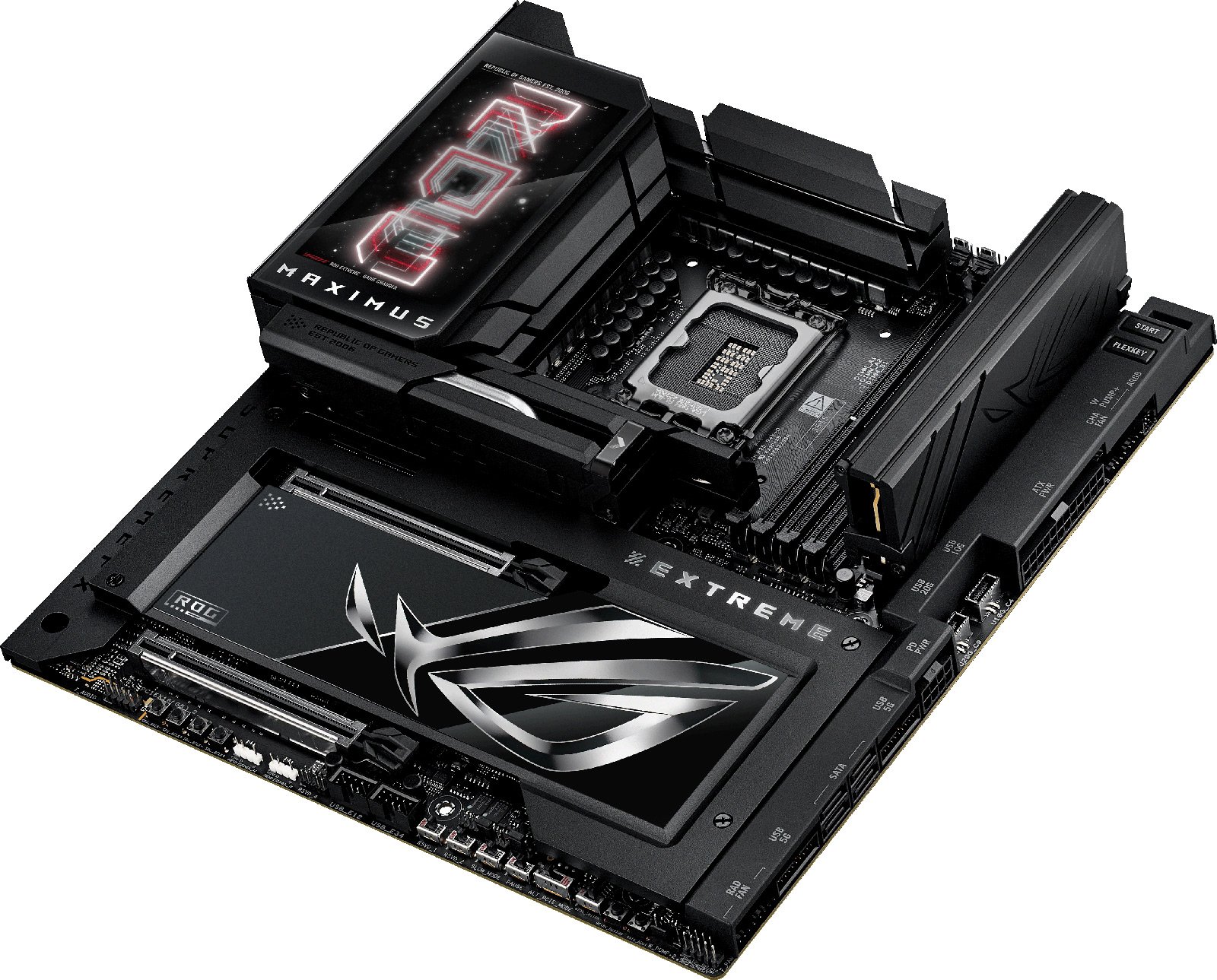

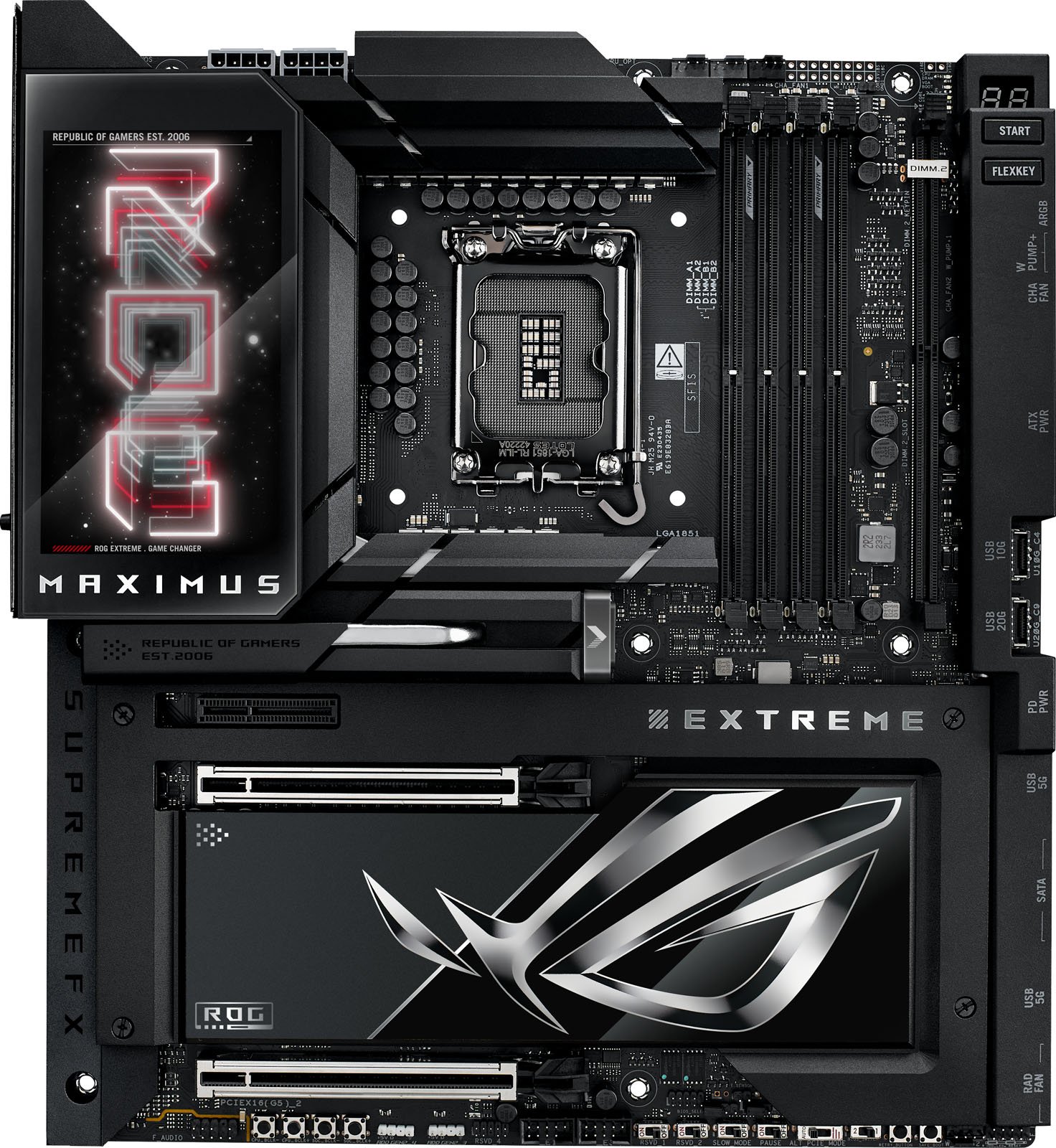

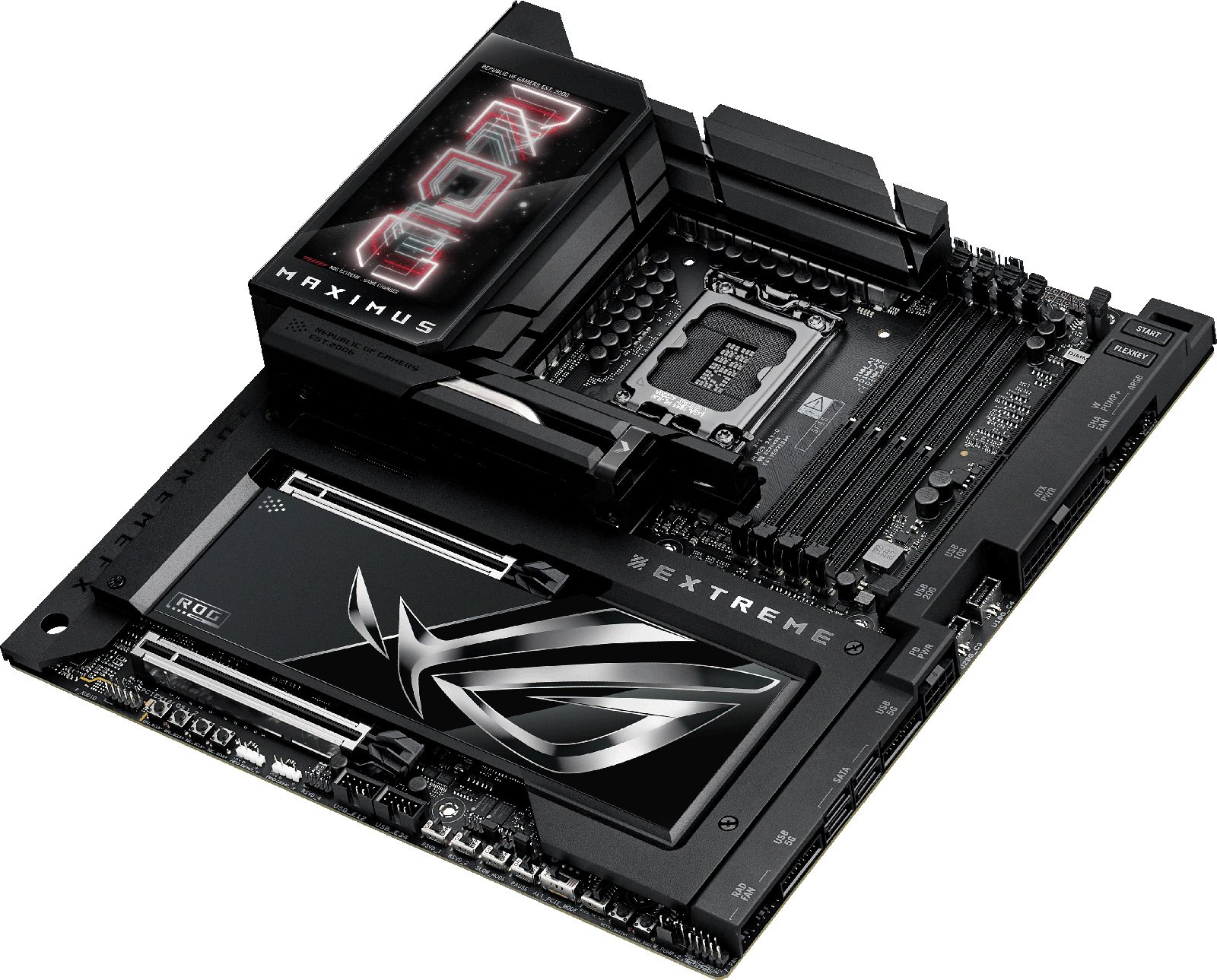

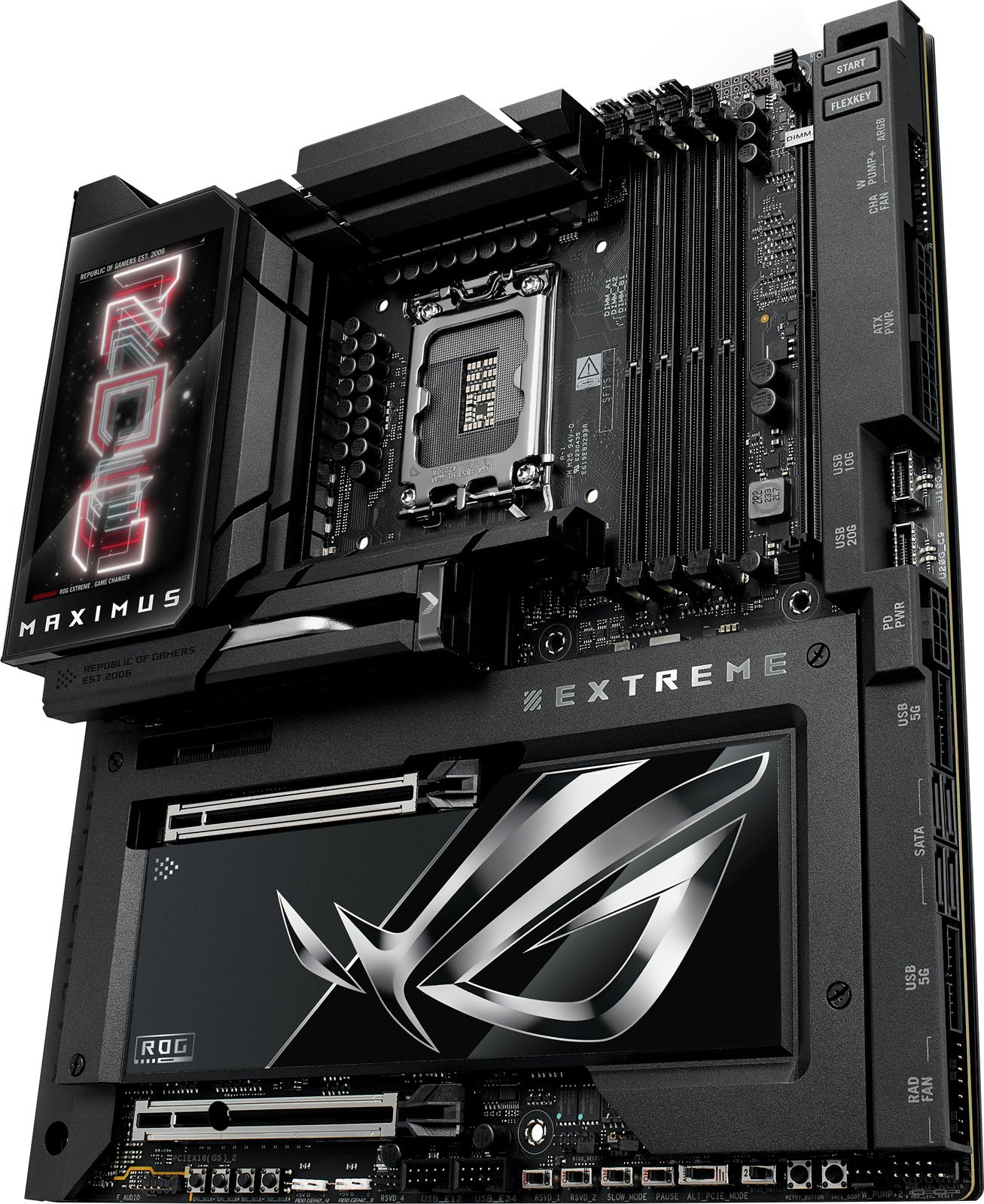

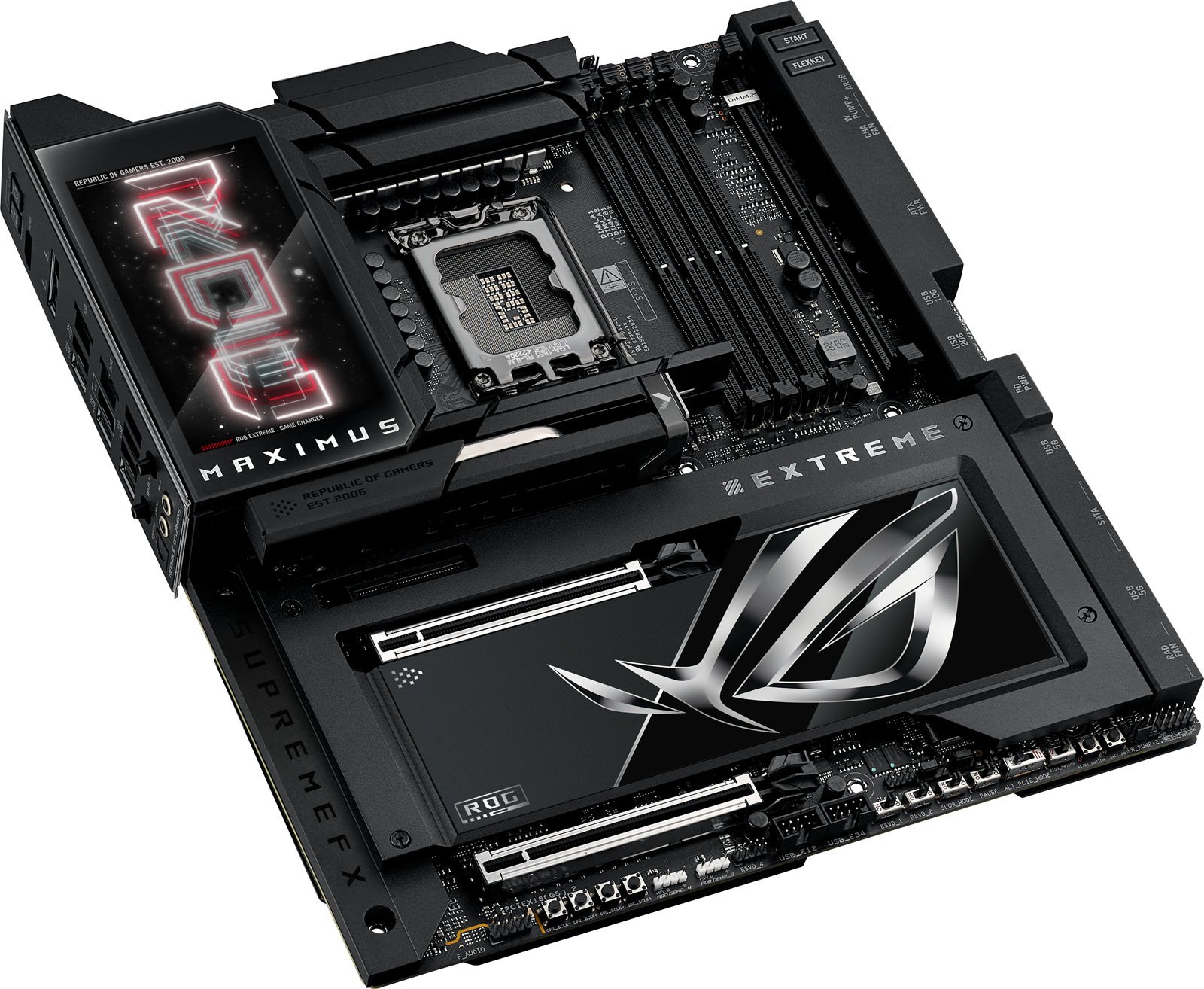

ASUS ROG Maximus Z890 Extreme EATX Motherboard for Intel LGA1851 CPUs

Compare

ASUS ROG Maximus Z890 Extreme EATX Motherboard for Intel LGA1851 CPUs

Name: ASUS ROG Maximus Z890 Extreme EATX Motherboard for Intel LGA1851 CPUs
Brand: ASUS
SKU: MBD3730
Price: 1359.99 GBP
Availability: InStock

90MB1IA0-M0EAY0

£1,359.99 inc VAT

Available for delivery from Tuesday 17th December

or Click & Collect from Tomorrow

Hurry, only 2 left!

Buying in bulk? Contact our business team.

Add to Basket

Key Features:

EATX Form Factor
Intel Z890 Chipset
Socket 1851
DDR5 (Max: 192GB / 4 slots)
4 x M.2 & 8 x USB & 4 x SATA
HDMI

CCL Code: MBD3730

Overview

ASUS ROG Maximus Z890 Extreme Intel LGA1851 Motherboard

Promotions

Rate your Gear with ASUS

For a limited time purchase an eligible ASUS product, leave a review of said product from the review invitation email, and you can claim £25 cashback from ASUS.

For more information, visit our promotion page. Terms & Conditions apply.

Promotional Period: From October 21^st till December 31^st 2024, while stock lasts.

Terms and conditions apply. Click here to view details.

Terms and Conditions

Find the full Terms & Conditions on the ASUS website here: Terms & Conditions.

Specifications

CPU

CPU Socket	Socket 1851
CPU Brand	Intel
Installed Processors (Max)	0 (1)
Supported Processor Manufacturer	Intel
Supported Processors	Intel Core Ultra Processors (Series 2)
64-bit Support	Yes
Socket	LGA1851

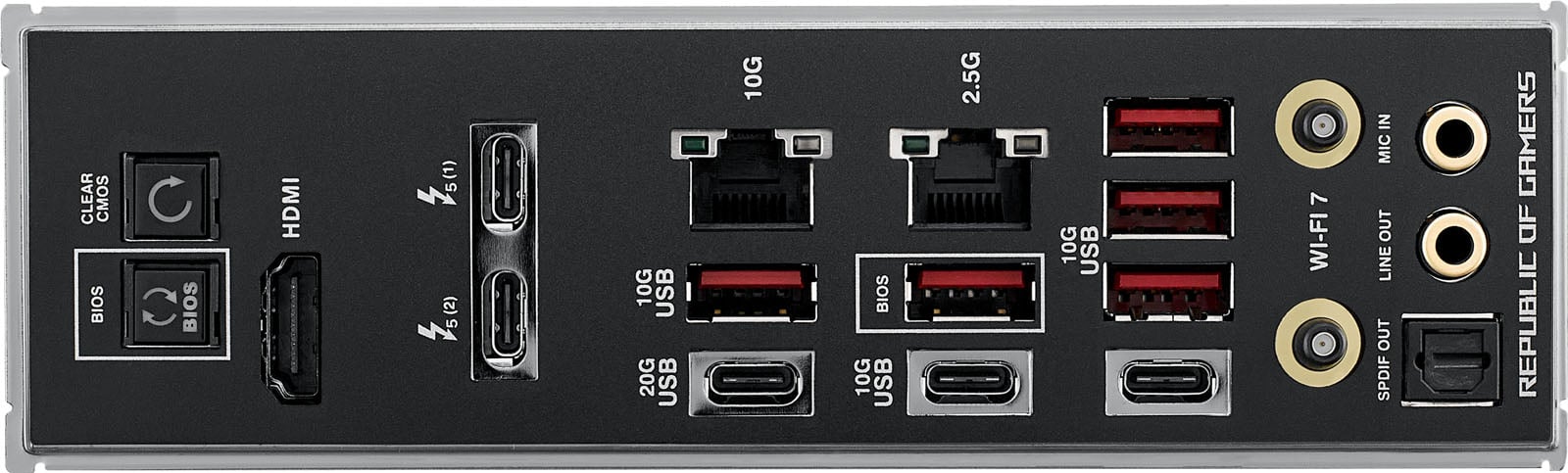

Rear Panel I/O Ports

USB Ports	2 x Thunderbolt 5 1 x USB-C 3.2 2 x USB-C 3.1 5 x USB 3.1
DisplayPorts	Yes via Thunderbolt 5
HDMI Port	1 x HDMI 2.1
RJ-45 Ports	2 x RJ-45
Audio Line Out Ports	1 x 3.5mm Jack
Microphone In Port	1 x 3.5mm Jack
S/PDIF Port	1 x S/PDIF Optical Out
Antenna Connector(s)	2 x SMA Antenna

Internal I/O Connectors

SATA Connectors	4 x SATA III
USB Connectors	1 x USB-C 3.2 header (supports 1 port) 1 x USB-C 3.1 header (supports 1 port) 2 x USB 3.0 headers (supports 4 ports) 2 x USB 2.0 headers (supports 4 ports)
Front Panel Connectors	1 x Front Panel 1 x Front Audio
Cooling Fan Support	1 x CPU fan header 1 x CPU OPT fan header 2 x Chassis fan headers 2 x Radiator fan headers 2 x W_PUMP+ headers 1 x WB_SENSOR header
Power Connector Port	1 x 24-pin ATX 2 x 8-pin EPS 1 x 8-pin PCIe
Other Connectors	2 x M.2 slots, Key M, Type 2242/2260/2280/22110 (PCIe Gen5) 1 x M.2 slot, Key M, Type 2242/2260/2280 (PCIe Gen5) 1 x M.2 slot, Key M, Type 2242/2260/2280 (PCIe Gen4) 1 x DIMM.2 slot, supporting 2 x M.2 slots, Key M, Type 2230/2242/2260/2280/22110 (PCIe Gen4) 4 x 3-pin ARGB headers

Memory

Memory Bus Speed	Up to 8800 MT/s
Memory Type	DDR5
Maximum RAM	192 GB
Memory Slot	4 x DIMM

Motherboard

Northbridge	Intel Z890
RAID Supported	Yes
RAID Format	RAID 0, 1, 5, 10
SATA Supported	Yes

Expansion

Number of PCI Express Slots

2 x PCI Express 5.0 x16 slots (@ x16/x0 or x8/x8)
1 x PCI Express 4.0 x4 slot

Graphics Device

Integrated Graphics Supported

Yes

Sound

Integrated Sound

ROG SupremeFX ALC4082

Warranty

3 Years

Network

Integrated Network	Marvell AQtion Intel
Network Speeds Supported	Up to 10 Gbps (Marvell) or 2.5 Gbps (Intel)
Wireless LAN	Yes - Wi-Fi 7
Wireless Network Speed	Up to 5.8 Gbps
Bluetooth	Yes
Bluetooth Version	5.4

System Requirements

Operating Systems Supported

Windows 11

System

BIOS	2 x 256 Mb Flash ROM, UEFI AMI BIOS
Software Included (may be trial or restricted)	Yes
Drivers	Yes

Physical

Form Factor	eATX Motherboard

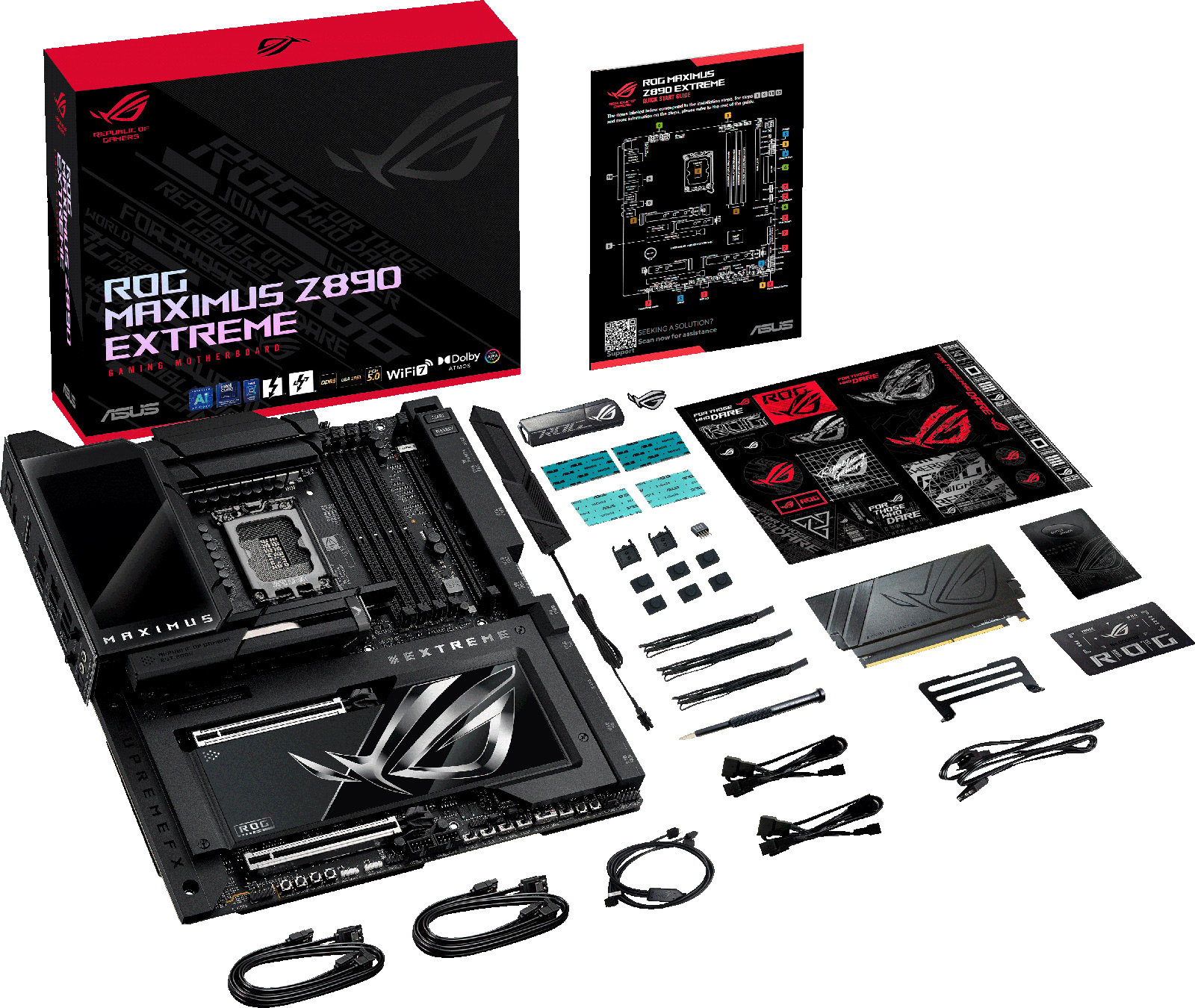

In The Box	Motherboard 1 x 1-to-3 ARGB splitter cable 1 x 1-to-2 ARGB splitter cable 2 x 1-to-4 fan splitter cable 2 x ROG weave SATA 6G cable packages 1 x 3-in-1 Thermistor cables pack 1 x ROG DIMM.2 with heatsink 1 x M.2 pad package for ROG Q-DIMM.2 2 x Thermal pad for ROG Q-DIMM.2 2 x Thermal pad for M.2 22110 1 x DDR5 Fan holder 1 x ASUS WiFi Q-Antenna 1 x Q-connector 1 x ROG logo plate sticker 1 x ROG screwdriver 1 x ROG stickers 1 x ROG VIP card 2 x M.2 Q-Slide packages 6 x M.2 backplate rubber packages 1 x ROG Bottle Opener 1 x USB drive with utilities and drivers 1 x Quick start guide
Width	277 mm
Length	305 mm

Key Features

Motherboard Model	ASUS ROG Maximus Z890 Extreme
WiFi Speed	5800 Mbps
USB 3.1 Support	Yes
Internal USB3.0 Header	Yes
M.2 Support	Yes
On-board RGB Control	ASUS Aura Sync
RGB Header Type	3-Pin ARGB
Addressable RGB	Yes
Internal USB Type-C Header	Yes
Power Requirement (auto)	100 W
Max Memory Speed Supported (overclocked)	8800 MT/s
CPU Power Pins (female)	16
PCI Express Power Pins (female)	8
Total M.2 Slots	4
Maximum NVMe M.2 ports	4
SATA ports	4
No. of front USB2.0 ports supported	4
No. of front USB3.0 ports supported	4
No. of front USB-C ports supported	2
Back Connect Support	No
Wireless Network	Yes
Motherboard Width	277 mm
Motherboard Height	305 mm
Main Colour	Black
Memory Channel	Dual
On-board Audio Type	7.1
Number of SATA Ports	4 port(s)
Number of USB Ports	8 port(s)
USB 3.0 Support	Yes
Multi GPU Support	No
VGA Connection	No
DVI Connection	No
HDMI Connection	Yes
DisplayPort Connection	No
Motherboard Form Factor	EATX
Drive Interface Type	PCIe 5.0 x4 NVMe
Motherboard (EPS) Power Connectors	2 x 8-Pin
Motherboard Chipset	Intel Z890
Thunderbolt	Yes

Item Details

Manufacturer	ASUS
Manufacturer Code	90MB1IA0-M0EAY0
EAN	4711387754153
Condition	New

Warranty

Warranty Information

Warranty

3 Years

Manufacturer Information

Manufacturer	ASUS
Manufacturer Code	90MB1IA0-M0EAY0
