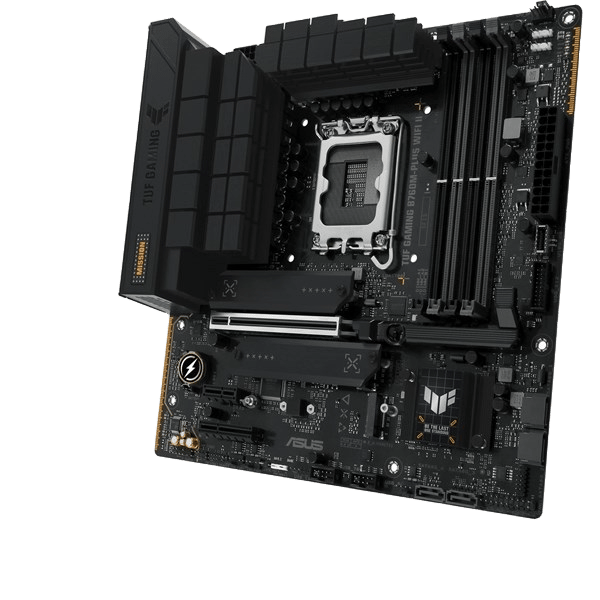

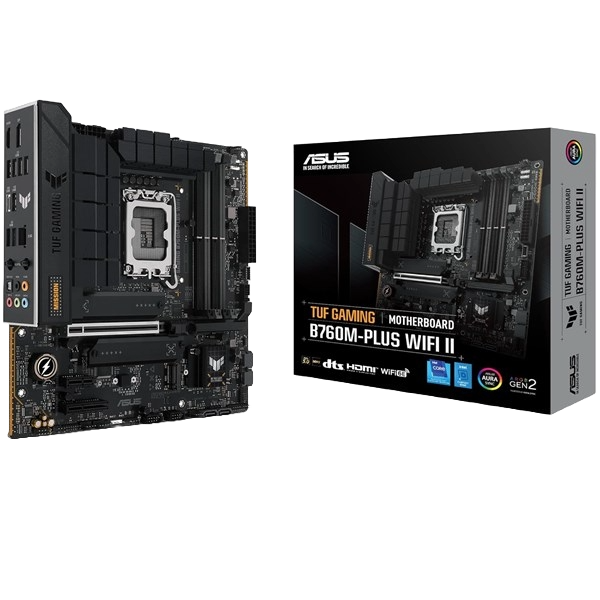

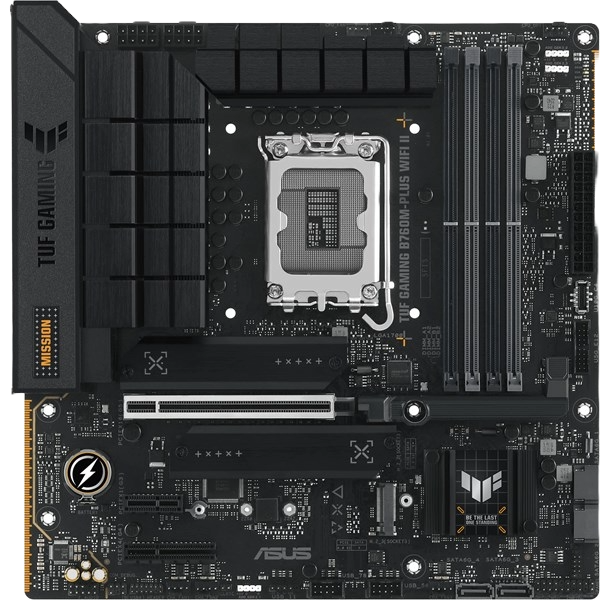

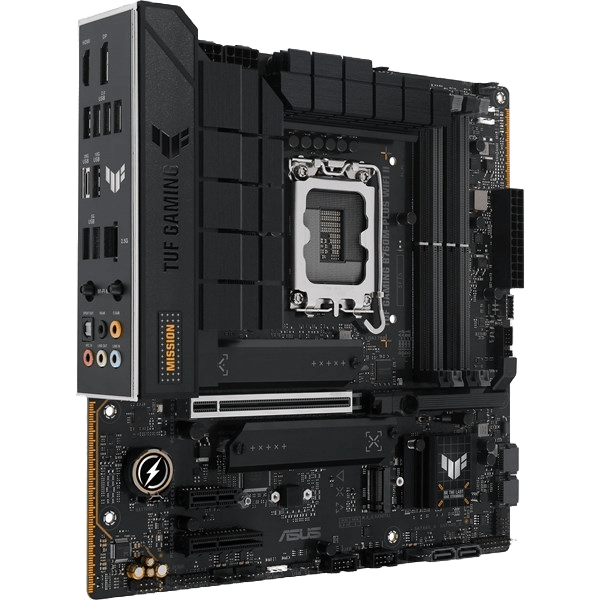

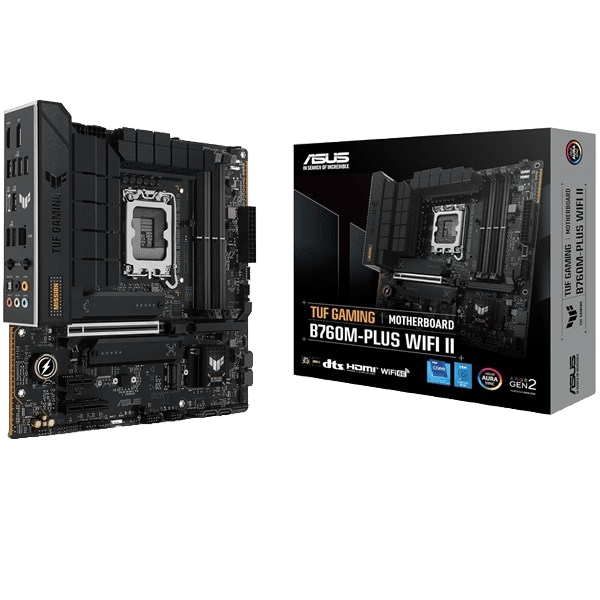

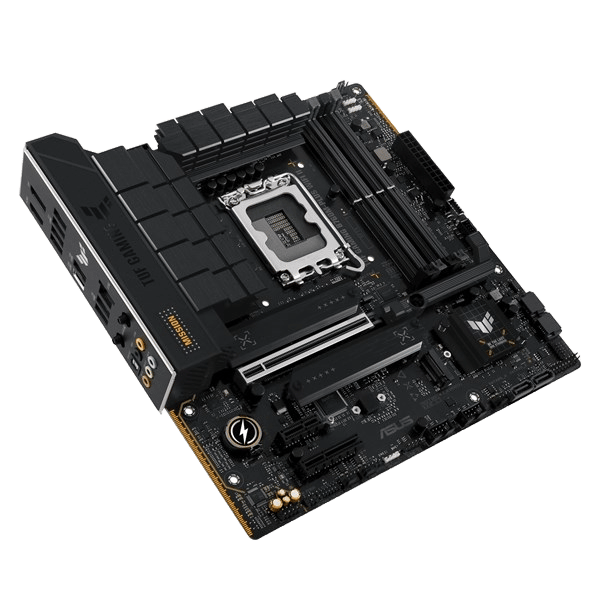

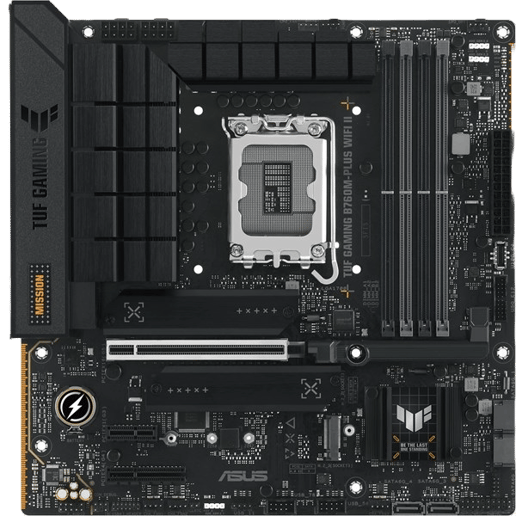

ASUS TUF Gaming B760M-PLUS WiFi II mATX Motherboard for Intel LGA1700 CPUs

ASUS TUF Gaming B760M-PLUS WiFi II mATX Motherboard for Intel LGA1700 CPUs

CCL Code: MBD3694

£156.99 inc VAT

ASUS TUF Gaming B760M-PLUS WiFi II mATX Motherboard for Intel LGA1700 CPUs

90MB1HE0-M0EAY0

£156.99 inc VAT

Available for delivery from Thursday 19th December

or Click & Collect from Thursday 19th December

Buying in bulk? Contact our business team.

Key Features:

  • mATX Form Factor
  • Intel B760 Chipset
  • Socket 1700
  • DDR5 (Max: 192GB / 4 slots)
  • 3 x M.2 & 8 x USB & 4 x SATA
  • HDMI and Display Port
CCL Code: MBD3694
Overview

TUF GAMING B760M-PLUS WIFI II takes all the essential elements of the latest Intel® processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. Aesthetically, this model incorporates an embossed nameplate and geometric design elements to reflect the dependability and stability that defines the TUF GAMING series.

Specifications

CPU

CPU Socket Socket 1700
CPU Brand Intel
Installed Processors (Max) 0 (1)
Supported Processor Manufacturer Intel
Supported Processors Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors
64-bit Support Yes
Socket LGA1700

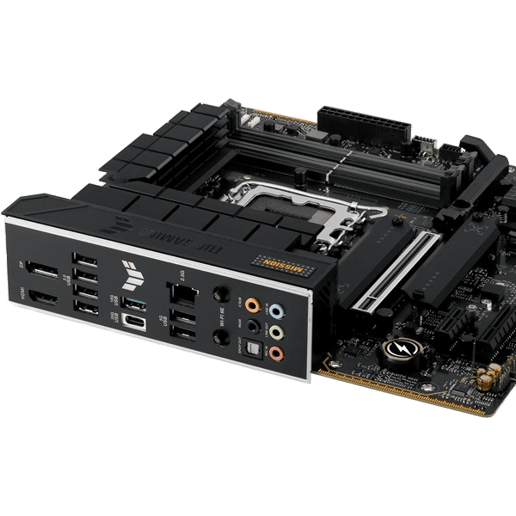

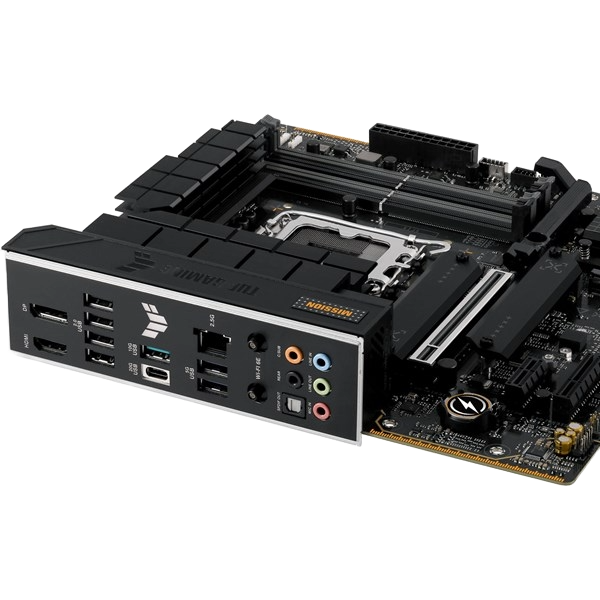

Rear Panel I/O Ports

USB Ports 1 x USB-C 3.2
1 x USB 3.1
2 x USB 3.0
4 x USB 2.0
DisplayPorts 1 x DisplayPort 1.4
HDMI Port 1 x HDMI 2.1
RJ-45 Ports 1 x RJ-45
Audio Line In Ports 1 x 3.5mm Jack
Audio Line Out Ports 3 x 3.5mm Jacks
Microphone In Port 1 x 3.5mm Jack
S/PDIF Port 1 x S/PDIF Optical Out
Antenna Connector(s) 2 x SMA Antenna

Internal I/O Connectors

SATA Connectors 4 x SATA III
USB Connectors 1 x USB-C 3.1 header (supports 1 port)
1 x USB 3.0 header (supports 2 ports)
3 x USB 2.0 headers (supports 5 ports)
Front Panel Connectors 1 x Front Panel
1 x Front Audio
Cooling Fan Support 1 x CPU fan header
1 x CPU OPT fan header
1 x AIO pump header
3 x Chassis fan headers
Thunderbolt Port(s) 1 x Thunderbolt (USB4) header
Chassis Intrusion Connector 1 x Chassis Intrusion header
Power Connector Port 1 x 24-pin ATX
2 x 8-pin EPS
Other Connectors 3 x M.2 slots, Key M, Type 2242/2260/2280 (PCIe Gen4)
3 x 3-pin ARGB headers
1 x 4-pin RGB header

Memory

Memory Bus Speed Up to 7800 MT/s
Memory Type DDR5
Maximum RAM 192 GB
Memory Slot 4 x DIMM

Motherboard

Northbridge Intel B760
RAID Supported Yes
RAID Format RAID 0, 1, 5, 10
SATA Supported Yes

Expansion

Number of PCI Express Slots 1 x PCI Express 5.0 x16 slot
1 x PCI Express 4.0 x4 slot
1 x PCI Express 3.0 x1 slot

Graphics Device

Integrated Graphics Supported Yes

Sound

Integrated Sound Realtek

Warranty

Warranty 3 Years

Network

Integrated Network Realtek
Network Speeds Supported Up to 2.5 Gbps
Wireless LAN Yes - Wi-Fi 6E
Wireless Network Speed Up to 2.4 Gbps
Bluetooth Yes
Bluetooth Version 5.3

System

Jumpers 1 x Clear CMOS
Software Included (may be trial or restricted) Yes
Drivers Yes

Physical

Form Factor mATX Motherboard
In The Box Motherboard
2 x SATA 6Gb/s cables

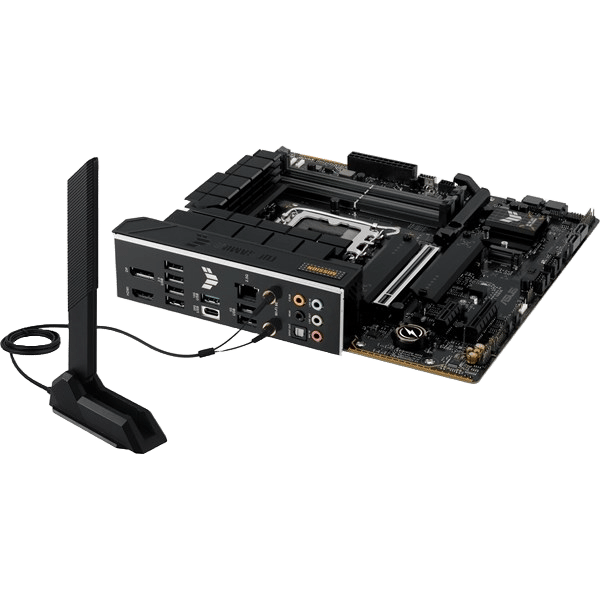

1 x ASUS Q-Antenna
1 x M.2 Rubber Package
1 x TUF Gaming sticker
2 x Screw packages for M.2 SSD
1 x TUF Certification card
1 x User guide
Width 244 mm
Length 244 mm

Key Features

Addressable RGB Yes
Internal USB Type-C Header Yes
Power Requirement (auto) 60 W
Max Memory Speed Supported (Non-overclocked) 5600 MT/s
Max Memory Speed Supported (overclocked) 7800 MT/s
CPU Power Pins (female) 16
Total M.2 Slots 3
Maximum NVMe M.2 ports 3
SATA ports 4
No. of front USB2.0 ports supported 5
No. of front USB3.0 ports supported 2
No. of front USB-C ports supported 1
Back Connect Support No
Wireless Network Yes
Motherboard Width 244 mm
Motherboard Height 244 mm
Main Colour Black
Memory Channel Dual
On-board Audio Type 7.1
Number of SATA Ports 4 port(s)
Number of USB Ports 8 port(s)
USB 3.0 Support Yes
Multi GPU Support No
VGA Connection No
DVI Connection No
HDMI Connection Yes
DisplayPort Connection Yes
Motherboard Form Factor mATX
Motherboard (EPS) Power Connectors 2 x 8-Pin
Motherboard Chipset Intel B760
Motherboard Model ASUS TUF Gaming B760M-PLUS WiFi II
WiFi Speed 2400 Mbps
USB 3.1 Support Yes
Internal USB3.0 Header Yes
M.2 Support Yes
On-board RGB Control ASUS Aura Sync
RGB Header Type 3-Pin ARGB

Item Details

Manufacturer ASUS
Manufacturer Code 90MB1HE0-M0EAY0
EAN 4711387461365
UPC 197105461369
Condition New
Warranty

Warranty Information

Warranty 3 Years

Manufacturer Information

Manufacturer ASUS
Manufacturer Code 90MB1HE0-M0EAY0
