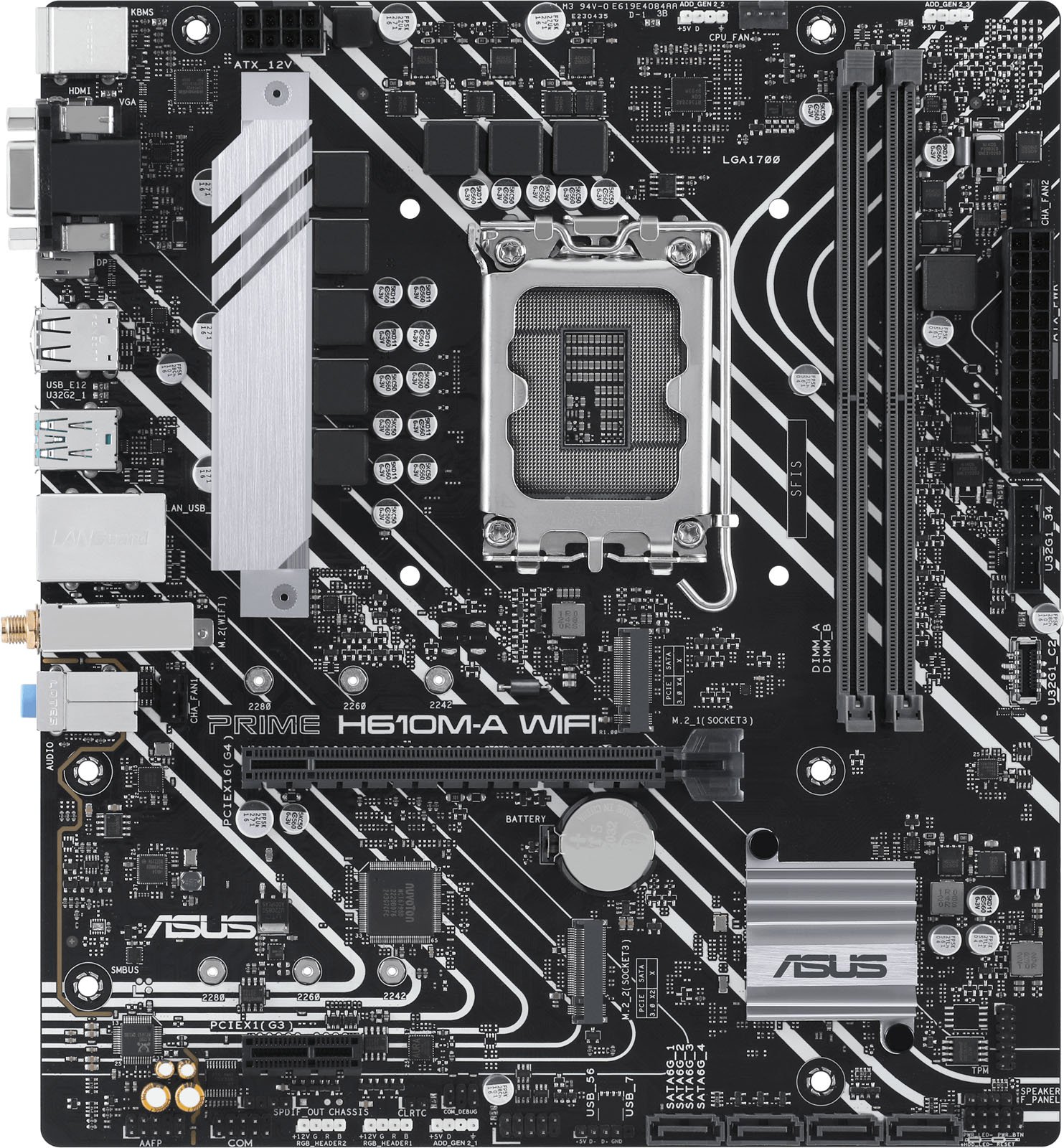

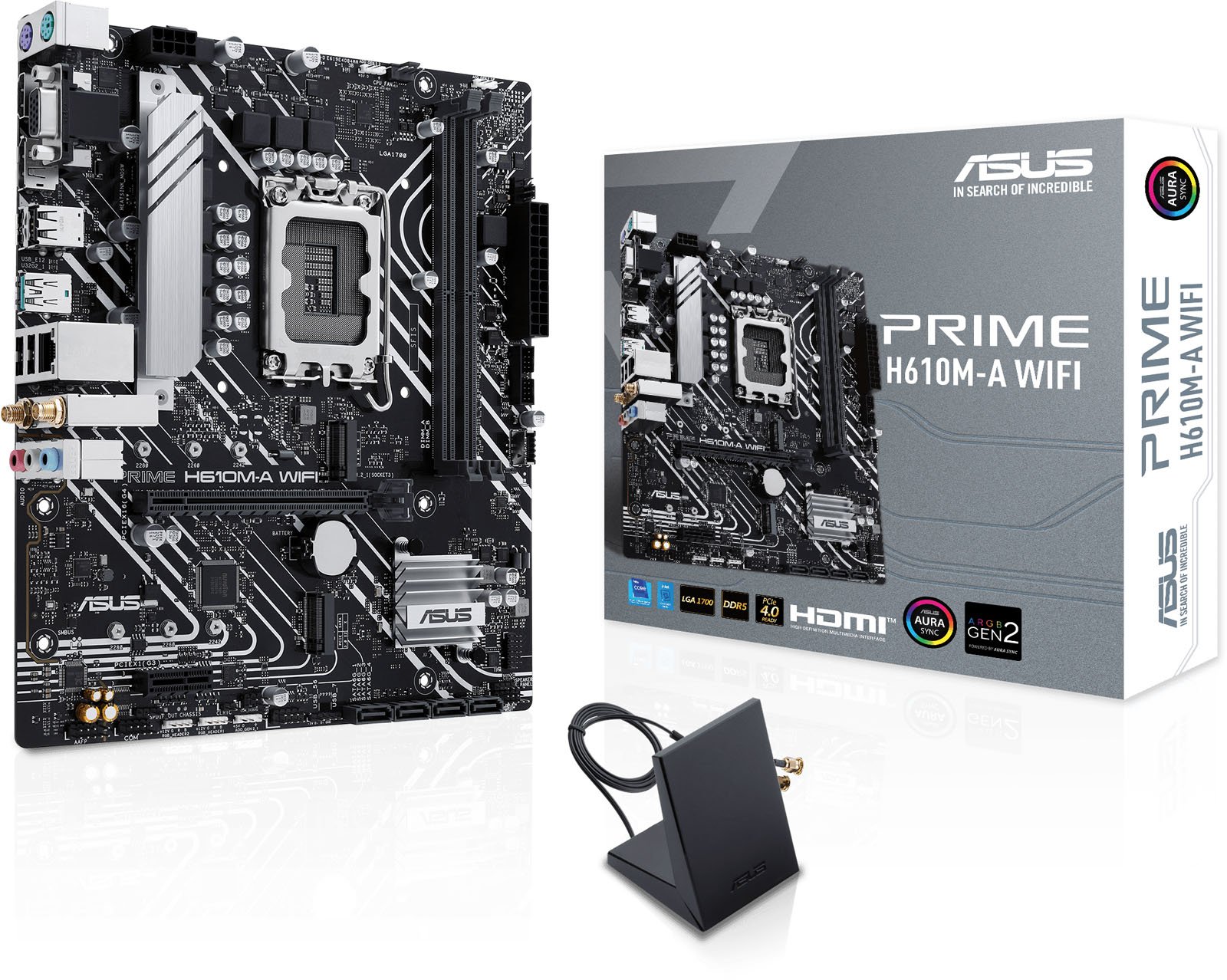

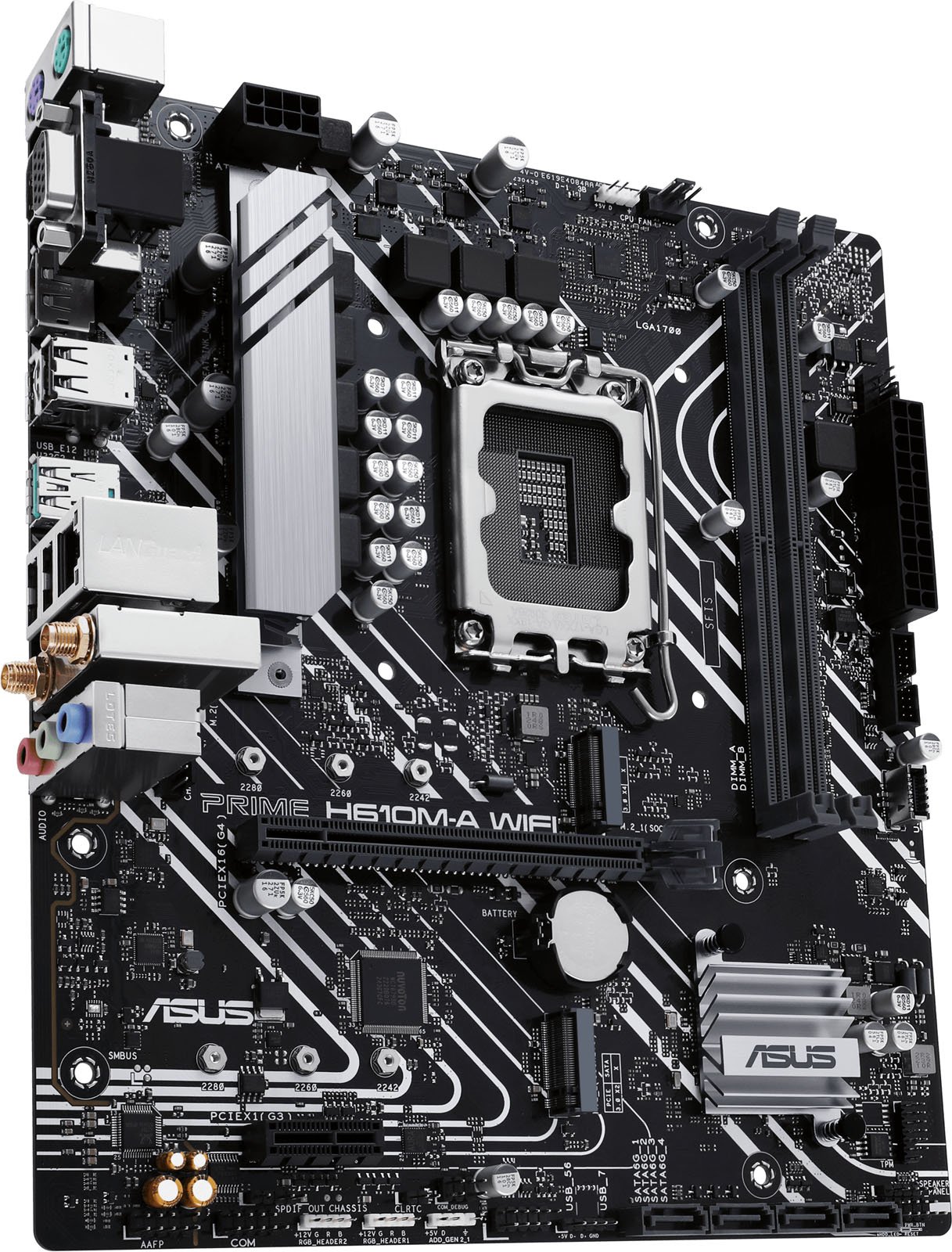

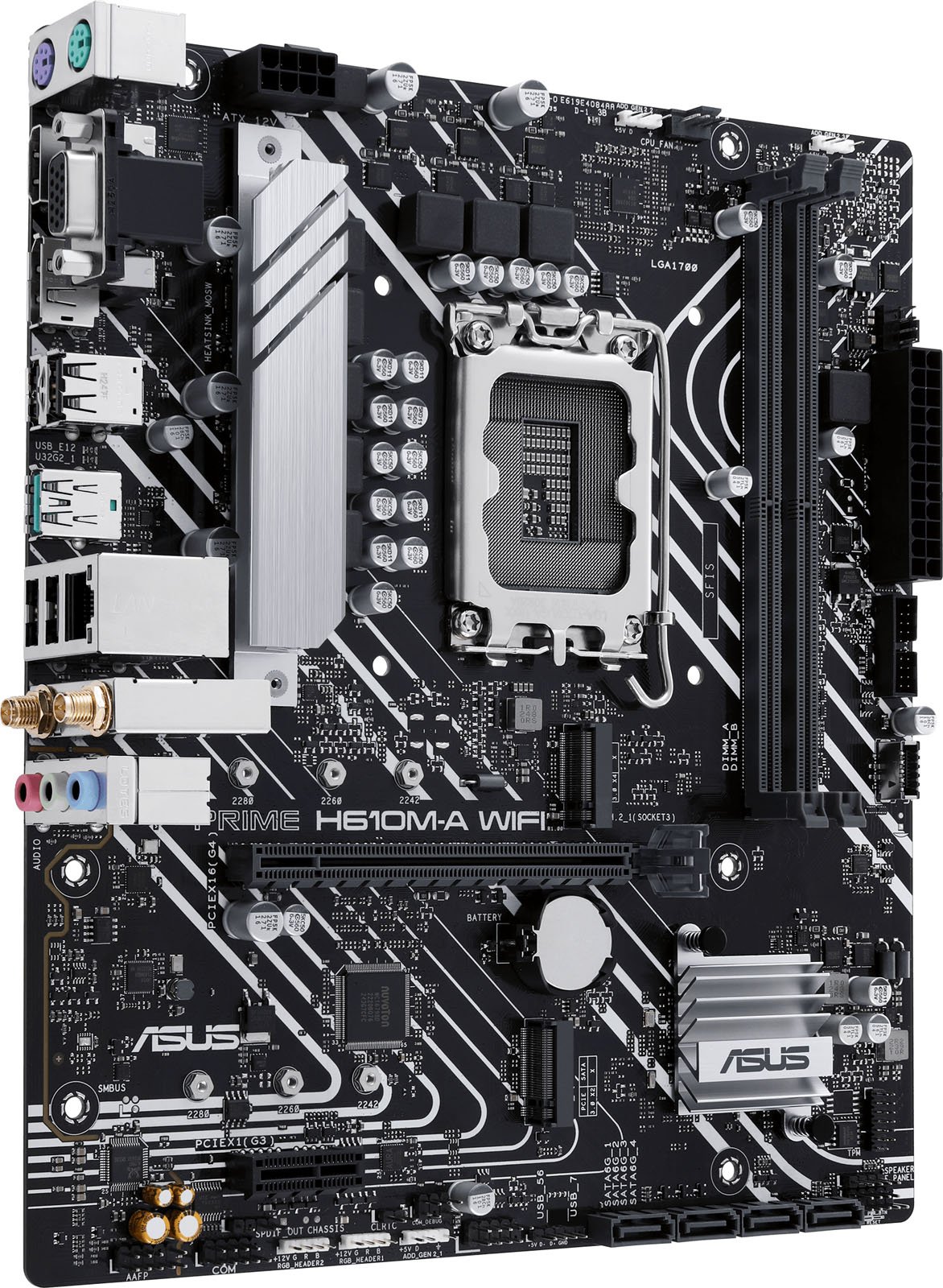

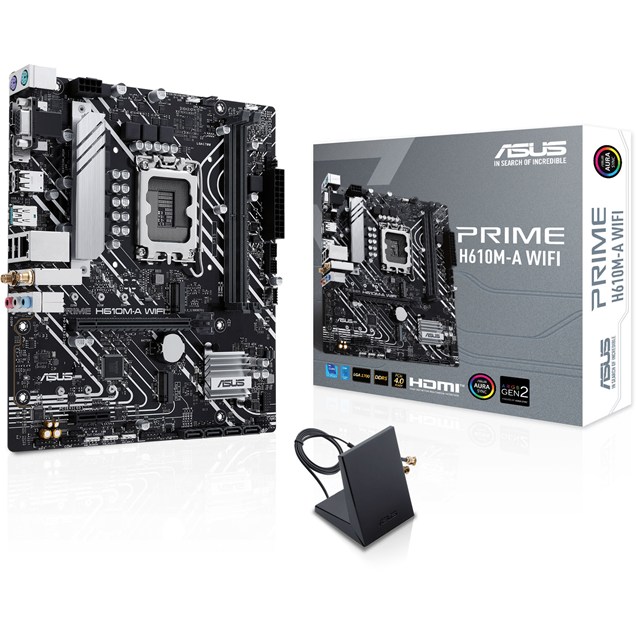

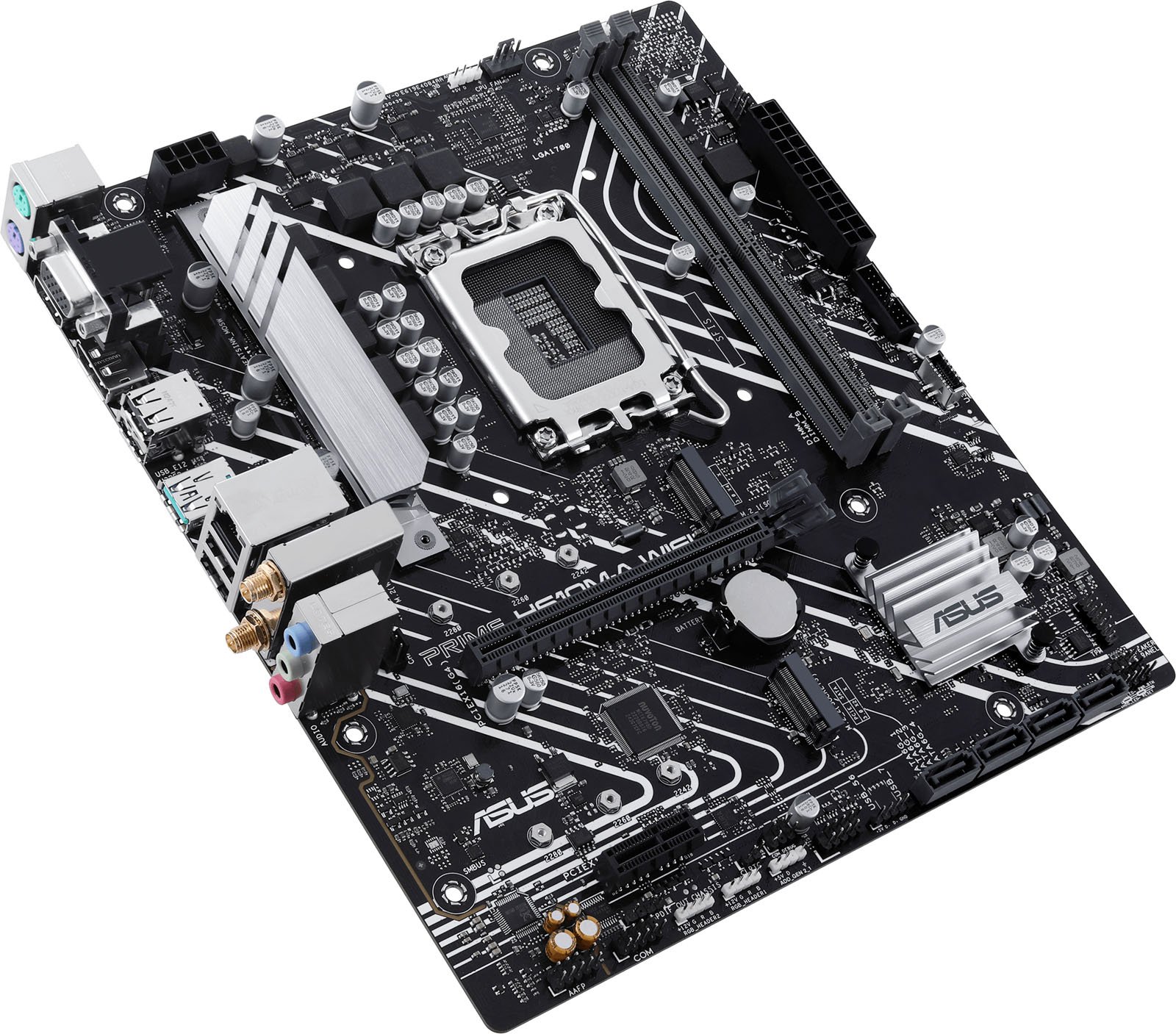

Name: ASUS Prime H610M-A mATX Motherboard for Intel LGA1700 CPUs
Brand: ASUS
SKU: MBD3549
Price: 120.81 GBP
Availability: OutOfStock

ASUS Prime H610M-A mATX Motherboard for Intel LGA1700 CPUs

Compare

Intel® H610 (LGA 1700) mATX motherboard with DDR5,PCIe 4.0, dual M.2 slots, Intel® 1Gb Ethernet, WIFI 5, DisplayPort, HDMI™, VGA, USB 3.2 Gen 2 ports, Addressable Gen 2 headers, and Aura Sync

Key Features:

Socket 1700
Intel H610 Chipset
4 x SATA & 5 x USB Ports
DDR5 (max 96GB, 2 slots)
VGA, HDMI and Display Port
mATX Form Factor

CCL Code: MBD3549

Coming soon

Sorry, we don't have any stock of this product. Please click 'Notify Me' and we will let you know when the item is available.

Notify Me

Overview

ASUS Prime series motherboards are expertly engineered to unleash the full potential of 13th & 12th Generation Intel® processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime H610 provides users and PC DIY builders a range of performance tuning options via intuitive software and firmware features.

Main Features

Intel LGA 1700 Socket: Ready for 13th and 12th Gen Intel processors
Ultrafast Connectivity: PCIe 4.0, two M.2 slots, Intel 1Gb Ethernet ,WIFI 5 and USB 3.2 Gen 2 support, front USB 3.2 Gen 1 Type-C
Comprehensive Cooling: VRM heatsink, PCH heatsink and Fan Xpert 2+
Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware

Promotions

Get 5% off components when you buy 5 or more*

For a limited time, buy at least 5 different components from different qualifying categories and get 5% off those items at checkout.

*Terms & Conditions apply.

Promotional Period: From 2023-09-25 till 2023-10-09, while stocks last.

Terms and conditions apply. Click here to view details.

Terms and Conditions

It can't be combined with any other offer. UK residents only. Offer available on products in qualifying categories. Discount will apply to five or more items bought from separate categories (e.g. one CPU, one motherboard) in one basket. If will not apply to multiples from categories (e.g. two CPUs). Discount will be applied to the five or more items in your basket - please double-check your basket to ensure the offer applies correctly. Offer does NOT apply to systems that have such components. CCL reserve the right to end this offer at any time. Offer may not be substituted, exchanged, sold, or redeemed for cash or other goods or services. Offer only available on orders placed on CCLonline.com - offer is not available via telephone or our eBay or Amazon stores.

Promotional Period: From 17th of August, 2023 till 31stof August, 2023.

Specifications

CPU

CPU Socket	Socket 1700
CPU Brand	Intel
Installed Processors (Max)	0 (1)
Supported Processor Manufacturer	Intel
64-bit Support	Yes
Socket	LGA1700

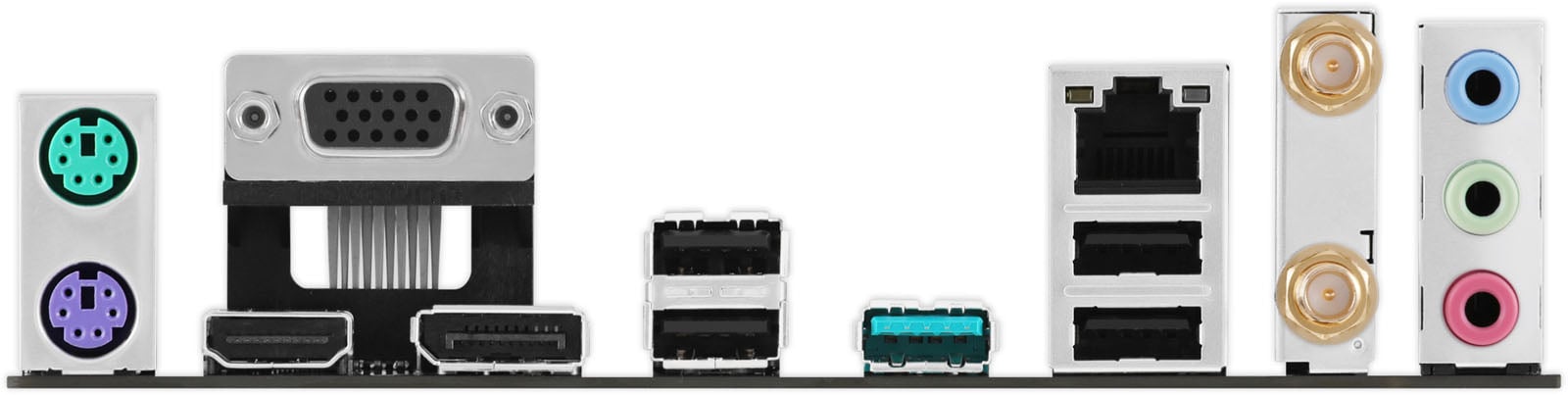

Rear Panel I/O Ports

USB Ports	1 x USB 3.1 4 x USB 2.0
DisplayPorts	1 x DisplayPort 1.4
HDMI Port	1 x HDMI 2.1
VGA Port	1 x D-Sub
Keyboard Port	1 x PS/2
Mouse Port	1 x PS/2
RJ-45 Ports	1 x RJ-45
Audio Line In Ports	1 x 3.5mm Jack
Audio Line Out Ports	1 x 3.5mm Jack
Microphone In Port	1 x 3.5mm Jack
Antenna Connector(s)	2 x SMA Antenna

Internal I/O Connectors

SATA Connectors	4 x SATA III
USB Connectors	1 x USB-C 3.0 header (supports 1 port) 1 x USB 3.0 header (supports 2 ports) 1 x USB 2.0 half-header (supports 1 port) 1 x USB 2.0 header (supports 2 ports)
Speaker	1 x Speaker header
Front Panel Connectors	1 x Front Panel 1 x Front Audio
Cooling Fan Support	1 x CPU fan header 2 x Chassis fan headers
S/PDIF Connectors	1 x S/PDIF out header
Serial Connectors	1 x COM header
TPM Header	1 x SPI TPM header
Power Connector Port	1 x 24-pin ATX 1 x 8-pin EPS
Other Connectors	1 x M.2 slot, Key M (Type 2242/2260/2280) PCIe Gen3 x4 1 x M.2 slot, Key M (Type 2242/2260/2280) PCIe Gen3 x2 3 x 3-pin ARGB LED headers 2 x 4-pin RGB LED headers

Memory

Memory Bus Speed	Up to 5600 MHz
Memory Type	DDR5
Maximum RAM	96 GB
Memory Slot	2 x DIMM

Motherboard

Northbridge	Intel H610
RAID Supported	No
SATA Supported	Yes

Expansion

Number of PCI Express Slots

1 x PCI Express 4.0 x16 slot
1 x PCI Express 3.0 x1 slot

Graphics Device

Integrated Graphics Supported

Yes

Sound

Integrated Sound	Yes
Integrated Sound	Realtek

Warranty

3 Years

Network

Integrated Network	Intel
Network Speeds Supported	Up to 1 Gbps
Wireless LAN	Yes (Wi-Fi 5)
Wireless Network Speed	Up to 1200 Mbps
Bluetooth	Yes
Bluetooth Version	5.3

System Requirements

Operating Systems Supported

Microsoft Windows 11

System

Software Included (may be trial or restricted)	Yes
Drivers	Yes

Physical

Form Factor	mATX Motherboard

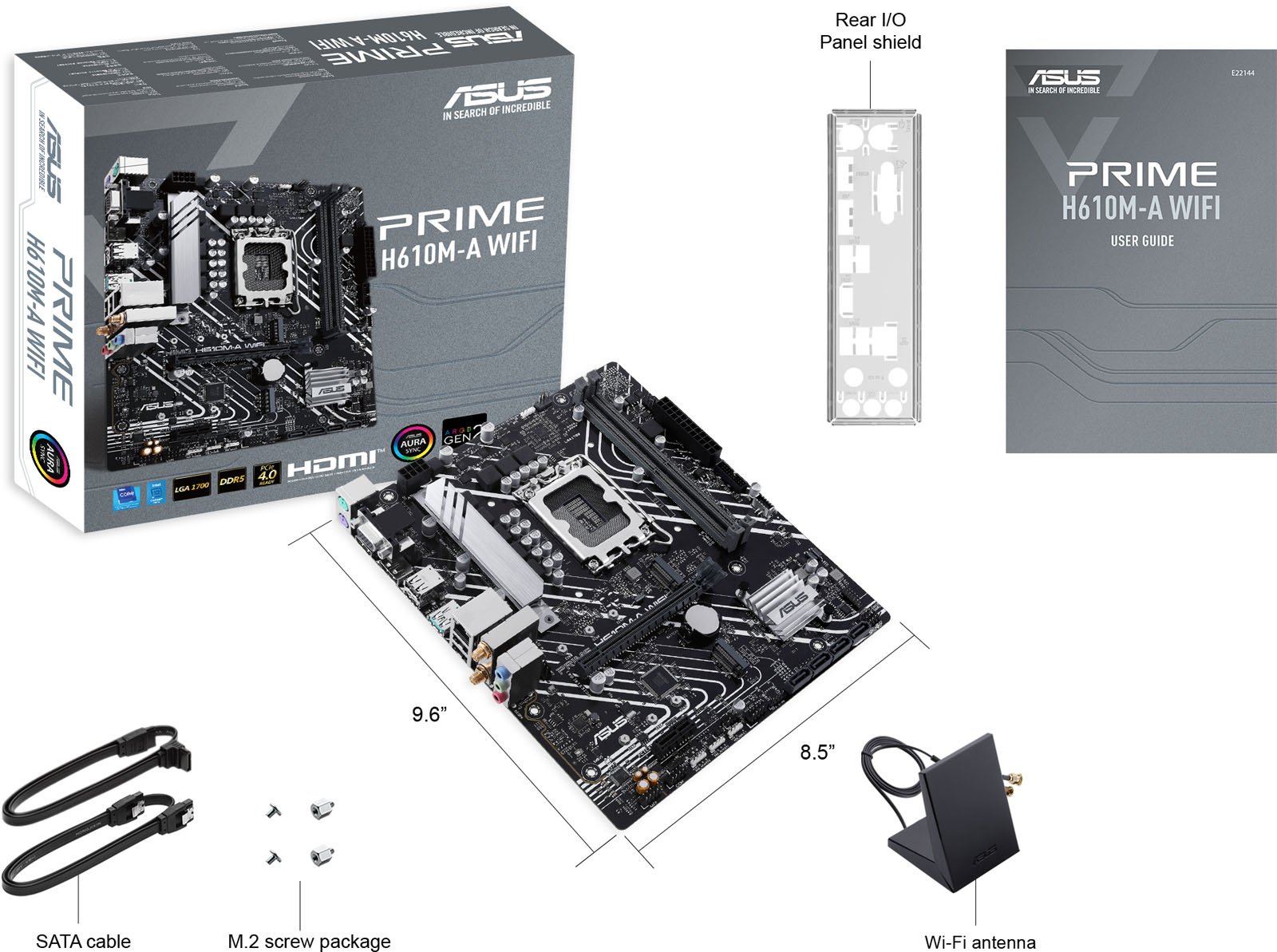

In The Box	Motherboard 2 x SATA Cables Wi-Fi Antennas I/O Shield Screw Package for M.2 slot User Guide
Width	244 mm
Length	216 mm

Key Features

Internal USB3.0 Header	Yes
M.2 Support	Yes
On-board RGB Control	ASUS Aura Sync
RGB Header Type	3-Pin ARGB
Addressable RGB	Yes
Internal USB Type-C Header	Yes
Power Requirement (auto)	60 W
Max Memory Speed Supported (Non-overclocked)	5600 MHz
CPU Power Pins (female)	8
Total M.2 Slots	2
Maximum NVMe M.2 ports	2
SATA ports	4
No. of front USB2.0 ports supported	3
No. of front USB3.0 ports supported	2
No. of front USB-C ports supported	1
Wireless Network	Yes
Motherboard Width	244 mm
Motherboard Height	244 mm
mSATA Supported	No
U.2 Supported	No
Main Colour	Black
Memory Channel	Dual
On-board Audio Type	7.1
Number of SATA Ports	4 port(s)
Number of USB Ports	5 port(s)
USB 3.0 Support	Yes
Multi GPU Support	No
VGA Connection	Yes
DVI Connection	No
HDMI Connection	Yes
DisplayPort Connection	Yes
Motherboard Form Factor	mATX
Motherboard Power Connectors	4 + 4-Pin
Motherboard Chipset	Intel H610
Thunderbolt	No
Motherboard Model	ASUS Prime H610M-A WIFI
WiFi Speed	1200 Mbps
USB 3.1 Support	No
