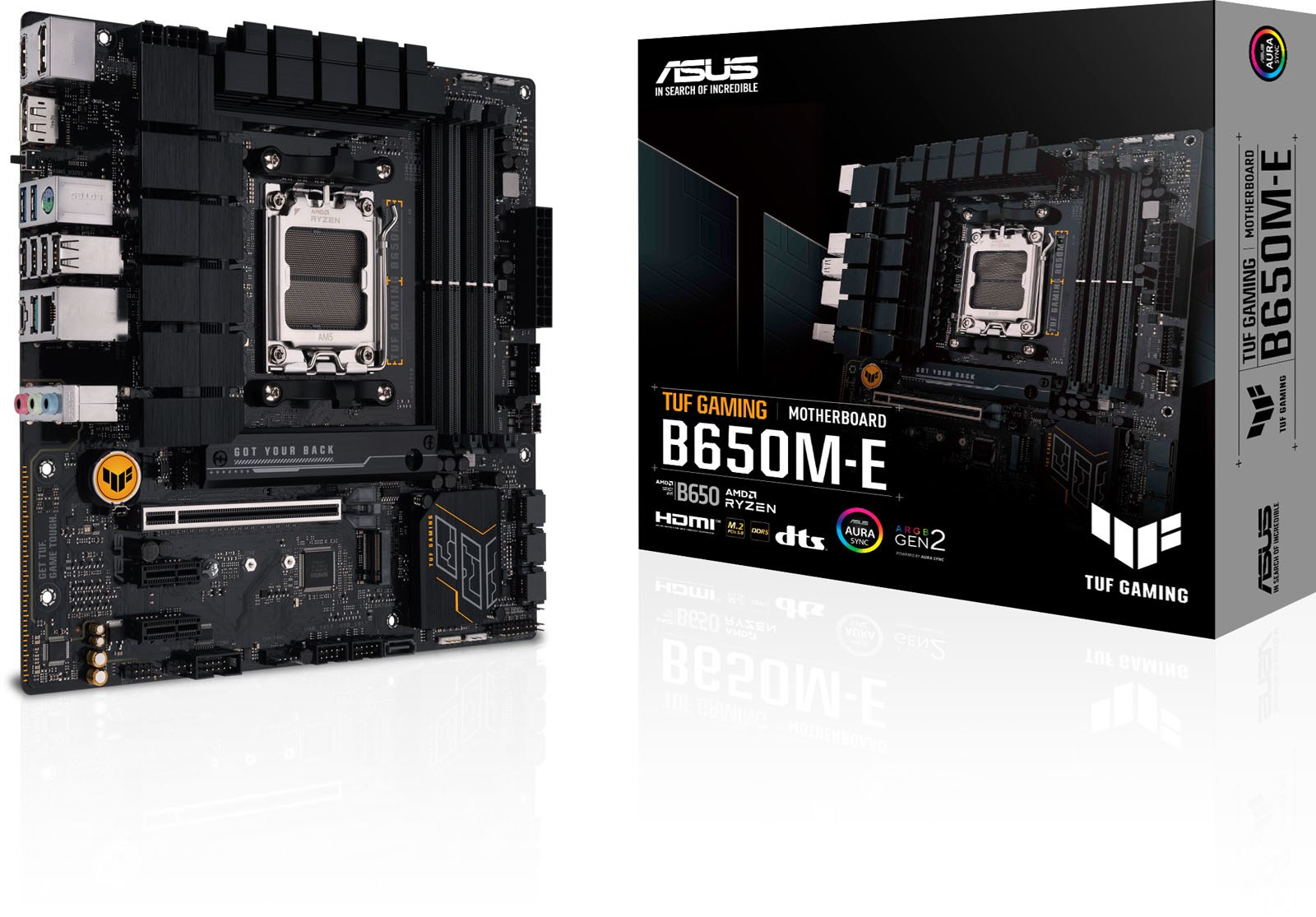

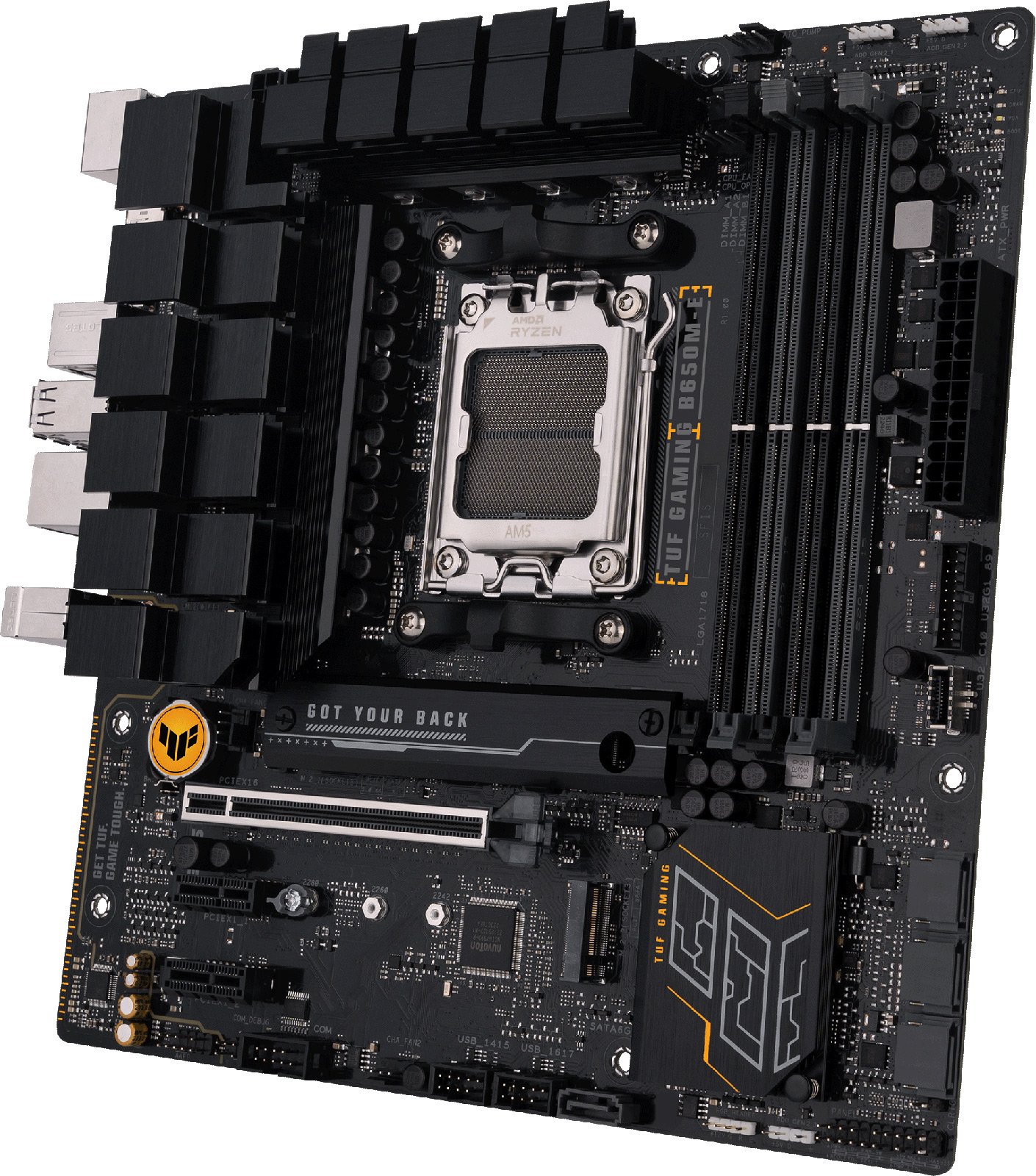

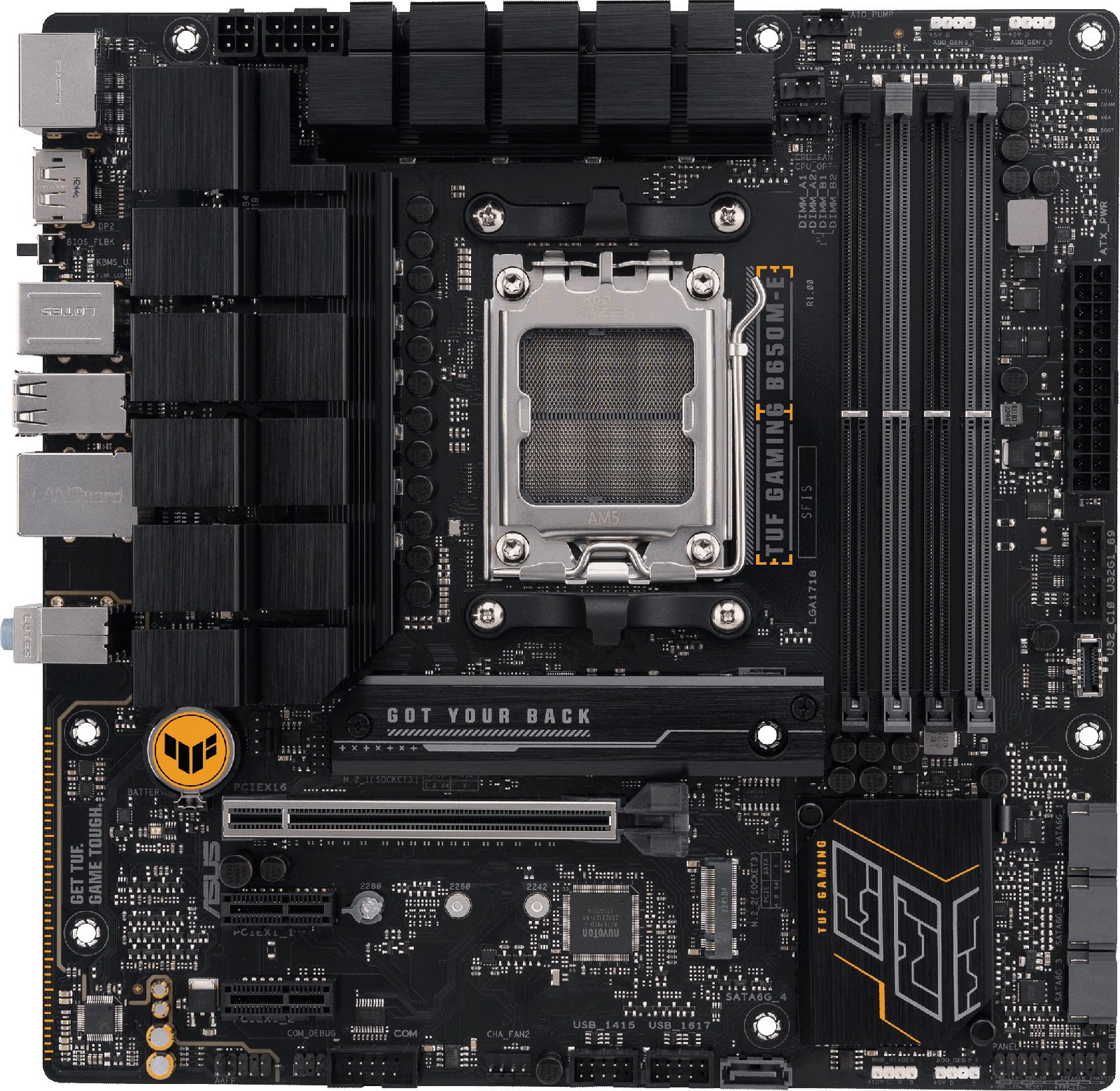

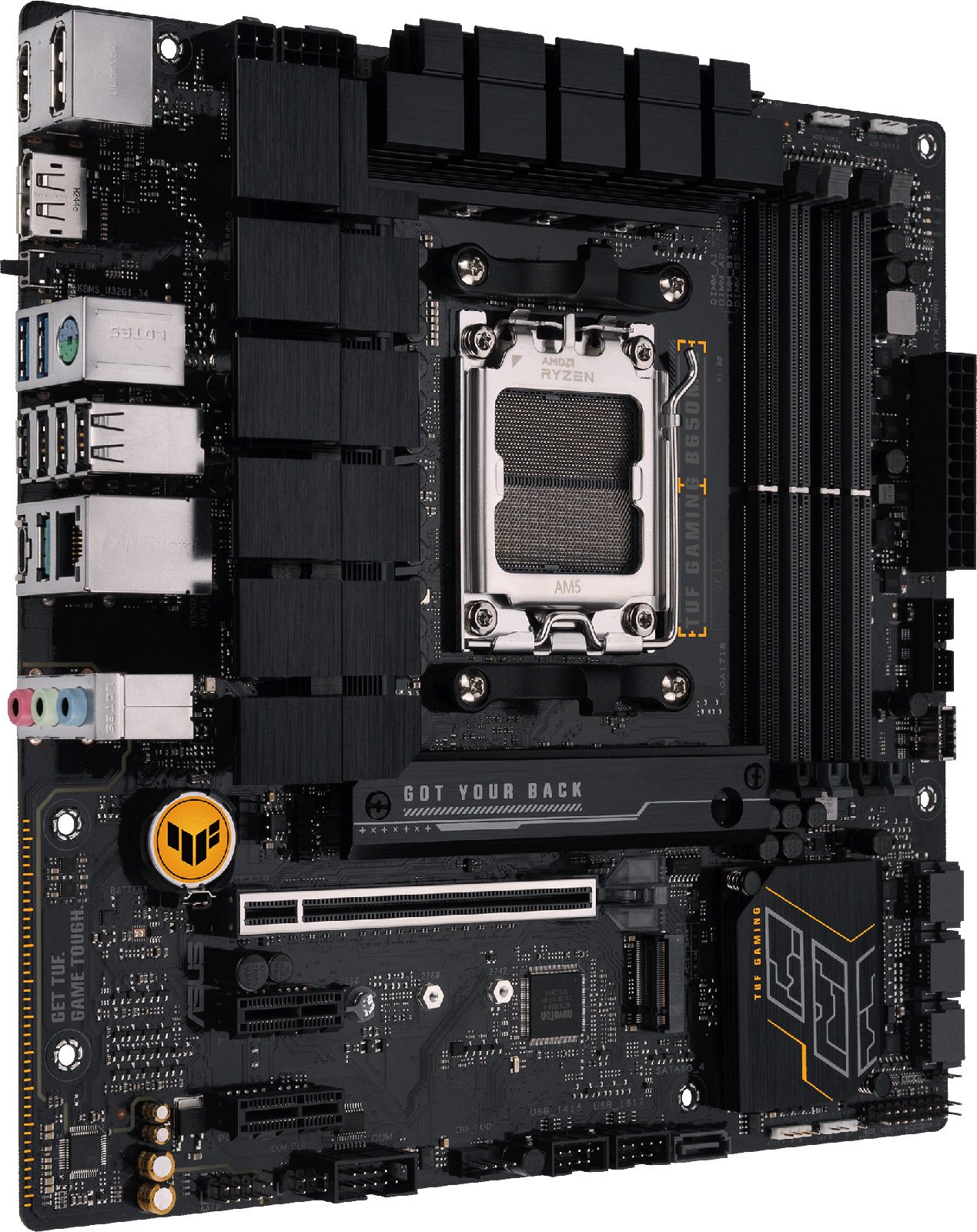

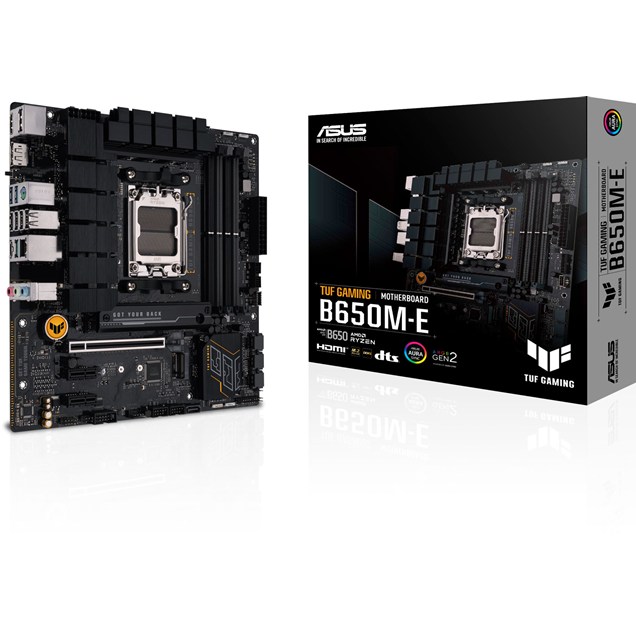

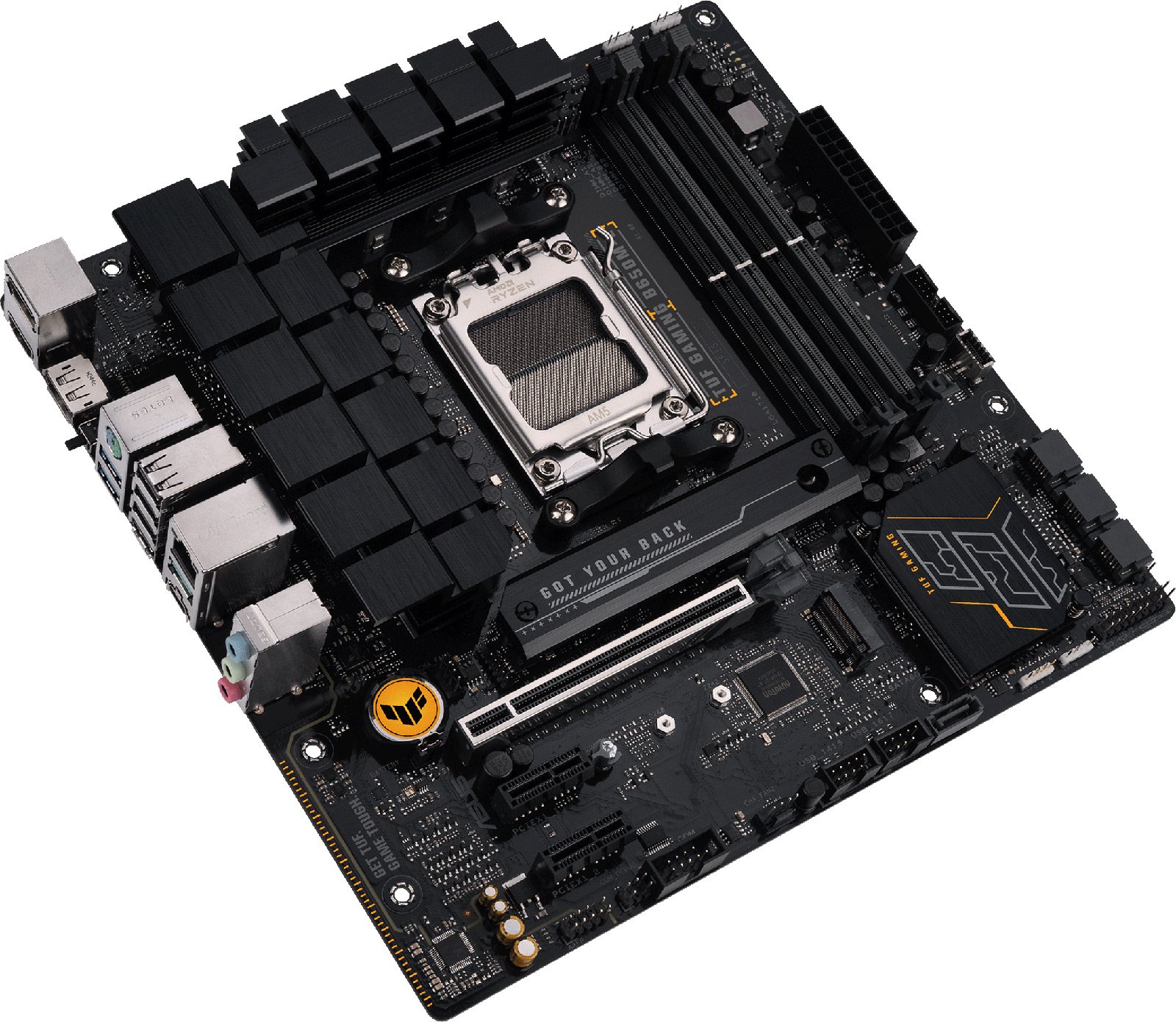

ASUS TUF Gaming B650M-E mATX Motherboard for AMD AM5 CPUs
ASUS TUF GAMING B650M-E takes all the essential elements of the latest AMD Ryzen™ Desktop Processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. Aesthetically, this model incorporates rugged off-black and geometric design elements to reflect the dependability and stability that defines the TUF GAMING series.
CPU
- Installed Processors (Max): 0 (1)
- Supported Processor Manufacturer: AMD
- Supported Processors: AMD Ryzen 7000 Series/ 8000 Series Desktop Processors
- 64-bit Support: Yes
- Socket: AM5

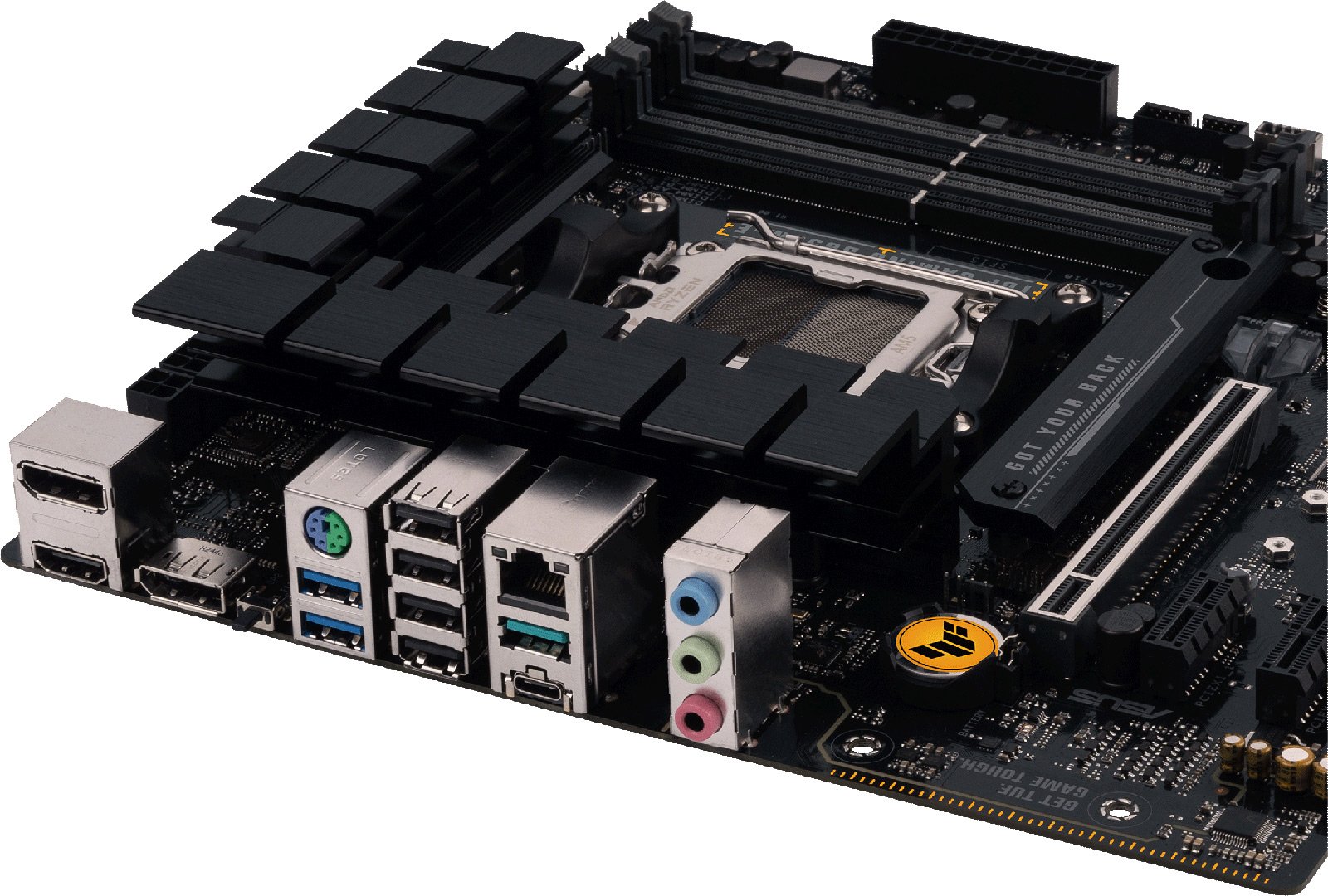

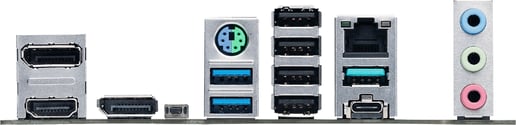

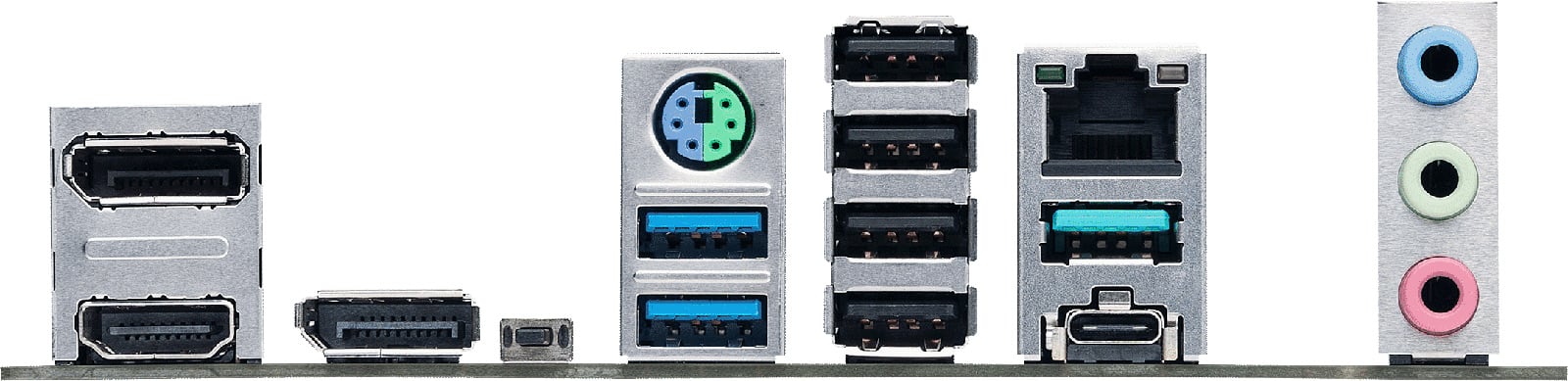

Rear Panel I/O Ports
- USB Ports: 1 x USB-C 3.1
- 1 x USB 3.1
- 2 x USB 3.0
- 4 x USB 2.0
- DisplayPorts: 2 x DisplayPort 1.4
- HDMI Port: 1 x HDMI 2.1
Internal I/O Connectors
- SATA Connectors: 4 x SATA III
- USB Connectors: 1 x USB-C 3.0 header (supports 1 port)
- 1 x USB 3.0 header (supports 2 ports)
- 2 x USB 2.0 headers (supports 4 ports)
Memory
- Memory Bus Speed: Up to 7600 MHz
- Memory Type: DDR5
Motherboard
- Northbridge: AMD B650
- RAID Supported: Yes
- RAID Format: RAID 0, 1, 10
- SATA Supported: Yes
Rear Panel I/O Ports
- Keyboard/Mouse Combo Port: 1 x PS/2
- RJ-45 Ports: 1 x RJ-45
- Audio Line In Ports: 1 x 3.5mm Jack
- Audio Line Out Ports: 1 x 3.5mm Jack
- Microphone In Port: 1 x 3.5mm Jack
Internal I/O Connectors
- Front Panel Connectors: 1 x Front Panel
- 1 x Front Audio
- Cooling Fan Support: 1 x CPU fan header
- 1 x CPU OPT fan header
- 1 x AIO Pump header
- 2 x Chassis fan headers
- Serial Connectors: 1 x COM header
- Chassis Intrusion Connector: 1 x Chassis Intrusion header
- Power Connector Port: 1 x 24-pin ATX
- 1 x 8-pin EPS
- 1 x 4-pin EPS
- Other Connectors: 1 x M.2 slot, Key M, Type 2242/2260/2280 (PCIe Gen5)
- 1 x M.2 slot, Key M, Type 2242/2260/2280 (PCIe Gen4)
- 3 x 3-pin ARGB LED headers
- 1 x 4-pin RGB LED header
Expansion
- Number of PCI Express Slots: 1 x PCI Express 4.0 x16 slot
- 2 x PCI Express 4.0 x1 slots
Memory
- Maximum RAM: 192 GB
- Memory Slot: 4 x DIMM
Graphics Device
- Integrated Graphics Supported: Yes
Sound
- Integrated Sound: Realtek
Warranty
- Warranty: 3 Years
Network
- Integrated Network: Realtek
- Network Speeds Supported: Up to 2.5 Gbps
- Wireless LAN: No
- Bluetooth: No
System Requirements
- Operating Systems Supported: Microsoft Windows 11
System
- Jumpers: 1 x Clear CMOS
- Software Included: Yes
- Drivers: Yes
Physical
- Form Factor: mATX Motherboard

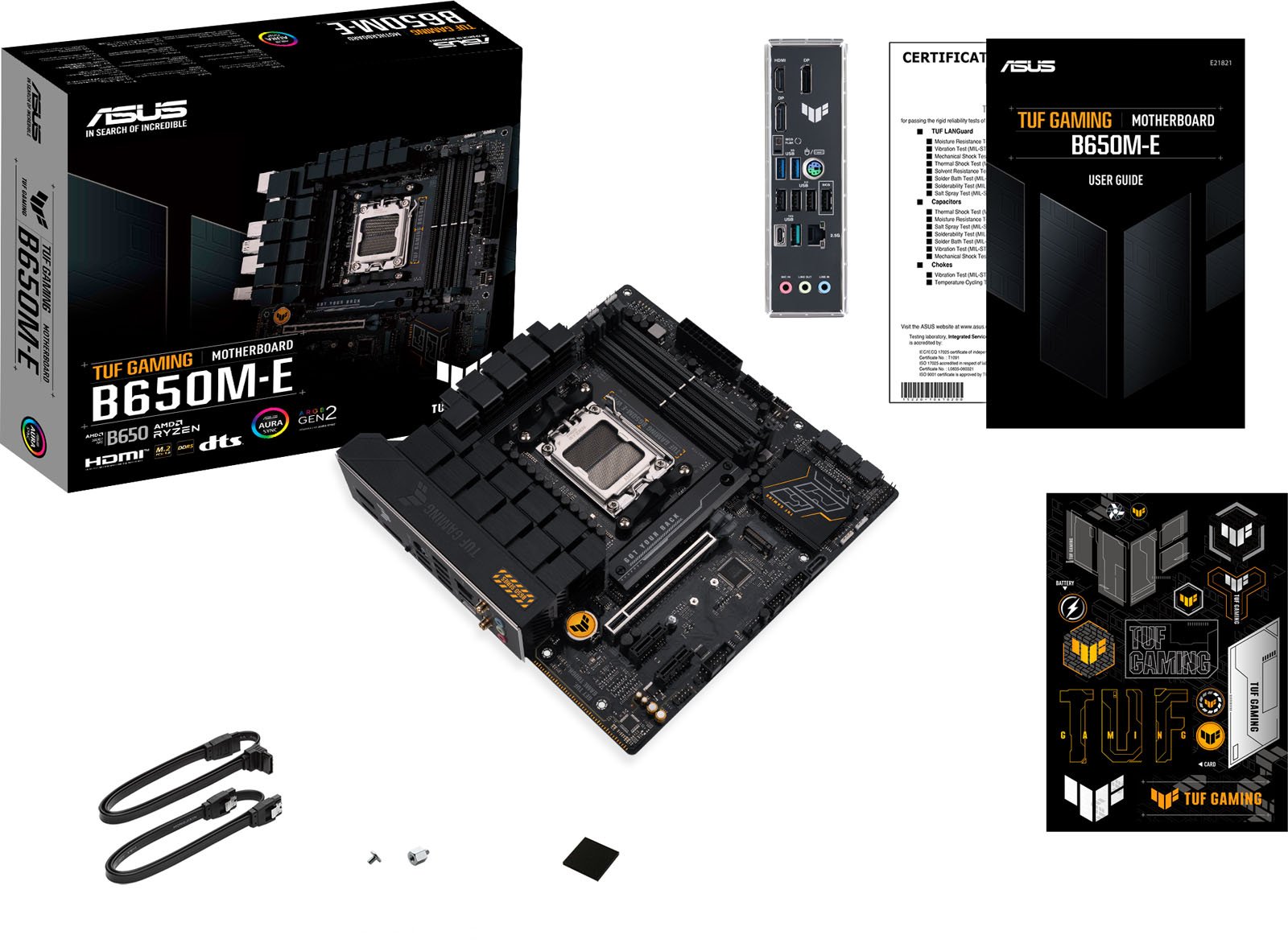

- In The Box: Motherboard
- 2 x SATA 6Gb/s cables
- I/O Shield
- TUF Gaming sticker
- M.2 Rubber Package
- Screw package for M.2 SSD
- TUF Certification card
- User guide
- Width: 244 mm
- Length: 244 mm
Identifiers
- Stock Code: MBD3637
- Mfg Code: 90MB1FU0-M0EAY0
Warranty
- Warranty: 3 Years
