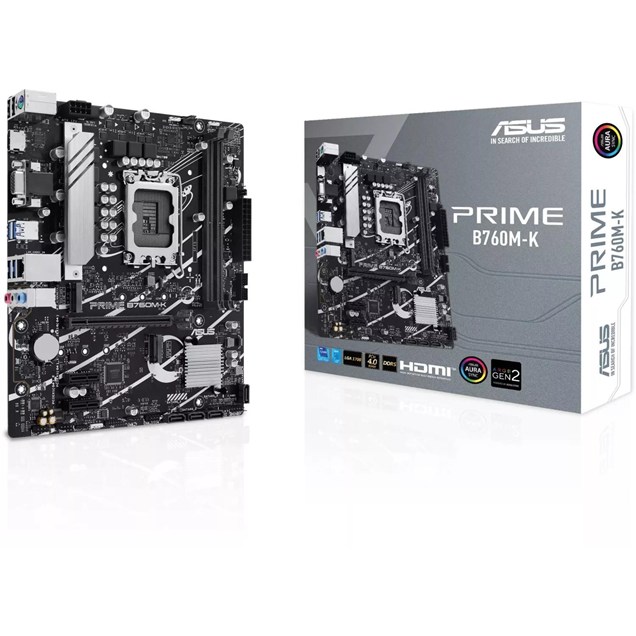

ASUS Prime B760M-K mATX Motherboard for Intel LGA1700 CPUs

ASUS Prime B760M-K mATX Motherboard for Intel LGA1700 CPUs

CCL Code: MBD3512

Sold out

Notify Me
  • ASUS Prime B760M-K mATX Motherboard for Intel LGA1700 CPUs
  • ASUS Prime B760M-K mATX Motherboard for Intel LGA1700 CPUs
  • ASUS Prime B760M-K mATX Motherboard for Intel LGA1700 CPUs
  • ASUS Prime B760M-K mATX Motherboard for Intel LGA1700 CPUs
  • ASUS Prime B760M-K mATX Motherboard for Intel LGA1700 CPUs
  • ASUS Prime B760M-K mATX Motherboard for Intel LGA1700 CPUs

Rate your Gear and claim £25 cashback from ASUS*

ASUS Prime B760M-K, an Intel® B760 LGA 1700 mATX motherboard with PCIe 4.0, two PCIe 4.0 M.2 slots, DDR5, Realtek 2.5Gb Ethernet, VGA, HDMI™, SATA 6 Gbps, front USB 3.2 Gen 1, Aura Sync

ASUS Prime B760M-K mATX Motherboard for Intel LGA1700 CPUs

90MB1FI0-M1EAY0

ASUS Prime B760M-K, an Intel® B760 LGA 1700 mATX motherboard with PCIe 4.0, two PCIe 4.0 M.2 slots, DDR5, Realtek 2.5Gb Ethernet, VGA, HDMI™, SATA 6 Gbps, front USB 3.2 Gen 1, Aura Sync

Key Features:

  • mATX Form Factor
  • Intel B760 Chipset
  • Socket 1700
  • DDR5 (Max: 96GB / 2 slots)
  • 2 x M.2 & 6 x USB & 4 x SATA
  • HDMI and VGA
CCL Code: MBD3512

Sold out

Sorry, we don't have any stock of this product. Please click 'Notify Me' and we will let you know when the item is available.

Notify Me
Overview

ASUS Prime B760M-K Micro-ATX DDR5 Intel Socket 1700 Motherboard

Promotions

ASUS Rate Your Gear

Rate your Gear with ASUS

For a limited time purchase an eligible ASUS product, leave a review of said product from the review invitation email, and you can claim £25 cashback from ASUS.

For more information, visit our promotion page. Terms & Conditions apply.

Separation

Promotional Period: From October 21st till December 31st 2024, while stock lasts.

Terms and Conditions

Find the full Terms & Conditions on the ASUS website here: Terms & Conditions.

Specifications

Wireless Communications

Bluetooth No

Key Features

Socket LGA1700
Installed Processors (Max) 0 (1)
Integrated Graphics Supported Yes
Maximum RAM 96 GB
RAID Supported Yes
Wireless Network No
Motherboard Width 211 mm
Motherboard Height 244 mm
mSATA Supported No
U.2 Supported No
Number of PCI Express Slots 3 slot(s)
Memory Channel Dual
On-board Audio Type 7.1
Number of SATA Ports 4 port(s)
Number of USB Ports 6 port(s)
USB 3.0 Support Yes
Multi GPU Support No
VGA Connection Yes
DVI Connection No
HDMI Connection Yes
DisplayPort Connection No
Memory Type DDR5
Motherboard Form Factor mATX
Motherboard (EPS) Power Connectors 4+4-Pin
Motherboard Chipset Intel B760
Thunderbolt No
USB 3.1 Support No
Internal USB3.0 Header Yes
M.2 Support Yes
On-board RGB Control ASUS Aura Sync
RGB Header Type 3-Pin ARGB
Addressable RGB Yes
Internal USB Type-C Header No
Power Requirement (auto) 60 W
Max Memory Speed Supported (Non-overclocked) 5600 MT/s
Max Memory Speed Supported (overclocked) 8000 MT/s
CPU Power Pins (female) 8
Total M.2 Slots 2
Maximum NVMe M.2 ports 2
SATA ports 4
No. of front USB2.0 ports supported 3
No. of front USB3.0 ports supported 2

CPU

CPU Socket Socket 1700
CPU Brand Intel

Warranty

Warranty 1 Year

Item Details

Manufacturer ASUS
Manufacturer Code 90MB1FI0-M1EAY0
Alternative Part Numbers 90MB1FI0-M0EAY0, PRIME B760M-K
EAN 4711387198506
UPC 197105198500
Condition New
Warranty

Warranty Information

Warranty 1 Year

Manufacturer Information

Manufacturer ASUS
Manufacturer Code 90MB1FI0-M1EAY0
