CPU

• Installed Processors (Max): 0 (1)
• Supported Processor Manufacturer: Intel
• Supported Processors: Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors
• 64-bit Support: Yes
• Socket: LGA1700

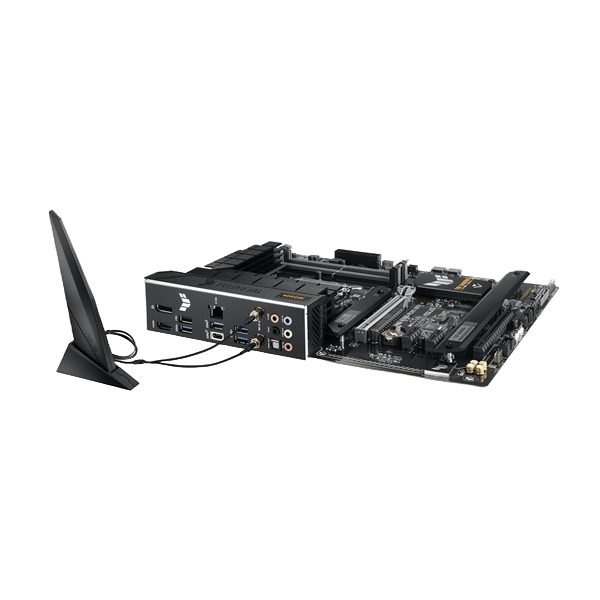

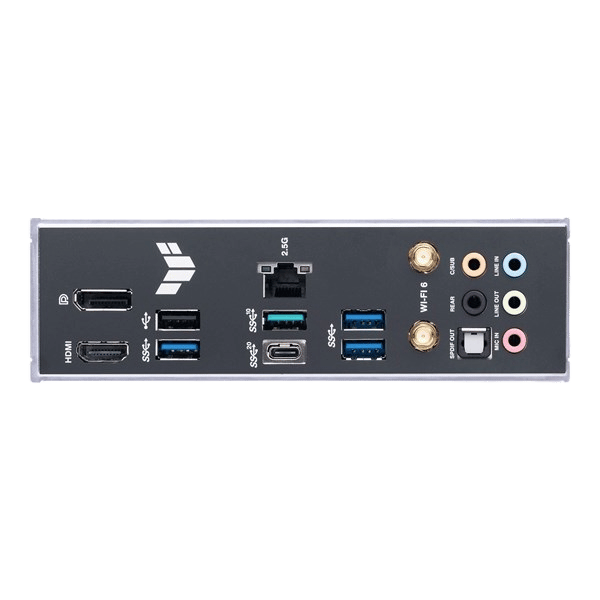

Rear Panel I/O Ports

• USB Ports: 1 x USB-C 3.2
• 1 x USB 3.1
• 3 x USB 3.0
• 1 x USB 2.0
• DisplayPorts: 1 x DisplayPort 1.4
• HDMI Port: 1 x HDMI 2.1

Internal I/O Connectors

• SATA Connectors: 4 x SATA
• USB Connectors: 1 x USB-C 3.1 header (supports 1 port)
  1 x USB 3.0 header (supports 2 ports)
  2 x USB 2.0 headers (supports 4 ports)

Memory

• Memory Bus Speed: Up to 7200 MT/s
• Memory Type: DDR5

Motherboard

• Northbridge: Intel B760
• RAID Supported: Yes
• RAID Format: RAID 0, 1, 5, 10
• SATA Supported: Yes

Rear Panel I/O Ports

• RJ-45 Ports: 1 x RJ-45
• Audio Line In Ports: 1 x 3.5mm Jack
• Audio Line Out Ports: 3 x 3.5mm Jacks
• Microphone In Port: 1 x 3.5mm Jack
• S/PDIF Port: 1 x S/PDIF Optical Out
• Antenna Connector(s): 2 x SMA Antenna

Internal I/O Connectors

• Front Panel Connectors: 1 x Front Panel
• 1 x Front Audio
• Cooling Fan Support: 1 x CPU fan header
• 1 x CPU OPT fan header
• 1 x AIO pump header
• 4 x Chassis fan headers
• Thunderbolt Port(s): 1 x Thunderbolt 4 header
• Serial Connectors: 1 x COM header
• Chassis Intrusion Connector: 1 x Chassis Intrusion header
• Power Connector Port: 1 x 24-pin ATX
• 1 x 8-pin EPS
  1 x 4-pin EPS
• Other Connectors: 2 x M.2 slots, Key M, Type 2242/2260/2280 (PCIe Gen4)
• 1 x M.2 slot, Key M, Type 2242/2260/2280/22110 (PCIe Gen4)
• 3 x 3-pin ARGB LED headers
• 1 x 4-pin RGB LED header

Expansion

• Number of PCI Express Slots: 1 x PCI Express 5.0 x16 slot
• 1 x PCI Express 3.0 x16 slot (@ x4)
  2 x PCI Express 3.0 x1 slots

Memory

• Maximum RAM: 192 GB
• Memory Slot: 4 x DIMM

Graphics Device

• Integrated Graphics Supported: Yes

Sound

• Integrated Sound: Realtek

Warranty

• Warranty: 3 Years

Network

• Integrated Network: Realtek
• Network Speeds Supported: Up to 2.5 Gbps
• Wireless LAN: Yes - Wi-Fi 6
• Wireless Network Speed: Up to 2.4 Gbps
• Bluetooth: Yes
• Bluetooth Version: 5.2

System Requirements

• Operating Systems Supported: Microsoft Windows 11

System

• Jumpers: 1 x Clear CMOS
• Software Included: Yes
• Drivers: Yes

Physical

• Form Factor: ATX Motherboard

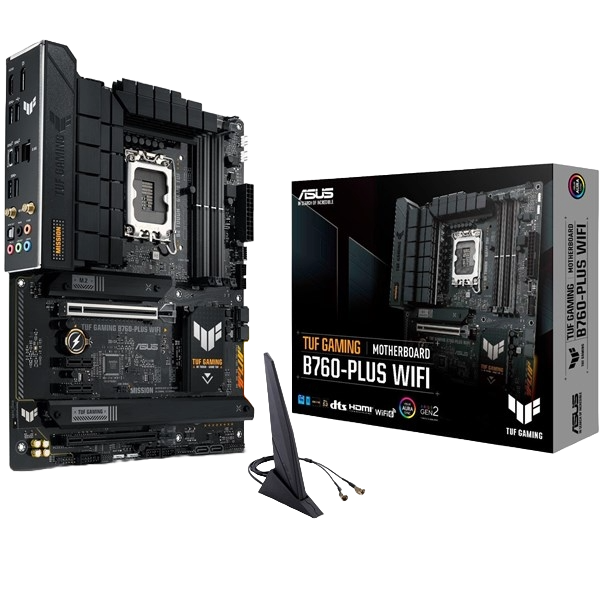

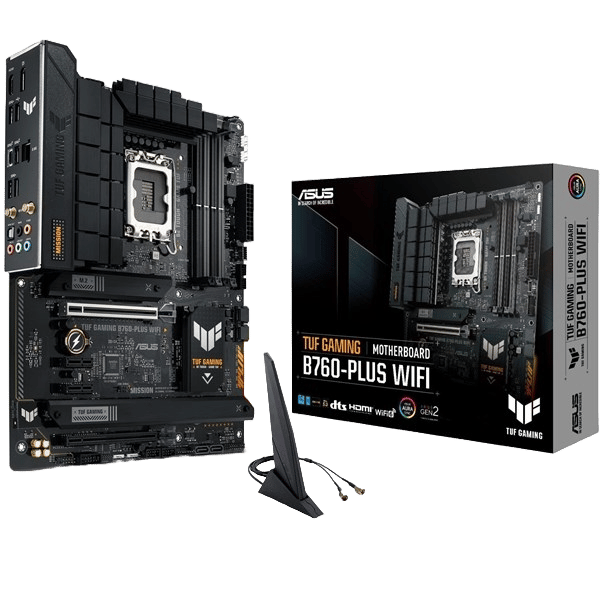

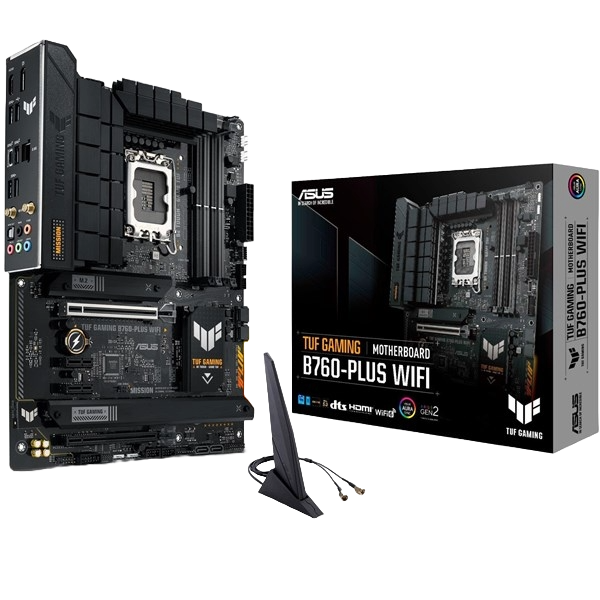

• In The Box: 1 x Motherboard
• 2 x SATA 6Gb/s cables
• 1 x ASUS Wi-Fi moving antenna
• 1 x TUF Gaming sticker
• 2 x M.2 Rubber Packages
• 1 x Screw package for M.2 SSD
• 1 x TUF Certification card
• 1 x User guide
• Width: 244 mm
• Length: 305 mm

Identifiers

• Stock Code: MBD3534
• Mfg Code: 90MB1ER0-M1EAY0
