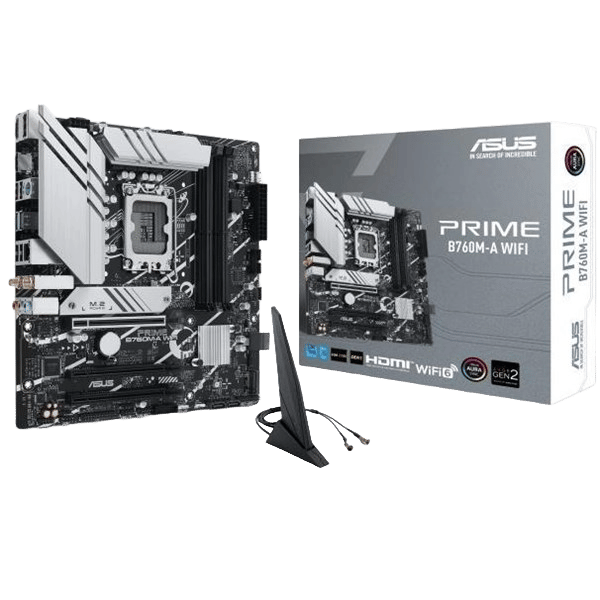

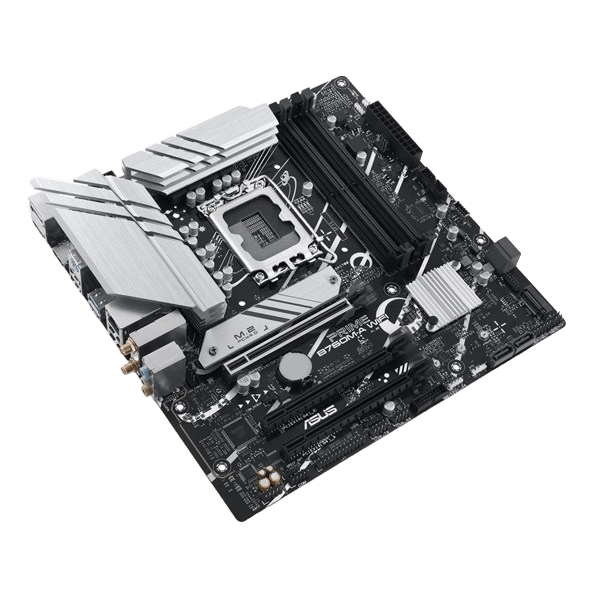

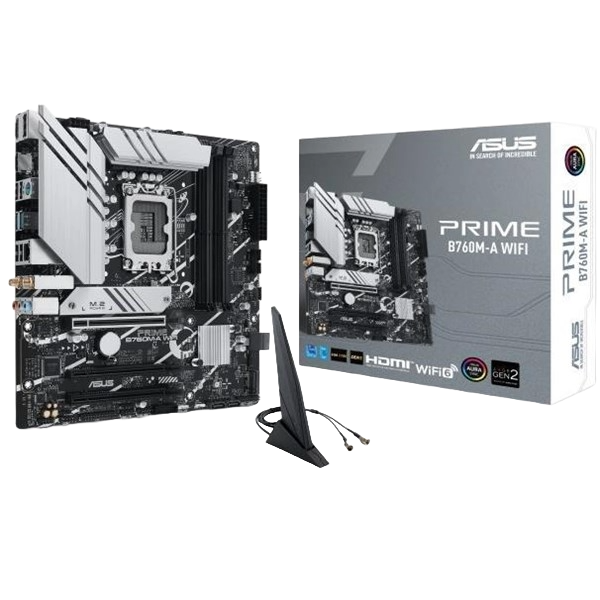

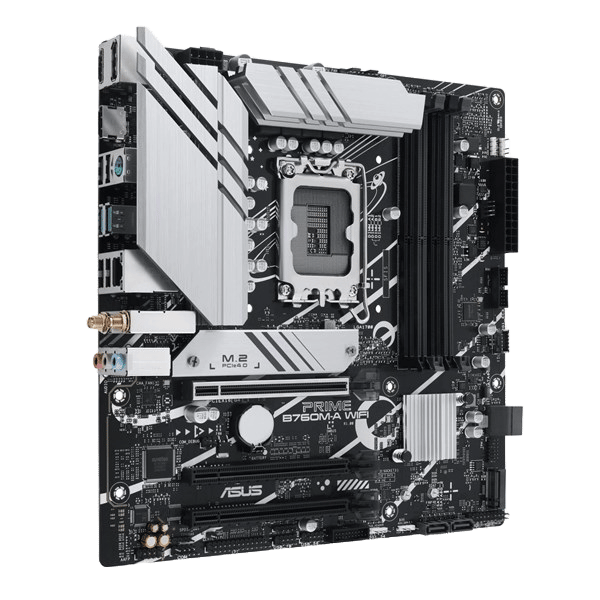

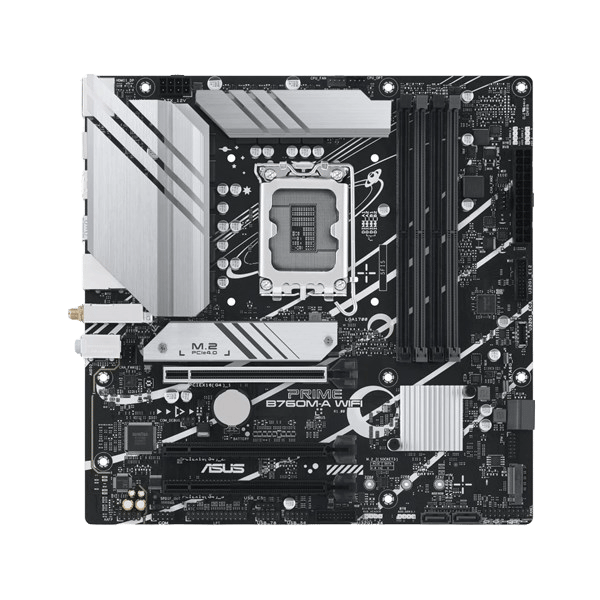

ASUS Prime B760M-A WIFI mATX Motherboard for Intel LGA1700 CPUs

ASUS Prime B760M-A WIFI mATX Motherboard for Intel LGA1700 CPUs

CCL Code: MBD3535

Was £343.84

SAVE £198

Now only

£144.99 inc VAT

ASUS Prime B760M-A WIFI mATX Motherboard for Intel LGA1700 CPUs

90MB1EL0-M1EAY0

Was £343.84

SAVE £198

Now only

£144.99 inc VAT

Available for delivery from Monday 22nd July

or Click & Collect from Monday 22nd July

4 In Stock Now

Buying in bulk? Contact our business team.

Key Features:

  • mATX Form Factor
  • Intel B760 Chipset
  • Socket 1700
  • DDR5 (Max: 128GB / 4 slots)
  • 2 x M.2 & 6 x USB & 4 x SATA
  • HDMI and Display Port
CCL Code: MBD3535
Overview

ASUS Prime B760M-A WIFI Micro-ATX Intel Socket 1700 Motherboard

Specifications

Wireless Communications

Bluetooth Yes

Key Features

Socket LGA1700
Installed Processors (Max) 0 (1)
Integrated Graphics Supported Yes
Maximum RAM 128 GB
RAID Supported Yes
Wireless Network Yes
Motherboard Width 244 mm
Motherboard Height 244 mm
mSATA Supported No
U.2 Supported No
Number of PCI Express Slots 3 slot(s)
Main Colour White
Memory Channel Dual
On-board Audio Type 7.1
Number of SATA Ports 4 port(s)
Number of USB Ports 6 port(s)
USB 3.0 Support Yes
Multi GPU Support No
VGA Connection No
DVI Connection No
HDMI Connection Yes
DisplayPort Connection Yes
Memory Type DDR5
Motherboard Form Factor mATX
Motherboard (EPS) Power Connectors 8-Pin
Motherboard Chipset Intel B760
Thunderbolt No
Motherboard Model ASUS Prime B760M-A WIFI
WiFi Speed 2400 Mbps
USB 3.1 Support Yes
Internal USB3.0 Header Yes
M.2 Support Yes
On-board RGB Control ASUS Aura Sync
RGB Header Type 3-Pin ARGB
Addressable RGB Yes
Internal USB Type-C Header Yes
Power Requirement (auto) 60 W
Max Memory Speed Supported (Non-overclocked) 5600 MT/s
Max Memory Speed Supported (overclocked) 7200 MT/s
CPU Power Pins (female) 8
Total M.2 Slots 2
Maximum NVMe M.2 ports 2
SATA ports 4
No. of front USB2.0 ports supported 5
No. of front USB3.0 ports supported 4
No. of front USB-C ports supported 1

CPU

CPU Socket Socket 1700
CPU Brand Intel

Warranty

Warranty 1 Year

Item Details

Manufacturer ASUS
Manufacturer Code 90MB1EL0-M1EAY0
Alternative Part Number 90MB1EL0-M0EAY0
EAN 4711387131435
UPC 197105131439
Condition New
Warranty

Warranty Information

Warranty 1 Year

Manufacturer Information

Manufacturer ASUS
Manufacturer Code 90MB1EL0-M1EAY0
Reviews
No reviews have been received for this product yet
