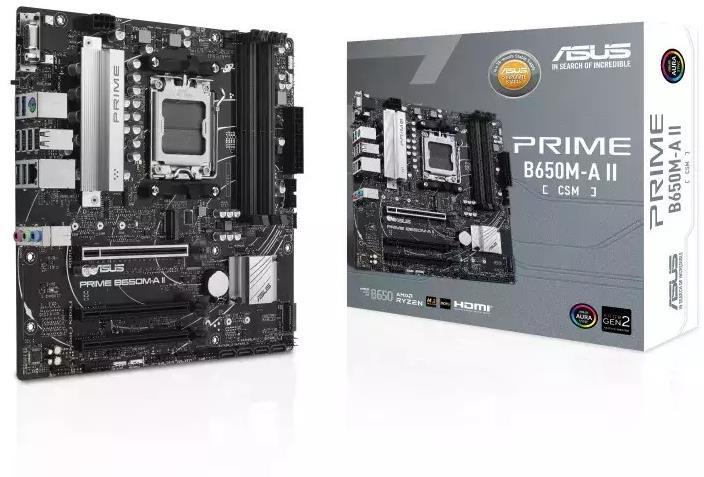

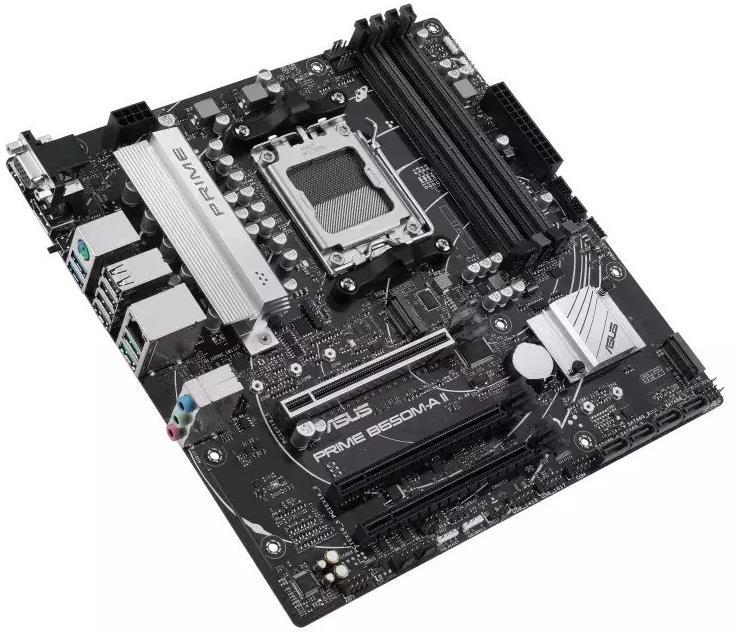

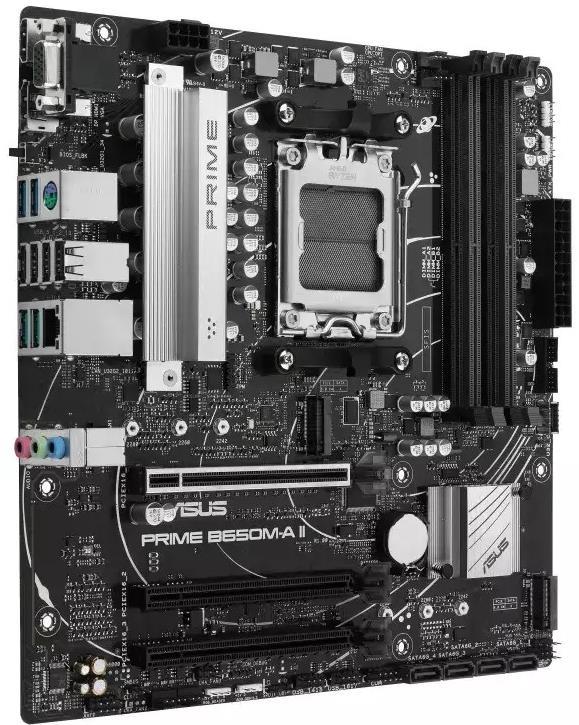

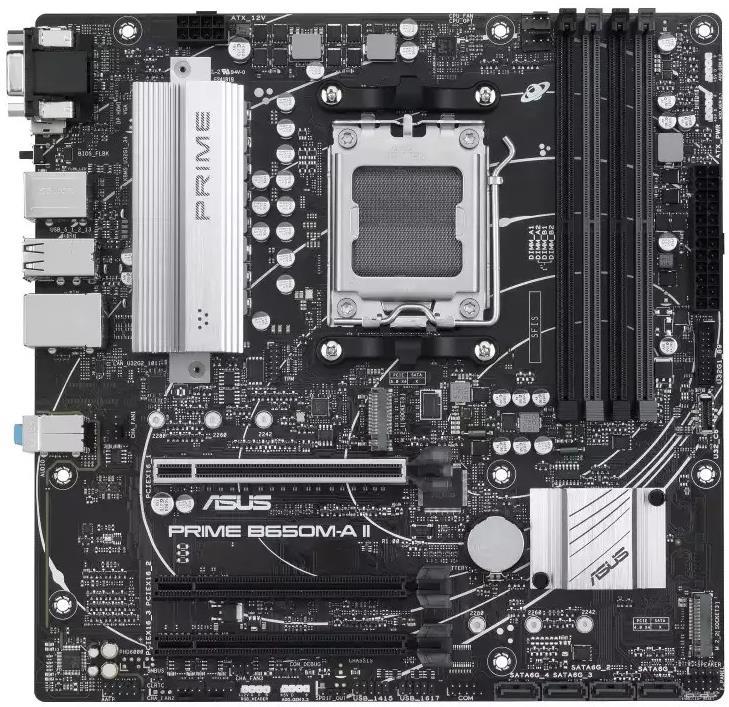

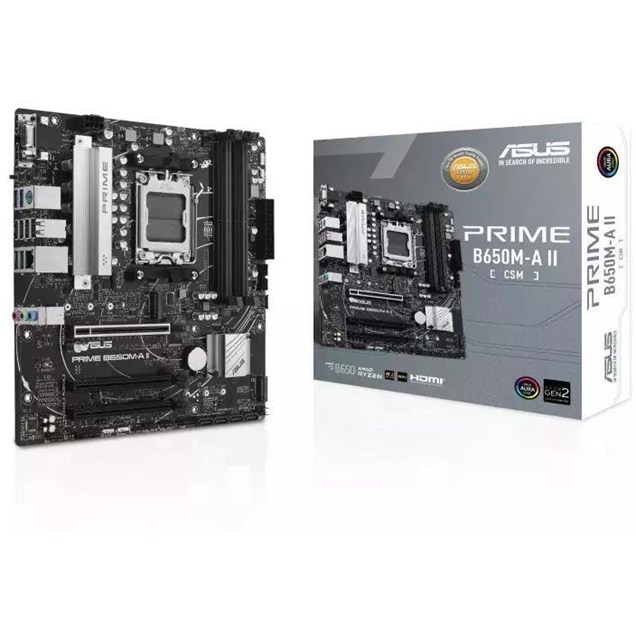

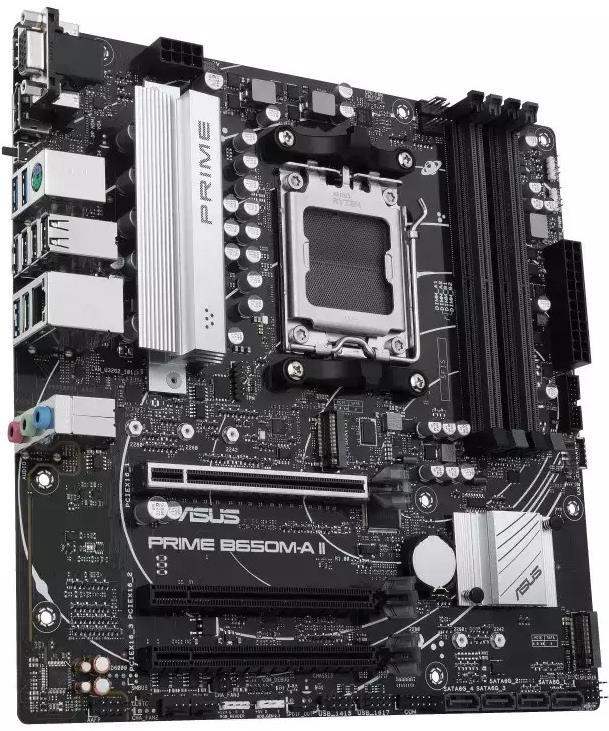

Name: ASUS Prime B650M-A II-CSM mATX Motherboard for AMD AM5 CPUs
Brand: ASUS
SKU: MBD3513
Price: 190.99 GBP
Availability: InStock

ASUS Prime B650M-A II-CSM mATX Motherboard for AMD AM5 CPUs

Compare

£190.99 inc VAT

Available for delivery from Friday 3rd May

Buying in bulk? Contact our business team.

Add to Basket

Key Features:

mATX Form Factor
AMD B650 Chipset
Socket AM5
DDR5 (Max: 192GB / 4 slots)
2 x M.2 & 8 x USB & 4 x SATA

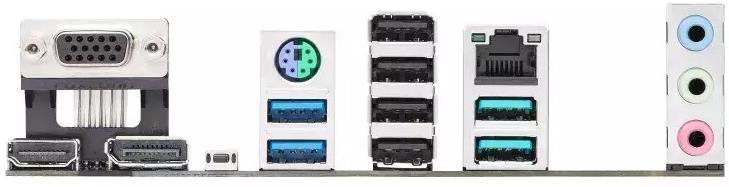

HDMI and Display Port

CCL Code: MBD3513

Overview

ASUS Prime B650M-A II-CSM Micro-ATX DDR5 AMD Socket AM5 Motherboard

Specifications

Wireless Communications

Bluetooth

Key Features

Socket	AM5
Installed Processors (Max)	0 (1)
Integrated Graphics Supported	Yes
Maximum RAM	192 GB
RAID Supported	Yes
Wireless Network	No
Motherboard Width	244 mm
Motherboard Height	244 mm
mSATA Supported	No
U.2 Supported	No
Number of PCI Express Slots	3 slot(s)
Memory Channel	Dual
On-board Audio Type	7.1
Number of SATA Ports	4 port(s)
Number of USB Ports	8 port(s)
USB 3.0 Support	Yes
Multi GPU Support	No
VGA Connection	No
DVI Connection	No
HDMI Connection	Yes
DisplayPort Connection	Yes
Memory Type	DDR5
Motherboard Form Factor	mATX
Motherboard (EPS) Power Connectors	4+4-Pin
Motherboard Chipset	AMD B650
Thunderbolt	No
Motherboard Model	ASUS Prime B650M-A II-CSM
USB 3.1 Support	No
Internal USB3.0 Header	Yes
M.2 Support	Yes
On-board RGB Control	ASUS Aura Sync
RGB Header Type	3-Pin ARGB
Addressable RGB	Yes
Internal USB Type-C Header	Yes
Power Requirement (auto)	60 W
Max Memory Speed Supported (Non-overclocked)	5200 MHz
Max Memory Speed Supported (overclocked)	7600 MHz
CPU Power Pins (female)	8
Total M.2 Slots	2
Maximum NVMe M.2 ports	2
SATA ports	4
No. of front USB2.0 ports supported	4
No. of front USB3.0 ports supported	2
No. of front USB-C ports supported	1
