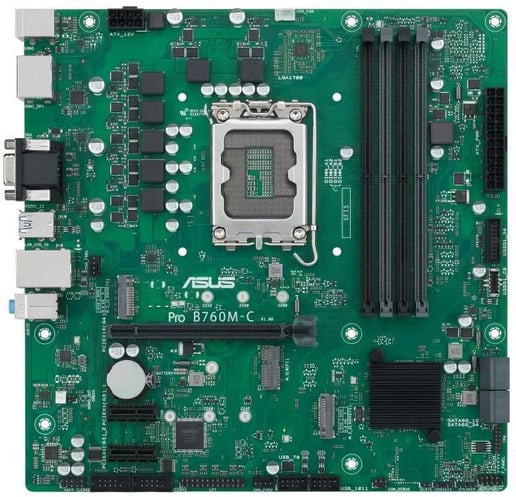

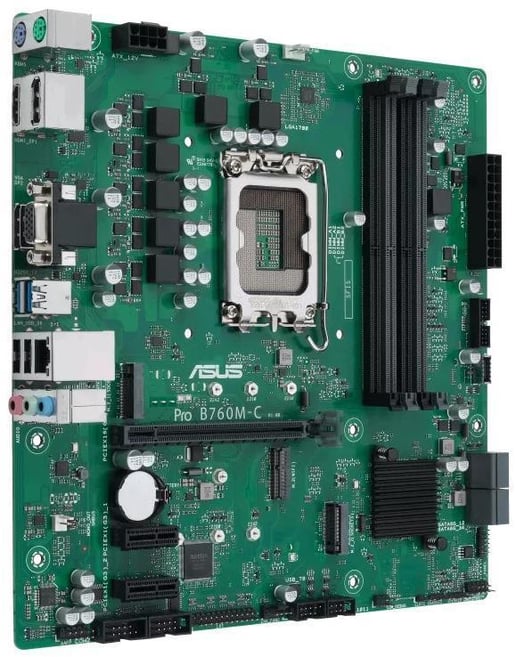

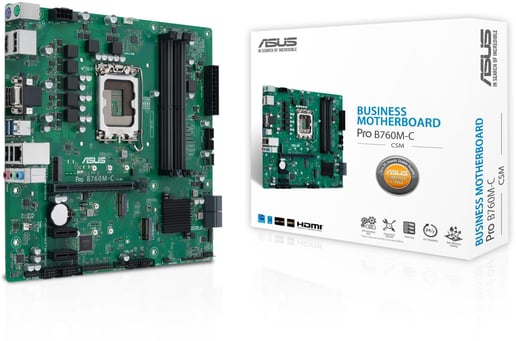

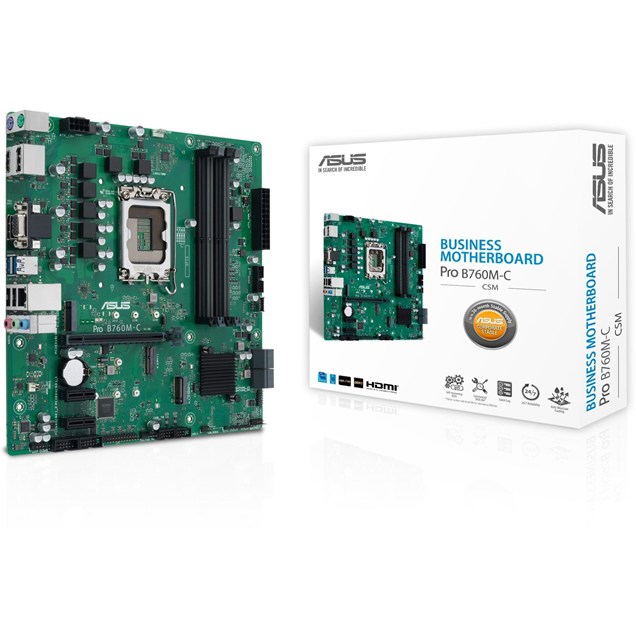

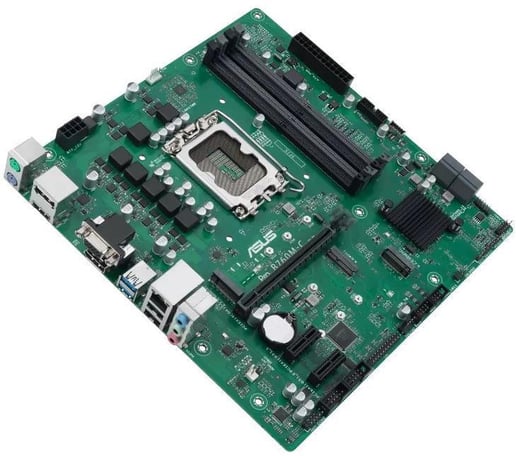

ASUS Pro B760M-C-CSM mATX Motherboard for Intel Socket 1700 CPUs
Available for delivery from Tomorrow
Click & Collect from Today
Low stock - don't miss out
Order within
You have 0 of these in your basket
Please note that this is a B Grade clearance item. It will be in good condition, but may show light signs of use and/or have been repackaged. The price has been reduced to reflect this.
All B Grade items are complete, working and have been fully tested.
This item is supplied with a Warranty: 1 Year warranty.
ASUS Pro business motherboards provide enhanced features to smooth your IT operations, including comprehensive system protection, 24/7 stability and reliability and an improved management suite for easier customization. Known as the world's biggest and best-known motherboard brand, ASUS provides world-class after-sales service and guaranteed long-term availability to maximize your investment over the product life cycle and offers a high-quality, TCO-optimized solution for your business computing-needs.
CPU
- Installed Processors (Max): 0 (1)
- Supported Processor Manufacturer: Intel
- Supported Processors: Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors
- 64-bit Support: Yes
- Socket: LGA1700
Rear Panel I/O Ports
- USB Ports: 2 x USB 3.0
- 2 x USB 2.0
- DisplayPorts: 2 x DisplayPort 1.4
- HDMI Port: 1 x HDMI 2.1
- VGA Port: 1 x D-Sub
Internal I/O Connectors
- SATA Connectors: 4 x SATA III
- USB Connectors: 1 x USB-C 3.0 header (supports 1 port)
- 1 x USB 3.0 header (supports 2 ports)
2 x USB 2.0 headers (supports 4 ports) - Speaker: 1 x Speaker header
Memory
- Memory Bus Speed: Up to 6200 MHz
- Memory Type: DDR5
Motherboard
- Northbridge: Intel B760
- RAID Supported: Yes
- RAID Format: RAID 0, 1, 5, 10
- SATA Supported: Yes
Rear Panel I/O Ports
- Keyboard Port: 1 x PS/2
- Mouse Port: 1 x PS/2
- RJ-45 Ports: 1 x RJ-45
- Audio Line In Ports: 1 x 3.5mm Jack
- Audio Line Out Ports: 1 x 3.5mm Jack
- Microphone In Port: 1 x 3.5mm Jack
Internal I/O Connectors
- Front Panel Connectors: 1 x Front Panel
- 1 x Front Audio
- Cooling Fan Support: 1 x CPU fan header
- 2 x System fan headers
- Auxiliary Audio Support: 1 x Mono-out header (with Amp IC)
- Parallel Connectors: 1 x LPT header
- Serial Connectors: 2 x COM headers
- 1 x COM debug header
- Chassis Intrusion Connector: 1 x Chassis Intrusion header
- TPM Header: 1 x SPI TPM header
- Power Connector Port: 1 x 24-pin ATX
- 1 x 8-pin EPS
- Other Connectors: 2 x M.2 slots, Key M, Type 2242/2260/2280 (PCIe Gen4)
- 1 x SMBUS header
Expansion
- Number of PCI Express Slots: 1 x PCI Express 4.0 x16 slot
- 2 x PCI Express 3.0 x1 slots
Memory
- Maximum RAM: 192 GB
- Memory Slot: 4 x DIMM
Graphics Device
- Integrated Graphics Supported: Yes
Sound
- Integrated Sound: Realtek
Warranty
- Warranty: 1 Year
Network
- Integrated Network: Intel
- Network Speeds Supported: Up to 1 Gbps
- Wireless LAN: No
- Bluetooth: No
System Requirements
- Operating Systems Supported: Microsoft Windows 11 64-bit
System
- Jumpers: 1 x Clear CMOS
- Software Included: Yes
- Drivers: Yes
Physical
- Form Factor: mATX Motherboard
- In The Box: Motherboard
- 2 x SATA Cables
- I/O Shield
- 2 x M.2 Screw Package
- ACC Express Activation Key Card
- User Guide
- Width: 244 mm
- Length: 244 mm
Identifiers
- Stock Code: MBD3511XB
- Mfg Code: 90MB1DX0-M0EAYC
Warranty
- Warranty: 1 Year
