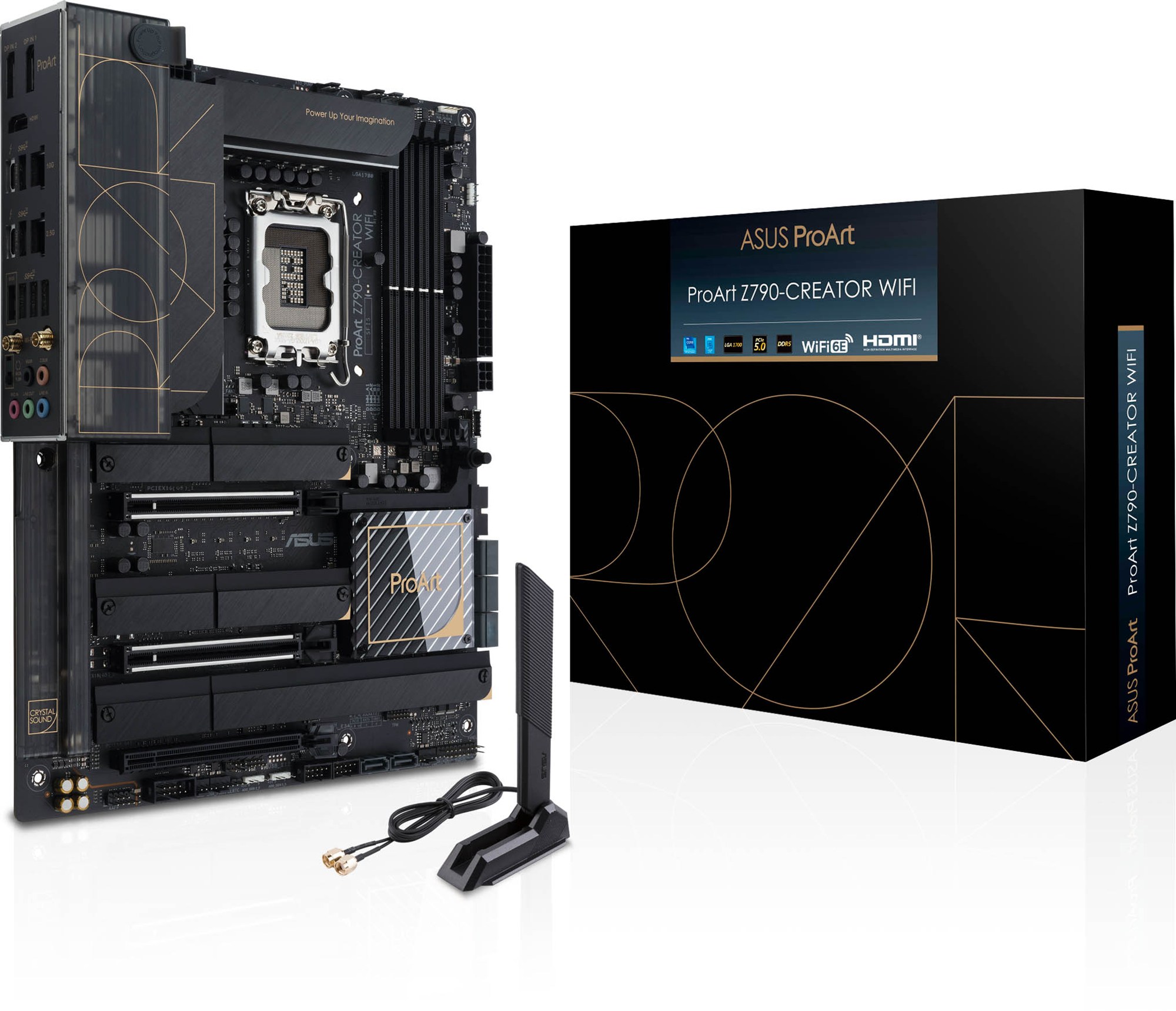

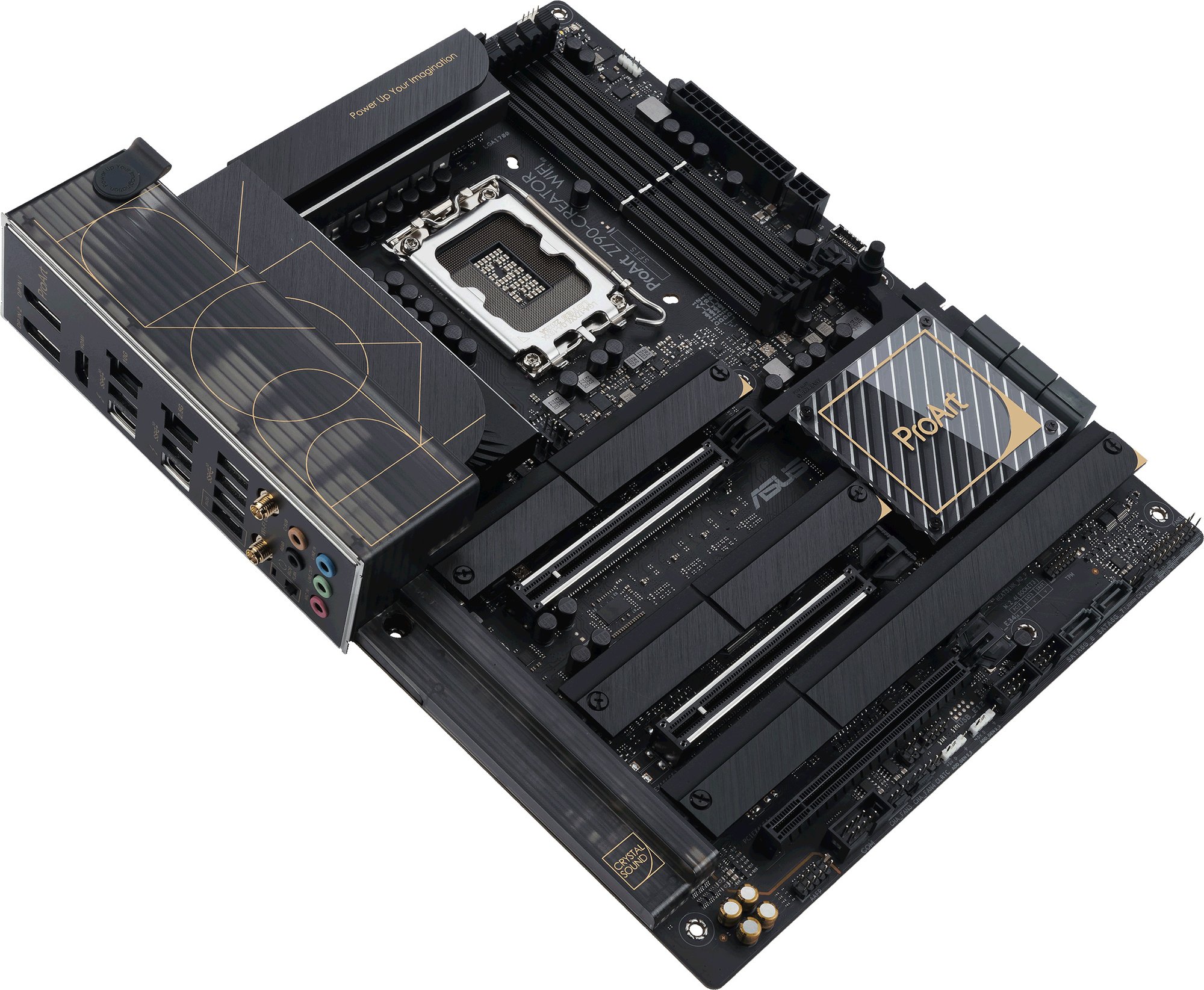

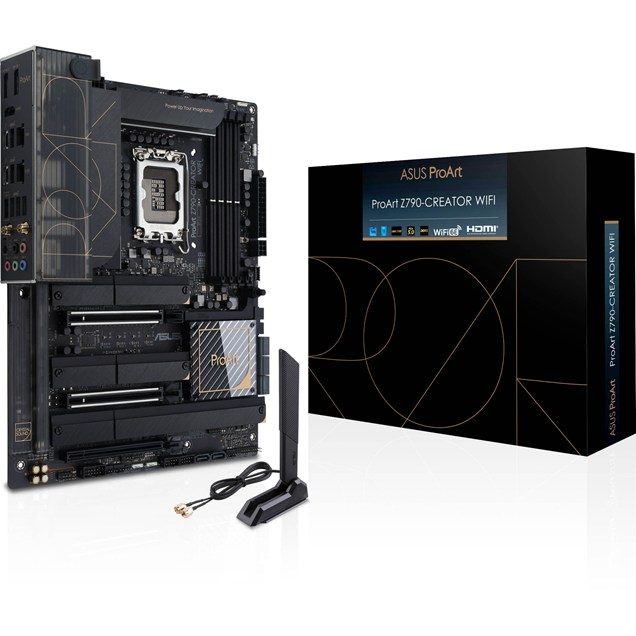

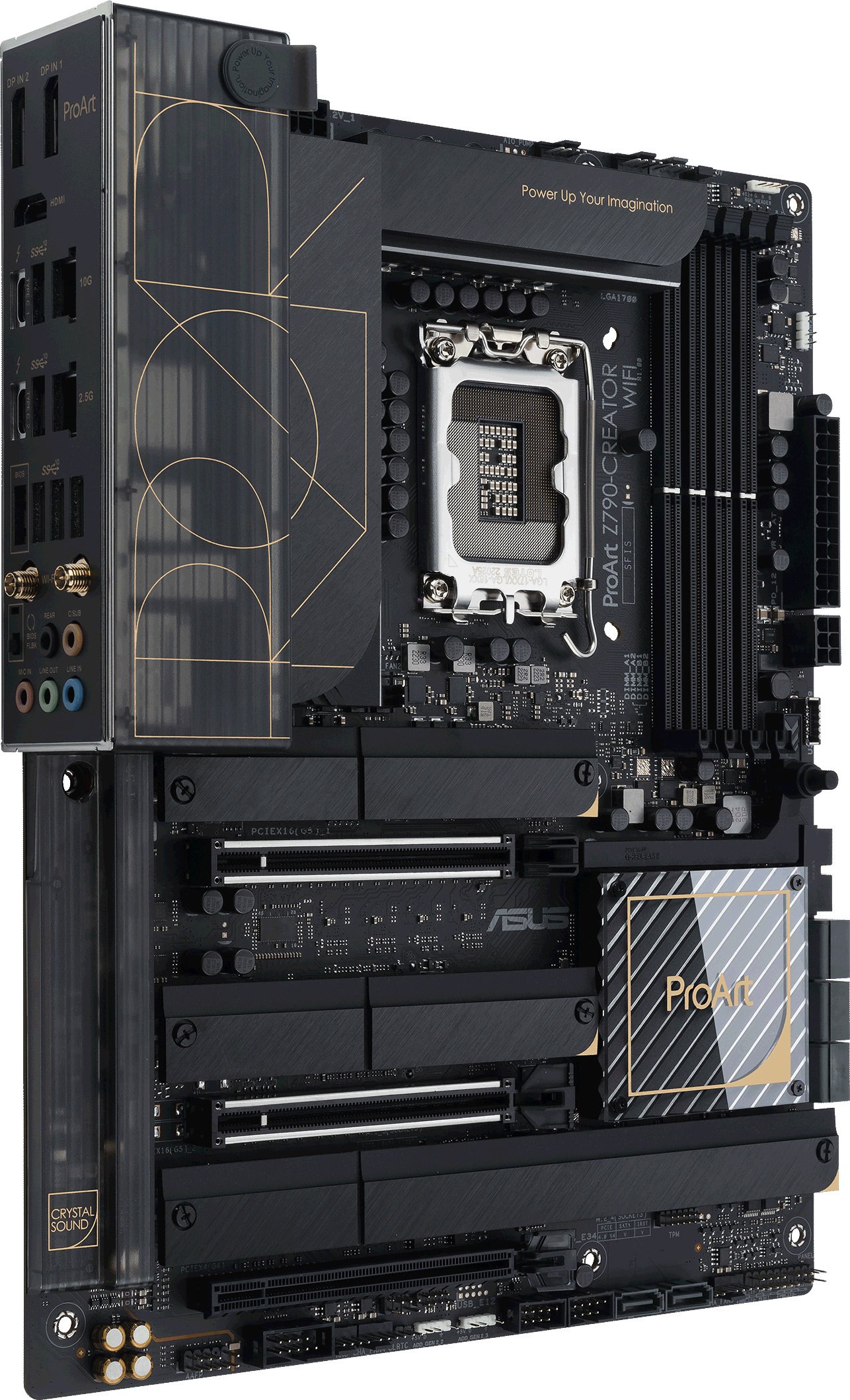

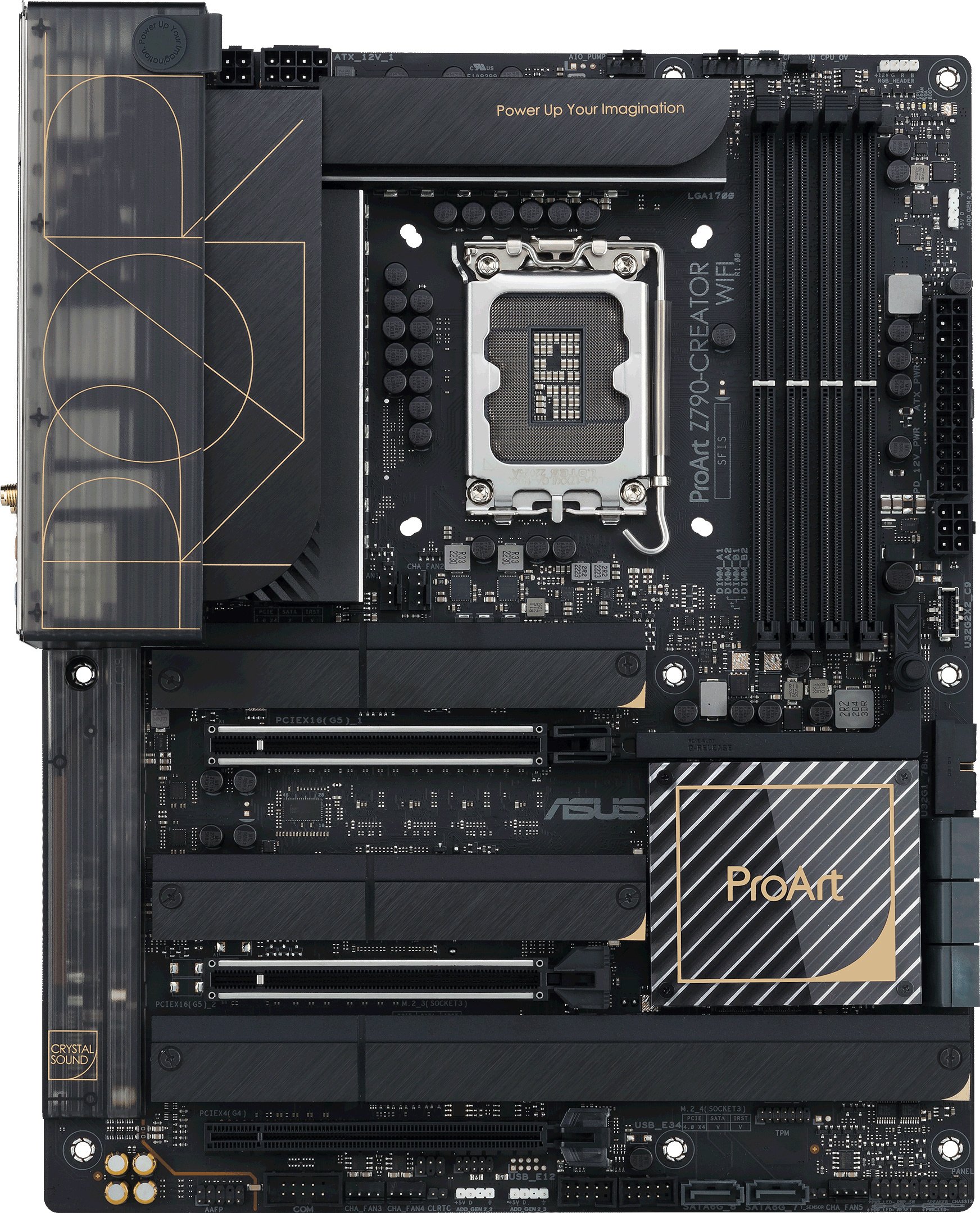

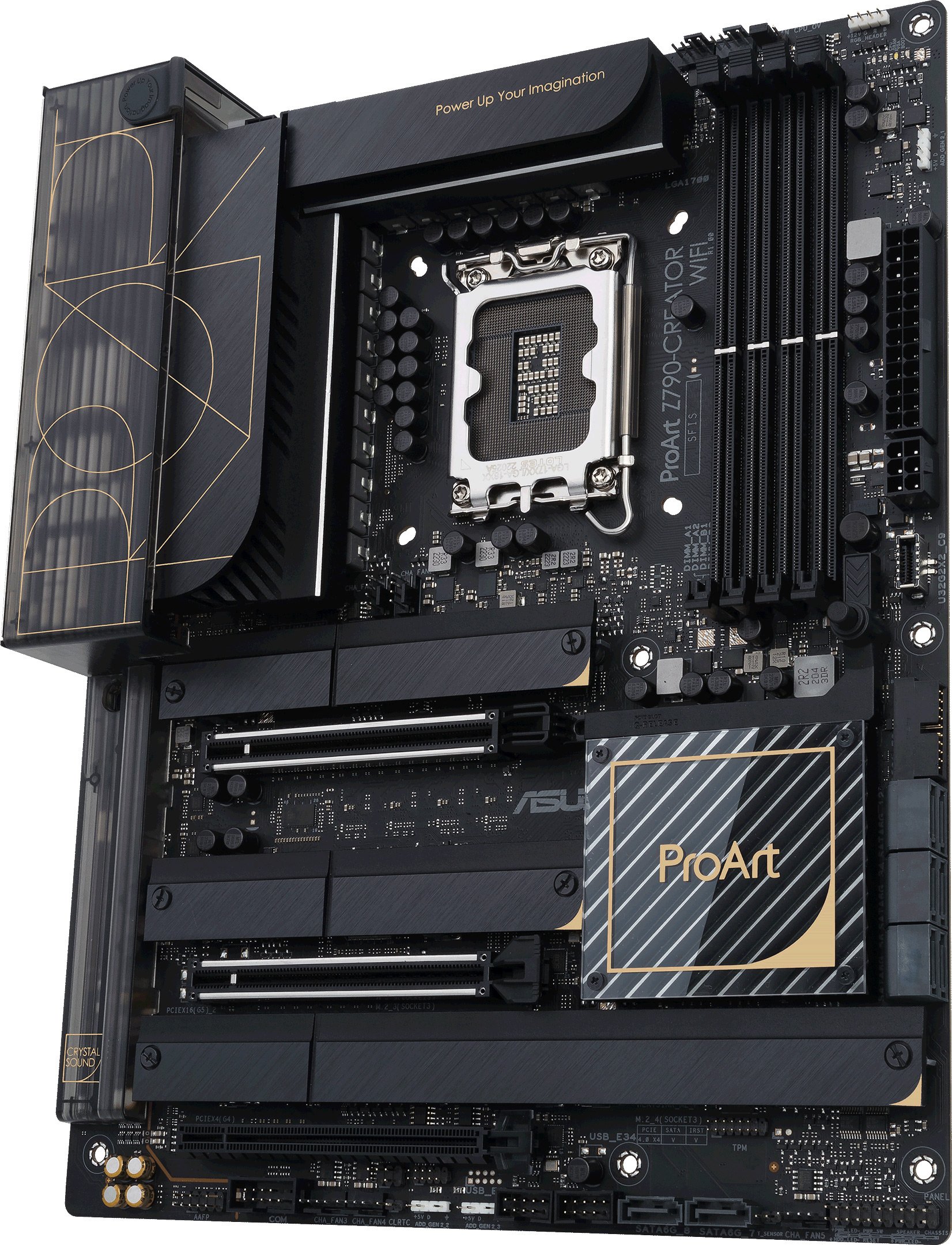

ASUS ProArt Z790-CREATOR WIFI ATX Motherboard for Intel LGA1700 CPUs
All you need for maximum productivity
Thunderbolt™ 4 ports (USB4® compliant)
Get immersed in your creations with two Thunderbolt™ 4 ports connect to all your content creation gadgets and enable up to 40 Gbps bi-directional data transfers. To further push your creative work with one 8K or two 4K color-accurate monitors, you can connect your discrete graphics card to the onboard DisplayPort-in port at the back I/O and direct the video output via the Thunderbolt 4 port.
Ultrafast networking
WiFi 6E
Onboard WiFi 6E technology takes advantage of the newly available radio spectrum in the 6 GHz band, providing up to three times the bandwidth of the 5 GHz band and up to seven 160 MHz bands to deliver ultrafast wireless networking speeds along with improved capacity and better performance in dense wireless environments.
10 Gb & 2.5 Gb Ethernet
Dual Ethernet ports provide fast data transfers simultaneously for 2.5 Gb internet streaming or uploading and 10 Gb for local network-attached storage (NAS), allowing for improved data organization and security.
PCIe 5.0 expansion slots
Both of the x16 expansion slots have the PCIe 5.0 treatment to offer incredible speeds up to 64 GB/s for compatible devices. To bear the brunt of massive graphics cards, they are also protected with SafeSlot retention brackets, and the top slot can be released easily thanks to the Q-Release button.
Ultrafast M.2 Storage
Four PCIe 4.0 M.2 slots support up to 22110 and provide NVMe® SSD RAID support for an incredible performance boost. Create a RAID configuration with up to two PCIe 4.0 storage devices to enjoy the fastest data transfer speeds.
Quick charging your USB devices
USB 3.2 Gen 2x2 Type-C® front-panel connector with Quick Charge 4+
USB 3.2 Gen 2x2 boosts data transfers with speeds of up to 20 Gbps. This header also features Quick Charge 4+ technology that can quickly charge your pen display, tablet or mobile phone up to 60 watts by using a PCIe power supply cable plugged into the nearby 6-pin connector.
The core of your powerful workstation
Robust power design
16+1 teamed power stages
Rated for 70 amps and combining high-side and low-side MOSFETs and drivers into a single package, these stages deliver power and efficiency tailored for the latest 13th & 12th Gen Intel Core processors.
Digi+ power control
The ASUS Digi+ voltage-regulator module (VRM) is one of the finest in the industry and ensures ultra-smooth power delivery to the CPU.
ProCool II power connector
Built to tight specifications to ensure flush contact with PSU power lines. The resulting lower impedance helps to prevent hotspots and connector failure.
Chokes & capacitors
Superior alloy chokes and durable capacitors are engineered to resist extreme temperatures, providing a higher level of performance than the industry standard.
Performance boost
AI Overclocking
Tuning is now faster and smarter than ever before. ASUS AI Overclocking profiles the CPU and cooling to predict the optimal configuration and push the system to its limits. Predicted values can be engaged automatically or used as a launching ground for further experimentation.
Memory
Unleash DDR5 with AEMP II
ASUS Enhanced Memory Profile II is an exclusive firmware feature for PMIC-restricted memory modules. AEMP II is based on a CPU and memory module’s ability to train the memory chips on your kit, and it presents an optimized clock speed that can effortlessly unleash performance.?
Built through a flexible training method, AEMP II makes it easy to not only tune the memory above baseline settings but also maintain the stability of system operation, whether getting the most out of an entry-level module or priming a high-speed kit for ultimate performance.
Self-adaptive fan tuning
AI Cooling II balances the thermals and acoustics of any build with a single click. A proprietary ASUS algorithm slashes unnecessary noise while running a quick stress test, and then it monitors CPU temperatures to dynamically adjust fans to optimal speeds.
Everything you need to optimize workflow
Two-Way AI Noise Cancelation
As working from home becomes the new normal, clear online communication is more critical than ever. Two-Way AI Noise Cancelation is an audio utility that leverages a massive deep-learning database to reduce background noise from the microphone* and incoming audio. Distracting keyboard clatter, mouse clicks and other ambient noises are smartly pared back so your calls and video conferences with partners and clients are crystal clear.
*An audio splitter (3.5 mm audio jack Y-cable) is necessary when using a 3.5 mm headset.
Customize your personal settings
ProArt Creator Hub is your personal portal to monitor your PC status, personalize settings or optimize your workflow. It features an intuitive overview dashboard, quickly switching fan profiles and makes short work of switching between different performance modes.
Security control and remote management
Advanced security management functions from ASUS Control Center Express protect the systems and confidential data in your creative studio.
Trusted stability
ProArt Z790-Creator WiFi is engineered and rigorously tested to offer superior quality, stability and compatibility to ensure that it empowers creativity for years to come.
CPU
- Installed Processors (Max): 0 (1)
- Supported Processor Manufacturer: Intel
- Supported Processors: 13th Gen Intel Core Processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors
- 64-bit Support: Yes
- Socket: LGA1700

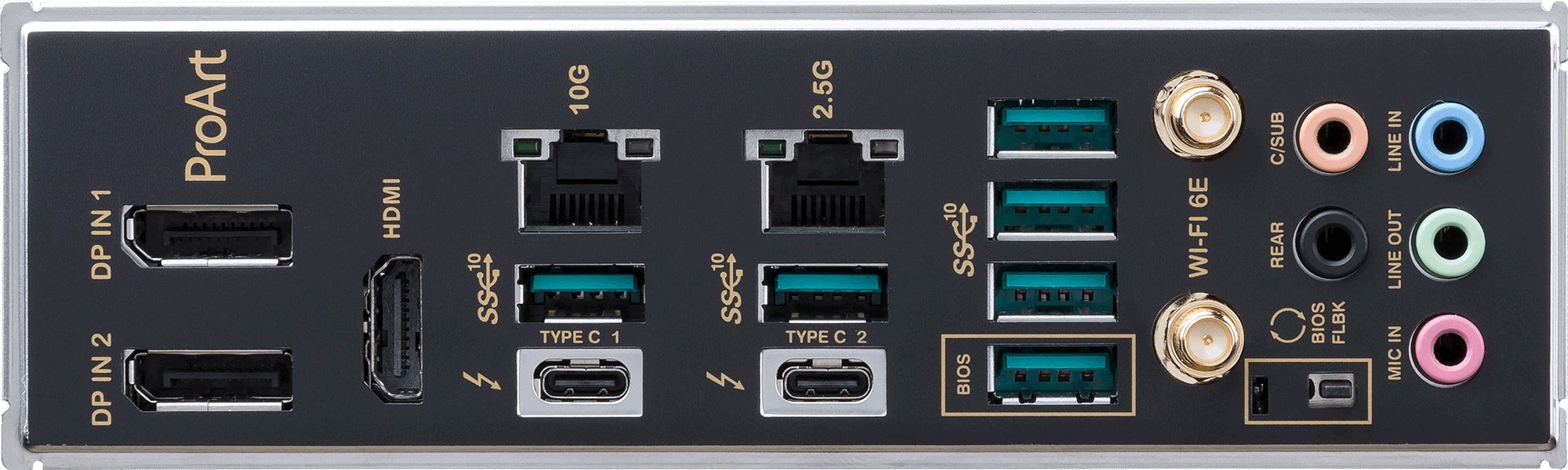

Rear Panel I/O Ports
- USB Ports: 2 x Thunderbolt 4 (USB-C)
- 6 x USB 3.1
- DisplayPorts: 2 x DisplayPort input
- HDMI Port: 1 x HDMI 2.1
Internal I/O Connectors
- SATA Connectors: 8 x SATA III
- USB Connectors: 1 x USB-C
Memory
- Memory Bus Speed: Up to 7200+ MHz
- Memory Type: DDR5
Motherboard
- Northbridge: Z790
- RAID Supported: Yes
- RAID Format: RAID 0, 1, 5, 10
- SATA Supported: Yes
Rear Panel I/O Ports
- RJ-45 Ports: 2 x RJ-45
- Audio Line In Ports: 1 x 3.5mm Jack
- Audio Line Out Ports: 3 x 3.5mm Jacks
- Microphone In Port: 1 x 3.5mm Jack
- Antenna Connector(s): 2 x SMA Antenna
Internal I/O Connectors
- Front Panel Connectors: 1 x Front Panel
- 1 x Front Audio
- Cooling Fan Support: 1 x CPU fan header
- 1 x CPU OPT fan header
- 1 x AiO pump header
- 5 x Chassis fan headers
- Serial Connectors: 1 x COM header
- Chassis Intrusion Connector: 1 x Chassis Intrusion header
- TPM Header: 1 x SPI TPM header
- Power Connector Port: 1 x 24-pin ATX
- 1 x 8-pin EPS
- 1 x 4-pin EPS
- 1 x 6-pin PCIe
- Other Connectors: 2 x M.2 slots, Key M, Type 2242/2260/2280/22110 (PCIe Gen4)
- 1 x M.2 slot, Key M, Type 2242/2260/2280 (PCIe Gen4)
- 1 x M.2 slot, Key M, Type 2242/2260/2280 (PCIe Gen4 or SATA)
- 3 x 3-pin ARGB LED headers
- 1 x 4-pin RGB LED header
- 1 x Thermal Sensor header
Expansion
- Number of PCI Express Slots: 2 x PCI Express 5.0 x16 slots (@ x16/x0 or x8/x8)
- 1 x PCI Express 4.0 x16 slot (@ x4)
Memory
- Maximum RAM: 128 GB
- Memory Slot: 4 x DIMM
Graphics Device
- Integrated Graphics Supported: Yes (CPU dependant)
Sound
- Integrated Sound: Realtek S1220A
Warranty
- Warranty: 3 Years
Network
- Integrated Network: Marvell AQtion
- Intel
- Network Speeds Supported: Up to 10 Gbps (Marvell)
- Up to 2.5 Gbps (Intel)
- Wireless LAN: Yes (Wi-Fi 6E)
- Wireless Network Speed: Up to 2.4 Gbps
- Bluetooth: Yes
- Bluetooth Version: 5.2
System Requirements
- Operating Systems Supported: Microsoft Windows 11 64-bit
System
- BIOS: 256 Mb
- Jumpers: 1 x Clear CMOS
1 x CPU Over Voltage - Software Included: Yes
- Drivers: Yes
Physical
- Form Factor: ATX Motherboard
- Width: 244 mm
- Length: 305 mm
Identifiers
- Stock Code: MBD3470
- Mfg Code: PROART Z790-CREATOR WIFI
Warranty
- Warranty: 3 Years
