Comprehensive Connectivity

PCIe 5.0 for graphics cards

The 13th Gen Intel processors offer PCIe 5.0 support, which offers twice the data transfer speed of PCIe 4.0 , making it robust enough to handle new data-heavy tasks. PCIe 5.0 also brings other benefits such as improved signal integrity, backward-compatible CEM connectors for add-in cards and backward compatibility with previous PCIe versions.

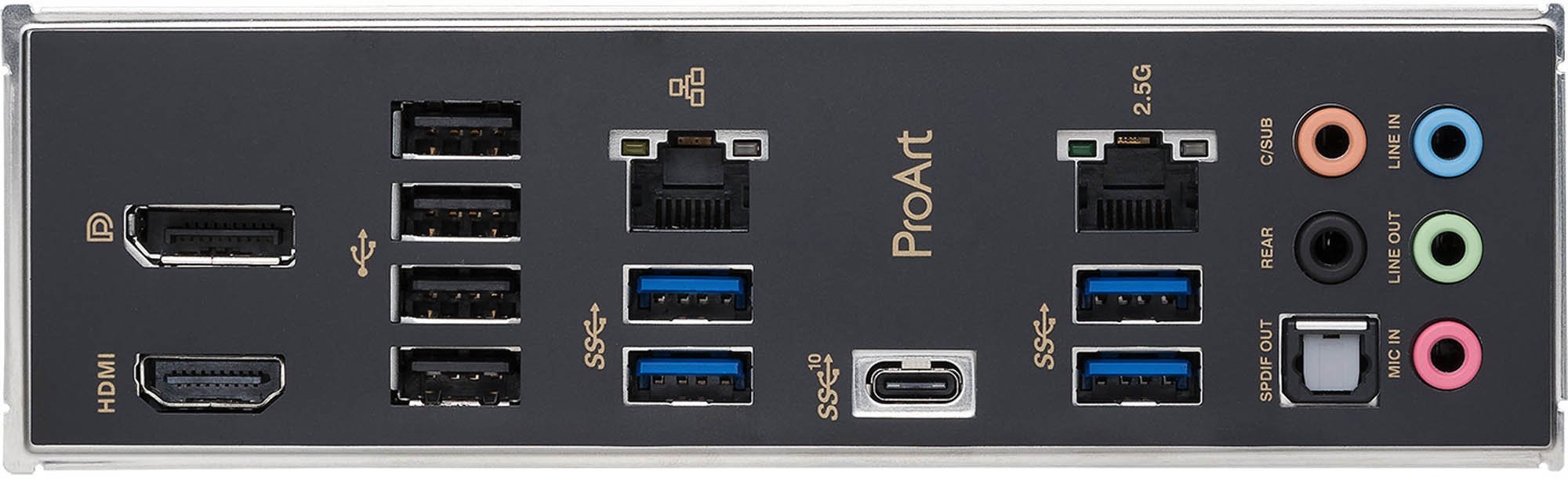

Front USB3.2 Gen 2x2 Type-C®

A full complement of USB ports, including a front-panel USB 3.2 Gen 2x2 Type-C® connector that provides data transfer speeds of up to 20 Gbps, supports high-end rigs loaded with peripherals.

Thunderbolt™ / USB4® support

The ProArt B760-Creator D4 features Thunderbolt 4 support via an on-board header. With an Intel-certified ASUS ThunderboltEX 4 add-on card*, this ProArt motherboard can enable bi-directional speeds of up to 40 Gbps on a single cable. Additionally, this card has a daisy-chain function for multiscreen connections, and it supports a display resolution of up to 8K. It can also provide up to 100 watts of power to fast-charge devices.

*ASUS add-on card is sold separately.

Networking

Dual Ethernet

2.5 Gb and 1 Gb Ethernet ports provide fast data transfers simultaneously for internet access and local network-attached storage (NAS), allowing for improved data organization and security.

M.2 Slot (Key E)

The ProArt B760-Creator D4 features an M.2 slot (key E) which can support type 2230 WiFi/Bluetooth modules*.

*WiFi/BT modules are sold separately.

PCIe 4.0 M.2 Storage

The ProArt B760-Creator D4 features three onboard M.2 slots, two of which are PCIe 4.0-ready for blistering speeds of up to 64 Gbps, while the third offers massive transfers of up to 32 Gbps through its PCIe 3.0 interface, enabling quicker boot-up and app load times with operating system or application drives.
