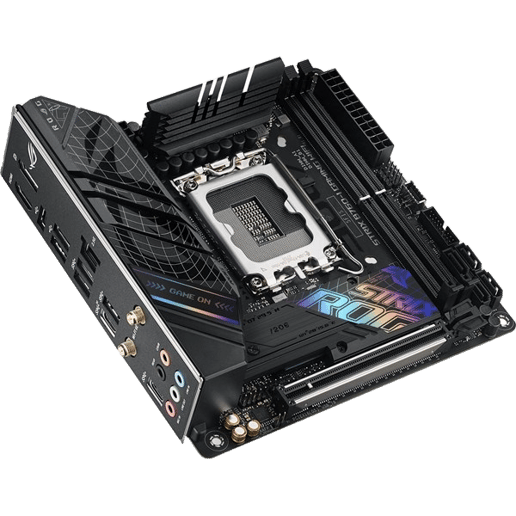

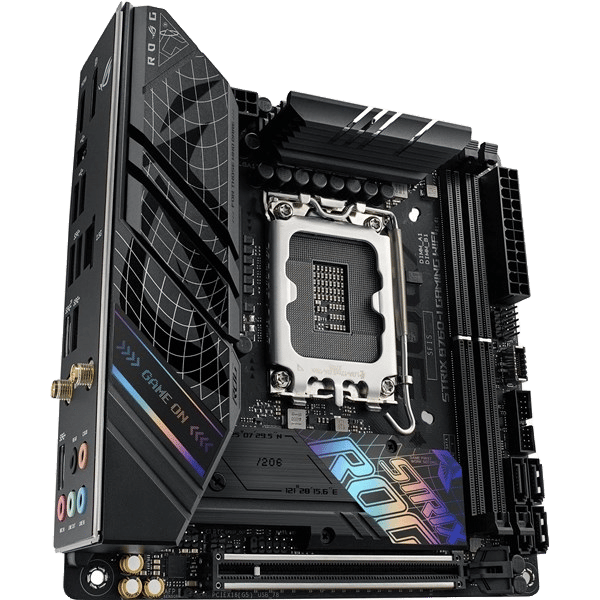

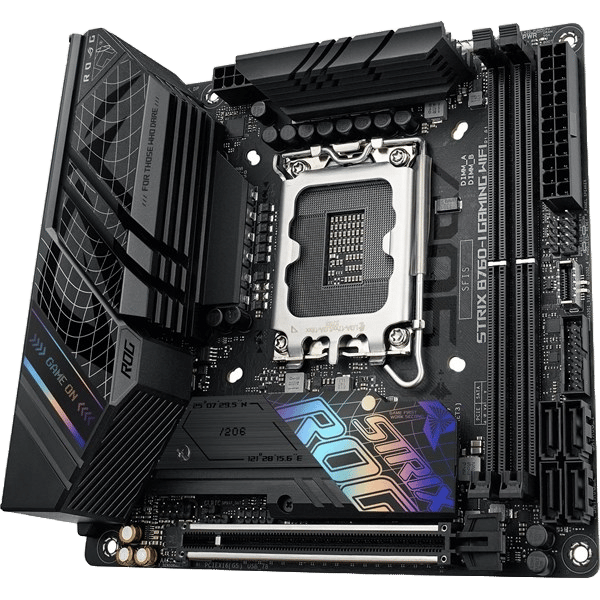

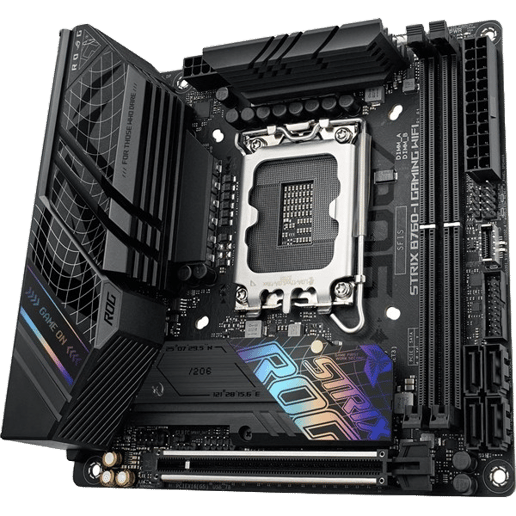

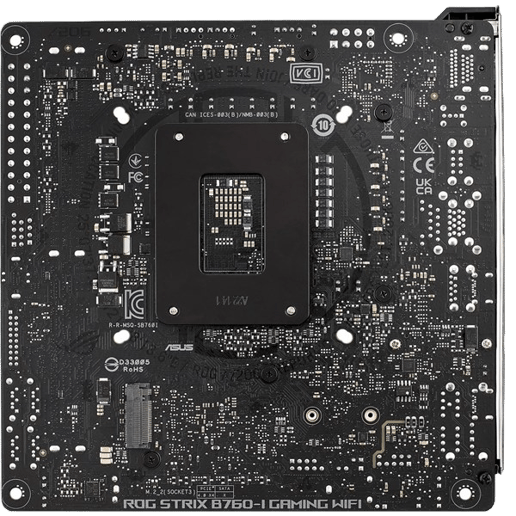

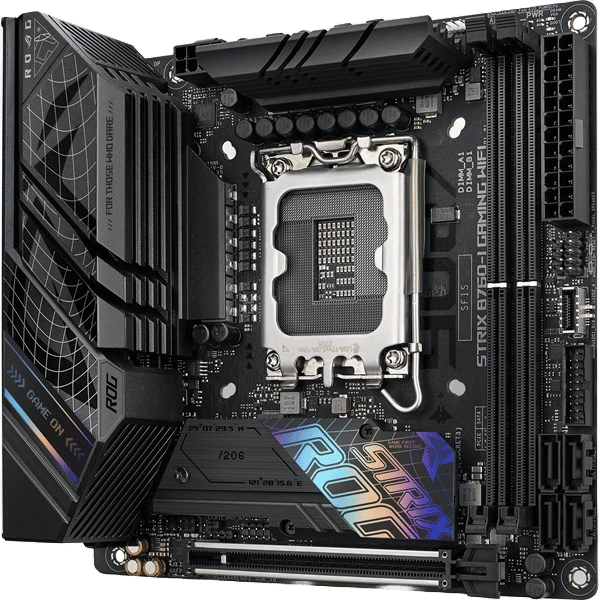

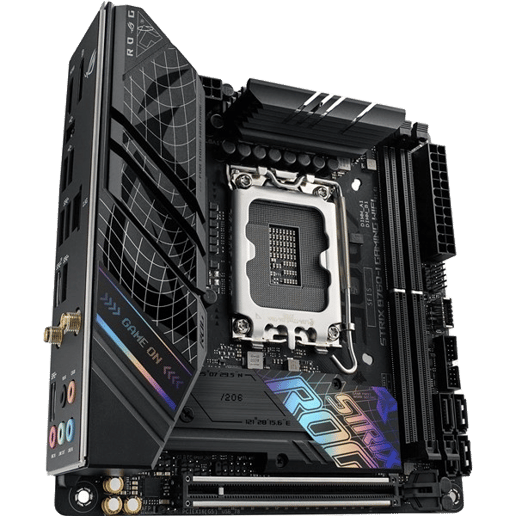

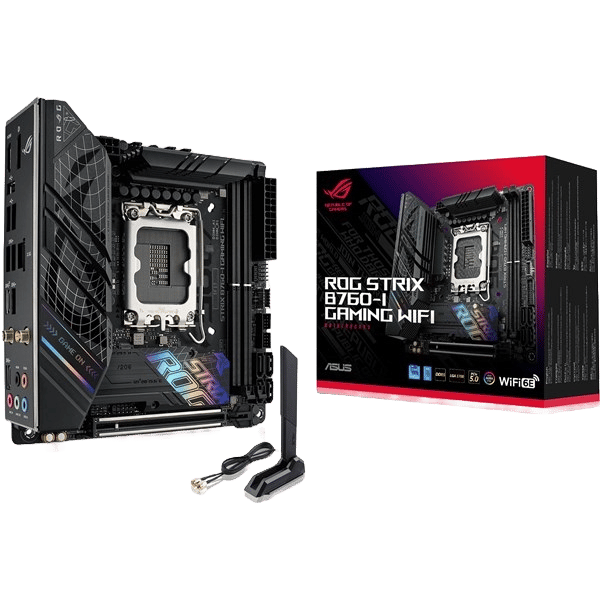

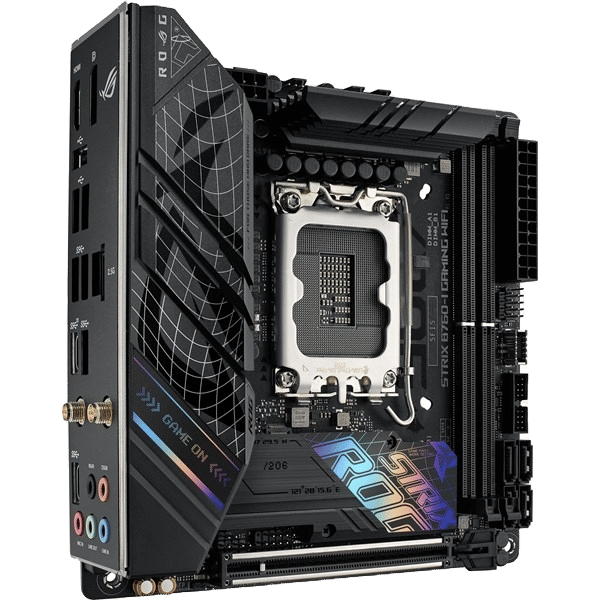

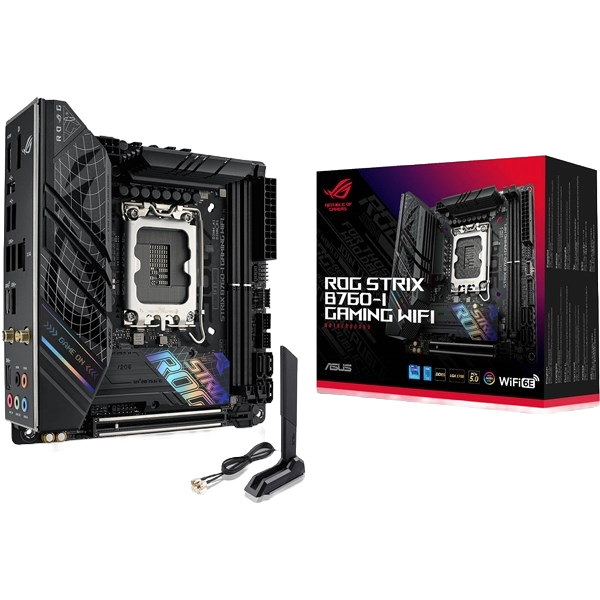

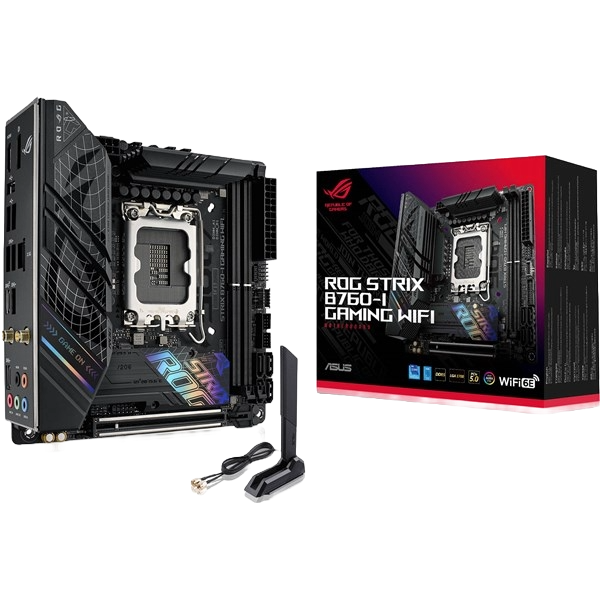

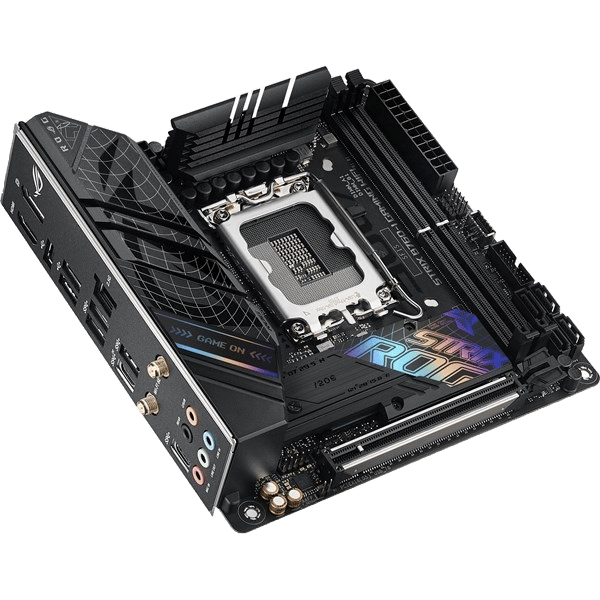

Name: ASUS ROG Strix B760-I Gaming WiFi ITX Motherboard for Intel LGA1700 CPUs
Brand: ASUS
SKU: MBD3467
Price: 187.77 GBP
Availability: OutOfStock
Rating: 5.0 (1 reviews)

ASUS ROG Strix B760-I Gaming WiFi ITX Motherboard for Intel LGA1700 CPUs

Compare

Let your rig run wild with the ROG Strix B760-I, a feisty foundation for your next SFF build. Boasting hyperfast DDR5 memory, low-latency WiFi 6E networking, and a future-ready PCIe 5.0 slot, it sets you up for savage speeds, all while giving you incredible 13th Gen support thanks to its powerful VRM and thermal solution.

Key Features:

Socket 1700
Intel B760 Chipset
4 x SATA & 8 x USB Ports
DDR5 (max 64GB, 2 slots)
HDMI and Display Port
ITX Form Factor

CCL Code: MBD3467

Coming soon

Sorry, we don't have any stock of this product. Please click 'Notify Me' and we will let you know when the item is available.

More stock is expected around 20/12/2023.

Notify Me

Overview

ASUS ROG Strix B760-I Gaming WiFi Motherboard

Promotions

Get 5% off components when you buy 5 or more*

For a limited time, buy at least 5 different components from different qualifying categories and get 5% off those items at checkout.

*Terms & Conditions apply.

Promotional Period: From 2023-09-25 till stocks last.

Terms and conditions apply. Click here to view details.

Terms and Conditions

It can't be combined with any other offer. UK residents only. Offer available on products in qualifying categories. Discount will apply to five or more items bought from separate categories (e.g. one CPU, one motherboard) in one basket. If will not apply to multiples from categories (e.g. two CPUs). Discount will be applied to the five or more items in your basket - please double-check your basket to ensure the offer applies correctly. Offer does NOT apply to systems that have such components. CCL reserve the right to end this offer at any time. Offer may not be substituted, exchanged, sold, or redeemed for cash or other goods or services. Offer only available on orders placed on CCLonline.com - offer is not available via telephone or our eBay or Amazon stores.

Promotional Period: From 25th of September, 2023 till 9th of October, 2023.

Specifications

CPU

CPU Socket	Socket 1700
CPU Brand	Intel
Installed Processors (Max)	0 (1)
Supported Processor Manufacturer	Intel
Supported Processors	13th Gen Intel Core Processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors
64-bit Support	Yes
Socket	LGA1700

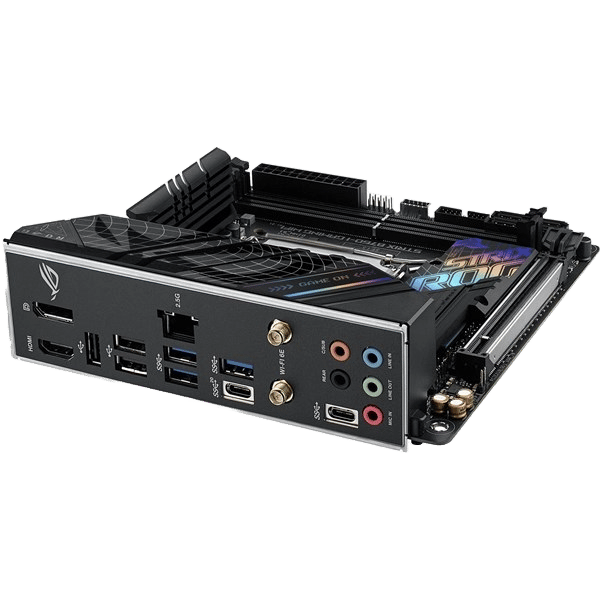

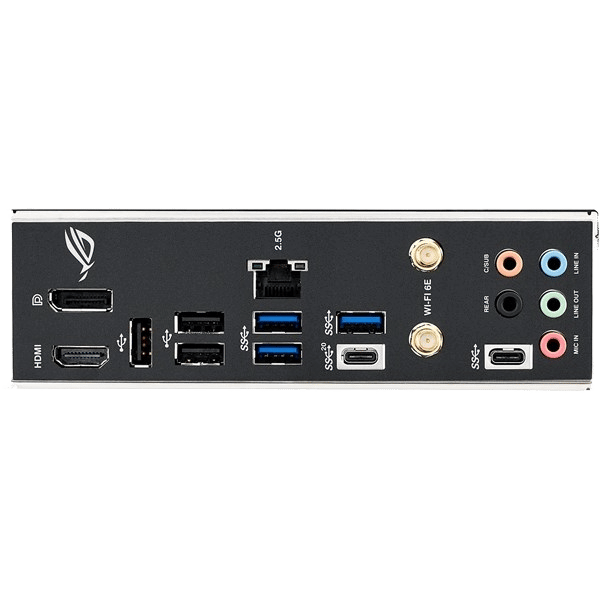

Rear Panel I/O Ports

USB Ports	1 x USB-C 3.2 1 x USB-C 3.0 3 x USB 3.0 3 x USB 2.0
DisplayPorts	1 x DisplayPort 1.4
HDMI Port	1 x HDMI 2.1
RJ-45 Ports	1 x RJ-45
Audio Line In Ports	1 x 3.5mm Jack
Audio Line Out Ports	3 x 3.5mm Jacks
Microphone In Port	1 x 3.5mm Jack
Antenna Connector(s)	2 x SMA Antenna

Internal I/O Connectors

SATA Connectors	4 x SATA III
USB Connectors	1 x USB-C 3.1 header (supports 1 port) 1 x USB 3.0 header (supports 2 ports) 1 x USB 2.0 header (supports 2 ports)
Speaker	1 x Speaker header
Front Panel Connectors	1 x Front Panel 1 x Front Audio
Cooling Fan Support	1 x CPU fan header 1 x AIO pump header 1 x Chassis fan header
S/PDIF Connectors	1 x S/PDIF Out header
Power Connector Port	1 x 24-pin ATX 1 x 8-pin EPS
Other Connectors	1 x M.2 slot, Key M, Type 2260/2280 (PCIe Gen4) 1 x M.2 slot, Key M, Type 2242/2260/2280 (PCIe Gen4) 1 x 3-pin ARGB LED header 1 x 4-pin RGB LED header

Memory

Memory Bus Speed	Up to 7600+ MHz
Memory Type	DDR5
Maximum RAM	64 GB
Memory Slot	2 x DIMM

Motherboard

Northbridge	B760
RAID Supported	Yes
RAID Format	RAID 0, 1, 5, 10
SATA Supported	Yes

Expansion

Number of PCI Express Slots

1 x PCI Express 5.0 x16 slot

Graphics Device

Integrated Graphics Supported

Yes

Sound

Integrated Sound

ROG SupremeFX S1220A

Warranty

3 Years

Network

Integrated Network	Intel
Network Speeds Supported	Up to 2.5 Gbps
Wireless LAN	Yes (Wi-Fi 6E)
Wireless Network Speed	Up to 2.4 Gbps
Bluetooth	Yes
Bluetooth Version	5.3

System Requirements

Operating Systems Supported

Microsoft Windows 11 64-bit

System

BIOS	128 Mb Flash ROM, UEFI AMI BIOS
Jumpers	1 x Clear CMOS
Software Included (may be trial or restricted)	Yes
Drivers	Yes

Physical

Form Factor	Mini-ITX Motherboard

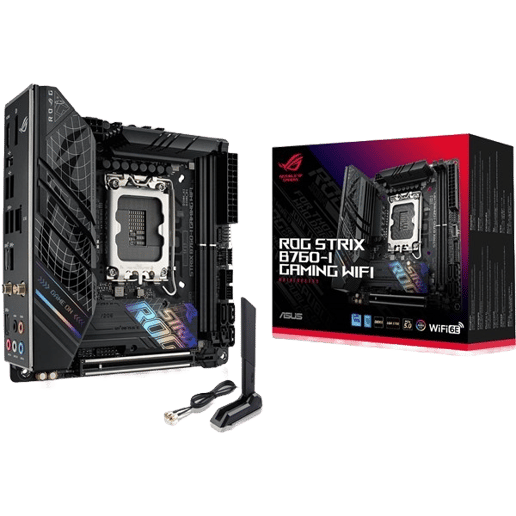

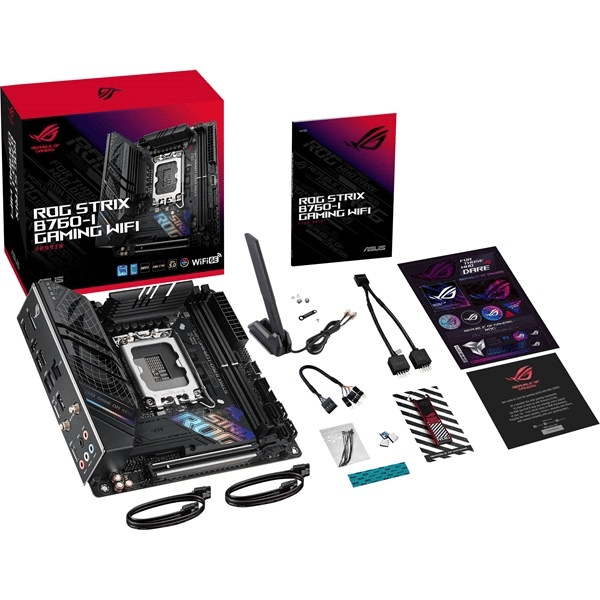

In The Box	Motherboard 2 x SATA 6Gb/s cables 1 x ROG USB2.0 splitter cable 1 x Panel cable 1 x Thermal pad for M.2 1 x ASUS Wi-Fi moving antennas 1 x Cable ties package 1 x M.2 Rubber Package 2 x Screw packages for M.2 SSD 1 x M.2 bracket 1 x ROG key chain 1 x ROG STRIX stickers 1 x ROG STRIX thank you card 1 x User manual
Width	170 mm
Length	170 mm

Key Features

WiFi Speed	2400 Mbps
USB 3.1 Support	Yes
Internal USB3.0 Header	Yes
M.2 Support	Yes
On-board RGB Control	ASUS Aura Sync
Memory Speed	7600 MHz
RGB Header Type	3-Pin ARGB
Addressable RGB	Yes
Internal USB Type-C Header	Yes
Power Requirement (auto)	30 W
Max Memory Speed Supported (Non-overclocked)	5200 MHz
Max Memory Speed Supported (overclocked)	7600 MHz
CPU Power Pins (female)	8
Total M.2 Slots	2
Maximum NVMe M.2 ports	2
PCI-e slots	1
SATA ports	4
No. of front USB2.0 ports supported	2
No. of front USB3.0 ports supported	2
No. of front USB-C ports supported	1
Config Business (CB)	Yes
Config Gaming (CB)	Yes
Config Home Office (CB)	Yes
Config Scandi Lifestyle (CB)	Yes
Config Professionals (CB)	Yes
Config Quiet (CB)	Yes
Config Students (CB)	Yes
Wireless Network	Yes
Motherboard Width	170 mm
Motherboard Height	170 mm
Chipset Manufacturer	Intel
Main Colour	Black
Memory Channel	Dual
On-board Audio Type	7.1
Number of SATA Ports	4 port(s)
Number of USB Ports	8 port(s)
SATA III Support	Yes
USB 3.0 Support	Yes
Multi GPU Support	No
VGA Connection	No
DVI Connection	No
HDMI Connection	Yes
DisplayPort Connection	Yes
Motherboard Form Factor	ITX
Motherboard Power Connectors	8-Pin
Motherboard Chipset	Intel B760
Thunderbolt	No
Motherboard Model	ASUS ROG Strix B760-I Gaming WiFi

Item Details

Manufacturer	ASUS
Manufacturer Code	STRIX B760-I GAMING WIFI
Alternative Part Number	90MB1D90-M0EAY0
EAN	4711081997658
UPC	195553997652
Condition	New

Warranty

Warranty Information

Warranty

3 Years

Manufacturer Information

Manufacturer	ASUS
Manufacturer Code	STRIX B760-I GAMING WIFI

Q&A

Do you have you a question about the ASUS ROG Strix B760-I Gaming WiFi Motherboard?

Reviews

5.0 / 5 1 review

philip cogan

7 months ago

Great price for an ITX board I was surprised. Looks great too, and all the bells and whistles you would need. Highly recommend for small form factor builds
