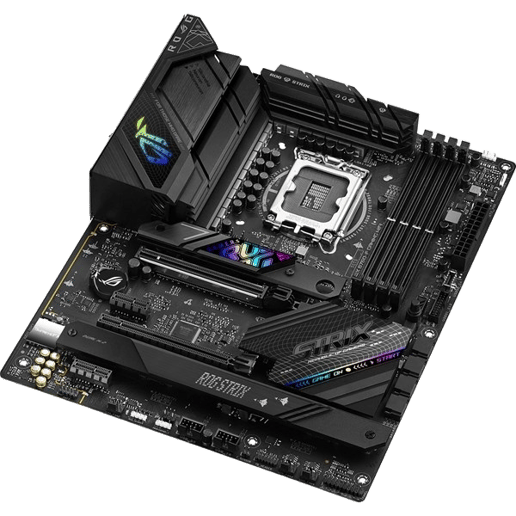

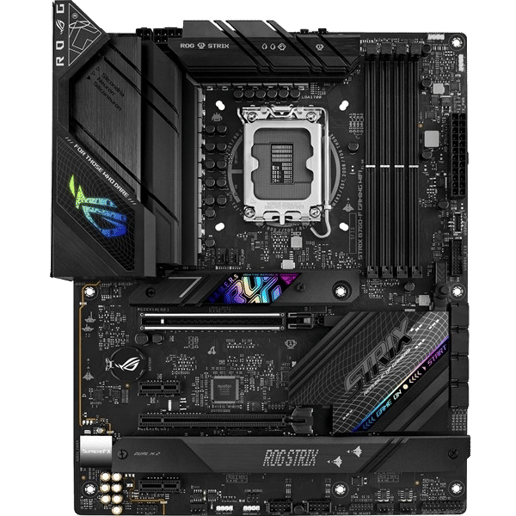

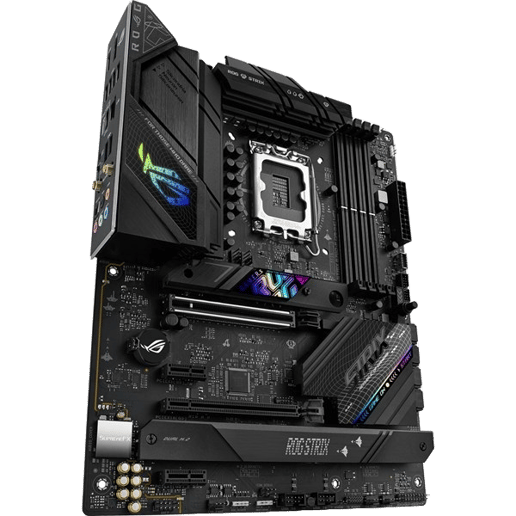

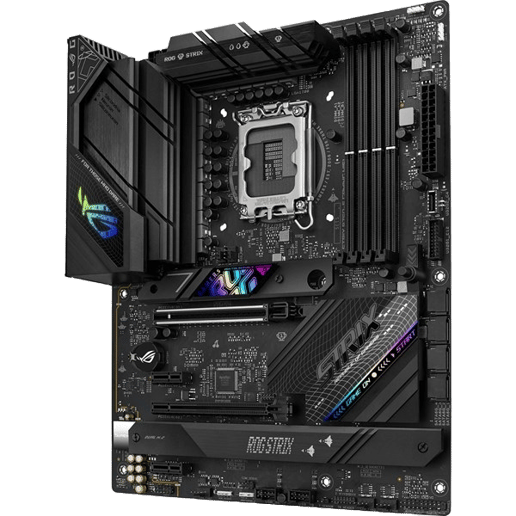

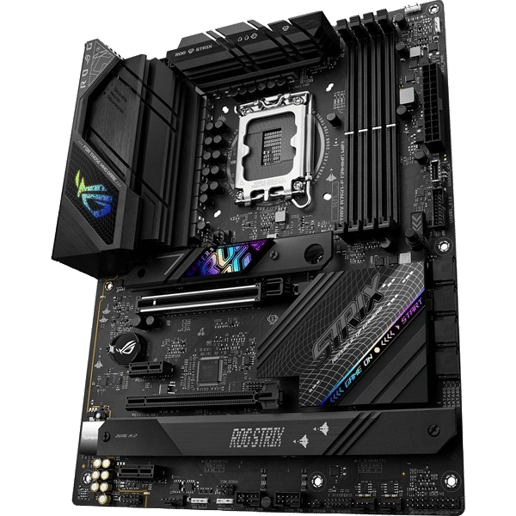

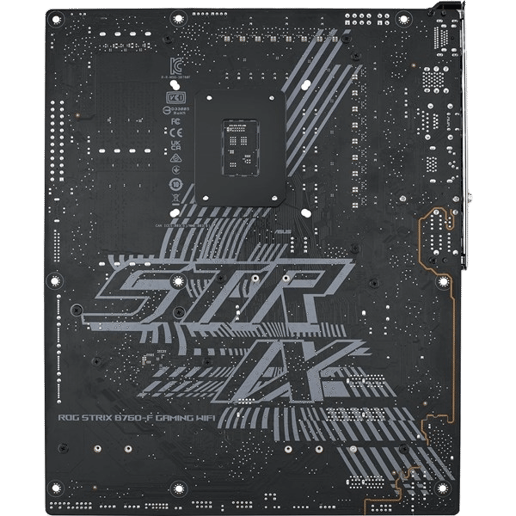

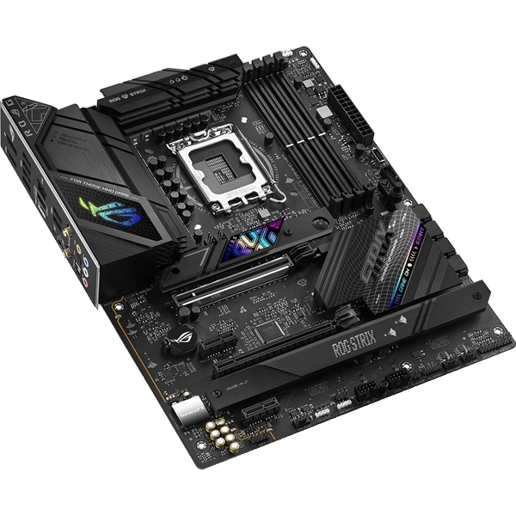

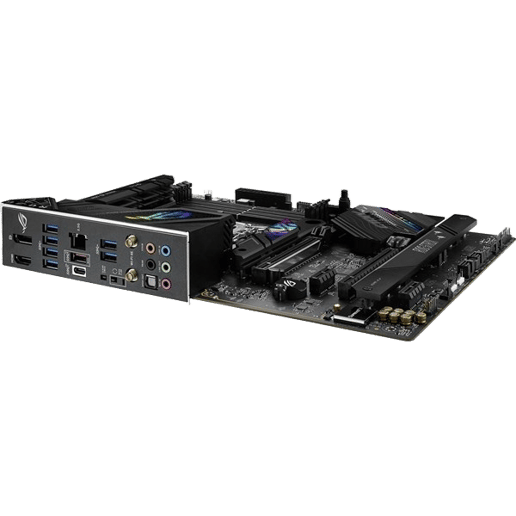

ASUS ROG Strix B760-F Gaming WiFi ATX Motherboard for Intel LGA1700 CPUs

Compare

Leap into the future with the ROG Strix B760-F, a fantastic upgrade into 13th Gen with its dominant power solution and best-in-class DDR5 speeds. Its next-gen PCIe 5.0 slot gives overwhelming graphics card throughput for maximum FPS, and you can minimize lag via hyperfast WiFi 6E or 2.5G LAN. All these perks come alongside distinctive rainbow stripes and retro accents so you can show off your gamer pride.

ASUS ROG Strix B760-F Gaming WiFi ATX Motherboard for Intel LGA1700 CPUs

90MB1CT0-M0EAY0

Key Features:

Socket 1700
Intel B760 Chipset
4 x SATA & 8 x USB Ports
DDR5 (max 128GB, 4 slots)
HDMI and Display Port
ATX Form Factor

CCL Code: MBD3457

Sold out

Sorry, we don't have any stock of this product. Please click 'Notify Me' and we will let you know when the item is available.

Notify Me

Overview

ASUS ROG Strix B760-F Gaming WiFi Motherboard

Specifications

CPU

CPU Socket	Socket 1700
CPU Brand	Intel
Installed Processors (Max)	0 (1)
Supported Processor Manufacturer	Intel
Supported Processors	13th Gen Intel Core Processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors
64-bit Support	Yes
Socket	LGA1700

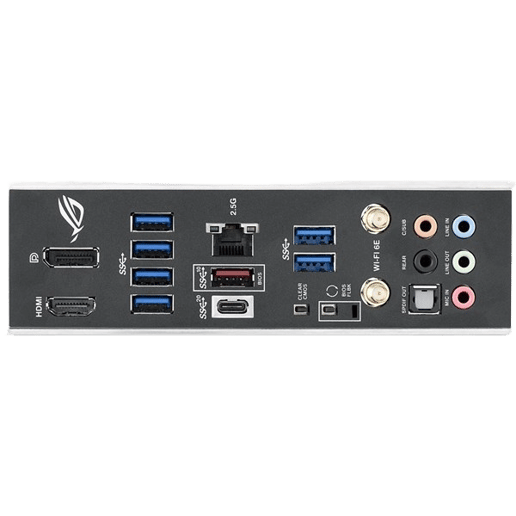

Rear Panel I/O Ports

USB Ports	1 x USB-C 3.2 1 x USB 3.1 6 x USB 3.0
DisplayPorts	1 x DisplayPort 1.4
HDMI Port	1 x HDMI 2.1
RJ-45 Ports	1 x RJ-45
Audio Line In Ports	1 x 3.5mm Jack
Audio Line Out Ports	3 x 3.5mm Jacks
Microphone In Port	1 x 3.5mm Jack
S/PDIF Port	1 x S/PDIF Optical Out
Antenna Connector(s)	2 x SMA Antenna

Internal I/O Connectors

SATA Connectors	4 x SATA III
USB Connectors	1 x USB-C 3.1 header (supports 1 port) 1 x USB 3.0 header (supports 2 ports) 2 x USB 2.0 headers (supports 4 ports)
Front Panel Connectors	1 x Front Panel 1 x Front Audio
Cooling Fan Support	1 x CPU fan header 1 x CPU OPT fan header 1 x AIO pump header 4 x Chassis fan headers
Thunderbolt Port(s)	1 x Thunderbolt 4 header
Chassis Intrusion Connector	1 x Chassis Intrusion header
Power Connector Port	1 x 24-pin ATX 1 x 8-pin EPS 1 x 4-pin EPS
Other Connectors	2 x M.2 slots, Key M, Type 2242/2260/2280 (PCIe Gen4) 2 x M.2 slots, Key M, Type 2242/2260/2280/22110 (PCIe Gen4) 3 x 3-pin ARGB LED headers 1 x 4-pin RGB LED header

Memory

Memory Bus Speed	Up to 7800+ MHz
Memory Type	DDR5
Maximum RAM	128 GB
Memory Slot	4 x DIMM

Motherboard

Northbridge	B760
RAID Supported	Yes
RAID Format	RAID 0, 1, 5, 10
SATA Supported	Yes

Expansion

Number of PCI Express Slots

1 x PCI Express 5.0 x16 slot
1 x PCI Express 3.0 x16 slot (@ x4)
2 x PCI Express 3.0 x1 slots

Graphics Device

Integrated Graphics Supported

Yes

Sound

Integrated Sound

ROG SupremeFX ALC4080

Warranty

3 Years

Network

Integrated Network	Intel
Network Speeds Supported	Up to 2.5 Gbps
Wireless LAN	Yes (Wi-Fi 6E)
Wireless Network Speed	Up to 2.4 Gbps
Bluetooth	Yes
Bluetooth Version	5.2

System Requirements

Operating Systems Supported

Microsoft Windows 11 64-bit

System

BIOS	256 Mb Flash ROM, UEFI AMI BIOS
Software Included (may be trial or restricted)	Yes
Drivers	Yes

Physical

Form Factor	ATX Motherboard
In The Box	Motherboard 2 x SATA 6Gb/s cables 1 x Thermal pad for M.2 1 x ASUS Wi-Fi moving antennas 1 x Cable ties package 1 x M.2 Q-Latch package 2 x M.2 Rubber Package 1 x ROG key chain 1 x ROG Strix stickers 1 x ROG Strix thank you card 1 x User guide
Width	244 mm
Length	305 mm

Key Features

Firewire
IDE/EIDE Supported
SCSI/SAS Supported
Wireless Network	Yes
Chipset Manufacturer	Intel
Number of PCI Slots	slot(s)
Number of PCI-X Slots	slot(s)
Main Colour
Socket(s)
Memory Channel	Dual
On-board Audio Type	7.1
Number of SATA Ports	4 port(s)
Number of USB Ports	8 port(s)
SATA III Support	Yes
USB 3.0 Support	Yes
Multi GPU Support	No
VGA Connection	No
DVI Connection	No
HDMI Connection	Yes
DisplayPort Connection	Yes
Motherboard Form Factor	ATX
Wake on LAN
Motherboard Power Connectors	4 + 8-Pin
Motherboard Chipset	Intel B760
Thunderbolt	No
Motherboard Model	ASUS ROG Strix B760-F Gaming WiFi
WiFi Speed	2400 Mbps
USB 3.1 Support	Yes
Internal USB3.0 Header	Yes
Cooler Height	mm
M.2 Support	Yes
On-board RGB Control	ASUS Aura Sync
Memory Speed	7800 MHz
Skip Audio Test
RGB Header Type	3-Pin ARGB
Addressable RGB	Yes
Internal USB Type-C Header	Yes
Radiator Length	mm
Microsoft Processor List
Power Requirement (auto)	70 W
Cooler count
Max Memory Speed Supported (Non-overclocked)	5600 MHz
Max Memory Speed Supported (overclocked)	7800 MHz
CPU Power Pins (female)	12
PCI Express Power Pins (female)
Total M.2 Slots	3
Maximum NVMe M.2 ports	3
PCI-e slots	4
SATA ports	4
No. of front USB2.0 ports supported	4
No. of front USB3.0 ports supported	2
No. of front USB-C ports supported	1
