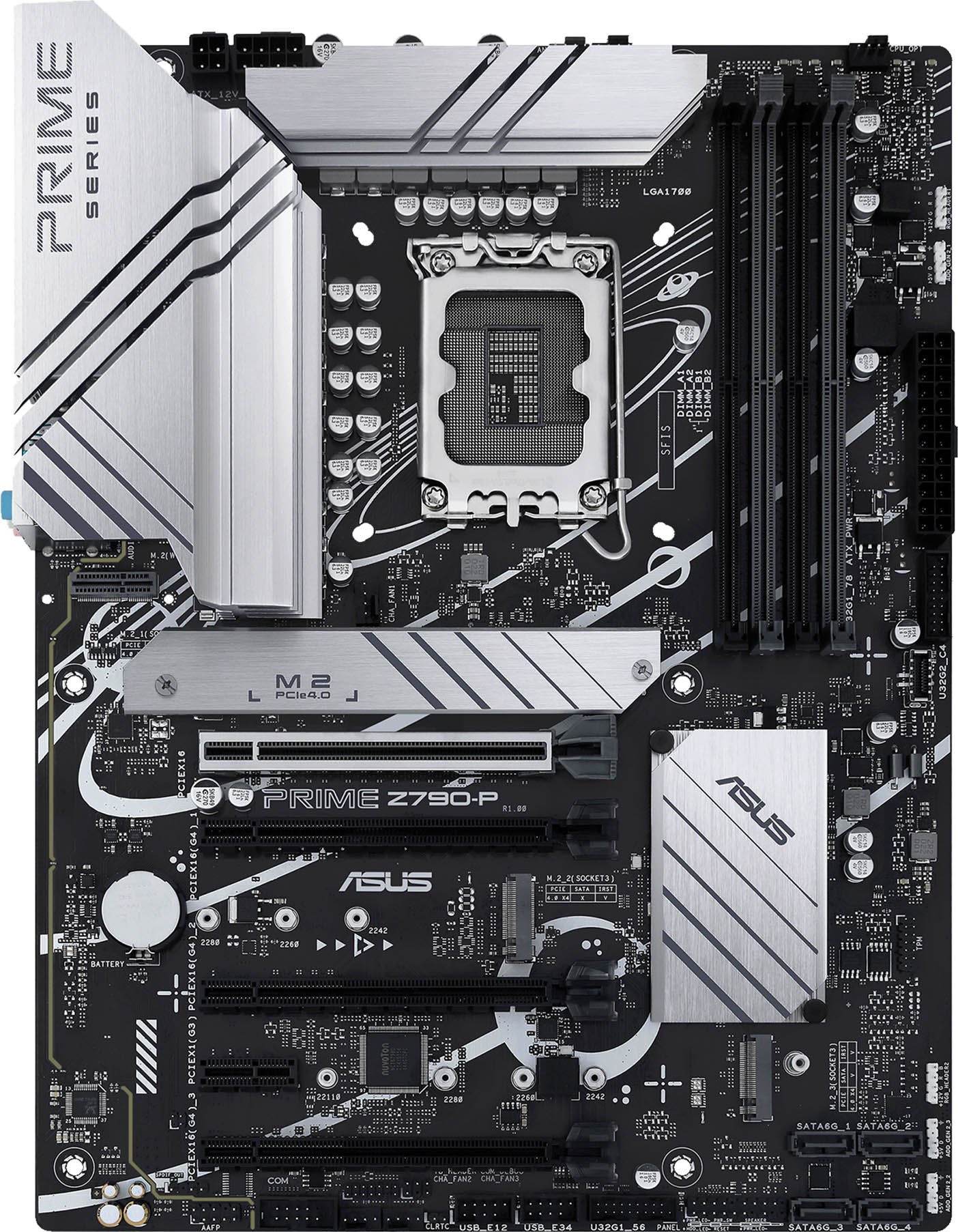

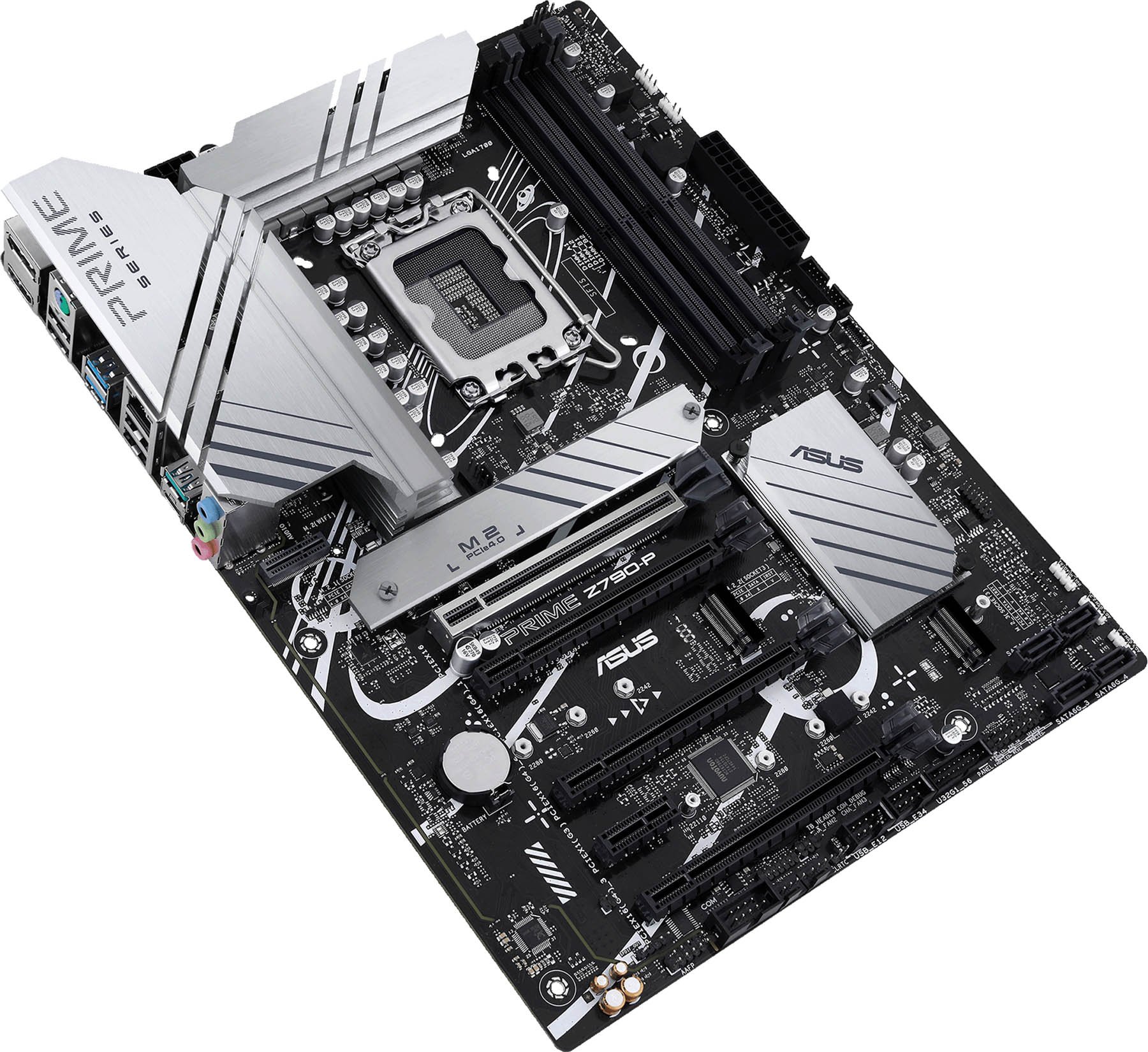

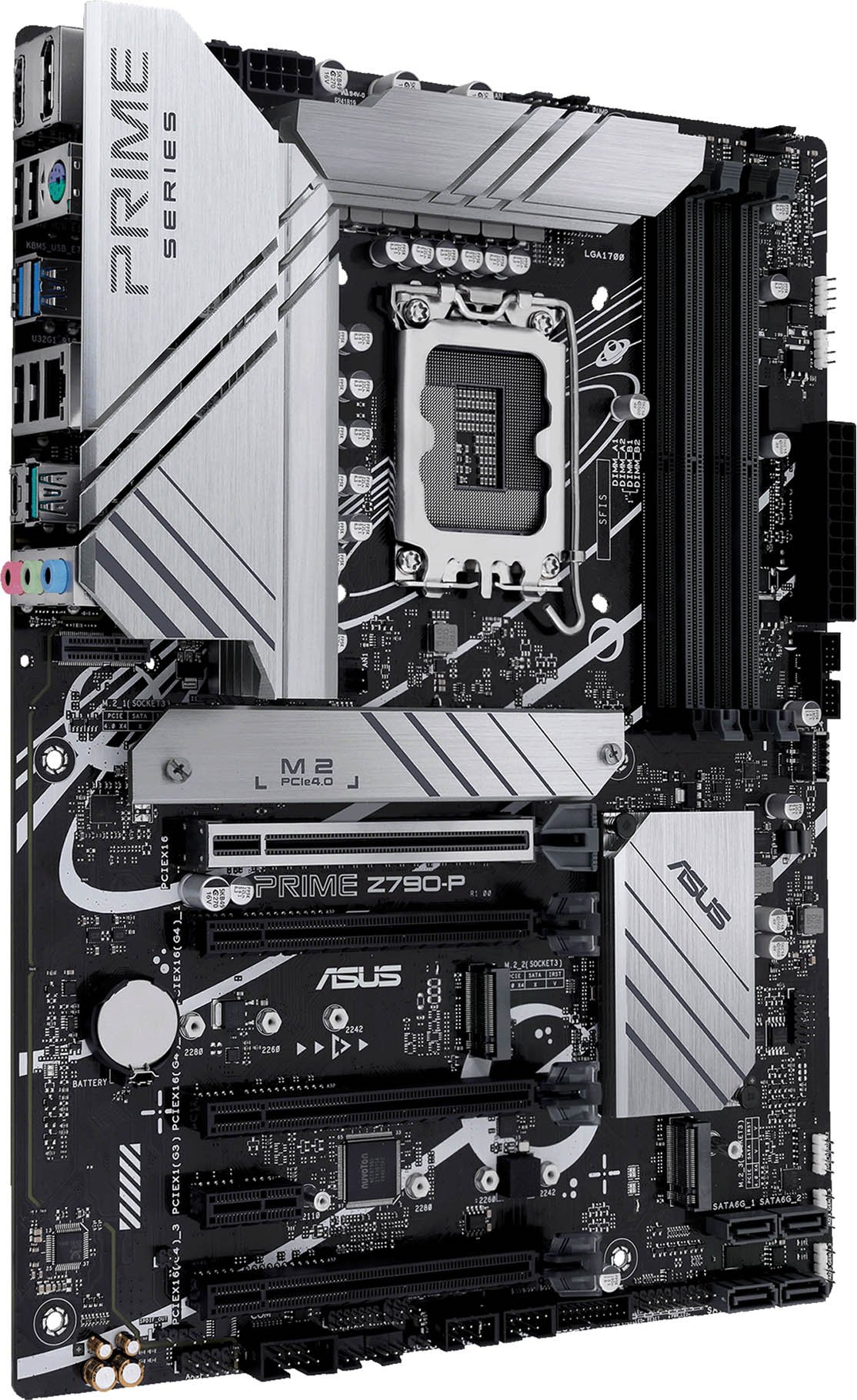

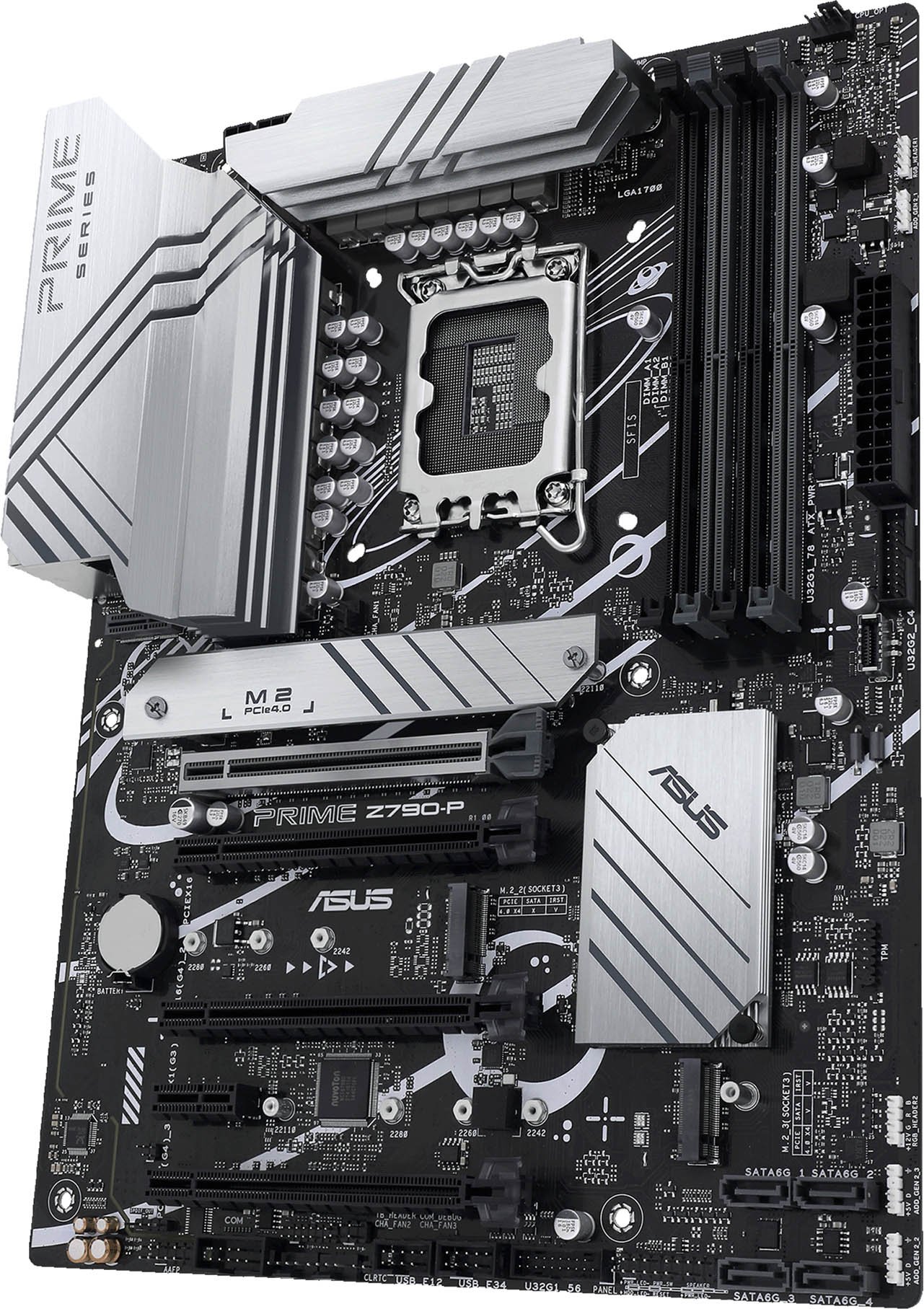

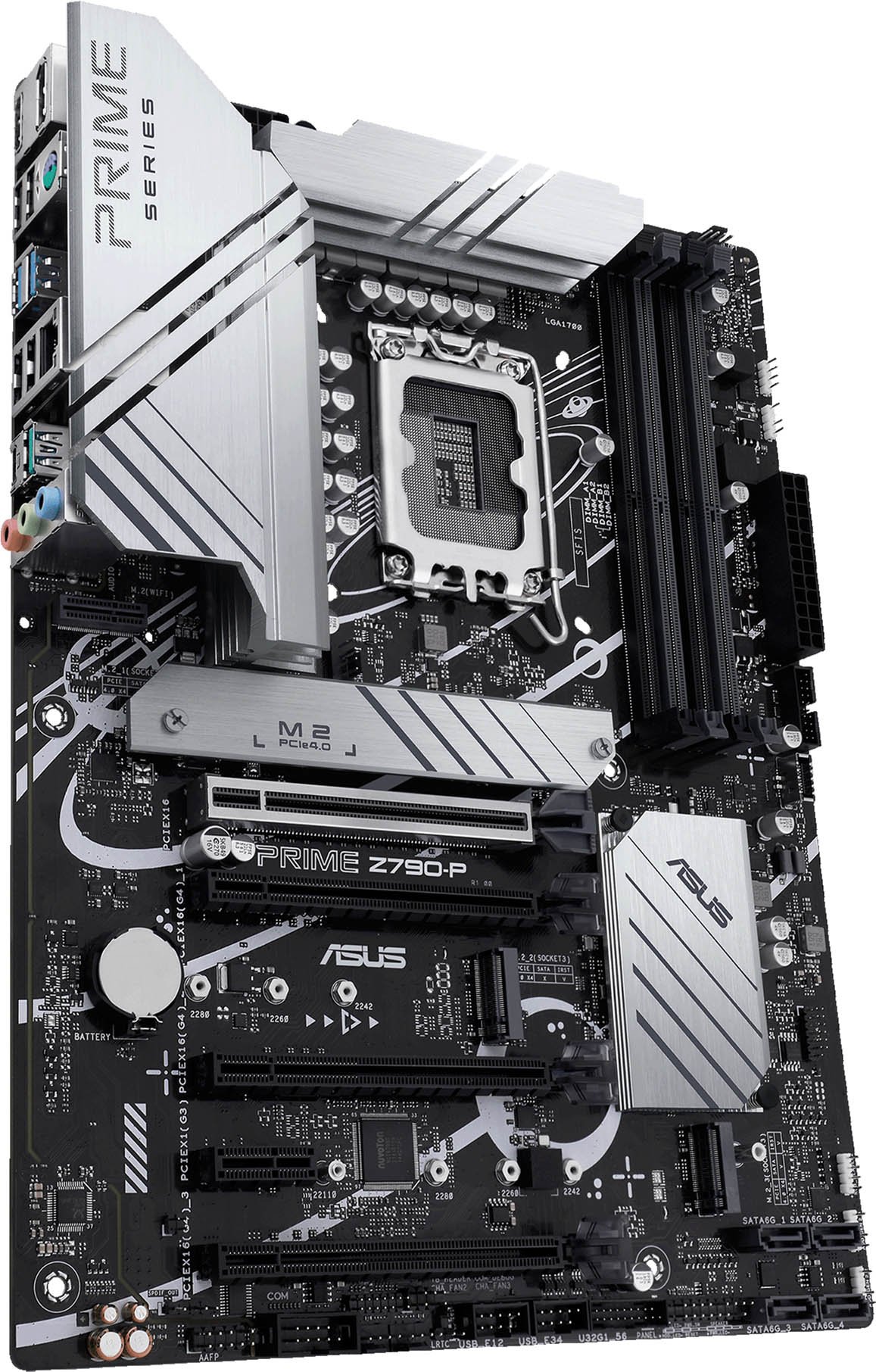

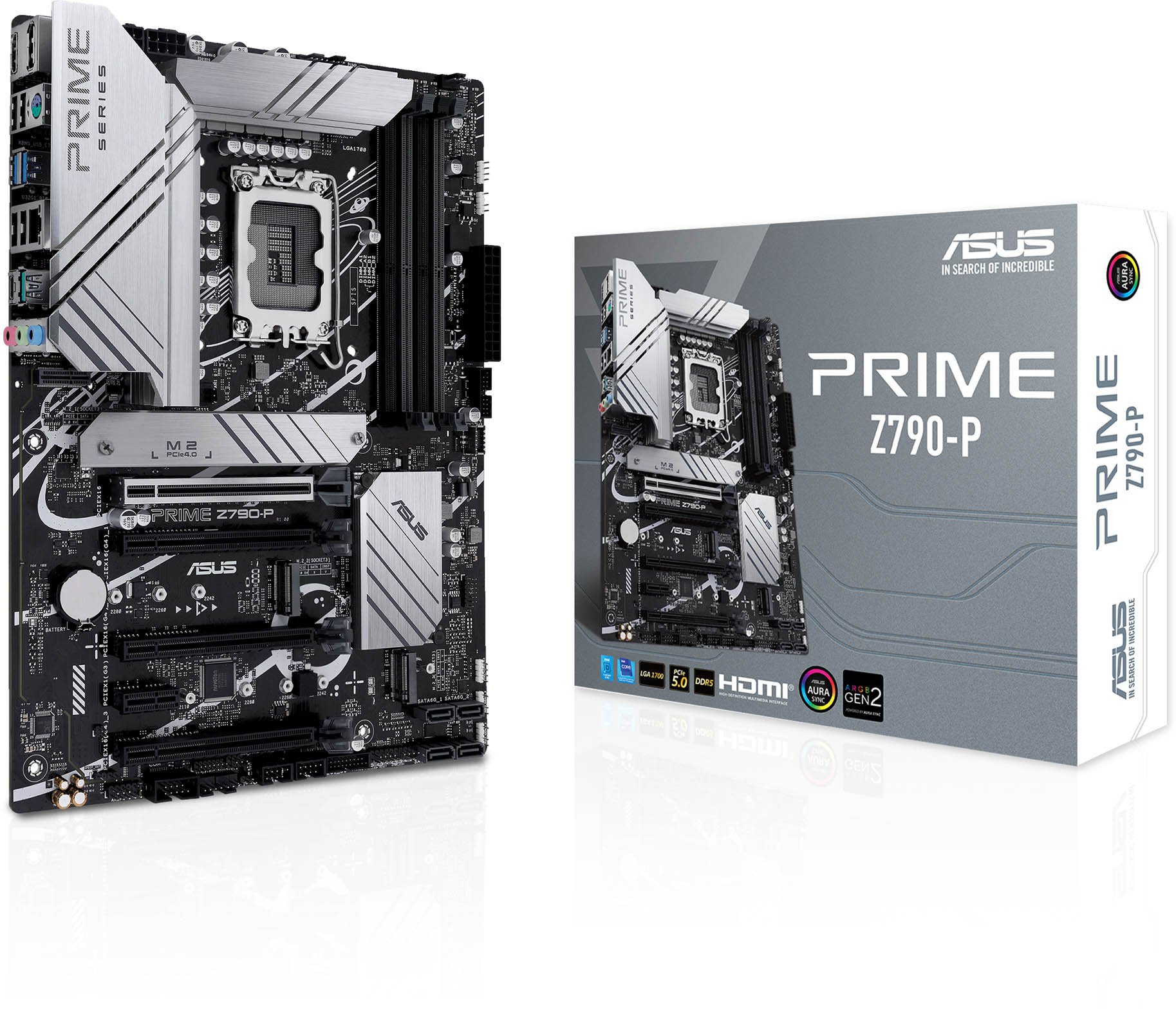

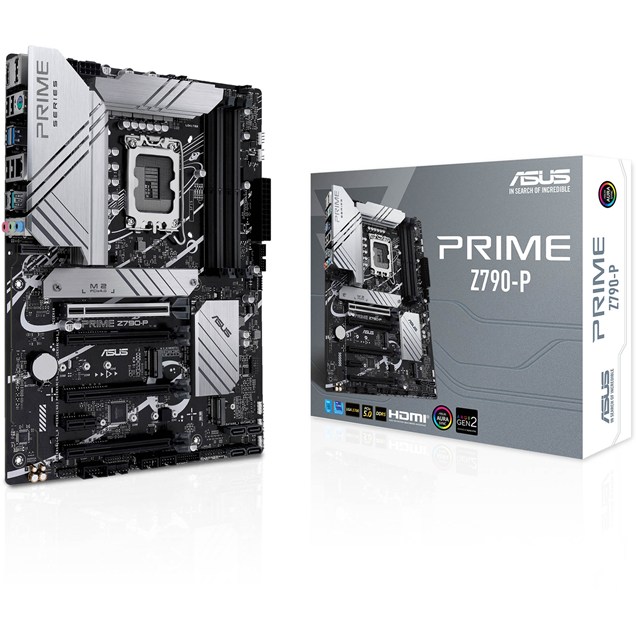

ASUS Prime Z790-P ATX Motherboard for Intel LGA1700 CPUs

ASUS Prime Z790-P ATX Motherboard for Intel LGA1700 CPUs

CCL Code: MBD3366

Discontinued

  • ASUS Prime Z790-P ATX Motherboard for Intel LGA1700 CPUs
  • ASUS Prime Z790-P ATX Motherboard for Intel LGA1700 CPUs
  • ASUS Prime Z790-P ATX Motherboard for Intel LGA1700 CPUs
  • ASUS Prime Z790-P ATX Motherboard for Intel LGA1700 CPUs
  • ASUS Prime Z790-P ATX Motherboard for Intel LGA1700 CPUs
  • ASUS Prime Z790-P ATX Motherboard for Intel LGA1700 CPUs

ASUS Prime Z790-P, an Intel Z790 LGA 1700 ATX motherboard with PCIe® 5.0, three M.2 slots, 14+1 DrMOS, DDR5, Realtek 2.5 Gb LAN, HDMI®, DP, USB 3.2 Gen 2x2 Type-C®, front USB 3.2 Gen 2 Type-C®, Thunderbolt™ (USB4®) support, Aura Sync

ASUS Prime Z790-P ATX Motherboard for Intel LGA1700 CPUs

PRIME Z790-P

ASUS Prime Z790-P, an Intel Z790 LGA 1700 ATX motherboard with PCIe® 5.0, three M.2 slots, 14+1 DrMOS, DDR5, Realtek 2.5 Gb LAN, HDMI®, DP, USB 3.2 Gen 2x2 Type-C®, front USB 3.2 Gen 2 Type-C®, Thunderbolt™ (USB4®) support, Aura Sync

Key Features:

  • ATX Form Factor
  • Intel Z790 Chipset
  • Socket 1700
  • DDR5 (Max: 128GB / 4 slots)
  • 3 x M.2 & 8 x USB & 4 x SATA
  • HDMI and Display Port
CCL Code: MBD3366

Discontinued

Sorry, this product has been discontinued. We have found some similar products below.

Overview

ASUS Prime series motherboards are expertly engineered to unleash the full potential of 13th Gen Intel® Core™ Processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME Z790-P provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.

FLEXIBILITY

Comprehensive controls form the foundation of the ASUS PRIME series. The PRIME Z790-P motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.

Intelligent Control

ASUS Intelligent Control makes your PC smart. Along with taking care of complex tuning and dynamically optimizing essential aspects of your system, it offers intelligently simplified options for newcomers to PC DIY, as well as more comprehensive features for seasoned veterans.

AI Cooling ll

AI Cooling II balances the thermals and acoustics of any build with a single click. A proprietary ASUS algorithm slashes unnecessary noise while running a quick stress test, and then it monitors CPU temperatures to dynamically adjust fans to optimal speeds.

UEFI BIOS

The renowned ASUS UEFI BIOS provides everything you need to configure, tweak and tune your system. It offers intelligently simplified options for PC DIY beginners, as well as comprehensive features for seasoned veterans.

COOLING

PRIME Z790-P motherboard is engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.

Heatsinks

M.2 Heatsink

An M.2 heatsink takes care of the two M.2 slots, warding off throttling that can occur with M.2 storage during sustained transfers.

VRM Heatsinks and Thermal Pads

The extensive surface area of the massive heatsinks cover the VRMs and chokes to improve heat dissipation. Together with specially engineered thermal pads, they improve heat transfer from the MOSFETs and chokes for better cooling performance.

Cooler by Design

PRIME Z790-P features comprehensive cooling controls that are configurable via Fan Xpert 4 software or via the UEFI BIOS.

Multiple Temperature Sources

Each header can dynamically reference three thermal sensors. Fan Xpert 4 allows you to map the temperature of supported ASUS graphics cards to optimize cooling for GPU- and CPU-intensive tasks.

AIO Pump Header

A dedicated PWM/DC header for self-contained water-cooling setups.

Smart Protection

A dedicated integrated circuit protects each fan header from overheating and overcurrent.

4-Pin PWM/DC Fan

Each onboard header supports auto-detection of PWM or DC fans.

PERFORMANCE

The PRIME Z790-P motherboard is built to handle the high core counts and bandwidth demands of 13th Gen Intel® Core™ Processors. ASUS Z790 motherboard provides all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible data transfer options.

Robust Power Design

Stable power is essential to extract every last bit of performance out of Intel processors. The PRIME Z790-P is geared to cater to the demands of these high-core-count CPUs.

Memory

AEMP II for Ultimate DDR5 Performance

ASUS Enhanced Memory Profile II (AEMP II) is an exclusive firmware feature for PMIC-restricted memory modules. AEMP II is based on a CPU and memory module’s ability to train the memory chips on your kit, and it presents an optimized clock speed that can effortlessly unleash performance.

Built through a flexible training method, AEMP II makes it easy to not only tune the memory above baseline settings but also maintain the stability of system operation, whether getting the most out of an entry-level module or priming a high-speed kit for ultimate performance.

*Results may vary according to the capabilities of your CPU and memory modules.
**The comparison chart is based on a test with an Intel® i9-13900K processor and 2x16 GB SK Hynix DDR5-4800 non-ECC UDIMMs, model HMCG78MEBUA081N.
***Please ensure all memory modules are from a single validated kit. Do not combine DIMMs from multiple kits—even if they are the same make and model. Mixing and matching DIMMs can result in failure to boot, and compatibility cannot be guaranteed.
****Always install DIMMs with the same CAS latency. For optimal compatibility, we recommend that you install memory modules of the same version or date code (D/C) from the same vendor. Check with your retailer to get the correct memory modules.

ASUS OptiMem II

Revisions to the motherboard’s trace routing provide the latest Intel® processors with unrestricted access to memory bandwidth. ASUS OptiMem II technology carefully maps memory signal pathways across different PCB layers to reduce vias and adds shielding zones that significantly reduce crosstalk.

Storage

Three M.2 Slots (up to 64 Gbps)

PRIME Z790-P offers a total of three M.2 slots that support data-transfer speeds of up to 64 Gbps via PCIe® 4.0, enabling quicker boot-up and app load times with OS or application drives.

*Actual transmission speeds will be lower than the theoretical maximum speed.

Connectivity

PCIe® 5.0 Slot

PCIe® 5.0 offers twice the data transfer speed of PCIe® 4.0, making it robust enough to handle new data-heavy tasks. PCIe 5.0 also brings other benefits, such as electrical changes to improve signal integrity, backward-compatible CEM connectors for add-in cards, and compatibility with previous versions of PCI Express.

USB 3.2 Gen 2x2 Type-C®

A batch of USB ports support high-end rigs loaded with peripherals, including the rear USB Type-C connectors with ultrafast USB 3.2 Gen 2x2 for transmission speeds of up to 20 Gbps.

Thunderbolt™ 4 (USB4® compliant)

PRIME Z790-P motherboard features USB4® support via a Thunderbolt™ (USB4®) header. With an ASUS add-on card*, PRIME motherboards can enable bi-directional speeds of up to 40 Gbps on a single cable, while providing power to fast-charge device. Additionally, this card has a daisy-chain function for multi-screen connection and supports up to dual displays with 4K resolution.

*ASUS add-on card is sold separately.

Realtek 2.5 Gb Ethernet

Realtek 2.5 Gb Ethernet reduces CPU overhead and offers exceptionally high TCP and UDP throughput for faster, smoother data transfers.

CUSTOMIZATION

The PRIME Z790-P motherboard adds the nuanced details that improve every experience, from exclusive codecs that provide pristine audio quality to intuitive RGB lighting controls that let you customize your system to create a uniquely personal look.

Personalisation

Aura Sync

Outshine the Competition

A well-tuned enthusiast system deserves a matching aesthetic. ASUS Aura offers full RGB lighting control with a variety of functional presets for the built-in RGB LEDs as well as strips and devices connected to the onboard RGB headers — and it can all be synced with an ever-growing portfolio of Aura-capable hardware.

Addressable Gen 2 RGB Header

Three addressable Gen 2 RGB headers are capable of detecting the number of LEDs on second-gen addressable RGB devices, allowing the software to automatically tailor lighting effects to specific devices. The new headers also offer backward-compatibility with existing Aura RGB gear.

Armoury Crate

Within a single intuitive interface, Armoury Crate offers easily customized Aura Sync RGB settings for every compatible device in your arsenal , plus controls for an ever-growing family of ASUS products, including keyboard and mouse preferences. Armoury Crate also integrates product registration and a news feed so that you never miss updates of interest to the ASUS community.

DIY-Friendly

Q-LED Core

The Q-LED Core display produces light patterns by power LED during the Power-On Self-Test (POST) that can help users troubleshoot potential issues.

SafeSlot Core+

PCIe® 5.0 is 2x faster than PCIe® 4.0, so we adapted our SMT manufacturing process for the faster SafeSlot Core+, to ensure the highest data speeds. SafeSlot Core+ is a reinforced metal sheath added to a PCIe slot to keep a card firmly installed.

Main Features

  • Intel LGA 1700 socket: Ready for 12th and 13th Gen Intel processors
  • Enhanced power solution: 14+1 DrMOS, 6-layer PCB, ProCool connectors, alloy chokes and durable capacitors for stable power delivery
  • Next-gen connectivity: DDR5 memory, PCIe 5.0, Realtek 2.5Gb Ethernet, USB 3.2 Gen2x2 Type-C, front panel USB 3.2 Gen 2 Type-C, ThunderboltT (USB4) header support, 3 PCIe 4.0 M.2
  • Exclusive Memory Technology: ASUS Enhanced Memory Profile II and ASUS OptiMem II
  • Comprehensive cooling: Large VRM heatsinks, flexible M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 4 with AI Cooling II
Specifications

CPU

CPU Socket Socket 1700
CPU Brand Intel
Installed Processors (Max) 0 (1)
Supported Processor Manufacturer Intel
Supported Processors 13th Gen Intel Core Processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors
64-bit Support Yes
Socket LGA1700

Rear Panel I/O Ports

USB Ports 1 x USB-C 3.2
1 x USB 3.1
2 x USB 3.0
4 x USB 2.0
DisplayPorts 1 x DisplayPort 1.4
HDMI Port 1 x HDMI 2.1
RJ-45 Ports 1 x RJ-45
Audio Line In Ports 1 x 3.5mm Jack
Audio Line Out Ports 1 x 3.5mm Jack
Microphone In Port 1 x 3.5mm Jack

Internal I/O Connectors

SATA Connectors 4 x SATA III
USB Connectors 1 x USB-C 3.1 header (supports 1 port)
2 x USB 3.0 headers (supports 4 ports)
2 x USB 2.0 headers (supports 4 ports)
Front Panel Connectors 1 x Front Panel
1 x Front Audio
Cooling Fan Support 1 x CPU fan header
1 x CPU_OPT fan header
1 x AIO pump header
3 x Chassis fan headers
S/PDIF Connectors 1 x S/PDIF Out header
Thunderbolt Port(s) 1 x Thunderbolt header
Serial Connectors 1 x COM header
TPM Header 1 x SPI TPM header
Power Connector Port 1 x 24-pin ATX
1 x 8-pin EPS
1 x 4-pin EPS
Other Connectors 1 x M.2 slot, Key M, Type 2242/2260/2280/22110 (PCIe Gen4)
1 x M.2 slot, Key M, Type 2242/2260/2280 (PCIe Gen4)
1 x M.2 slot, Key M, Type 2242/2260/2280/22110 (PCIe Gen4 or SATA)
3 x 3-pin ARGB LED headers
2 x 4-pin RGB LED headers

Memory

Memory Bus Speed Up to 7000 (OC) MHz
Memory Type DDR5
Maximum RAM 128 GB
Memory Slot 4 x DIMM

Motherboard

Northbridge Z790
RAID Supported Yes
RAID Format RAID 0, 1, 5, 10
SATA Supported Yes

Expansion

Number of PCI Express Slots 1 x PCI Express 5.0 x16 slot
3 x PCI Express 4.0 x16 slots (@ x4/x4/x4)
1 x PCI Express 3.0 x1 slot

Graphics Device

Integrated Graphics Supported Yes

Warranty

Warranty 3 Years

Sound

Integrated Sound Realtek

Network

Integrated Network Realtek
Network Speeds Supported Up to 2.5 Gbps
Wireless LAN No
Bluetooth No

System Requirements

Operating Systems Supported Microsoft Windows 11 64-bit

System

BIOS 192 (128+64) Mb Flash ROM, UEFI AMI BIOS
Jumpers 1 x Clear CMOS
Software Included (may be trial or restricted) Yes
Drivers Yes

Physical

Form Factor ATX Motherboard
In The Box Motherboard
2 x SATA 6Gb/s cables
1 x I/O Shield
1 x M.2 Rubber Package
2 x Screw packages for M.2 SSD
1 x User guide
Width 305 mm
Length 234 mm

Key Features

Wireless Network No
Motherboard Width 244 mm
Motherboard Height 244 mm
mSATA Supported No
U.2 Supported No
Chipset Manufacturer Intel
Memory Channel Dual
On-board Audio Type 7.1
Number of SATA Ports 4 port(s)
Number of USB Ports 8 port(s)
SATA III Support Yes
USB 3.0 Support Yes
Multi GPU Support No
VGA Connection No
DVI Connection No
HDMI Connection Yes
DisplayPort Connection Yes
Motherboard Form Factor ATX
Motherboard (EPS) Power Connectors 4-Pin + 8-Pin
Motherboard Chipset Intel Z790
Thunderbolt No
Motherboard Model ASUS Prime Z790-P
USB 3.1 Support Yes
Internal USB3.0 Header Yes
M.2 Support Yes
On-board RGB Control ASUS Aura Sync
Memory Speed 7000 MT/s
RGB Header Type 3-Pin ARGB
Addressable RGB Yes
Internal USB Type-C Header Yes
Power Requirement (auto) 70 W
Max Memory Speed Supported (Non-overclocked) 5600 MT/s
Max Memory Speed Supported (overclocked) 7000 MT/s
CPU Power Pins (female) 12
Total M.2 Slots 3
Maximum NVMe M.2 ports 3
Maximum SATA M.2 ports 1
SATA ports 4
No. of front USB2.0 ports supported 4
No. of front USB3.0 ports supported 4
No. of front USB-C ports supported 1

Item Details

Manufacturer ASUS
Manufacturer Code PRIME Z790-P
Alternative Part Number 90MB1CK0-M0EAY0
EAN 4711081937449
UPC 195553937443
Condition New
Warranty

Warranty Information

Warranty 3 Years

Manufacturer Information

Manufacturer ASUS
Manufacturer Code PRIME Z790-P
Reviews
4.0 / 5 2 reviews

George

December 2022

This is my second Prime board, excellent value, and don't need the features of the more expensive boards if you're not going to overclock. Only issue is the poor position of the chassis fan connectors. Instead of being on the edge of the board they're the other side of the CPU socket, which means you're going to have cables running across the board (see photo).

Dave

November 2022

Does the job, no major frills, great price to get into the Z790 series, lots of connections for everything that I needed, clean bios and looks nice.
