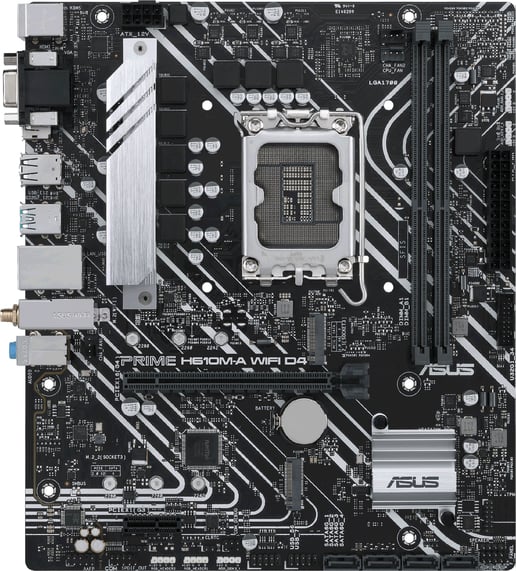

ASUS Prime H610M-A WIFI D4 mATX Motherboard for Intel LGA1700 CPUs

ASUS Prime H610M-A WIFI D4 mATX Motherboard for Intel LGA1700 CPUs

CCL Code: MBD3420

Discontinued

  • ASUS Prime H610M-A WIFI D4 mATX Motherboard for Intel LGA1700 CPUs
  • ASUS Prime H610M-A WIFI D4 mATX Motherboard for Intel LGA1700 CPUs
  • ASUS Prime H610M-A WIFI D4 mATX Motherboard for Intel LGA1700 CPUs
  • ASUS Prime H610M-A WIFI D4 mATX Motherboard for Intel LGA1700 CPUs
  • ASUS Prime H610M-A WIFI D4 mATX Motherboard for Intel LGA1700 CPUs
  • ASUS Prime H610M-A WIFI D4 mATX Motherboard for Intel LGA1700 CPUs

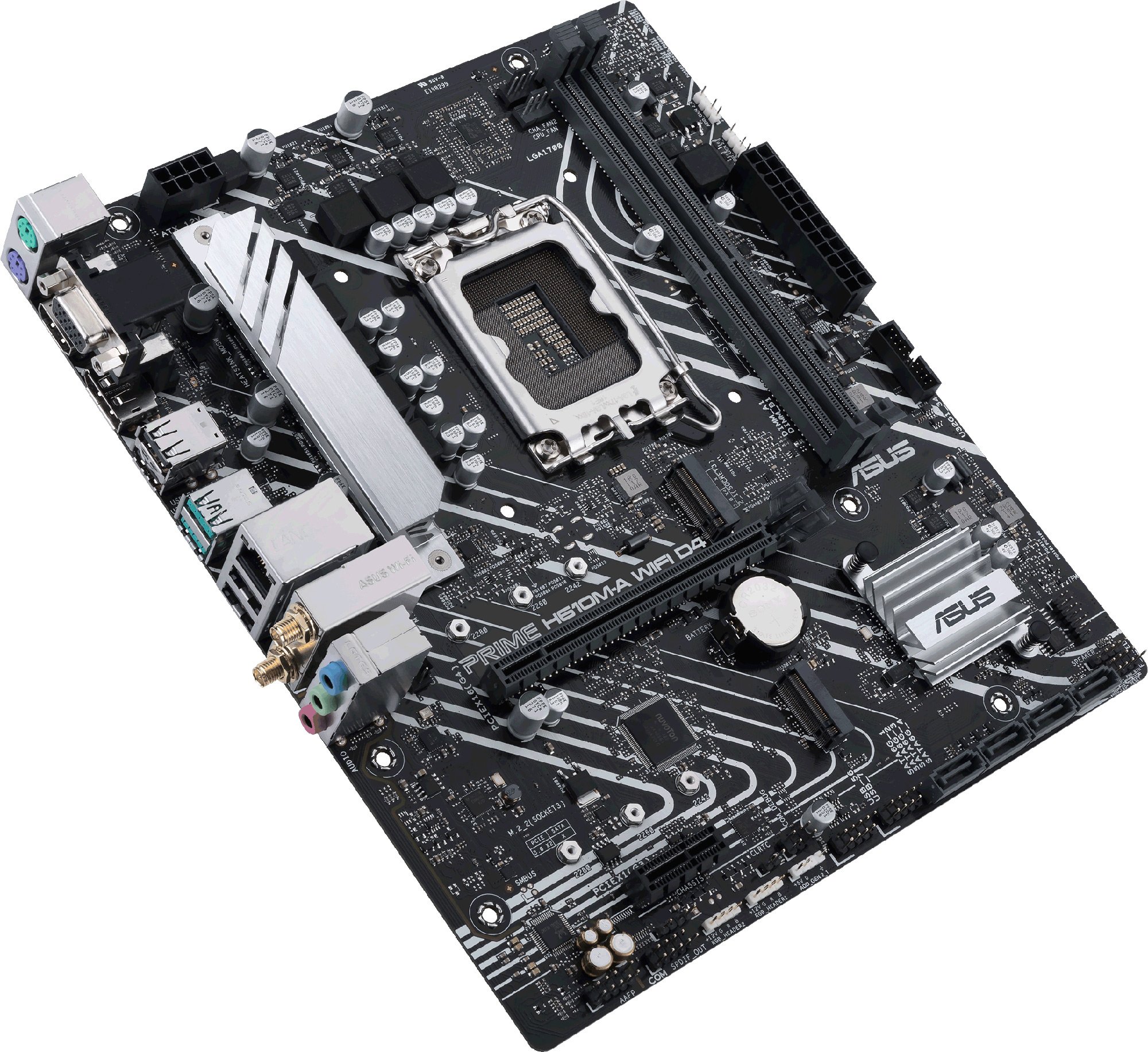

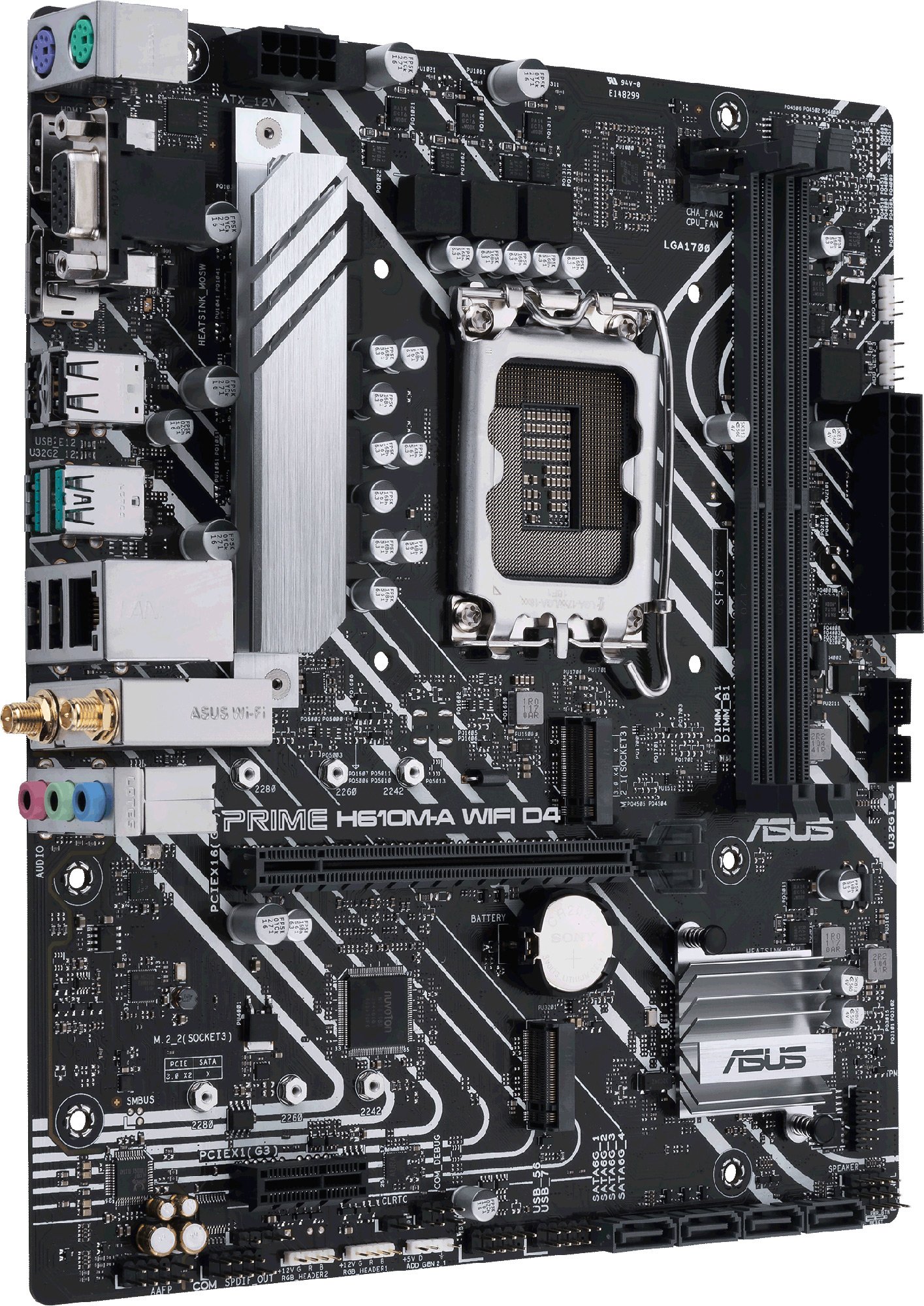

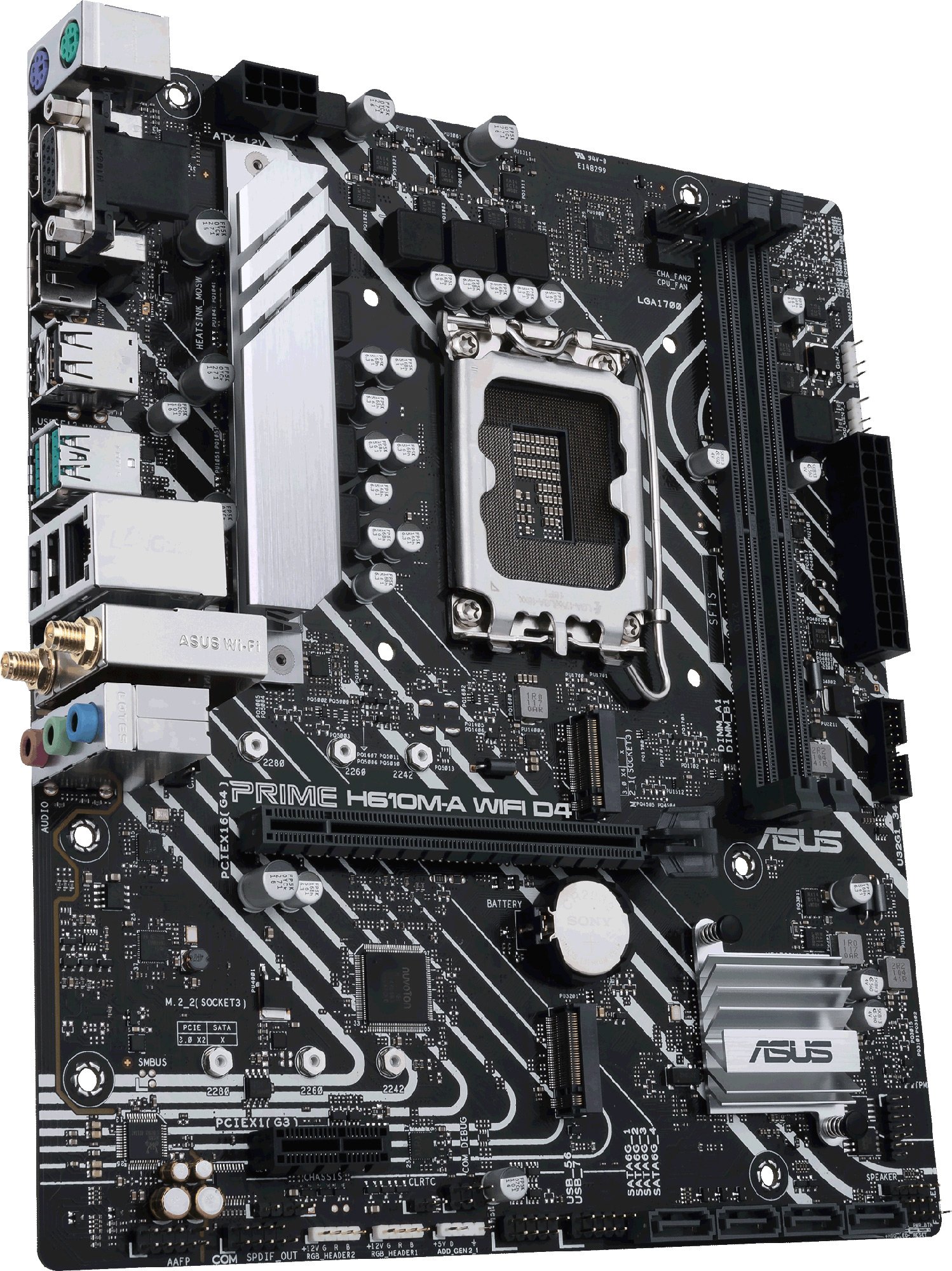

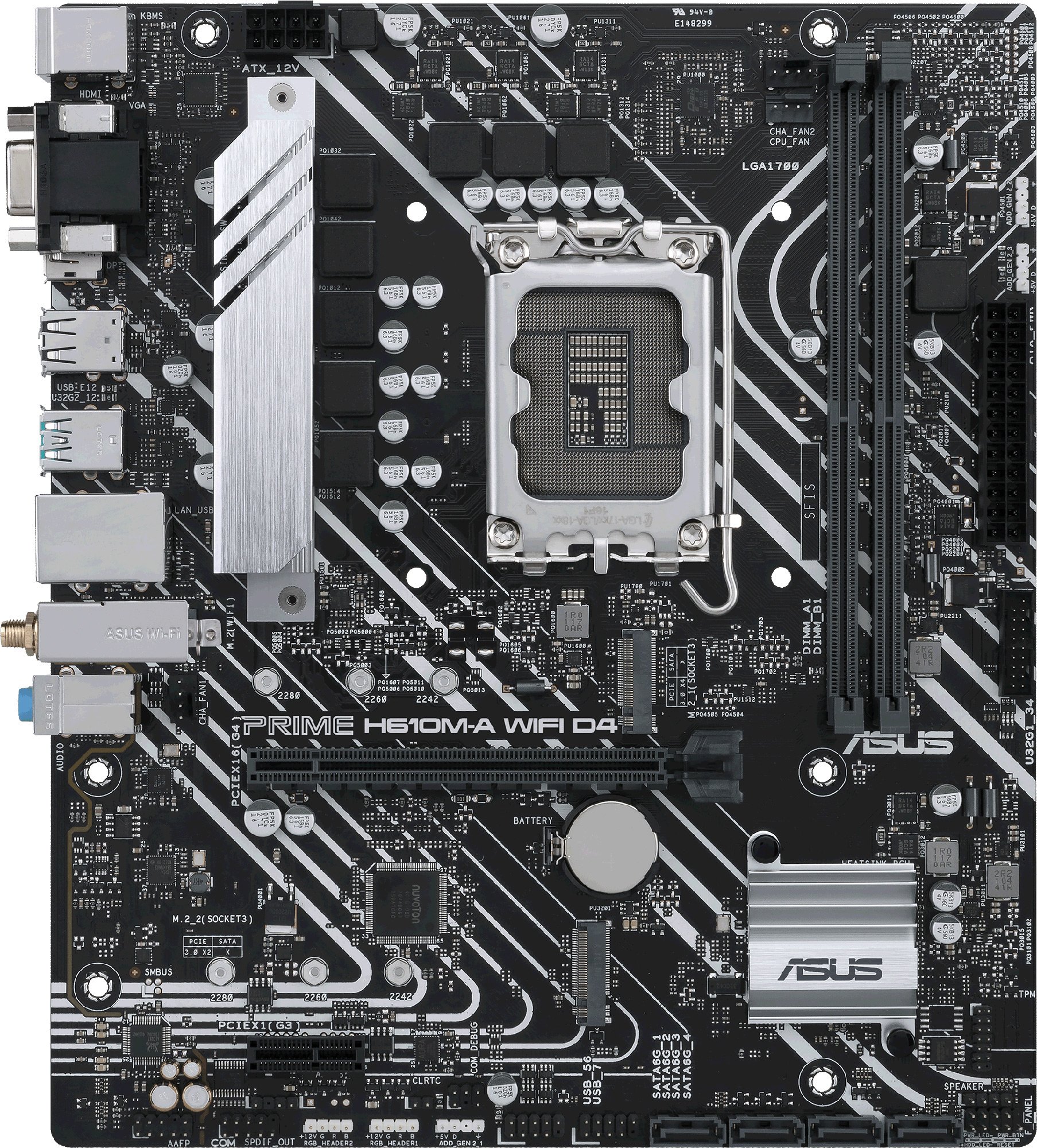

Intel® H610 (LGA 1700) mic-ATX motherboard with DDR4, PCIe 4.0, dual M.2 slots, Intel® 1 Gb Ethernet, WIFI 5, DisplayPort, HDMI®, D-Sub, USB 3.2 Gen 2 ports, SATA 6 Gbps, Addressable Gen 2 headers, and Aura Sync

ASUS Prime H610M-A WIFI D4 mATX Motherboard for Intel LGA1700 CPUs

90MB1C80-M0EAY0

Intel® H610 (LGA 1700) mic-ATX motherboard with DDR4, PCIe 4.0, dual M.2 slots, Intel® 1 Gb Ethernet, WIFI 5, DisplayPort, HDMI®, D-Sub, USB 3.2 Gen 2 ports, SATA 6 Gbps, Addressable Gen 2 headers, and Aura Sync

Key Features:

  • Socket 1700
  • Intel H610 Chipset
  • 4 x SATA & 6 x USB Ports
  • DDR4 (max 64GB, 2 slots)
  • VGA, HDMI and Display Port
  • mATX Form Factor
CCL Code: MBD3420

Discontinued

Sorry, this product has been discontinued. We have found some similar products below.

Overview

FLEXIBILITY

Comprehensive controls form the foundation of the ASUS Prime series. The Prime H610 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.

Intelligent Control

All-Around Energy Efficiency

The Energy Processing Unit (EPU) automatically optimizes power consumption and maximizes energy savings with Away mode — a smart setting that creates an extreme energy-saving scenario by shutting down unused I/O controllers.

Flexible cooling controls

Prime 600 Series motherboards offer comprehensive control over system fans, via the included Fan Xpert 2+ software. Auto-Tuning mode intelligently configures all parameters with a single click.

Precise Digital Power Control

The Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, automatically switching frequency and power-efficiency settings. It also allows you to fine-tune your CPU for ultimate stability and performance.

UEFI BIOS

The renowned ASUS UEFI BIOS provides everything you need to configure, tweak and tune your system. It offers intelligently simplified options for PC DIY beginners, as well as comprehensive features for seasoned veterans.

Advanced Tuning for Serious Tweakers

An intuitive Advanced mode offered via the UEFI lets you take complete control. A built-in search feature makes it easy to find options, and various advanced functions let you intelligently make nuanced adjustments so you can dial in performance just the way you want.

Quick and Simple Setup

EZ mode displays vital settings and stats and also offers guided wizards, drag-and-drop functionality, and one-click application of important settings — all to help you get your rig up and running in no time.

COOLING

Prime H610 series are engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.

Heatsinks

VRM Heatsink and Thermal Pad

VRM heatsink and thermal pad improve heat transfer from the MOSFETs and chokes for better cooling performance.

Cooler by Design

Prime H610 series feature comprehensive cooling controls that are configurable via Fan Xpert 2+ software or via the UEFI BIOS.

Multiple Temperature Sources

Each header can dynamically reference three thermal sensors. Fan Xpert 2+ allows you to map the temperature of supported ASUS graphics cards to optimize cooling for GPU- and CPU-intensive tasks.

Smart Protection

A dedicated integrated circuit protects each fan header from overheating and overcurrent.

4-Pin PWM/DC Fan

Each onboard header supports auto-detection of PWM or DC fans.

PERFORMANCE

Prime H610 series are built to handle the additional cores and increased bandwidth of 13th & 12th Generation Intel® processors. ASUS H610 motherboards provide all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible transfer options.

Storage

Dual M.2 slots (up to 32 Gbps)

Prime H610M-A WIFI D4 offers two M.2 slots that support data-transfer speeds of up to 32 Gbps via PCIe 3.0, enabling quicker boot-up and app load times with OS or application drives.

* Actual transmission speeds will be lower than the theoretical maximum speed.

Connectivity

PCIe® 4.0

Prime H610 motherboards are designed specifically for 13th & 12th Generation Intel® Core™ CPUs and offer PCIe® 4.0 connectivity for the latest GPUs. The wide bandwidth and superfast transmission speeds allow you to create feature-rich builds that can handle high loads effortlessly.

USB 3.2 Gen 2 ports

Numerous USB ports support high-end rigs loaded with peripherals, including rear-panel USB Type-A ports with fast USB 3.2 Gen 2 for transmission speeds of up to 10 Gbps.

Wi-Fi 5

PRIME H610M-A WIFI D4 has 802.11ac Wi-Fi with 1x1 2.4/5GHz antennas for up to 433.3Mbps* transfer speeds to ensure that every connected user experiences the best wireless and online speeds!

*Actual speed varies, and depends on networking conditions.

Intel® 1 Gb Ethernet

Intel® Ethernet Connection I219-V reduces CPU overhead and offers exceptionally high TCP and UDP throughput for faster, smoother data transfer.

CUSTOMIZATION

Prime H610 series add the nuanced details that improve every experience, from exclusive codecs that provide pristine audio quality to intuitive RGB lighting controls that let you customize your system to create a uniquely personal look.

Personalization

Aura Sync

Outshine the Competition

A well-tuned enthusiast system deserves a matching aesthetic. ASUS Aura offers full RGB lighting control with a variety of functional presets for the built-in RGB LEDs as well as strips and devices connected to the onboard RGB headers — and it can all be synced with an ever-growing portfolio of Aura-capable hardware.

Addressable Gen 2 Headers

Three addressable Gen 2 headers are capable of detecting the number of LEDs on second-gen addressable RGB devices, allowing the software to automatically tailor lighting effects to specific devices. The new headers also offer backward-compatibility with existing Aura RGB gear.

Armoury Crate

Armoury Crate is a new software utility designed to give you centralized control of supported products. From a single intuitive interface, Armoury Crate allows you to easily customize RGB lighting and effects for every compatible device in your arsenal. The software also provides control of settings for an ever-growing number of ASUS products, including keyboard and mouse preferences. Armoury Crate even features dedicated product registration and news to help you stay in touch with the ASUS community.

DIY Friendly

Q-LED Core

The Q-LED Core display produces light patterns by power LED during the Power-On Self-Test (POST) that can help users troubleshoot potential issues.

Fortified PCIe slot prevents damage

SafeSlot Core is the ASUS-exclusive PCIe slot. Featuring a fortified design that's anchored to the motherboard by a special hook, SafeSlot Core provides 1.6x stronger retention and 1.3x greater shearing resistance than standard expansion slots.

Main Features

  • Intel LGA 1700 socket: Ready for 13th & 12th Gen Intel processors
  • Comprehensive cooling: VRM heatsink, PCH heatsink and Fan Xpert 2+
  • Ultrafast connectivity: 32Gbps M.2 slot, Intel 1 Gb Ethernet, WIFI 5 and USB 3.2 Gen 2 ports
  • Aura Sync RGB: Onboard addressable Gen 2 headers for RGB LED strips, easily synced with Aura Sync-capable hardware
Specifications

CPU

CPU Brand Intel
CPU Socket Socket 1700
Installed Processors (Max) 0 (1)
Supported Processor Manufacturer Intel
Supported Processors 13th Gen Intel Core Processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors
64-bit Support Yes
Socket LGA1700

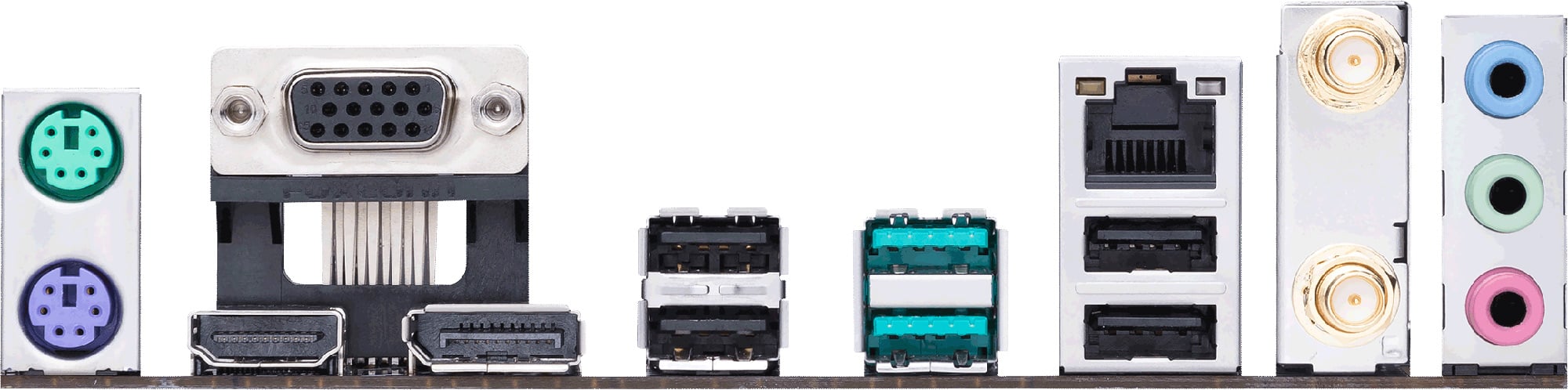

Rear Panel I/O Ports

USB Ports 2 x USB 3.1
4 x USB 2.0
DisplayPorts 1 x DisplayPort 1.4
HDMI Port 1 x HDMI 2.1
VGA Port 1 x D-Sub
Keyboard Port 1 x PS/2
Mouse Port 1 x PS/2
RJ-45 Ports 1 x RJ-45
Audio Line In Ports 1 x 3.5mm Jack
Audio Line Out Ports 1 x 3.5mm Jack
Microphone In Port 1 x 3.5mm Jack
Antenna Connector(s) 2 x SMA Antenna

Internal I/O Connectors

SATA Connectors 4 x SATA III
USB Connectors 1 x USB 3.0 header (supports 2 ports)
2 x USB 2.0 headers (supports 3 ports)
Speaker 1 x Speaker header
Front Panel Connectors 1 x Front Panel
1 x Front Audio
Cooling Fan Support 1 x CPU fan header
2 x Chassis fan headers
S/PDIF Connectors 1 x S/PDIF Out
Serial Connectors 1 x COM header
TPM Header 1 x SPI TPM header
Power Connector Port 1 x 24-pin ATX
1 x 8-pin EPS
Other Connectors 2 x M.2 slots, Key M, Type 2242/2260/2280 (PCIe Gen3)
3 x 3-pin ARGB LED headers
2 x 4-pin RGB LED headers

Memory

Memory Bus Speed Up to 3200 MHz
Memory Type DDR4
Maximum RAM 64 GB
Memory Slot 2 x DIMM

Motherboard

Northbridge H610
RAID Supported No
SATA Supported Yes

Expansion

Number of PCI Express Slots 1 x PCI Express 4.0 x16 slot
1 x PCI Express 3.0 x1 slot

Graphics Device

Integrated Graphics Supported Yes

Sound

Integrated Sound Realtek

Warranty

Warranty 3 Years

Network

Integrated Network Intel
Network Speeds Supported Up to 1 Gbps
Wireless LAN Yes (Wi-Fi 5)
Wireless Network Speed Up to 433 Mbps
Bluetooth Yes
Bluetooth Version 5.0

System Requirements

Operating Systems Supported Microsoft Windows 11 64-bit

System

BIOS 128 Mb Flash ROM, UEFI AMI BIOS
Jumpers 1 x Clear CMOS
Software Included (may be trial or restricted) Yes
Drivers Yes

Physical

Form Factor MicroATX Motherboard

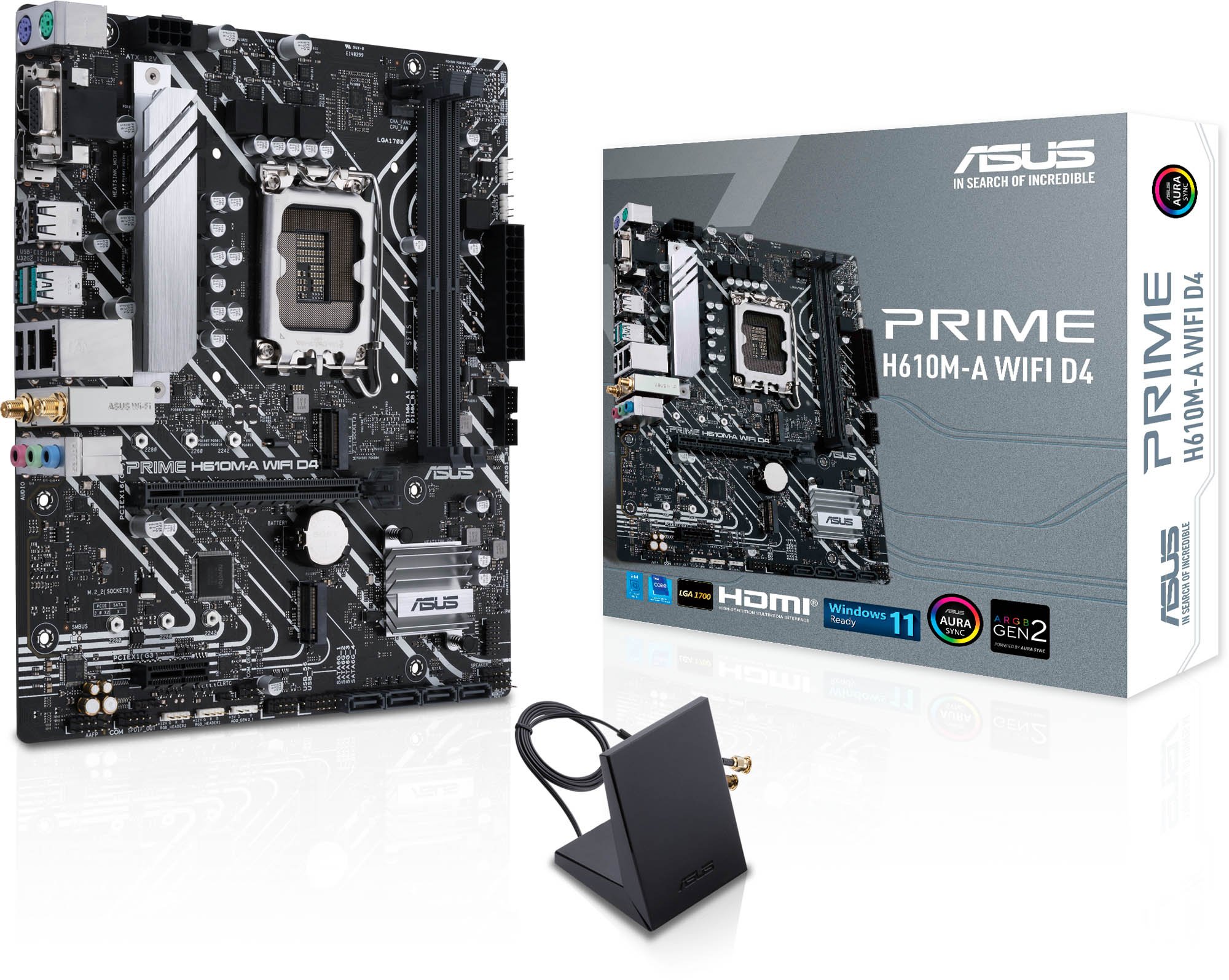

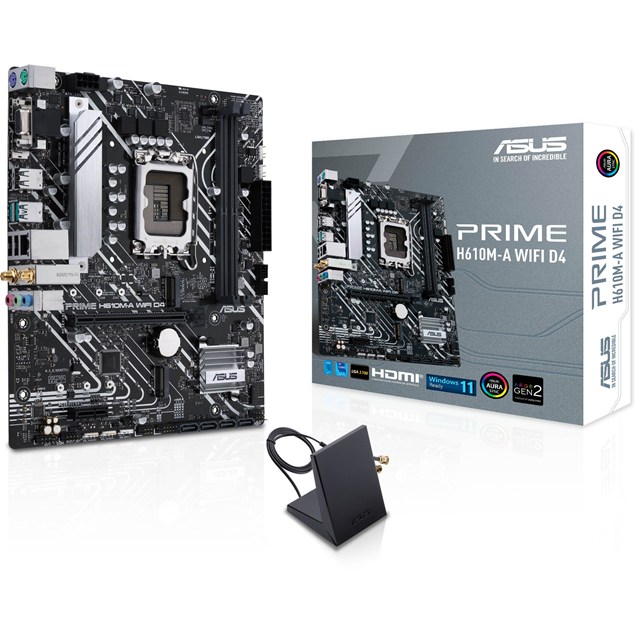

In The Box Motherboard
2 x SATA Cables
ASUS Wi-Fi Moving Antennas
I/O Shield
M.2 SSD Screw Package
Support DVD
User Guide
Width 244 mm
Length 211 mm

Key Features

Motherboard Power Connectors 8-Pin
Motherboard Chipset Intel H610
Thunderbolt No
Motherboard Model ASUS Prime H610M-A WIFI D4
WiFi Speed 433 Mbps
USB 3.1 Support Yes
Internal USB3.0 Header Yes
Cooler Height mm
M.2 Support Yes
On-board RGB Control ASUS Aura Sync
Memory Speed 3200 MHz
Skip Audio Test
RGB Header Type 3-Pin ARGB
Addressable RGB Yes
Internal USB Type-C Header No
Radiator Length mm
Microsoft Processor List
Power Requirement (auto) 60 W
Cooler count
Max Memory Speed Supported (Non-overclocked) 3200 MHz
Max Memory Speed Supported (overclocked) MHz
CPU Power Pins (female) 8
PCI Express Power Pins (female)
Total M.2 Slots 2
Maximum NVMe M.2 ports 2
PCI-e slots 2
SATA ports 4
No. of front USB2.0 ports supported 3
No. of front USB3.0 ports supported 2
Firewire
IDE/EIDE Supported
SCSI/SAS Supported
Wireless Network Yes
Chipset Manufacturer Intel
Number of PCI Slots slot(s)
Number of PCI-X Slots slot(s)
Main Colour
Socket(s)
Memory Channel Dual
On-board Audio Type 7.1
Number of SATA Ports 4 port(s)
Number of USB Ports 6 port(s)
SATA III Support Yes
USB 3.0 Support Yes
Multi GPU Support No
VGA Connection Yes
DVI Connection No
HDMI Connection Yes
DisplayPort Connection Yes
Motherboard Form Factor mATX
Wake on LAN

Graphics

Graphics Chipset

Item Details

Manufacturer ASUS
Manufacturer Code 90MB1C80-M0EAY0
EAN 4711081758211
UPC 195553758215
Condition New
Warranty

Warranty Information

Warranty 3 Years

Manufacturer Information

Manufacturer ASUS
Manufacturer Code 90MB1C80-M0EAY0
