CPU

CPU Socket	Socket 4677 (W790)
CPU Brand	Intel
Installed Processors (Max)	0 (1)
CPU Family	Xeon© W-3400 or W-2400 Series
Socket	LGA4677 (W790)
64-bit Support	Yes
Socket	LGA4677 (W790)

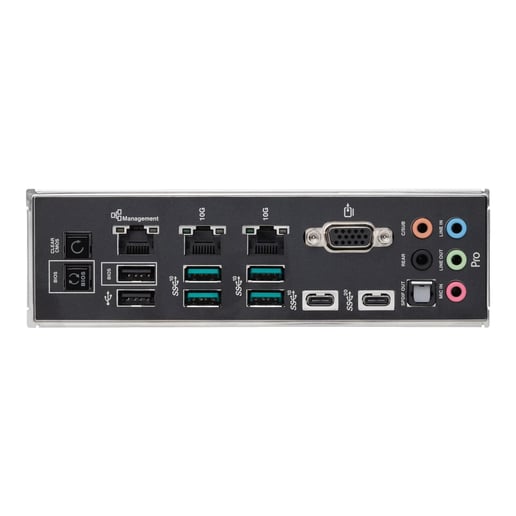

Rear Panel I/O Ports

Audio Line Out Ports	5 x Audio jacks 1 x Optical S/PDIF out port
USB Ports	1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C) 5 x USB 3.2 Gen 2 port(s) (4 x Type-A + 1 x USB Type-C©) 2 x USB 2.0 port(s) (2 x Type-A)
VGA Port	1 x VGA port from AST2600
USB Port(s)	1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C) 5 x USB 3.2 Gen 2 port(s) (4 x Type-A + 1 x USB Type-C©) 2 x USB 2.0 port(s) (2 x Type-A)
VGA Port(s)	1 x VGA port
Audio Line Out Ports	5 x Audio jacks 1 x Optical S/PDIF out port
S/PDIF Port	1 x Optical S/PDIF out port

Physical

Form Factor	EEB
Form Factor	EEB
In The Box	4 x SATA 6Gb/s cables 1 x Thermistor cable pack 1 x VRM Fan holder 1 x Q-connector 1 x M.2 Rubber Package(s) 1 x M.2 backplate Rubber Package(s) 1 x Screw package for M.2 Key E 1 x CPU guard for LGA 4677 E1A 1 x CPU guard for LGA 4677 E1B 1 x ACC Express Activation Key Card 1 x User guide
Width	305 mm
Length	330 mm

Internal I/O Connectors

SATA Connectors	8
USB Connectors	1 x USB 3.2 Gen 2 connector (support(s) USB Type-C© ) 1 x USB 3.2 Gen 1 header(s) support(s) 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 header(s) support(s) 4 additional USB 2.0 ports
Front Panel Connectors	1 x 20-3 pin System Panel header with Chassis intrude function
TPM Header	1 x SPI TPM header (14-1pin)

Memory

Memory Bus Speed	Up to 6800 (OC) MHz
Memory Type	DDR5 ECC Registered
Maximum RAM	2048 GB
Memory Bus Speed Range	4800-6800 (OC) MHz
Memory Bus Speed Minimum	4800 MHz
Memory Bus Speed Maximum	6800 (OC) MHz
Memory Bus Speeds Supported	6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200(OC)/5000(OC)/4800 MHz
Memory Slot	8

Motherboard

Chipset Manufacturer	Intel
Northbridge	Intel Sapphire Rapids
RAID Supported	Supports Intel© Virtual RAID on CPU (Intel© VROC) and Intel Volume Management Device (Intel©VMD)
RAID Format	Intel© VROC Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10. VROC_HW_Key is purchased separately.
SCSI/SAS Supported	2 x SlimSAS ports support PCIe 4.0 x4 mode NVMe device

Expansion

Number of PCI Express Slots	7 slot(s)
PCI Express X16 Slots	Intel© Xeon© W-3400 Series Processors 7 x PCIe 5.0 slot(s) (Seven at x16/x16/x16/x16/x16/x8/x16) Intel© Xeon© W-2400 Series Processors 4 x PCIe 5.0 slot(s) (Four at x16/x16/x16/x16)

Graphics Device

Graphics Chipset Manufacturer	ASpeed
Graphics Chipset Model Name	AST2600

Sound

Integrated Sound

Realtek S1220A 7.1 Surround Sound High Definition Audio

Network

Integrated Network

1 x Intel© dual 10Gb Ethernet 1 x Realtek 1Gb Ethernet

System Requirements

Operating Systems Supported

Windows© 11 Windows© 10 64-bit

System

BIOS	512 Mb Flash ROM UEFI AMI BIOS

Electrical

Power Connector(s)

2 x 24-pin Main Power connector 4 x 8-pin +12V Power connector 1 x 8-pin PCIe Power connector 1 x 6-pin PCIe Power connector

Wireless Communications

Bluetooth

No

Key Features

Integrated Graphics Supported	Yes
Wireless Network	No
Motherboard Width	305 mm
Motherboard Height	330 mm
mSATA Supported	No
U.2 Supported	No
Main Colour	Black
Memory Channel	Octa
On-board Audio Type	7.1
Number of SATA Ports	8 port(s)
Number of USB Ports	8 port(s)
USB 3.0 Support	Yes
Multi GPU Support	No
VGA Connection	Yes
DVI Connection	No
HDMI Connection	No
DisplayPort Connection	No
Motherboard Form Factor	SSI EEB
Motherboard (EPS) Power Connectors	4 x 8-Pin EPS + 1 x 6+2-Pin PCIe + 1 x 6-Pin PCIe
Motherboard Chipset	Intel W790
Thunderbolt	No

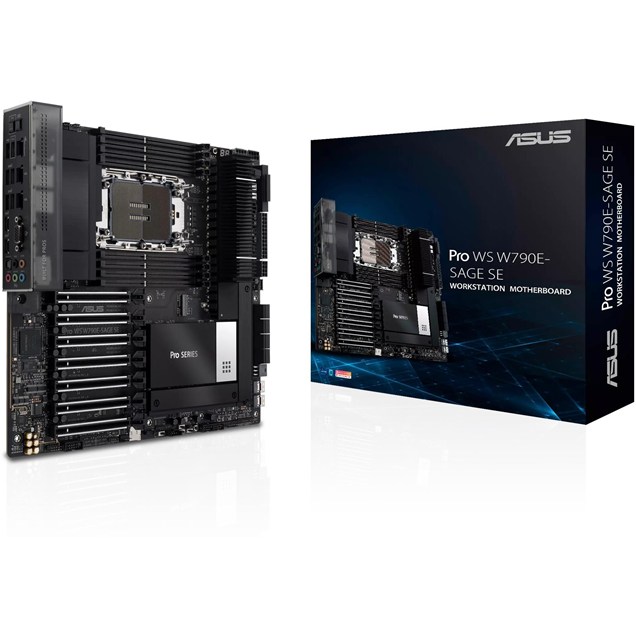

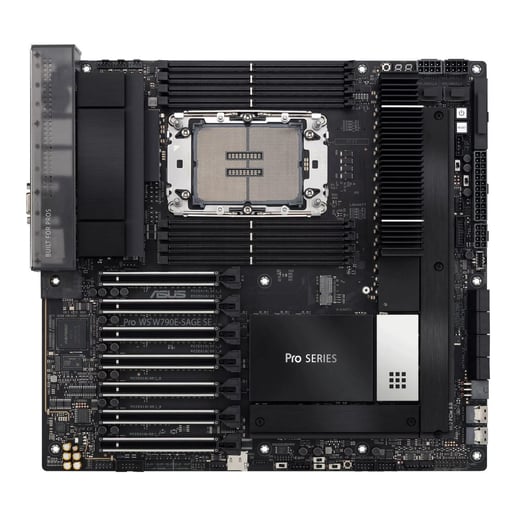

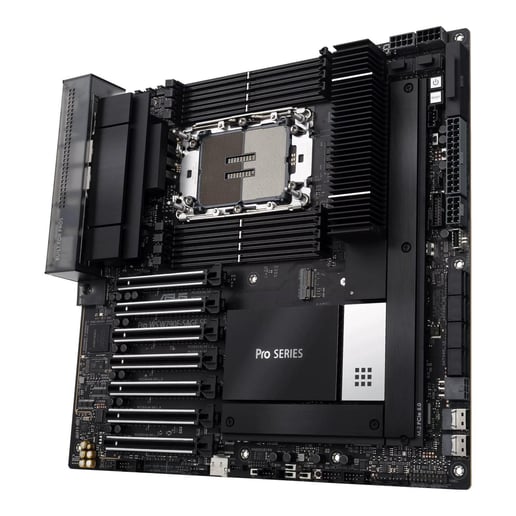

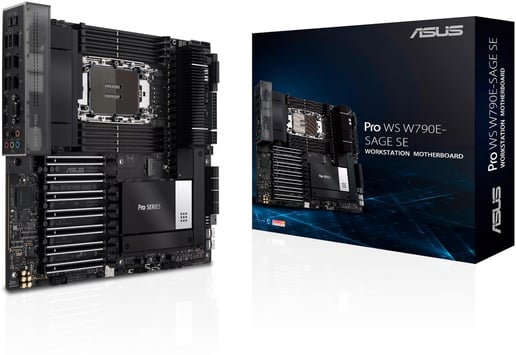

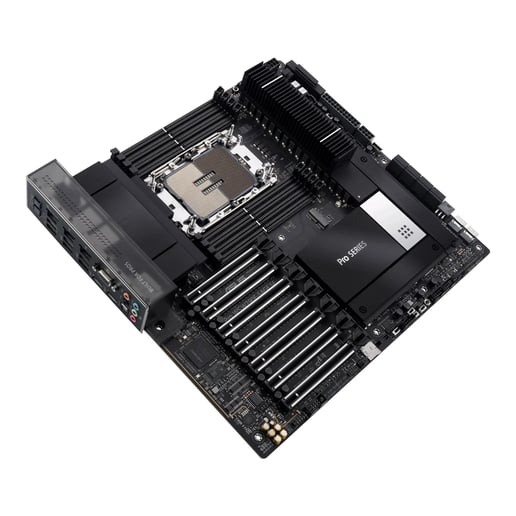

Motherboard Model	ASUS Pro WS W790E-SAGE SE
USB 3.1 Support	Yes
Internal USB3.0 Header	Yes
M.2 Support	Yes
On-board RGB Control	None
RGB Header Type	None
Addressable RGB	No
Internal USB Type-C Header	Yes
Power Requirement (auto)	150 W
Max Memory Speed Supported (Non-overclocked)	4800 MHz
Max Memory Speed Supported (overclocked)	6800 MHz
CPU Power Pins (female)	32
PCI Express Power Pins (female)	14
Total M.2 Slots	3
Maximum NVMe M.2 ports	3
SATA ports	8
No. of front USB2.0 ports supported	4
No. of front USB3.0 ports supported	2
No. of front USB-C ports supported	1

Warranty

Warranty

1 Year

Item Details

Manufacturer	ASUS
Manufacturer Code	90MB1C20-M0EAY0
EAN	4711387123515
Condition	New

Warranty Information

Warranty

1 Year

Manufacturer Information

Manufacturer	ASUS
Manufacturer Code	90MB1C20-M0EAY0
