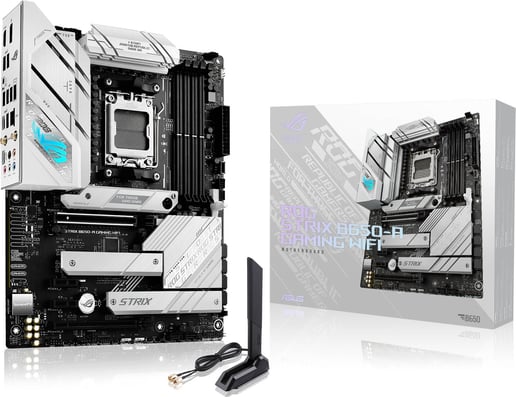

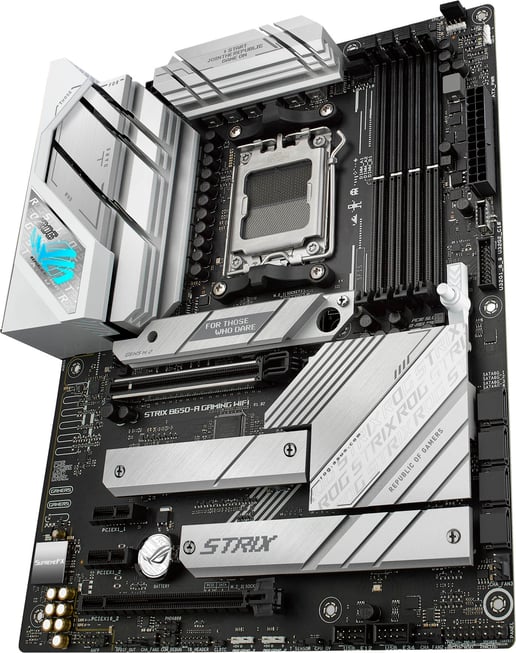

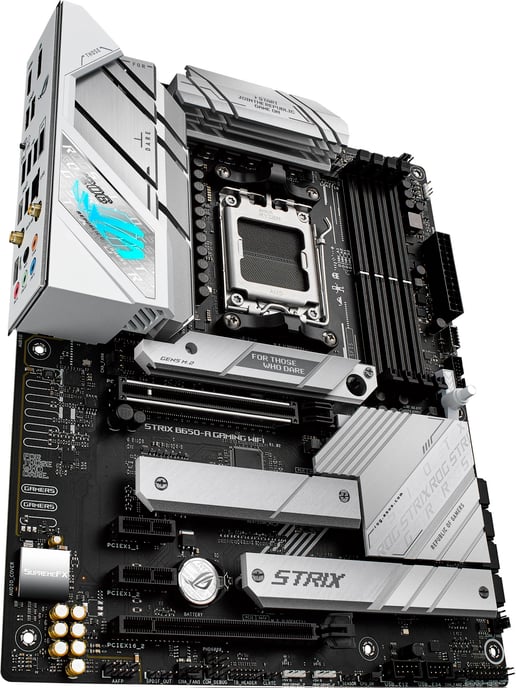

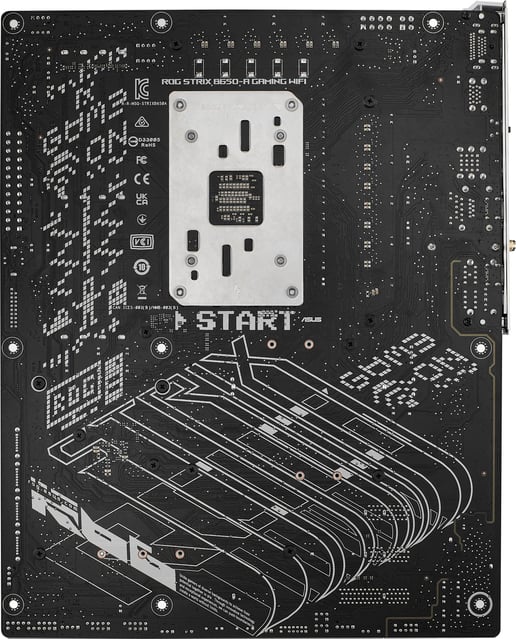

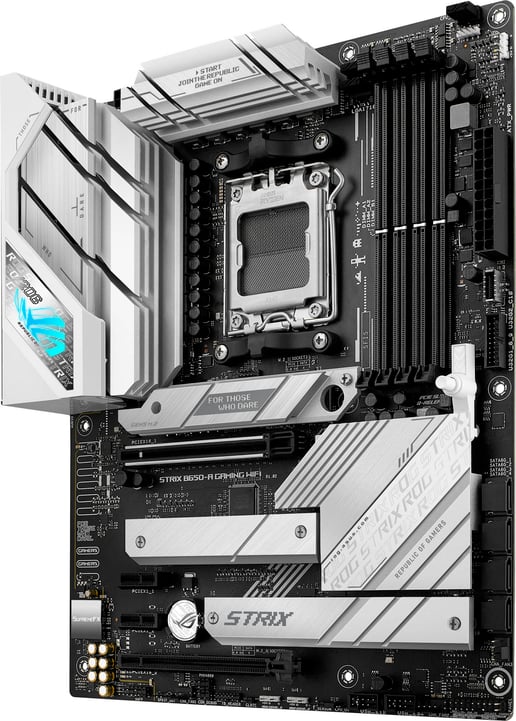

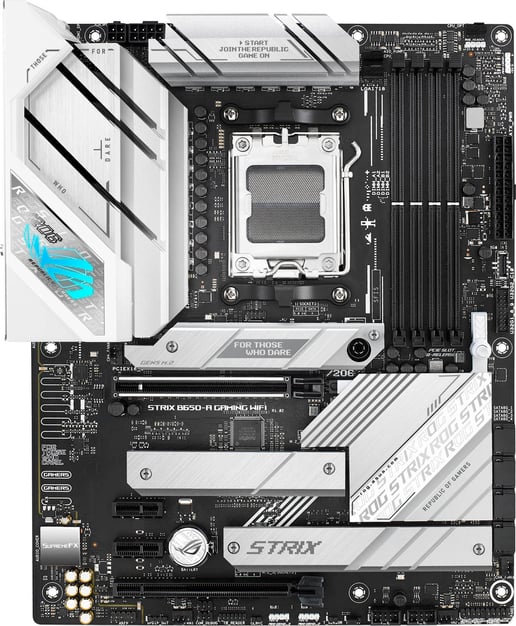

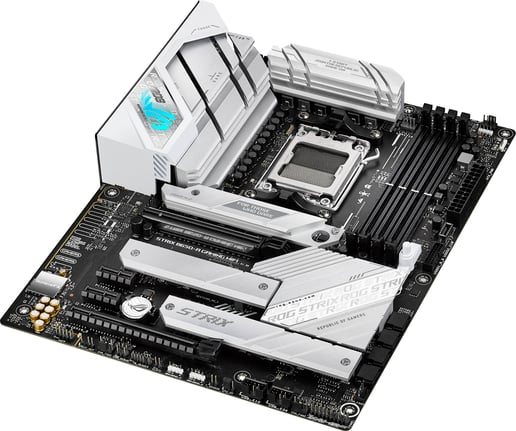

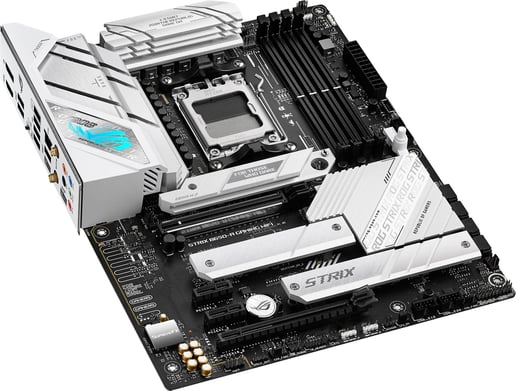

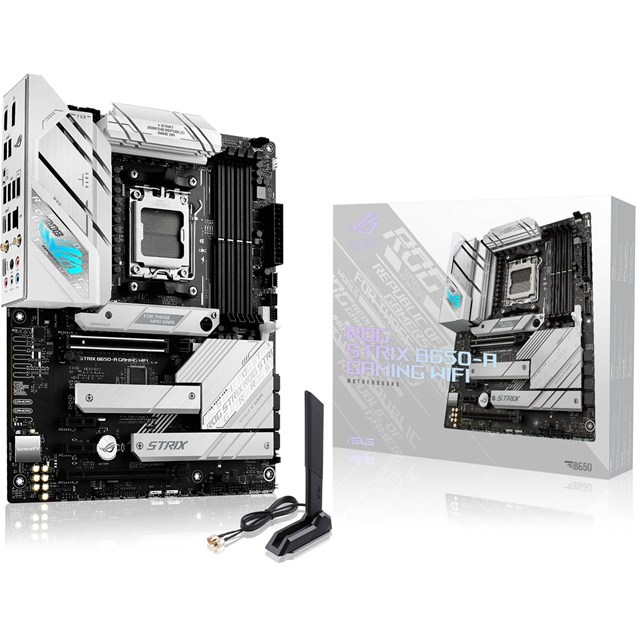

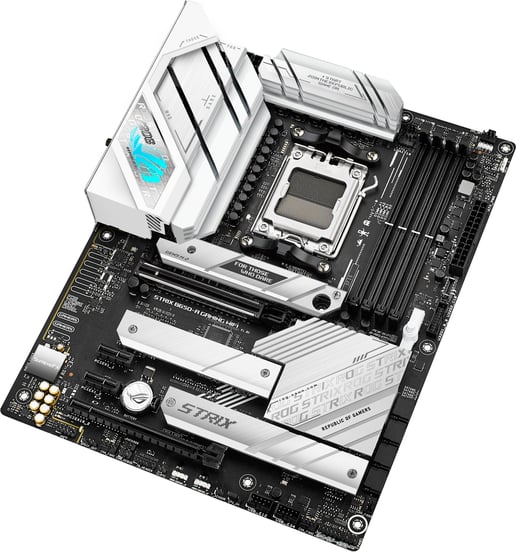

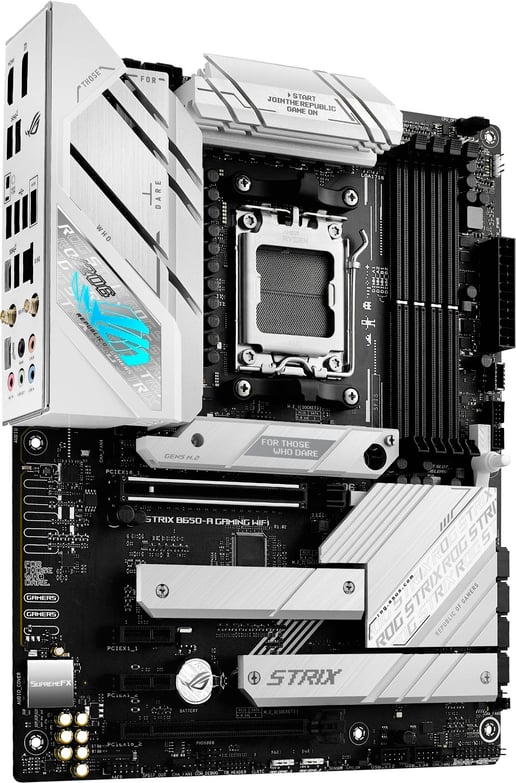

ASUS ROG Strix B650-A Gaming WiFi ATX Motherboard for AMD AM5 CPUs

ASUS ROG Strix B650-A Gaming WiFi ATX Motherboard for AMD AM5 CPUs

CCL Code: MBD3372

Discontinued

ASUS ROG Strix B650-A Gaming WiFi ATX Motherboard for AMD AM5 CPUs

90MB1BP0-M0EAY0

Key Features:

  • Socket AM5
  • AMD B650 Chipset
  • 4 x SATA & 9 x USB Ports
  • DDR5 (max 128GB, 4 slots)
  • HDMI and Display Port
  • ATX Form Factor
CCL Code: MBD3372

Discontinued

Sorry, this product has been discontinued. We have found some similar products below.

Overview

ASUS ROG Strix B650-A Gaming WiFi Motherboard

Specifications

CPU

CPU Brand AMD
CPU Socket Socket AM5
Installed Processors (Max) 0 (1)
Supported Processor Manufacturer AMD
Supported Processors AMD Ryzen 7000 Series Desktop Processors
64-bit Support Yes
Socket AM5

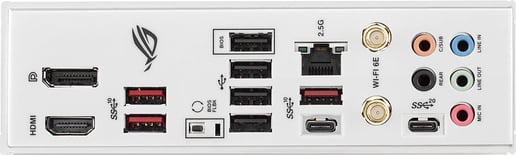

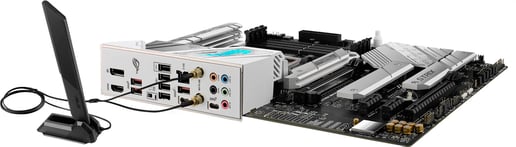

Rear Panel I/O Ports

USB Ports 1 x USB-C 3.2
1 x USB-C 3.1
3 x USB 3.1
4 x USB 2.0
DisplayPorts 1 x DisplayPort 1.4
HDMI Port 1 x HDMI 2.1
RJ-45 Ports 1 x RJ-45
Audio Line In Ports 1 x 3.5mm Jack
Audio Line Out Ports 3 x 3.5mm Jacks
Microphone In Port 1 x 3.5mm Jack
Antenna Connector(s) 1 x SMA Antenna

Internal I/O Connectors

SATA Connectors 4 x SATA III
USB Connectors 1 x USB-C 3.1 header (supports 1 port)
1 x USB 3.0 header (supports 2 ports)
2 x USB 2.0 headers (supports 4 ports)
Front Panel Connectors 1 x Front Panel
1 x Front Audio
Cooling Fan Support 1 x CPU fan header
1 x CPU OPT fan header
1 x AIO pump header
4 x Chassis fan headers
S/PDIF Connectors 1 x S/PDIF Out header
Thunderbolt Port(s) 1 x Thunderbolt header
Chassis Intrusion Connector 1 x Chassis Intrusion header
Power Connector Port 1 x 24-pin ATX
1 x 8-pin EPS
1 x 4-pin EPS
Other Connectors 1 x M.2 slot, Key M, Type 2242/2260/2280 (PCIe Gen5)
1 x M.2 slot, Key M, Type 2242/2260/2280 (PCIe Gen4)
1 x M.2 slot, Key M, Type 2242/2260/2280/22110 (PCIe Gen4)
3 x 3-pin ARGB LED headers
1 x 4-pin RGB LED header
1 x Thermal Sensor header
1 x COM_DEBUG header

Memory

Memory Bus Speed Up to 6400 (OC) MHz
Memory Type DDR5
Maximum RAM 128 GB
Memory Slot 4 x DIMM

Motherboard

Northbridge B650
RAID Supported Yes
RAID Format RAID 0, 1, 10
SATA Supported Yes

Expansion

Number of PCI Express Slots 2 x PCI Express 4.0 x16 slots (@ x16/x4)
2 x PCI Express 4.0 x1 slots

Graphics Device

Integrated Graphics Supported Yes

Sound

Integrated Sound ROG SupremeFX ALC4080

Warranty

Warranty 3 Years

Network

Integrated Network Intel
Network Speeds Supported Up to 2.5 Gbps
Wireless LAN Yes (Wi-Fi 6E)
Wireless Network Speed Up to 2.4 Gbps
Bluetooth Yes
Bluetooth Version 5.2

System Requirements

Operating Systems Supported Microsoft Windows 11 64-bit

System

BIOS 256 Mb Flash ROM, UEFI AMI BIOS
Jumpers 1 x CPU Over Voltage
1 x Clear CMOS
Software Included (may be trial or restricted) Yes
Drivers Yes

Physical

Form Factor ATX Motherboard

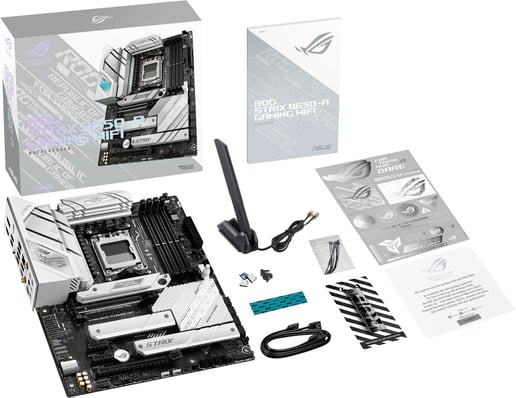

In The Box Motherboard
2 x SATA 6Gb/s cables
1 x Thermal pad for M.2
1 x ASUS Wi-Fi moving antennas
1 x Cable ties pack
1 x M.2 Q-Latch package
1 x ROG key chain
1 x ROG Strix stickers
1 x ROG Strix thank you card
2 x Rubber Packages for M.2
1 x User guide
Width 305 mm
Length 244 mm

Graphics

Graphics Chipset

Key Features

DisplayPort Connection Yes
Motherboard Form Factor ATX
Wake on LAN
Motherboard Power Connectors 4 + 8-Pin
Motherboard Chipset AMD B650
Thunderbolt No
Motherboard Model ASUS ROG Strix B650-A Gaming WiFi
WiFi Speed 2400 Mbps
USB 3.1 Support Yes
Internal USB3.0 Header Yes
Cooler Height mm
M.2 Support Yes
On-board RGB Control ASUS Aura Sync
Memory Speed 6400 MHz
Skip Audio Test
RGB Header Type 3-Pin ARGB
Addressable RGB Yes
Internal USB Type-C Header Yes
Radiator Length mm
Microsoft Processor List
Power Requirement (auto) 70 W
Cooler count
Max Memory Speed Supported (Non-overclocked) 5200 MHz
Max Memory Speed Supported (overclocked) 6400 MHz
CPU Power Pins (female) 12
PCI Express Power Pins (female)
Total M.2 Slots 3
Maximum NVMe M.2 ports 3
PCI-e slots
SATA ports 4
No. of front USB2.0 ports supported 4
No. of front USB3.0 ports supported 2
No. of front USB-C ports supported 1
Config Business (CB)
Config Enterprise (CB)
Config Gaming (CB) Yes
Config Home Office (CB) Yes
Config Scandi Lifestyle (CB) Yes
Config Professionals (CB) Yes
Config Quiet (CB)
Config Rugged (CB)
Config Server Rack (CB)
Config Silence (CB)
Config Students (CB) Yes
Config Lords of the Fallen (CB) Yes
Firewire
IDE/EIDE Supported
SCSI/SAS Supported
Wireless Network Yes
Motherboard Width 244 mm
Motherboard Height 305 mm
Chipset Manufacturer AMD
Number of PCI-X Slots slot(s)
Main Colour
Socket(s)
Memory Channel Dual
On-board Audio Type 7.1
Number of SATA Ports 4 port(s)
Number of USB Ports 9 port(s)
SATA III Support Yes
USB 3.0 Support Yes
Multi GPU Support No
VGA Connection No
DVI Connection No
HDMI Connection Yes

Item Details

Manufacturer ASUS
Manufacturer Code 90MB1BP0-M0EAY0
Alternative Part Number ROG STRIX B650-A GAMING WIFI
EAN 4711081917762
UPC 195553917766
Condition New
Warranty

Warranty Information

Warranty 3 Years

Manufacturer Information

Manufacturer ASUS
Manufacturer Code 90MB1BP0-M0EAY0
