CPU

• Installed Processors (Max): 0 (1)
• Supported Processor Manufacturer: AMD
• Supported Processors: AMD Ryzen 7000 Series Desktop Processors
• 64-bit Support: Yes
• Socket: AM5

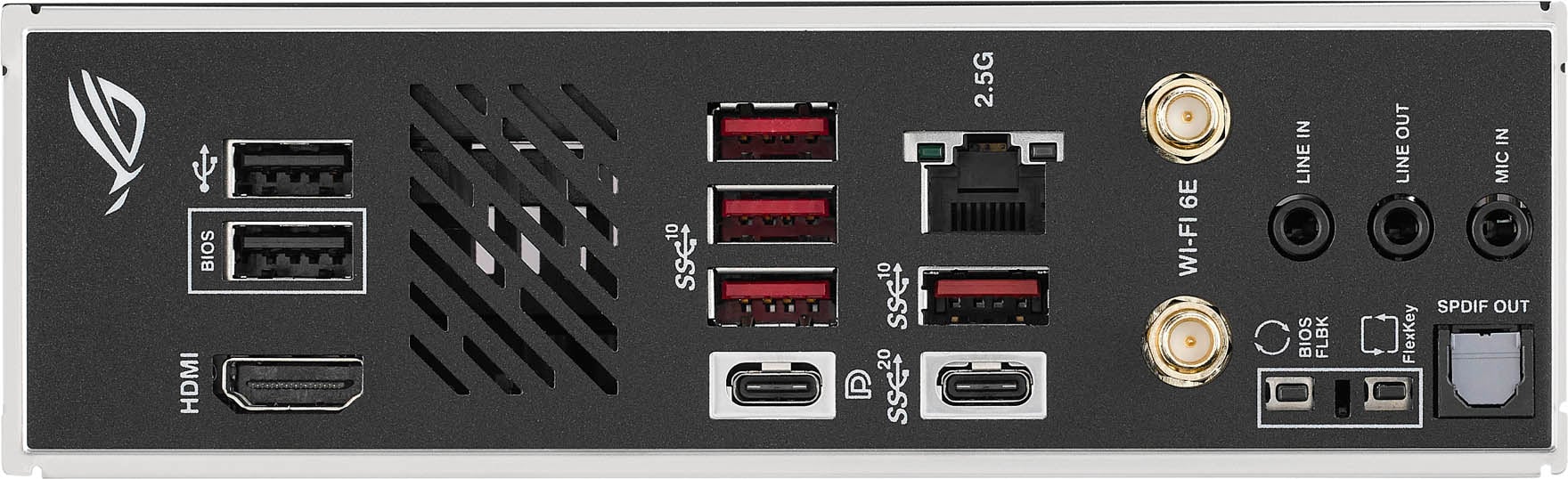

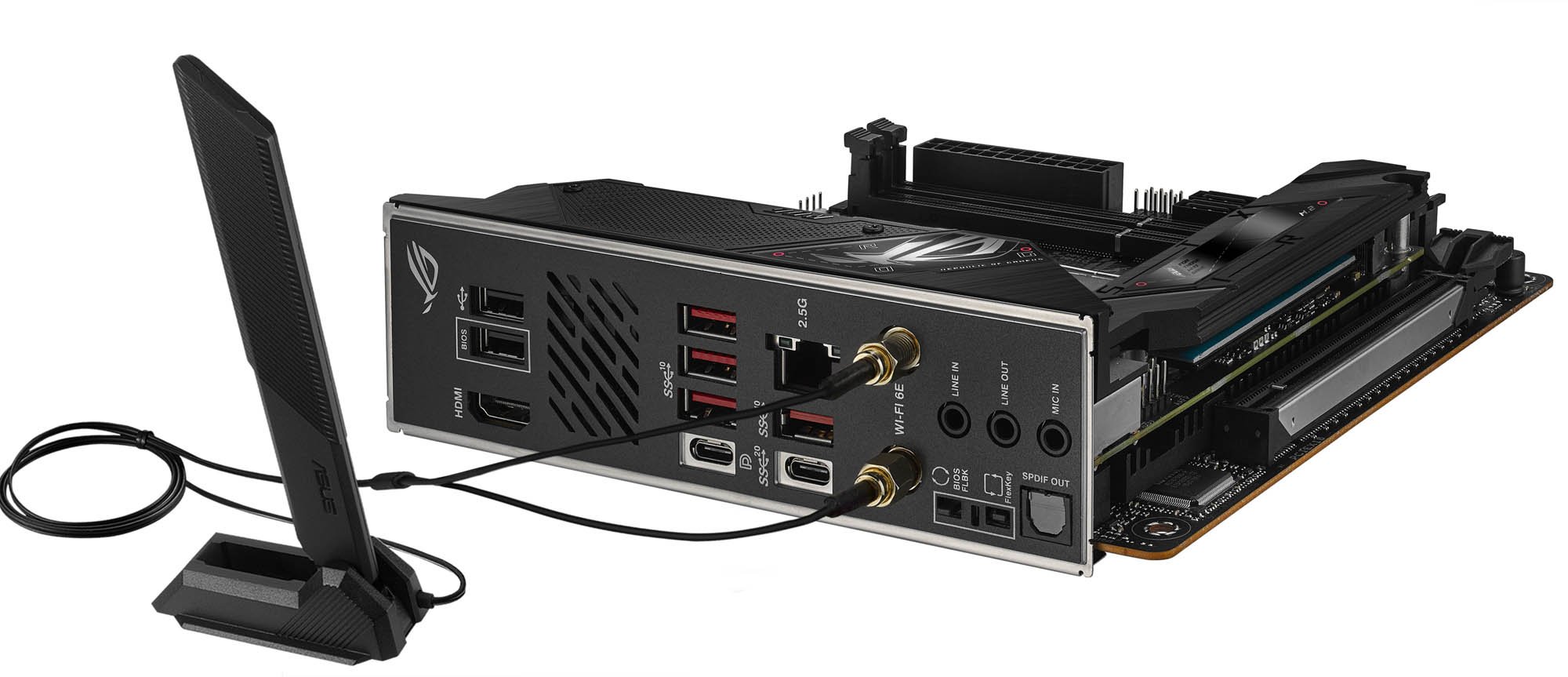

Rear Panel I/O Ports

• USB Ports: 1 x USB-C 3.2
• 1 x USB-C 3.1
• 4 x USB 3.1
• 2 x USB 2.0
• DisplayPorts: Yes (via USB-C)
• HDMI Port: 1 x HDMI 2.1

Internal I/O Connectors

• SATA Connectors: 2 x SATA III
• USB Connectors: 1 x USB-C 3.1 header (supports 1 port)
• 1 x USB 3.0 header (supports 2 ports)
  1 x USB 2.0 header (supports 2 ports)

Memory

• Memory Bus Speed: Up to 6400 (OC) MHz
• Memory Type: DDR5

Motherboard

• Northbridge: B650E
• RAID Supported: Yes
• RAID Format: RAID 0, 1
• SATA Supported: Yes

Rear Panel I/O Ports

• RJ-45 Ports: 1 x RJ-45
• Audio Line In Ports: 1 x 3.5mm Jack
• Audio Line Out Ports: 1 x Optical S/PDIF out port
• 3 x LED-illuminated audio jacks
• Microphone In Port: 1 x 3.5mm Jack
• S/PDIF Port: 1 x S/PDFI Optical Out
• Antenna Connector(s): 2 x SMA Antenna

Internal I/O Connectors

• Front Panel Connectors: 1 x Front Panel
• 1 x Front Audio
• Cooling Fan Support: 1 x CPU fan header
• 1 x AIO pump header
• 1 x Chassis fan header
• Power Connector Port: 1 x 24-pin ATX
• 1 x 8-pin EPS
• Other Connectors: 1 x M.2 slot, Key M, Type 2242/2260/2280 (PCIe Gen5)
• 1 x M.2 slot, Key M, Type 2242/2260/2280 (PCIe Gen4)
• 1 x 3-pin ARGB LED header
• 1 x 4-pin RGB LED header
• 1 x Thermal Sensor header

Expansion

• Number of PCI Express Slots: 1 x PCI Express 5.0 x16 slot

Memory

• Maximum RAM: 64 GB
• Memory Slot: 2 x DIMM

Graphics Device

• Integrated Graphics Supported: Yes

Sound

• Integrated Sound: ROG SupremeFX ALC4080

Warranty

• Warranty: 3 Years

Network

• Integrated Network: Intel
• Network Speeds Supported: Up to 2.5 Gbps
• Wireless LAN: Yes (Wi-Fi 6E)
• Wireless Network Speed: Up to 2.4 Gbps
• Bluetooth: Yes
• Bluetooth Version: 5.2

System Requirements

• Operating Systems Supported: Microsoft Windows 11 64-bit

System

• BIOS: 256 Mb Flash ROM, UEFI AMI BIOS
• Jumpers: 1 x CPU Over Voltage
• 1 x Clear CMOS
• Software Included: Yes
• Drivers: Yes

Physical

• Form Factor: Mini-ITX Motherboard

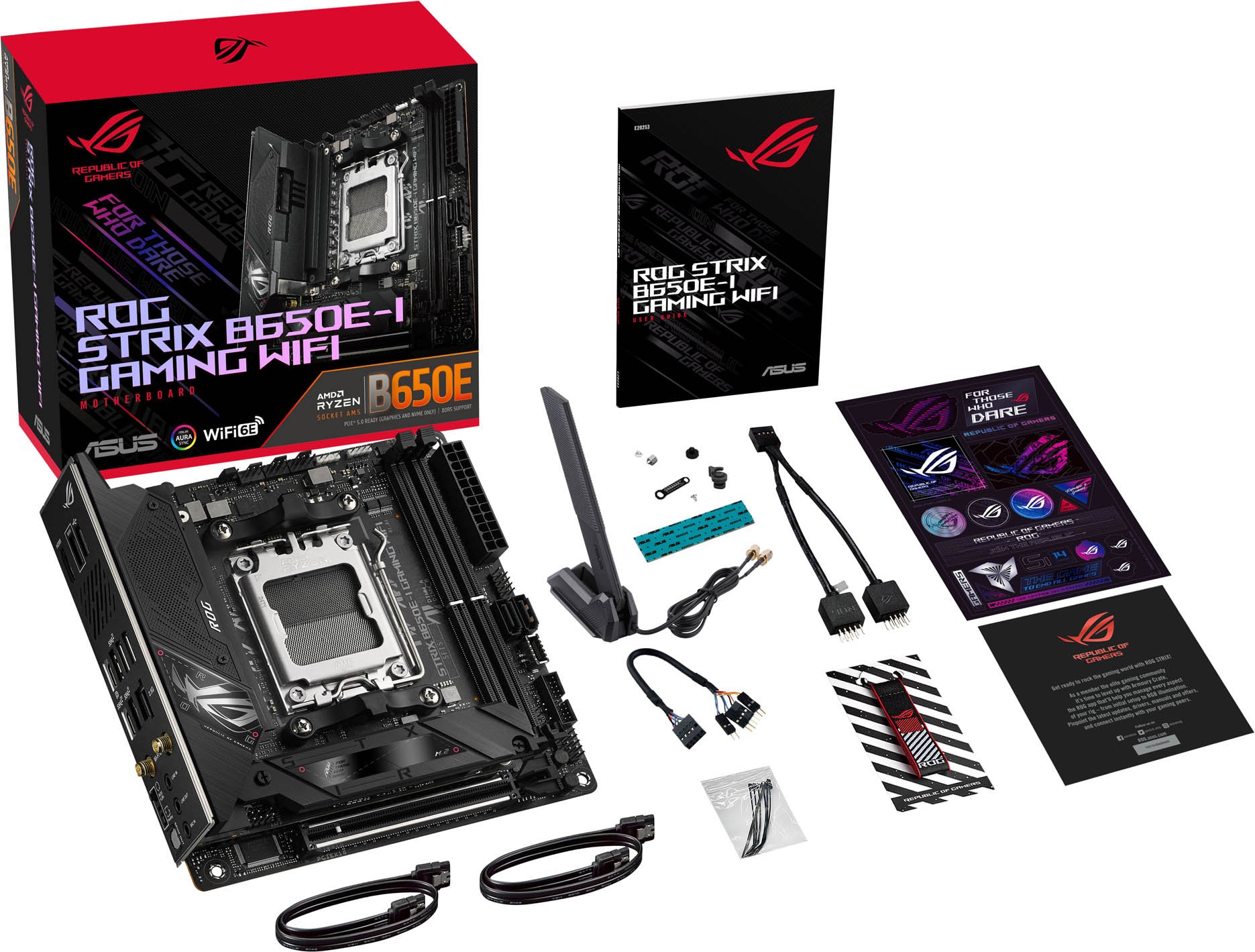

• In The Box: Motherboard
• 2 x SATA 6Gb/s cables
• 1 x ROG USB2.0 splitter cable
• 1 x Panel cable
• 1 x Thermal pad for M.2
• 1 x ASUS Wi-Fi moving antennas
• 1 x Cable ties package
• 1 x M.2 Bracket
• 1 x M.2 SSD screw package
• 1 x M.2 Q-Latch package for M.2 backplate
• 1 x ROG key chain
• 1 x ROG Strix sticker
• 1 x ROG Strix thank you card
• 1 x Rubber Package for M.2 backplate
• 1 x User guide
• Width: 170 mm
• Length: 170 mm

Identifiers

• Stock Code: MBD3373
• Mfg Code: 90MB1BI0-M0EAY0
