CPU

• Installed Processors (Max): 0 (1)
• Supported Processor Manufacturer: AMD
• Supported Processors: AMD Ryzen 7000 Series Desktop Processors
• 64-bit Support: Yes
• Socket: AM5

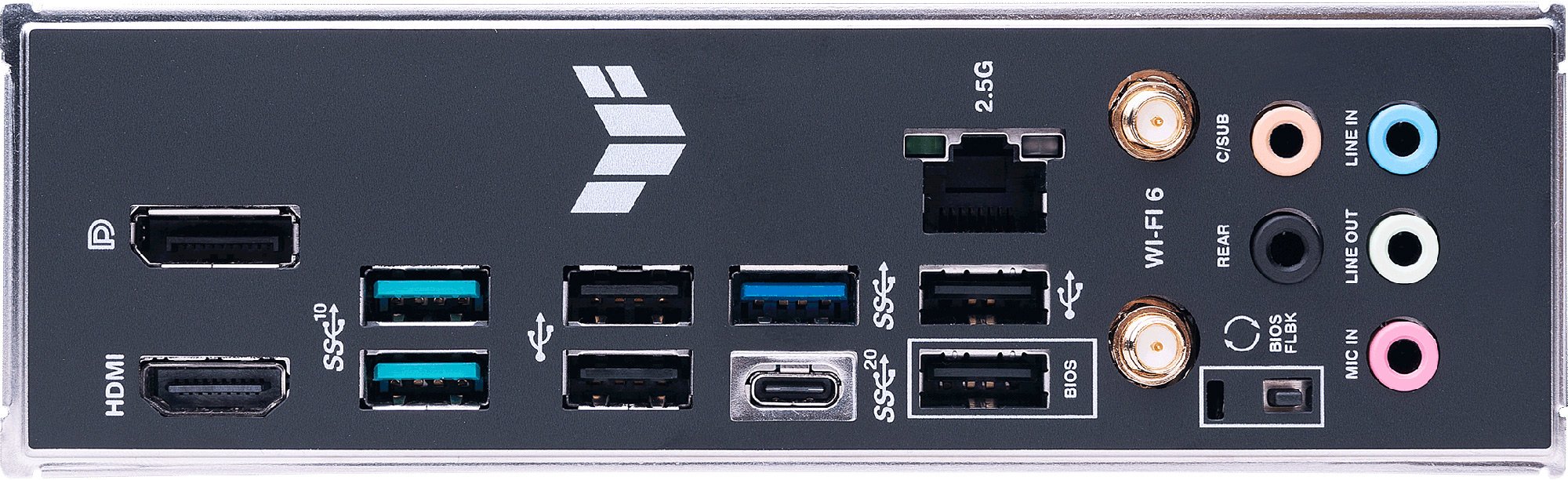

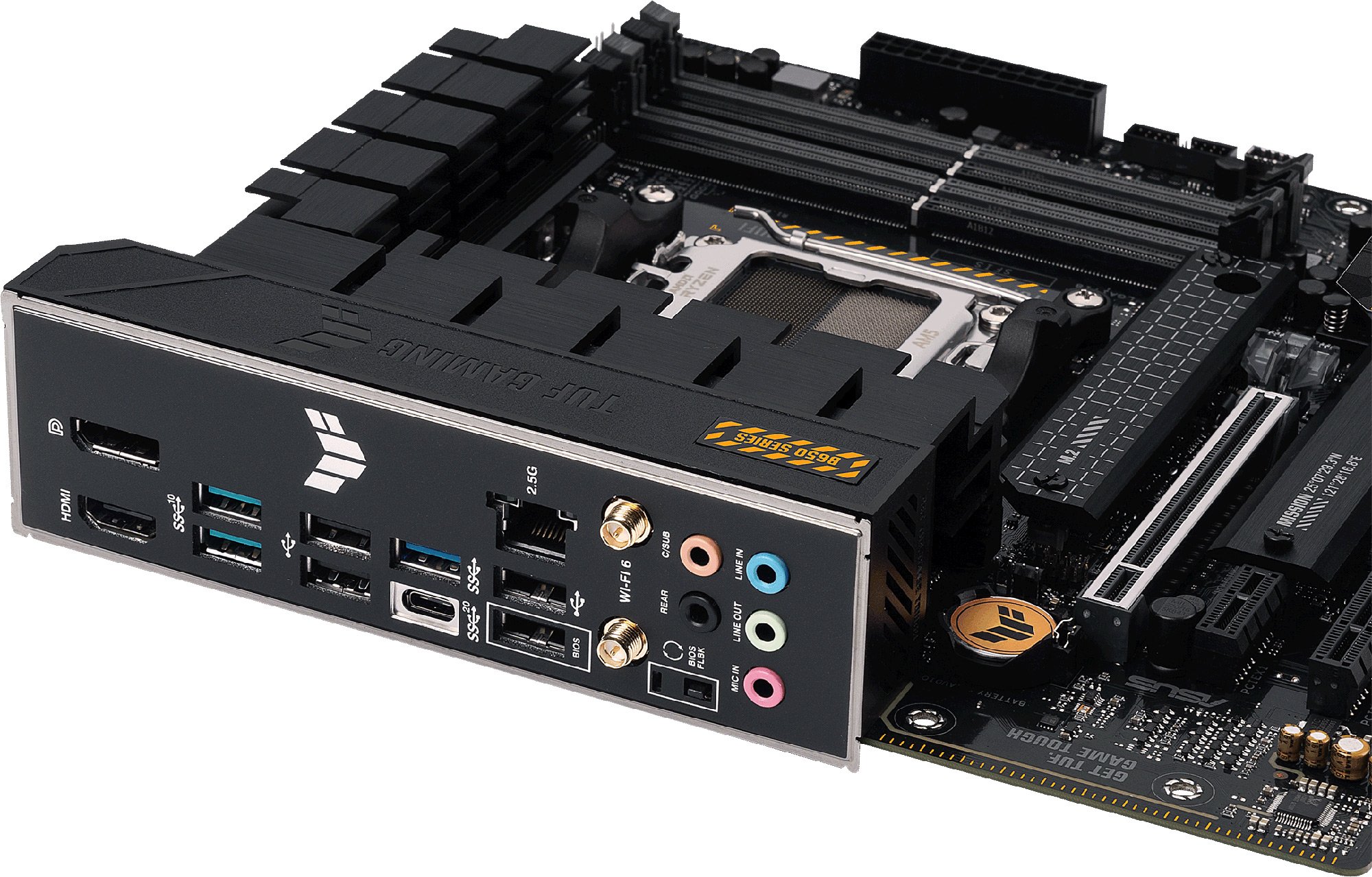

Rear Panel I/O Ports

• USB Ports: 1 x USB-C 3.1
• 2 x USB 3.1
• 1 x USB 3.0
• 4 x USB 2.0
• DisplayPorts: 1 x DisplayPort 1.4
• HDMI Port: 1 x HDMI 2.1

Internal I/O Connectors

• SATA Connectors: 4 x SATA III
• USB Connectors: 1 x USB-C 3.0 header (supports 1 port)
• 1 x USB 3.0 header (supports 2 ports)
• 2 x USB 2.0 headers (supports 4 ports)

Memory

• Memory Bus Speed: Up to 6400 (OC) MHz
• Memory Type: DDR5

Motherboard

• Northbridge: B650
• RAID Supported: Yes
• RAID Format: RAID 0, 1, 10
• SATA Supported: Yes

Rear Panel I/O Ports

• RJ-45 Ports: 1 x RJ-45
• Audio Line In Ports: 1 x 3.5mm Jack
• Audio Line Out Ports: 3 x 3.5mm Jacks
• Microphone In Port: 1 x 3.5mm Jack
• Antenna Connector(s): 2 x SMA Antenna

Internal I/O Connectors

• Front Panel Connectors: 1 x Front Panel
• 1 x Front Audio
• Cooling Fan Support: 1 x CPU fan header
• 1 x CPU OPT fan header
• 1 x AIO pump header
• 3 x Chassis fan headers +
• Thunderbolt Port(s): 1 x Thunderbolt header
• Serial Connectors: 1 x COM header
• Chassis Intrusion Connector: 1 x Chassis Intrusion header
• Power Connector Port: 1 x 24-pin ATX
• 1 x 8-pin EPS
• 1 x 4-pin EPS
• Other Connectors: 1 x M.2 slot, Key M, Type 2242/2260/2280 (PCIe Gen5)
• 1 x M.2 slot, Key M, Type 2242/2260/2280 (PCIe Gen4)
• 3 x 3-pin ARGB LED headers
• 1 x 4-pin RGB LED header

Expansion

• Number of PCI Express Slots: 2 x PCI Express 4.0 x16 slots (@ x16/x4)
• 1 x PCI Express 4.0 x1 slot

Memory

• Maximum RAM: 128 GB
• Memory Slot: 4 x DIMM

Graphics Device

• Integrated Graphics Supported: Yes

Sound

• Integrated Sound: Realtek

Warranty

• Warranty: 3 Years

Network

• Integrated Network: Realtek
• Network Speeds Supported: Up to 2.5 Gbps
• Wireless LAN: Yes (Wi-Fi 6)
• Wireless Network Speed: Up to 2.4 Gbps
• Bluetooth: Yes
• Bluetooth Version: 5.2

System Requirements

• Operating Systems Supported: Microsoft Windows 11 64-bit

System

• BIOS: 256 Mb Flash ROM, UEFI AMI BIOS
• Jumpers: 1 x Clear CMOS
• Software Included: Yes
• Drivers: Yes

Physical

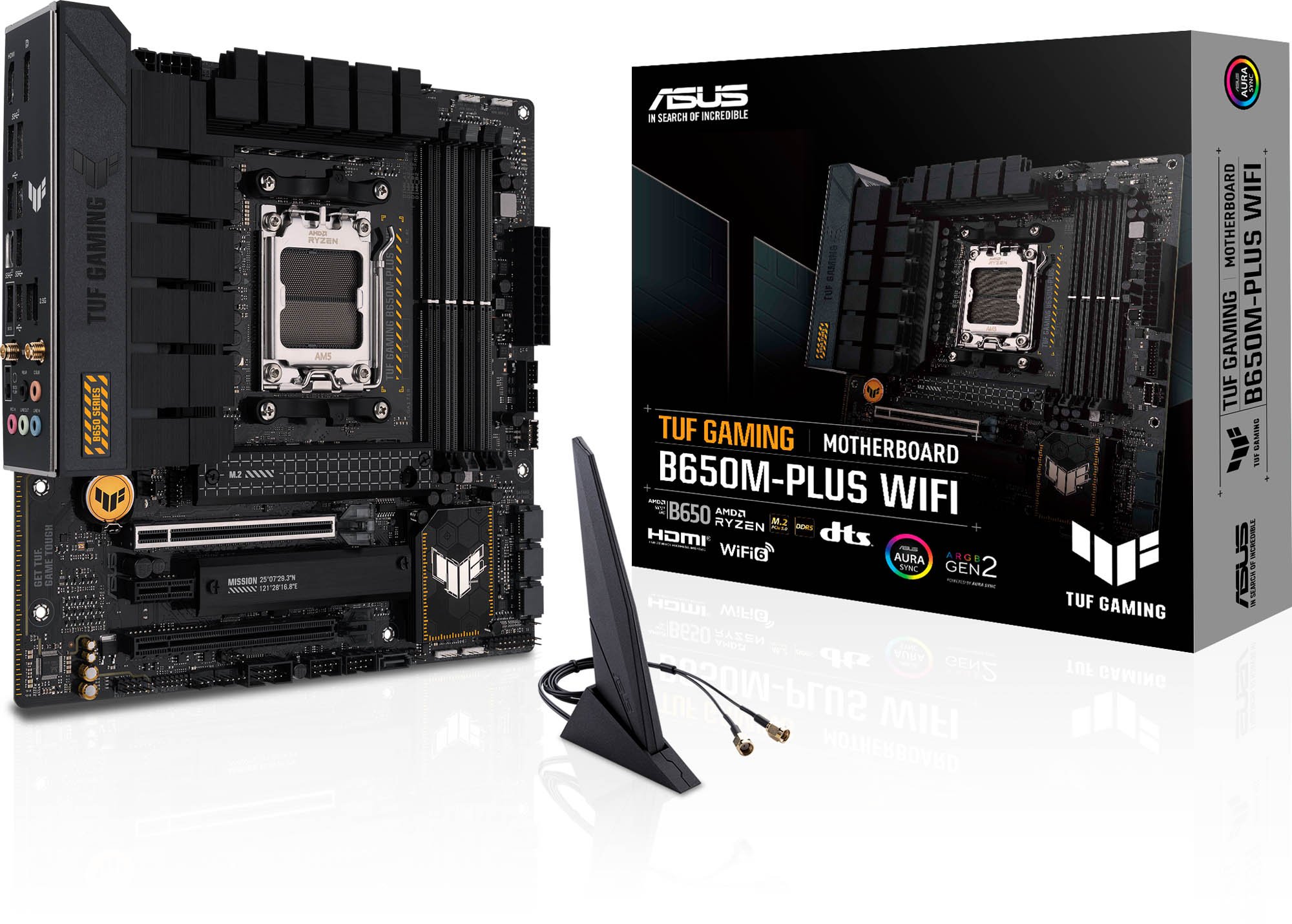

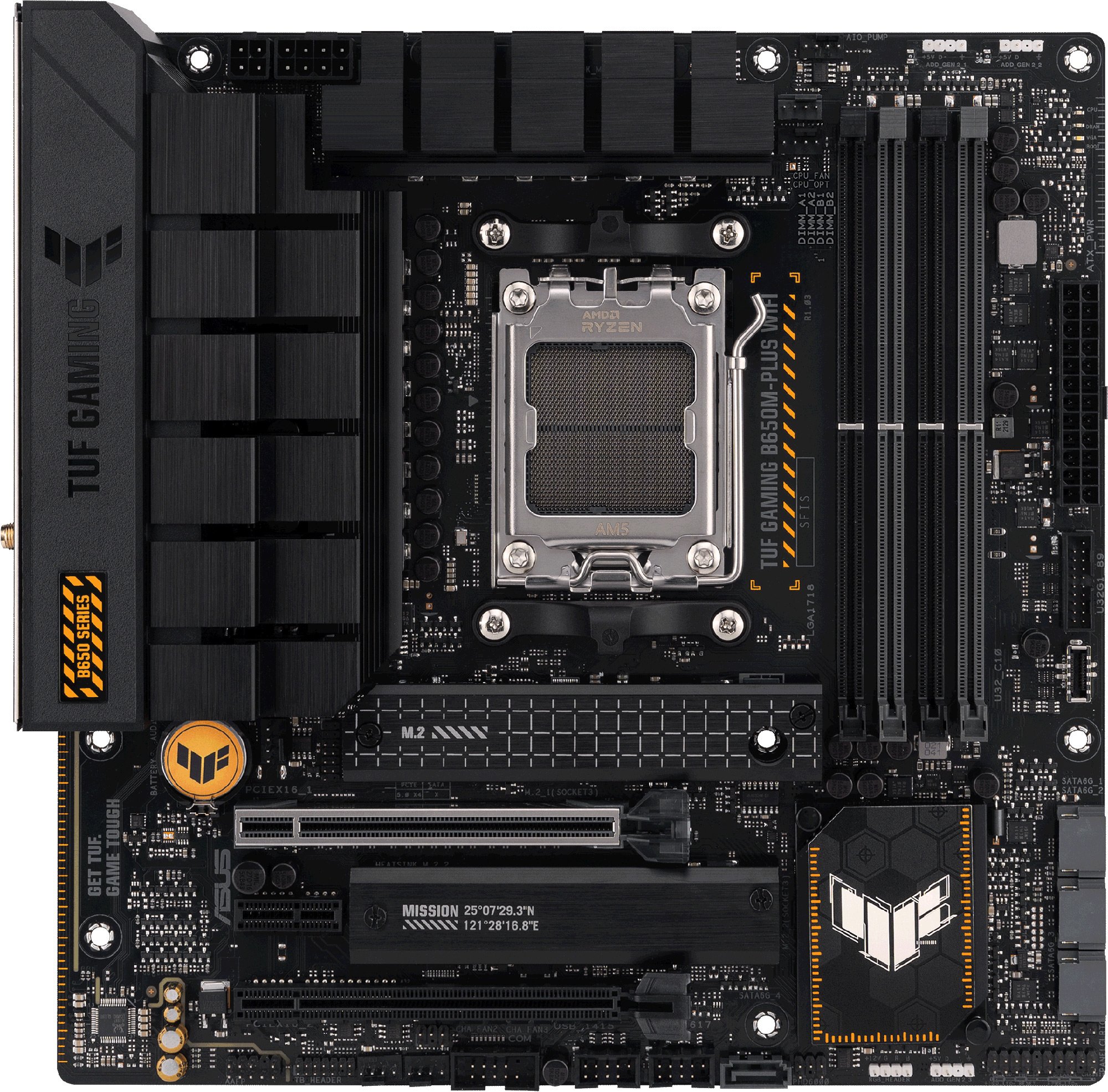

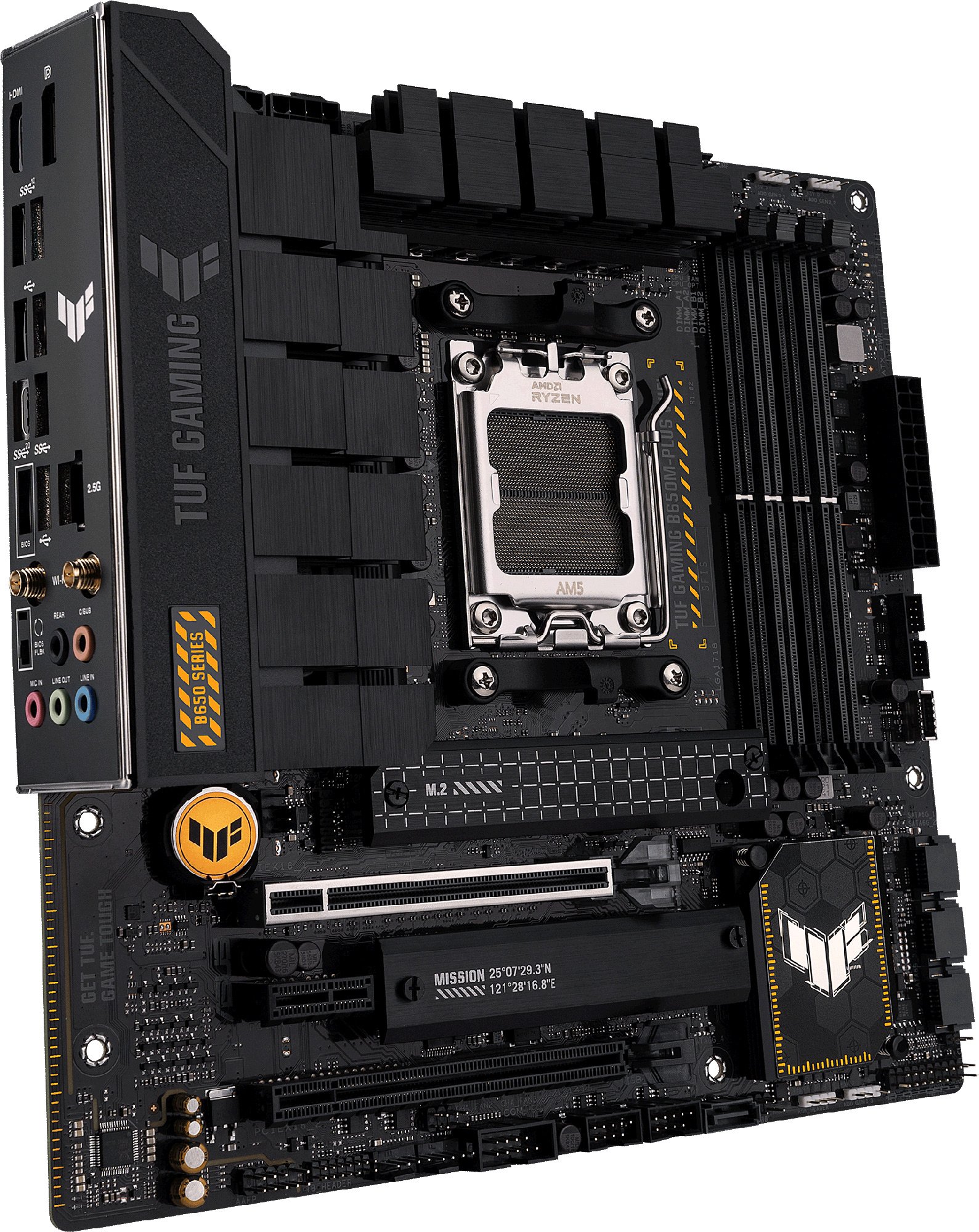

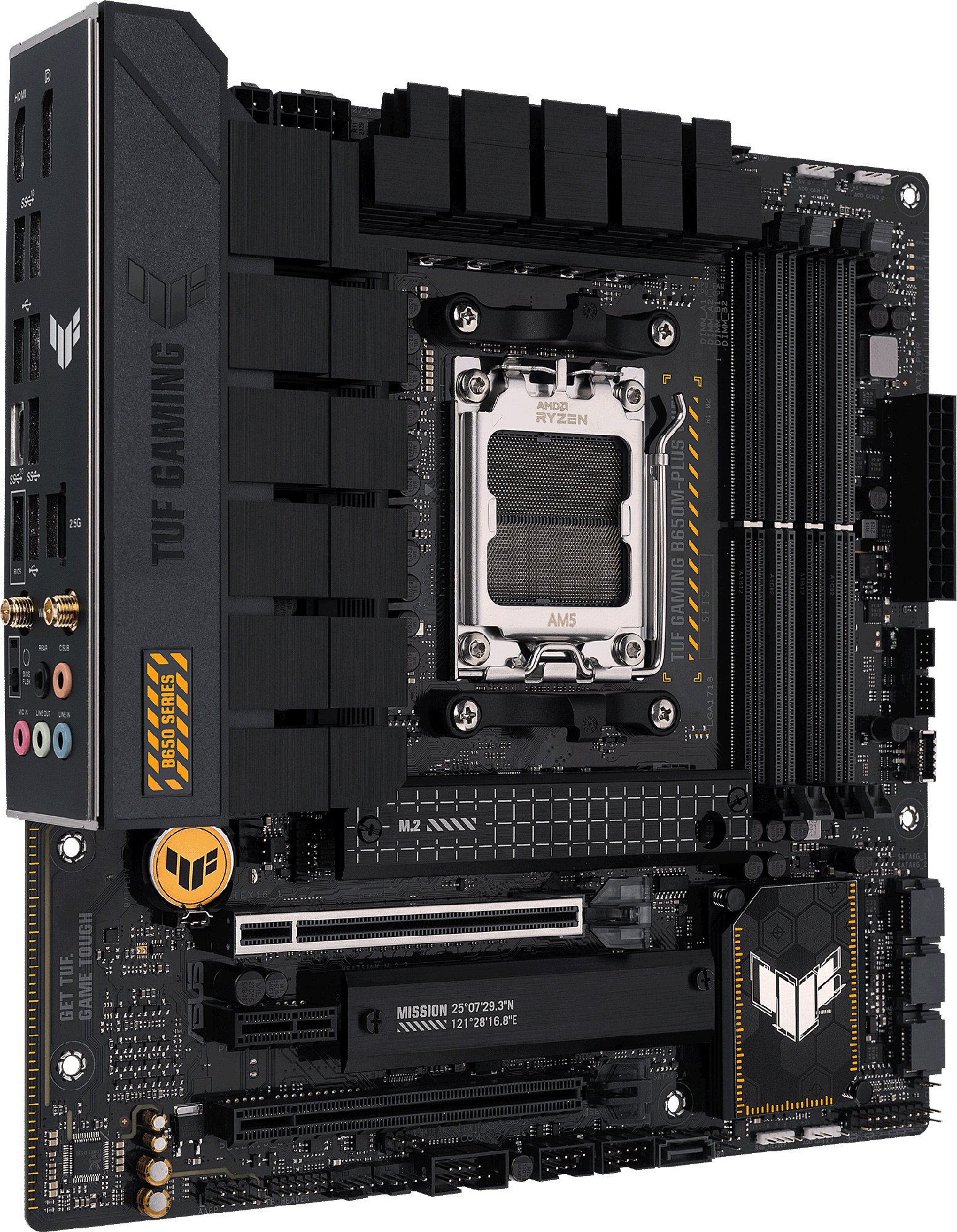

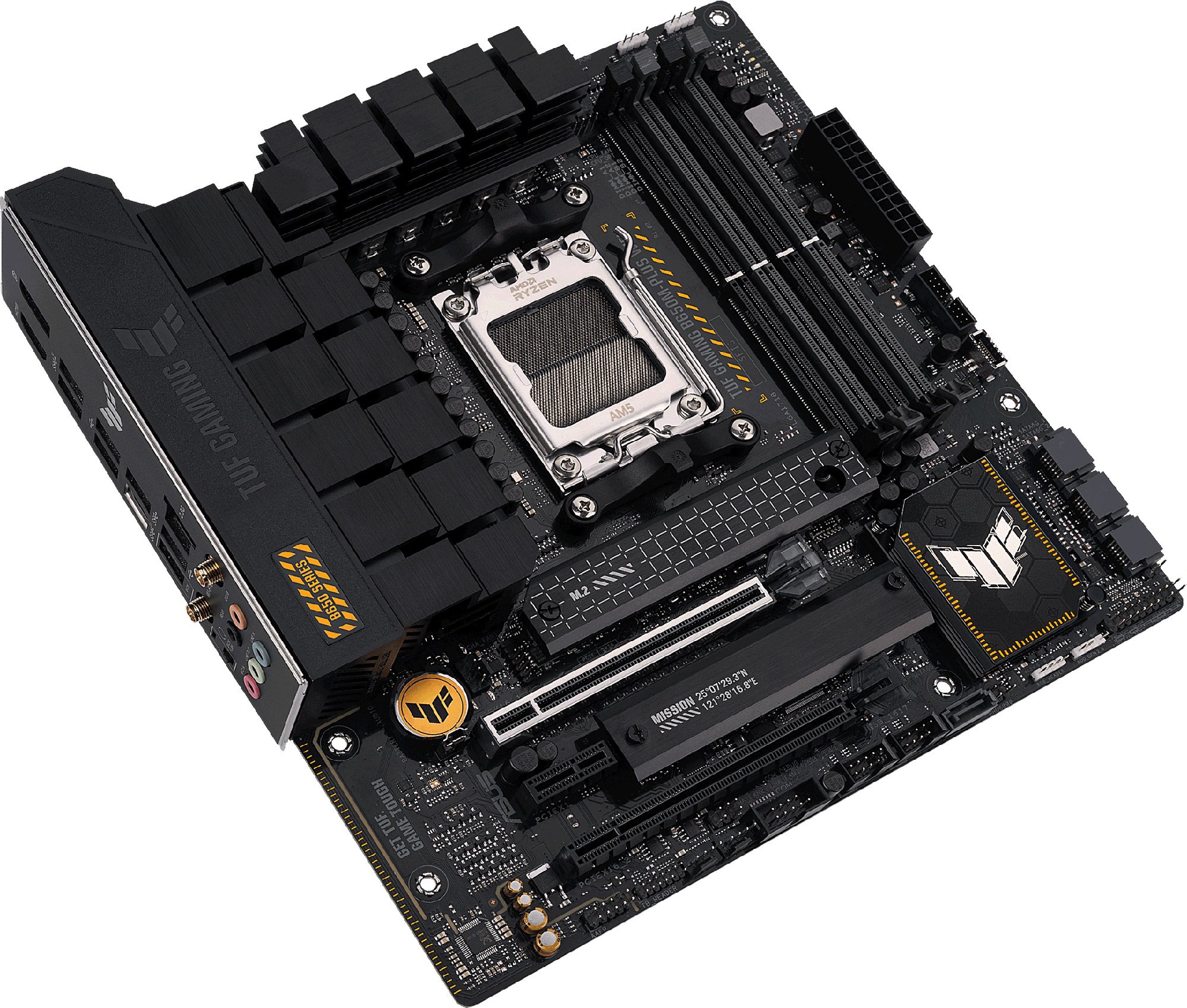

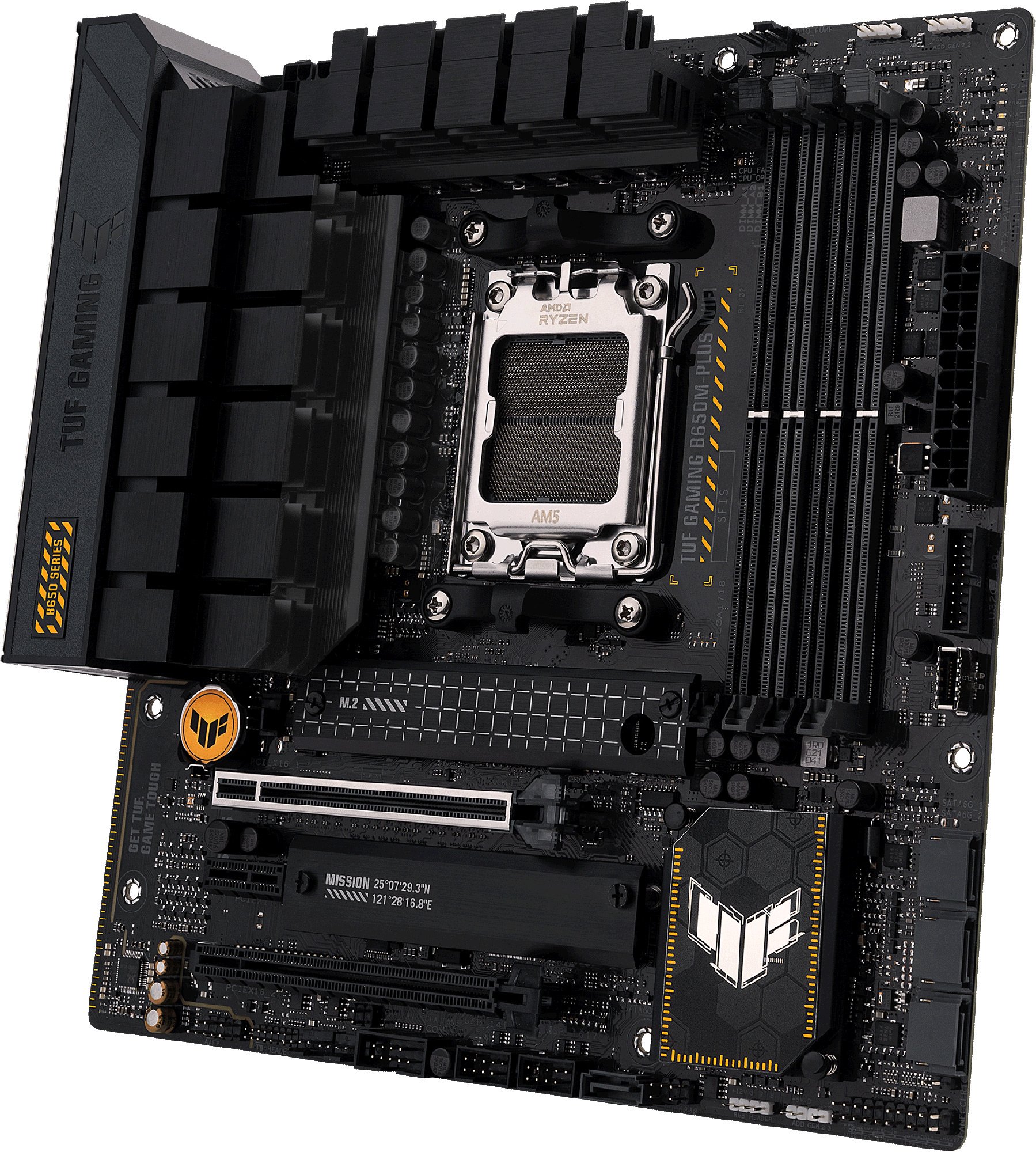

• Form Factor: mATX Motherboard

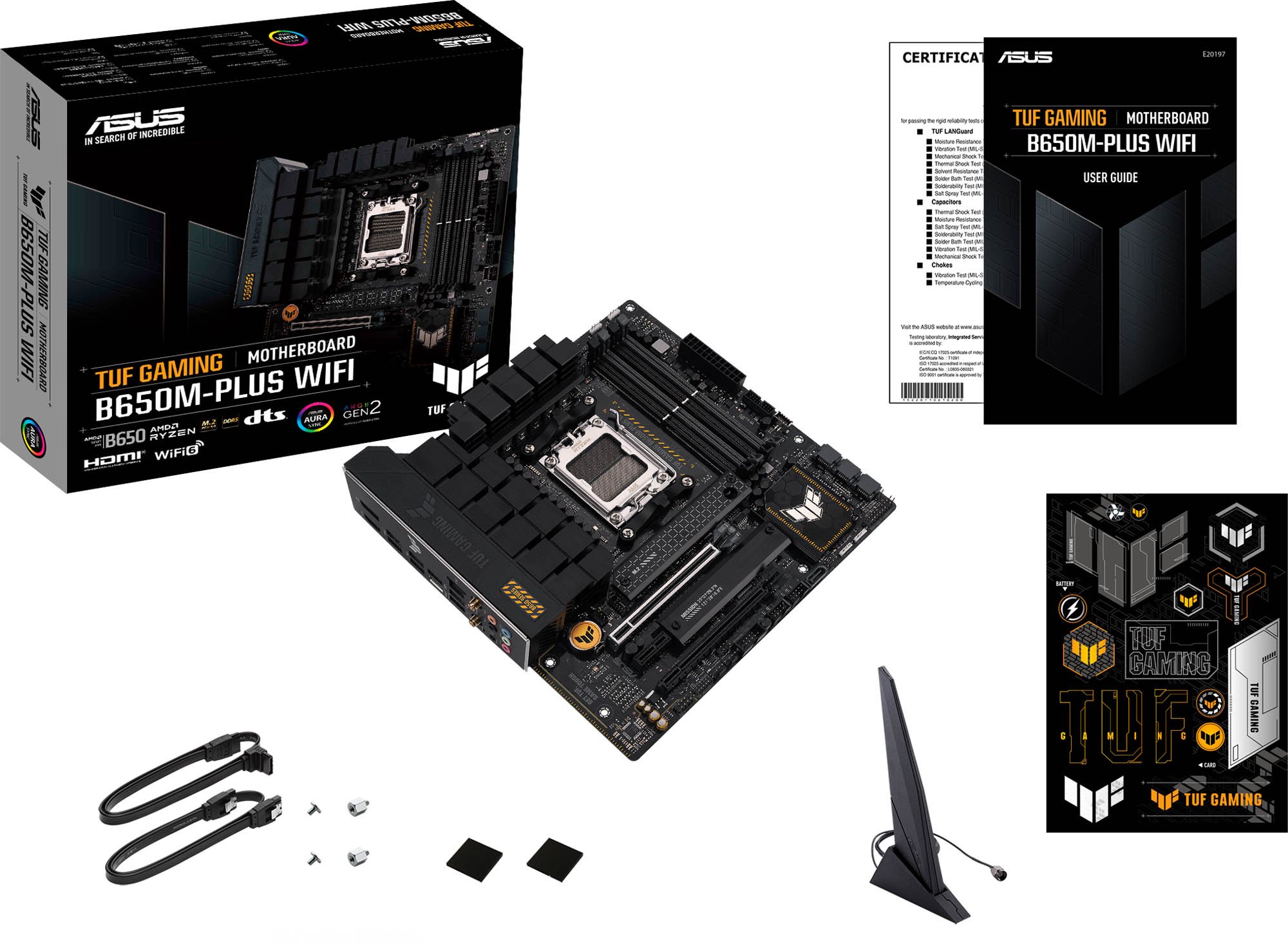

• In The Box: Motherboard
• 2 x SATA 6Gb/s cables
• 1 x ASUS Wi-Fi moving antennas
• 1 x Rubber Package for M.2
• 1 x Screw package for M.2 SSD
• 1 x TUF Certification card
• 1 x User guide
• Width: 244 mm
• Length: 244 mm

Identifiers

• Stock Code: MBD3376

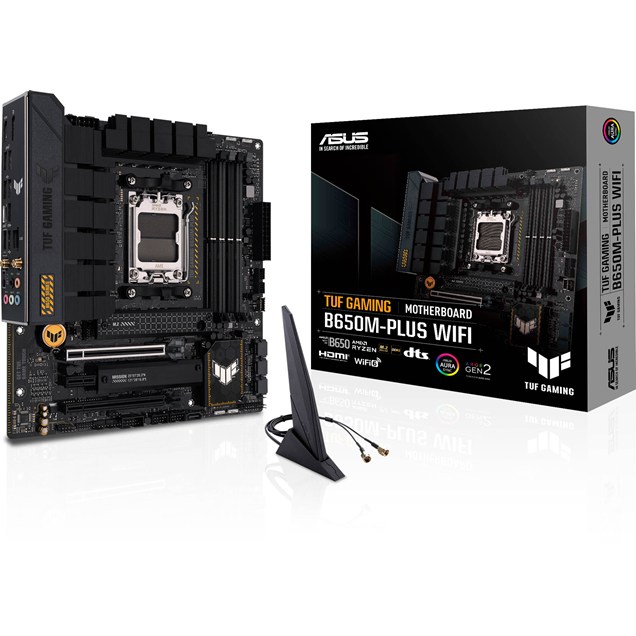

• Mfg Code: TUF GAMING B650M-PLUS WIFI
