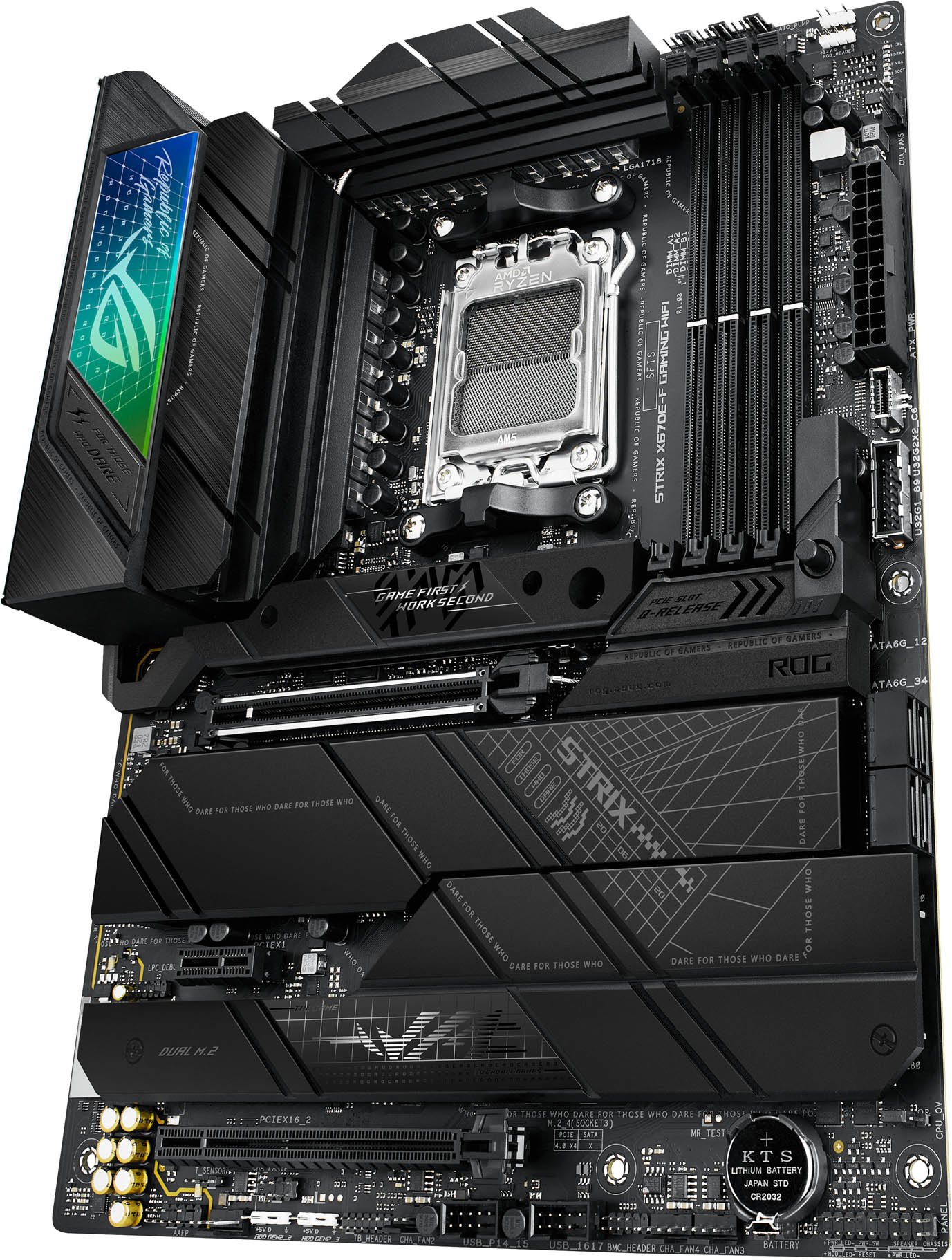

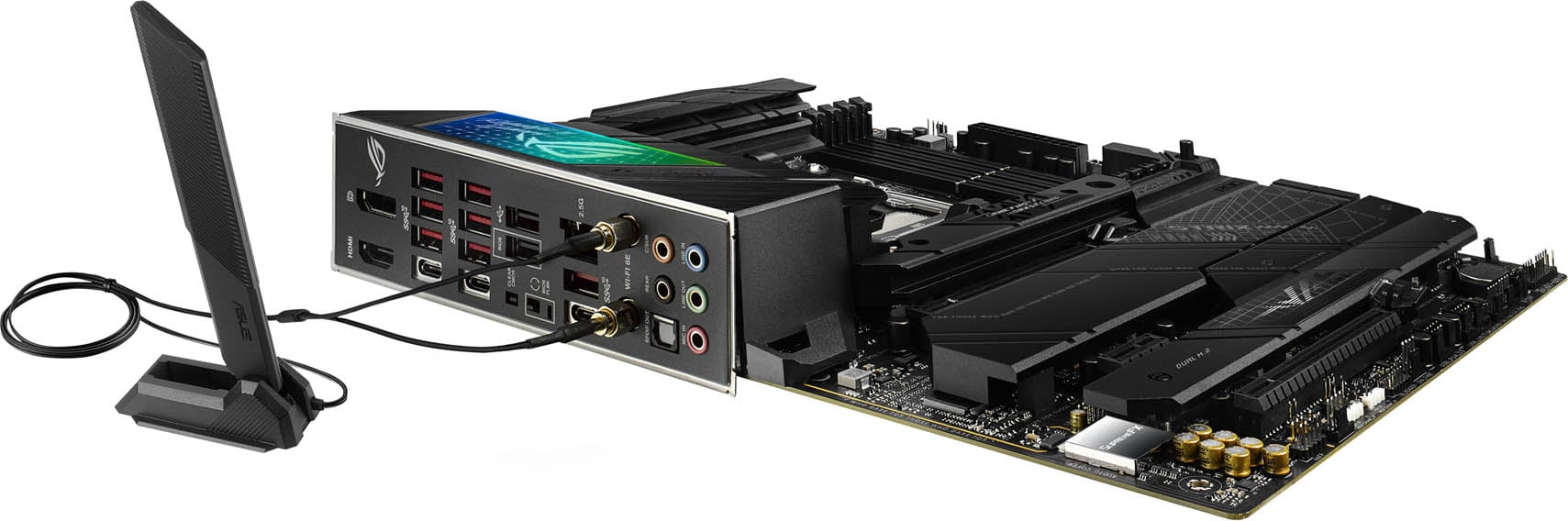

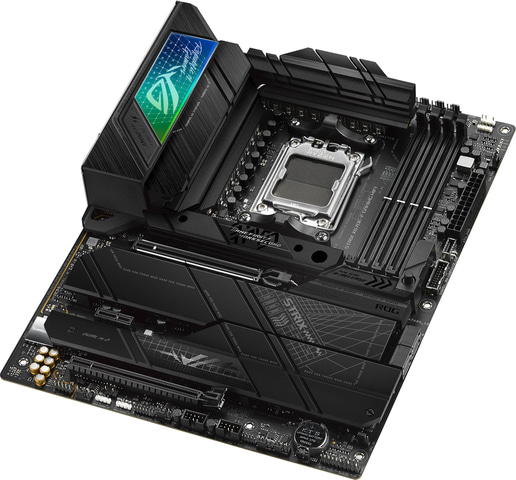

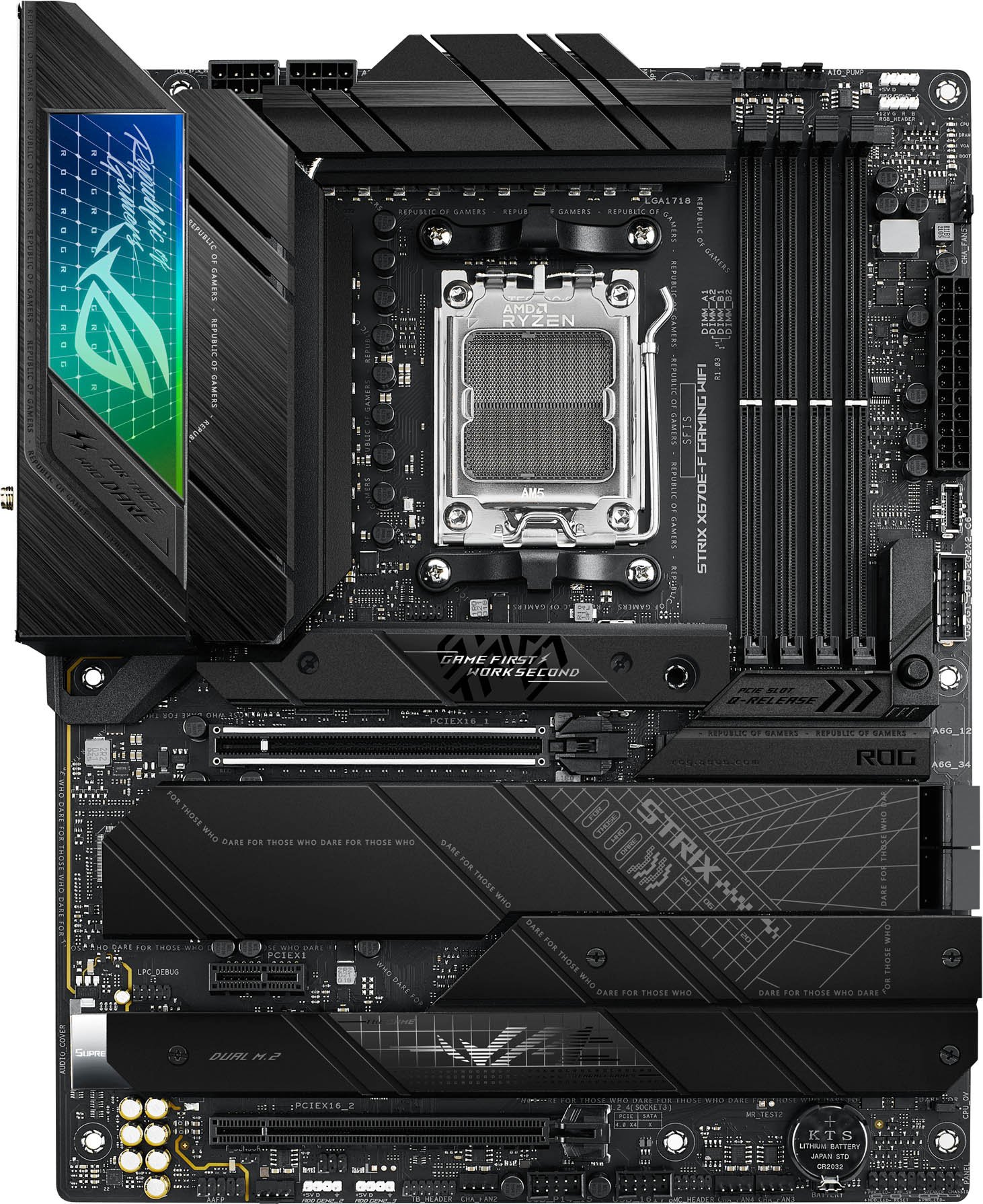

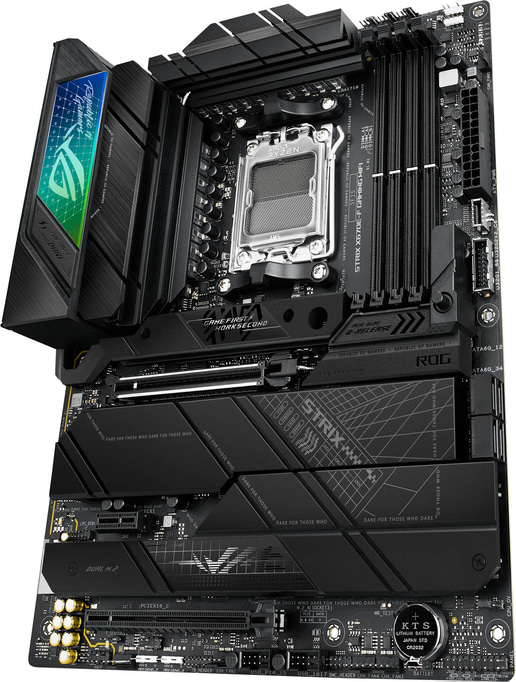

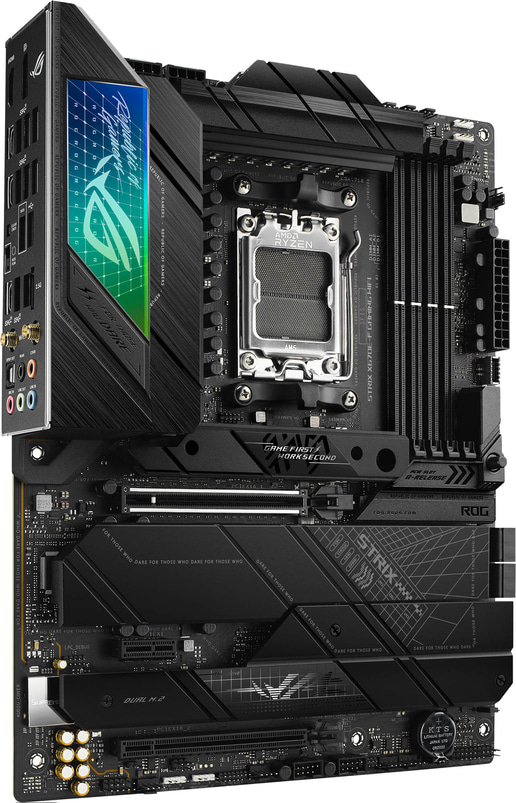

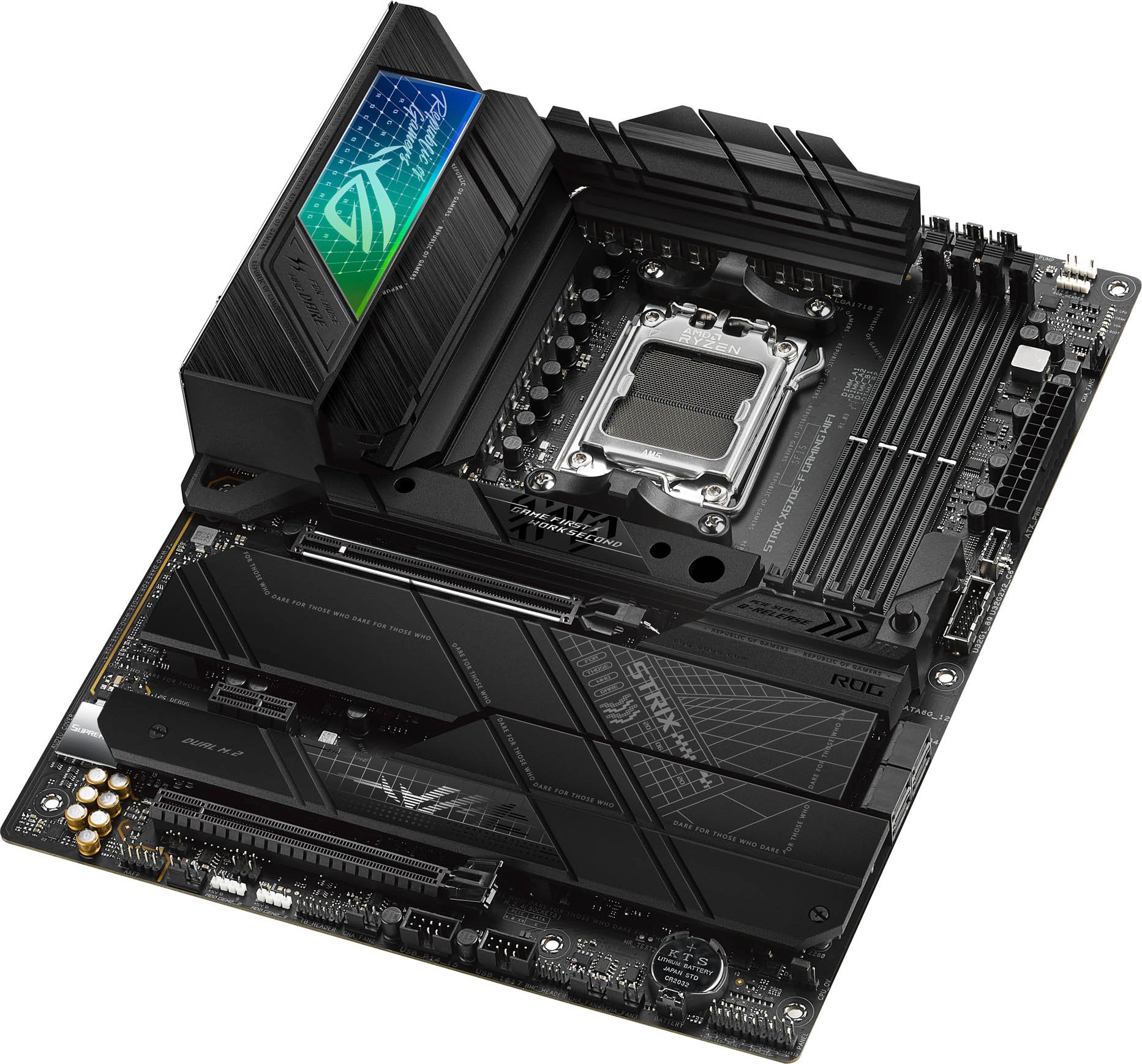

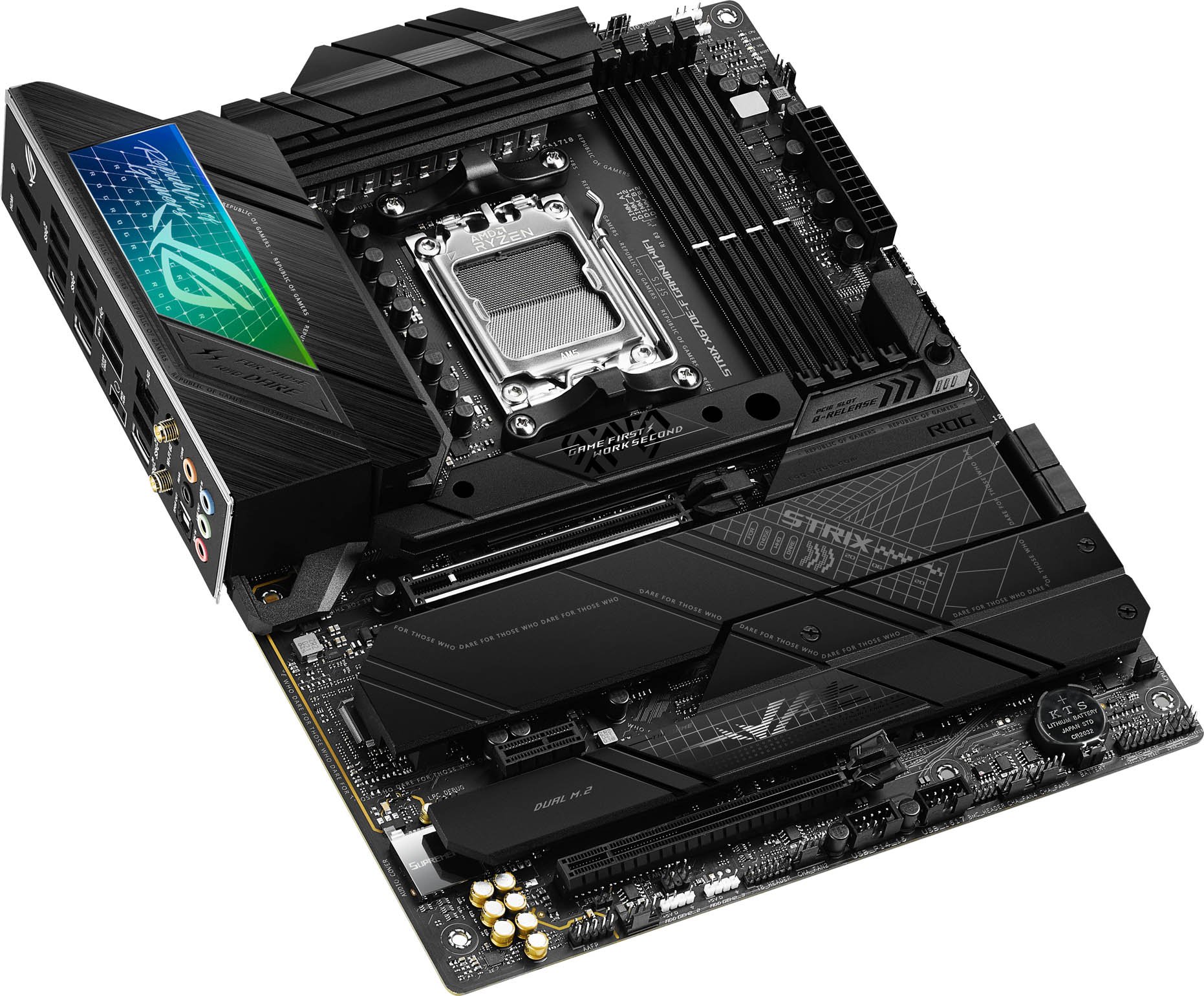

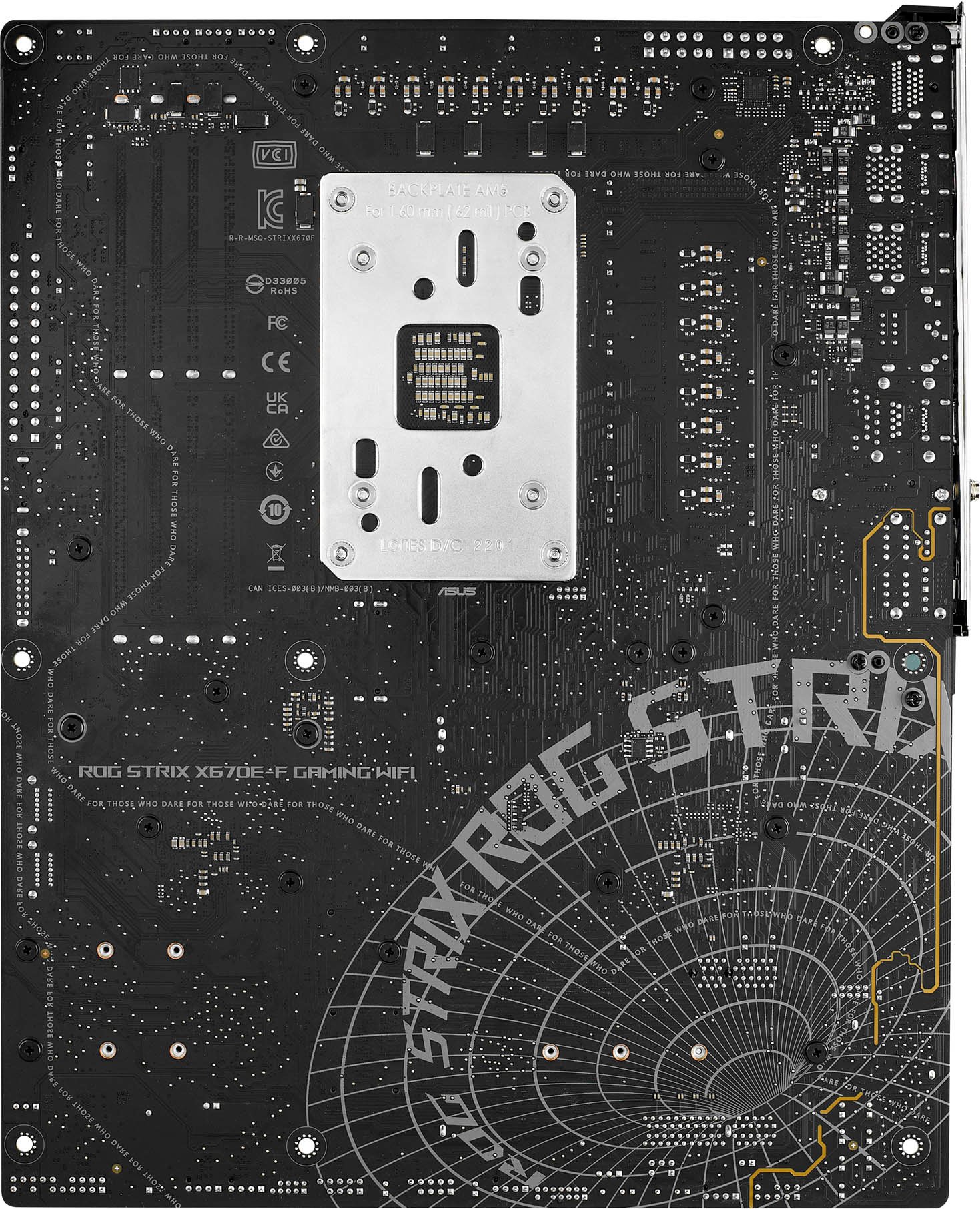

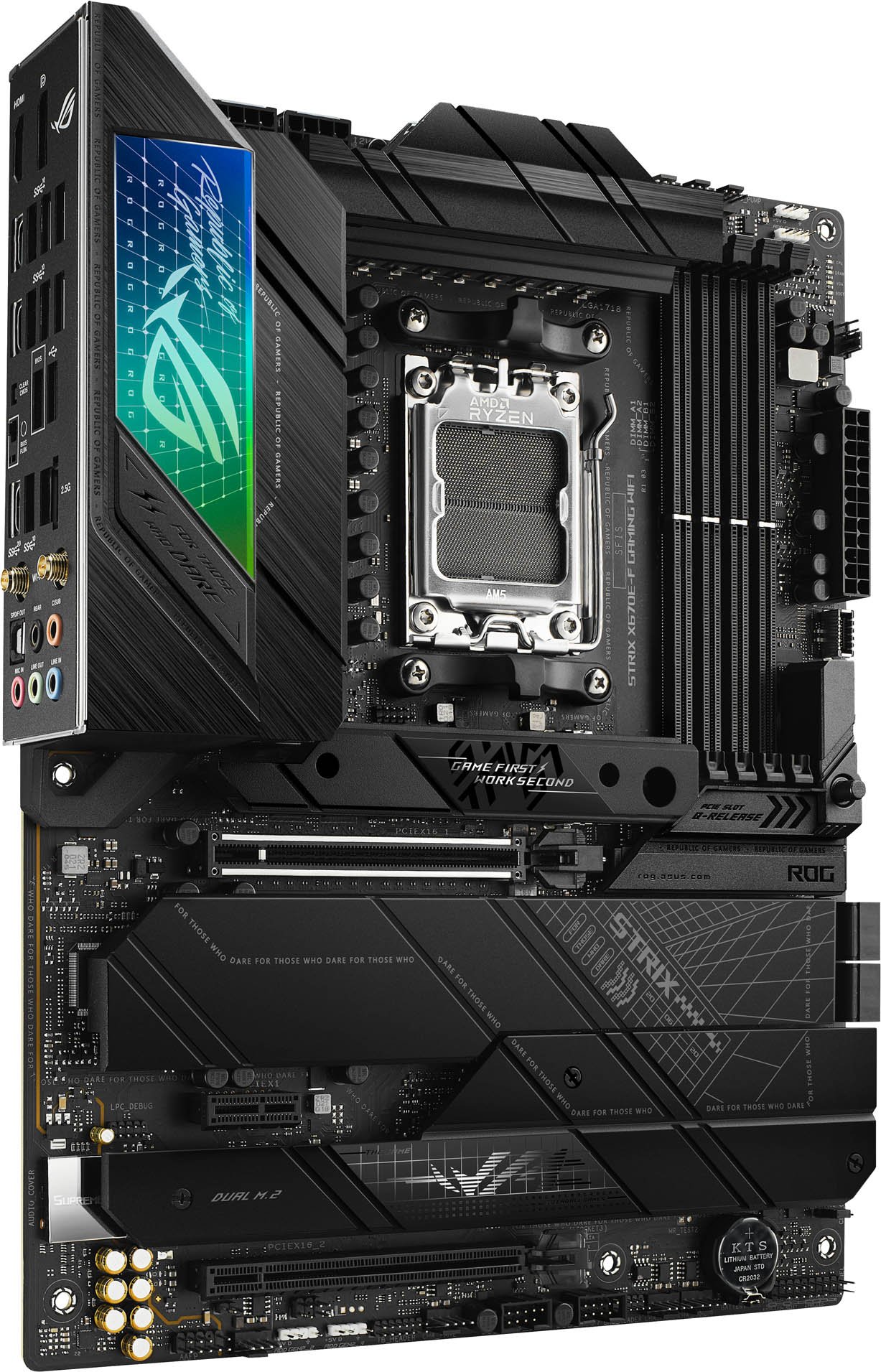

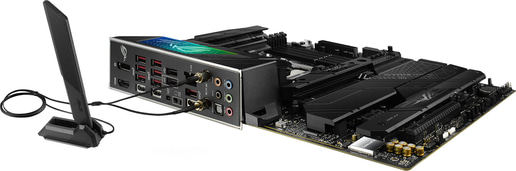

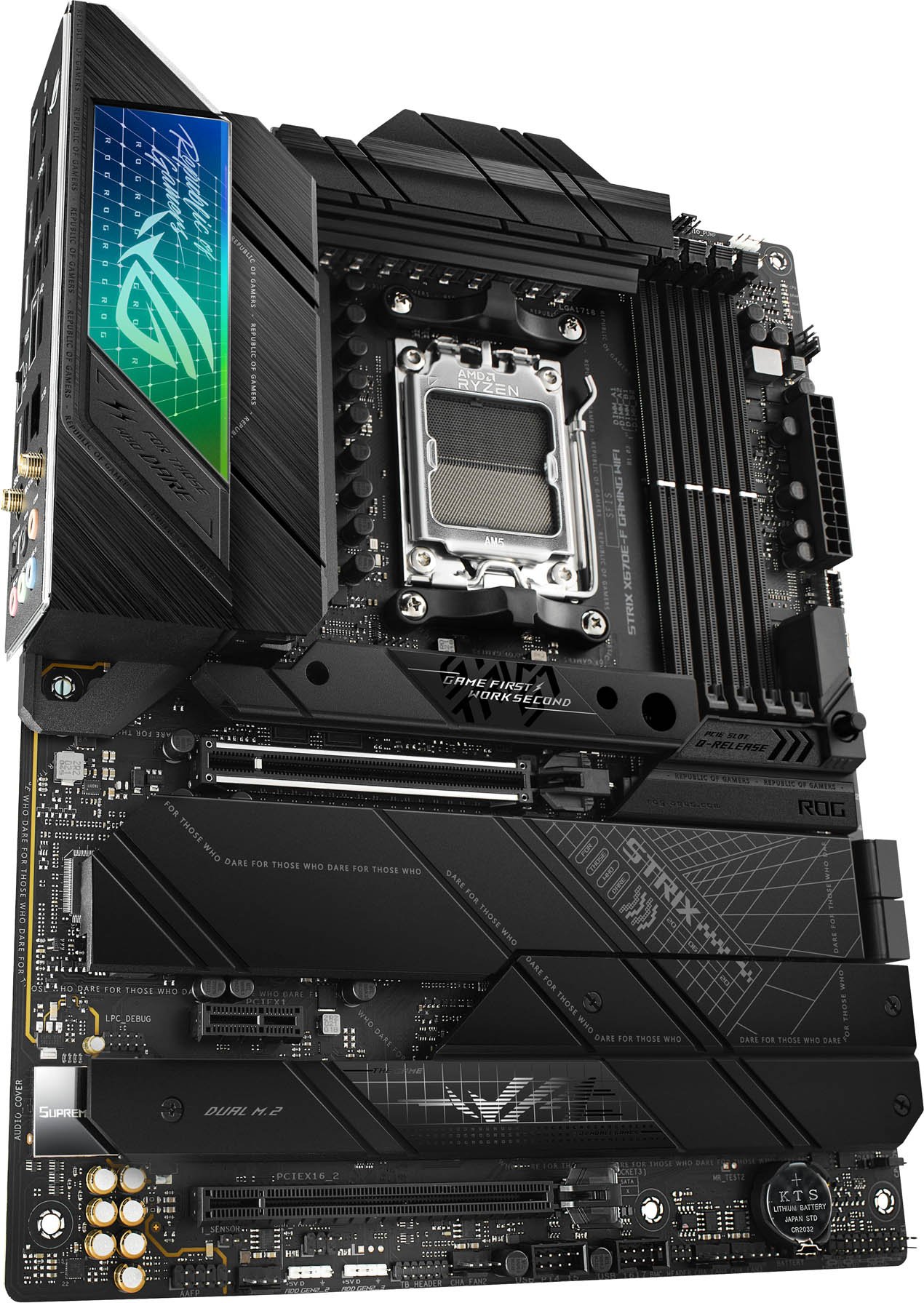

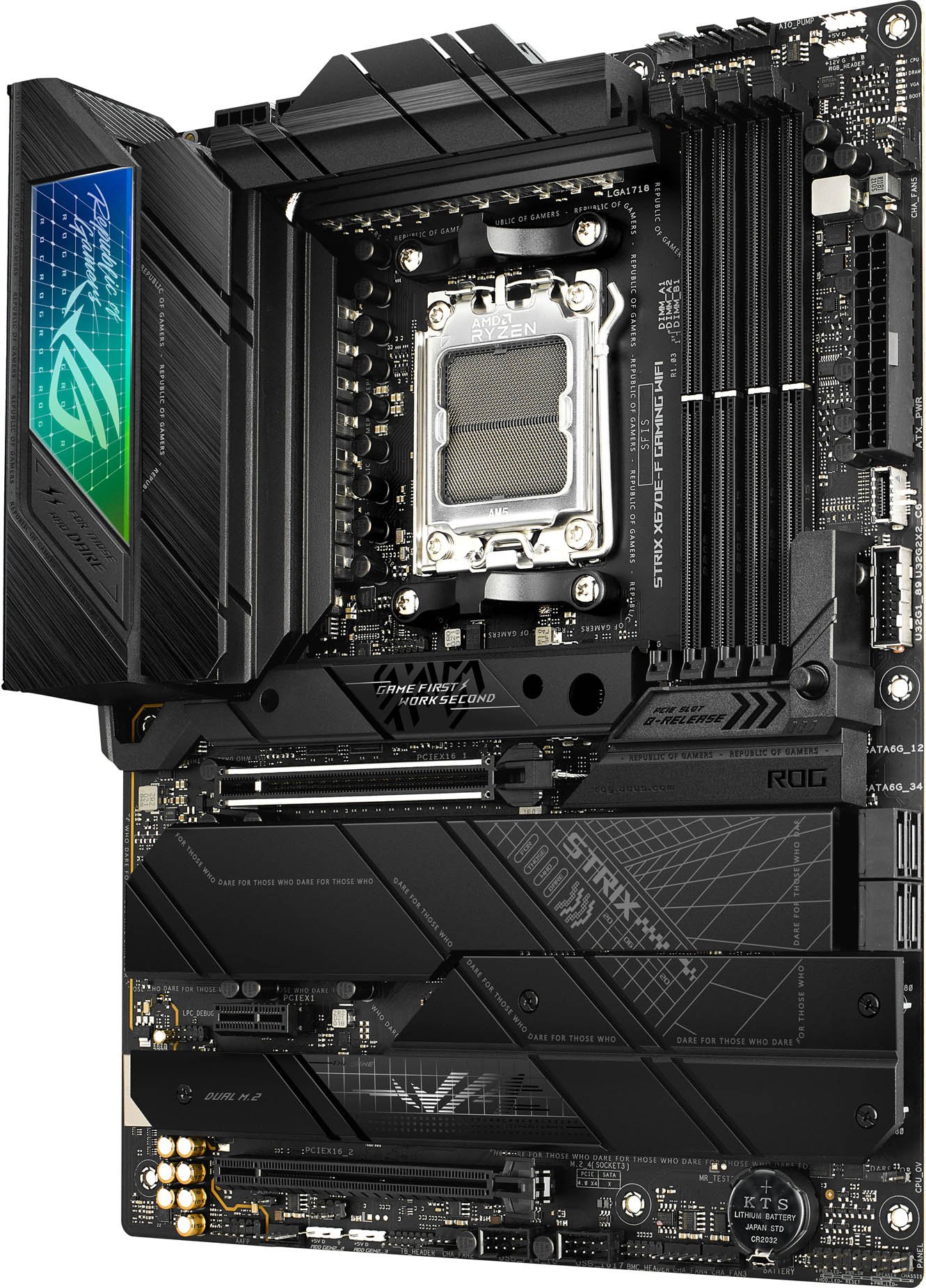

ASUS ROG Strix X670E-F Gaming WiFi ATX Motherboard for AMD Socket AM5 CPUs
Available for delivery from Tomorrow
Click & Collect from Today
Hurry, only 1 left!
Order within
You have 0 of these in your basket
Please note that this is a C Grade clearance item. C Grade items may have missing accessories or show signs of cosmetic wear. See below for details of this specific item. The price has been reduced to reflect this.
All C Grade items are working and have been fully tested.
This item is supplied with a Warranty: 3 Years warranty.
Its black PCB and dark metallic heatsinks aesthetically match a wider variety of system hardware and build themes, while a dash of customizable color on its shroud subtly announces an ROG presence in your AM5 build.
ALL-ROUND PERFORMANCE
Robust power delivery, innovative overclocking tools, and comprehensive cooling controls are core fundamentals of the ROG Strix X670E-F, giving you everything necessary to cruise and flex with AMD Ryzen™ 7000 in your build.
PCIE 5.0
Blazing fast storage is at your command with two PCIE 5.0 M.2 slots and two PCIE 4.0 M.2 slots. Push speeds even further, create a mirrored backup, or both; NVMe and SATA RAID configurations (0/1/10) are available through AMD RAID Xpert2. PCIe 5.0 support also extends to the top x16 extension slot, which includes SafeSlot to support heavy graphics cards and Q-release for easy upgrades.
DDR5 STRENGTH
For those who want to fly past stock DDR5 speeds, the Strix X670E-F is primed and ready for enthusiast-grade kits courtesy of vast AMD EXtended Profiles for Overclocking (EXPO) support. Seasoned veterans can further tweak performance via the extensive array of settings in the UEFI.
LEADING CONNECTIVITIY
The ROG Strix X670E-F Gaming WiFi delivers a plethora of internal and external connectivity for low-latency networking and ultrafast data transfers. Those perks are joined by an advanced audio solution that allows you to pick out the smallest cues and home in on your opponents.
WIFI 6E
Onboard WiFi 6E technology takes advantage of newly available spectrum in the 6 GHz band to provide up to seven 160 MHz channels for ultrafast throughput and better performance in dense wireless environments.
*WiFi 6E availability and features are dependent on regulatory limitations and co-existence with 5 GHz WiFi.
Intel 2.5G Ethernet
Onboard Intel® 2.5 Gbps Ethernet gives your wired connection a boost, with speeds that are 2.5 times faster than standard Ethernet connections for speedy file transfers, low-latency gaming, and high-res video streaming.
SUPREMEFX
ROG SupremeFX is a unique blend of hardware and software that provides superior audio. The ROG Strix X670E-F Gaming WiFi's SupremeFX implementation features the ALC4080 codec to increase playback resolution from 192 kHz to 384 kHz across all channels. The front-panel output is streamed through a highly integrated Savitech amplifier that’s capable of driving of a wide variety of gaming headsets and high-fidelity headphones.
PLAY IN STYLE
A black PCB and heatsinks match most hardware, and customizable RGB lighting furthers its flexibility. Pair the ROG Strix X670E-F with other products from the diverse ROG ecosystem to create a fully customized gaming setup that reflects your personal style.
UNDENIABLY ROG STRIX
The ROG Strix X670E-F is the stealthiest in the lineup, pairing perfectly with most system hardware. A jet black PCB and matching metallic heatsinks give it a brooding aesthetic overall, while a splash of RGB lighting on the I/O shroud gives you the choice to blend into the shadows or announce your presence.
OUTSHINE THE COMPETITION
ROG Strix motherboards feature ASUS Aura technology, enabling full lighting control and a variety of presets for both onboard RGB LEDs and third-party accessories. Effects can be easily synced across compatible ROG graphics cards, monitors, keyboards, and mice to give your setup a unified look.
CPU
- Installed Processors (Max): 0 (1)
- Supported Processor Manufacturer: AMD
- Supported Processors: Ryzen 7000 Series Desktop Processors
- 64-bit Support: Yes
- Socket: AM5

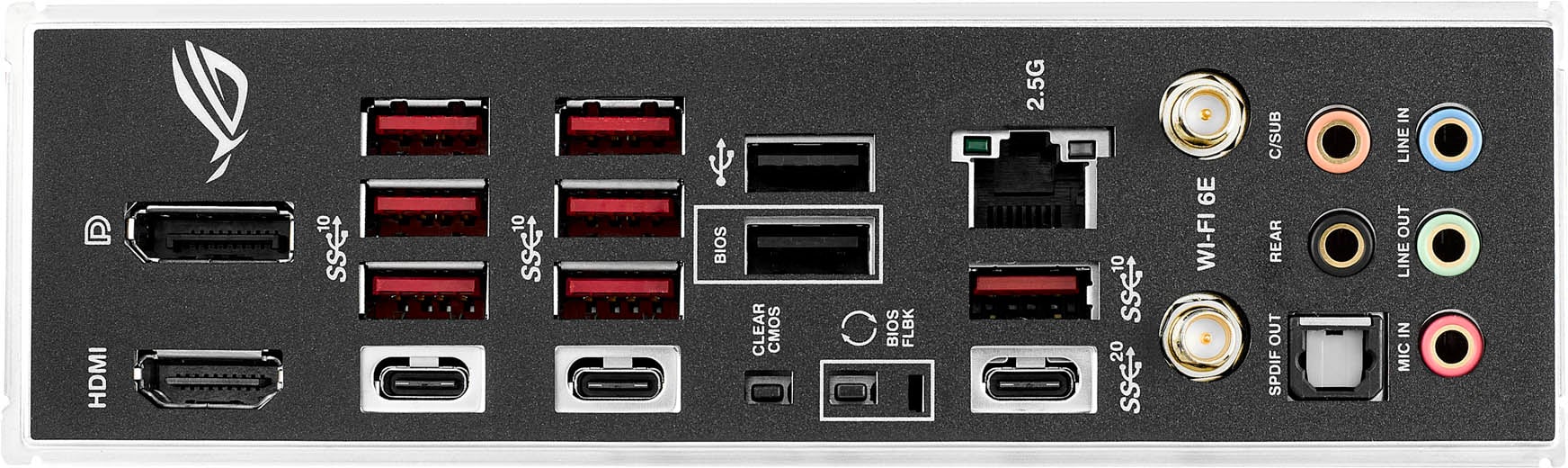

Rear Panel I/O Ports
- USB Ports: 1 x USB-C 3.2
- 2 x USB-C 3.1
- 7 x USB 3.1
- 2 x USB 2.0
- DisplayPorts: 1 x DispayPort 1.4
- HDMI Port: 1 x HDMI 2.1
Internal I/O Connectors
- SATA Connectors: 4 x SATA III
- USB Connectors: 1 x USB-C 3.2 header (supports 1 port)
- 1 x USB 3.0 header (supports 2 ports)
- 2 x USB 2.0 headers (supports 4 ports)
Memory
- Memory Bus Speed: Up to 6400 (OC) MHz
- Memory Type: DDR5
Motherboard
- Northbridge: X670E
- RAID Supported: Yes
- RAID Format: RAID 0, 1, 10
- SATA Supported: Yes
Rear Panel I/O Ports
- RJ-45 Ports: 1 x RJ-45
- Audio Line In Ports: 1 x 3.5mm Jack
- Audio Line Out Ports: 3 x 3.5mm Jack
- Microphone In Port: 1 x 3.5mm Jack
- S/PDIF Port: 1 x S/PDIF Optical Out
- Antenna Connector(s): 2 x SMA Antenna
Internal I/O Connectors
- Front Panel Connectors: 1 x Front Panel
- 1 x Front Audio
- Cooling Fan Support: 1 x CPU fan header
- 1 x CPU_OPT fan header
- 1 x AIO pump header
- 5 x Chassis fan headers
- Thunderbolt Port(s): 1 x Thunderbolt header
- Power Connector Port: 1 x 24-pin ATX
- 2 x 8-pin EPS
- Other Connectors: 2 x M.2 slots, Key M, Type 2242/2260/2280 (PCIe Gen5)
- 1 x M.2 slot, Key M, Type 2242/2260/2280/22110 (PCIe Gen4)
- 1 x M.2 slot, Key M, Type 2242/2260/2280 (PCIe Gen4)
- 3 x 3-pin ARGB LED headers
- 1 x 4-pin RGB LED header
- 1 x Thermal Sensor header
Expansion
- Number of PCI Express Slots: 1 x PCI Express 5.0 x16 slot
- 1 x PCI Express 4.0 x16 slot (@ x4)
- 1 x PCI Express 3.0 x1 slot
Memory
- Maximum RAM: 128 GB
- Memory Slot: 4 x DIMM
Graphics Device
- Integrated Graphics Supported: Yes
Sound
- Integrated Sound: ROG SupremeFX ALC4080
Warranty
- Warranty: 3 Years
Network
- Integrated Network: Intel
- Network Speeds Supported: Up to 2.5 Gbps
- Wireless LAN: Yes (Wi-Fi 6E)
- Wireless Network Speed: Up to 2.4 Gbps
- Bluetooth: Yes
- Bluetooth Version: 5.2
System Requirements
- Operating Systems Supported: Microsoft Windows 11 64-bit
System
- BIOS: 256 Mb Flash ROM, UEFI AMI BIOS
- Jumpers: 1 x CPU Over Voltage header
- Software Included: Yes
- Drivers: Yes
Physical
- Form Factor: ATX Motherboard
- In The Box: Motherboard
- 2 x SATA 6Gb/s cables
- 1 x Thermal pad for M.2
- 1 x ASUS Wi-Fi moving antennas
- 1 x Cable ties pack
- 1 x M.2 Q-Latch package for M.2 backplate
- 1 x M.2 Q-Latch package
- 1 x ROG key chain
- 1 x ROG Strix stickers
- 1 x ROG Strix thank you card
- 2 x Rubber Packages for M.2
- 1 x Rubber Package for M.2 backplate
- 1 x User guide
- Width: 305 mm
- Length: 244 mm
Identifiers
- Stock Code: MBD3315XC1
- Mfg Code: 90MB1BA0-M0EAY0
