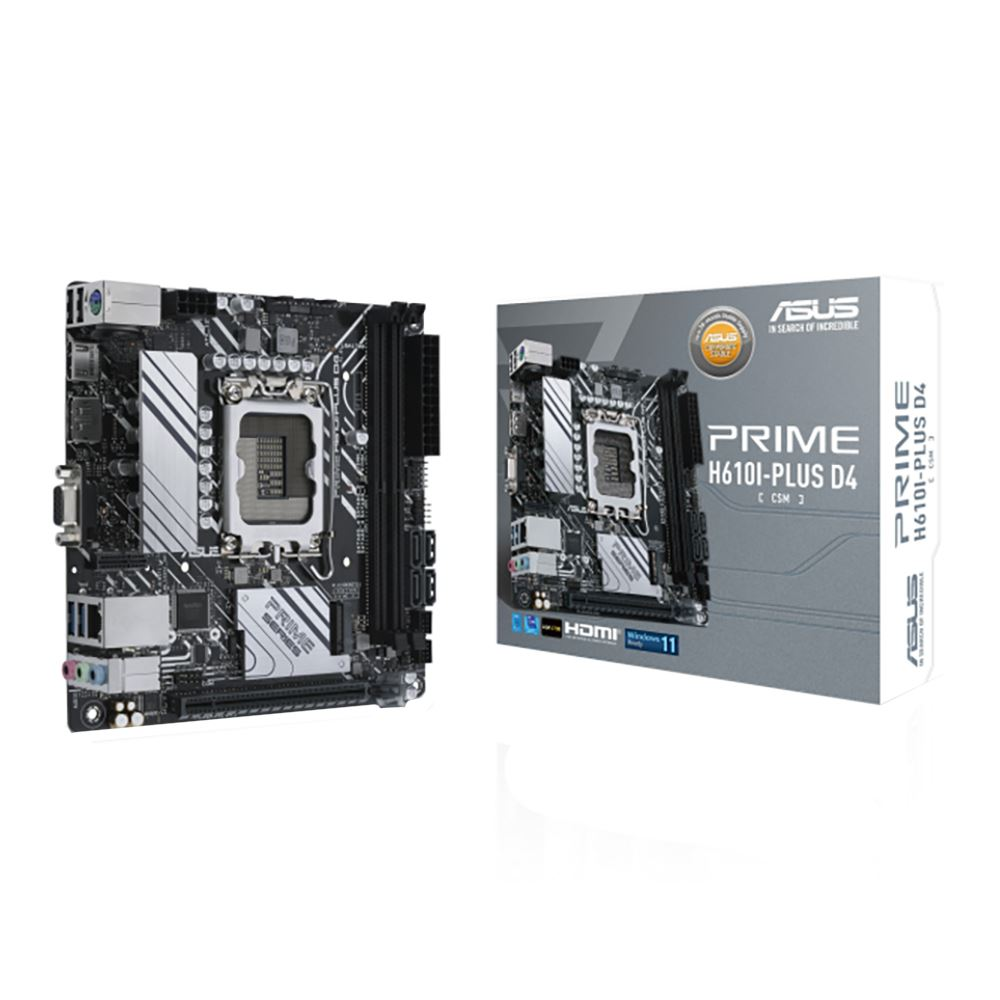

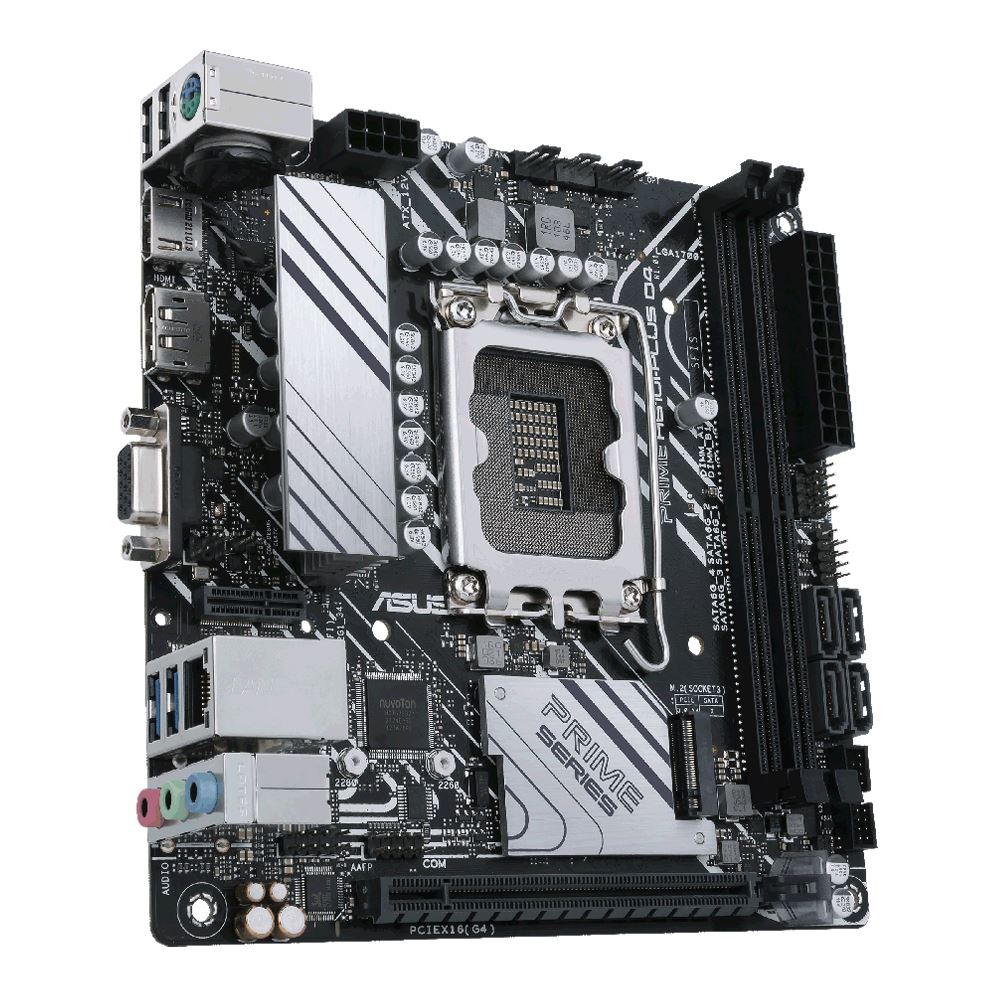

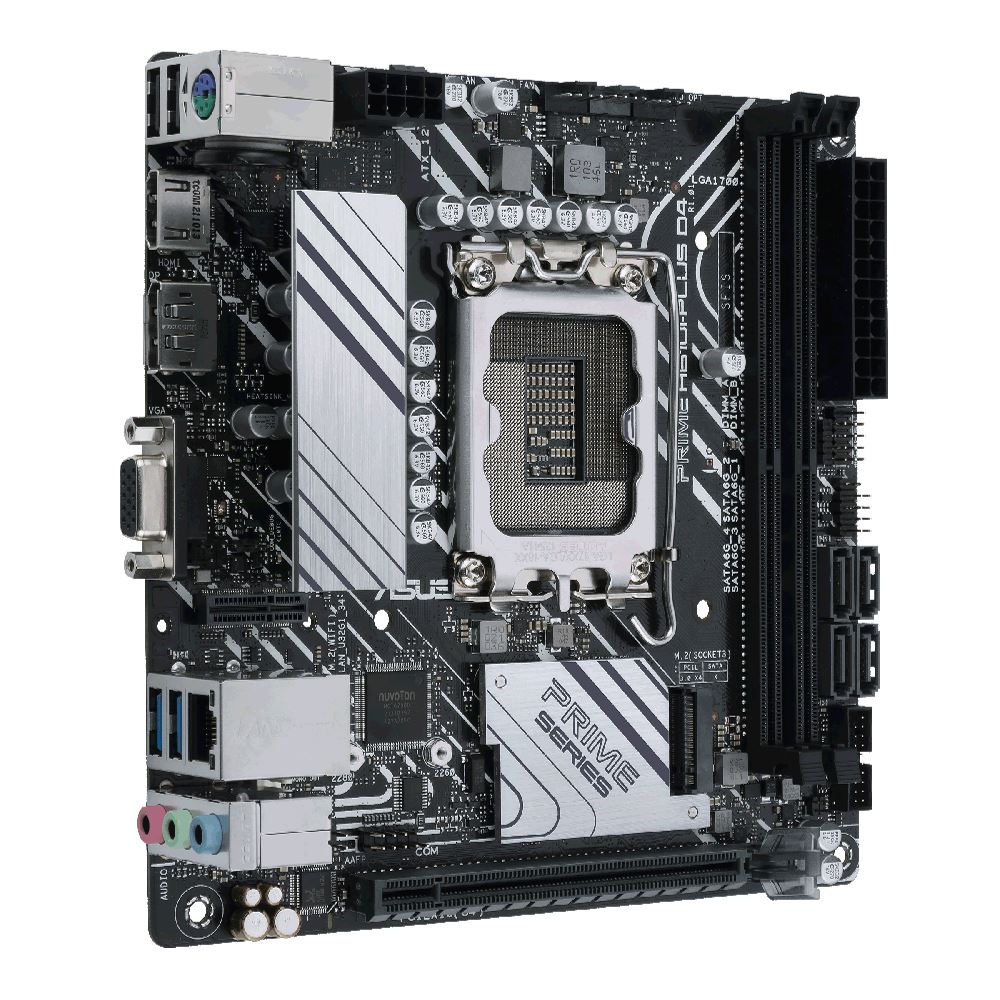

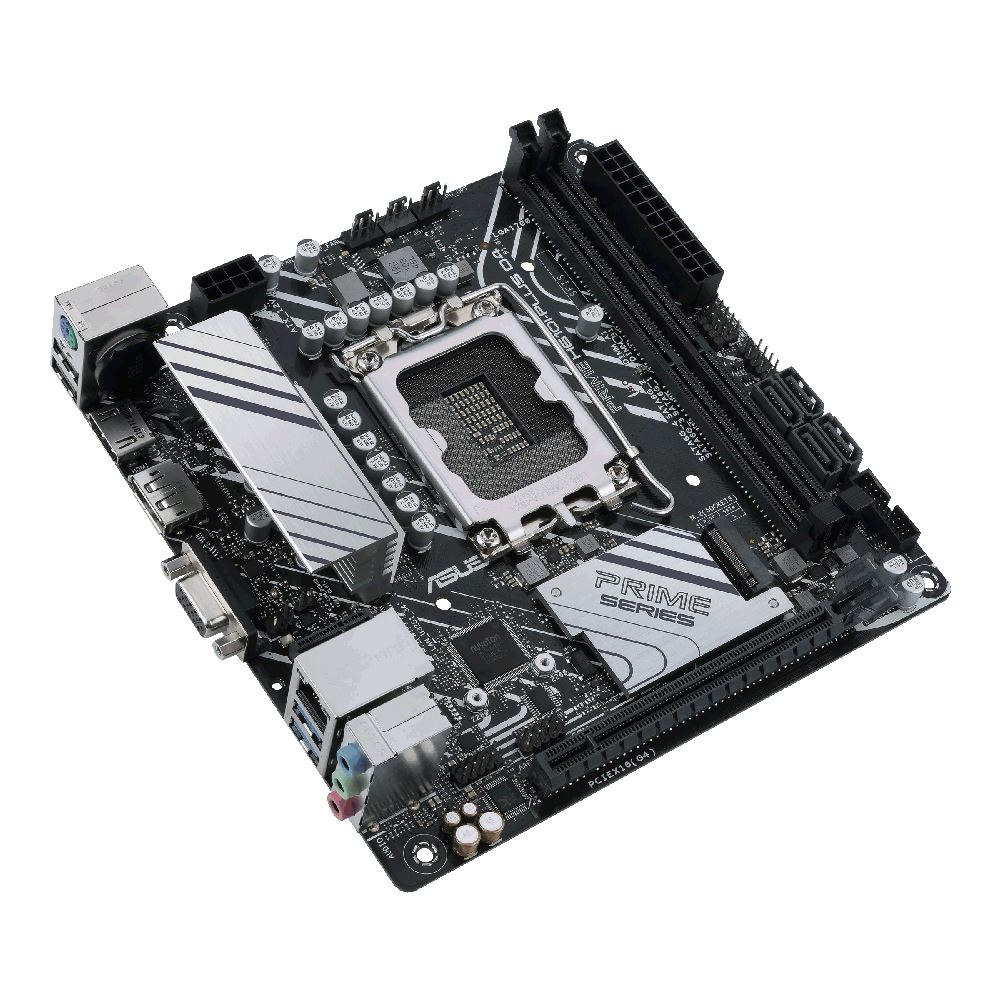

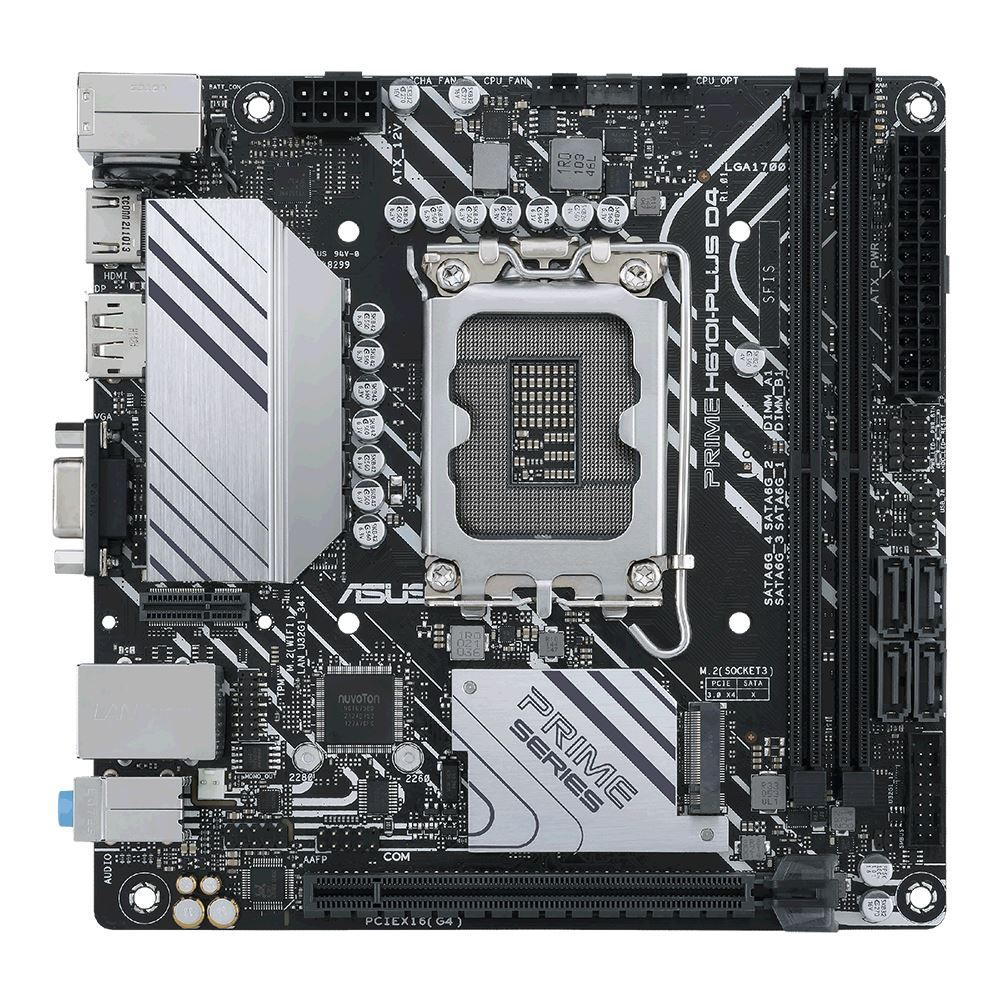

ASUS Prime H610I-PLUS D4-CSM ITX Motherboard for Intel LGA1700 CPUs

ASUS Prime H610I-PLUS D4-CSM ITX Motherboard for Intel LGA1700 CPUs

CCL Code: MBD3304

£113.99 inc VAT

  • ASUS Prime H610I-PLUS D4-CSM ITX Motherboard for Intel LGA1700 CPUs
  • ASUS Prime H610I-PLUS D4-CSM ITX Motherboard for Intel LGA1700 CPUs
  • ASUS Prime H610I-PLUS D4-CSM ITX Motherboard for Intel LGA1700 CPUs
  • ASUS Prime H610I-PLUS D4-CSM ITX Motherboard for Intel LGA1700 CPUs
  • ASUS Prime H610I-PLUS D4-CSM ITX Motherboard for Intel LGA1700 CPUs
  • ASUS Prime H610I-PLUS D4-CSM ITX Motherboard for Intel LGA1700 CPUs

Save 5% when you buy 3 or more eligible different items*

Intel® H610 (LGA 1700) Mini-ITX motherboard with DDR4 3200, PCIe 4.0, M.2 slot, Realtek 1 Gb Ethernet, DisplayPort, HDMI®, D-Sub, USB 3.2 Gen 1 ports, SATA 6 Gbps, COM header, Mono-out header with Amp IC

ASUS Prime H610I-PLUS D4-CSM ITX Motherboard for Intel LGA1700 CPUs

90MB1B20-M0EAYC

Intel® H610 (LGA 1700) Mini-ITX motherboard with DDR4 3200, PCIe 4.0, M.2 slot, Realtek 1 Gb Ethernet, DisplayPort, HDMI®, D-Sub, USB 3.2 Gen 1 ports, SATA 6 Gbps, COM header, Mono-out header with Amp IC

£113.99 inc VAT

Available for delivery from Tomorrow

Hurry, only 1 left!

Order within

Buying in bulk? Contact our business team.

Key Features:

  • ITX Form Factor
  • Intel H610 Chipset
  • Socket 1700
  • DDR4 (Max: 64GB / 2 slots)
  • 1 x M.2 & 4 x USB & 4 x SATA
  • HDMI, Display Port and VGA
CCL Code: MBD3304
Overview

ASUS Prime series motherboards are expertly engineered to unleash the full potential of 12th Generation Intel® processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime H610 provides users and PC DIY builders a range of performance tuning options via intuitive software and firmware features.

ASUS Corporate Stable Model

ASUS Corporate Stable Model (CSM) is a commercial program designed to provide stable and reliable motherboards. Offering up to 36-month product lifecycle support and 6-month end-of-life notice to allow sufficient lead times for your organization to get ready for product transitions. Each purchase of an ASUS CSM motherboard comes with ASUS Control Center Express - server-grade IT management software.

* Lifecycle support, program offering and supply status may vary by region. Please consult your local sales representative for more information.

ASUS Control Center Express

ASUS Control Center Express is an integrated IT monitoring and management software designed to deploy faster, simplify IT operations and improve productivity with comprehensive control and user-friendly functions. ASUS Control Center Express is compatible with over 100 ASUS motherboards to provide a high-quality, TCO-optimized solution for your business needs.

Optimize IT endpoint management

Designed to assist IT staff in monitoring and controlling devices within their corporate networks, and facilitate inventory checking in multiple locations remotely

Automate IT maintenance

Allows IT staff to schedule automatic updates of the latest BIOS, software and utilities to specific or all devices at off-peak times, enhancing system stability and IT operational flexibility

Securely manage all of endpoints

Securely manage endpoint configuration, portable storage access and PC software applications by enabling them to create grouping rules on individual devices

FLEXIBILITY

Comprehensive controls form the foundation of the ASUS Prime series. The Prime H610 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.

Intelligent Control

All-Around Energy Efficiency

The Energy Processing Unit (EPU) automatically optimizes power consumption and maximizes energy savings with Away mode — a smart setting that creates an extreme energy-saving scenario by shutting down unused I/O controllers.

Flexible cooling controls

Prime 600 Series motherboards offer comprehensive control over system fans, via the included Fan Xpert software. Auto-Tuning mode intelligently configures all parameters with a single click.

Precise Digital Power Control

The Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, automatically switching frequency and power-efficiency settings. It also allows you to fine-tune your CPU for ultimate stability and performance.

UEFI BIOS

The renowned ASUS UEFI BIOS provides everything you need to configure, tweak and tune your system. It offers intelligently simplified options for PC DIY beginners, as well as comprehensive features for seasoned veterans.

Advanced Tuning for Serious Tweakers

An intuitive Advanced mode offered via the UEFI lets you take complete control. A built-in search feature makes it easy to find options, and various advanced functions let you intelligently make nuanced adjustments so you can dial in performance just the way you want.

Quick and Simple Setup

EZ mode displays vital settings and stats and also offers guided wizards, drag-and-drop functionality, and one-click application of important settings — all to help you get your rig up and running in no time.

COOLING

Prime H610 series are engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.

Heatsinks

VRM Heatsink and Thermal Pad

VRM heatsink and thermal pad improve heat transfer from the MOSFETs and chokes for better cooling performance.

Cooler by Design

Prime H610 series feature comprehensive cooling controls that are configurable via Fan Xpert software or via the UEFI BIOS.

Multiple Temperature Sources

Each header can dynamically reference three thermal sensors. Fan Xpert allows you to map the temperature of supported ASUS graphics cards to optimize cooling for GPU- and CPU-intensive tasks.

Smart Protection

A dedicated integrated circuit protects each fan header from overheating and overcurrent.

4-Pin PWM/DC Fan

Each onboard header supports auto-detection of PWM or DC fans.

PERFORMANCE

Prime H610 series are built to handle the additional cores and increased bandwidth of 12th Generation Intel® processors. ASUS H610 motherboards provide all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible transfer options.

Storage

M.2 slot (up to 32 Gbps)

Prime H610I-PLUS D4 offers one M.2 slot that support data-transfer speeds of up to 32 Gbps via PCIe 3.0, enabling quicker boot-up and app load times with OS or application drives.

* Actual transmission speeds will be lower than the theoretical maximum speed.

Connectivity

PCIe® 4.0

Prime H610 motherboards are designed specifically for 12th Generation Intel® Core™ CPUs and offer PCIe® 4.0 connectivity for the latest GPUs. The wide bandwidth and superfast transmission speeds allow you to create feature-rich builds that can handle high loads effortlessly.

USB 3.2 Gen 1

Numerous USB ports support high-end rigs loaded with peripherals, including rear-panel USB Type-A ports with fast USB 3.2 Gen 1 connectivity for compatible cases.

V-M.2 Slot Key E for Wi-Fi

PRIME H610I-PLUS D4 comes along with an vertical M.2 (Key E) slot and ASUS exclusive Wi-Fi card holder which provide you the flexibility to upgrade your networking solution by installing an M.2 Wi-Fi/Bluetooth module.

CUSTOMIZATION

Prime H610 series add the nuanced details that improve every experience, from exclusive codecs that provide pristine audio quality to intuitive RGB lighting controls that let you customize your system to create a uniquely personal look.

Personalization

Armoury Crate

Armoury Crate is a ASUS-exclusive software utility designed to give you centralized control of supported products. From a single intuitive interface, Armoury Crate allows you easily customize fan curve for each connected fan via FAN Xpert utility. The software also provides control of settings for ASUS product, including keyboard and mouse preferences. Armoury Crate even features dedicated product registration and highlight to help you stay in touch with the ASUS community.

DIY Friendly

Fortified PCIe slot prevents damage

SafeSlot Core is the ASUS-exclusive PCIe slot. Featuring a fortified design that's anchored to the motherboard by a special hook, SafeSlot Core provides 1.6x stronger retention and 1.3x greater shearing resistance than standard expansion slots.

Main Features

  • Intel LGA 1700 socket: Ready for 12th Gen Intel Core processors
  • Enhanced power solution: 5+1+1 DrMOS power stages, 8-layer PCB, for stable power delivery
  • Comprehensive cooling: VRM heatsink, PCH heatsink and Fan Xpert
  • Ultrafast connectivity: 32Gbps M.2 slot, Realtek 1 Gb Ethernet and USB 3.2 Gen 1 ports
  • 5X Protection III: Multiple hardware safeguards for all-round protection
Promotions

Get 5% off PC Components, Peripherals and selected Monitors when you buy three or more*

USE CODE: UPGRADE5 at checkout

For a limited time only, buy at least three different PC components or Peripherals from different qualifying categories and get 5% off those items when you use code UPGRADE5 at checkout. *Terms & Conditions apply.

Qualifying categories are Processors, Motherboards, Desktop Memory, Solid State Drives, Hard Disk Drives, Power SuppliesCPU CoolersCases, MonitorsKeyboards, Mice, HeadsetsLaptop Cases and Bags.


Promotional Period: From 3rd June 2024 till 16th June 2024.

Terms and Conditions

Cannot be combined with any other offer. UK residents only. Offer available on products in qualifying categories. Discount will apply to three or more items bought from separate categories (e.g. one processor, one motherboard and one keyboard). It will not apply to multiples from categories (e.g. three graphics cards).

Discount will be applied to the items in your basket when you enter the promo code UPGRADE5 at the checkout stage - please double-check your basket to ensure the offer applies correctly when prompted to add a discount code.

Offer does NOT apply to systems that have such components. CCL reserve the right to end this offer at any time. Offer may not be substituted, exchanged, sold, or redeemed for cash or other goods or services. Offer only available on orders placed on CCLonline.com - offer is not available via telephone or our eBay or Amazon stores.

Promotional Period: until till June 16th 2024.

Specifications

CPU

CPU Socket Socket 1700
CPU Brand Intel
Installed Processors (Max) 0 (1)
Supported Processor Manufacturer Intel
Supported Processors 12th Gen Intel Core, Pentium Gold and Celeron Processors
64-bit Support Yes
Socket LGA1700

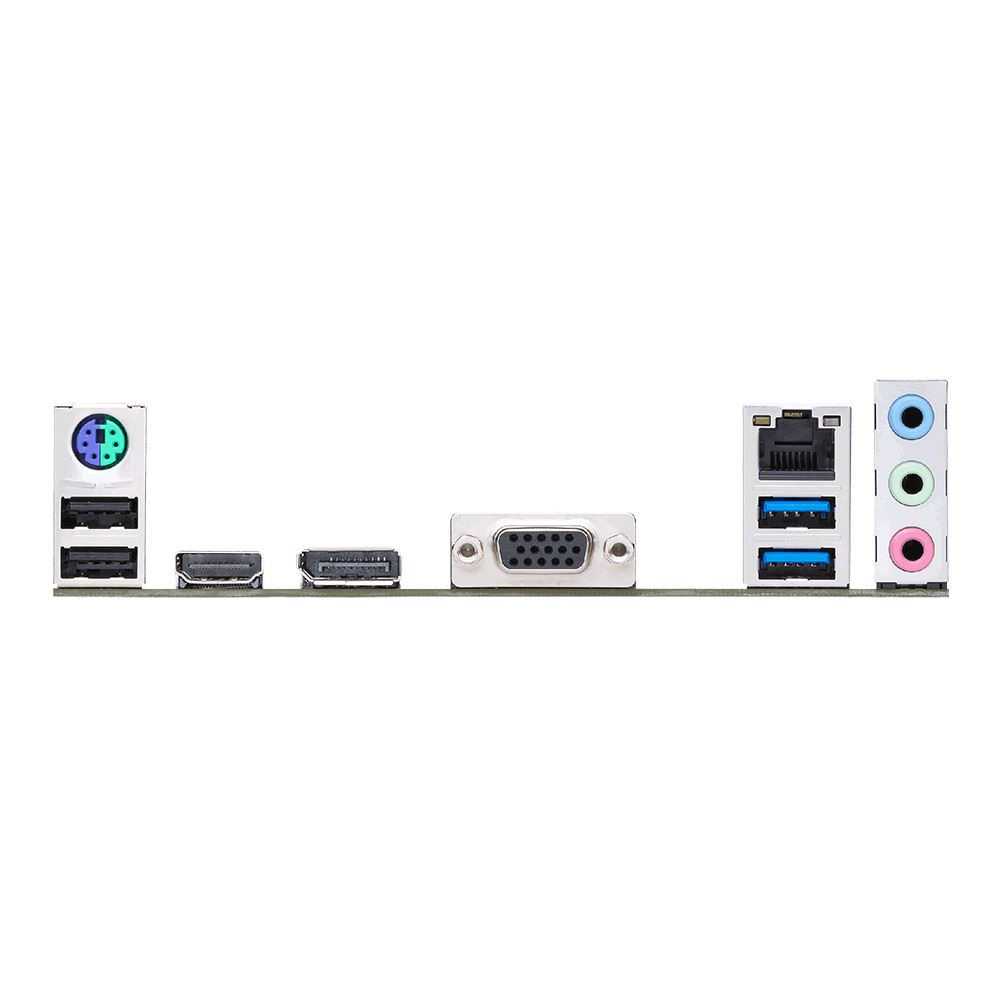

Rear Panel I/O Ports

USB Ports 2 x USB 3.0
2 x USB 2.0
DisplayPorts 1 x DisplayPort 1.4
HDMI Port 1 x HDMI 2.1
VGA Port 1 x D-Sub
Keyboard/Mouse Combo Port 1 x PS/2
RJ-45 Ports 1 x RJ-45
Audio Line In Ports 1 x 3.5mm Jack
Audio Line Out Ports 1 x 3.5mm Jack
Microphone In Port 1 x 3.5mm Jack

Internal I/O Connectors

SATA Connectors 4 x SATA III
USB Connectors 1 x USB 3.0 header (supports 2 ports)
1 x USB 2.0 header (supports 2 ports)
Speaker 1 x Speaker header
Front Panel Connectors 1 x Front Panel
1 x Front Audio
Cooling Fan Support 1 x CPU fan header
1 x CPU OPT fan header
1 x Chassis fan header
Serial Connectors 1 x COM header
TPM Header 1 x SPI TPM header
Power Connector Port 1 x 24-pin ATX
1 x 8-pin EPS
Other Connectors 1 x M.2 slot, Key M, Type 2260/2280 (PCIe Gen3)
1 x M.2 slot, Key E, for Wi-Fi Module only
1 x Mono-out header

Memory

Memory Bus Speed Up to 3200 MHz
Memory Type DDR4
Maximum RAM 64 GB
Memory Slot 2 x DIMM

Motherboard

Northbridge Intel H610
RAID Supported No
SATA Supported Yes

Expansion

Number of PCI Express Slots 1 x PCI Express 4.0 x16 slot

Graphics Device

Integrated Graphics Supported Yes

Warranty

Warranty 3 Years

Sound

Integrated Sound Realtek

Network

Integrated Network Realtek
Network Speeds Supported Up to 1 Gbps
Wireless LAN No
Bluetooth No

System Requirements

Operating Systems Supported Microsoft Windows 11 / 10 64-bit

System

Jumpers 1 x Clear CMOS
Software Included (may be trial or restricted) Yes
Drivers Yes

Physical

Form Factor Mini-ITX Motherboard
In The Box Motherboard
2 x SATA Cables
I/O Shield
M.2 Screw Package
Vertical M.2 Key E Bracket Set
Support DVD
User Guide
Width 170 mm
Length 170 mm

Key Features

Wireless Network No
Motherboard Width 170 mm
Motherboard Height 170 mm
Chipset Manufacturer Intel
Memory Channel Dual
On-board Audio Type 7.1
Number of SATA Ports 4 port(s)
Number of USB Ports 4 port(s)
SATA III Support Yes
USB 3.0 Support Yes
Multi GPU Support No
VGA Connection Yes
DVI Connection No
HDMI Connection Yes
DisplayPort Connection Yes
Motherboard Form Factor ITX
Motherboard (EPS) Power Connectors 4+4-Pin
Motherboard Chipset Intel H610
Thunderbolt No
Motherboard Model ASUS Prime H610I-PLUS D4-CSM
USB 3.1 Support No
Internal USB3.0 Header Yes
M.2 Support Yes
On-board RGB Control None
Memory Speed 3200 MT/s
RGB Header Type None
Addressable RGB No
Internal USB Type-C Header No
Power Requirement (auto) 30 W
Max Memory Speed Supported (Non-overclocked) 3200 MT/s
Max Memory Speed Supported (overclocked) 3200 MT/s
CPU Power Pins (female) 8
Total M.2 Slots 1
Maximum NVMe M.2 ports 1
SATA ports 4
No. of front USB2.0 ports supported 2
No. of front USB3.0 ports supported 2

Item Details

Manufacturer ASUS
Manufacturer Code 90MB1B20-M0EAYC
EAN 4711081755753
UPC 195553755757
Condition New
Warranty

Warranty Information

Warranty 3 Years

Manufacturer Information

Manufacturer ASUS
Manufacturer Code 90MB1B20-M0EAYC
